CAME BPT PEC User manual
Door Entry System
Indoor Receiver
PEC
USER MANUAL
EN
English
FB00855-EN
Page 2- Manual code FB00855-EN - ver. 1-
07/2017
- © Came S.p.A - The contents of this manual are subject to change at any time without prior notice.
Function of buttons
Adjustment of ringtone volume (high-medium-O).
Red LED on = ringtone o.
Activation/Deactivation of communication.
Blue LED on = active communication.
Door lock release (blue LED).
In systems designed to accommodate this signal, during a call from an entry
panel, the permanently lit LED indicates that the door is open.
Intercom 1 (blue LED)
Intercom 2 (blue LED)
Auxiliary 1 (blue LED).
The function may also be available when there is no active communication,
where the system permits it
Auxiliary 2 / Concierge call (blue LED).
The function may also be available when there is no active communication,
where the system permits it.
Only use soft, dry or slightly damp cloths to clean the terminal; do not use any chemical
products.
This product complies with the relevant directives in force.
Decommissioning and disposal. Dispose of the packaging and the device at the end of its life
cycle responsibly, in compliance with the laws in force in the country where the product is used.
The recyclable components are marked with a symbol and the material’s ID marker.
THE DATA AND INFORMATION SHOWN IN THIS MANUAL ARE TO BE CONSIDERED AS
SUBJECT TO CHANGE AT ANY TIME AND WITHOUT THE NEED FOR ANY ADVANCE WARNING.
MEASUREMENTS, UNLESS OTHERWISE INDICATED, ARE IN MILLIMETRES.
Page 3- Manual code FB00855-EN - ver. 1-
07/2017
- © Came S.p.A - The contents of this manual are subject to change at any time without prior notice.

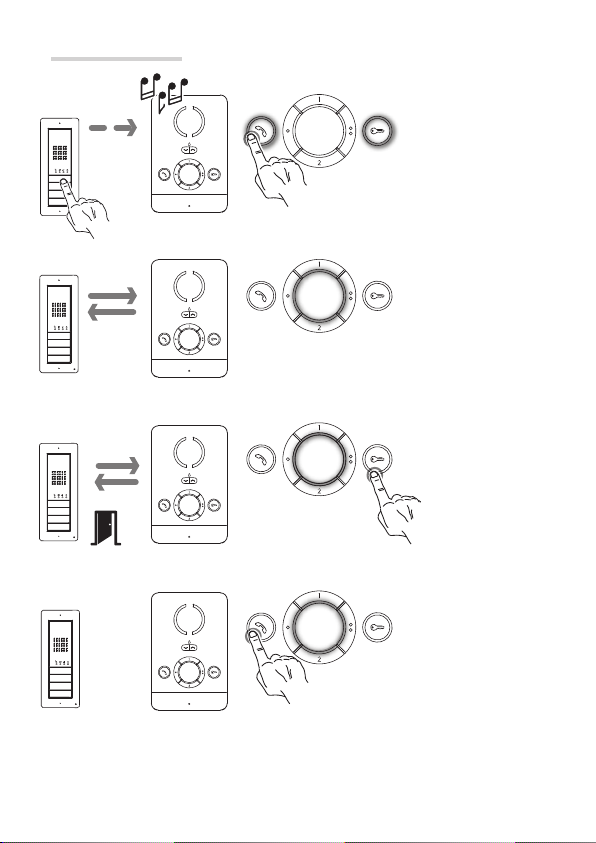

Standard functions
Answering a call.
Active communication.
Opening the door of
the entry panel that is
calling.
Ending the
communication
1
1 2
2
Page 4- Manual code FB00855-EN - ver. 1-
07/2017
- © Came S.p.A - The contents of this manual are subject to change at any time without prior notice.

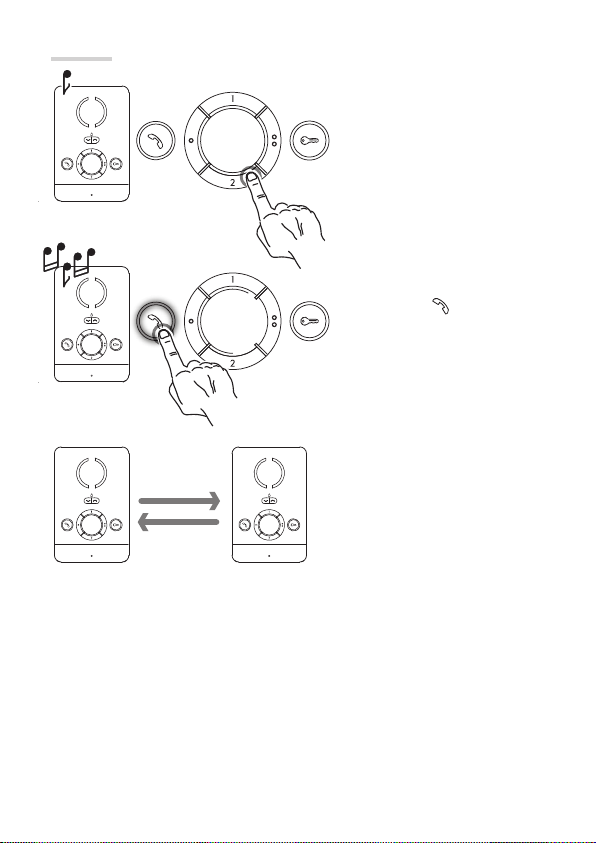

Intercom
Select the extension that you
want to call; the line free tone
indicates that the call has been
forwarded.
3 successive beeps indicate
that it is not possible to make
calls because the line is busy.
The receiver being called rings.
Press the key on the
receiver that is called to
activate the communication.
Internal receivers 1 and 2 are
in communication.
During a conversation
between extensions, a
call from an entry panel is
signalled to the receivers by
a beep that is repeated every
5 seconds.
1
1
12
2
Page 5- Manual code FB00855-EN - ver. 1-
07/2017
- © Came S.p.A - The contents of this manual are subject to change at any time without prior notice.
Call transfer
With an active
communication, select
the extension you wish to
transfer the call to; the line
free tone indicates that the
call has been forwarded.
The receiver being called
rings.
Press the key on
the receiver that is
called to activate the
communication.
Internal receivers 1 and 2
are in communication, the
entry panel is waiting.
Press the key on
receiver 1 to end the
communication with the
entry panel and transfer the
call to receiver 2.
The receiver that receives
the call can also transfer it.
call n2
CALL ME
call n2
CALL ME
Page 6- Manual code FB00855-EN - ver. 1-
07/2017
- © Came S.p.A - The contents of this manual are subject to change at any time without prior notice.
Call from concierge notification
☞Function available only on systems with concierge's desk.
Request for call to concierge
☞Function available only on systems with concierge's desk.
An unanswered call from
the concierge's desk is
marked by the Aux2 LED
lighting up.
The notification goes out
when communication with
the concierge begins.
Pressing the Aux2 button
sends a request for call
back to the concierge.
C
F
D
G
A
X 5
beep
B
H
5
I
X 5
beep
Page 7- Manual code FB00855-EN - ver. 1-
07/2017
- © Came S.p.A - The contents of this manual are subject to change at any time without prior notice.
Setting melodies
☞All the programming stages described below must be carried out in sequence:
1- Going into Programming.
Press button 5 times in 5 secs 1.
A short beep confirms that you have entered
programming mode.
2- Programming the melody associated with a
call from the entry panel.
To listen to the melodies in sequence, press key 2.
To select the melody and exit programming, press
key 3.
To select the melody and continue with programming,
press key 4.
3- Programming the melody associated with a
call from the front door.
To listen to the melodies in sequence, press key 5.
To select the melody and exit programming, press
key 6.
To select the melody and continue with programming,
press key G.
4- Programming the number of rings for the call.
Press key 8 as many times as you want it to ring
(from 1 to 6 rings). Three seconds after the last press
of the key the call selected for the chosen number of
rings will be played back.
To exit programming, press key I.
☞See the entry panel documentation for call
programming.
