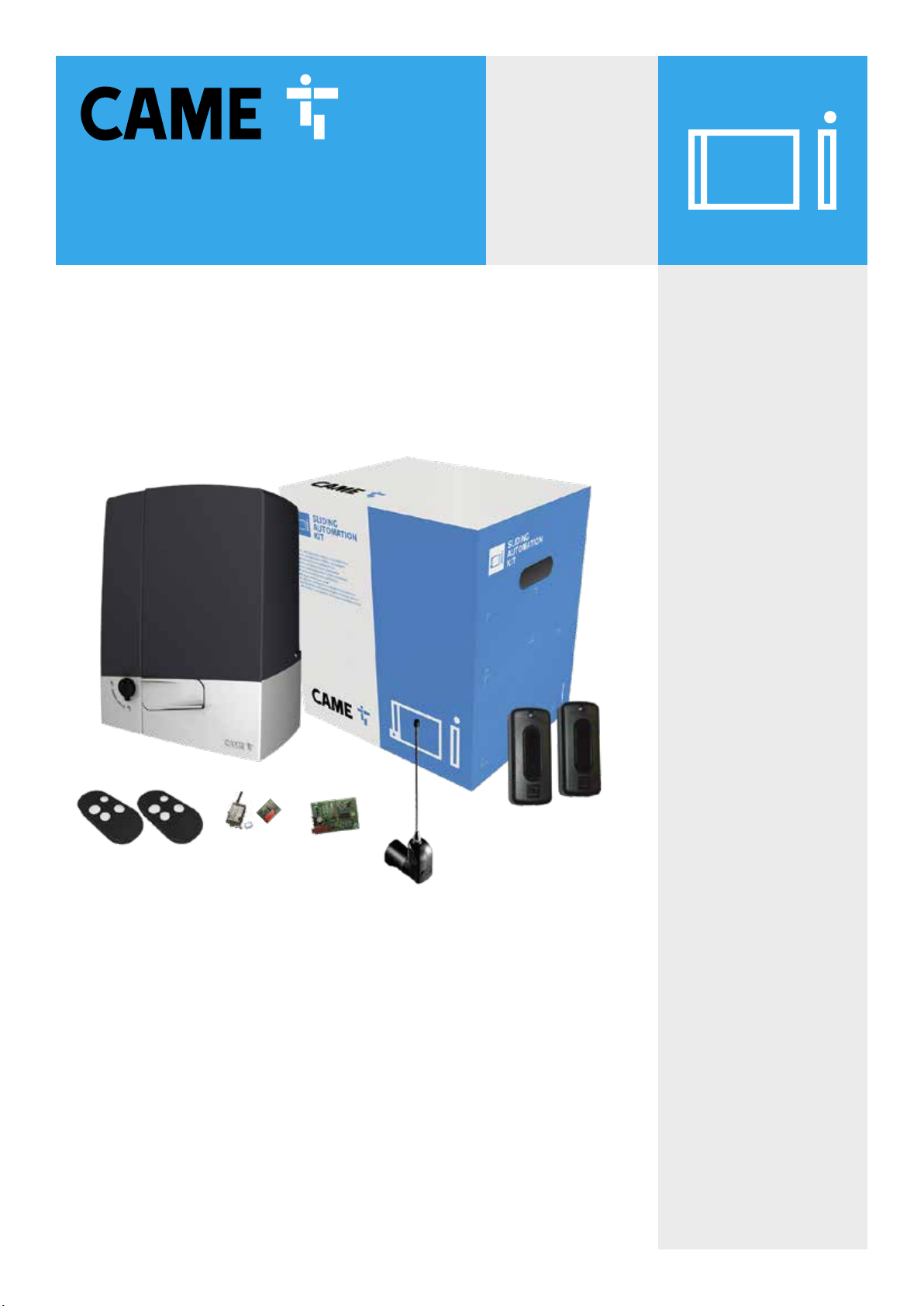

CAME BXV600GS User manual

CAME.COM/UK

BXV600GS

kit

Complete kit for a sliding gate weighing

up to 600kg / max. width 18m

QUICK SETUP GUIDE

TO BE READ IN CONJUNCTION WITH THE FULL INSTRUCTION MANUAL

CONTENTS

AF43S

Radio Frequency Card

BXV06AGS

Motor with built-in ZN7

control panel

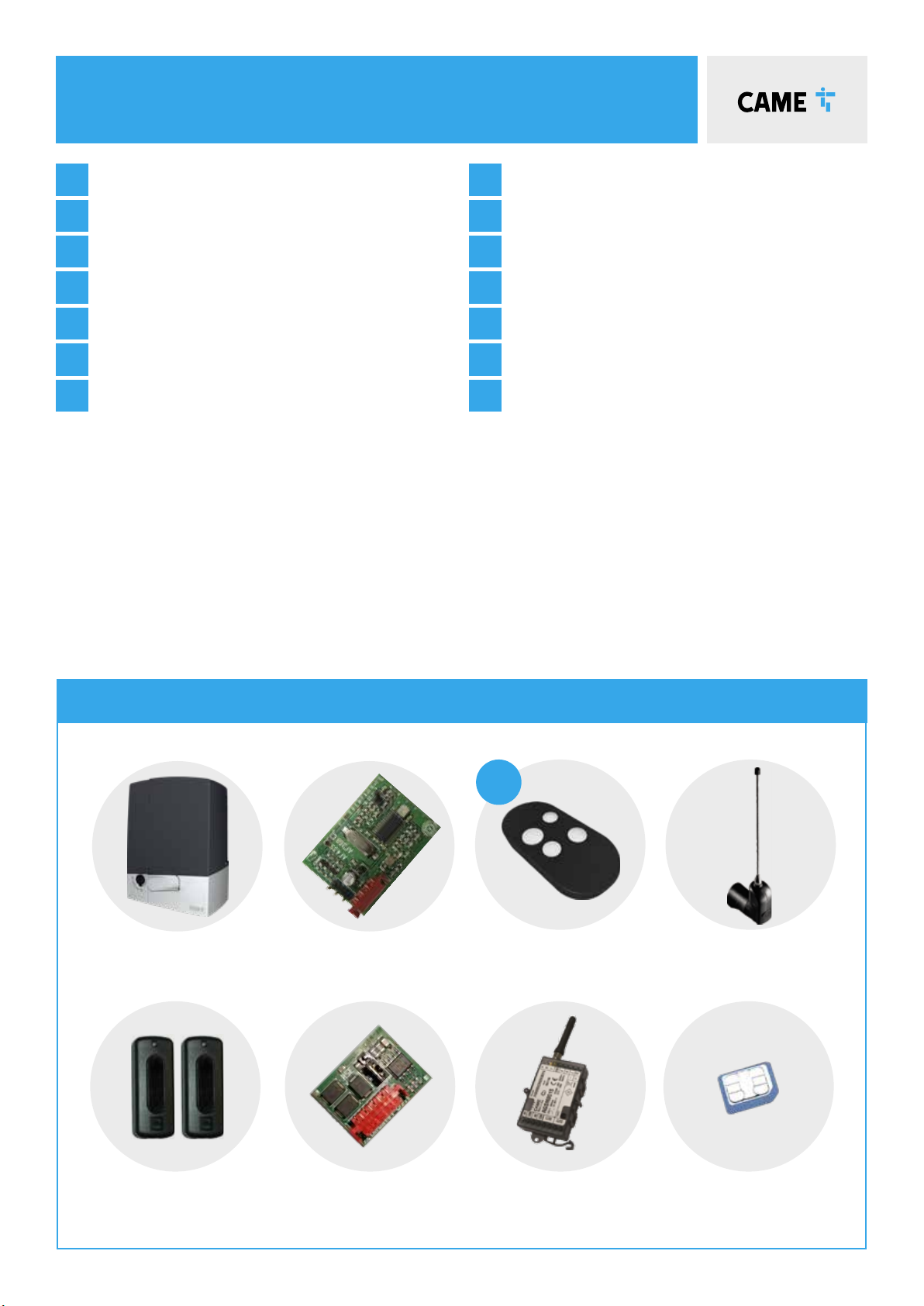

BXV600GS: KIT CONTENTS

DIR10

Pair of Photocells

top-a433n

Tuned Antenna

topd4rks

Rolling code Transmitter

RGSM001S

Gateway Module

RSE

Connection Card

SIM

May be preinstalled in

RGSM001S

1Kit Contents

2Safety Instructions

3Typical Gate Setup

4Geometry

5Manual Release Instructions

6Wiring Diagram

7Pre-installed SIM Card

8Initial Power On

9Commissioning the RGSM

10 Commissioning via App

11 Commissioning via Panel

12 Safety Options

13 Replacing the SIM Card

14 Optional Accessories

2SAFETY INSTRUCTIONS

When correctly installed in compliance to installation instructions and adhering to all

current electrical, mechanical and manufacturer regulations, your automation system

will provide a high degree of safety and problem free operation.

Please take note of the following warnings that must be followed in order to

prevent accidents during your gate operation:

• Do not allow children to play near the gate.

• Keep all remote control operating devices out of the reach of children.

• Do not pass through the gate whilst in operation. Wait until they are fully open before passing through.

• Do not stop unnecessarily when passing through the gate.

• Keep feet away from the bottom of the gate during operation.

• Do not operate the gate by remote control unless they are in view.

• Do not attempt to block or interfere with the gate movement during operation.

• Under no circumstances should you attempt to modify the gate automation system.

• Ensure that your gate is serviced at 3 to 12 month intervals (dependent on number of openings) by your installation/

maintenance company.

• Report any signs of malfunction to your installation/maintenance company immediately.

• In the case of malfunction, isolate the power supply, release any additional locking mechanism, manually open the

gate (see manual release instruction booklet) and call your installation/maintenance company.

• If you are in any doubt regarding the operation of your gate, call your installation/maintenance company.

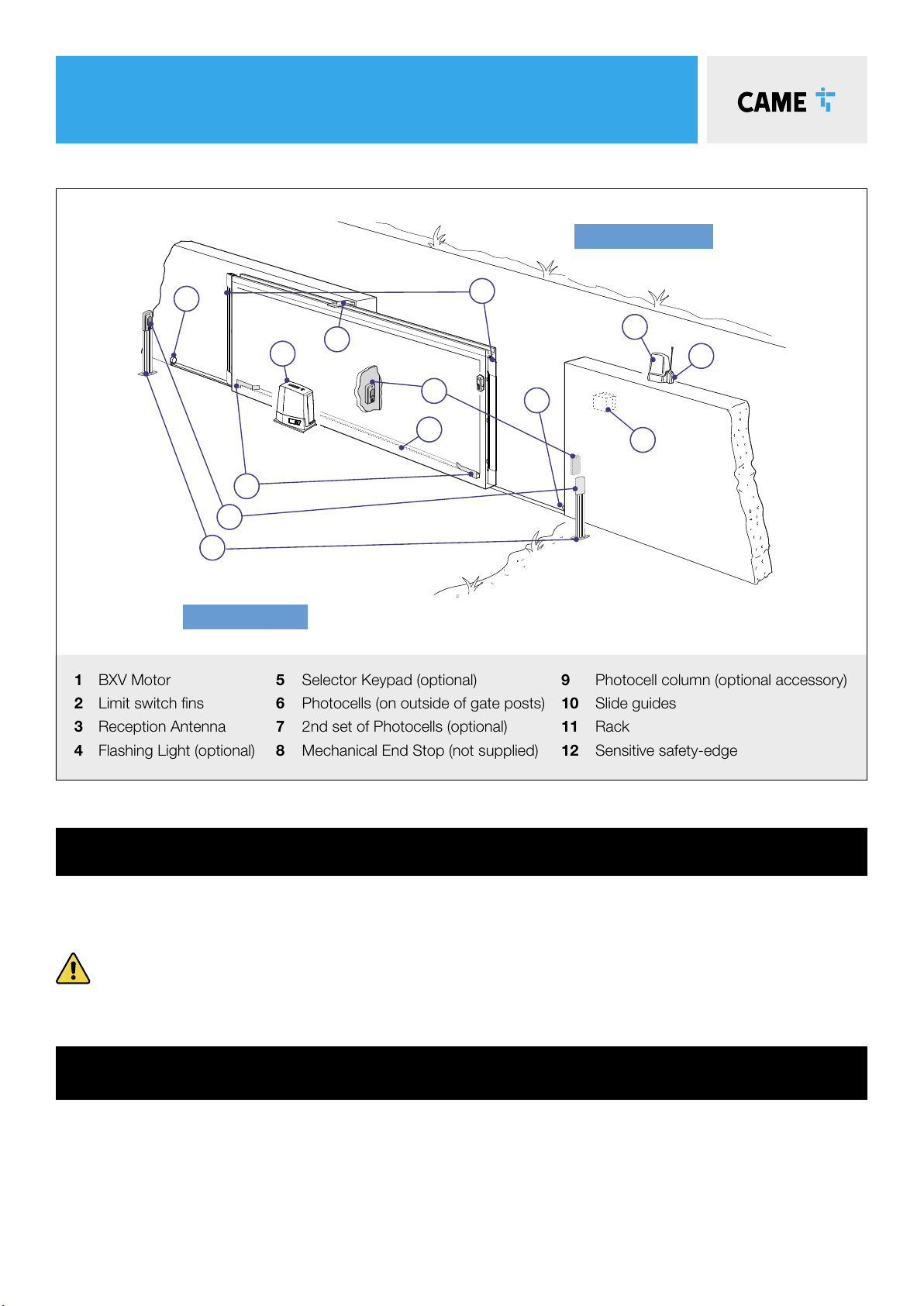

3 TYPICAL GATE SETUP

PHOTOCELLS

• The photocells are used in pairs, one transmitter and one receiver.

• They should be installed between 500-600mm from the ground, facing each other.

• Power for the photocells is taken from the control panel 24v AC.

• The maximum range of the photocell should always be observed.

When the photocell beam is broken, the control panel can be programmed on how to react.

Please see ‘Safety’ section for more information.

OUTSIDE OF GATES

INSIDE OF GATES

1BXV Motor 5Selector Keypad (optional) 9Photocell column (optional accessory)

2Limit switch ﬁns 6Photocells (on outside of gate posts) 10 Slide guides

3Reception Antenna 72nd set of Photocells (optional) 11 Rack

4Flashing Light (optional) 8Mechanical End Stop (not supplied) 12 Sensitive safety-edge

CONTROL PANEL

• The control panel is integral to the motor and is accessed by removing the outer cover.

• The control panel is protected by a board-protection cover which will need to be removed for initial wiring.

Only a competent service provider should open the enclosure

and adjust the settings.

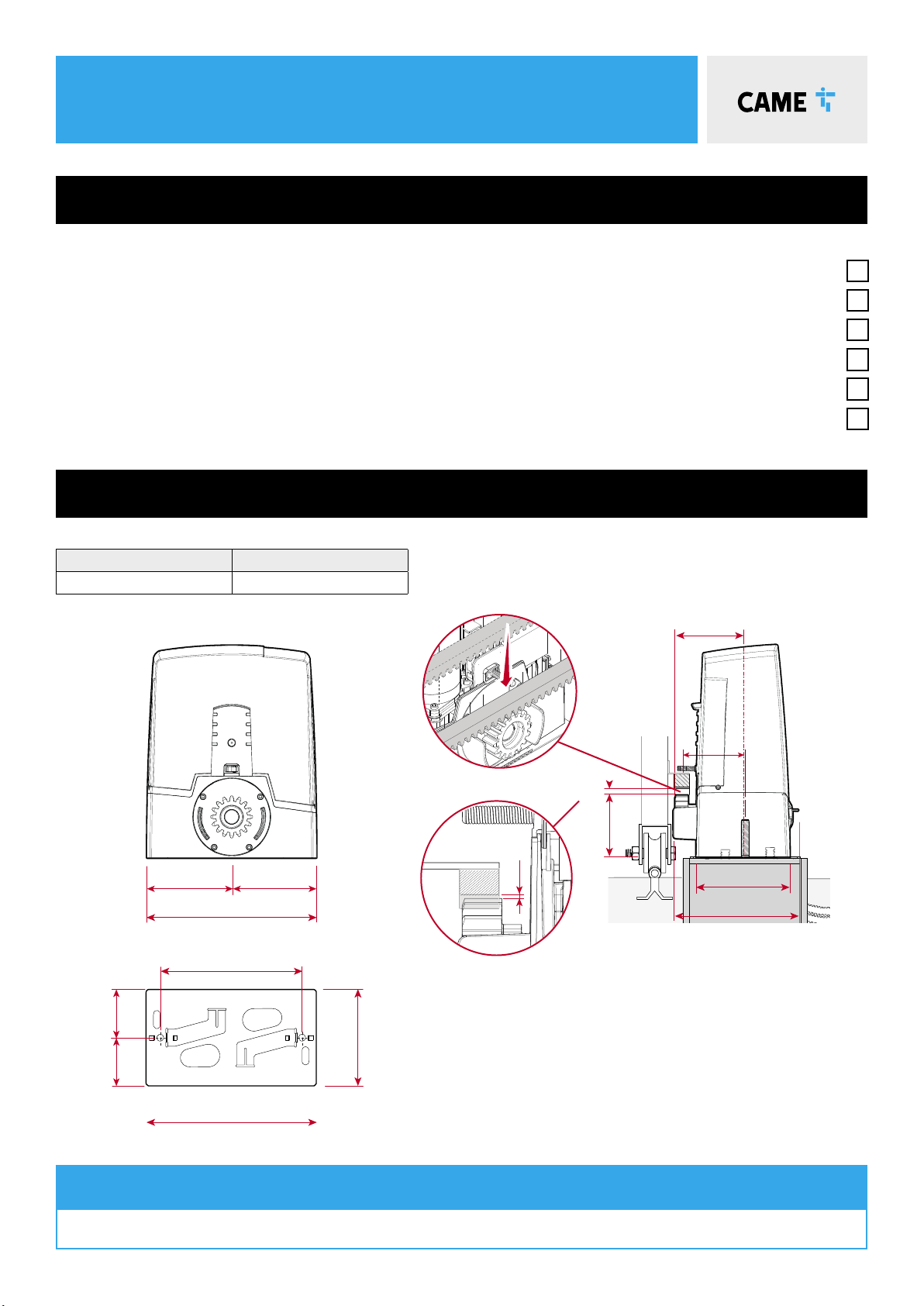

4 GEOMETRY

Max Leaf Length (m) Max Leaf Weight (kg)

18 600

Preliminary checks

gate GEOMETRY

Tick

1. Ensure that all surfaces are perfectly level (Do not install on slopes)

2. Foundation frame dug out

3. Set up the corrugated tubes needed for the wiring coming out of the junction pit.

4. Use Ø 40 mm corrugated tubes to connect the gearmotor to the accessories

5. Prepare a Ø 20 mm tube to run the release cord through A.

6. Use Ø 40 mm corrugated tubes to connect the gearmotor to the accessories

The number of tubes depends on the type of system and the accessories that are going to be tted

INSTALLATION

Please refer to the full manual for installing the motor, rack and setting travel end points

290

145 145

300

170

250

85 85

212

160

106

1-2mm

117

1-2mm

1-2mm. The rack and pinion should mesh.

Do not allow the rack to rest on the pinion.

The gate motor must be installed parallel to the gate.

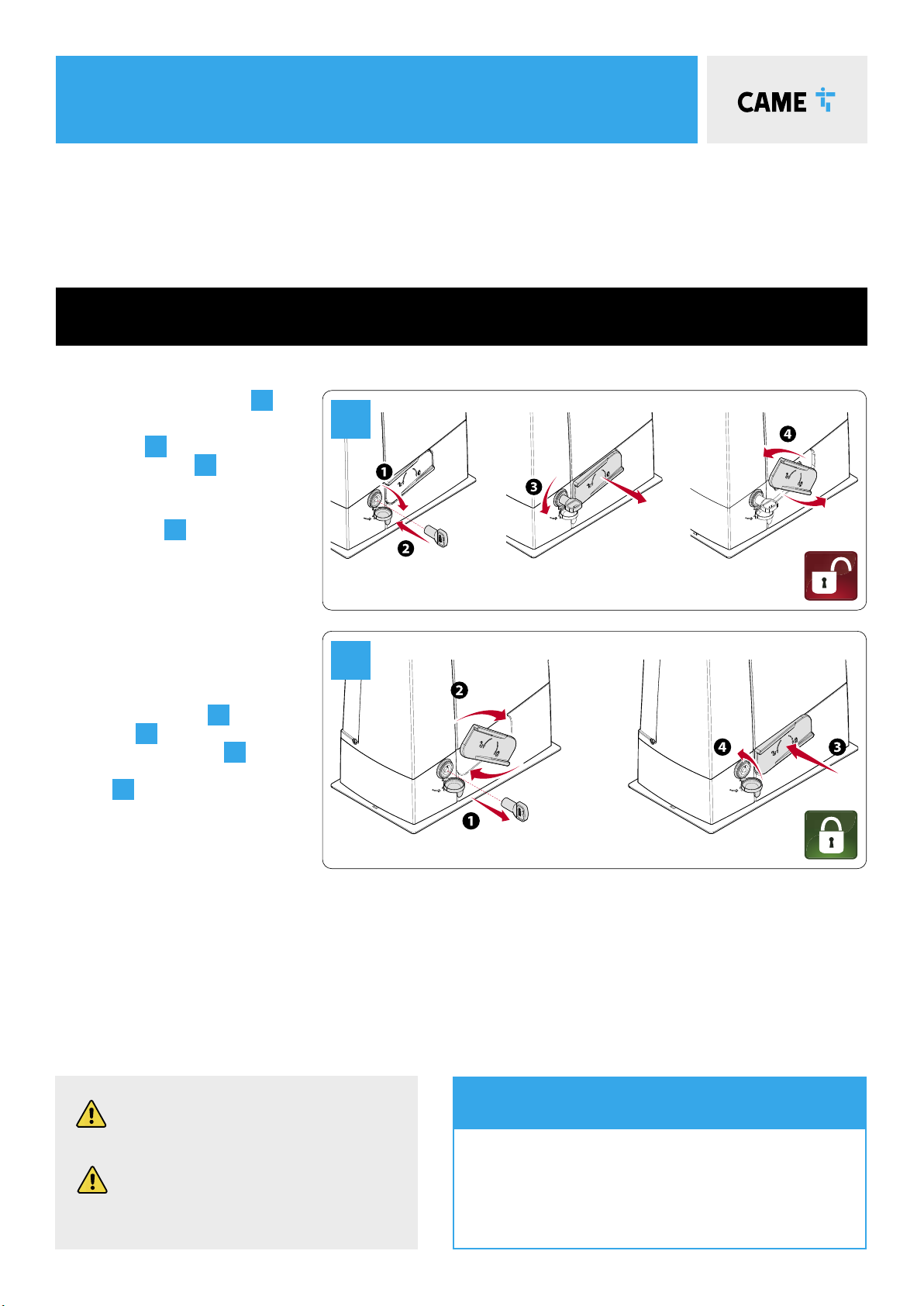

5 MANUAL RELEASE

To manually release the gates:

1. Open the lock cover cap A1 .

2. Insert the triangular key

provided A2 and turn to

release the lever A3 .

3. Turn the lever to the vertical

position to release the gate

mechanism A4 .

4. With your other hand ﬁrmly

open the gate. The gate

should be manually released.

Now fully open the gate

carefully at the same speed

as the automatic operator.

5. To re-engage, close the gate

and return the lever to the

horizontal position B2 and

push in B3 while turning the

key to lock it in pace B1 .Take

the key out and replace the

cap B4 .

6. Attempt to manually move

the gate to ensure it is fully

engaged.

The BXV sliding gate operator has a manual release system which pops out when the

motor is unlocked.

Basic Maintenance: Hints & Tips

• If a ground track is ﬁtted, ensure the track is always

clear of debris.

• Lubricate manual release compartment and key

mechanism.

• Manually release the gates at least once per month.

ALWAYS isolate the power supply as

instructed by your installer (even in a

power cut).

Release any additional locking

device ﬁtted to the gate (eg. electric

lock etc).

6 wiring diagram

ZN7

Control Panel

+ -

10 2 TX C NC TX 2

RX TX

DIR

Photocells

Cable/length

RX 4 Core 0.5mm Flex

TX 4 Core 0.5mm Flex

1m - 30m

1 2 3P 7 10 TS 2 CX CY

M N

FC FA F + E -

L N

AGNDBA BS1 GND

10 11 E 5Z4 C

AF43S

Plug-in

TOP-A433N

Antenna

Cable/length

RG58

Max. 5m

RSE

Set RSE jumper

to OFF

1 2 3P 7 10 TS 2 CX CY

M N

FC FA F + E -

L N

AGNDBA BS1 GND

10 11 E 5Z4 C

RGSM001S

Gateway Module

Cable/length

Max 3m power

10 2 A B GND

Mains Supply

230 V AC

Cable/length

1m - 20m = 3 Core 1.5mm Flex

20m - 30m = 3 Core 2.5mm Flex

TITLE7pre-installed sim card

The pre-installed SIM card is an IOT/M2M multi SIM complete with 480MB data allowance and 3 year life term.

Under average usage of 3-4 gate manoeuvres per day, the data should last approximately 3 years.

In case you use up the 480MB data volume before the end of the 3-year term, you can easily add another 480MB data

volume by making a top-up, details of which can be found here:

www.cameconnect.co.uk/gsmmodule

Due to situations outside of our control, CAME cannot guarantee signal strength or availability and therefore will not be

held liable for lack of service.

came automation

internet

came cloud

setup app

for the installer

GET IT ON

App Store

GET IT ON

automation app

for the end user

GET IT ON

App Store

GET IT ON

System Frequency Approx. Movements Est. SIM Life Based on Usage

Occasional Usage Approx. 5 gate manoeuvres per

week

4-7 Years*

Average Usage** Approx. 3-4 gate manoeuvres

per day

3-4 Years

High Usage Approx. 5+ gate manoeuvres per

day, multiple scenarios running

1-3 Years

* SIM will expire after 3-4 years. (CAME guarantees 3 years with some tolerance for shelf life consideration)

** We anticipate SIM provided will have sufﬁcient data for Average Usage (as shown above) lasting approx. 3 years

TITLE

7pre-installed sim card

The pre-installed SIM card is an IOT/M2M multi SIM complete with 480MB data allowance and 3 year life term.

Under average usage of 3-4 gate manoeuvres per day, the data should last approximately 3 years.

In case you use up the 480MB data volume before the end of the 3-year term, you can easily add another 480MB data

volume by making a top-up, details of which can be found here:

www.cameconnect.co.uk/gsmmodule

Due to situations outside of our control, CAME cannot guarantee signal strength or availability and therefore will not be

held liable for lack of service.

came automation

internet

came cloud

setup app

for the installer

GET IT ON

App Store

GET IT ON

automation app

for the end user

GET IT ON

App Store

GET IT ON

System Frequency Approx. Movements Est. SIM Life Based on Usage

Occasional Usage Approx. 5 gate manoeuvres per

week

4-7 Years*

Average Usage** Approx. 3-4 gate manoeuvres

per day

3-4 Years

High Usage Approx. 5+ gate manoeuvres per

day, multiple scenarios running

1-3 Years

* SIM will expire after 3-4 years. (CAME guarantees 3 years with some tolerance for shelf life consideration)

** We anticipate SIM provided will have sufﬁcient data for Average Usage (as shown above) lasting approx. 3 years

8initial power ON

OUT1OUT2

Keycode

123456789ABCDE F

MATR

54051 6

300mAE GSM – 900 33dBm

DCS – 1800 30dBm

869.5MHz 14dBm

24V

CONNECT

123 4

GND

10+

COM

IN2

COM

IN1

–

1A 30V

RGSM001S

1 2

1GSM LED (Blue)

After a few seconds the LED will ﬂash 1x/sec indicating the RGSM001S is registered on a GSM network.

2POWER LED (Green)

The LED will ﬂash 5x/sec indicating the RGSM001S is not yet conﬁgured on the Connect platform

Power on the control board.

Installer Tip

If the RGSM001S is located

in a concealed area and a low

GSM signal observed a 2m

extension cable and bracket is

available to purchase.

This then allows the aerial to

be located in a more suitable

position. Part No:

806SA-0050

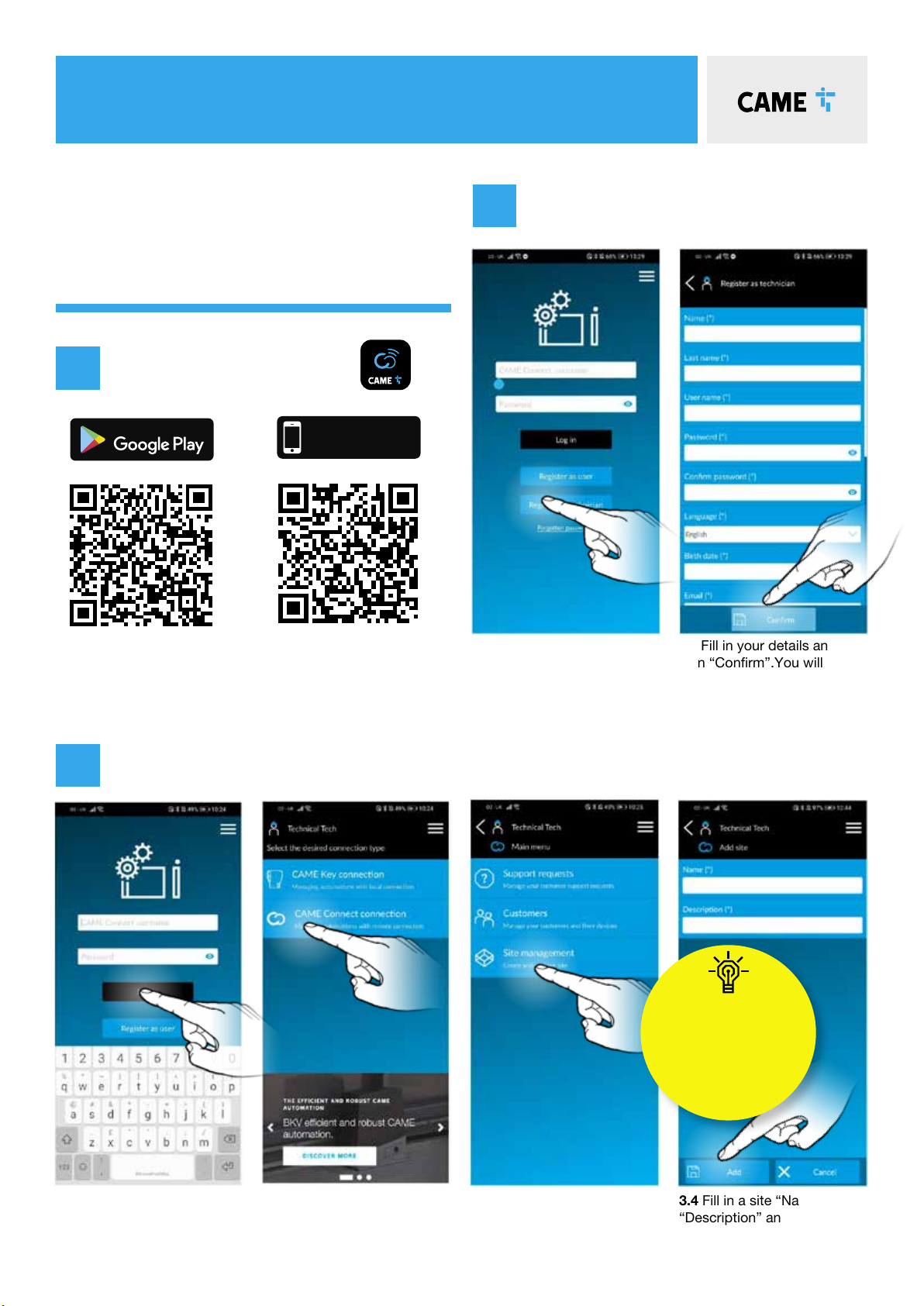

TITLE9 commissioning the rgsm

3.1 Open the App and log in

using your technician details

as registered.

3.2 Select “CAME Connect

connection”.

3.3 Select “Site

management”.

3.4 Fill in a site “Name” and

“Description” and then press

“Add”.

2.1 Select “Register as

technician”.

2.2 Fill in your details and

then “Conﬁrm”.You will

receive an email containing

your log in information

and request to conﬁrm the

account. Should the email not

arrive, please check your junk

folder.

download the

connect setup app

adding the rgsm gateway

to your technician account

technician

connect setup app

If you have an existing account, please move to step 3.

Important!

The installation must be carried out

by skilled and qualified personnel

Mr Wilson, Sills Road, DE74 2US

1.1

GET IT ON

App Store

GET IT ON

Installer Tip

The Name and Description entered

here, can be used to identify the

site location.

Name: Mr Wilson, Sills Rd, DE74 2US

Description: Mr Wilson, Sills Rd,

DE74 2US

This shows in the Installers

Setup App, under the site

management list.
