Calflame KD6002 User manual
Copyright 2011 LMS, Inc. All rights reserved.
Duplication without written consent is strictly
prohibited.
Cal Flame®is a registered trademark.
Due to continuous improvement programs, all
models, operation, and/or specications are
subject to change without prior notice.
LTR50001101, Rev. A
2/1/11
250-391
California Proposition 65 Warn-
ing: Chemicals known to the State
of California to cause cancer, birth
defects or other reproductive harm
are found in and/or created by the
combustion of natural gas, propane,
butane and other fuels. Always op-
erate this unit as described in the
owner’s manual and in well venti-
lated areas.
Planning the Best Location..........1
Preparing a Good Foundation........2
Natural Gas Installation ............3
Assembly ........................4
Cleaning and Maintenance .........13
Limited Warranty ................23
This manual describes the assembly for both the KD6002 and KD6016
barbecue islands. Although the model shown in these instructions is the
KD6002, assembly for both models is the same except where it is speci-
cally called out.
1
Barbecue Island Assembly
LTR50001101, Rev. A
www. c a l a m e b b q . c o m
Planning the Best Location
Here are some of the things that you will need to consider when determin-
ing where to place your new barbecue island.
Safety First
Do not place your barbecue island near trees and shrubs.
Be certain that your installation will meet all city and local safety codes and
requirements.
Consider How You Will Use Your Barbecue Island
Your barbecue island is mainly used for family recreation. Be sure to leave
plenty of room around it for activity.
Ventilation and Access
If you place your barbecue island close to a wall or fence, make sure you
allow room for ventilation.Also, if you have storage areas in your barbecue
island, make sure they can be conveniently accessed.
Enclosures and Awnings
Your barbecue island is for outdoor use ONLY.
You can locate your barbecue island any place where there is adequate
ventilation. The size and conguration of your house and yard will determine
how you should locate your barbecue island, but as a general rule, do not
place it under or near windows that can be opened into your home.
Do not locate your barbecue island in an enclosed room such as a garage,
shed, or breezeway or under a sealed overhead structure.
You can place your barbecue island in your patio as long as there is
adequate ventilation and no re risk. We do not recommend placing your
barbecue island in any enclosed area, that is, any covered area that is
walled on two, three or four sides.
You can install an awning over your barbecue island, provided you make
sure it is high enough to prevent damage or re. Maintain sufcient distance
as to not overheat any overhead combustible material. We recommend
you check with local inspectors and your homeowner’s association.
Plan for Your Environment
If you live in a region where it snows in the winter or rains frequently,
place the barbecue island near a house entry. Consider adding a covered
walkway from your barbecue island to your house or patio.
2
Barbecue Island Assembly
LTR50001101, Rev. A
www. c a l a m e b b q . c o m
Preparing a Good Foundation
Your barbecue island needs a solid and level foundation. Damage
caused by inadequate or improper foundation support is not covered
by the warranty. It is the responsibility of the owner to provide a proper
foundation for the barbecue island.
If you do not already have a location for your barbecue island, we
recommend you have a concrete slab prepared to accommodate it.
There are several advantages of having a permanent slab, including
stability, levelness, and it eliminates sagging.
As you prepare your slab, this is the best time to run gas, electrical, and
water lines and locate stub-ups for your barbecue island to connect
to. The size and shape of the base of the barbecue island is called a
footprint.
Footprint drawings show the actual dimensions of the base and
suggested locations for your stub-ups. Footprint drawings for each
model can be found in in the Cal Flame Barbecue Island Pre-Delivery
Guide, available from your dealer, the Cal Flame web site, or through
Cal Flame customer service.
Although a permanent slab is recommended, you can place your
barbecue island on a prepared surface with bricks or pavers. We
do not recommend you place your barbecue island on gravel, sand,
timbers, dirt or grass because these surfaces have the potential to
become unstable or uneven. Your barbecue island should always be
on a stable, at, level surface.
You can put your barbecue island on a deck provided it is rated to
supportthefullweightofyour barbecueisland,grill,andallaccessories.
We recommend you have a contractor or structural engineer examine
your deck to determine whether it can bear the load of your barbecue
island.
Your Cal Flame retailer can help you with your foundation and more.
Your retailer has a wealth of information and experience about how to
get the most out of your barbecue island and can provide you with a
full line of accessories that are designed to complement your barbecue
island and increase your enjoyment.
3
Barbecue Island Assembly
LTR50001101, Rev. A
www. c a l a m e b b q . c o m
Natural Gas Installation
You do not need to hire a contractor to install your natural gas service,
but you need to make sure you have all required permits and ensure
the installation complies with State and local code. We recommend
you hire a certied contractor if you do not wish to do the installation
yourself.
If your dealer is not a certied contractor, you will need to hire a
contractor for installation of your gas service.
The natural gas pipe from your house to the location of your barbecue
island needs to be ¾” and terminate with a shut-off valve with a
½” male tting. Check with a contractor or your local inspector for
requirements.
4
Barbecue Island Assembly
LTR50001101, Rev. A
www. c a l a m e b b q . c o m
Assembly
This manual describes the assembly for both the KD6002 and KD6016
barbecue islands. Although the model shown in these instructions is
the KD6002, assembly for both models is the same except where it is
specically called out.
Three base slats Base for refrigerator
Handling the pieces
You will need two or more people for assembly.
Do NOT twist or bend the granite counter top. Owner is liable for dam-
age caused by improper handling and is NOT covered under warranty.
Be careful not to scrape or scratch the stucco nish.
Inventory
These are the pieces of the barbecue island you will be assembling:
5
Barbecue Island Assembly
LTR50001101, Rev. A
www. c a l a m e b b q . c o m
Two side pieces
Front piece
6
Barbecue Island Assembly
LTR50001101, Rev. A
www. c a l a m e b b q . c o m

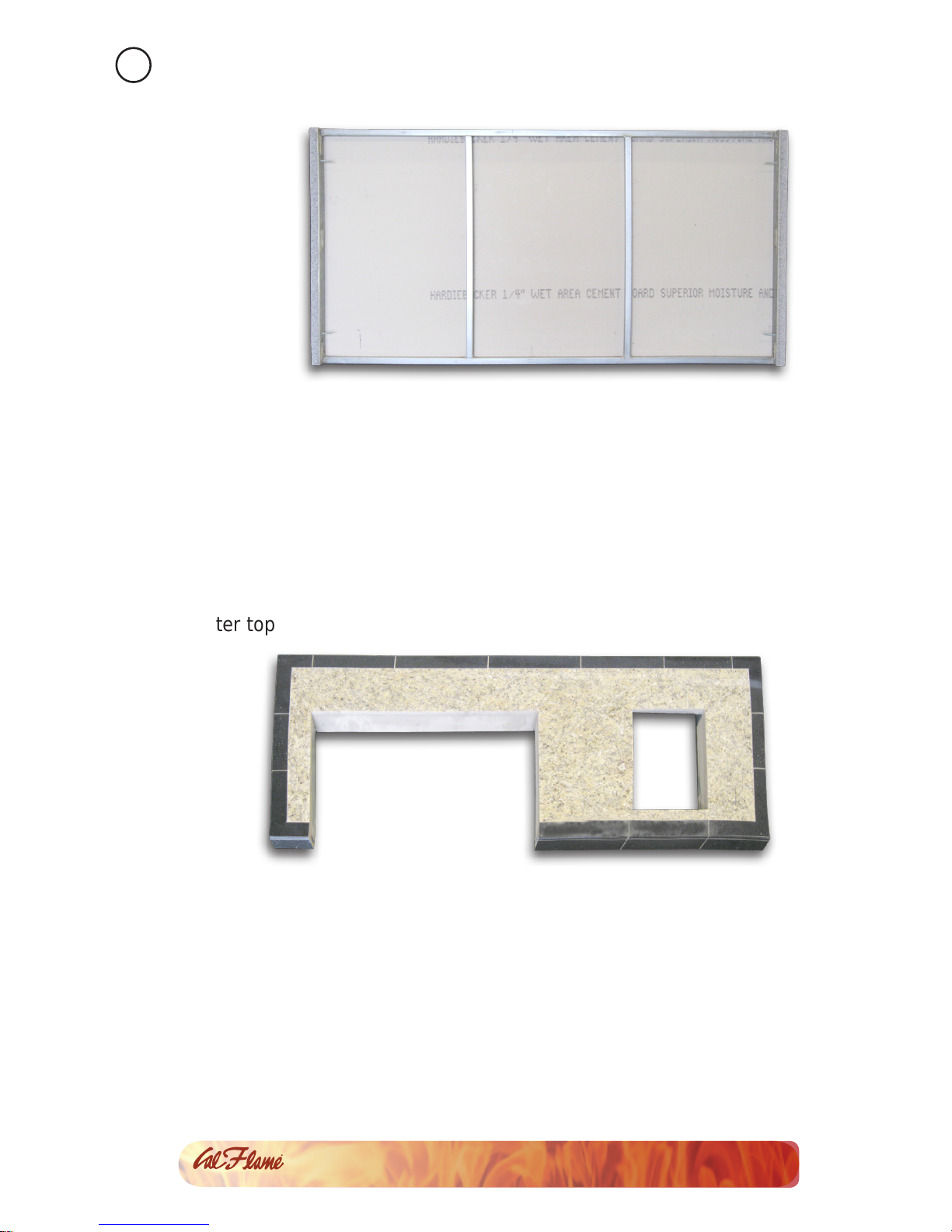

Counter top
Back piece
Note: Back piece shown above is for model KD6002. Model KD6016 has
an attached shelf.
7
Barbecue Island Assembly
LTR50001101, Rev. A
www. c a l a m e b b q . c o m
Assembly
Locate the three base slats and place them where the barbecue1. island will be built.
Place the back piece on the base slats as shown.2.
8
Barbecue Island Assembly
LTR50001101, Rev. A
www. c a l a m e b b q . c o m
Do the same for the front piece.4.
Screw the back piece down using the provided screws.3.
