Calf-Tel MultiMax User manual
Thank you for buying a Calf-Tel MultiMax Hutch. We recommend that you:
1. Check you have all the fixings and equipment you need
2. Assemble the timber base
3. Assemble the MultiMax hutch
4. Attach the hutch to the base.
5. Attach reinforcing brackets and bedding door
latches.
We suggest you leave the panels for a day or two
after delivery to regain their natural shape before
assembling them.
1. Equipment
You will need:
Drill with 6mm and 8mm bit
8mm socket and spanner, 11mm and 17mm sockets
Cross head screwdriver
A helper for stage 3
You should have received the following components from us:
(if using power tools do
not over-tension)
MultiMax
Assembly Instructions
Component Quantity
MMH Back with Rear Bedding Door 1
MMH Right Side 1
MMH Left Side 1
MMH Roof 1
MMC Timbers Front / Back 2.5m x 100mm x 100mm 2
MMC Timbers Side 2.14m x150mm x 100mm 2
MMH INS 1063A Knockdown Fixing Pack 2020 including: 1
AH-151-1 MultiMax self assembly fixing kit 1
AH-150-1 MultiMax hutch to base attachment kit 1
Timber fixing kit 1
Reinforcement bracket and CT-HDWE-037 fixings 2
CH-9225 Rear bedding door latch and fixings 2
Instructions for MultiMax Assembly 1
2. Assemble the timber base
The base is built upside down and then flipped over to give a level top surface for
attaching the hutch. The longer, narrower pieces of timber at the front and back
provide a gap to insert loader tines to move the completed hutch easily.
a) To assemble the base you will need:
The bag of timber base fixings
Two pieces of side timber (2.14m x 150mm x 100mm)
Two pieces of front / back timber (2.5m x 100mm x 100mm)

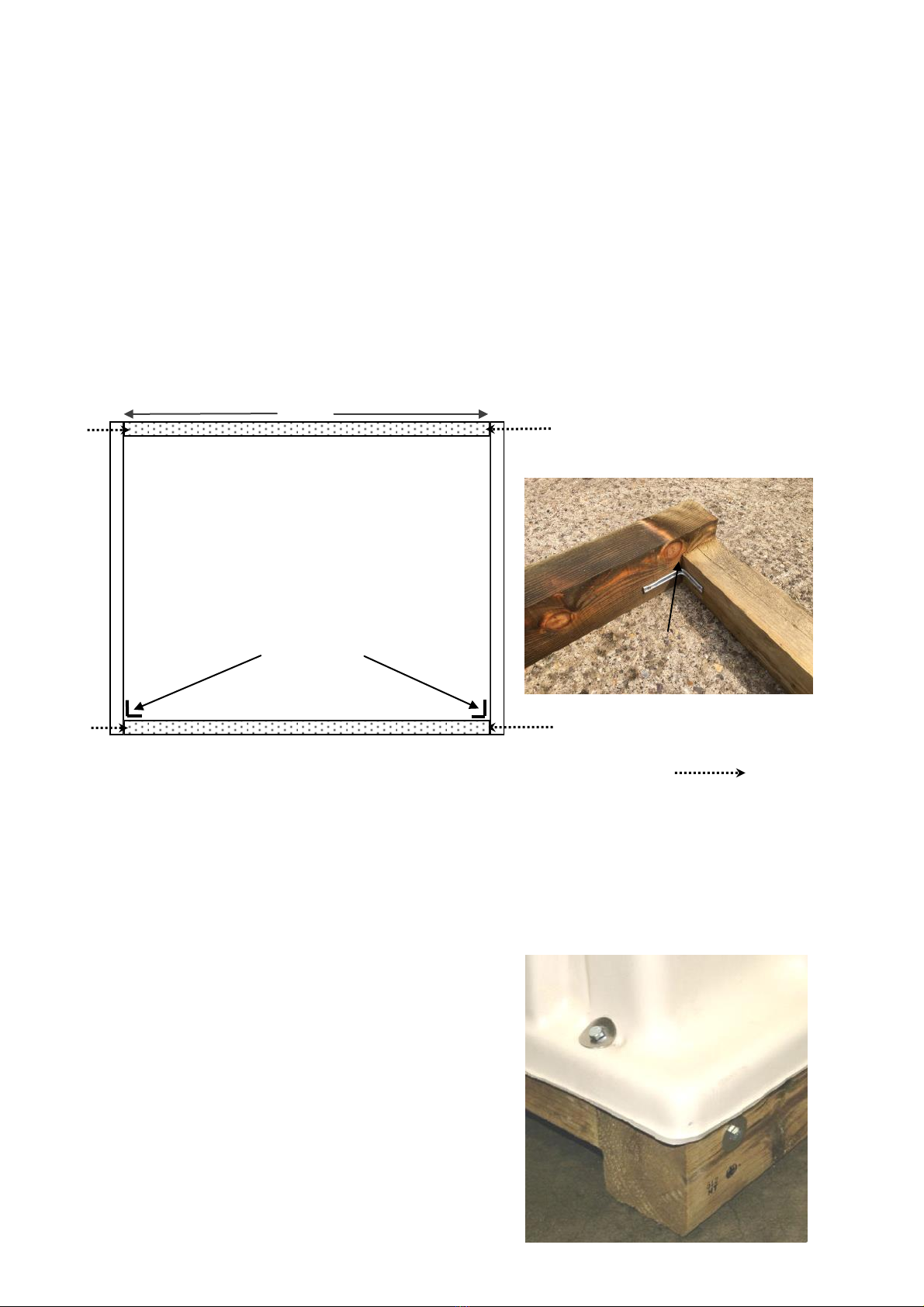

b) Lay the timber components out on a flat area as shown below
c) Mark out and pre-drill one 8mm hole per corner as indicated by
d) Slide one washer onto each bolt & insert one bolt per corner into pre-drilled
holes.
e) Position L brackets against front & sides as indicated in the diagram.
f) Attach L brackets to timber with screws provided.
g) Lift and flip the base over so the upper surface is flush ready for the hutch to be
lowered on.
This picture shows the finished hutch mounted
on the timber.
Front
Side
L bracket
2.5 m
Hutch Back
Hutch Front
L brackets
Drill holes and insert bolt
in each corner
Timbers viewed from
above.
3. Assemble the MultiMax Hutch
a) You will need:
Left and right side panels, roof and back
Bag of hutch fixing components AH-151-1
b) Place the left and right sides of the MultiMax
on the ground standing upright approx. 5 feet
(1.5m) apart as shown.
c) Attach the back of the MultiMax to the
sides. Bolt the back onto the outside of the
sides using the small bolts and back up
washers starting at the top. Insert the bolt with a washer from the inside and
attach a washer and nut from the outside.
d) Attach the roof. Put the roof over the back and sides. The sides should be
adjusted so the ribs on the roof line up with the ribs on the sides. Bolt the roof
to the sides starting at the back. Insert a bolt with a washer from the inside and
attach a washer and nut from the outside.
e) Occasionally the pre-drilled holes in the sides are missing or do not line up and
will need to be re-drilled with a 6mm drill bit using the holes in the top and back
as a template.
Start attaching back here: 8 bolts on each side and 9 across the top.
Start attaching roof here: 5 bolts per side. Save 2 bolts per side to
attach through tabs at front in stage 5.
4. Attach the Hutch to the Base
a) You will need the bag of hutch to base components
AH-150-1
b) Put the hutch on the base with the front opening at the
front of the base nearest the L brackets.
c) Fasten the hutch to the base around the edge using
washers and screws starting at the back corner and
going across the back first.
d) Fasten the two angle brackets near the entrance as
shown to secure the hutch to the base.
e) Drill through the two tabs in the roof as indicated and
bolt the roof to the sides at the front.
Bolt angle brackets on here
Drill through tabs here
Intershape Ltd
Michaelmas House, Royal Oak Way North, Daventry, NN11 8PQ
Tel: 01327 300 395
Email: sales@intershape.com Web: www.intershape.com
b) Secure top of
bracket with latch
nut and washer.
c) Using an 8mm drill
bit, drill through the
plastic using the
hole in the bracket
as a guide.
d. Attach
bracket to
plastic with
the CT-
HDWE-037
hardware
kit. Insert
bolt from
outside, put
washer and
nut on the
inside and
5. Attach the reinforcement brackets and rear
bedding door latches
a) You will need two bedding door latches and fixings
and two reinforcement brackets and fixings.
b) Assemble the bedding door latch by pushing the bolt
through from the outside. On the inside, attach the top
of the reinforcement bracket as shown and secure with
the latch nut and washer.
