Cadillac CTS 2008 User manual

Overview ........................................................ 1-1

Overview .................................................. 1-2

Features and Controls ..................................... 2-1

Features and Controls ................................ 2-2

Navigation Audio System ................................ 3-1

Navigation Audio System ............................ 3-2

Speech Recognition ........................................ 4-1

Speech Recognition ................................... 4-2

Index ................................................................ 1

2008 Cadillac CTS Navigation System M

GENERAL MOTORS, GM, the GM Emblem, CADILLAC,

the CADILLAC Crest & Wreath, and the name CTS are

registered trademarks of General Motors Corporation.

DTS and DTS Digital

surround are registered

trademarks of Digital

Theater systems, Inc.

Gracenote

is a registered trademark of Gracenote, Inc.

The Gracenote logo and logotype, and the “Powered

by Gracenote” logo are trademarks of Gracenote.

Dolby

is manufactured under license from Dolby

Laboratories. Dolby

, MLP Lossless, and the double-D

symbol are trademarks of Dolby

Laboratories.

Litho in U.S.A.

Part No. 25813124 B Second Printing

This product incorporates copyright protection

technology that is protected by U.S. patents and other

intellectual property rights. Use of this copyright

protection technology must be authorized by

Macrovision, and is intended for home and other

limited viewing uses only unless otherwise authorized

by Macrovision. Reverse engineering or disassembly

is prohibited.

The information in this manual supplements the owner

manual. This manual includes the latest information

available at the time it was printed. We reserve the right

to make changes in the product after that time without

notice. For vehicles ﬁrst sold in Canada, substitute

the name General Motors of Canada Limited for Cadillac

Motor Car Division whenever it appears in this manual.

Keep this manual with the owner manual in the

vehicle, so it will be there if it is needed. If the vehicle

is sold, leave this manual in the vehicle.

Canadian Owners

A French language copy of this manual can be obtained

from your dealer/retailer or from:

Helm, Incorporated

P.O. Box 07130

Detroit, MI 48207

1-800-551-4123

helminc.com

Propriétaires Canadiens

On peut obtenir un exemplaire de ce guide en français

auprès de concessionnaire ou à l’adresse suivante:

Helm Incorporated

P.O. Box 07130

Detroit, MI 48207

1-800-551-4123

helminc.com

iii

✍NOTES

Overview .........................................................1-2

Navigation System Overview ............................1-2 Getting Started ...............................................1-4

Cleaning the Display .....................................1-11

Section 1 Overview

1-1

Overview

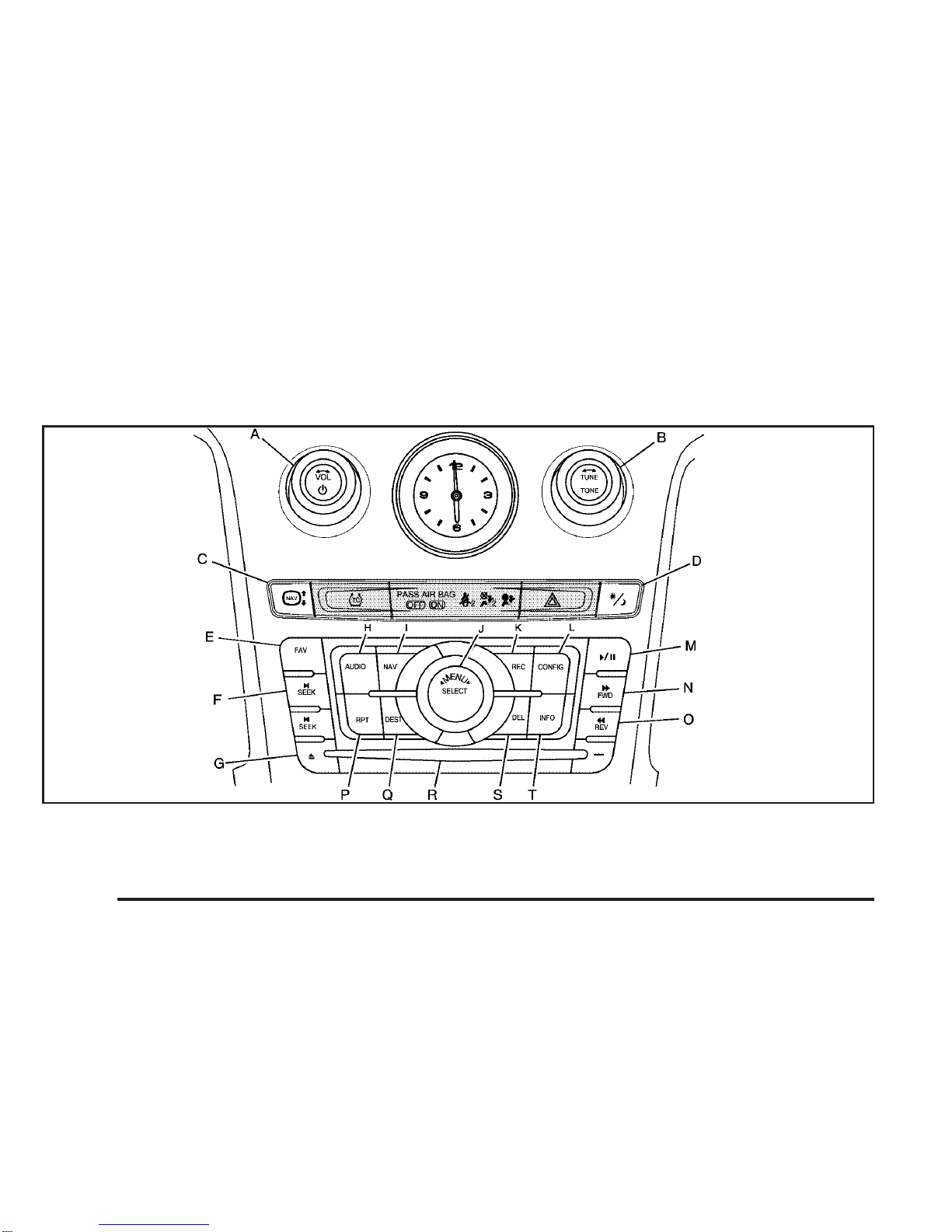

Navigation System Overview

1-2

A. VOL/ O(Volume/Power Knob). See “Hard Keys”

under Using the Navigation System on page 2-2 for

more information.

B. TUNE/TONE Knob. See “Hard Keys” under Using

the Navigation System on page 2-2 for more

information.

C. NAV nm(Navigation Screen Up/Down). See “Hard

Keys” under Using the Navigation System on

page 2-2 for more information.

D. !(Dimming Change Button). See “Display” under

Conﬁgure Menu on page 2-30 for more information.

E. FAV (Favorite) key. See “Storing Radio Station

Presets” under Navigation Audio System on page 3-2

for more information.

F. utSEEK Key. See Navigation Audio System on

page 3-2 CD Player on page 3-10,DVD Player on

page 3-18, and Hard Drive Device on page 3-24 for

more information.

G. Z(CD/DVD Eject) Key. See CD Player on

page 3-10 and DVD Player on page 3-18 for more

information.

H. AUDIO key. See Navigation Audio System on

page 3-2 for more information.

I. NAV (Navigation) Key. See “Hard Keys” under

Using the Navigation System on page 2-2 for more

information.

J. oMENU pSELECT Knob. See “Hard Keys”

under Using the Navigation System on page 2-2

for more information.

K. REC (Record) Key. See Hard Drive Device on

page 3-24 for more information.

L. CONFIG (Conﬁgure) Key. See Conﬁgure Menu

on page 2-30 for more information.

M. k(Play/Pause) Key. See “Timeshift, USB, and

iPod” under Navigation Audio System on page 3-2,

Hard Drive Device on page 3-24,CD Player on

page 3-10,DVD Player on page 3-18, and Hard Drive

Device on page 3-24 for more information.

N. \FWD (Forward) Key. See “Timeshift, USB, and

iPod” under Navigation Audio System on page 3-2,

CD Player on page 3-10,DVD Player on page 3-18,

Hard Drive Device on page 3-24 for more

information.

1-3

O. sREV (Reverse) Key. See “Timeshift, USB, and

iPod” under Navigation Audio System on page 3-2,

CD Player on page 3-10,DVD Player on page 3-18,

and Hard Drive Device on page 3-24 for more

information.

P. RPT (Repeat) Key. See “Hard Keys” under Using

the Navigation System on page 2-2 for more

information.

Q. DEST (Destination) Key. See Destination on

page 2-12 for more information.

R. CD/DVD Slot. See CD Player on page 3-10 and DVD

Player on page 3-18 for more information.

S. DEL (Delete) Key. See “XM™ Satellite Radio

Service” under Navigation Audio System on page 3-2

and Hard Drive Device on page 3-24 for more

information.

T. INFO (Information) Key. See Speech Recognition on

page 4-2 and Weather on page 4-4.

Getting Started

Read this manual thoroughly to become familiar with

how the navigation system operates.

Keeping your eyes on the road and your mind on the

drive is important for safe driving. The navigation system

has built-in features intended to help keep your eyes

on the road and mind on the drive. Some features may

be disabled while driving. Note that these functions

will be grayed-out. A grayed-out function indicates it is

not available when the vehicle is moving.

All functions are available when the vehicle is parked.

Do the following before driving:

•Become familiar with the navigation system

operation, hard keys on the faceplate, and

touch-sensitive screen buttons of the navigation

system.

•Set up the audio by presetting favorite stations,

setting the tone, and adjusting the speakers.

•Set up the navigation features before beginning

driving, such as entering an address or a preset

destination.

•Set up your phone numbers in advance so they can

be called easily with the press of a single button or

a single voice command (for navigation systems

equipped with phone capability).

1-4

{CAUTION:

Taking your eyes off the road too long or too

often while using the navigation system could

cause a crash resulting in injury or death to

you or others. Focus your attention on driving.

{CAUTION:

Avoid looking too long or too often at the

moving map on the navigation screen. This

could cause a crash and you or others can be

injured or killed. Use the turn-by-turn voice

guidance directions whenever possible.

Use the navigation system to:

•Plan a route.

•Select a destination using various methods and

choices.

•Follow turn-by-turn route and map guidance with

voice prompts, only if permitted by traffic laws,

controls, and conditions.

•Receive RDS broadcast announcements.

You should always be alert and obey traffic and roadway

laws and instructions, regardless of the guidance from

the navigation system. Because the navigation

system uses street map information that does not

include all traffic restrictions or the latest road changes,

it may suggest using a road that is now closed for

construction or a turn that is prohibited by signs at

the intersection. Because the system uses limited

information, you must always evaluate whether

following the system’s directions is safe and legal for

the current conditions.

1-5

When the navigation system is turned on, a screen may

appear with the information below, and you must

read and acknowledge the information it contains.

{CAUTION:

Taking your eyes off the road for extended

periods could cause a crash resulting in injury

or death to you or others.

To help avoid a crash in which you or others could be

killed:

•Always concentrate on your driving ﬁrst by keeping

your eyes and mind on the road, and your hands

on the wheel.

•Follow system directions only if permitted by traffic

laws, controls, and conditions.

•Before using this system, read the owner’s manual

and learn how it operates.

•Some system controls cannot be used the when

vehicle is moving.

After you acknowledge the start up information you will

be able to access the NAV (navigation) and DEST

(destination) functions. Once accessed, you can enter

or delete information in the navigation system or access

other functions. See instructions later in this section.

Each time the vehicle is started and the navigation

system is turned on, the Caution screen will appear.

If the Caution screen appears, touch OK to accept the

Caution. If OK is not selected, all hard keys except

for NAV (navigation) and DEST (destination) can be

1-6
