Cablematic S300 User manual
S user's manual
1. Technical Parameter
Model S300 S400 S600 S1000
Rated power(W) 300 400 600 1000
Rated voltage(V) 12/24 12/24 24/4 24/4
Rated current（A） 25/12.5 33.3/16.7 25/12.5 41/20
Rotor diameter(m) 1.5 1.5 1.7 2.0
Start-up wind speed (m/s) 2.5 2.5 2.5 2.5
Rated wind speed(m/s) 9.6 9.6 10.5 13
Survival wind speed(m/s) 35 35 35 35
Working form PMG PMG PMG PMG
Rotating direction Clockwise Clockwise Clockwise Clockwise
Blade NO.( piece) 3 3 3 3
Blade material Nylon Nylon Nylon Nylon
Tower height (m) 6 6 6 6
Supporting inverter type
Single-phase
sine wave
Single-phase sine
wave
Single-phase sine
wave
Single-phase
sine wave
Net weight(KG) 20 20 25 2

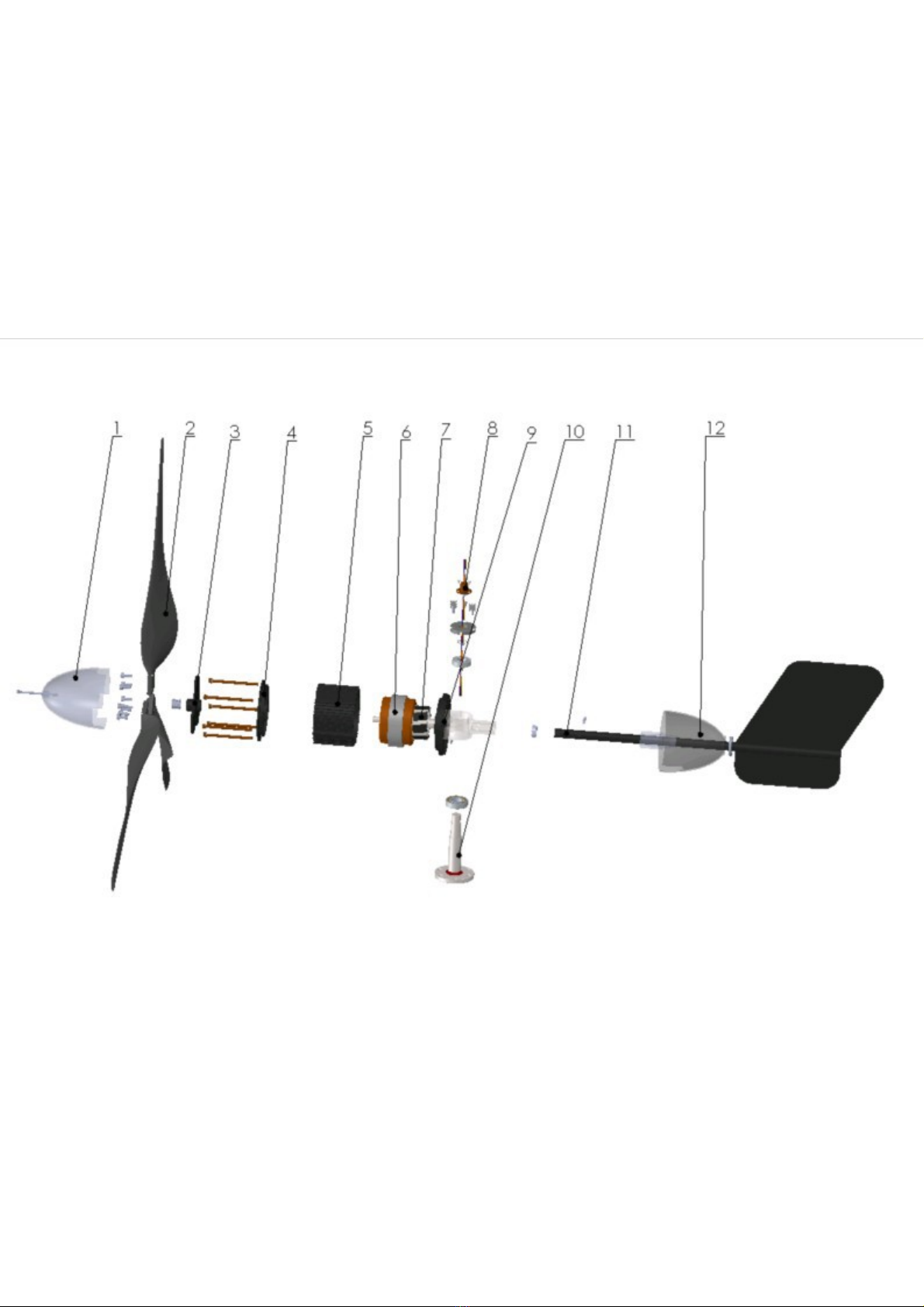

2. Structure
No. Description No. Description
1 Nose cone 7 Rotor
2 Blades Slip ring
3 Hub 9 Back cover
4 Front cover 10 Flange
5 Generator case 11 Tail vane
6 Stator 12 Back nose cone
3. Installation

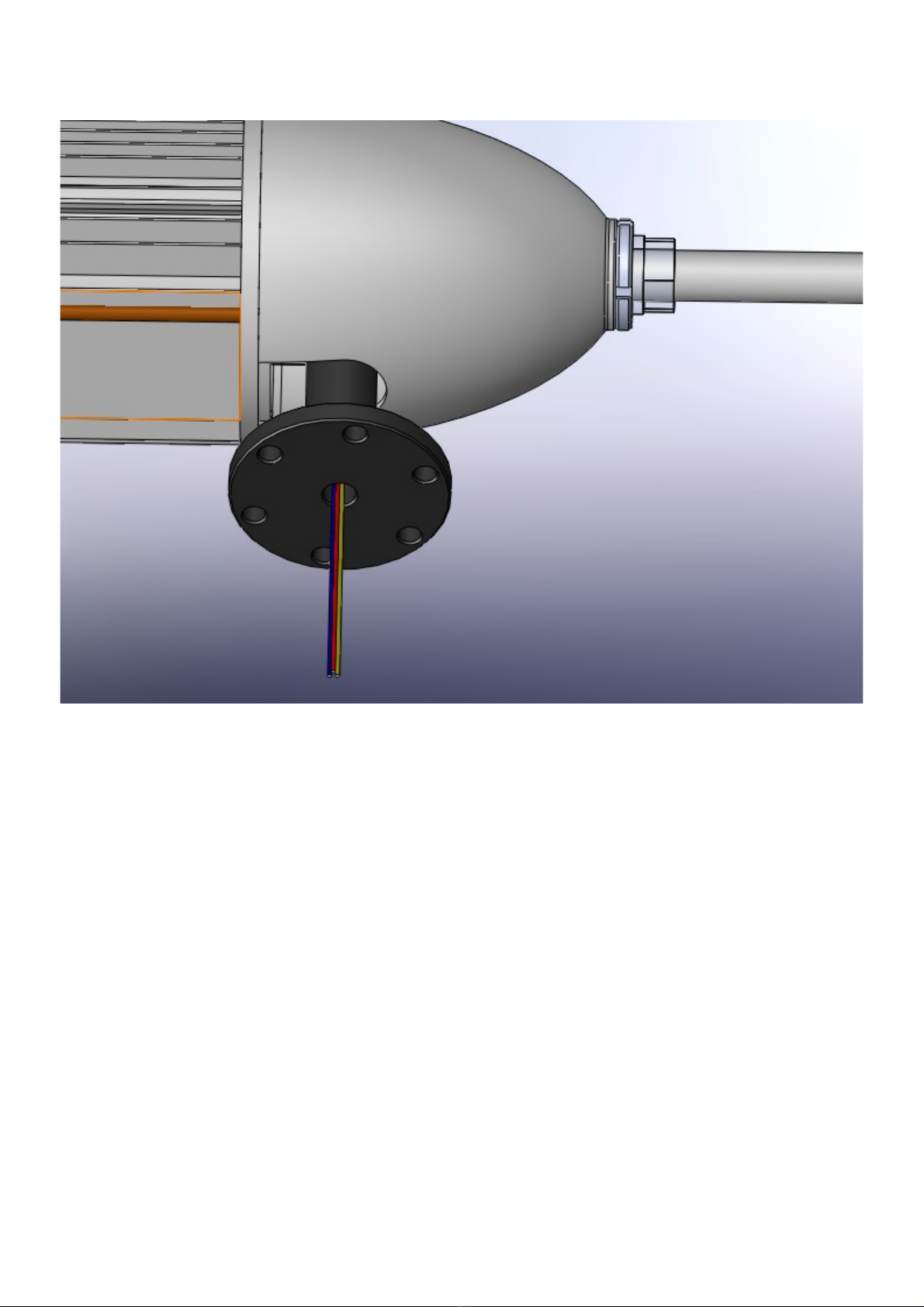

Connect the out going cables to the terminals at the bottom of the
generator, and elicit the cable from outlet of the bottom of the tower.

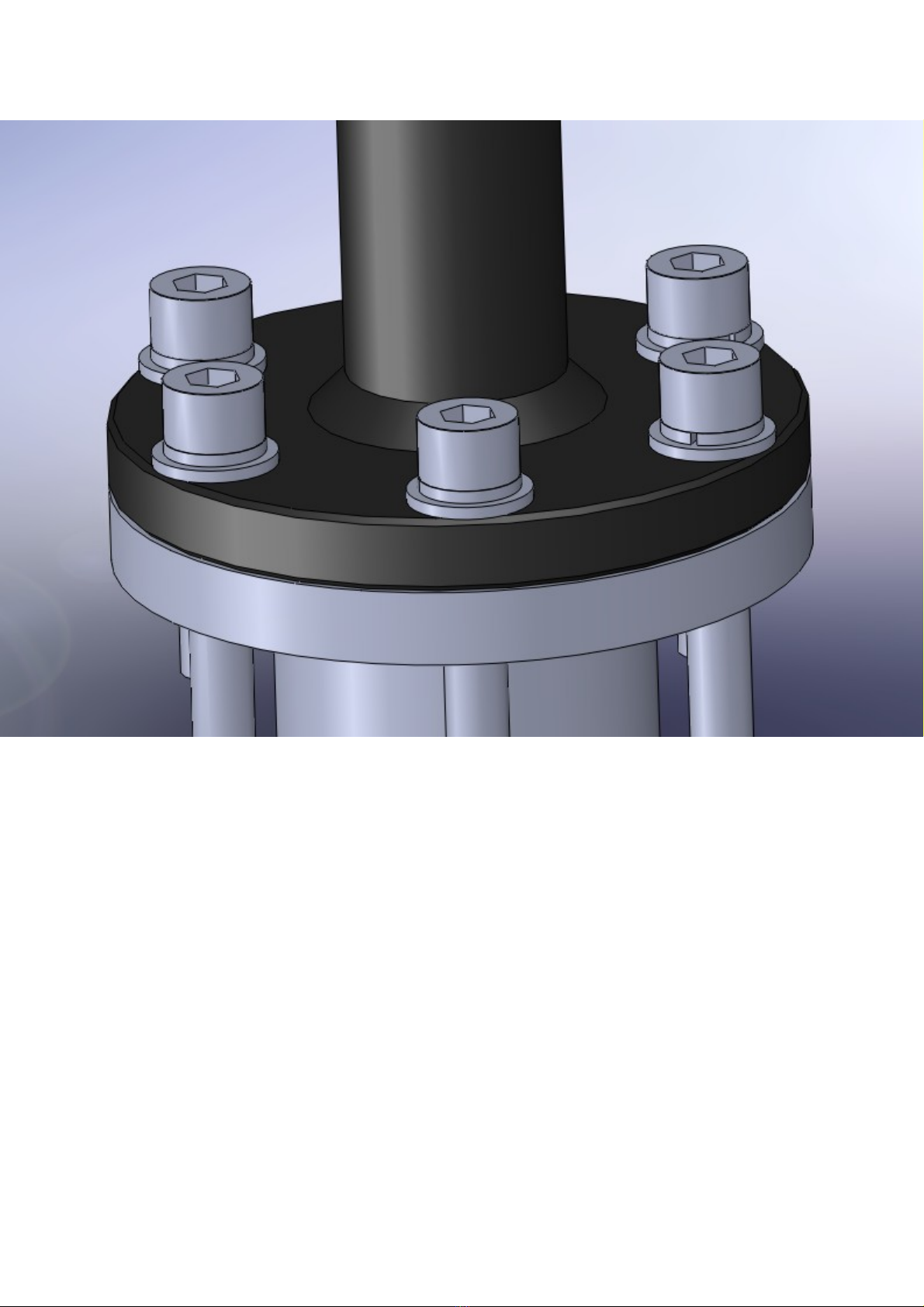

A) Install the flange on the top of the tower and make 6 pieces M10*55 bolts
fasten.
B) Install the blades on the h b and make 3 pieces M8*25 bolt fasten.

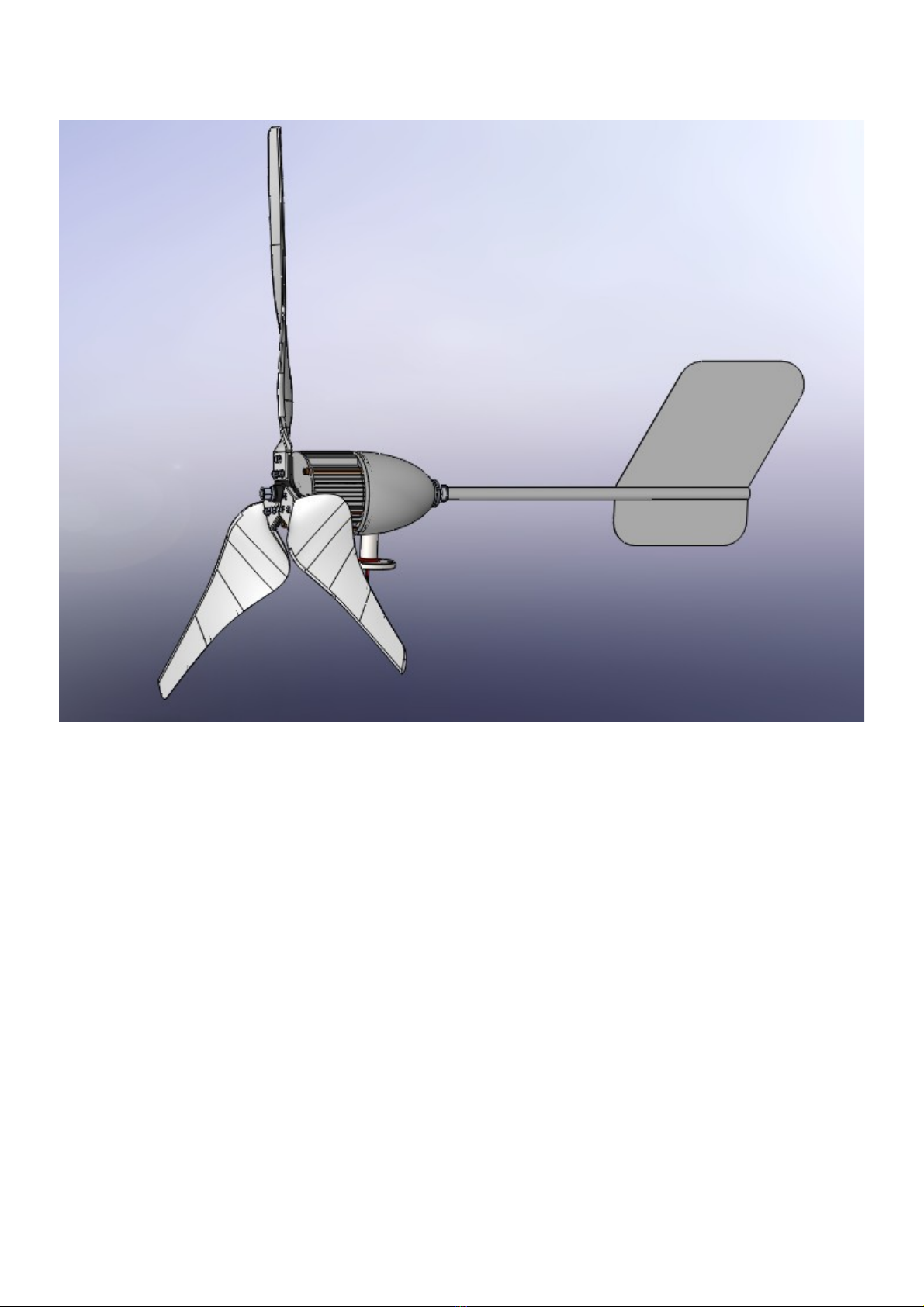

C) P t the h b onto the shaft and make M16 n t fasten, at the same time t rn
the blades clockwise till the h b connect the shaft tight.

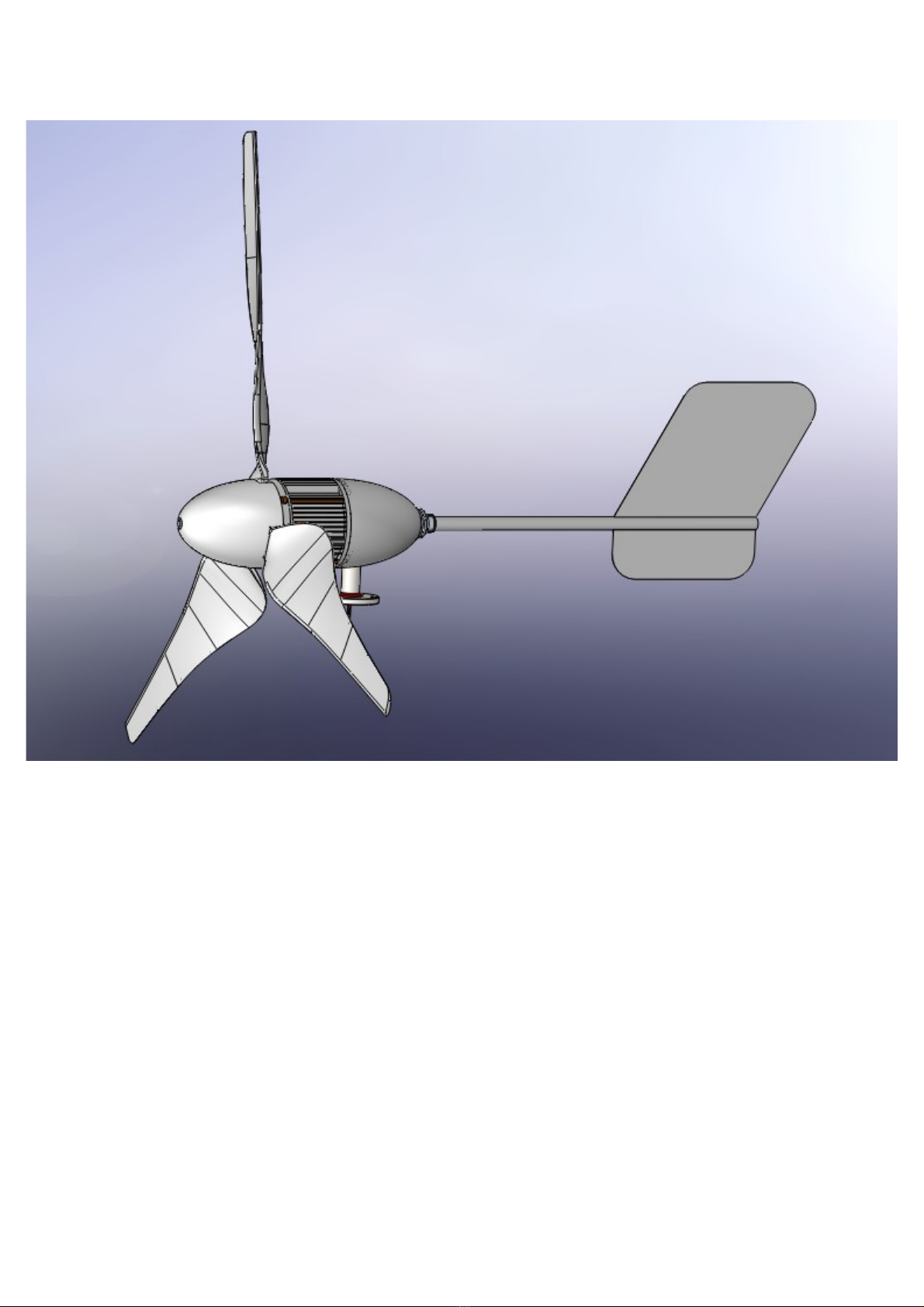

D) Install the nose cone on the front of the h b and make one piece M6*40
bolt fasten.
E) Connect the cable from the generator to the controller (Before make s re
battery and controller cable connected well.)

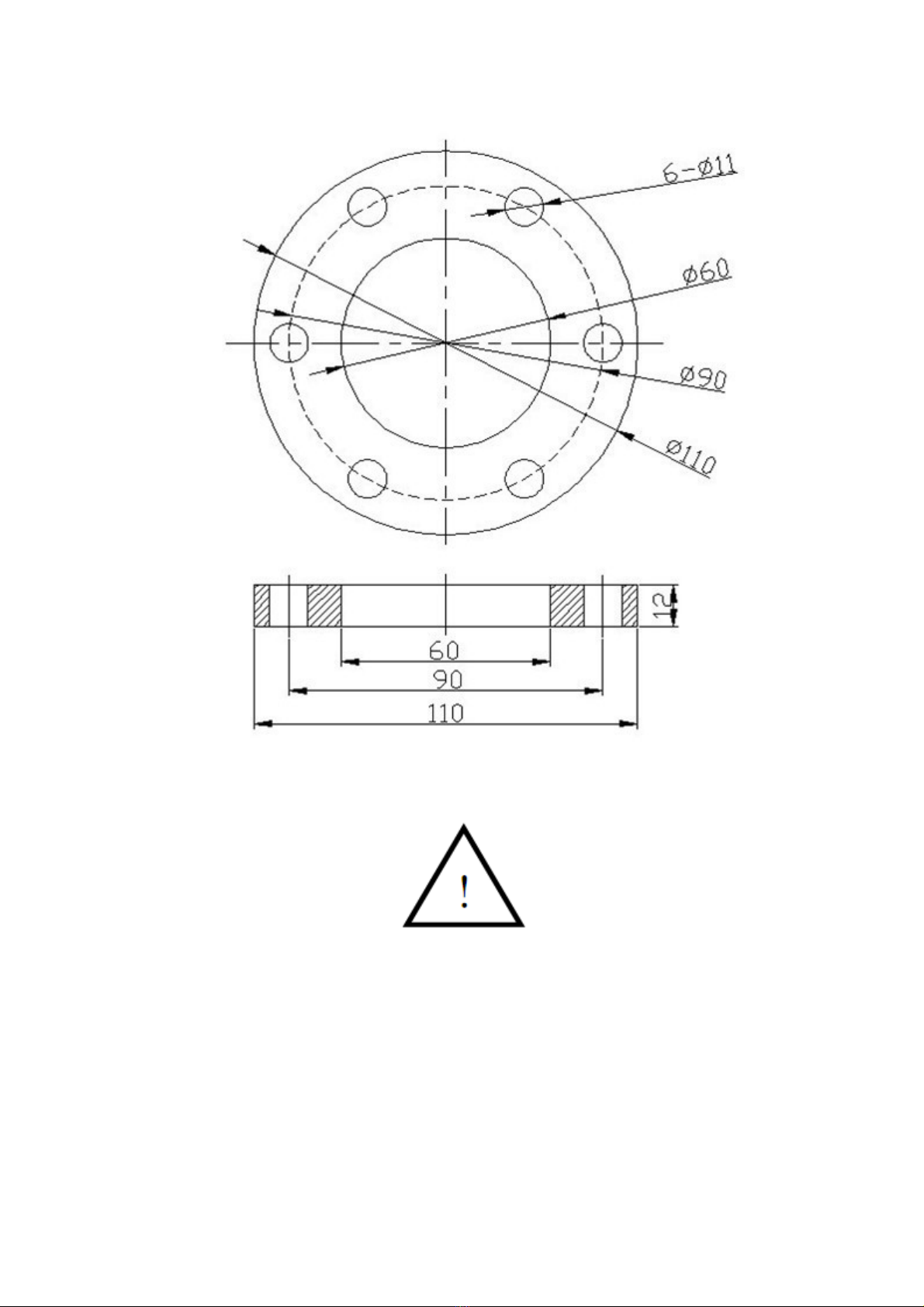

F) Flange drawing.
Cautions
1. Thank you for
purchasing the EW series
wind turbine systems. Please read the manual carefully before
installation;
2. The installation should be done by the experienced technical person.
3. Keep the electrical part (controller/inverter battery) away from
This manual suits for next models
3
