Bushnell Trailscout 119700 User manual

Models: 119700/119830

LIT. #: 98-0744/03-06

Models: 119930/119901

Congratulations on your purchase of the Bushnell® Digital Trail Scout™ Camera!

This trail camera is designed to record the activity of wildlife game in the outdoors

with its still image and movie modes and weatherproof, rugged construction.

This instruction manual is designed to maximize your understanding of how the

camera operates.

Bushnell Digital Trail Scout Features (All Models)

One of the most revolutionary advances in scouting technology to date, the Bushnell

Digital Trail Scout delivers. Boasting one of the most user friendly interfaces in the

industry, this trail camera has a positive toggle switch system that instantly tells you what

your camera setting are—without fumbling with a confusing software interface! The

built-in security system has four levels of security. Every Trail Scout comes complete with

padlock, cable lock, tree bracket for screw attachment, and software password that locks

out would-be thieves. The high resolution digital camera delivers crisp views of game in

your area and stamps each image with date, time, and name. Along with regular image

mode, there is a movie mode for 15 second movie clips. The camera will function during

day, night, or all 24 hours and sense game out to 90 feet. The oversized incandescent ﬂash

will reach out to 30 feet for nighttime images. Image delay settings include 30 seconds,

1 minute and 2 minutes. The innovative backlit LCD makes set up a breeze in the ﬁeld.

The Trail Scout is weatherproof and rugged.

DIGITAL TRAIL SCOUT MODELS

119700—Digital Trail Scout 2.1MP

Great images and scouting technology at a great value. This camera will sense deer and other game as far out

as 90 feet with its passive infrared sensor. Low-battery indicator lights when battery life drops below 25%.

Motion LED lights when activity is detected by the sensor in regular imaging mode and during setup mode

for aiming. Weatherproof. Comes complete with aircraft aluminum security cable, padlock, and tree bracket.

Textured “bark-like” surface for maximum concealment.

119830—Digital Trail Scout 3.0MP

All the features of the Trail Scout 2.1MP, but featuring superior image resolution. This camera also senses

deer as far out as 90 feet with its passive infrared sensor.

119930/119901—Digital Trail Scout 3.0MP with Night Vision

With all the features of the 3.0MP Trail Scout plus Night Vision and laser aiming , this is the top of the line

digital trail camera. This is the only game camera on the market to combine both incandescent camera ﬂash

and digital night vision technology. Choose your setting for regular camera ﬂash or stealth-like LED IR

illumination. Infrared LED lamps enables you to discretely image game in the night without a visible ﬂash.

There is no need to worry about your ﬂash giving away your position in popular, busy hunting areas. This

camera comes complete with laser aiming device for easy set up in the woods.

DIGITAL TRAIL SCOUT SPECIFICATIONS

Image Sensor 1/2” CMOS, 2.1 million pixels (119700) or 3.0 million pixels

(119830/119930/119901)

Lens F/3.5, effective focal length 42mm. Sight range: 45 degrees

Flash High power electronic Incandescent Flash or Infrared LED array. Range: 30 ft.

PIR Sensor Low noise, high sensitivity passive infrared sensor. Range: 90 ft.

Motion LED Indicator Yes

Display Backlit LCD, 2 rows x 8 characters. Auto-off: 3 min. 2-digit event and image

display.

File Format Still image JPG (2.1 or 3.0 megapixels). Movie images AVI 320x240 pixel per frame.

DCF ver. 1.0 ﬁle management.

Exposure Auto

White Balance Auto

Power Supply 4 x “D” cell batteries. Low battery indicator at 25% remaining power.

Battery Life Approximately 30 days

(dependant on temperature, camera activity and ﬂash usage)

User Password Yes, available range: 0000 to 9999

Other (119930/119901

only)

Remote control, Laser pointer, IR LED array for night vision infrared imaging

119700/119830 119930/119901

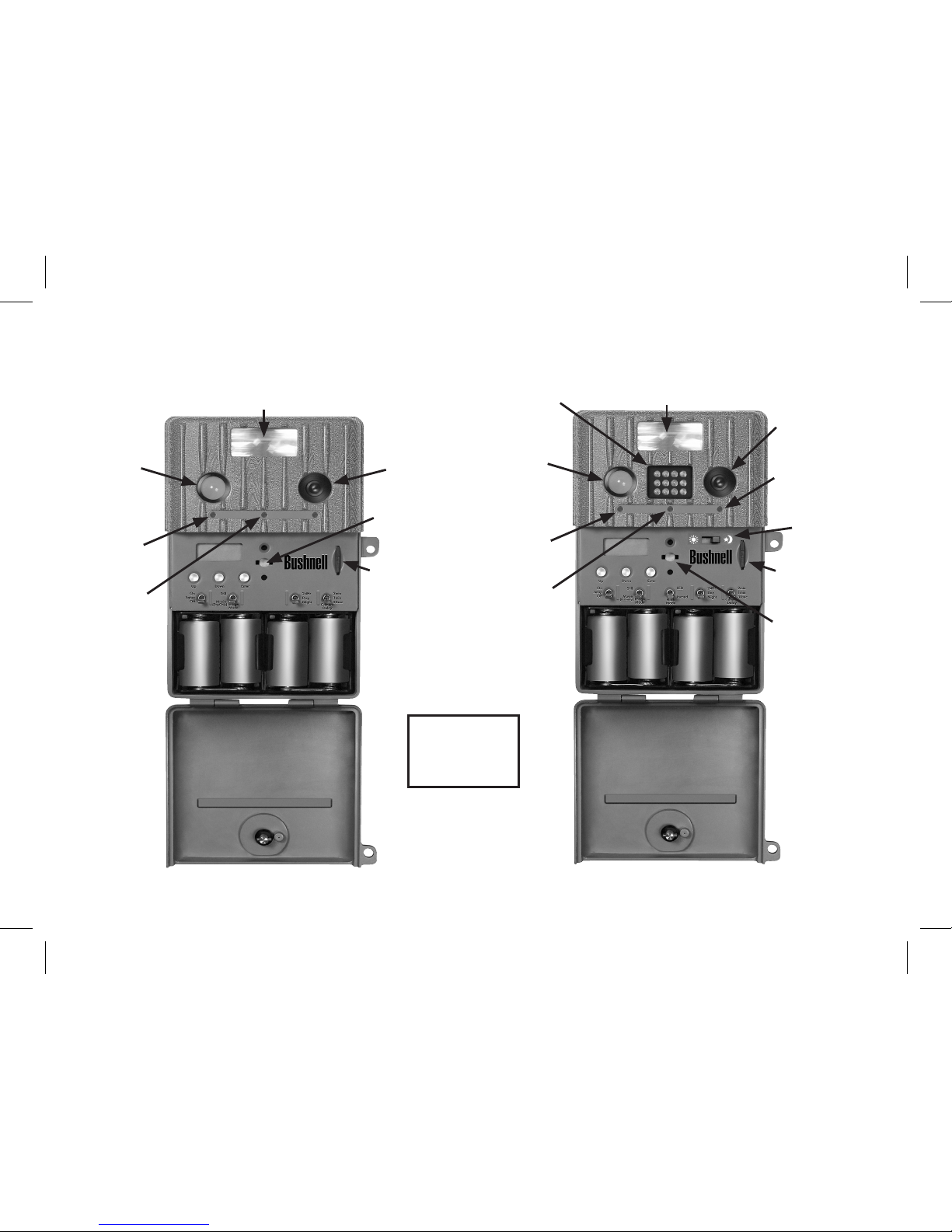

Parts

Guide

Flash

Camera

Lens

PIR

Motion

LED

Low

Battery

LED

SD Card

Slot

Keylock

Flash

PIR

Camera

Lens

Motion

LED

Low

Battery

LED

Laser

Pointer

Infrared

LED Array

SD Card

Slot

Keylock

IR Filter

Switch

Switch and Setup Description Switch Position/Setting

Switch #/Function UP CENTER DOWN

K1 (Operating

Mode)

On Setup Off

K2 (Image Mode) Still - Movie

K3 (Day/Night

Mode)

24 Hour Day

(6AM-

6PM)

Night

(6PM-

6AM)

K4 (Camera Delay) 2 minutes 1 minute 30 seconds

Switch Position/Setting

Switch #/Function UP CENTER DOWN

K1 (Operating

Mode)

On Setup Off

K2 (Image Mode) Still - Movie

K3 (Lighting Mode) LED - Incand.

K4 (Day/Night

Mode)

24 Hour Day

(6AM-

6PM)

Night

(6PM-

6AM)

K5 (Camera Delay) 2 minutes 1 minute 30 seconds

K1 K2 K3 K4

Up/Down/Enter

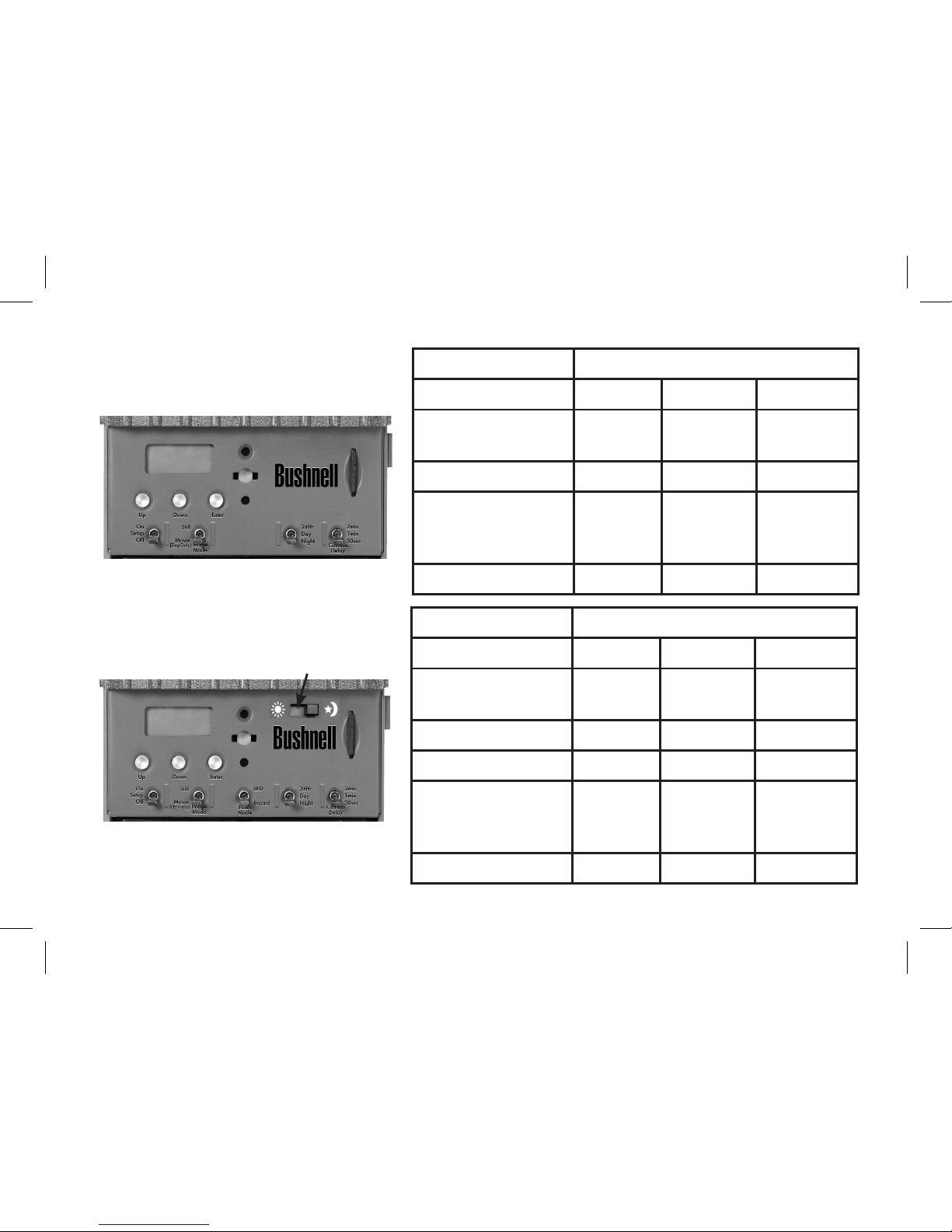

119700/119830 Control Panel

K1 K2 K3 K4 K5

Up/Down/Enter

119930/119901 Control Panel

IR Filter Switch

SETUP GUIDE

NOTE (Models 119930/119901 Only) : THE LASER POINTER IS ACTIVATED IN THE SET- UP MODE. DO NOT PER-

MIT THE LASER POINTER TO BE DIRECTED TOWARD ANYONE’S EYES TO AVOID POTENTIAL EYE INJURY.

1. K1 - Mode Switch (ON/ SETUP/ OFF) :

a) Power ON (UP position): Set K1 to ON position, The LCD display will show “BUSHNELL”

for about 2 seconds.

The LCD will rotate through the DATE\TIME\EVENT&IMAGE displays

when pressing the Up and Down keys.

EVENT nn

IMAGE nn

For mounting directions, please refer to the manual section titled “Using The Trail Scout” .

Before beginning the setup, insert 4 “D” size alkaline

batteries as indicated inside the battery compartment.

b) SETUP Mode [move switch K1 from UP (ON) position to center position]:

Press Up or Down buttons to scroll through choices of DATE, TIME, NAME and

PASSWORD to modify or set these functions.

(1) SET DATE: When the LCD shows the date, press the ENTER key to modify the date.

Press Up or Down button to select 1-12 then press the ENTER button to conﬁrm

the two digit month. The cursor will then move to the day.

Press Up or Down button to select 1-31 then press ENTER to conﬁrm the two

digit day. Then the cursor will move to the year.

Press Up or Down button to select 0-99,then press ENTER to conﬁrm the two

digit year. From Set Date, press the Down button to set the time.

Set Date

09/18/04

Setup Guide (cont.)

Set Time

06: 30 PM

MY NAME

555_1234

New Pswd

0 0 0 0

Password

Yes

Password

Set

(2) SET TIME: When the LCD shows the time, press the ENTER key to modify the

time.Press Up or Down button to select 1-12, then press ENTER to conﬁrm the two

digit hour. Then the cursor will move to the minute.Press Up or Down button to

select 0-59, then press ENTER to conﬁrm the two digit minute. From SET TIME,

press the Down button to set the name.

(3) SET NAME: When the LCD shows current name, press ENTER key to modify

the name display. Press Up or Down button to select one character from “A” to “Z”,

“0” to “9”, ”_” , then Press ENTER to conﬁrm, the cursor will move to next character.

There are 2 lines of 8 characters each for your use. From Set Name, press the Down

button to change the password.

(4) SET PASSWORD: When the LCD shows [Password Set], press the ENTER key

to set the password. The LCD will show [Password Yes]. To change the password,

press Enter.

If you do not want to set a password, you can press the Up or Down key to select

NO.

If you selected YES, the LCD shows [New Pswd]. Press the Up or Down key to select

the ﬁrst password digit of 0-9. Press ENTER to conﬁrm, the cursor will move to the

next digit to the right. Repeat the process using UP, Down and Enter keys to enter

your four digit password. Press ENTER to conﬁrm.

This manual suits for next models
