T - LOCKING BOLT
COOKING GRATE
Installing Fire Pit
When selecting a location for your fire pit it is important to consider the required clearances to all
combustibles.
Locate the fire pit, a minimum of 4'(four
foot) must be maintained between your fire pit and any
combustible materials with NO COMBUSTIBLES OVER HEAD. Follow local codes and specific
safety instruction for your area.
Installation:
1. Installing Granite pad for fire pit:
Note: Place the Granite fire pit pad in an area that meets the required clearances to all combustibles.
Place the fire pit Granite on a noncombustible surface such as dirt with no grass or combustible
materials in the area of burning surface. Make sure the area for the fire pit is level and flat.
Follow the manufactures Granite installation instructions for installation of Granite pad for the fire
pit. After removing the Timberlake fire pit ring from the packing, place fire pit ring in center location
on Granite pad and install Granite around fire pit ring, per manufactures' Granite installation
instructions.
2. Installing Cooking Grate Support Rod:
Install Cooking Grate support rod into the rod holder in the side of fire ring.
3. Installing Cooking Grate:
Place the Cooking Grate onto the Cooking Grate Support Rod and use the T-Locking Bolt to adjust
the height of the Cooking Grate.
4. Installing Fire Pit Lid:
Place the Fire Pit Lid onto the fire pit with the notch in the lid around the Grate Support Rod.
Cooking Grate:

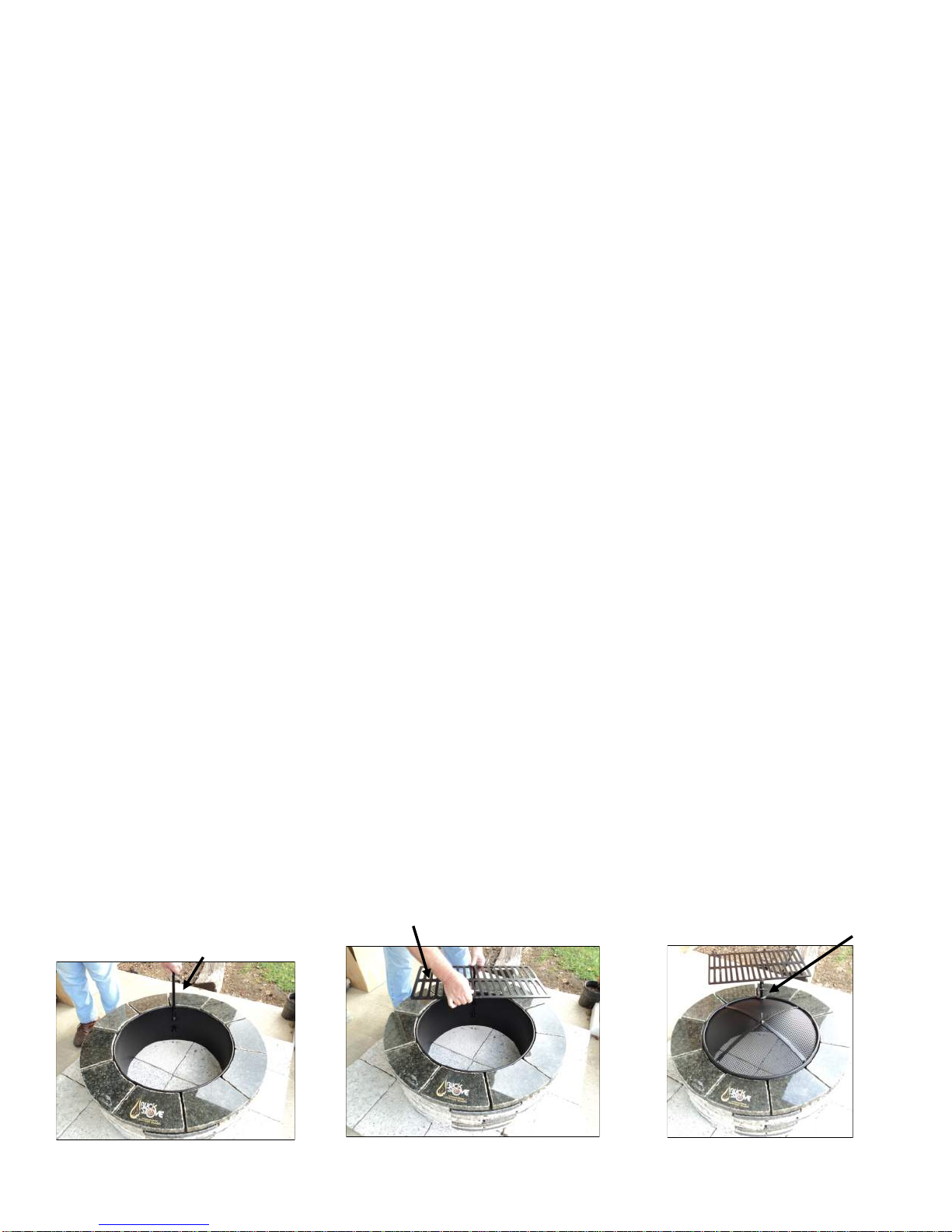

The Fire Ring has an adjustable Cooking Grate. Adjust the Cooking Grate by tightening or loosening
the T-LOCKING BOLT on the Cooking Grate. See Picture Below. This is also used for removing the
Cooking Grate for cleaning and storage. NOTE: When cooking on the Cooking Grate, always use
tinfoil, pots or pans and Cooking Grate.
NOTE:
The manufacturer recommends that for maximum performance burn natural seasoned
hardwood
.
Lay several pieces of dry kindling on top of newspaper in the Fire Pit. Place several
pieces of natural seasoned hardwood or hickory wood on kindling. Light newspaper. Don't leave fire
unattended at this point. NOTE: The cooking Grate is HOT at this time, it should not be touched
without adequate protection. After embers and a coal bed have been established, load Fire Pit with
seasoned natural hardwood as desired for cooking. Your Bob Timberlake Fire Pit with cooking Grate
is ready for use..
NOTE: Always keep safety in mind when disposing of hot ashes. Pour water on them
until out. Dig hole and bury ashes; transport ashes using metal container with lid.
COOKING GRATE
SUPPORT ROD
