SERVICE MANUAL
&
PARTS LIST
PE-DESIGN PLUS
Published: Jul.,2011
Revised: Sep.,2011
MODEL LIST
Model Countries (Added Date)
PE-DESIGN PLUS USA, CAN (Jul / 2011)
PE-DESIGN PLUS ARG&PRY (Sep / 2011)
PE-DESIGN PLUS DEU&FRA&ITA&CHE (Sep / 2011)
PE-DESIGN PLUS IRE&UK, ESP, EEU&NEU, RUS (Sep / 2011)

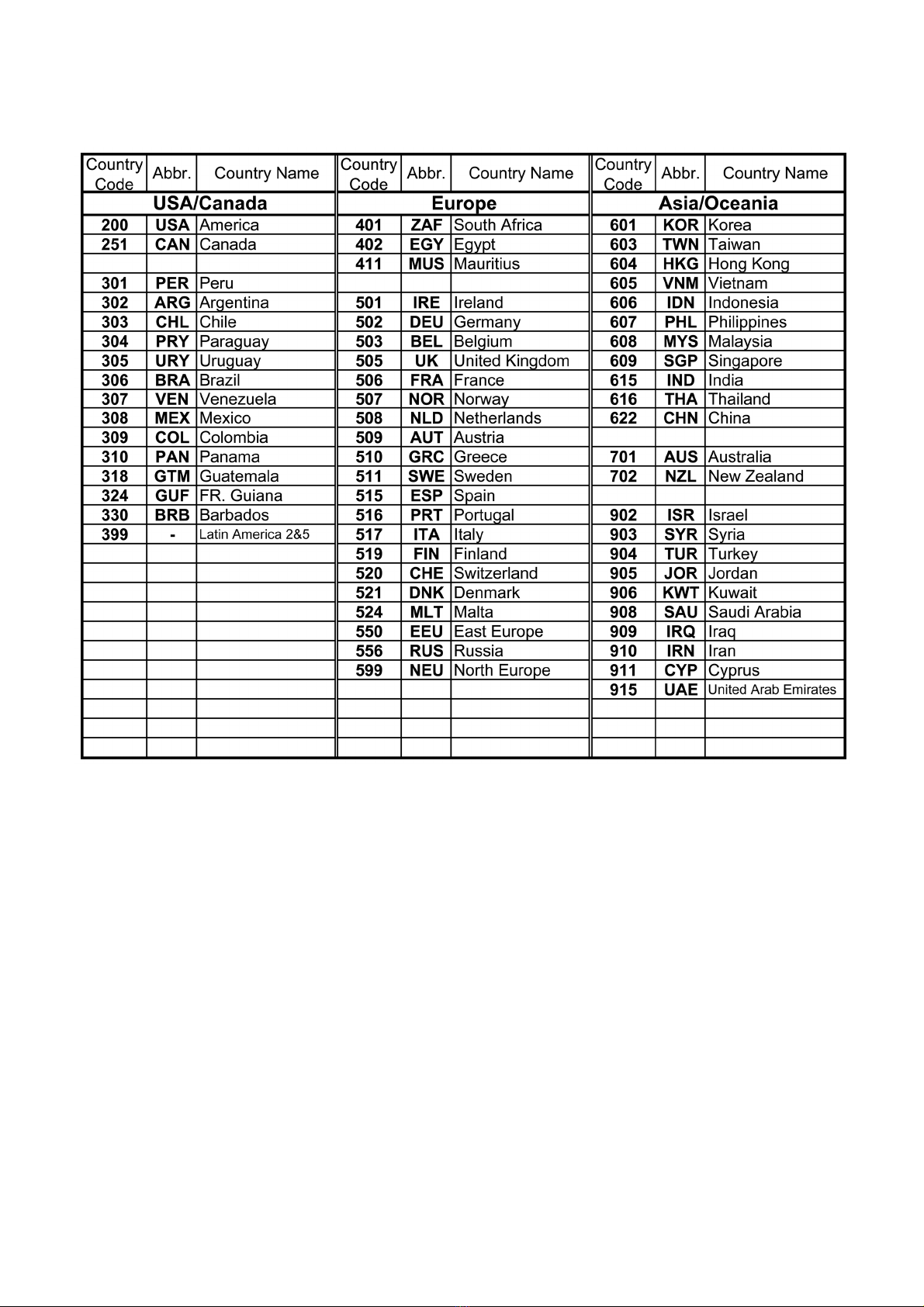

Country Code & Abbreviation of Country Name
- 1 -
Table of Contents
∗Service Manual
I. Main Configuration ..........................................................................2
II. Diagnosing a Breakdown in the Electrical System .......................4
∗Parts List........................................................................................................5
GENERAL INFORMATION
This service manual has been compiled for explaining repair procedures of the Card module.
This was produced based on up-to-date product specifications at the time of issue, but there may have
been changes of specifications for the purpose of improvements.
Contact manufacturer or local sales company for information concerning such changes.
CAUTION
1. Always use rubber gloves when handling printed circuit boards and never touch the metal portion of a
printed circuit board with bare hands.
2. Keep your body earthed in order to avoid generating static electricity.
3. Pack printed circuit boards in aluminum foil and avoid subjecting them to any form of impact during
storage or transportation.
4. Do not touch or damage the metal portion of a printed circuit board with a screwdriver or any other tool
while making repairs or the like.
- 2 -
I. Main Configuration

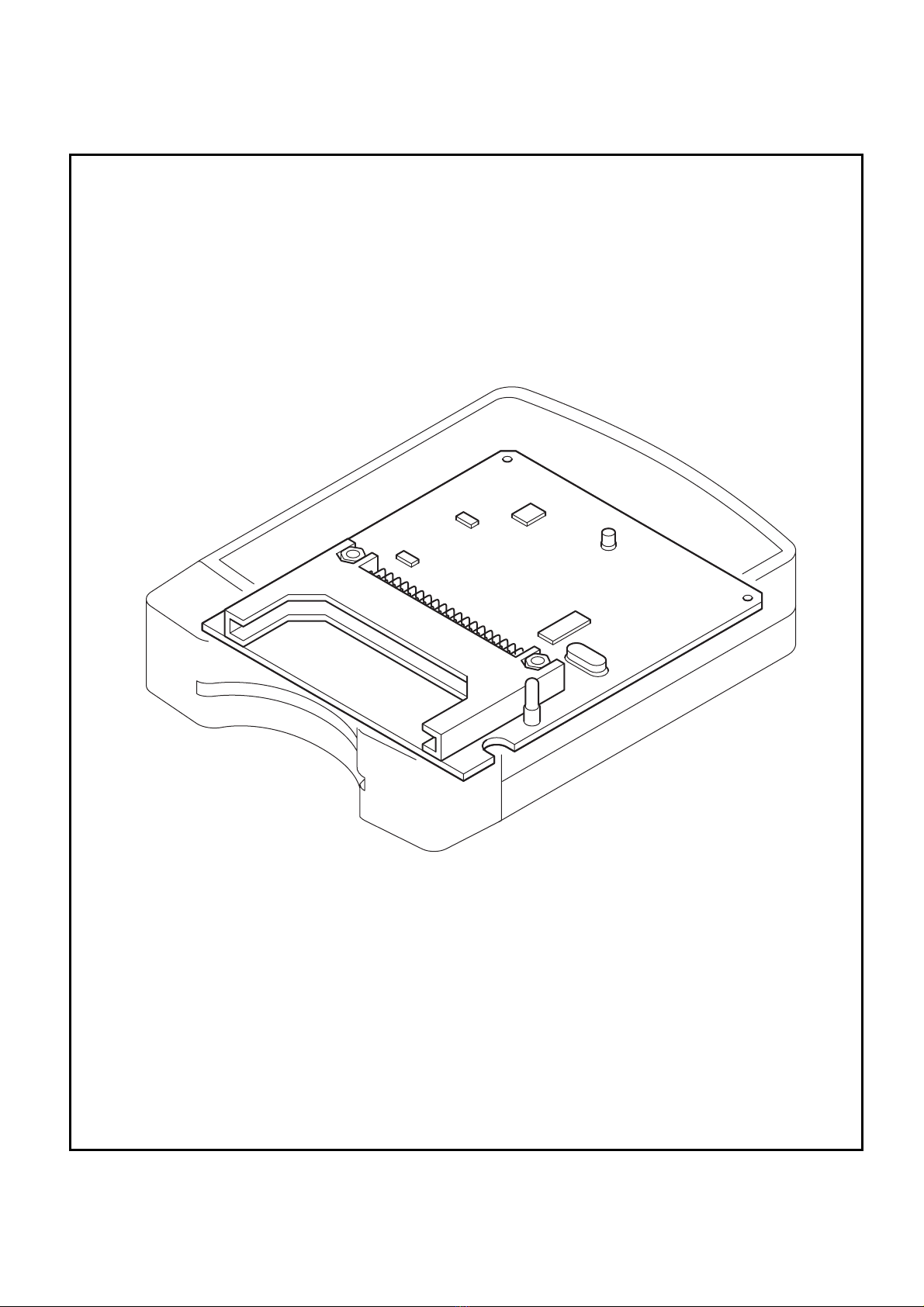

1. Main Components
- 3 -
2. Control System Block Diagram
CPU
MN101C30A
#2
LED
Reset Circuit
#4
PC
USB Interface Driver
#1
Power
Supply
Circuit
EEPROM
#3
Power circuit for Card
Card Interface Circuit
CN1
Memory
Card
- 4 -
II. Diagnosing a Breakdown in the Electrical System
Diagnosing a breakdown in the electrical components
Situation Locating the Problem Solution
Even though the USB connector
of the unit is connected to the
USB connector of the computer,
the unit's LED does not light up.
Is the bus power hub not
connected?
If the unit is connected to another
computer, does the unit's LED
light up?
Others
Connect the unit directly to a
computer or to a self-powered
hub.
Check the USB interface of the
original computer.
Replace the main PC board assy.
Even though a memory card is
inserted, a message warning that
a card is not inserted appears.
Is the memory card fully inserted?
Does the error message appear
when another memory card is
inserted?
Others
Check that the card is fully
inserted.
Use a different memory card.
Replace the main PC board assy.
A message warning that the driver
may not be installed correctly
appears.
Was installation performed
according to the instructions?
Others
Perform the installation again.
Perform the installation again.
(After uninstalling the application
and the driver, perform the
installation again.)
- 5 -

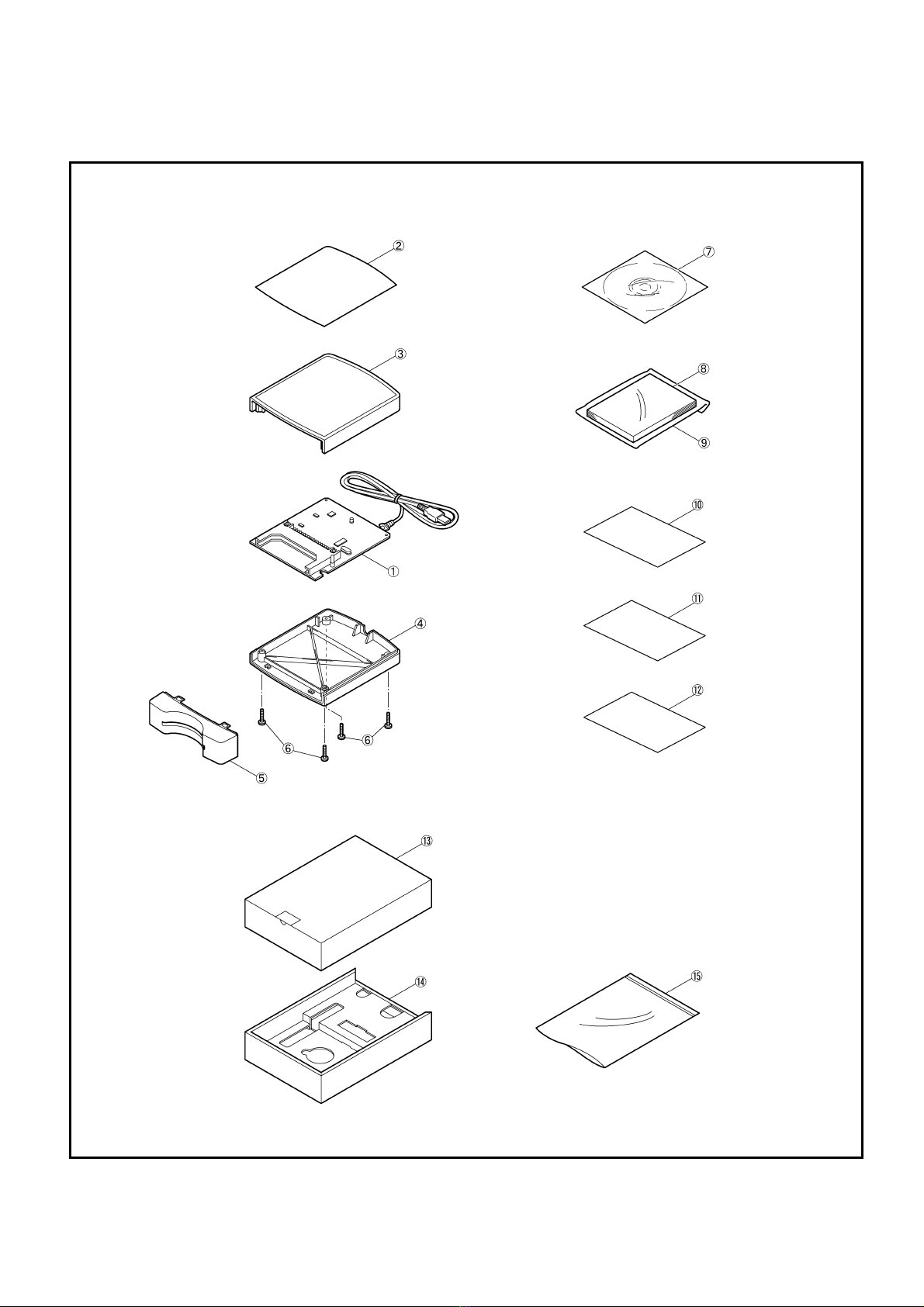

∗Parts List
Main body
1 XF1280001 ASSY MAIN PCB BROTHER PLUS
2 XF1220001 PANEL
3 XC2110021 UPPER COVER
4 XC2111021 LOWER COVER
5 XC2112023 SIDE COVER
6 083201016 TAPTITE, PAN P M2X10
7 XF1222001 CD-ROM FOR BROTHER PLUS
8 XF0606001 OPERATION MANUAL ENG (English)
XF0611001 OPERATION MANUAL SPA (Spanish)
XF0607001 OPERATION MANUAL FRE (French)
XF0608001 OPERATION MANUAL GER (German)
1000026805
XF0610001 OPERATION MANUAL DUT (Dutch)
1000026805
XF0609001 OPERATION MANUAL ITA (Italian)
1000026805
XF0613001 OPERATION MANUAL DAN (Danish)
1000026808
XF0614001 OPERATION MANUAL SWE (Swedish)
1000026808
XF0612001 OPERATION MANUAL RUS (Russian)
1000026809
9 XC2208001 BAG 240X330H
10 XC8883021 WARRANTY CARD (USA)
XE8671001 WARRANTY CARD BROTHER CANADA (CAN)
11 XF0300001 INSERTION WEEE
1000026805
12 XE9897001 UKRAINIAN ROHS INSERTION (RUS)
1000026809
13 XF1225001 CARTON MODEL:PED-PLUS (USA)
XF1300001 CARTON MODEL:PED-PLUS (RUS)
1000026809
XF1229001 CARTON MODEL:PED-PLUS (OTHER)
14 X61817020 INTERIOR CONTAINER
15 XA2214021 BAG, 150X200
- 6 -
PE-DESIGN PLUS
15H10HF885Y01
