Technical Reference

Title: Replacing Main Board

Date: February 25, 2009

Models: BE-901, BE-901-PC, BE-1201, BE-1201-PC, BES-916, BES-1216

1. Make sure machine is OFF and Unplugged.

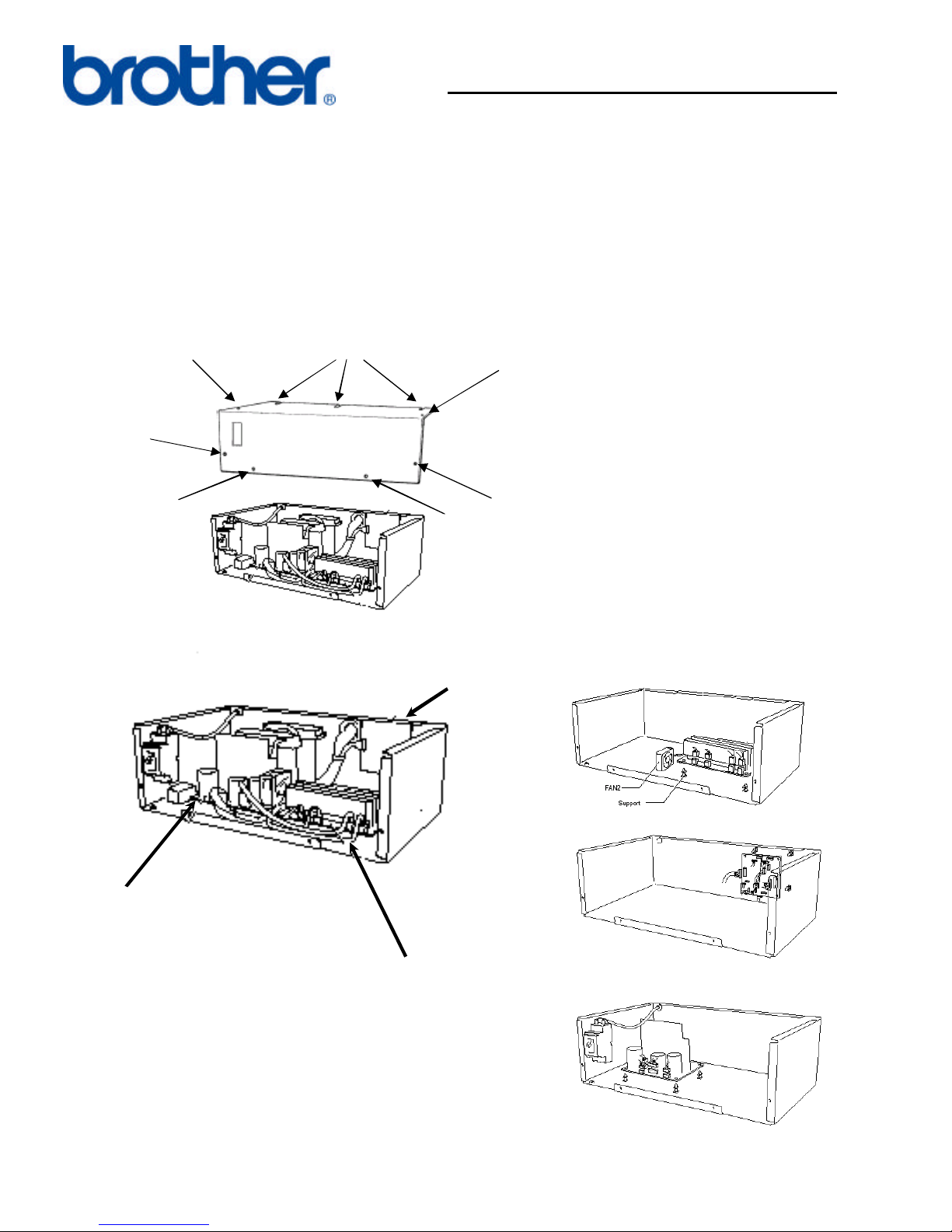

2. Remove cover assy. (Six screws removed “A”, Three loosened “B”)

3. Identifying Main Bord. (Also: Power Supply, and Head Board)

A

A

AAA

A

B

Power Supply

Main Board

Head Board Main Board

Head Board

Power Supply

2

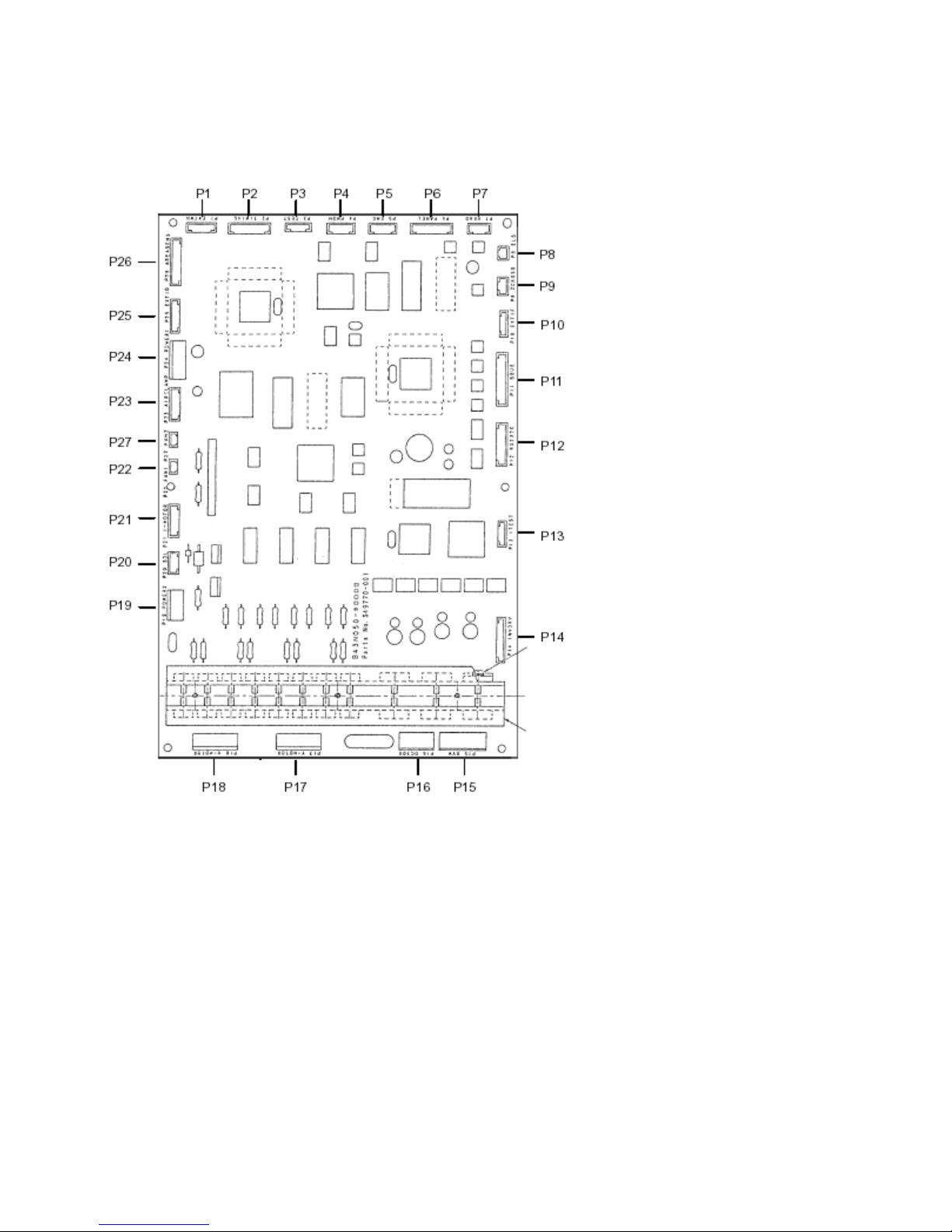

4. Unplugging all wire connector harnesses. Note following connecters are not used or

have jumper: P5 & P25—have a jumper, P1, P3, P4, P6, P8, P10, P11 and P13—Not used:

marked with asterisk *.

5. Unplug all connectores to remove board. However, keep in mind that connectors only

go in one spot and can not be confused.

6. Board is held inplace by plastic clip locks. In order to unlock you will need to squeese

locks and lightly pull-up on board to release.

*

*

*

*

*

*

*

*

*

*

3

(Fig. 1-1)

Six connectors

total hold board

down.

Clip Locations

4

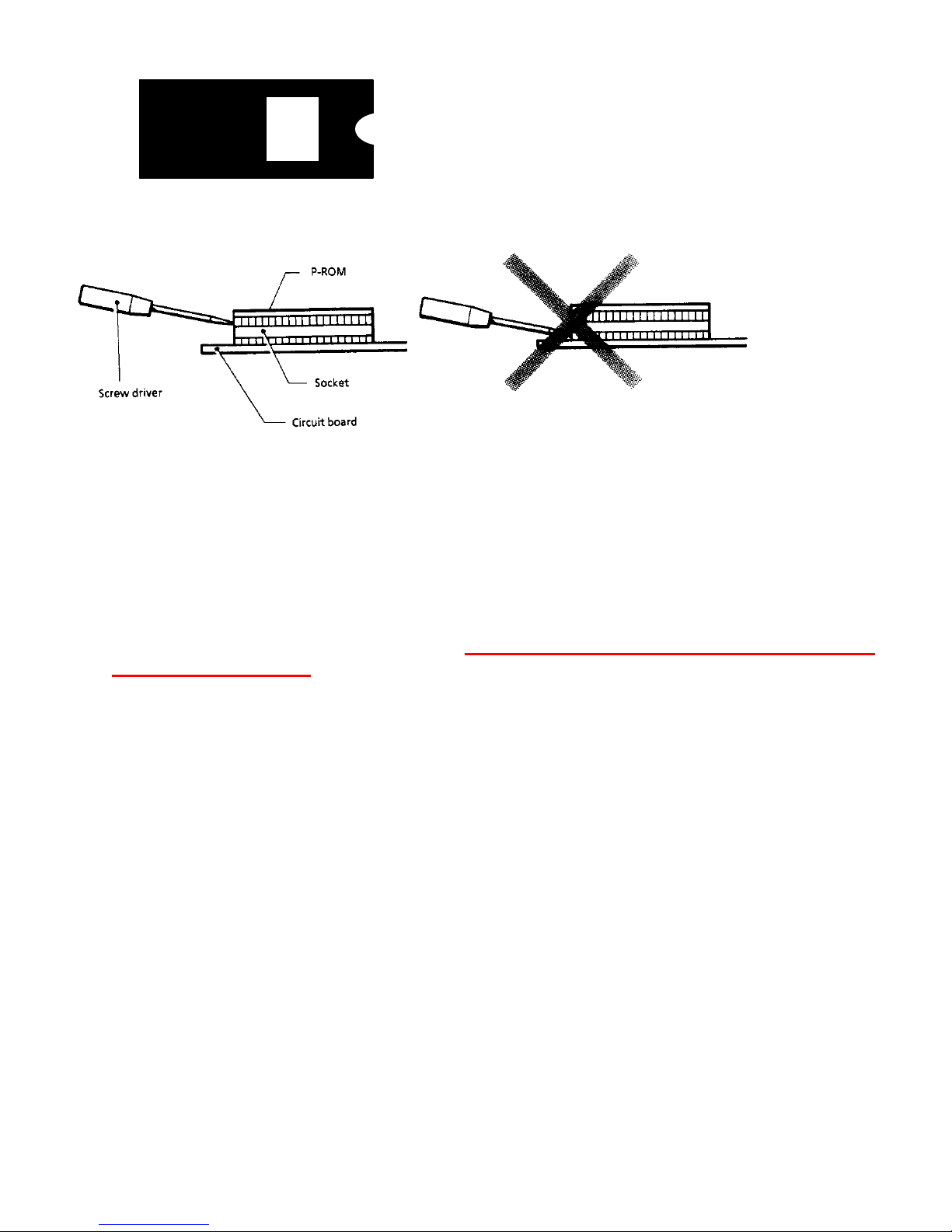

P-Rom Replacement:

1) Locate the P-ROM that is mounted on the

board. You will need to remove the old P-

ROM chip carefully (see below).

2) Re-insert the new P-ROM chip very

carefully. You must ensure that all the legs

are entering the proper hole and that no legs

are bent or broken off. Use extreme

caution when performing this task.

7. Once you remove the old board you are ready to install the new one. Things to look for

before installing.

A. Jumpers on plugs P-25 and P-5.

1. If the new board does not have them please use the ones from old board;

this will be OK.

B. P-ROM =

1. If the new board does not have P-ROM please use the one from old board;

it will be OK.

BES 960

MT-C

5

8. Installing board, please follow reverse instructions on removal.

9. After board is installed and all plugged in you will need to perform a version up-grade in

accordance with the model of machine. The machine will act like it is in-operative until

this step is performed.For version up-grading machine please follow version up-grade

procedure.

Be sure to align the U-shape cut out

to the socket mount.
