Brother BE-1204 User manual

3/10/05

With the power to the machine OFF.

1. Remove the black thumbscrews.

3. Open the two fixed levers and move the fixing

pins to the outside to take them out from the

pantograph.

5. Install tubular arms. Flip mode switch on

machine to FLATS. Turn power on.

2. Hold up the cap frame sash and remove it from the

positioning pins by moving slightly forward.

4. Remove the cap driver from the bed and fix the cap

frame sash with the black thumbscrews, removed in

step 1, for storage.

For Technical Assistance Please Call Toll Free

877

4BROTHER

Email: [email protected]

Website: http://www.brother-usa.com/industembroidery/tech_down.aspx

E-

-1

Positioning Pin

Open

Outside

3/10/05

There are 3 tubular mounting positions depending on what hoop size you are using. On each side of the

tubular arms are numbers 1-3. If for example you are using small tubular hoops you would use position

number 1 on both tubular arms. This is the numbered slot on the tubular arm that will go under the pair

of thumbscrews for each head on the pantograph. Only the left tubular arm moves to a different position.

The right one is fixed. To adjust the tubular arms on the connecting plate just remove the small

thumbscrew on the left hand side and remove that tubular arm. Insert the number 1 slot of the right

tubular arm underneath the pantograph thumbscrew on the right. Install the left tubular arm so that the

number 1 slot is underneath the pantograph thumbscrew on the left. This will align the left tubular arm

with the correct positioning pins on the connecting plate. Install small thumbscrew to secure left tubular

arm to the connecting plate. Tighten both thumbscrews on pantograph to secure the tubular attachment.

Photos of each position are as follows:

Position 1

Position 2 Position 3

E-

-1

Small Thumbscrew

Pantograph Thumbscrews

This manual suits for next models

Table of contents

Other Brother Sewing Machine manuals

Brother

Brother LH4-B814-4 User manual

Brother

Brother Isodore Innov-is 5000 Setup guide

Brother

Brother PE-780D User manual

Brother

Brother Quattro 2 6700D Setup guide

Brother

Brother XL-3600 User manual

Brother

Brother Innov-is QC1000 User manual

Brother

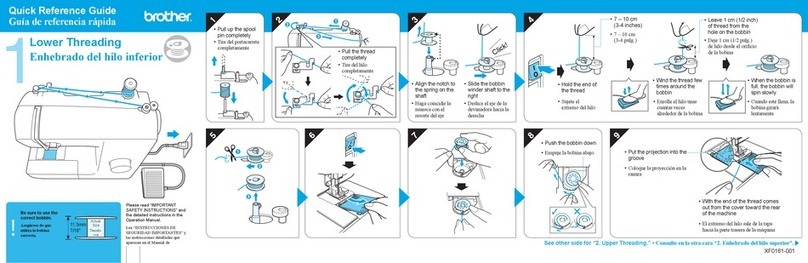

Brother LX2500 User manual

Brother

Brother BAS-310 User manual

Brother

Brother CELEBRITY 10 User manual

Brother

Brother CE1125PRW User manual

Brother

Brother Entrepreneur Pro PR-1000 User manual

Brother

Brother XL-2027 User manual

Brother

Brother DB2-B771A User manual

Brother

Brother S-6200A User manual

Brother

Brother CB3-B913 User manual

Brother

Brother PE-780D User manual

Brother

Brother NV4500D User manual

Brother

Brother XL-5600 Setup guide

Brother

Brother 884-B31 User manual

Brother

Brother 885-X06 User manual

Brother

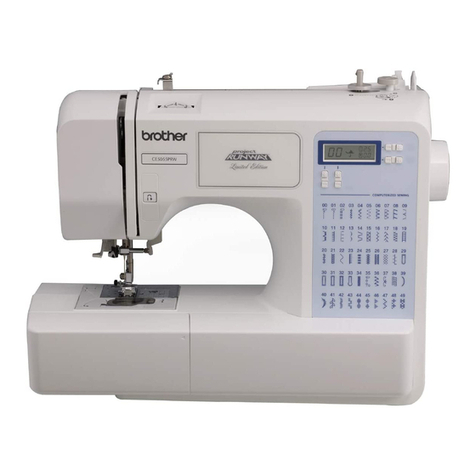

Brother CE-5500 User manual
