Brother DCP-L3510CDW User manual
Reference Guide
Brief explanations for routine operations
DCP-L3510CDW
DCP-L3517CDW
DCP-L3550CDW
MFC-L3710CW
MFC-L3730CDN
MFC-L3750CDW
MFC-L3770CDW
Brother recommends keeping this guide next to your Brother machine for quick reference.
Online User's Guide
For more advanced instructions, information, and
product specifications, see the Online User's
Guide at support.brother.com/manuals
User's Guides and Where to Find Them
Which Guide? What's in It? Where Is It?
Product Safety Guide Read this Guide first. Please read the Safety
Instructions before you set up your machine.
See this Guide for trademarks and legal
limitations.
Printed / In the box
Quick Setup Guide Follow the instructions for setting up your
machine, and installing the Full Driver &
Software Package for the operating system
and connection type you are using.
Printed / In the box
Reference Guide Learn the basic Fax, Copy and Scan
operations and basic machine maintenance.
See troubleshooting tips.
Printed or on Brother
Installation Disc / In
the Box
Online User's Guide This guide includes the additional contents of
the Reference Guide.
In addition to information about the Print,
Scan, Copy, Fax, mobile device functions,
Brother ControlCenter operations and
troubleshooting, other useful information is
included about using the machine on a
network.
Brother Solutions
Center 1
1Visit support.brother.com/manuals.
1

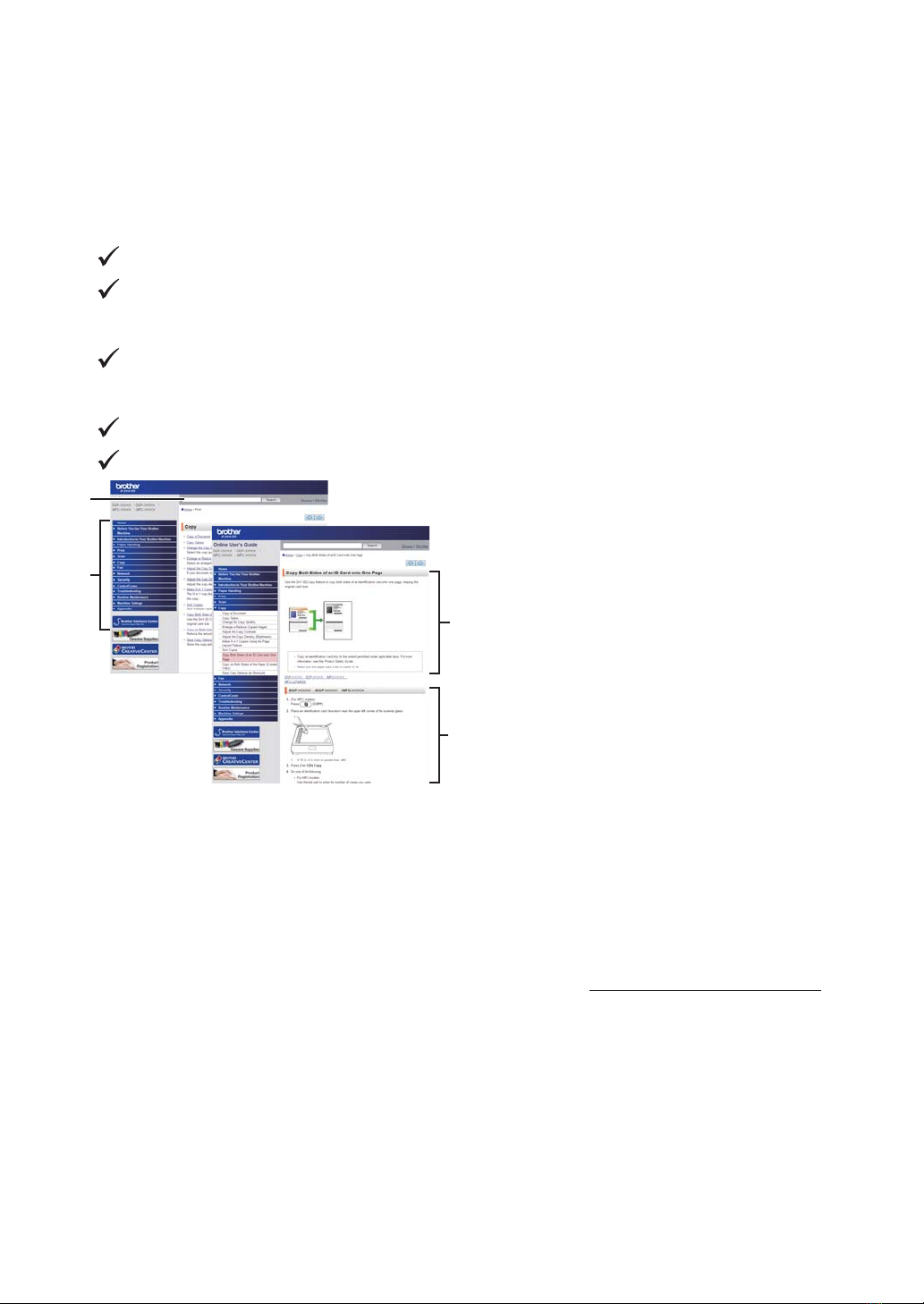

The Online User's Guide Helps You Get the Most
Out of Your Machine
We hope that you find this guide helpful. To learn more about your machine's features, please
take a look at our Online User's Guide. It offers:
Quicker Navigation!
Search box
Navigation index in a separate panel
Comprehensive Format!
Every topic in one guide
Simplified Layout!
Step-by-step instructions
Feature summary at the top of the page
1
2
3
4
1. Search Box
2. Navigation
3. Summary
4. Step-by-Step Instructions
To View Online User's Guides
To view the Online User's Guide and other available guides, visit support.brother.com/manuals.
(Windows®)
You can also access your machine's guides using Brother Utilities. The Brother Utilities tool is
included in the standard installation and, when installed, you can find it either as a shortcut on
your desktop, or from the Windows® Start menu.
2
Questions or Problems? Take a Look at our FAQs,
Solutions, and Videos Online.
Go to your model's FAQs & Troubleshooting page on the Brother Solutions Center at
support.brother.com.
•Provides several ways to search
•Displays related questions for more information
•Receives regular updates based on customer feedback
©2018 Brother Industries, Ltd. All rights reserved.
3
Control Panel Overview
The control panel may vary depending on your model.

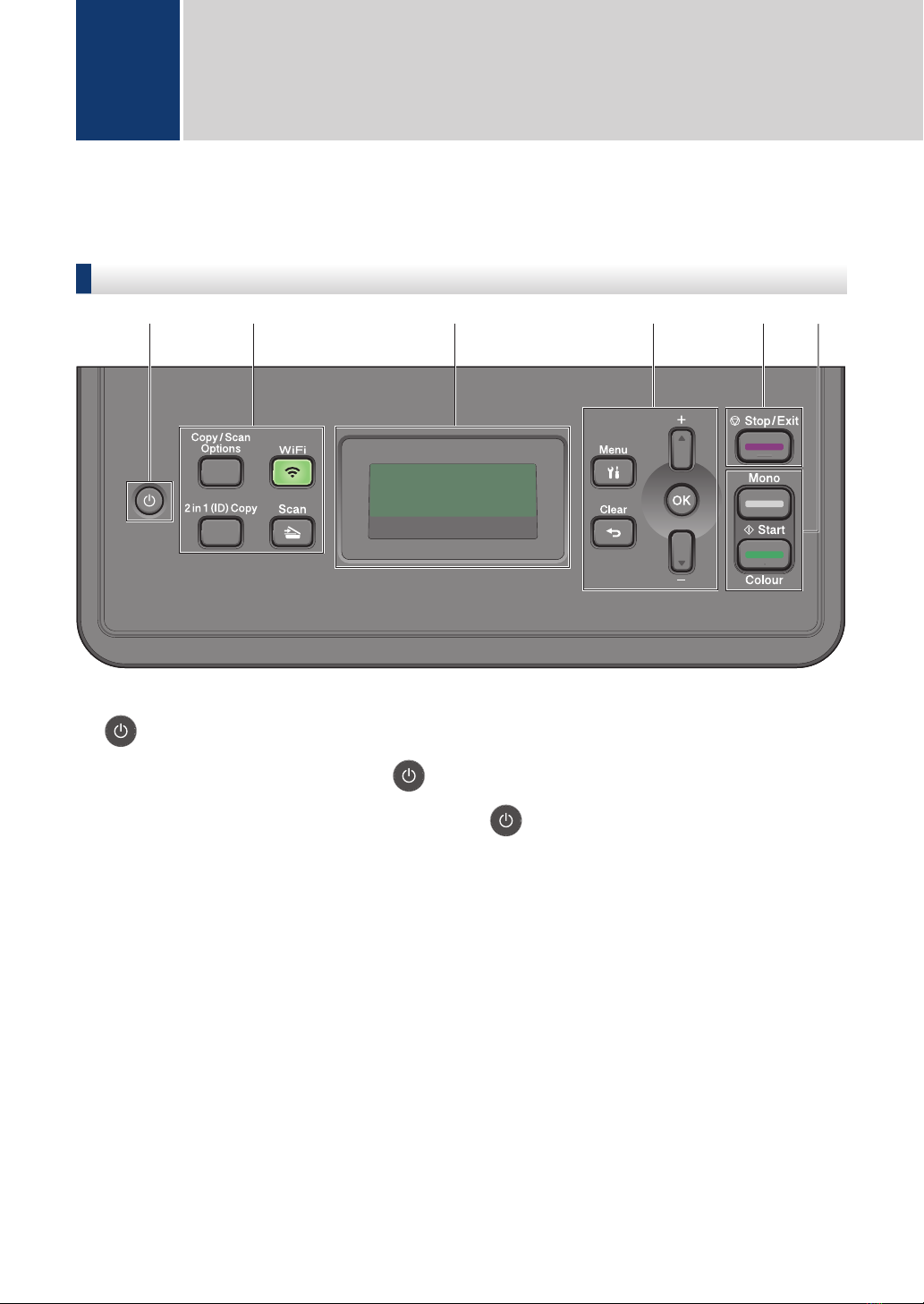

DCP-L3510CDW/DCP-L3517CDW
1 52 3 4 6
1. Power On/Off
• Turn the machine on by pressing .
• Turn the machine off by pressing and holding . The LCD displays [Shutting Down]
and stays on for a few seconds before turning off.
2. Function Buttons
Copy/Scan Options
Press to access temporary settings for scanning or copying.
WiFi (for wireless models)
Press the WiFi button and launch the wireless installer on your computer. Follow the on-
screen instructions to set up a wireless connection between your machine and your
network.
When the WiFi light is on, your Brother machine is connected to a wireless access point.
When the WiFi light blinks, the wireless connection is down, or your machine is in the
process of connecting to a wireless access point.
Scan
Press to switch the machine to Scan Mode.
1General Information
4
2 in 1 (ID) Copy
Press to copy both sides of an identification card onto a single page.
3. Liquid Crystal Display (LCD)
Displays messages to help you set up and use the machine.
If the machine is in Ready Mode or Copy Mode, the LCD displays:
□□■□□
ba
c
d
e
100% Auto
Stack Copies:01
a. Type of copy
b. Number of copies
c. Quality
d. Contrast
e. Copy ratio
4. Menu Buttons
Menu
Press to access the Menu for programming your machine settings.
Clear
• Press to delete entered data.
• Press to cancel the current setting.
OK
Press to store your machine settings.
a or b
Press to scroll up or down through menus and options.
5. Stop/Exit
• Press to stop an operation.
• Press to exit from a menu.
6. Start buttons
•Mono Start
- Press to start making copies in monochrome.
- Press to start scanning documents (in colour, grey, or monochrome depending on the
scan setting).
•Colour Start
- Press to start making copies in full colour.
- Press to start scanning documents (in colour, grey, or monochrome depending on the
scan setting).
1General Information
5

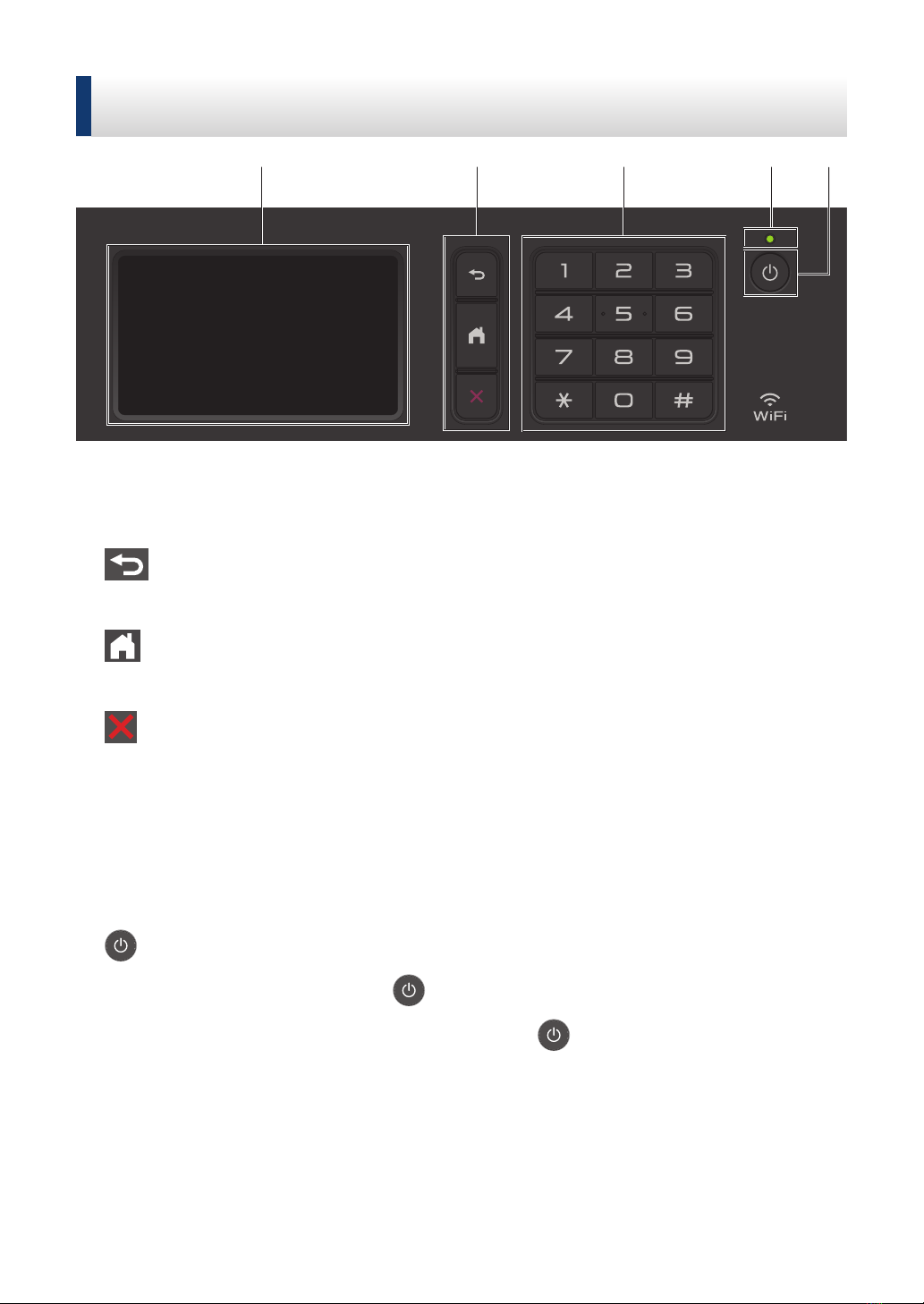

DCP-L3550CDW/MFC-L3710CW/MFC-L3730CDN/
MFC-L3750CDW/MFC-L3770CDW
41 2 3 5
1. Touchscreen Liquid Crystal Display (LCD)
Access menus and options by pressing them on the touchscreen.
2. Menu Buttons
(Back)
Press to go back to the previous menu.
(Home)
Press to return to the Main Home screen.
(Cancel)
Press to cancel an operation.
3. Dial Pad (Numerical buttons)
Press the Numerical buttons to dial telephone or fax numbers and to enter the number of
copies.
4. LED Power Indicator
The LED lights up depending on the machine’s power status.
5. Power On/Off
• Turn the machine on by pressing .
• Turn the machine off by pressing and holding down . The LCD displays [Shutting
Down] for a few seconds before going off. If you have an external telephone or TAD
connected, it is always available.
6
Near Field Communication (NFC) (MFC-L3770CDW)
If your Android™ device supports the NFC feature, you can print from your device or scan
documents to your device by touching it to the NFC symbol.
How to Navigate the Touchscreen LCD
Related Models:
DCP-L3550CDW/MFC-L3710CW/MFC-L3730CDN/MFC-L3750CDW/MFC-L3770CDW
Press your finger on the LCD to operate it. To display and access all the options, swipe left, right,
up, down or press d c or a b on the LCD to scroll through them.
IMPORTANT
DO NOT press the LCD with a sharp object, such as a pen or stylus. It may damage the
machine.
DO NOT touch the LCD immediately after plugging in the power cord or turning on the machine.
Doing this may cause an error.
NOTE
1General Information
7
Touchscreen LCD
Overview
Related Models:
DCP-L3550CDW/MFC-L3710CW/MFC-L3730CDN/
MFC-L3750CDW/MFC-L3770CDW
You can select from two types of screens to
set as the Main Home screen: Home screens
and Shortcuts screens. When a Home screen
is displayed, swipe left or right or press d or c
to display the other Home screens.
The Main Home screen displays the
machine's status when the machine is idle.
When displayed, this screen indicates that
your machine is ready for the next command.
The available features vary depending on
your model.

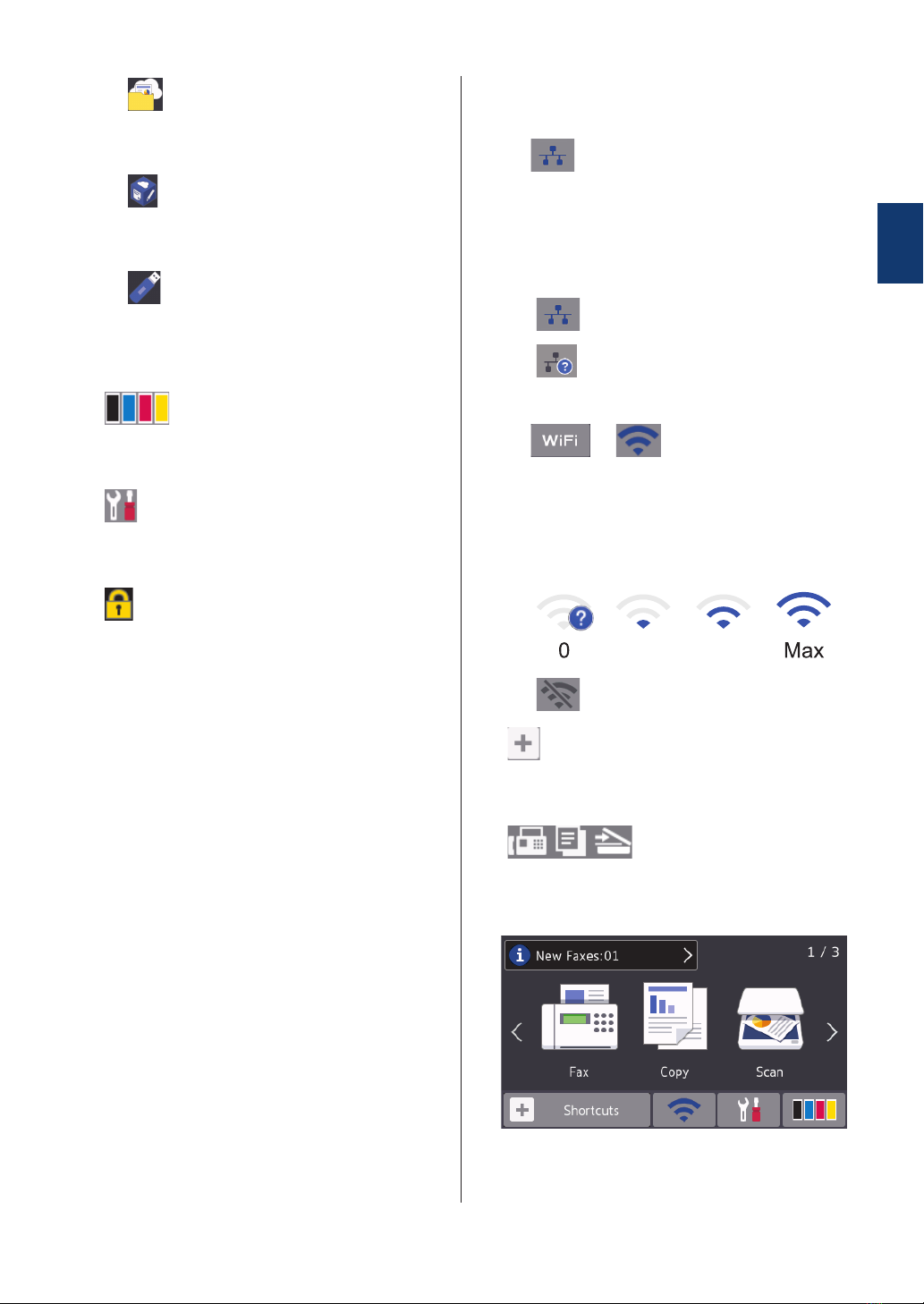

Home screen: Screen 1
The Home screens provide access to
features, such as Fax, Copy and Scan.
Home screen: Screen 2
Home screen: Screen 3
Shortcuts screen
Create Shortcuts for frequently-used
operations, such as sending a fax, copying,
scanning and using Web Connect.
Three Shortcuts tabs are available with
six Shortcuts on each Shortcuts tab. A
total of 18 Shortcuts are available.
1. Date & Time
Displays the date and time set on the
machine.
2. Modes
• [Fax]
Press to access Fax mode.
• [Copy]
Press to access Copy mode.
• [Scan]
Press to access Scan mode.
• [Secure Print]
Press to access the [Secure Print]
option.
8
• [Web]
Press to connect the Brother machine
to an Internet service.
• [Apps]
Press to connect the Brother machine
to the Brother Apps service.
• [USB]
Press to access the USB menu and
select [Scan to USB] or [Direct
Print] options.
3. (Toner)
Displays the remaining toner life. Press to
access the [Toner] menu.
4. (Settings)
Press to access the [Settings] menu.
If Setting Lock has been turned on, a lock
icon appears on the LCD. You must
unlock the machine to change settings.
5. Wired LAN Status or Wireless Status
• Wired Network Models:
(Wired LAN Status)
Press to configure the Wired LAN
settings.
The icon displays the current wired
network status.
Network cable is connected
No cable connection
• Wireless Network Models:
or (Wireless Status)
Press to configure wireless settings.
If you are using a wireless connection,
a four-level indicator displays the
current wireless signal strength.
0 Max
Wireless LAN Disabled
6. [Shortcuts]
Press to access the [Shortcuts]
screen.
7. (Home screen)
Press to access the Home screens.
New Fax (MFC models)
When [Fax Preview] is set to [On], the
number of new faxes you received into the
memory appears at the top of the screen.
1General Information
9
