Brother DCP-110C User manual

Quick Setup Guide DCP-110C

Before you can use the machine, you must set up the hardware and install the driver.

Please read this “Quick Setup Guide” for proper set up and installation instructions.

For the latest drivers and to find the best solution for your problem or question, access the Brother

Solutions Center directly from the driver or go to http://solutions.brother.com

Keep this “Quick Setup Guide”, User’s Guide and supplied CD-ROM in a convenient place for

quick and easy reference at all times.

Version A

Step 1

Setting Up the Machine

Step 2

Installing the Driver & Software

Setup is Complete!

Installing the Driver & Software

Setting Up

the Machine

Windows®

Mac OS®

8.6 - 9.2

Mac OS®X

■

Warning Hint User’s Guide

Indicates warnings that

must be observed to

prevent possible

personal injury.

Indicates cautions that

must be observed to use

the machine properly or

to prevent damage to the

machine.

Indicates notes and

useful tips to remember

when using the machine.

Indicates reference to the

User’s Guide.

Carton components may differ from one country to another.

Save all packing materials and the carton.

Carton Components

Quick Setup Guide

User’s Guide

Accessory Order Form CD-ROM

Black

(LC41BK)

Magenta

(LC41M)

Yellow

(LC41Y)

Cyan

(LC41C)

Ink Cartridges

If you are connecting the machine via USB:

■The interface cable is not a standard accessory. Please purchase an appropriate USB 2.0 interface

cable.

■Please make sure you use a USB 2.0 interface cable that is no longer than 6 feet long (2 metres).

■Your DCP has a USB 2.0 Full-Speed interface. This interface is compatible with USB 2.0 Hi-Speed;

however, the maximum data transfer rate will be 12 Mbits/s. The DCP can also be connected to a

computer that has a USB 1.1 interface.

DCP

■Getting Started

Control Panel

1. Copy keys 5. Start keys 9. PhotoCapture key

2. Set key 6. On/Off key 10. Menu key

3. Navigation keys 7. Ink key 11. Liquid Crystal Display (LCD)

4. Stop/Exit key 8. Scan key 12. Light-Emitting Diode (LED)

For the details of the control panel, see "Control panel overview" in Chapter 1 of the User’s Guide.

10 9 8 7 6

Table of Contents

Setting Up the Machine

1. Removing the Protective Parts ......................................................................... 4

2. Loading Paper ....................................................................................................4

3. Installing the Power Cord..................................................................................5

4. Installing the Ink Cartridges..............................................................................5

5. Print Quality Check ............................................................................................7

6. Selecting Your Language (Canada only) ......................................................... 8

7. Setting the Date and Time .................................................................................9

Installing the Driver & Software

Supplied CD-ROM (MFL-Pro Suite).................................................................... 10

For Windows®98/98SE/Me/2000 Professional/XP............................................ 12

For Mac OS®8.6 to 9.2 ........................................................................................ 15

For Mac OS®X 10.2.4 or greater ........................................................................ 17

■Consumables and Options

Replacement Consumables................................................................................ 20

Option ................................................................................................................... 20

Step 1

Step 2

Setting Up the Machine

1Remove the protective tape.

DO NOT connect the USB cable.

Connecting the USB cable is done

when installing the driver.

1Pull the paper tray completely out of the

machine and remove the output paper tray.

2Press and slide the paper guide to fit the

paper width.

3Pull out the paper support and unfold the

paper support flap.

4Fan the stack of paper well to avoid paper

jams and mis-feeds.

5Gently insert the paper into the paper tray

print side down and top edge first.

Check that the paper is flat in the tray and

below the maximum paper mark.

6Put the output paper tray back on and push

the paper tray firmly back into the machine.

1Removing the Protective

Parts

2Loading Paper

You can load up to 100 sheets of 20 lb

paper.

For more details, see “About paper” in

Chapter 1 of the User’s Guide.

Paper Side Guide

Use the paper support flap for Letter, Legal

and A4 size paper.

■Make sure the paper side guides touch

the sides of the paper.

■Be careful that you do not push the paper

in too far; it may lift at the back of the tray

and cause paper feed problems.

Paper Support Flap

Paper Support

Step 1

Setting Up

the Machine

Windows®

Mac OS®

8.6 - 9.2

Mac OS®X

1Connect the power cord.

DO NOT connect the USB cable yet.

Warning

The DCP must be connected to a grounded/earthed

plug.

Warning

If ink gets in your eyes wash them with water

immediately, and if irritation occurs consult a doctor.

1Make sure that the power is turned on.

The LCD shows:

2Lift the scanner cover from the right-hand

side of the DCP until it locks securely into

the open position.

3Installing the Power

Cord 4Installing the Ink

Cartridges

No Cartridge

Scanner Cover

Continued...

Setting Up the Machine

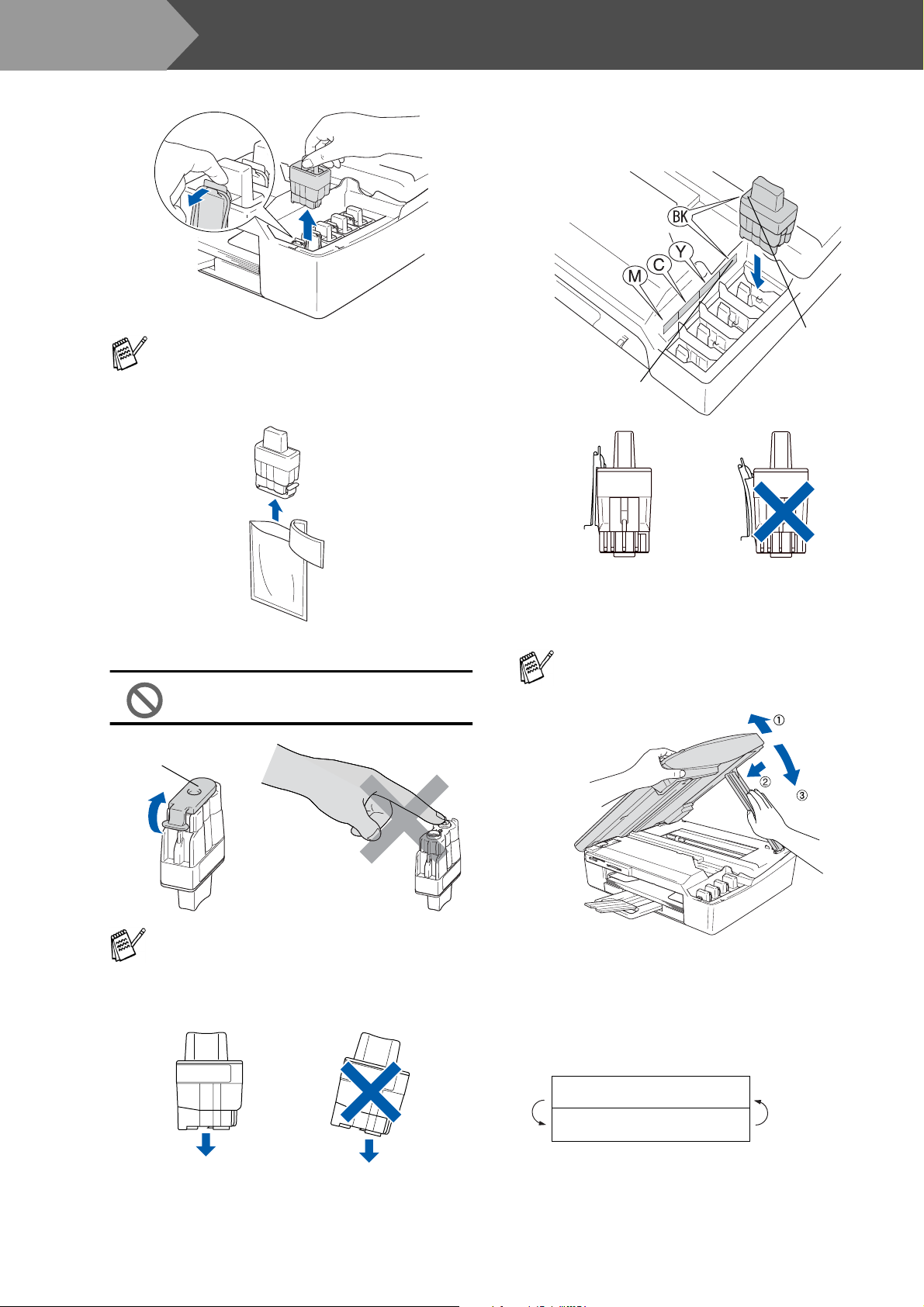

3Remove the protective parts.

4Take out the ink cartridge.

5Carefully remove the bottom cap.

DO NOT touch the area shown in the

illustration below.

Keep the ink cartridge in an upright position

when you insert it into the slot.

6Press firmly down on the ink cartridge until

the hook snaps over it, taking care to match

the slot color (A) with the cartridge color (B),

as shown in the diagram below.

7Lift the scanner cover to release the lock.

Gently push the scanner cover support

down and close the scanner cover.

The machine will clean the ink tube system

for use for the first time. This process will

occur only once, the first time ink cartridges

are installed. The cleaning process will last

approximately four minutes.

The LCD shows:

Do not throw away the protective parts.

You will need them when you transport the

machine.

If the cartridge cover comes off when you

open the bag the cartridge will not be

damaged.

Opening

If Install shows on the LCD after you

install the ink cartridges, check to make sure

the ink cartridges are installed correctly.

Preparing System

Approx 4 Minutes

(B)

(A)

Step 1

Setting Up

the Machine

Windows®

Mac OS®

8.6 - 9.2

Mac OS®X

• DO NOT remove ink cartridges if

you do not need to replace them.

If you do so, it may reduce the ink

quantity and the machine will not

know the quantity of ink left in

the cartridge.

• DO NOT shake the ink cartridges.

If ink stains your body or

clothing, wash with soap or

detergent immediately.

• DO NOT dismantle or tamper

with the ink cartridge, this can

cause the ink to leak out of the

cartridge.

• Brother strongly recommends

that you do not refill the ink

cartridges provided with your

machine. We also strongly

recommend that you continue to

use only Genuine Brother Brand

replacement ink cartidges. Using

or attempting to use potentially

incompatible inks and/or

cartridges in your machine may

cause damage to the machine

itself and/or it may result in

unsatisfactory print quality. Our

warranty coverage does not

apply to any problem that was

casued by the use of

unauthorized third party ink and/

or cartridges. To protect your

investment and guarantee your

print quality please continue to

replace consumed ink cartridges

with only Genuin Brother Brand

Supplies.

• DO NOT insert and remove the

cartridges repeatedly. If you do

so, the ink may seep out of the

cartridge.

1After the cleaning cycle is finished, the LCD

shows:

2Make sure the paper is loaded in the paper

tray.

Press Color Start.

3The machine starts printing the PRINT

QUALITY CHECK SHEET (only during

initial ink cartridge installation).

Avoid touching the printed surface

of the paper immediately after

printing, the surface may not be

completely dry and may stain your

fingers.

4The LCD shows:

Check the quality of the four color blocks

formed by the short lines printed on the

sheet.

(BLACK/ CYAN/ YELLOW/ MAGENTA)

■If you mix the colors by installing an ink

cartridge in the wrong position, you must

clean the print head by running several

cleaning cycles after correcting the

cartridge installation. (See “Cleaning the

print head” in chapter 5 Troubleshooting

and Routine Maintenance of the User’s

Guide.)

■Once you open an ink cartridge, install it in

the machine and use it up within six

months of installation. Use unopened ink

cartridges by the expiration date written

on the cartridge package.

5Print Quality Check

Set Paper and

Press Start

Is Quality OK?

▲Yes ▼No

Print Quality Check

1. Check the quality of the four-co lor blocks formed by th e short lines.

2. If all th e short lines are clear an d visible, the quality is acceptable. the quality is acceptable.

Select (Yes). If you can see missing shor t lines, select (No) to begin t he color clea ning process

and follow th e prompts on the LCD.

Continued...

Setting Up the Machine

5If all lines are clear and visible, press ▲ to

finish the quality check.

---OR---

If you can see missing short lines, press ▼

and go to 6.

6The LCD asks you if the print quality is OK

for black and color. Press ▲or ▼on the

control panel.

After making your selection ▲(Yes) or ▼

(No) for black and color, the LCD shows:

Press ▲(Yes), the machine will then start

cleaning the colors.

After cleaning is finished, press

Color Start. The machine starts printing the

PRINT QUALITY CHECK SHEET again

and goes back to step 3.

1Press Menu.

2Press ▲or ▼to select 0. Initial Setup.

Press Set.

3Press ▲or ▼to select 0. Local Language.

Press Set.

4Press ▲or ▼to select your language

(English or French).

Press Set.

5Press Stop/Exit.

Black OK?

▲Yes ▼No

Start Cleaning?

▲Yes ▼No

OK Poor

6Selecting Your

Language (Canada only)

Language:English

Step 1

Other manuals for DCP-110C

Table of contents

Other Brother All In One Printer manuals

Brother

Brother Intelli FAX-2920 User manual

Brother

Brother DCP-J562DW Operating manual

Brother

Brother DCP 165C - Color Inkjet - All-in-One User manual

Brother

Brother MFC-L6750DW User manual

Brother

Brother HL-2130 User manual

Brother

Brother MFC-J220 User manual

Brother

Brother MFC-6890CDW - Color Inkjet - All-in-One User manual

Brother

Brother MFC 3240C - Color Inkjet - All-in-One User manual

Brother

Brother MFC-215C User manual

Brother

Brother DCP 8060 User manual

Brother

Brother MFC-8950DW Assembly instructions

Brother

Brother MFC-J280W Installation and operating manual

Brother

Brother MFC9800 - MFC 9800 B/W Laser User manual

Brother

Brother MFC-6890CDW - Color Inkjet - All-in-One User manual

Brother

Brother MFC-8220 User manual

Brother

Brother MFC-9140CDN Assembly instructions

Brother

Brother DCP-J140W User guide

Brother

Brother MFC 7460DN User manual

Brother

Brother MFC-7225N User manual

Brother

Brother MFC-7360N User manual

Brother

Brother MFC-8440 Safety guide

Brother

Brother DCP 385C - Color Inkjet - All-in-One User manual

Brother

Brother MFC-9120 User manual

Brother

Brother MFC-8950DW User manual

Popular All In One Printer manuals by other brands

Triumph Adler

Triumph Adler DC 2016 Instruction handbook

Epson

Epson WorkForce WF-2510 Basic guide

Epson

Epson Stylus Scan 2000 Product information guide

Epson

Epson PictureMate Snap PM 240 Start here

Konica Minolta

Konica Minolta bizhub C35 user guide

Konica Minolta

Konica Minolta BIZHUB 558 Quick reference guide

Lexmark

Lexmark MX710 Series setup sheet

Lexmark

Lexmark XC8155 user guide

Lexmark

Lexmark X642E Service manual

Sharp

Sharp MX-2310U Start guide

Aficio

Aficio 200 manual

Canon

Canon ImageCLASS 2300 setup sheet

Ricoh

Ricoh Pro C900 Brochure & specs

Lexmark

Lexmark X925 Installation

Epson

Epson Stylus CX8400 Series Brochure & specs

Oce

Oce VarioLink 5022 user guide

Copystar

Copystar CS 4551ci Specifications

Konica Minolta

Konica Minolta Magicolor 4650EN Service manual
