The Brocade SilkWorm 24000 Director provides

a highly reliable and intelligent solution for

enterprise-class Storage Area Networks (SANs)

in mission-critical environments.

With state-of-the-art performance

and enhanced scalability for both

open system and IBM zSeries server

enterprise SAN environments, the

Brocade®SilkWorm®24000 Director

provides unique capabilities to meet

demanding mission-critical require-

ments. It scales non-disruptively

from 32 to as many as 128 concur-

rently active 2 Gbit/sec full-duplex

ports in a single domain or two

domains of up to 64 ports each. In

addition, it offers improved perform-

ance and the potential to upgrade to

higher-speed connectivity in the

future.The SilkWorm 24000 also

leads the industry in power and

cooling efficiency, helping to reduce

total cost of ownership.

With its intelligent fourth-generation

ASIC, the SilkWorm 24000 provides

a reliable foundation for core-to-edge

SANs, enabling fabrics capable of

supporting thousands of hosts and

storage devices (see Figure 1).Whether

used as a core building block for an

enterprise fabric or as a standalone

director, the SilkWorm 24000 is a

reliable, high-availability solution.These

capabilities make it ideal for enterprise

management and high-volume trans-

action processing applications such as

ERP and data warehousing, as well

as data backup, remote mirroring,

and high-availability clustering.

The SilkWorm 24000 is designed to

integrate with heterogeneous envi-

ronments that include IBM zSeries

server and open platforms with

multiple operating systems such as

Microsoft Windows, Linux, Solaris,

HP-UX, AIX, and i5/OS. As a result,

Brocade-based SANs can help serve

as the foundation for implementing

utility computing and Information

Lifecycle Management (ILM).

A High-Port-Density, Multiprotocol

Director for Enterprise SANs

Highlights

• Delivers up to 128 ports in a single

domain and a 14U enclosure with up

to 384 ports in a single rack, facilitat-

ing more easily managed SAN fab-

rics with thousands of ports

• Meets ultra-high-availability require-

ments with redundant, hot-pluggable

components, no single points of

failure, non-disruptive software

upgrades, and hot code activation

• Provides FICON®support for IBM

zSeries server environments, includ-

ing intermix mode on a port-by-port

basis, cascaded FICON fabrics,

1 and 2 Gbit/sec FICON speeds,

and CUP support

• Increases performance through reduced

latency and Brocade Inter-Switch Link

(ISL) Trunking

• Leverages intelligent Brocade SAN

management and security tools to

increase operational efficiency and

maximize SAN investments

• Protects investments by enabling

upgrade paths to future technologies,

increased port speeds, IP connectivity,

and more

SILKWORM 24000 DIRECTOR

SILKWORM SWITCH FAMILY

ULTRA-HIGH AVAILABILITY THROUGHOUT

THE FABRIC

The core-to-edge SAN model features

redundancy within the director as well as

a high-availability network approach for

the entire fabric.The ultra-high-availability

features of Brocade Fabric OS®help provide

a SAN infrastructure capable of delivering

continuous overall system availability with

features that include:

• Non-disruptive software upgrades and

hot code activation

• Dual-redundant control processors with

stateful failover

• Redundant, hot-swappable components and

redundant power and cooling subsystems

• Continuous monitoring of environmental

components

• Power-On Self-Test (POST), online/offline

diagnostics, and per-port statistics

• Error detection and fault isolation facilities

• Call-home capabilities to provide remote

notification of system events

A NEW LEVEL OF SAN SECURITY

To help protect valuable information, the

SilkWorm 24000 supports Brocade Secure

Fabric OS®, the most comprehensive fabric-

based security platform available. Based on

the latest networking security technology,

Secure Fabric OS addresses a wide variety

of vulnerabilities within the SAN fabric and

helps prevent downtime due to human error.

INDUSTRY-LEADING PERFORMANCE

With a fully non-blocked architecture

supporting 128 ports concurrently active

at 2 Gbit/sec full-duplex, the SilkWorm

24000 supports the most demanding SAN

applications at the core of large SANs. It

employs a multistage shared memory

architecture that reduces latency in port-to-

port transfers to 2.1 microseconds or less.

To provide even higher performance,

Brocade ISL Trunking with 2 Gbit/sec

blades combines up to four ISLs between

a pair of switches into a single, logical

high-speed trunk running at up to

8 Gbit/sec.With 4 Gbit/sec blades, an

ISL trunk can include up to eight ports for

as much as 32 Gbit/sec of data throughput.

SILKWORM 24000 DIRECTOR

OS/400

i5/OS

Data

Storage

Entry-level

Storage

Data

Storage

Midrange

Storage

Data

Storage

SilkWorm 24000

Directors

SilkWorm Edge

Fabric Switches

High-end

Storage

HP-UX

AIX

Linux

Windows

Server

Solaris

High-end

Storage

z/OS

Four 2 Gbit/sec links form a

single 8 Gbit/sec trunk group

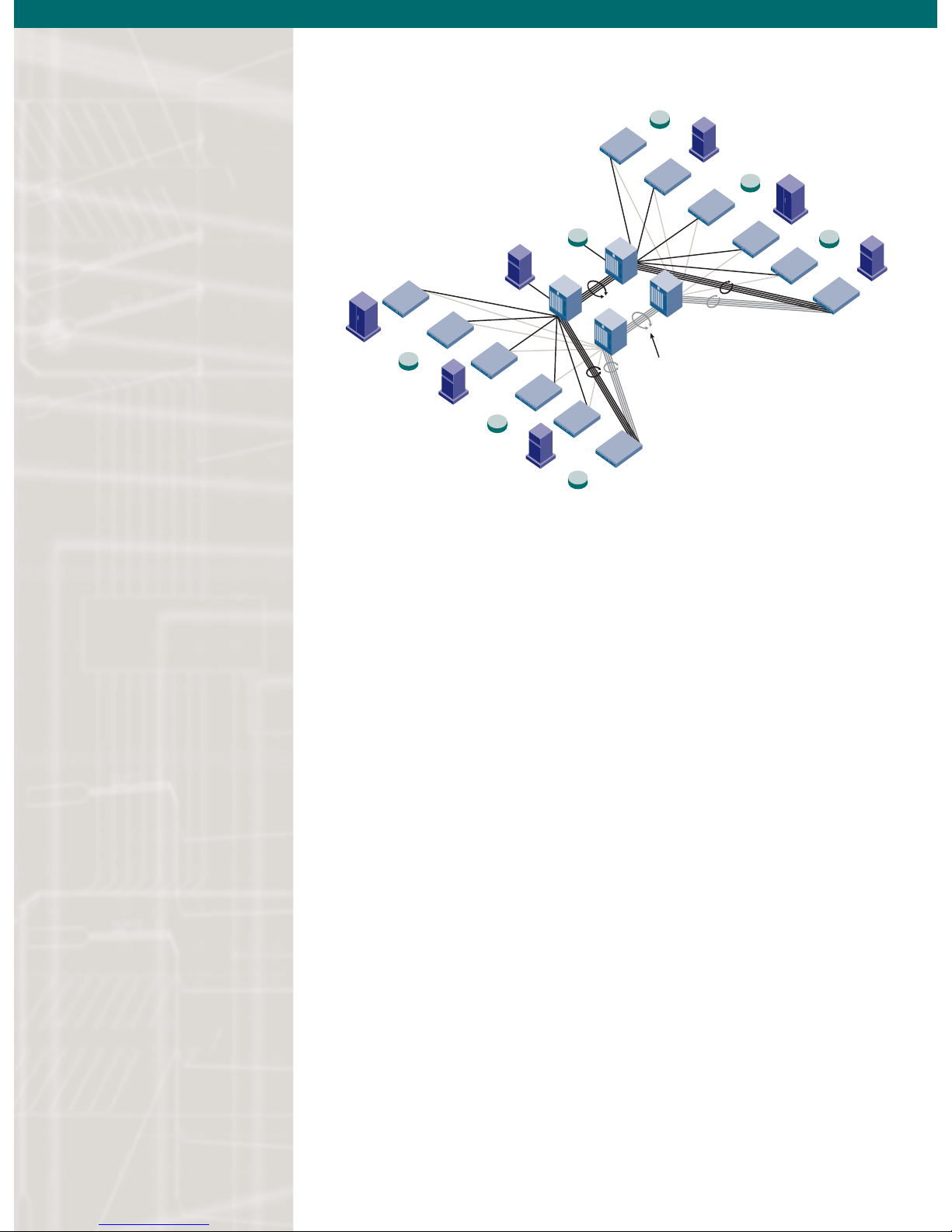

Figure 1. A SilkWorm 24000

core fabric surrounded by

SilkWorm edge switches enables

cost-effective, highly scalable

enterprise SANs.

In addition, exchange-based Dynamic

Path Selection (DPS) optimizes fabric-

wide performance and load balancing

by automatically routing data to the

most efficient available path in the

fabric. DPS augments ISL Trunking to

provide more effective load balancing

in certain configurations, such as routing

data between multiple trunk groups

for higher availability.

To support disaster recovery and busi-

ness continuance operations, the

SilkWorm 24000 with new 4 Gbit/sec

blades enables unprecedented distances

between servers and storage devices.

Support for distances up to 500 kilo-

meters at 1 Gbit/sec and 100 kilome-

ters at 4 Gbit/sec at full bandwidth

facilitates high-performance, long-

distance SAN solutions for data

replication and business continuance.

INTELLIGENT SAN MANAGEMENT

AND MONITORING

The SilkWorm 24000 leverages Fabric

OS, the embedded operating system,

to centralize SAN management for

greater efficiency.This approach enables

heterogeneous device connectivity, auto-

matic data routing, self-healing capabili-

ties, and scalable connectivity options.

To simplify daily SAN management,

organizations can utilize a command line

interface for automated scripting or the

GUI-based Brocade Web Tools utility.

Organizations can also use Brocade

Advanced Performance Monitoring to

improve SAN performance tuning,

resource optimization, and administrator

productivity. Moreover, the Brocade

Fabric Access API integrates with

popular third-party storage management

applications, enabling organizations to

continue using their storage manage-

ment tools of choice.

FICON SUPPORT FOR IBM ZSERIES

SERVER ENVIRONMENTS

The SilkWorm 24000 supports the

FICON protocol for IBM zSeries server

environments, enabling organizations

to run both open systems Fibre Channel

and FICON traffic in intermix mode

on a port-by-port basis within a single

director.The Brocade FICON imple-

mentation also supports cascaded

FICON fabrics and both 1 and 2

Gbit/sec FICON speeds, as well as the

CUP in-band management protocol

for use with SA/390, DCM, or RMF

monitoring platforms.

UPGRADE PATHS FOR

INVESTMENT PROTECTION

To help protect existing technology

investments, the SilkWorm 24000 pro-

vides backward and forward compati-

bility with SilkWorm entry, midrange,

and director offerings. Organizations

can upgrade existing SilkWorm 12000

directors by replacing the port cards

and control processors, and can intermix

SilkWorm 12000 and SilkWorm 24000

blades in supported configurations.

In addition, the SilkWorm 24000 is

designed to support non-disruptive

addition of 4 Gbit/sec Fibre Channel

blades for performance and distance

benefits. These capabilities help

“future-proof ” the SilkWorm 24000

for years to come. (For specific

SilkWorm 24000 upgrade options,

contact an authorized Brocade Partner

or visit www.brocade.com.)

MAXIMIZING SAN INVESTMENTS

Brocade and its partners offer complete

SAN solutions to meet a wide range of

technology and business requirements.

These solutions include education and

training, support, service, and profes-

sional services to help optimize SAN

investments. For more information,

contact an authorized Brocade sales

partner or visit www.brocade.com.

SILKWORM SWITCH FAMILY

SILKWORM 24000 DIRECTOR SPECIFICATIONS

Systems Architecture

Fibre Channel ports 128 ports, universal (E, F, and FL); one domain per

chassis at up to 128 ports or two domains per chassis

at up to 64 ports each; up to eight 16-port Fibre

Channel modules; up to 384 ports per 42U rack

Control processor Redundant (active/standby) control processor modules

Scalability Full fabric architecture 239 switches maximum

Certified maximum Combination of 56 switches, 19 hops; larger fabrics

certified as required; consult Brocade or OEM SAN

design documents for configuration details

Interoperability Any SilkWorm 2000 family switch, SilkWorm 3000

family switch, SilkWorm 4000 family switch, SilkWorm

200E, SilkWorm 12000, and SilkWorm 48000

Performance 2 Gbit/sec blades: 1.063 Gbit/sec line speed (full

duplex); 2.125 Gbit/sec line speed (full duplex);

auto-sensing of 1 and 2 Gbit/sec port speeds;

optionally programmable to fixed port speed;

speed-matching between 1 and 2 Gbit/sec ports

4 Gbit/sec blades: 1.063 Gbit/sec line speed (full

duplex); 2.125 Gbit/sec line speed (full duplex);

4.25 Gbit/sec line speed (full duplex); auto-sensing

of 1, 2, and 4 Gbit/sec port speeds; optionally

programmable to fixed port speed; speed-matching

between 1, 2, and 4 Gbit/sec ports

ISL Trunking 2 Gbit/sec blades: Up to four 2.125 Gbit/sec ports

per ISL trunk; up to 8.5 Gbit/sec per ISL trunk

4 Gbit/sec blades: Up to eight 4.25 Gbit/sec ports

per ISL trunk; up to 32 Gbit/sec per ISL trunk

Brocade, the Brocade B weave logo, Fabric OS, Secure Fabric OS, and SilkWorm are registered trademarks of Brocade Communications Systems, Inc., in the United States

and/or in other countries. FICON is a registered trademark of IBM Corporation in the U.S. and other countries.All other brands, products, or service names are or may

be trademarks or service marks of, and are used to identify, products or services of their respective owners.

Notice:This document is for informational purposes only and does not set forth any warranty, expressed or implied, concerning any equipment, equipment feature, or

service offered or to be offered by Brocade. Brocade reserves the right to make changes to this document at any time, without notice, and assumes no responsibility for its

use.This informational document describes features that may not be currently available. Contact a Brocade sales office for information on feature and product availability.

Export of technical data contained in this document may require an export license from the United States government.

Systems Architecture (continued)

Aggregate bandwidth 512 Gbit/sec end to end

Switch latency <2.1 µsec any port to any port at 2 Gbit/sec,

cut-through routing

Maximum frame size 2112-byte payload

Frame buffers 2 Gbit/sec blades: 108 per 4-port group, dynamically

allocated

4 Gbit/sec blades: 1024 per blade, dynamically

allocated up to 255 per port

Classes of service Class 2, Class 3, Class F (inter-switch frames)

Port types FL_Port, F_Port, and E_Port; self-discovery based

on switch type (U_Port); optional port type control

Data traffic types Fabric switches supporting unicast, multicast

(255 groups), and broadcast

Media types Small Form-factor Pluggable (SFP) media; short-wave

up to 500 meters (1640 feet); long-wave up to 10

kilometers (6.2 miles); extended long-wave up to

100 km (62.1 mi); distance depends on fiber optic

cable and port speed

Fabric services Simple Name Server; Registered State Change

Notification (RSCN); Alias Server (multicast);

Brocade Advanced Zoning, FICON Control Unit Port

(CUP), Web Tools, Fabric Watch, Extended Fabrics,

Remote Switch, ISL Trunking, and Advanced

Performance Monitoring

High Availability

Chassis power Two AC-DC power supply modules, 2N redundancy

Cooling Three blower assembly modules (two operational required)

Management

Management software Telnet; RADIUS; SNMP (FE MIB, FC Management MIB);

supported Web Tools; Fabric Watch; third-party applications

utilizing Brocade Fabric Access API

Management access 10/100 Ethernet (RJ-45), in-band over Fibre Channel

(requires fabric); two serial ports (DB-9) per control

processor module

Diagnostics POST and embedded online/offline diagnostics

Mechanical Specifications

Enclosure Rear panel-to-door airflow

Width 43.74 cm (17.22 in)

Height 61.24 cm (24.11 in) for 14U

Depth 70.90 cm (27.90 in) without door

74.20 cm (29.20 in) with door

System weight 88 to 96 kg (193 to 212 lb)

Environment

Temperature Operating: 0° C to 40° C (50° F to 104° F)

Non-operating: -25° C to 70° C (-13° F to 158° F)

Humidity Operating: 5% to 85% non-condensing at 40° C (104° F)

Altitude Up to 3000 meters (9800 feet)

Shock Operating: 20G, 6 ms duration, half-sine

Vibration Operating: 0.5G p-p, 5–500 Hz

Non-operating: 2.0G, 5–500 Hz

Heat dissipation 740 W, 2525 BTU/hr fully loaded

Power

Supported power range Nominal: 200 to 240 VAC nominal, 5.0 A, single phase

Operating: 180 to 264 VAC auto-sensing

Maximum 2300 Volt-Amps

Maximum 12 Amps

In-rush current 40 Amps maximum, peak

Frequency 47 to 63 Hz

Regulatory Compliance

Country/Region Safety EMI/EMC

Canada CSA 60950 ICES 003 Class A

United States UL 60950 FCC Part 15 Class A

Japan IEC60950 VCCI Class A ITE

European Community EN60950 EN55022 Level A

TUV, NEMKO EN55024

Australia/New Zealand AS/NZS 3548 Class A

International IEC 60950 CISPR 22 Class A

SILKWORM 24000 DIRECTOR

Corporate Headquarters

San Jose, CA USA

T: (408) 333-8000

info@brocade.com

European and Latin American

Headquarters

Geneva, Switzerland

T: +41 22 799 56 40

emea-info@brocade.com

Asia Pacific Headquarters

Singapore

T: +65-6538-4700

apac-info@brocade.com

SILKWORM 24000 DIRECTOR SPECIFICATIONS (CONTINUED)

For information about supported SAN standards, visit

www.brocade.com/sanstandards

Other Brocade Communications Systems Switch manuals
