Broadrack Unicorn 15 User manual
Unicorn 15 / 17 / 19
Console with Modular KVM Switch
Quick Installation Guide
Rev 1.0
Unicorn series QIG
1
Notes:
1. Please check all peripherals according the list before installation. To make sure
that the whole unit was not damaged and lost during shipping process. If you
encounter any problem, please contact your dealer.
2. Before installation, make sure all peripherals and computer have been turned
off.
3. The standard brackets are for 614 ~ 1000 mm (distance means front bracket to
rear bracket) cabinet, contact your dealer if you need more longer rear brackets.
4. If your cabinet depth is 828 ~ 1000 mm, please refer “Replace bracket A step”.
And If your cabinet depth is 504 ~ 614 mm, please refer “Replace bracket B and
bracket C step”.
Hardware kits contents:
1. Rail with front and rear bracket x 2 (Please identify the brackets. Right and left
sides are different. For cabinet depth 614 ~ 828 mm)
2. Bracket A x 2 (For cabinet depth 828~1000 mm. Please refer page 5)
3. Bracket B x 2 (For cabinet depth 504 ~614 mm. Please refer page 6)
Unicorn series QIG
2
4. Bracket C x 2 (For cabinet depth 504 ~614 mm. Please refer page 6)
5. Screw (length = 6 mm) x 6
6. Screw x 8
7. Key x 2
Install console step:
1. Adjust rail until two screws appear.
2. Loose (Not remove) seven rear screws.
two screws
rail
Unicorn 15 / 17 bracket C
Unicorn 19 bracket C
Unicorn series QIG
3
3. Adjust rail to fit your cabinet
4. Install front and rear bracket on cabinet.
5. Tight seven rear screws up.
6. Repeat step 1~5 for the other side.
7. Push console into rails. (Be careful rear box loose when take out console from
carton.)
Unicorn series QIG
4
8. Unlock and pull rail–lock switch (left and right at the same time) then push
console to the end.
9. Install three screws (length = 6 mm) in rear of the console. (Both sides)
10. Finish installation as below.
rail-lock switch
unlock
lock
Unicorn series QIG
5

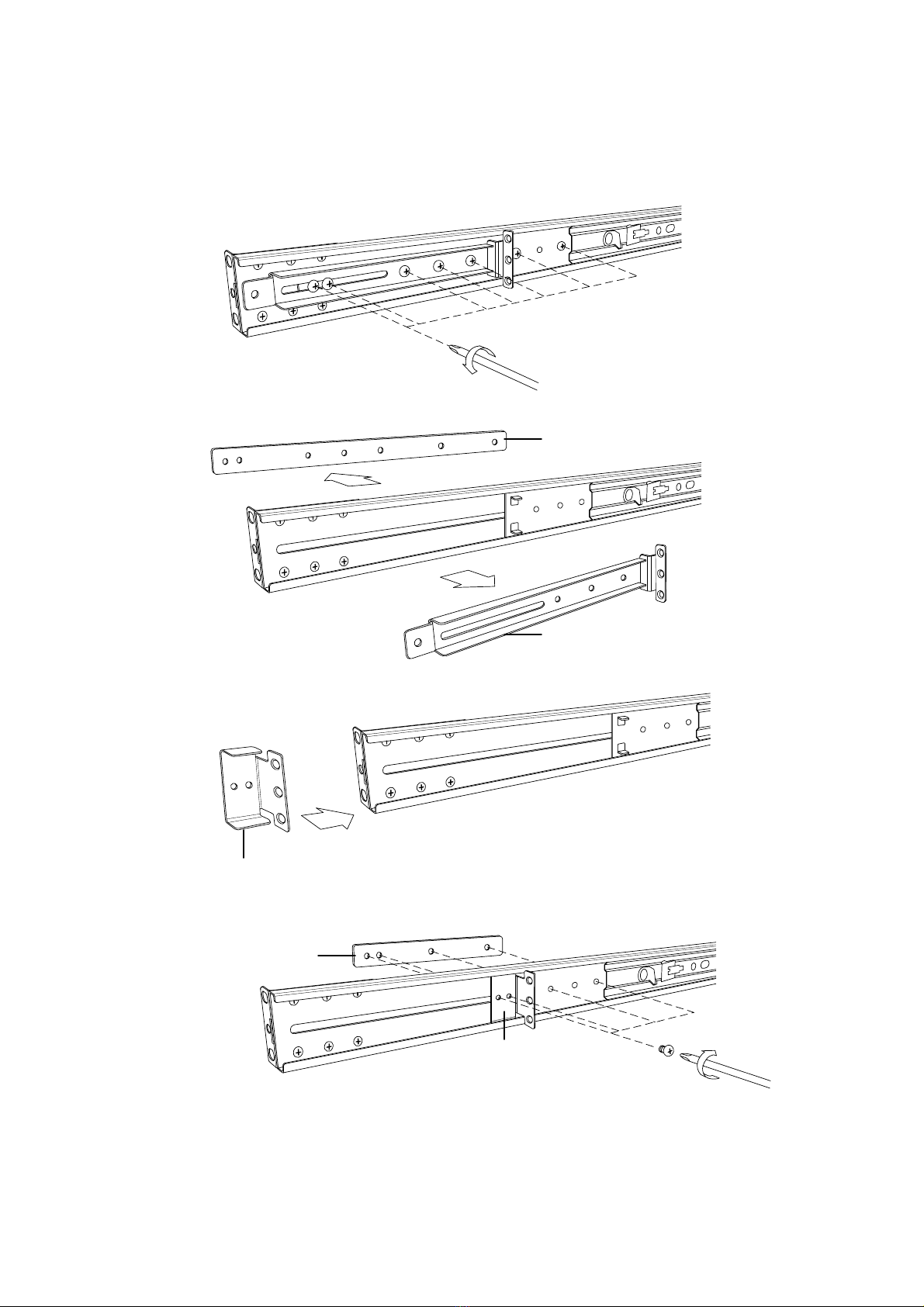

Replace bracket A step (For cabinet depth 828 ~ 1000 mm):
1. Loose (Not remove) seven rear screws.
2. Release six screws.
3. Take rear bracket out.
4. Adjust rail and input bracket A to rear of the rail then adjust bracket A to fit your
cabinet. Install 2~3 screws (don’t tight-up) upon the length you need. One is
forbidden.
5. Repeat step 1 ~ 4 for the other side.
6. Repeat step 3 ~ 10 of install console to finish installation.
original bracket
bracket A
Unicorn series QIG
6
Replace bracket B and C step (For cabinet depth is 504 ~ 614 mm):
1. Remove seven rear screws.
2. Take two original brackets out.
3. Input bracket B to rear of the rail.
4. Install four screws (don’t tight-up) to combine rail, bracket B and bracket C.
5. Repeat step 1 ~ 4 for the other side.
6. Repeat step 3 ~ 10 of install console to finish installation.
original bracket
original bracket
bracket B
bracket B
bracket C
Unicorn 15 / 17 / 19
Console with Modular KVM Switch
Quick Installation Guide
