Brinkmann 855-5001-F User manual

Ceramic Egg Charcoal Grill

Gril à Charbon en Céramique

avec Chariot

OWNER’S MANUAL

ASSEMBLY AND OPERATING INSTRUCTIONS

NOTICE D’UTILISATION

INSTRUCTIONS D’ASSEMBLAGE ET D’UTILISATION

CONSERVER CETTE NOTICE POUR RÉFÉRENCE

SAVE THIS MANUAL FOR FUTURE REFERENCE

Model / Modèle #855-5001-F

WARNING

READ AND FOLLOW ALL WARNINGS AND

INSTRUCTIONS IN THIS MANUAL TO AVOID

PERSONAL INJURY OR PROPERTY DAMAGE.

AVERTISSEMENT

LIRE ET RESPECTER TOUS LES

AVERTISSEMENTS ET INSTRUCTIONS

DE CETTE NOTICE POUR ÉVITER DES

BLESSURES GRAVES OU DES DÉGÂTS

MATÉRIELS.

NOTICE TO INSTALLER:

LEAVE THESE INSTRUCTIONS WITH

THE GRILL OWNER FOR FUTURE

REFERENCE.

AVIS À L’INSTALLATEUR:

REMETTRE CETTE NOTICE AU

PROPRIÉTAIRE POUR QU’IL PUISSE S’Y

RÉFÉRER PLUS TARD.

WARNING

• Only use this grill on a hard, level, non-combustible, stable surface (concrete, ground, etc.) capable of

supporting the weight of the grill. Never use on wooden or other surfaces that could burn.

• DO NOT use grill without charcoal grate in place. DO NOT attempt to remove charcoal grate while tray

contains hot coal.

• Proper clearance of 10 feet between the grill and combustible material (bushes, trees, wooden decks,

fences, buildings, etc.) or construction should be maintained at all times when grill is in use. Do not place

grill under a roof overhang or other enclosed area.

• For outdoor use only. Do not operate grill indoors or in an enclosed area.

• For household use only. Do not use this grill for other than its intended purpose.

• We recommend the use of a Charcoal Chimney or Electric Starter to light charcoal.

• Do not use gasoline, kerosene or alcohol for lighting charcoal. Use of any of these or similar products

could cause an explosion possibly leading to severe bodily injury.

• DO NOT USE charcoal lighting fluid or charcoal that has been pre-treated with lighting fluid in this grill.

Doing so could impart unnatural flavors to your food and may damage your grill.

• Place grill in an area where children and pets cannot come into contact with unit. Close supervision is

necessary when grill is in use.

• Do not leave grill unattended when in use.

• Use caution when coming into contact with the exterior of the grill, as the surface will be extremely hot.

• When adding charcoal and/or wood, use extreme caution and follow instructions in “Adding Charcoal/

Wood During Cooking” section of this manual.

• Do not store or use grill near gasoline or other flammable liquids, gases or where flammable vapors may

be present.

• Do not store lighter fluid or other flammable liquids or material under the grill.

• Do not use grill without grill cart.

• Do not cover the grill or cart when hot.

• Do not pour water into a hot or warm grill.

Grill is hot when in use. To avoid burns:

• DO NOT attempt to move the grill.

• Brace grill so the unit does not accidentally move.

• Wear protective gloves or oven mitts.

• DO NOT touch any hot grill surfaces.

• DO NOT wear loose clothing or allow hair to come in contact with grill.

IMPORTANT SAFETY WARNINGS

WE WANT YOU TO ASSEMBLE AND USE YOUR GRILL AS SAFELY AS POSSIBLE.

THE PURPOSE OF THIS SAFETY ALERT SYMBOL

IS TO ATTRACT YOUR ATTENTION TO POSSIBLE HAZARDS AS YOU ASSEMBLE AND USE YOUR GRILL.

WHEN YOU SEE THE SAFETY ALERT SYMBOL, PAY CLOSE ATTENTION TO THE INFORMATION WHICH FOLLOWS!

READ ALL SAFETY WARNINGS AND INSTRUCTIONS CAREFULLY

BEFORE ASSEMBLING AND OPERATING YOUR GRILL.

WARNING

• When grilling, grease from meat may drip into the charcoal and cause a grease fire. If this should

happen close lid to suffocate the flame. Do not use water to extinguish grease fires.

• AVOID FLASHBACKS. Vent grill before opening lid. Use caution since flames can flare-up when fresh air

suddenly comes in contact with fire. When opening the lid, first raise the lid an inch or two, and then

close it. Do this a couple of times before fully opening the lid. This action will help to avoid dangerous

flashbacks. Keep hands, face and body a safe distance from hot steam and flame flare-ups.

• AVOID BACKDRAFTS. Before opening lid, be sure that the shutter and vent are not fully closed.

• Use caution when assembling and operating your grill to avoid scrapes or cuts from sharp edges of

metal parts. Use caution when reaching into or under grill.

• When opening lid, vent first and then make sure it is pushed all the way open. If lid is not fully open, it

could fall back to a closed position and cause bodily injury.

• In windy weather, place grill in an outdoor area that is protected from the wind.

• Close lid, air shutter and top vent to suffocate flame.

• Before grill can be left unattended, coals and ashes must be suffocated. Use caution to protect yourself

and property. Close lid, air shutter and top vent to suffocate flame.

• As you can never be too cautious, using a garden hose, completely wet the surface beneath and around

grill to extinguish any ashes, coals or embers which may have fallen during the cooking or cleaning

process.

• Cover the grill and cart to protect it from excessive rusting.

• Use caution when lifting or moving grill to prevent strains and back injuries.

• We advise that a fire extinguisher be on hand. Refer to your local authority to determine proper size and

type of fire extinguisher.

• Accessory attachments not manufactured by The Brinkmann Corporation for this particular product are

not recommended and may lead to personal injury or property damage.

• Store the grill out of reach of children and in a dry location when not in use.

• Do not attempt to service grill other than normal maintenance as explained in “After-Use Safety” and

“Proper Care & Maintenance” sections of this manual.

• Remove all stickers and labels before first use.

• Properly dispose of all packaging material.

USE CAUTION AND COMMON SENSE WHEN OPERATING YOUR GRILL.

FAILURE TO ADHERE TO SAFETY WARNING AND GUIDELINES IN THIS MANUAL COULD RESULT

IN BODILY INJURY OR PROPERTY DAMAGE.

SAVE THIS MANUAL FOR FUTURE REFERENCE.

PARTS LIST:

11 Egg Assembly

1 Top Air Vent

1 Warming Rack

1 Cooking Grate

1 Charcoal Grate

1 Egg Lid Handle

1 Egg Firebox

2 Side Tables

1 Egg Base

2 Casters

1 Left Front Leg

1 Left Back Leg

1 Right Back Leg

1 Right Front Leg

2 Wheels

2 Wheel Axles, Washers

& Cotter Pins

1 Cart Base

ASSEMBLY INSTRUCTIONS

READ ALL SAFETY WARNINGS & ASSEMBLY INSTRUCTIONS CAREFULLY

BEFORE ASSEMBLING OR OPERATING YOUR GRILL.

FOR MISSING PARTS, PLEASE CALL CUSTOMER SERVICE AT 800-527-0717.

Inspect contents of the box to ensure all parts are included and undamaged.

We recommend two people work together when assembling this unit.

The following tools are required to assemble this Ceramic Egg Charcoal Grill:

• Phillips Screwdriver

• Wrench

11 13

Parts Bag Contents

4 M4 x 8 mm Bolts

8 M6 x 10 mm Bolts

12 M6 x 40 mm Shoulder Bolts

1 Wrench

Wrench

M4 x 8 mm Bolts

M6 x 10 mm Bolts

M6 x 40 mm Bolts

Clear an assembly area and get a friend

to help you put your grill together. Lay

cardboard down to protect grill finish and

assembly area.

CAUTION: Some parts may

contain sharp edges.

Wear protective gloves

if necessary.

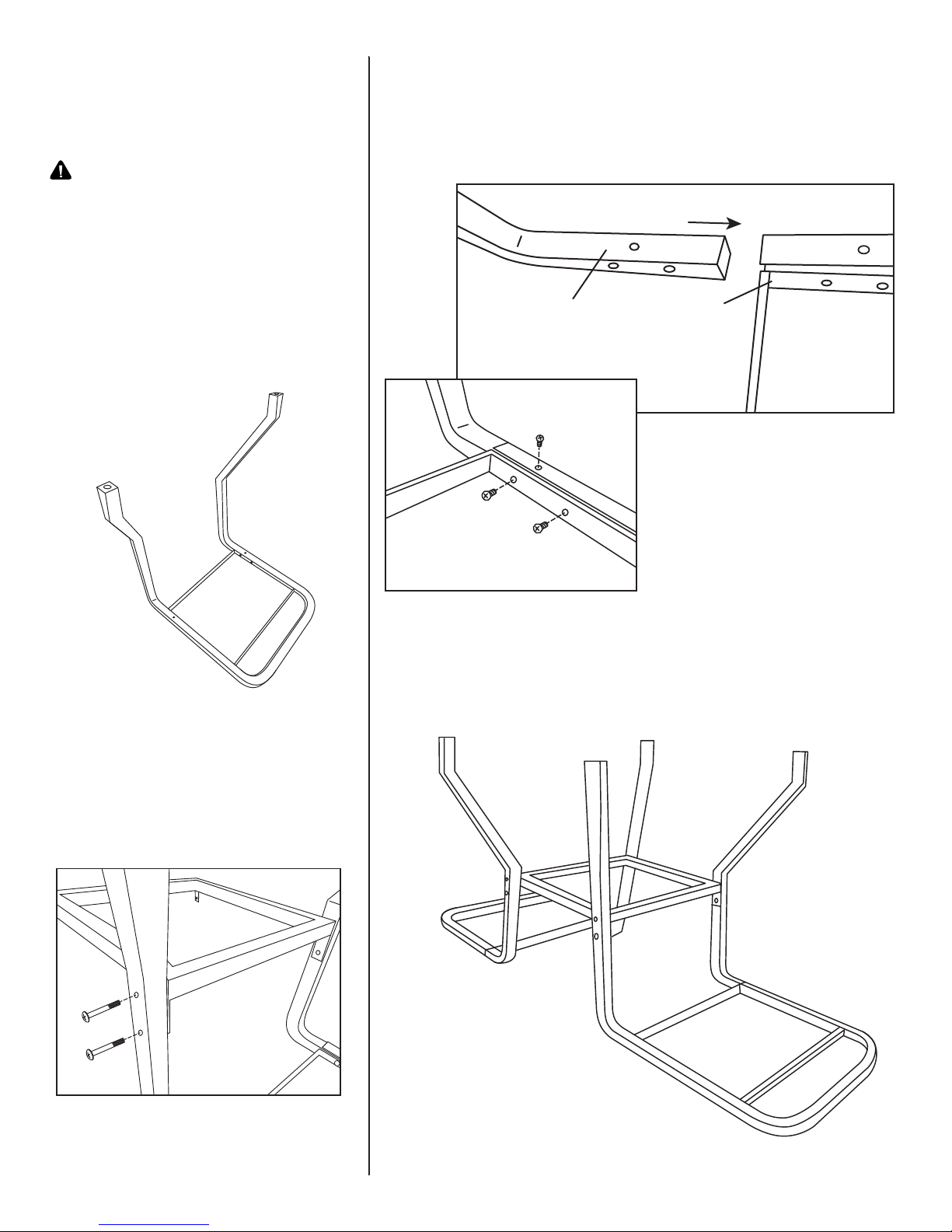

Step 1

Insert right front leg through side table

frames, aligning the holes. Secure using

one M4 x 8 mm bolt and two M6 x 10

mm bolts. Repeat for other legs.

Step 2

Attach egg base to leg assembly using

eight M6 x 40 mm bolts.

Right Front Leg Side Table

Step 3

Attach cart base to leg assembly

using four M6 x 40 mm bolts.

Step 4

Insert the wheel axle through

wheel,washer and right front leg.

Secure using cotter pin. Repeat for

back right leg.

Step 5

Attach casters to bottom of each left

leg. Tighten caster bolts securely

using hex nut wrench provided in

parts pack.

Step 6

Remove all parts from inside the

ceramic egg assembly and with the

help of a friend, place the ceramic

egg assembly onto the cart with the

temperature gauge facing forward.

Note: Use care when lifting ceramic egg

to avoid injuries to hand, fingers,

and backs.

Step 7

Attach the top air vent, inserting prongs

through opening. Top Air Vent

Step 8

Attach egg lid handle using four

preattached nuts and washers.

Step 9

Place the egg firebox into egg assembly,

as shown. Firebox needs to be in the

correct position to align with air vent.

Egg Firebox

Step 10

Insert charcoal grate (rests in the

bottom of firebox), cooking grate and

warming rack. Warming rack sits on

cooking grate as shown.

Warming Rack

Cooking Grate

Charcoal Grate
