Briggs & Stratton 020274-02 Setup guide

Model No. 020274-02 (3000 PSI (206.8 BARS) Pressure Washer) Manual No. 203768C Revision - (08/02/2007)

BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC

JEFFERSON, WISCONSIN, U.S.A.

Questions? Help is just a moment away!

Call: Pressure Washer Helpline

1-800-743-4115 M-F 8-5 CT

Illustrated Parts List

2BRIGGSandSTRATTON.COM

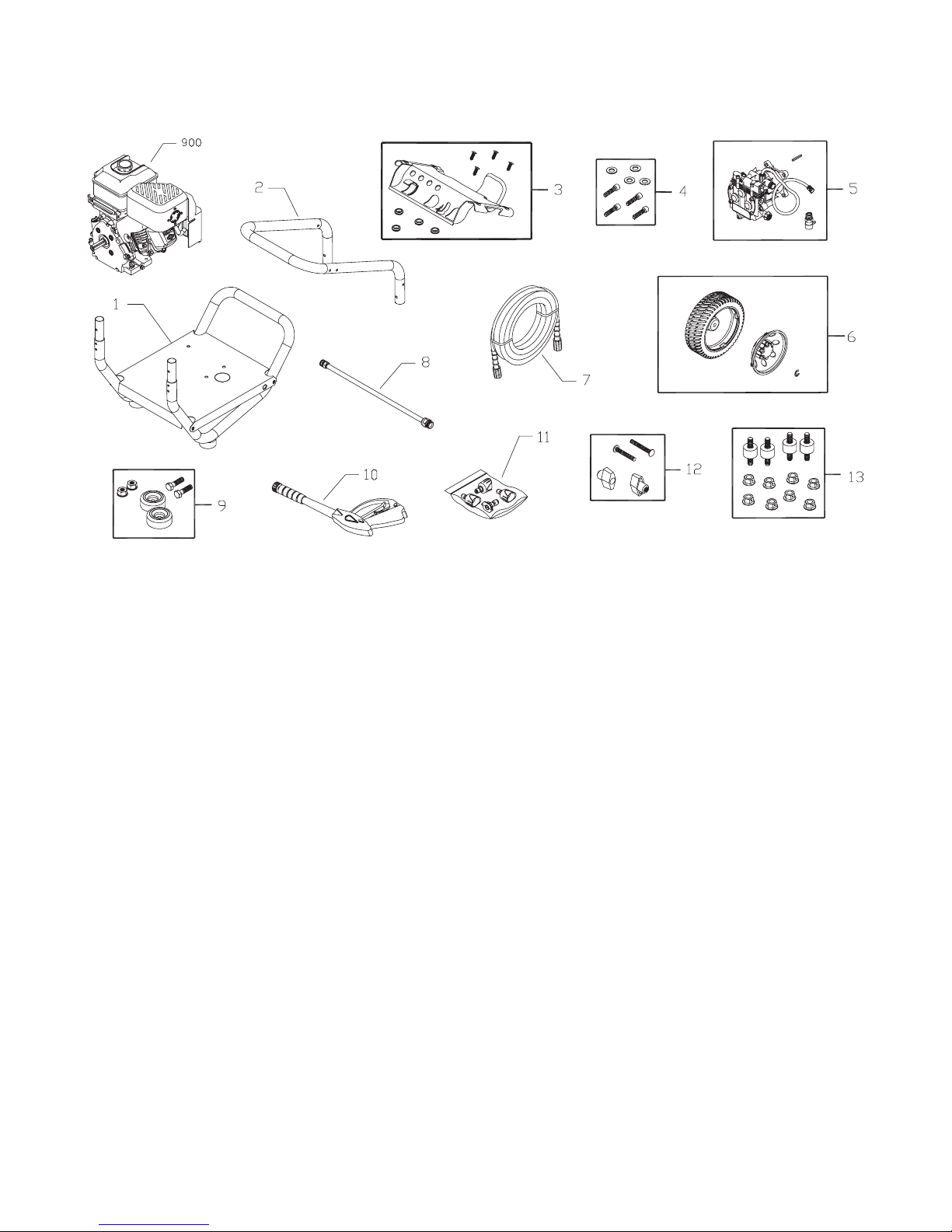

Exploded View and Parts List — Main Unit

Item Part # Description

1 203081GS ASSY, Base

2 Y201499GS HANDLE

3 203082GS KIT, Billboard, w/Decals & Clips

195964GS Clips, Tree

30809GS Grommet

4 192131GS KIT, Pump Mounting Hardware

5 198347GS ASSY, Pump

194298GS Valve, Thermal Relief

23139DGS Key

6 203083GS KIT, Wheel

200520GS Hubcap

192050GS E-Ring

7 202017GS HOSE

8 200595GS EXTENSION

9 192553GS KIT, Vibration Mount

10 199990GS GUN

11 202182GS KIT, Nozzle

201580RGS Nozzle, QC, Project Pro, Yellow

201580XGS Nozzle, QC, Project Pro, Orange

201580AAGS Nozzle, QC, Project Pro, Red

198841GS Nozzle, Plastic, Soap

12 B2203GS KIT, Handle Fastening

13 192134GS KIT, Engine Mounting Hardware

900 § ENGINE

Items Not Illustrated:

203768GS MANUAL, Operator’s

202494GS DECAL, Engine

202495GS DECAL, Air Cleaner

200658GS DECAL, Recoil

87815GS GOGGLES

201314GS AXLE

BB3061BGS OIL BOTTLE

695755 KNOB, Throttle

194256GS KIT, Hang Tag, Warning

Optional Accessories

6048 KIT, O-Ring

6039 PUMP SAVER

§ - Contact Engine Manufacturer

reproduced or transmitted in any form by any means without the express written permission of Briggs & Stratton Power

Products Group, LLC.

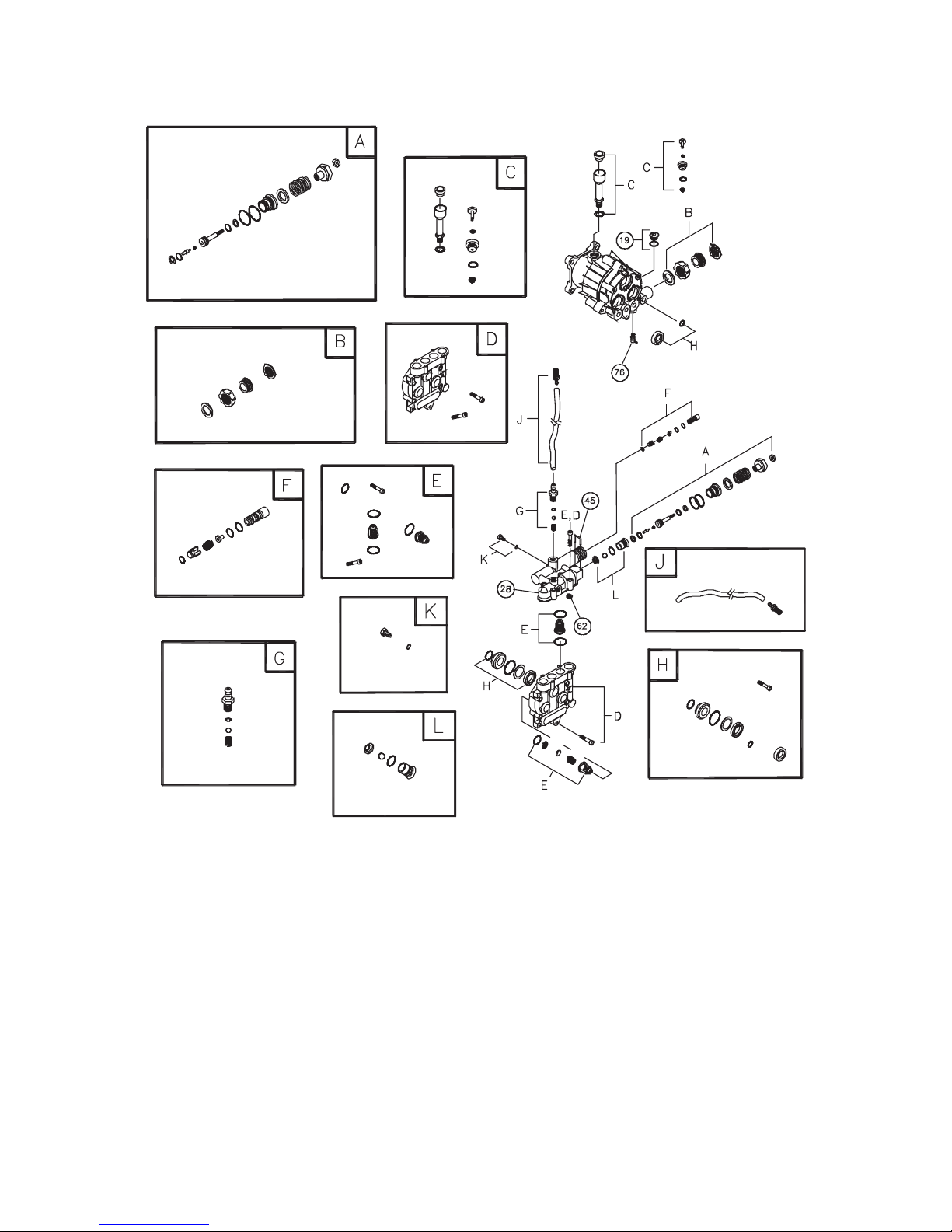

Exploded View and Parts List — Pump

Item Part # Description

19 190571GS CAP, Oil

28 198102GS MANIFOLD

45 190578GS PIN

62 190581GS CAP, 1/8

76 194298GS THERMAL RELIEF

A 190594GS KIT, UNLOADER

B 190670GS KIT, WATER INLET

C 190669GS KIT, BREATHER TUBE

D 193808GS KIT, HEAD BRASS

E 193806GS KIT, CHECK VALVES

F 190592GS KIT, INLET CHECK

G 190593GS KIT, CHEMICAL INJECTION

Item Part # Description

H 193807GS KIT, SEAL SET

J 189971GS KIT, CHEMICAL HOSE

K 193971GS KIT, PIPE FITTING

L 193972GS KIT, UNLOADER SEAT

Parts Not Illustrated

190585GS OIL BOTTLE

B2384GS FILTER, Inlet

NOTE: Item letters A - L are service kits and include all parts

shown within the box.
