10A900

Illustrated Parts List

Model Series

10A900

TYPE NUMBERS

0015 through 2299.

TABLE OF CONTENTS

Air Cleaner 5. . . . . . . . . . . . . . . . . . . . . . . . .

Blower Housing/Shrouds 7. . . . . . . . . . . .

Brake 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Camshaft 3. . . . . . . . . . . . . . . . . . . . . . . . . . .

Carburetor 4. . . . . . . . . . . . . . . . . . . . . . . . . .

Controls 5. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Crankcase Cover/Sump 3. . . . . . . . . . . . . .

Crankshaft 3. . . . . . . . . . . . . . . . . . . . . . . . .

Cylinder 2. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Cylinder Head 2. . . . . . . . . . . . . . . . . . . . . .

Exhaust System 6. . . . . . . . . . . . . . . . . . . .

Flywheel 7. . . . . . . . . . . . . . . . . . . . . . . . . . .

Fuel Supply 4. . . . . . . . . . . . . . . . . . . . . . . . .

Gasket Set −Engine 2. . . . . . . . . . . . . . . . .

Gasket Set −Valve 2. . . . . . . . . . . . . . . . . .

Governor Spring 5. . . . . . . . . . . . . . . . . . . .

Ignition 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Lubrication 2. . . . . . . . . . . . . . . . . . . . . . . . .

Operator’s Manual 2. . . . . . . . . . . . . . . . . .

Piston/Rings/Connecting Rod 3. . . . . . . .

Rewind Starter 8. . . . . . . . . . . . . . . . . . . . . .

Warning Label 2. . . . . . . . . . . . . . . . . . . . . .

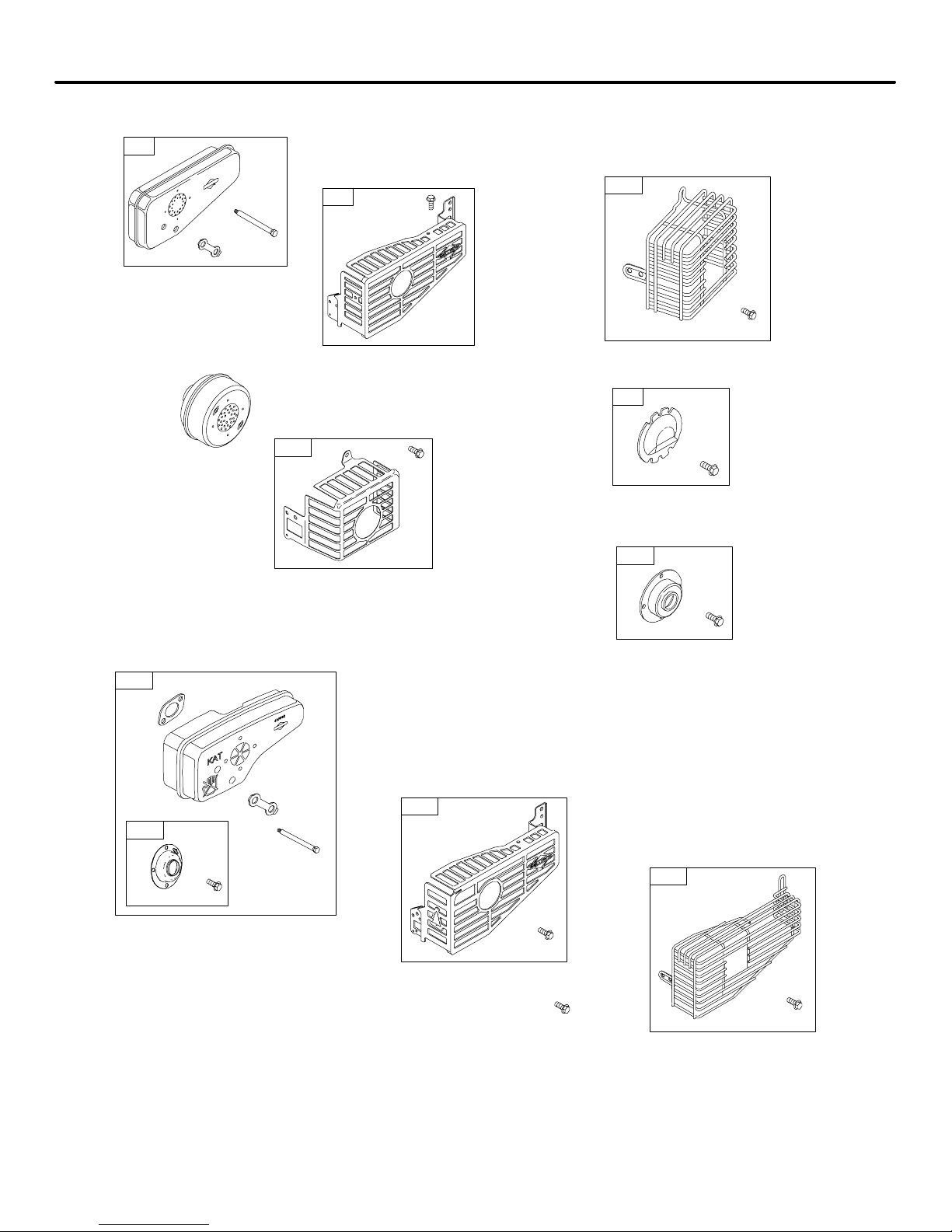

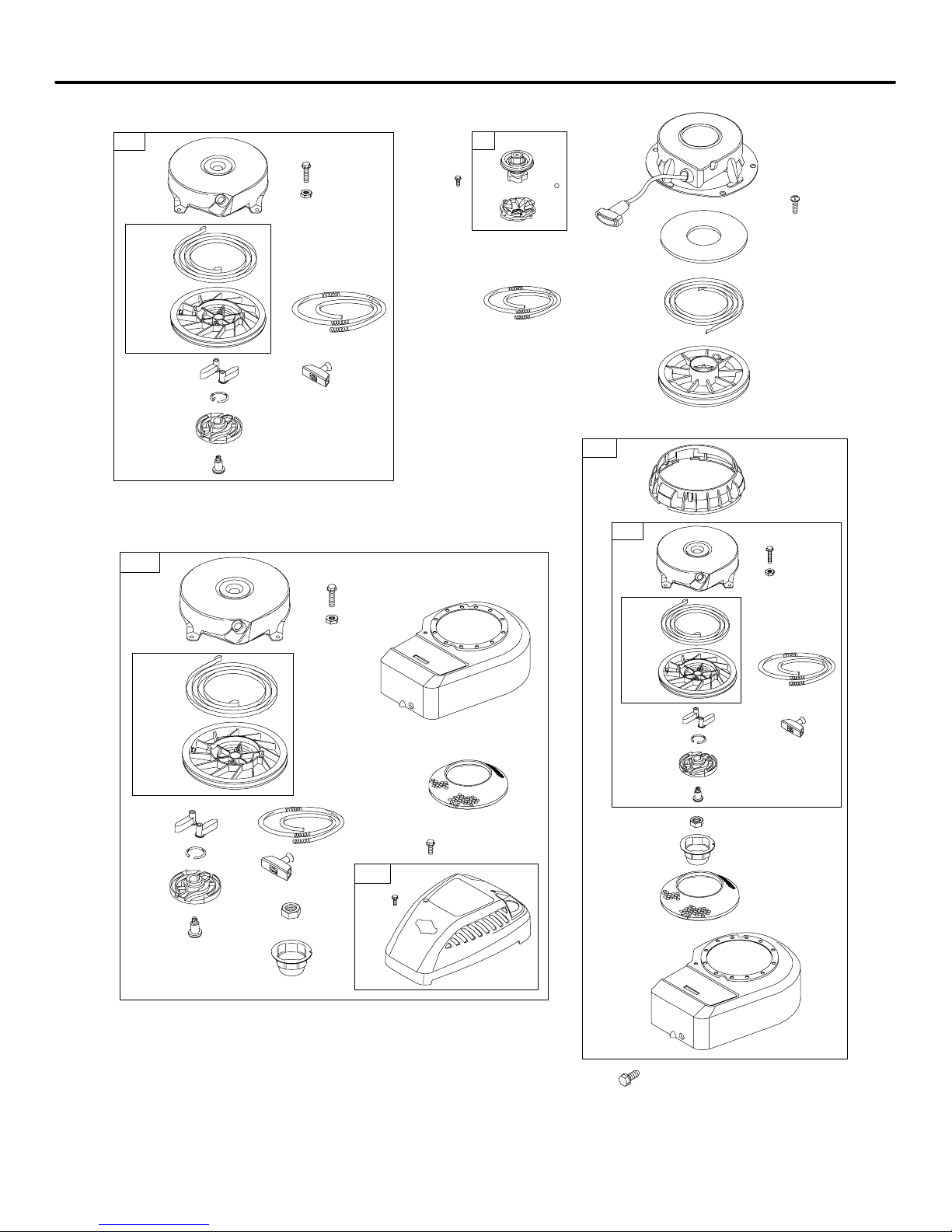

10A900

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

0669−2 Assemblies include all parts shown in frames. 02/20/2008

668

523A

745

718

870 871869

200

426

383

337

635

847

306

307

524

525

287

842

523

524

50 54

51A

50A

444

163

524

358 ENGINE GASKET SET

883

51A

1095 VALVE GASKET SET

883

337A

529

635B

1330 REPAIR MANUAL1058 OPERATOR’S MANUAL 1319 WARNING LABEL

REQUIRED when replacing parts

with warning labels affixed.

10A900

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

0669−3 Assemblies include all parts shown in frames. 02/20/2008

26 27

40 45

46A

374

741

718A

101

743

721

444

178

1143

22A

20A

444

20 43

444

377

10A900

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

0669−4 Assemblies include all parts shown in frames. 02/20/2008

957A 181

365

529

90 976

394

913

393

390

612

617

130

633

163

106

724

957

190A

190

670

180

10A900

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

0669−5 Assemblies include all parts shown in frames. 02/20/2008

265A

267

269

268

270

271

201

335

209 211

188

356

578

265

163

535A

535

643

534

536

333A

334 851

333 24

635

222F

621

222E

333B

635B

851A

10A900

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

0669−6 Assemblies include all parts shown in frames. 02/20/2008

300A

300

613

836

832

832A

676B

676A

676

677

300B

883

613A

677

832B

836

832C

836A

836B

836A

832D

10A900

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

0669−7 Assemblies include all parts shown in frames. 02/20/2008

930C

326

332

455

363

305

37A

304

1036 EMISSIONS LABEL

921

969

73B

304A

969A

236

772

925

772A

745

668

815

772

236A

923A 1208

621

922A

923

621

922

933

745A

729

921A

969B

921B

969A

10A900

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

0669−8 Assemblies include all parts shown in frames. 02/20/2008

332

455

459

608

55 65

592

1211

1210

689

456

597

305

770A

459

608

55 65

592

1211

1210

689

456

597

459

55 65

592

1211

1210

689

456

597

58A

608A

332

455

921

969

969A

304A

257

678

65A

55A

REF. PART REF. PART REF. PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

10A900

KEngine Gasket Set−Reference 358 ∆Valve Gasket Set−Reference 1095

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

0669−9 Assemblies include all parts shown in frames. 02/20/2008

1 699653 Cylinder Assembly

2 399269 Kit−Bushing/Seal

(Magneto Side)

3K299819S Seal−Oil

(Magneto Side)

4 698691 Sump−Engine

(Used After Code Date

02111200).

−−−−−− Note −−−−−−

395384 Sump−Engine

(Used Before Code

Date 02111300).

4A Sump−Engine

(NO LONGER

AVAILABLE)

Used on Type No(s).

0050, 0051, 0159,

0167, 0169, 0173,

0186, 0193, 0197,

0202, 0206, 0211,

0219, 0230, 0430,

0650, 0651, 1019,

1650, 1651, 2067,

2130, 2169, 2254,

2258, 2259, 2261,

2285.

4B 699084 Sump−Engine

Used on Type No(s).

2266.

5 790169 Head−Cylinder

7K∆698717 Gasket−Cylinder Head

8 791781 Breather Assembly

9K∆695890 Gasket−Breather

10 691666 Screw

(Breather Assembly)

11 691245 Tube−Breather

12 K692218 Gasket−Crankcase

(.015” Thick)

(Standard)

−−−−−− Note −−−−−−

K270895 Gasket−

Crankcase

(.005” Thick)

K270896 Gasket−

Crankcase

(.009” Thick)

13 691640 Screw

(Cylinder Head)

15 691680 Plug−Oil Drain

16 496838 Crankshaft

−−−−−− Note −−−−−−

692989 Crankshaft

Used on Type No(s).

1605, 1618, 2029,

2083, 2090, 2140,

2180, 2233, 2252,

2253, 2254, 2259,

2261, 2279, 2285,

2286, 2291.

691406 Crankshaft

Used on Type No(s).

0016, 0106, 0107,

0108, 0109, 0157,

0161, 0163, 0169,

0182, 0184, 0193,

0195, 0196, 0215,

0217, 0222, 0223,

0228, 0229, 0239,

0241, 0423, 0439,

0616.

496839 Crankshaft

Used on Type No(s).

0018, 0156, 0183,

0190, 0233, 0240,

0483, 0505, 0506,

0618.

691471 Crankshaft

Used on Type No(s).

0236, 0250, 1021,

1022, 1023, 1025,

1026, 1028, 1616,

2003, 2032, 2033,

2040, 2052, 2070,

2073, 2082, 2084,

2094, 2106, 2108,

2109, 2110, 2121,

2123, 2128, 2139,

2152, 2169, 2251,

2270, 2272, 2275,

2278, 2281, 2282,

2287, 2288, 2294,

2296, 2297.

691472 Crankshaft

Used on Type No(s).

0219, 0479, 1019,

1615, 1650, 1651,

2001, 2004, 2005,

2007, 2008, 2010,

2011, 2027, 2028,

2031, 2034, 2035,

2050, 2064, 2067,

2072, 2075, 2087,

2092, 2101, 2107,

2124, 2126, 2130,

2132, 2135, 2142,

2143, 2145, 2146,

2148, 2149, 2151,

2153, 2164, 2171,

2189, 2190, 2234,

2250, 2255, 2256,

2257, 2258, 2260,

2262, 2263, 2264,

2265, 2267, 2268,

2269, 2271, 2273,

2277, 2280, 2284,

2289, 2290, 2292,

2293, 2295, 2298,

2299.

693472 Crankshaft

Used on Type No(s).

2266.

695413 Crankshaft

Used on Type No(s).

1024.

20 K391483S Seal−Oil

(PTO Side)

20A K691952 Seal−Oil

(PTO Side)

(Auxiliary PTO)

22 692551 Screw

(Crankcase

Cover/Sump)

(1 1/4” Long)

22A 691108 Screw

(Crankcase

Cover/Sump)

(3/4” Long)

REF. PART REF. PART REF. PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

10A900

KEngine Gasket Set−Reference 358 ∆Valve Gasket Set−Reference 1095

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

0669−10 Assemblies include all parts shown in frames. 02/20/2008

23 795549 Flywheel

(Used After Code Date

07121100).

−−−−−− Note −−−−−−

692009 Flywheel

(Used Before Code

Date 07121200).

690843 Flywheel

Used on Type No(s).

0156, 0157, 0161,

0190, 0198, 0208,

0215, 0233, 0240,

0505, 0506, 1023,

1024, 1605, 2032,

2082, 2090, 2108,

2109, 2233, 2257,

2263, 2265, 2266,

2270, 2281, 2282.

795695 Flywheel

(Used After Code Date

08012900).

Used on Type No(s).

2140.

690843 Flywheel

(Used Before Code

Date 08013000).

Used on Type No(s).

2140.

24 222698S Key−Flywheel

25 790908 Piston Assembly

(Standard)

(Used After Code Date

04111400).

−−−−−− Note −−−−−−

699657 Piston

Assembly

(Standard)

(Used Before Code

Date 04111500).

792532 Piston

Assembly

(.020” Oversize)

(Used After Code Date

96020500).

298906 Piston

Assembly

(.020” Oversize)

(Used Before Code

Date 96020600).

298907 Piston

Assembly

(.030” Oversize)

(Used Before Code

Date 96020600).

26 790909 Ring Set

(Standard)

(Used After Code Date

04111400).

−−−−−− Note −−−−−−

699658 Ring Set

(Standard)

(Used After Code Date

03080300 and Before

Code Date 04111500).

498680 Ring Set

(Standard)

(Used After Code Date

96020500 and Before

Code Date 03080400).

298982 Ring Set

(Standard)

(Used Before Code

Date 96020600).

792533 Ring Set

(.020” Oversize)

(Used After Code Date

04111400).

498682 Ring Set

(.020” Oversize)

(Used After Code Date

96020500 and Before

Code Date 04111500).

298984 Ring Set

(.020” Oversize)

(Used Before Code

Date 96020600).

498683 Ring Set

(.030” Oversize)

(Used After Code Date

96020500 and Before

Code Date 04111500).

27 691588 Lock−Piston Pin

28 699659 Pin−Piston

(Standard)

(Used After Code Date

03093000).

−−−−−− Note −−−−−−

298909 Pin−Piston

(Standard)

(Used Before Code

Date 03100100).

298908 Pin−Piston

(.005” Oversize)

(Used Before Code

Date 03100100).

29 699654 Rod−Connecting

32 691664 Screw

(Connecting Rod)

Other Briggs & Stratton Engine manuals

Briggs & Stratton

Briggs & Stratton 310000 VERTICAL SERIES User manual

Briggs & Stratton

Briggs & Stratton 386447-0090-G1 User manual

Briggs & Stratton

Briggs & Stratton 120000 User manual

Briggs & Stratton

Briggs & Stratton 5129 User manual

Briggs & Stratton

Briggs & Stratton 150000 HORIZONTAL SERIES User manual

Briggs & Stratton

Briggs & Stratton 215800 Series Setup guide

Briggs & Stratton

Briggs & Stratton Vanguard 610000 Installation and operation manual

Briggs & Stratton

Briggs & Stratton 461700 Series Setup guide

Briggs & Stratton

Briggs & Stratton 400000 Professional Series User manual

Briggs & Stratton

Briggs & Stratton 550 series User manual

Briggs & Stratton

Briggs & Stratton 210000 Power Built Intek User manual

Briggs & Stratton

Briggs & Stratton Vanguard 50000 Installation and operation manual

Briggs & Stratton

Briggs & Stratton 750 Series User manual

Briggs & Stratton

Briggs & Stratton 90000/10000 Manual

Briggs & Stratton

Briggs & Stratton 675EXi Series User manual

Briggs & Stratton

Briggs & Stratton industrial plus 90000 User manual

Briggs & Stratton

Briggs & Stratton Sno/Gard 222400 Series Manual

Briggs & Stratton

Briggs & Stratton 6 User manual

Briggs & Stratton

Briggs & Stratton 12X800 Series Installation instructions

Briggs & Stratton

Briggs & Stratton 280000 Series Installation and operation manual

Briggs & Stratton

Briggs & Stratton Vanguard 130000 User manual

Briggs & Stratton

Briggs & Stratton Professional Series 775 Series 110000 User manual

Briggs & Stratton

Briggs & Stratton 31P700 Series Setup guide

Briggs & Stratton

Briggs & Stratton Twin Cylinder L-Head Operating instructions

Popular Engine manuals by other brands

Rotax

Rotax 125 senior MAX evo installation manual

Kohler

Kohler K361 Service manual

MTD

MTD OHV Series user guide

Kohler

Kohler COMMAND CH18-745 Service manual

Mercury

Mercury D4.2L D-Tronic manual

Selve

Selve SE Plus-RC Series Operating instruction

Perkins

Perkins 1206E-E66TA Operation and maintenance manual

Skov

Skov DA 174 Technical user guide

Rossi

Rossi TX11 Series manual

Siemens

Siemens SIMOTICS T-1FW3 Configuration manual

AL-KO

AL-KO PRO 350 Instructions for use

MTU

MTU 12 V 4000 Lx4 operating instructions

Nanni

Nanni N3.30 Workshop manual

Nanni

Nanni N5.160 CR2 Operator's manual

KSB

KSB SuPreme Series Installation & operating manual

Hiwin

Hiwin EM1 Series user manual

Rotax

Rotax 912 i series Service instructions

Siemens

Siemens SIMOTICS XP 1MB1 operating instructions
