Breville BOV820 User manual

Instruction Book – BOV820

the Smart Oven™ Pro

IMPORTANT

SAFEGUARDS

READ ALL

INSTRUCTIONS BEFORE

USE AND SAVE FOR

FUTURE REFERENCE

When using electrical

appliances, basic safety

precautions should always

be followed including:

•Remove and safely

discard any packing

materials and promotional

labels before using the

oven for the ﬁrst time.

•To avoid choking hazard

for young children,

remove and safely dispose

the protective cover ﬁtted

on the power plug.

•Do not use the appliance

near the edge of a

benchtop or table. Ensure

the surface is stable, level,

heat-resistant and clean.

•Do not use on a cloth-

covered surface, near

curtains or other

ﬂammable materials.

2 Breville®Recommends Safety First

8 Components

10 Quick Start Guide

12 Functions

 Operating your oven 12

 GRILL function 13

 TOAST function 14

 CRUMPET function 15

 BAKE function 16

 ROAST function 17

 PIZZA function 18

 COOKIES function 19

 REHEAT function 20

 WARM function 21

 SLOW COOK function 21

 Replacing the oven light 23

24 Care & Cleaning

26 Troubleshooting

28 Warranty

Contents

BREVILLE®

RECOMMENDS

SAFETY FIRST

At Breville®we are very

safety conscious. We design

and manufacture consumer

products with the safety of you,

our valued customer, foremost

in mind. In addition we ask

that you exercise a degree of

care when using any electrical

appliance and adhere to the

following precautions.

•A ﬁre may occur if the

oven is covered or touches

ﬂammable material,

including curtains,

draperies, walls, and the

like, when in operation.

•Do not use the appliance

on (or close to) a hot

gas or electric burner,

orwhere it could touch

aheated oven or surface.

•Do not let the power

cord hang over the edge

of atable or counter,

ortouch hot surfaces.

•To avoid electric shock,

do not immerse the cord,

plug or motor base in

water (or other liquids).

•When operating the oven,

keep a minimum distance

of cm of space on both

sides of the appliance

andcm above.

•The temperature

ofaccessible surfaces

may be high when the

appliance is operating.

Keep out of reach of

children to prevent burns,

scalds and accidents.

•Do not touch hot surfaces.

To avoid burns, use

extreme caution when

removing pans, dishes

and accessories such

as the included grilling

rack and baking pan, that

contain hot oil or other

hot liquids.

•Do not lay cooking

utensils, baking pans or

dishes on the glass door.

•Do not leave the door

standing open for

extended periods of time.

•Do not store any item on

top of the oven when in

operation except those

described on page 

ofthis book.

•Do not place cardboard,

plastic, paper, or other

ﬂammable materials

inthe oven.

•Do not cover crumb tray

or any part of the oven

with metal foil. This

will cause overheating

oftheoven.

•Caution should be

exercised when using pans

and dishes constructed of

materials other than metal.

Ensure pans and dishes

are oven safe before using

in the oven.

• Caution should be

exercised when using lids

in the oven, as pressure

build up in a covered pan

or dish may cause hot

ingredients to expel or

the dish to crack. Do not

place sealed or airtight

containers in the oven.

•Oversized foods and

metal utensils must not

be inserted in the oven as

they may create ﬁre or risk

of electric shock.

•The use of accessories

and attachments not

recommended or supplied

with this oven may cause

injuries.

•This appliance is for

household use only.

Do not use in any type

ofmoving vehicles.

Do not use the appliance

outdoors, or for anything

other than its intended

use. Misuse can cause

injury.

•Do not use a steam

cleanerto clean the oven.

•If the appliance is to be:

left unattended, cleaned,

moved, assembled or

stored, always switch

the unit o and unplug

the cord from the power

outlet and allow to cool

completely.

•Do not use any rough,

abrasive cleaning tools

or sharp metal chisel or

object when cleaning the

oven door glass.

•Do not clean with metal

scouring pads. Pieces can

break o the pad andtouch

electrical parts, creating

arisk of electric shock.

•This appliance is not

intended for use by

persons (including

children) with reduced

physical, sensory or

mental capabilities,

or lack of experience

and knowledge, unless

they have been given

supervision or instruction

concerning the use of the

appliance by a person

responsible for their safety.

•Children should be

supervised to ensure that

they do not play with

theappliance.

•It is recommended to

regularly inspect the

appliance and power cord.

Do not use the appliance

if there is damage to

the power cord or plug,

or after the appliance

malfunctions or has been

damaged in any way.

Immediately stop use

andcall Breville®Customer

Service.

•The appliance is not

intended to be operated

by means of external timer

or separate remote control

system.

SPECIFIC

INSTRUCTIONS

FOR BOV

•We recommend the oven

is operated on a dedicated

circuit separated from

other appliances. Consult

a licensed and qualiﬁed

electrician if you are

unsure.

•To turn o the oven,

press the START/

CANCEL button on the

control panel. The oven

is o when the button

backlights turns o.

•Regularly clean the

crumb tray. To clean the

crumbtray:

 Turn OFF the oven,

 Allow the oven to cool

completely and then

remove the power cord

from the power outlet.

 Remove the crumbtray

and clean with warm

soapy water.

 Dry the tray completely

before inserting it securely

back in place.

To protect against

electric shock or

ﬁre, do not immerse the

power cord, power plug

orappliance in water

orany other liquid.

•Always unplug the oven

and let all parts (including

the bulb housing, glass

cover and enclosure)

cool completely before

replacing bulb.

•Only use a  Watt, –

V, G type oven bulb.

•Always use a soft cloth

when handling the bulb

and do not directly touch

the surface as oil from

your skin can damage

thebulb.

•Do not look directly

ataglowing bulb.

•Do not remain in the light

if skin feels warm.

•Keep bulb away from

materials that may burn.

•The bulb gets hot quickly.

Only ever use the light

button to turn on the light.

•Do not operate the light

if the bulb housing,

glass cover, UV ﬁlter

orenclosure are missing

ordamaged.

FOR HOUSEHOLD USE ONLY

SAVE THESE INSTRUCTIONS

BREVILLEASSIST™ PLUG

Your Breville®appliance

comes with a unique

Assist™Plug, conveniently

designed with a finger hole

to ease removal from the

power outlet.

This symbol indicates,

temperature of accessible

surfaces may be high when

the appliance is operating

and for some time after use.

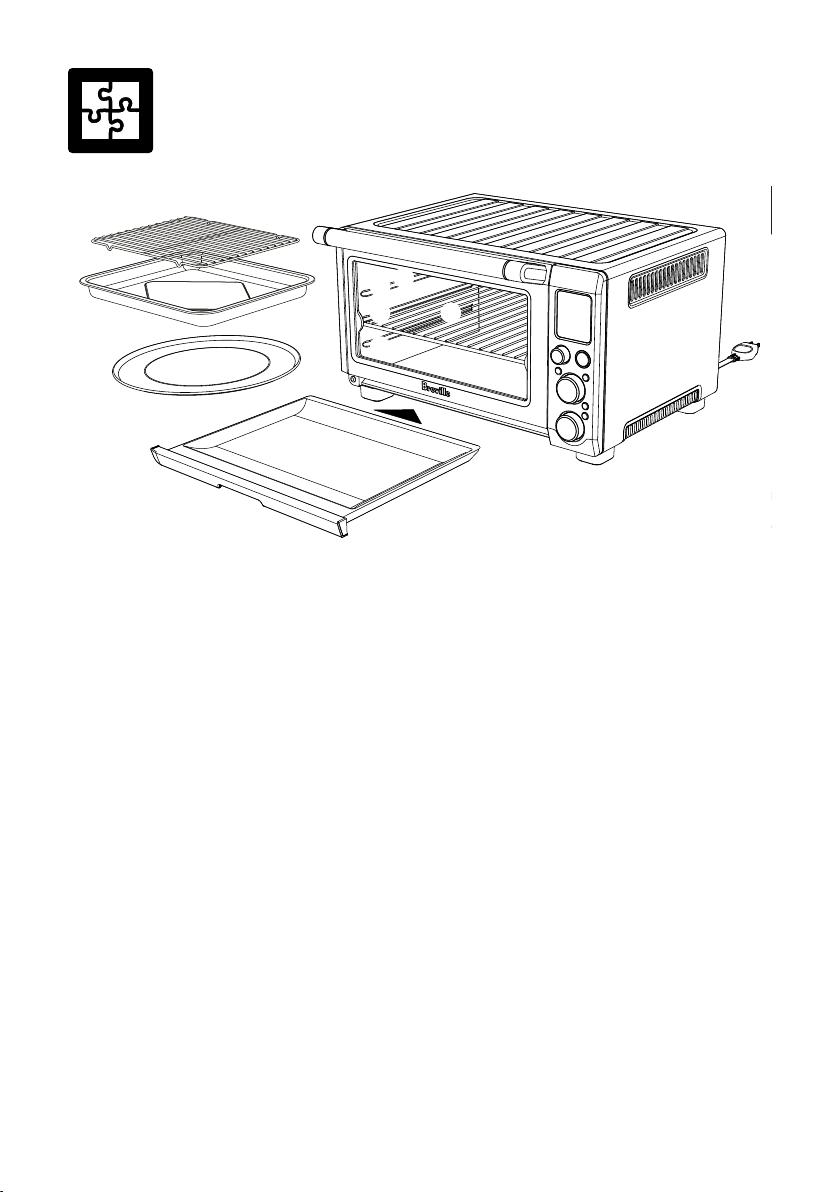

Components

A. Baking rack

B. 28 x 30cm enamel baking pan

C. 28cm non-stick pizza pan

D. Door handle

E. Oven light

F. Top rack height position:

GRILL function.

G. Middle rack height position:

TOAST, Crumpet, PIZZA and

COOKIES functions.

H. Bottom rack height position:

BAKE, ROAST, REHEAT, WARM and

SLOW COOK functions.

I. Wire rack

J. Crumb tray

K. Ventilation slots

L. BrevilleAssist™ Plug

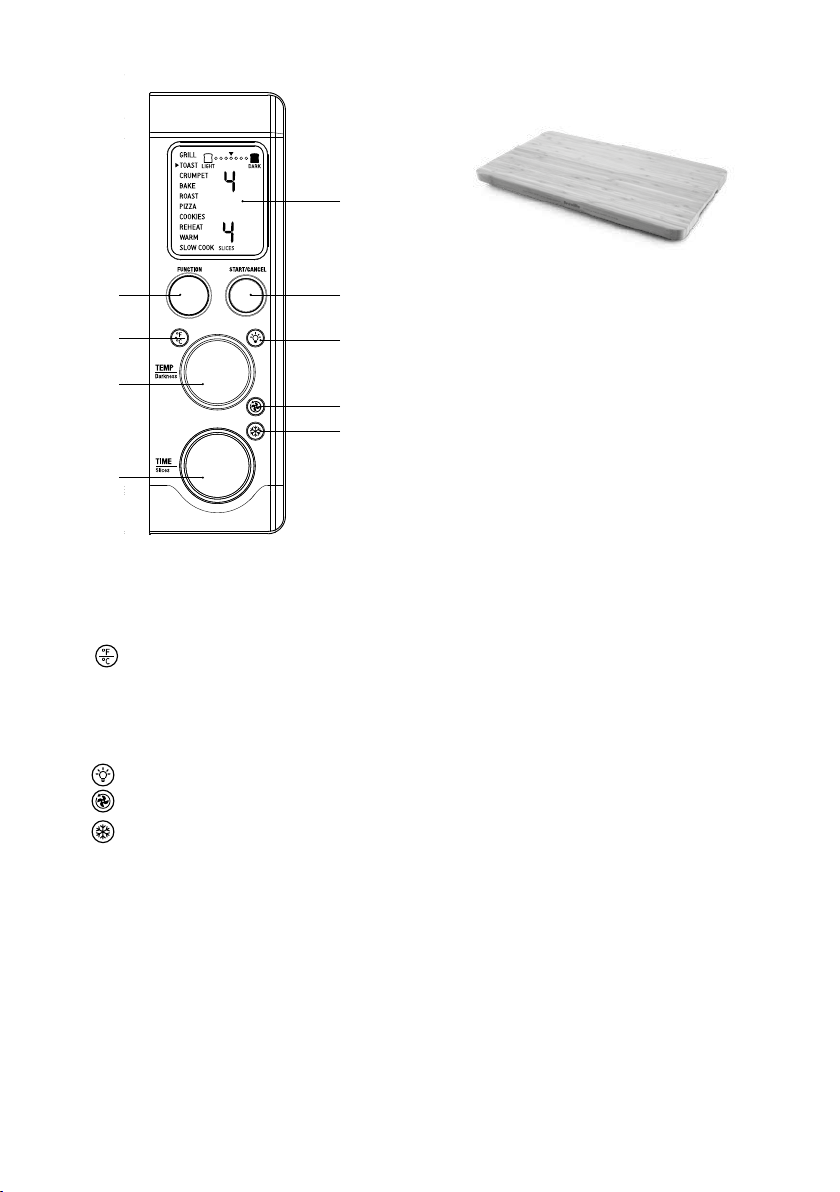

M. LCD screen

N. START/CANCEL button

O. FUNCTION dial

P. TEMPERATURE conversion button

Q. TEMPERATURE dial/toast and crumpet

darkness control

R. TIME dial/toast and crumpet

slice selection

S. OVEN LIGHT button

T. CONVECTION button

U. FROZEN FOODS button

Accessories sold separately:

Bamboo Cutting Board

Part No: BOVCB

Quick Start Guide

This Quick Start Guide is designed for ﬁrst time use.

For safety and more information, refer to rest of the Instruction Booklet.

PREPARING THE OVEN

In order to remove any protective substances

on the heating elements, it is necessary to run

the oven empty for  minutes. Ensure the

area is well ventilated as the oven may emit

vapours. These vapours are safe and are not

detrimental to the performance of the oven.

. Remove and safely discard any packing

material, promotional labels and tape from

the oven.

. Remove the crumb tray, wire rack, grilling

rack, baking pan and pizza pan from the

polyfoam packaging. Wash them with a soft

sponge in warm, soapy water then rinse and

dry thoroughly.

. Wipe the interior of the oven with a soft,

damp sponge. Dry thoroughly.

. Place the oven on a ﬂat, dry surface. Ensure

there is a minimum distance of cm of

space on both sides of the appliance and

cm above.

. Insert the crumb tray into the oven.

. Unwind the power cord completely and

insert the power plug in to a grounded

power outlet.

. The oven alert will sound and the LCD

screen will illuminate. The function options

will appear with an indicator on the

BAKE setting.

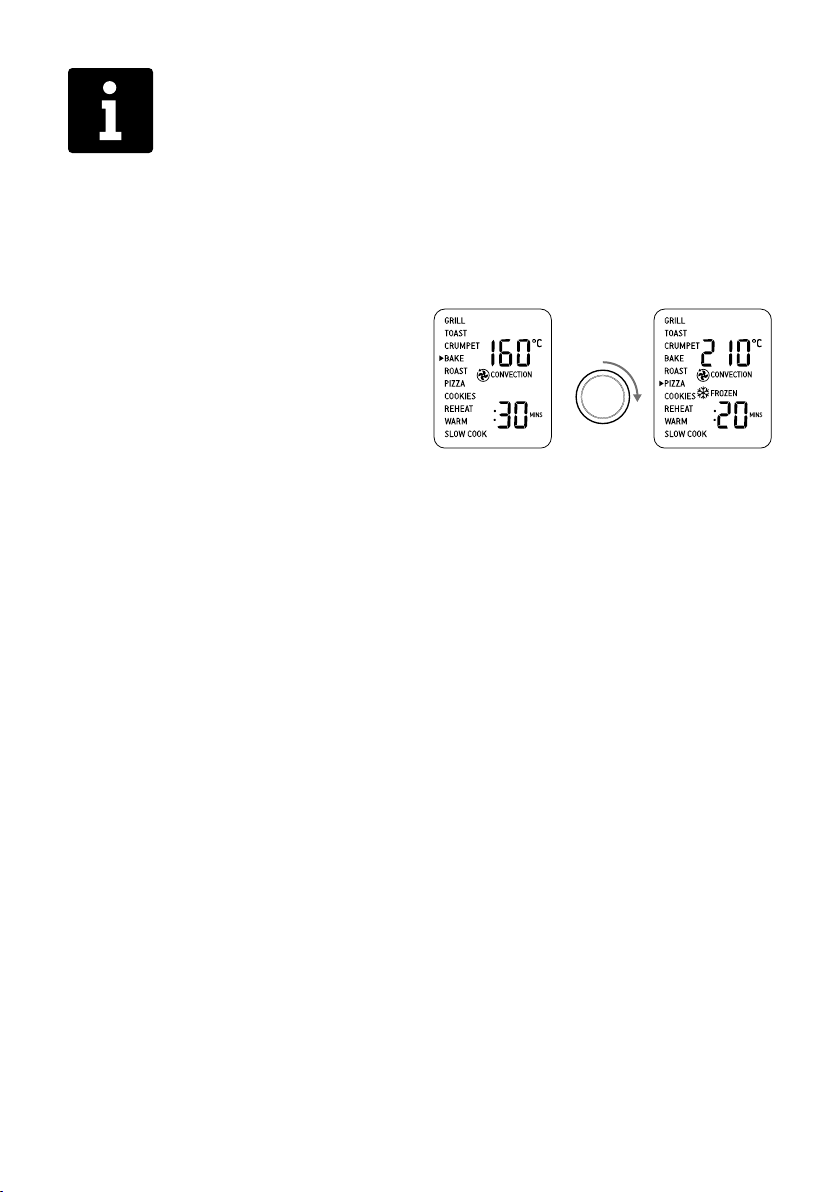

. Turn the FUNCTION dial to the right until

the indicator reaches the PIZZA function.

ROTATE

FUNCTION

DIAL

. Press the START/CANCEL button. The

button backlight will illuminate red, the

LCD screen will illuminate orange and the

oven alert will sound.

. The LCD screen will indicate a blinking

‘PREHEATING’. Once the oven has reached

the set temperature, the temperature alert

will sound.

. The timer will be displayed and

automatically begin to count down.

. At the end of the cooking cycle, the oven

alert will sound, the START/ CANCEL

button backlight will go out and the

LCD screen will illuminate blue.

. The oven is now ready to use.

This manual suits for next models

Table of contents

Other Breville Microwave Oven manuals

Breville

Breville Silhouette Flatbed Compact LMO420 User manual

Breville

Breville VMW187 User manual

Breville

Breville Combi Wave 3 in 1 User manual

Breville

Breville Fast & Easy User manual

Breville

Breville ikon BMO200 User manual

Breville

Breville the Inverter Flatbed Noir User manual

Breville

Breville BMO734XL User manual

Breville

Breville MW4 User manual

Breville

Breville BMO870 User manual

Breville

Breville Flatbed Inverter LMO530 Series User manual

Breville

Breville Quick Touch BMO735 User manual

Breville

Breville the Smooth Wave User manual

Breville

Breville the Quick Easy BMO300B User manual

Breville

Breville vmw176 User manual

Breville

Breville Silhouette Flatbed Compact LMO420 User manual

Breville

Breville the Big Easy BMO234 User manual

Breville

Breville Quick Touch Crisp BMO700BSS User manual

Breville

Breville Compact Wave Soft Close BMO650 User manual

Breville

Breville Combi Wave 3 in 1 User manual

Breville

Breville silver solo vmw200 User manual

Breville

Breville he Mini Smart Oven BOV450BSS1BCA1 User manual

Breville

Breville BRE997SSG User manual

Breville

Breville silver solo vmw200 User manual

Breville

Breville VMW207 User manual

Popular Microwave Oven manuals by other brands

Daewoo

Daewoo KOG-574R0S Service manual

LG MH7040SS instruction manual

Sharp

Sharp R-895(AL)M Service manual

Dometic

Dometic DOTRM13W installation instructions

Sanyo

Sanyo EM-X680 instruction manual

Sharp

Sharp R-393M quick start guide

KitchenAid

KitchenAid KMCX4510 Use and care

Smeg

Smeg S45MCX1 Instructions for use

Russell Hobbs

Russell Hobbs RHM2044 user guide

Sunbeam

Sunbeam SMW759 owner's manual

Gallet

Gallet FMOE230S instruction manual

Bosch

Bosch CEG732X.1B User manual and installation instructions

Dometic

Dometic Roadmate 230 operating manual

Samsung

Samsung SJ0396W Owner's instructions

Sanyo

Sanyo EM-P494WS Supplement of service manual

Sharp

Sharp R-240 Operation manual

Electrolux

Electrolux EMS2840 user manual

Daewoo

Daewoo KOC-984T2S13 Service manual
