Brave MPCLS2013E.2 User manual

Owner’s Manual

Instructions for Assembly, Testing, Operation,

Servicing, & Storage

Log Splitter: Outdoor hydraulic powered machine that

splits wood logs.

WARNING

READ and UNDERSTAND this manual completely before using log splitter.

All operators of this equipment must read and completely understand all safety information, operating instructions,

maintenance and storage instructions. Failure to properly operate and maintain the log splitter could result in serious

injury to the operator or bystanders from moving parts that can crush or cut, flying objects, burns, fire or explosion,

escaping high pressure hydraulic fluid, or carbon monoxide poisoning. In particular, be aware of the following

hazards: Crush and Cut Hazards

Moving parts can crush and cut hands and fingers. Keep hands clear of endplates, wedge, and logs while splitting.

High Pressure Hydraulic Fluid Hazards

High fluid pressures and temperatures are developed in hydraulic log splitters. Hydraulic fluid escaping through

even a pin-size hold opening can puncture skin and cause severe blood poisoning. Inspect hydraulic system

regularly for possible leaks. Never check for leaks with your hand while the system is pressurized. Seek medical

attention immediately if injured by escaping fluid. Fire Hazards

If your log splitter is intended for use near any ignitable forest, brush, or grassy covered land, the engine exhaust

should be equipped with a spark arrestor.

Keep a fire extinguisher with you, rated for ordinary combustibles and flammable liquids.

STOP!

ASSEMBLY REQUIRED: This product requires assembly before use. See “Assembly” section for instructions.

INSPECT COMPONENTS. Closely inspect upon receipt to make sure no components are missing or damaged. See

“Assembly” section for instructions on whom to contact to report missing or damaged parts.

ADD ENGINE OIL and HYDRAULIC OIL BEFORE USING: This product is shipped without engine oil or

hydraulic oil. DO NOT start log splitter before adding both oils. See “Assembly” and “Initial Unpacking & Set-

up” sections for detailed instructions.

Any Questions, Comments, Problems or Parts Orders

Call Brave Support 1-800-350-8739

ITEM NUMBER: PCLS2013GC

SERIAL NUMBER: _____________

MPCLS2013E.2

Hazard Signal Word Definitions

Table of Contents

About Your Log Splitter.................................................................................................................4

Safety Label Locations...................................................................................................................5

Machine Components Identification ..............................................................................................6

Initial Set-up...................................................................................................................................7

Moving & Towing to the Job Site..................................................................................................9

Before Each Use:

Step One: Inspection/Maintenance.......................................................................................12

Step Two: Fueling ................................................................................................................14

Step Three: Work Site Selection & Set-up...........................................................................15

Splitting Operation .........................................................................................................................16

Storage............................................................................................................................................21

Periodic Maintenance.....................................................................................................................22

Troubleshooting..............................................................................................................................23

Specifications..................................................................................................................................24

Parts Breakdown –Exploded View................................................................................................25

Summary of Important Safety Information for Operation..............................................................27

Assembly Instructions ....................................................................................................................32

Limited Warranty ...........................................................................................................................40

Product Registration Form..............................................................................................................41

About Your Log Splitter

Thank you for purchasing your log splitter!

About Your Log Splitter

This log splitter is a machine designed to split wood logs using a hydraulically powered moving wedge.

The gasoline-powered engine is used to pressurize the system.

This log splitter model is capable of splitting logs up to 24” long and 16” in diameter

This log splitter is designed to split logs lengthwise with the grain only.

This log splitter model is designed with a unique, timesaving feature -- a double-edged cutting wedge that

is capable of splitting wood on both the extension and retraction strokes of the wedge.

The technical specifications for your log splitter are provided in the “Specifications” section of this

manual.

WARNING

This log splitter uses a high-pressure hydraulic system to generate a very strong

splitting force. Read the manual completely before using the machine to understand

how to safely operate and maintain it.

Follow all safety precautions presented throughout this manual. A summary of important safety

information can be found at the end of the manual.

Contact Brave Support at 1-800-350-8739 for any questions about the appropriate

use of this log splitter and/or optional accessories.

Warranty Registration:

Please fill out and submit the warranty registration card so that we may have your contact information for

any future product literature or replacement parts you may need.

Attention: All Rental Companies and Private Owners who

loan this equipment to others!

All persons to whom you rent/loan the log splitter must have access to and read this manual. Keep this

owner’s manual with the splitter at all times and advise all persons who will operate the machine to read

it. You must also provide personal instruction on how to safely operate the splitter and available to

answer any questions a renter/borrower might have.

Safety Label Location

Part #

Description

787753

Splitter Warning / Instructions Decal

780187

Moving/Towing Decal

Always make sure safety labels are in place and in good condition. If a safety label is missing or not

legible, order new labels or unsafe operation could result.

Machine Components Identification

1.) Log Table. This large log table keeps the log from falling on the ground after splitting. The

log table will keep the log on the beam without operator assistance.

2.) Beam/Cylinder. The hydraulic cylinder has a 4” bore and a 24” stroke, depending on model.

3.) Wedge. The wedge has two tapered edges that allow splitting in both directions. The wedge

features a taper that makes splitting easier.

4.) End Plate. The end plate keeps the log from moving as the wedge moves though the log.

5.) 2” Coupler. Allows the trailer unit to be hooked up to a 2” ball hitch.

6.) Safety Chains. Secures trailer to vehicle in case of accidental disconnection of ball and

coupler.

7.) Leg. The leg supports the log splitter while operating. The leg should be raised while towing

(see Operation Instructions).

8.) Lock. The locking pin locks the log to prevent unintended movement.

9.) Tires. The tires on this log splitter are for high speed towing (max 45mph).

10.) Hydraulic Tank. The hydraulic tank stores the hydraulic oil.

11.) Hydraulic Pump. The hydraulic pump makes the hydraulic oil flow through the system.

12.) Suction Strainer. The suction strainer removes debris from the hydraulic oil before entering

the pump.

13.) Engine. The air-cooled engine powers the hydraulic pump.

14.) Splitter Control Lever. Use the split control lever to move the wedge forward and

backward.

Initial Set-up

WARNING

Carefully read and follow all instructions for initial assembly and set-up of

this log splitter.

Failure to properly assemble and set up this equipment could result in serious

injury to the user or bystanders, or cause equipment damage.

Step One:

Assemble log splitter

Assemble your log splitter.

See the “Assembly” section of this manual – It will provide you with detailed instructions

on:

Inspecting shipped components and whom to contact if anything is missing or

damaged.

Assembly.

Testing.

Step Two:

Add oil to engine

Add oil to engine.

Using a funnel, add SAE 10W-30 oil up to the FULL mark on the dipstick. (See

engine Owner’s Manual for oil capacity and location of fill cap.)

Step Three:

Add Hydraulic Oil to

Reservoir

1. Remove hydraulic oil dipstick.

2. Refer to the Specifications section for approximate hydraulic oil capacity.

3. Fill reservoir with 10 wt AW32, ASLE H-150, or ISO 32 oil. Use a funnel

4. Replace hydraulic oil dipstick and check that oil level reads full. Note: Do not

thread in dipstick when checking oil level.

5. Start engine and use split control lever to extend and retract wedge 5 (five) times

to remove air from the high pressure lines.

6. With wedge retracted, check oil level again. Fill if necessary.

Note: If the log splitter will be run for long periods of time in outdoor temperatures above

70F, we recommend changing the hydraulic oil to DEXTRON III.

Step Four:

Check Hydraulic

system

Check the hydraulic system carefully:

1. Visually inspect all hoses, tubing, clamps/fittings, pump, and cylinder for cracks,

fraying, kinks, or other damage.

2. Check all components for oily residue, which may indicate a leak.

Do NOT operate the log splitter if there is any indication of damage or oily residue.

Small leaks in hydraulic lines can cause severe injuries and can also be an indication of

Oil dipstick

Hydraulic oil

Initial Set-up

catastrophic failure in the near future. The life of hydraulic hoses may be from a few

months to a few years, depending on use and storage patterns.

WARNING: High fluid pressures and temperatures are developed in hydraulic

log splitters. Hydraulic fluid escaping through a pin hole sized opening can burn or

puncture skin, resulting in wounds that could cause blood poisoning, infection,

disability, gangrene, amputation, or death. Therefore, the following instructions

should be heeded at all times when inspecting or servicing the hydraulic

components of the log splitter:

Stop the engine, disconnect the spark plug, and move the split control lever

back and forth to relieve pressure before changing or adjusting hydraulic

system components such as hoses, tubing, fittings or other components.

NEVER check for leaks with your hand. Leaks can be located by holding a

piece of cardboard or wood (at least two feet long) with your hand at one end

and passing the other end over the suspected area (wear eye protection). Look

for discoloration of the cardboard or wood.

NEVER adjust the pressure setting of the pump or valve.

If injured by escaping fluid, no matter how small the wound is, see a doctor at

once. A typical injection injury may be a small puncture wound that does not

look serious. However, severe infection or reaction can result if proper

medical treatment is not administered immediately by a doctor who is familiar

with injection injuries.

WARNING: NEVER remove the hydraulic oil fill cap when the engine is

running or hot. Hot oil can escape causing severe burns. Allow log splitter to

cool completely before removing hydraulic oil fill cap.

Step Five:

Lubricate slide rail

beam

Lubricate wedge slide.

Extend the wedge slide as shown, and lubricate the surface of it with grease. This will

help prevent wear between the wedge slide and beam.

Moving & Towing to Job Site

WARNING

The log splitter is heavy. It can crush and cause serious injury if it rolls out of control or tips over.

Follow the instructions below for safely moving and towing the log splitter.

Moving the log splitter:

1. Engine off

IMPORTANT: Ensure log splitter engine is off.

Never move the log splitter with its engine running

2. Fuel valve off

Turn fuel valve off to prevent carburetor flooding and reduce the chance of fuel leakage.

3. Swing leg UP

Lock the leg in the “UP” position before you move the log splitter anywhere by hand.

4. Move log splitter

to work site or tow

hitch

Move log splitter by hand either directly to chosen work site or to tow hitch for

towing.

(See “Before Each Use” section on selecting a work site)

Important Safety Instructions:

Hills. Do not move the log splitter up or down hills by hand - use a towing

vehicle.

No riding. Never allow anyone to sit or ride on the log splitter.

No cargo. Never transport cargo or wood on the log splitter.

Swing leg

Pin Catch

Moving & Towing to Job Site

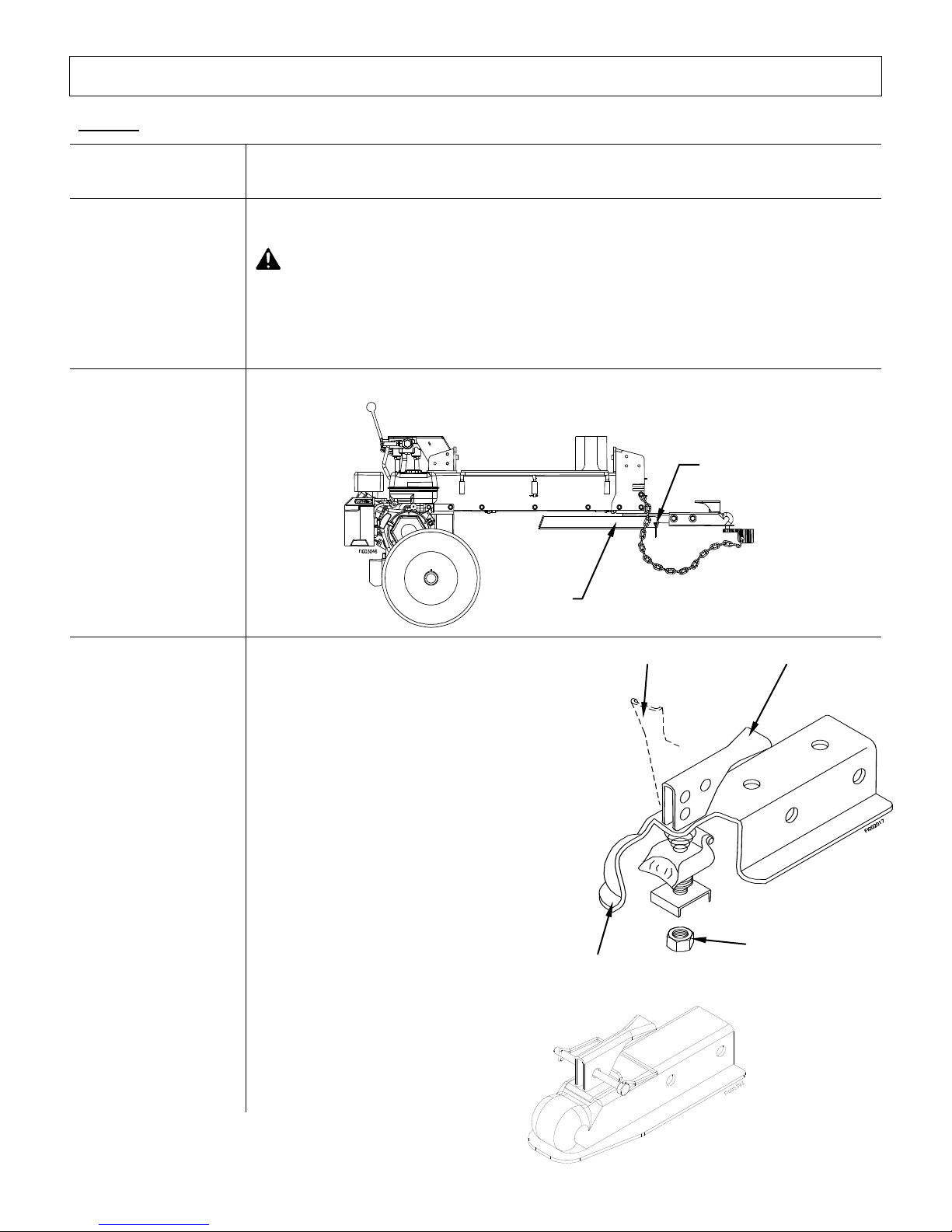

Towing:

1. Read instructions

Review towing safety instructions in your vehicle manual.

2. Check tires

Make sure tires are fully inflated and in good repair.

See tire sidewall for recommended tire pressure.

WARNING:

●Do not over-inflate tires. Serious injury can occur if tire explodes.

●When seating a bead after repair, do not exceed 30 PSI. Pressures higher than 30 PSI

can cause the tire and wheel to rupture and explode.

3. Swing leg UP

Lock the leg in the “UP” position before you move the log splitter anywhere by hand.

4. Attach to hitch

(2” ball)

Attach Log Splitter to vehicle hitch.

1. Attach log splitter’s coupler to a class 2

or higher hitch with 2” ball (only).

2. Adjust coupler to ball by raising locking

lever and turning lock nut with fingers.

3. Proper adjustment is obtained when

coupler is as tight as possible on ball and

locking lever can still be opened and

closed.

4. Lock lever closed to secure the

attachment. An optional locking pin or

padlock may be inserted in the locking

lever hole for extra security.

5. Insert pin into locking lever to ensure it does not unlock while towing.

Locking lever

(locked position)

Unlocked

position

Housing

Lock nut

Swing leg

Pin Catch

Table of contents

Other Brave Log Splitter manuals

Brave

Brave VH0934 User manual

Brave

Brave MXR1322B Instruction Manual

Brave

Brave MVH1334C Instruction Manual

Brave

Brave VH9934 Instruction Manual

Brave

Brave EZ Split Instruction Manual

Brave

Brave LB 1226 Technical Document

Brave

Brave VH-9020 User manual

Brave

Brave BHVH-2090 User manual

Brave

Brave VH0622 Instruction Manual

Brave

Brave EZ Split Instruction Manual

Brave

Brave VH1724GC User manual

Brave

Brave VH1724GX User manual

Brave

Brave VH1322GX Instruction Manual

Brave

Brave BC 1826 Big Cheef User manual

Brave

Brave PCLS1513 User manual

Brave

Brave BB 1526 User manual

Popular Log Splitter manuals by other brands

Bell

Bell Pickpine VS S9 Manual for use and maintenance

ATIKA

ATIKA ASP 5 N-UG Original instruction

Posch

Posch Schälprofi 500 operating instructions

Champion

Champion 91520 Owner's Manual and Operating Instructions

Fieldmann

Fieldmann FZLS 1008V-E manual

Craftsman

Craftsman 247.28775 owner's manual

Scheppach

Scheppach OX 3-1000 Translation from the original instruction manual

Swisher

Swisher 21200 owner's manual

Elem Garden Technic

Elem Garden Technic FBHT65-22TCH instructions

Champion Power Equipment

Champion Power Equipment 90720 Owner's Manual and Operating Instructions

Boss Industrial

Boss Industrial ES5T20 owner's manual

Villager

Villager LSP 12 T Original Operator's Manual

MTD

MTD 242-642A owner's manual

Rok

Rok 150-51-50255 owner's manual

Hakki Pilke

Hakki Pilke Raven manual

Swisher

Swisher LSRB11534 owner's manual

Hyundai

Hyundai HYLS7TE quick start guide

Scheppach

Scheppach HL1500M Original instruction manual
