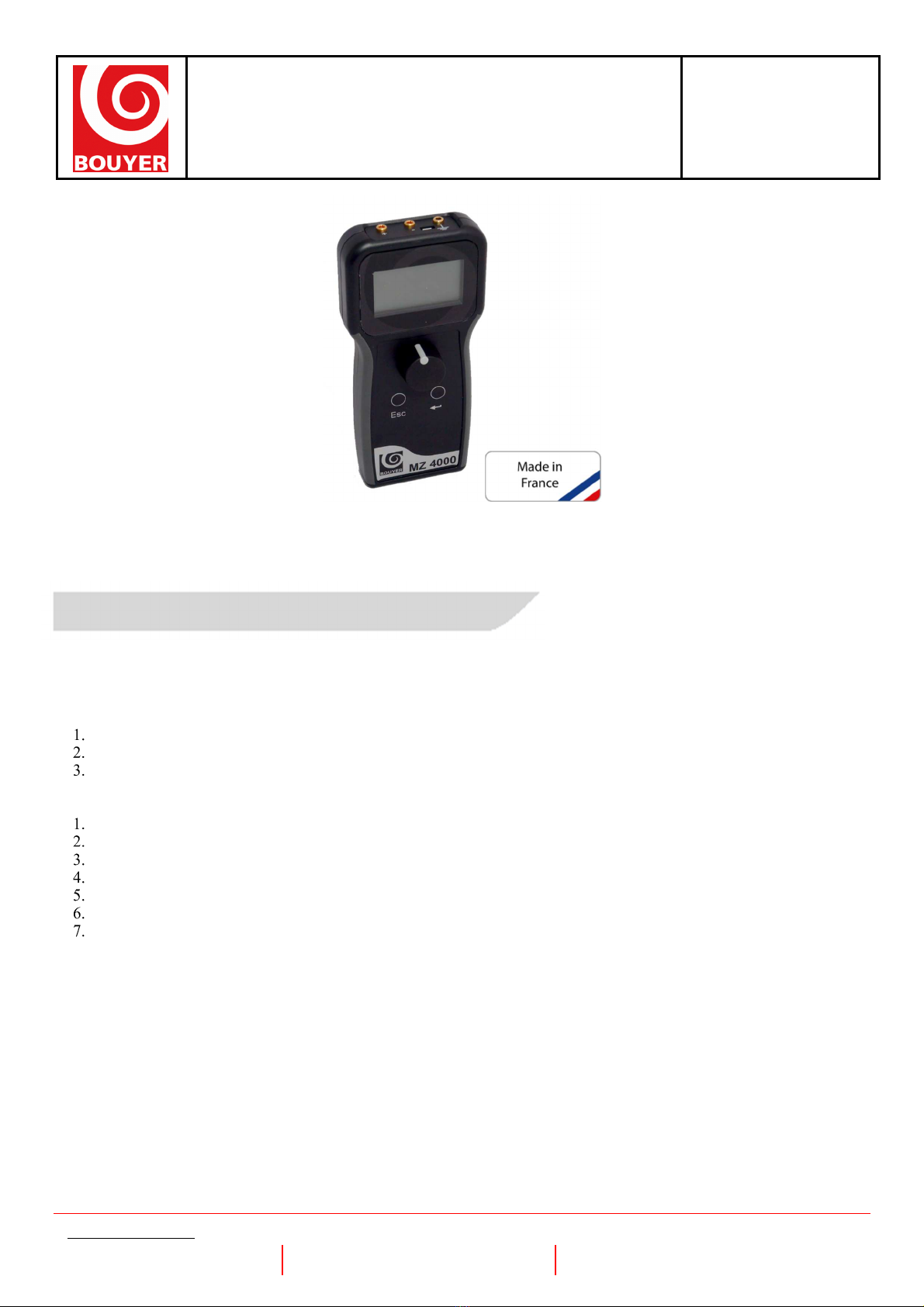

Bouyer MZ-4000 User manual
MZ-4000
Line tester
Reference: 596 195
Date: October 2018
Version: 3
1
BOUYER INDUSTRIE
82000 Montauban – France Fax: +33 (0)5 63 03 08 26 www.bouyer.com
I.
INTRODUCTION................................................................................................................................................................. 2
II.
Terminology.......................................................................................................................................................................... 3
III.
Presentation........................................................................................................................................................................... 4
Front panel............................................................................................................................................................................. 4
TOP OF THE CASE.............................................................................................................................................................. 5
ACCESSORIES SUPPLIED................................................................................................................................................. 5
IV.
CAUTION............................................................................................................................................................................. 6
V.
Operation............................................................................................................................................................................... 7
TURN on and off................................................................................................................................................................... 7
MAIN FUNCTIONS ............................................................................................................................................................. 7
Impedance measurement........................................................................................................................................................ 8
VA measurement ................................................................................................................................................................. 11
WIZARD MODE................................................................................................................................................................. 13
AUDIO GENERATOR FUNCTION .................................................................................................................................. 19
SETTINGS MENU.............................................................................................................................................................. 22
VI.
DECLARATION OF CONFORMITY............................................................................................................................... 23
VII.
TECHNICAL DATA.......................................................................................................................................................... 24
VIII.
RECYCLING...................................................................................................................................................................... 25
Ce document n’est pas contractuel ; toute modification pouvant intervenir sans préavis / his document is not legally binding, we reserve the right to modify descriptions and specifications without notice.
Contents
MZ-4000
Line tester
Reference: 596 195
Date: October 2018
Version: 3
2
BOUYER INDUSTRIE
82000 Montauban – France Fax: +33 (0)5 63 03 08 26 www.bouyer.com
I. INTRODUCTION
he MZ 4000 is a test device for professional public address and sound systems.
It has a range of features to perform diagnostics and troubleshooting of professional sound systems.
It also supports the specific features of equipment marketed by "Bouyer".
It has been designed to be easy to use and can store measurements in files in ".csv" format on the SD
card, thereby facilitating evaluation of the results later on.
he MZ 4000 provides the following functions:
•Graphical user interface on a 64*36mm screen.
•Adjustable backlight.
•Simple user-friendly menus.
•Impedance measurement from 4Ω to 10kΩ @1kHz.
•Displays the equivalent power for 100V rms.
•Measurement of end-of-line resistance.
•Measurement of ground isolation.
•Playback of audio files in WAV format stored on the SD card.
•Low-impedance audio output, output level adjustable from -30dB to +10dB.
•Generation of pulse signals.
•Automated measurement of lines and storage of results on SD card.
•Management of the date and time.
•Powered by 4 LR6 batteries.
•Micro USB socket.
•he content of the SD card can be accessed via the USB port.
•Standard connectors for 4-mm banana plugs.
•est leads supplied.
•ABS case with battery compartment
MZ-4000
Line tester
Reference: 596 195
Date: October 2018
Version: 3
3
BOUYER INDUSTRIE
82000 Montauban – France Fax: +33 (0)5 63 03 08 26 www.bouyer.com
II. TERMINOLOGY
PA Public Address: Voice alarm and safety sound systems.
PSE Power Supply Equipment Power supply in compliance with EN54-16.
VACIE Voice Alarm Control and Indicating Equipment.
EN54-16 Standard for voice alarm and safety systems
Fire detection and fire alarm systems - Part 16: voice alarm control and indicating equipment
Line Basic element that can be selected on a public-address system.
Physically, a line corresponds to the output of an amplifier.
Depending on the output power, a line may have more than one loudspeaker. A discriminant
loudspeaker selection cannot be achieved on the same line.
EOL End of Line: 10-KΩ resistor wired at the end of the line so that the VACIE can test line integrity.
SC/OC Short Circuit/ Open Circuit
AZ Alarm Zone: Set of lines on the system over which the Vocal Alarm is broadcast.
VA Specific measuring technique developed by Bouyer that detects faults on loudspeaker lines.
Re ion Group of alarm zones.
General Call Broadcast on all lines in an alarm zone.
Voice Alarm Evacuation message broadcast.
HMI Human Machine Interface
MZ-4000
Line tester
Reference: 596 195
Date: October 2018
Version: 3
4
BOUYER INDUSTRIE
82000 Montauban – France Fax: +33 (0)5 63 03 08 26 www.bouyer.com

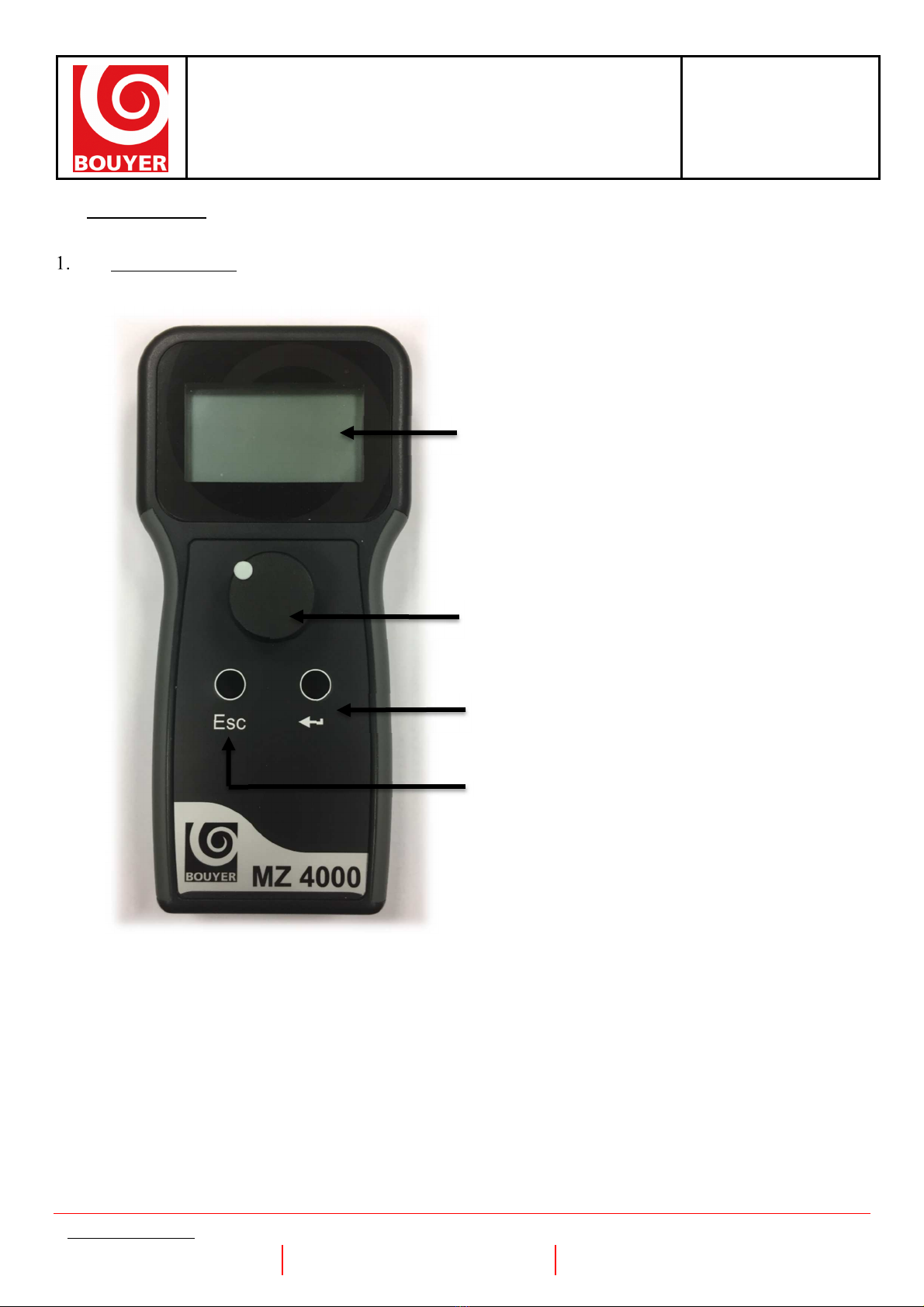

III. PRESENTATION
FRONT PANEL
① Monochrome LCD, 128x64 pixels.
② Button (rotary knob) to navigate in the menus and confirm by pressing
③ Enter: Validate / Press and Hold: Power on.
④ Esc: Cancel, go back to the previous menu / Press and Hold: Power off.
ON
OFF
MZ-4000
Line tester
Reference: 596 195
Date: October 2018
Version: 3
5
BOUYER INDUSTRIE
82000 Montauban – France Fax: +33 (0)5 63 03 08 26 www.bouyer.com

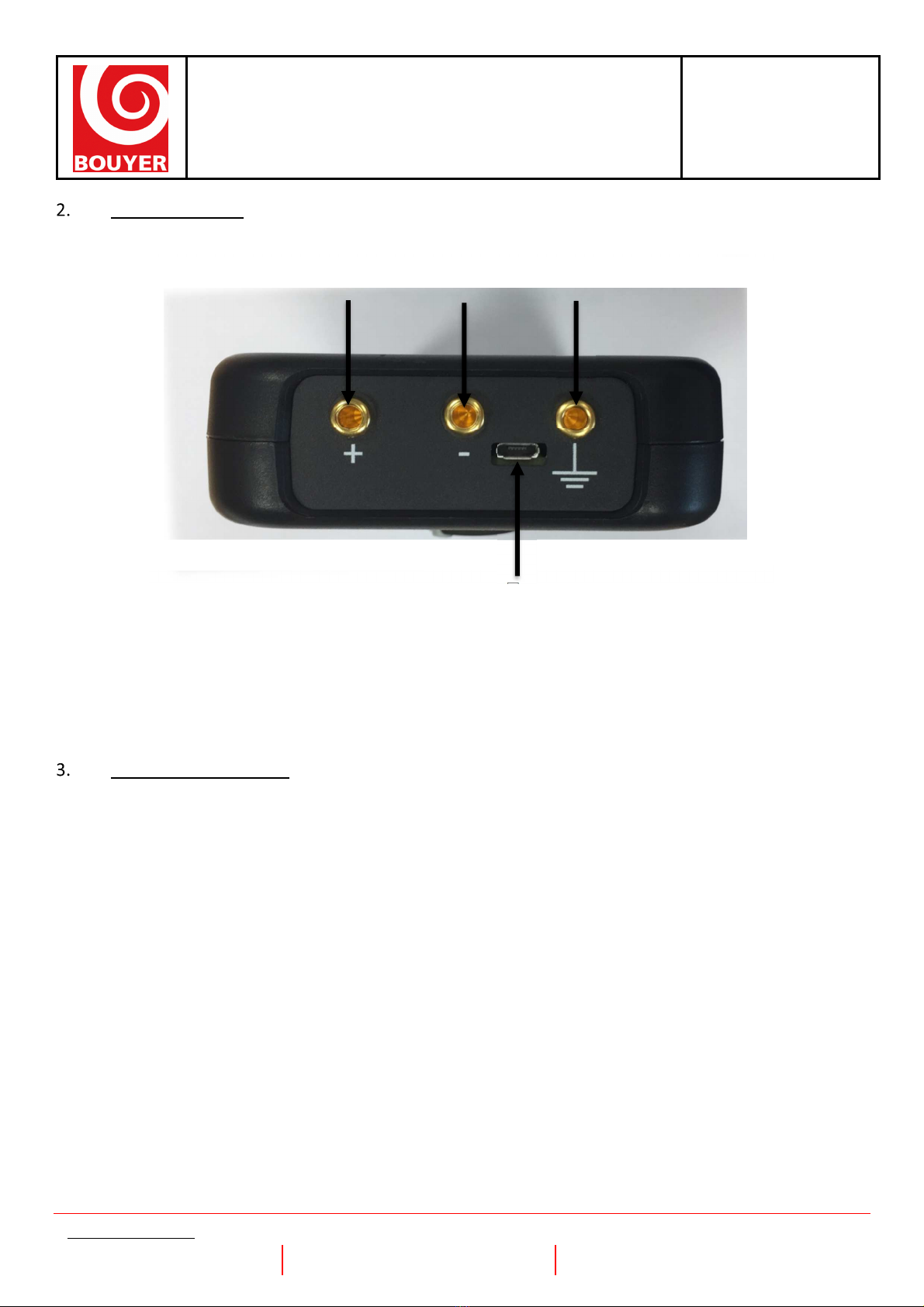

OP OF HE CASE
① Positive measuring terminal socket.
① Negative measuring terminal socket.
③ Ground connection socket.
④ Micro USB port.
ACCESSORIES SUPPLIED
4 batteries - LR6 1.5V 2600mAh.
3 test leads with crocodile clips.
Service manual.
MZ-4000
Line tester
Reference: 596 195
Date: October 2018
Version: 3
6
BOUYER INDUSTRIE
82000 Montauban – France Fax: +33 (0)5 63 03 08 26 www.bouyer.com
IV. CAUTION
CAUTION: Risk of electric shock may result following a contact with HP
lines activate.
Make only measurements on speaker lines disconnected from their
amplifiers.
Before disconnecting speaker lines, it is advisable to turn off
amplifiers.
Any electric potential on the line may cause the destruction of the MZ-
4000.
MZ-4000
Line tester
Reference: 596 195
Date: October 2018
Version: 3
7
BOUYER INDUSTRIE
82000 Montauban – France Fax: +33 (0)5 63 03 08 26 www.bouyer.com

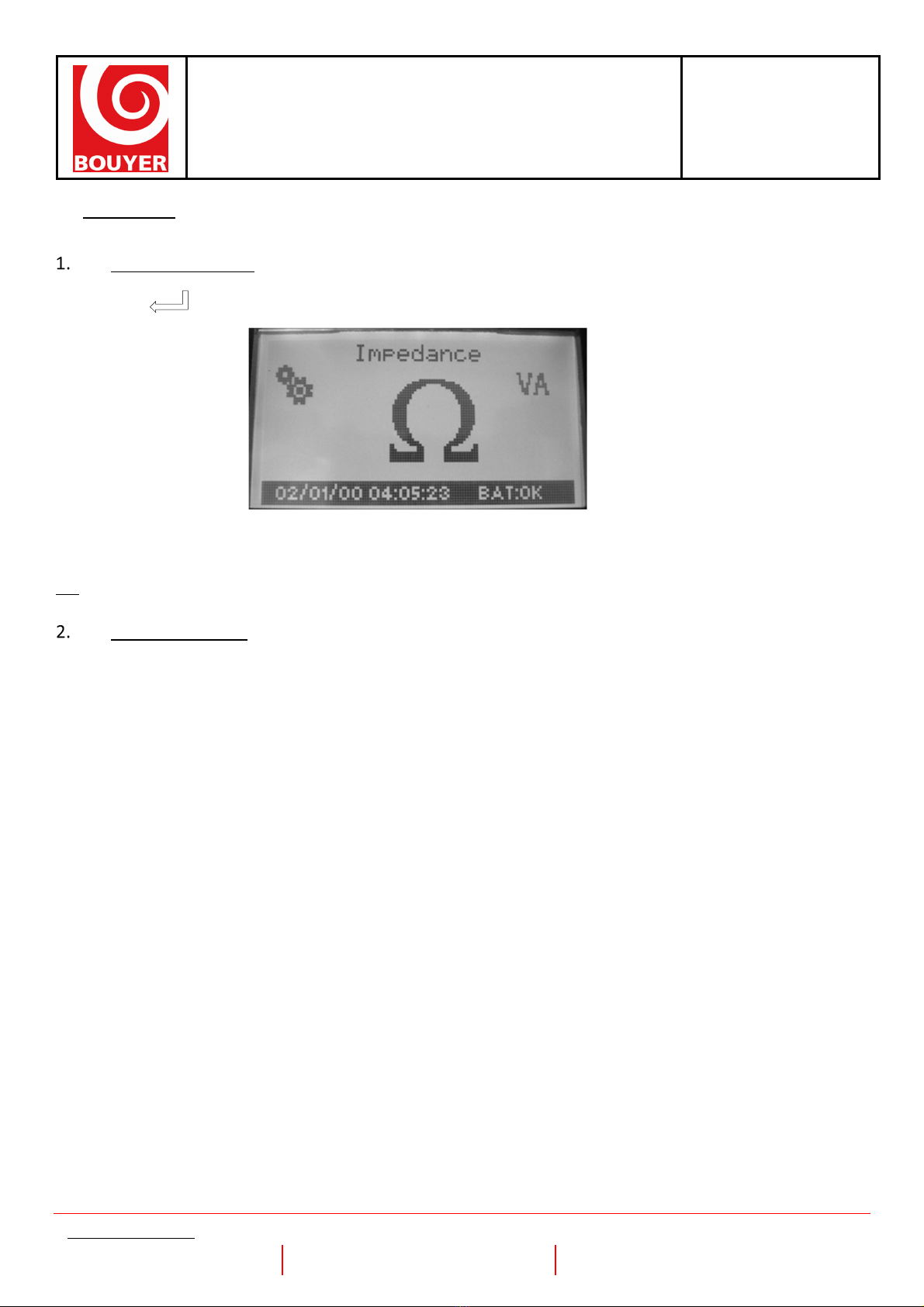

V. OPERATION
URN ON AND OFF
Press the “ON - ” button to power up the device. he following main menu is displayed on the screen:
If the user does not perform any action for a configurable period of time, the device switches off automatically. he user can also
switch off the device by pressing and holding the "ESC" button.
NB: his function is only available from the main menu.
MAIN FUNC IONS
he main menu is used to access the different tester functions.
hese functions are as follows:
•Impedance measurement
•VA measurement
•Audio generator
•Automated line testing with the results saved on the SD card.
•Settings
he status bar at the bottom of the screen displays the date / time and the battery voltage level.
Measurement may become less accurate if the battery voltage is less than 5V.
In this case, the "Low Bat" message is displayed in the lower banner.
MZ-4000
Line tester
Reference: 596 195
Date: October 2018
Version: 3
8
BOUYER INDUSTRIE
82000 Montauban – France Fax: +33 (0)5 63 03 08 26 www.bouyer.com

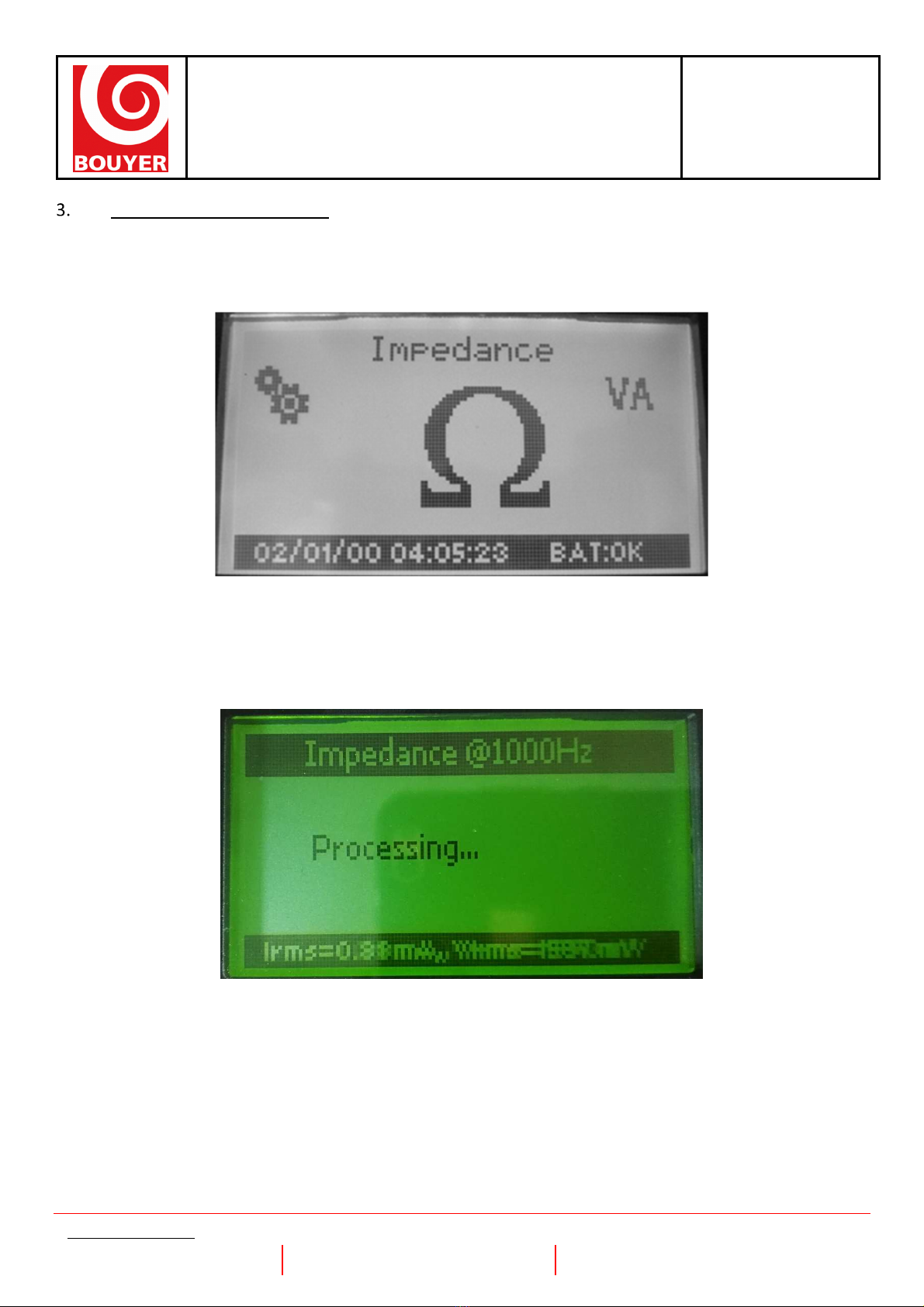

IMPEDANCE MEASUREMEN
his function measures the impedance of a line of speakers.
o access this function, use the jog dial (rotary knob) to reach the "Impedance" icon.
After connecting the "+" and "-" terminals of the tester to the line to be measured, press the knob to start measuring. he
measurement is taken at a frequency of 1000Hz.
he device searches for the optimal measuring point to obtain the best accuracy, and until it is reached, the following screen is
displayed:
MZ-4000
Line tester
Reference: 596 195
Date: October 2018
Version: 3
9
BOUYER INDUSTRIE
82000 Montauban – France Fax: +33 (0)5 63 03 08 26 www.bouyer.com

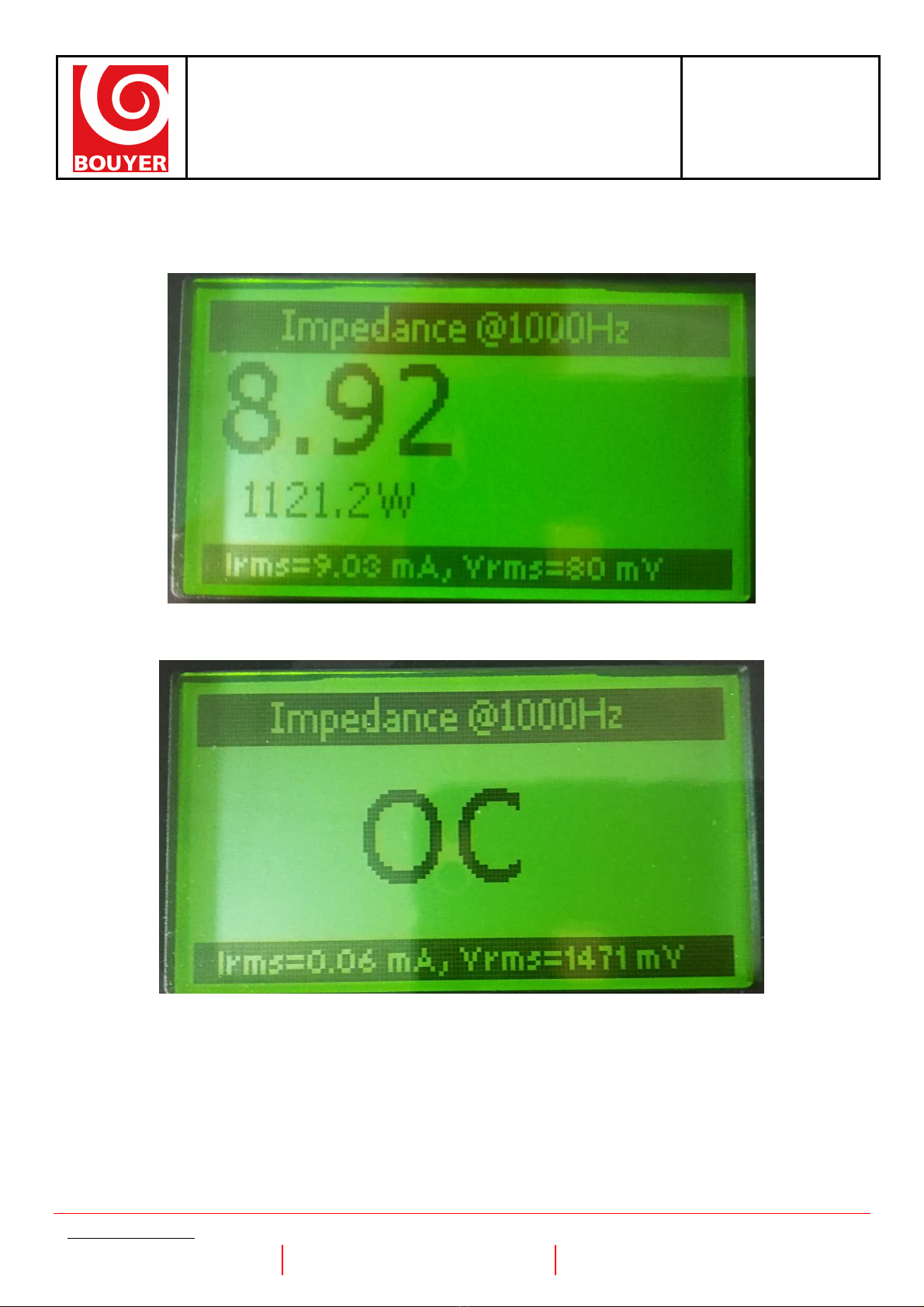

As soon as the optimum measuring point is reached, the value is displayed in Ohms with its equivalent in Watts for a voltage of
100V RMS.
If the measured value is greater than the upper limit of the tester (10kΩ), the device will display the following screen:
MZ-4000
Line tester
Reference: 596 195
Date: October 2018
Version: 3
10
BOUYER INDUSTRIE
82000 Montauban – France Fax: +33 (0)5 63 03 08 26 www.bouyer.com

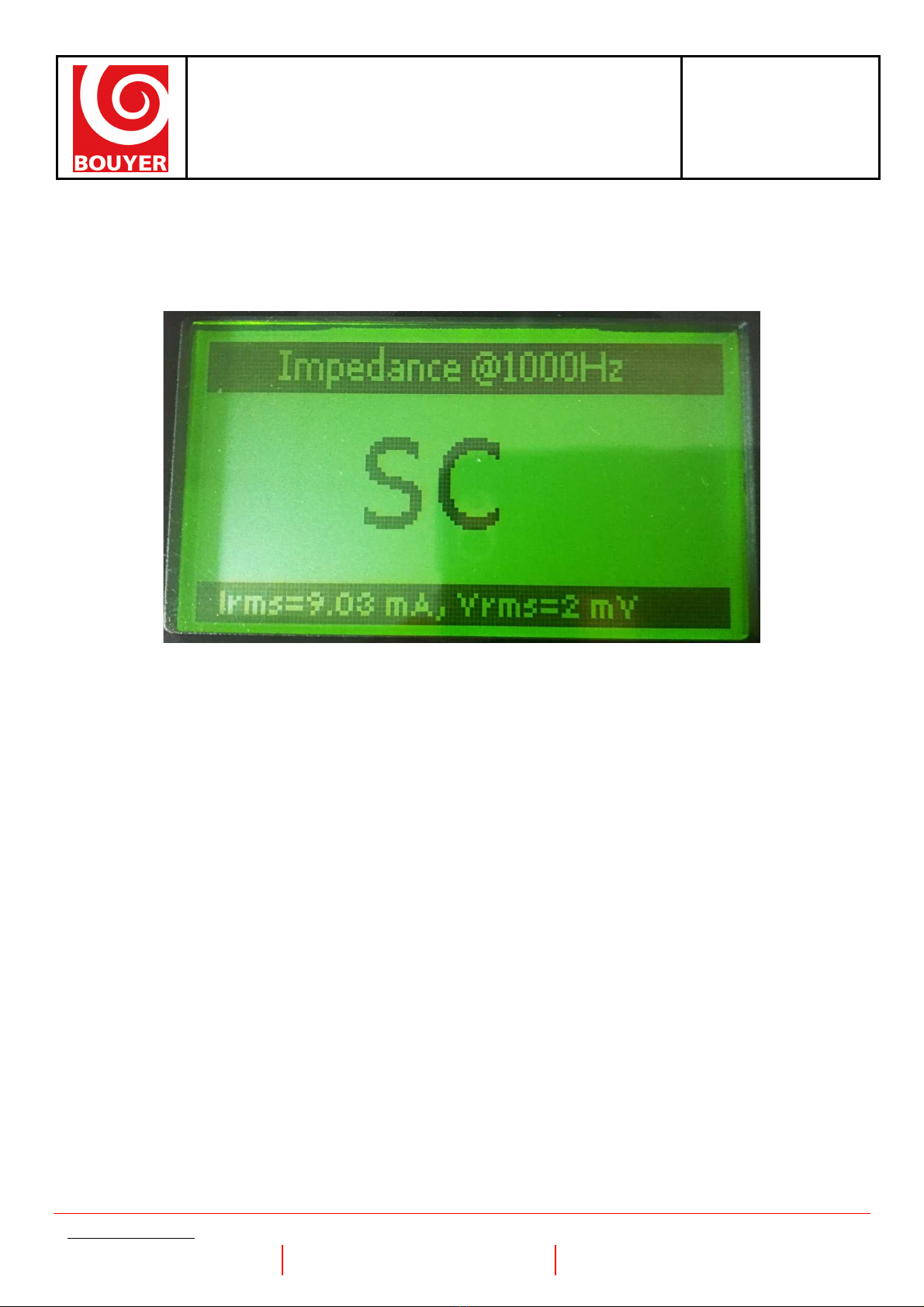

In the opposite case where the measured value is less than 4 ohms, the device will display "CC” (SC).
he user can then repeat a measurement by pressing the “ON” button or go back to the main menu by pressing the (Esc) button.
