OWNER’S MANUAL
The Basics
of Metal Detecting
Your Prospector Metal Detector incorporates Motion Detection
Technology. Movement over an object is required in order for the
machine to detect the object and emit a tone.
While holding your Prospector Metal Detector as indicated in the
picture to the right, sweep the search coil slowly from side to side.
While sweeping, maintain the search coil level with the ground.
If the detector chatters, reduce the sensitivity by turning the left knob (Sensitivity)
counterclockwise.
When searching a possible target, move the search coil repeatedly over the target. Be certain that
the signal repeats during each pass over the target. If the tone does not repeat consistently, you
are probably detecting trash items or oxidation. Only dig up targets with repeatable tones.
IMPORTANT:
• Do not test the detector on the floor of a home or building.
• Most floors contain metal which will interfere with the detector’s operation.
• Unless air testing or demonstrating, use outside only.
PLEASE READ ALL INSTRUCTIONS BEFORE USING YOUR METAL DETECTOR
METAL DETECTOR
2
INTRODUCTION
Prospector
FEATURES
The
Prospector
is a user-friendly instrument, requiring only a minimum
of operator skill, yet delivering effective performance over a wide range
of conditions and applications.
Streamlined in appearance,
with only two operating knobs
and a mode selection switch,
the
Prospector
has eliminated
the two most difficult aspects of
metal detector operation,
Tuning and Ground Balancing.
Both of these functions are
automatic with the
Prospector
.
The
Prospector
will detect in
extreme ground conditions,
ranging from salt (for beach
hunting) to black sand (for
gold prospecting), with no
operator adjustments to the
circuitry and with no loss of
sensitivity.
From salt water beach
conditions to black sand
deposits common at gold
prospecting locations, the
Prospector
sees through the
earth’s naturally
occurring minerals
to find buried
metals.
Headphone Jack
Three-Position
Toggle Switch
S-Rod
Handle
System
Meter System
Detector
Stand
Comfort
Hand-grip
Padded
Armrest
Discriminate
Control
Sensitivity Control
8” Interchangeable
Coil System
8" Waterproof Coil
EASY ASSEMBLY
Assembling your
Prospector
Metal
Detector is easy and requires no
tools. Just follow these steps:
●
1Using the supplied bolt and
knurled knob, attach the search
coil to the lower stem.
●
2Press the button on the upper
end of the lower stem and slide
the lower stem into the upper
stem.
Adjust the stem to a length that lets
you maintain a comfortable upright
posture, with your arm relaxed at your
side.
●
3Wind the search coil cable
around the stem. Leave enough
slack in the cable to let you ad-
just the coil when you are
hunting on uneven ground.
Then tighten the knob at the
end of the search coil.
Note:
To adjust the coil,
simply loosen the knob.
●
4Insert the coil’s plug into the
matching connector on the con-
trol housing. Be sure the holes
and pins line up correctly.
Caution:
• Do not force the plug in.
Excess force will cause damage.
• To disconnect the cable, pull out
the plug. Do not pull on the cable.
Knurled
Knob
Nut
Screw
Cable
Plug
Control
Housing
Hand-grip
S-Rod
Armrest
Search
Coil
Cable
8” Searchcoil
Lower
Stem
Upper
Stem
Bottom view
3
Connector
on back of
control housing
4
BATTERIES
IMPORTANT: Always use ALKALINE batteries for optimal
performance.
Always remove the batteries for prolonged storage.
CHECK THE BATTERIES if your detector exhibits any of the
following symptoms:
●
1The unit does not turn on.
●
2Low speaker volume.
●
3
Unit beeps continuously at low sensitivity setting.
The Low Battery indicator light will come on and stay on if the
batteries are discharged. It should flash momentarily when the
Power Switch is turned off.
IMPORTANT: Your
Prospector
metal detector requires two 9-Volt
ALKALINE batteries.
Follow these steps to install the batteries.
●
1Carefully remove the battery
compartment door by pressing
the release clip on the right side
of the door.
●
2Snap one battery onto each of the
terminals and place the batteries
inside the compartment. Insert
one battery with the terminals
facing down, and the second
battery with terminals facing
outward.
●
3
Replace the compartment door
by carefully inserting opposite
side of clip first. Then press down
on clip side until battery door
snaps into place.
First Battery
Second Battery
First Battery
terminals facing in
Second Battery
terminals
facing out
Release
Clip
5
Prospector DEMONSTRATION
Here is a quick way to demonstrate the basic features of your
Prospector
.
I. Supplies Needed
• A quarter (25¢)
• A nickel (5¢)
• A Penny (1¢)
• A small piece of aluminum foil
• A Nail
II. Position your
Prospector
• Place the detector on a table, with the search coil hanging over the edge.
• Be sure that the search coil is far away from walls or metal objects. Keep the search coil away
from any metal in the table.

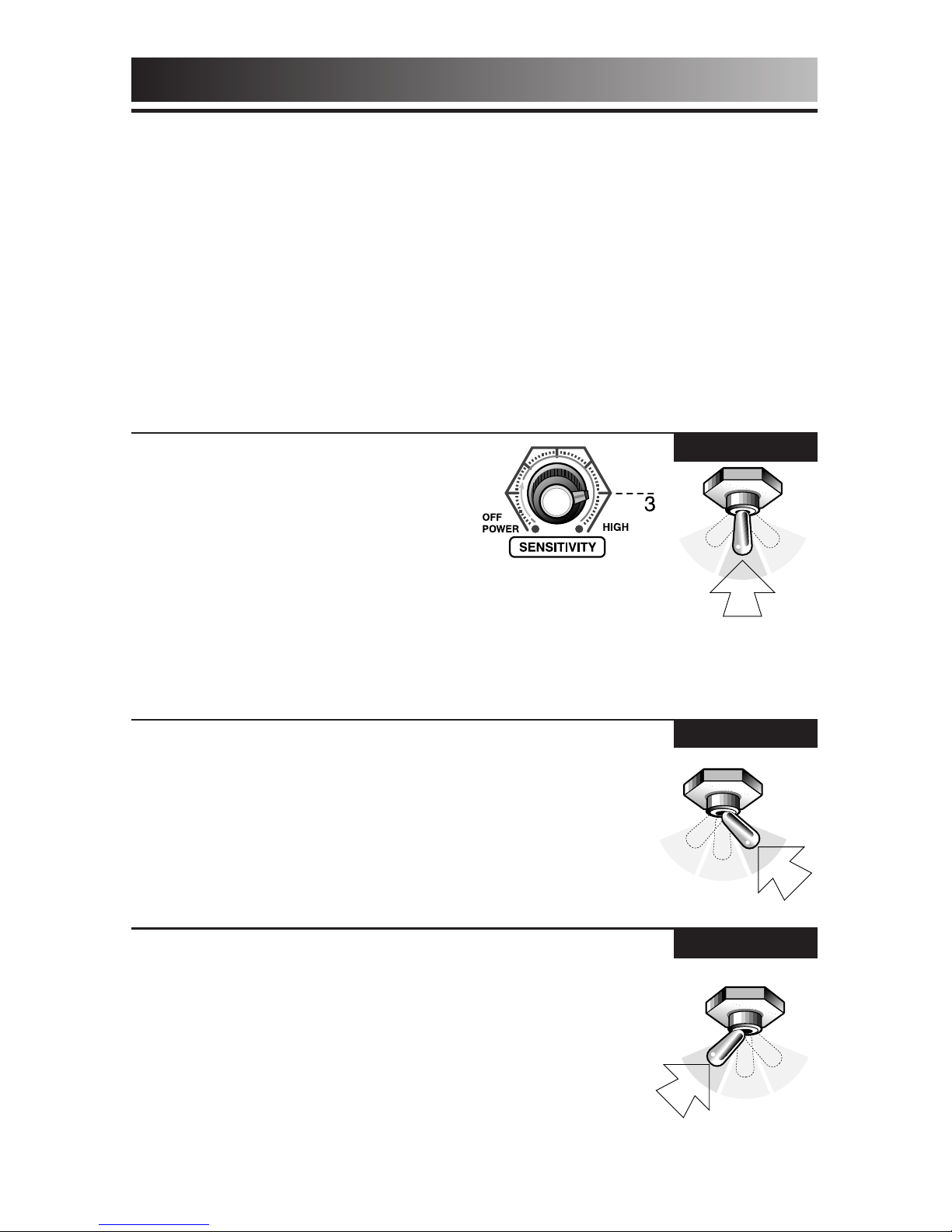

III. Beginning Switch Settings
• Right Knob (Discriminate) – LOW
• Toggle Switch – Middle Position
• Turn detector on with "Sensitivity"
knob set to 3:00 position
• Reduce "Sensitivity" in case of interference
IV. All Metal Detection
A.
Wave all objects over the search coil
• NOTICE THE SINGLE TONE
V. Tone Mode Detection
A. Move toggle switch to the right position – TONE
B. Turn the "Discriminate" knob to 2:00 (about 3/4 turn)
C. Sweep all of the different objects back and forth under the
search coil
• NOTICE THE DIFFERENT TONES
• NOTICE THE METALS REJECTED
VI. Disc Mode Detection
A. Move the toggle switch to the left position – DISC
B. Turn the "Discriminate" knob to LOW
C. Sweep all of the different objects back and forth under the
search coil.
• NOTICE THE METALS REJECTED
D. Turn the "Discriminate" knob slowly to the right while
sweeping all of the different objects at different settings.
• NOTICE THE DIFFERENT TONES
• NOTICE THE METALS REJECTED
TOGGLE SWITCH
TOGGLE SWITCH
TOGGLE SWITCH
ALL METAL
TONE
FULL DISC
6
The
Prospector
is a “motion” detector. This means that the search
coil must be moving to detect the presence of metal. When
practicing with a stationary metal detector, keep the target moving
over the coil. Objects held still under the search coil will not be
detected.
THREE MODES OF OPERATION
The
Prospector
allows for three modes of operation:
ALL METAL, TONE AND FULL DISCRIMINATE
After turning the unit on, and adjusting your Sensitivity to the
desired setting, you're now ready to decide on your mode of
operation.
ALL METAL:
(Toggle Switch in the Middle)
In this mode, all
different types of metal will be detected such as: iron, steel,
aluminum, brass, silver, copper and gold. Applications: Relic
Hunting, Gold Prospecting, Cache Hunting and general applications
such as property marker locating. This mode provides maximum
depth detection capability.
FULL DISCRIMINATE:
(Toggle Switch to the Left)
When using the
Full Discriminator, most trash items will be automatically rejected.
Adjust the DISCRIMINATE control higher to increase the range of
discrimination.
TONE DISCRIMINATE:
(Toggle Switch to the Right)
When using
the Tone Discriminator, a unique dual tone “beep” and automatic iron
rejection makes finding treasure fun and easy. It's also possible to
achieve a broken tone for certain pull-tabs by adjusting your
Discriminate control to the approximate center position (12:00).
With the two-tone discrimination, along with a broken tone for
pull-tabs, you will be able to identify types of buried metals
according to the audio tones emitted. Applications: Coinshooting,
Jewelry Hunting and detecting in highly trashed areas.
OPERATION
7
OPERATION

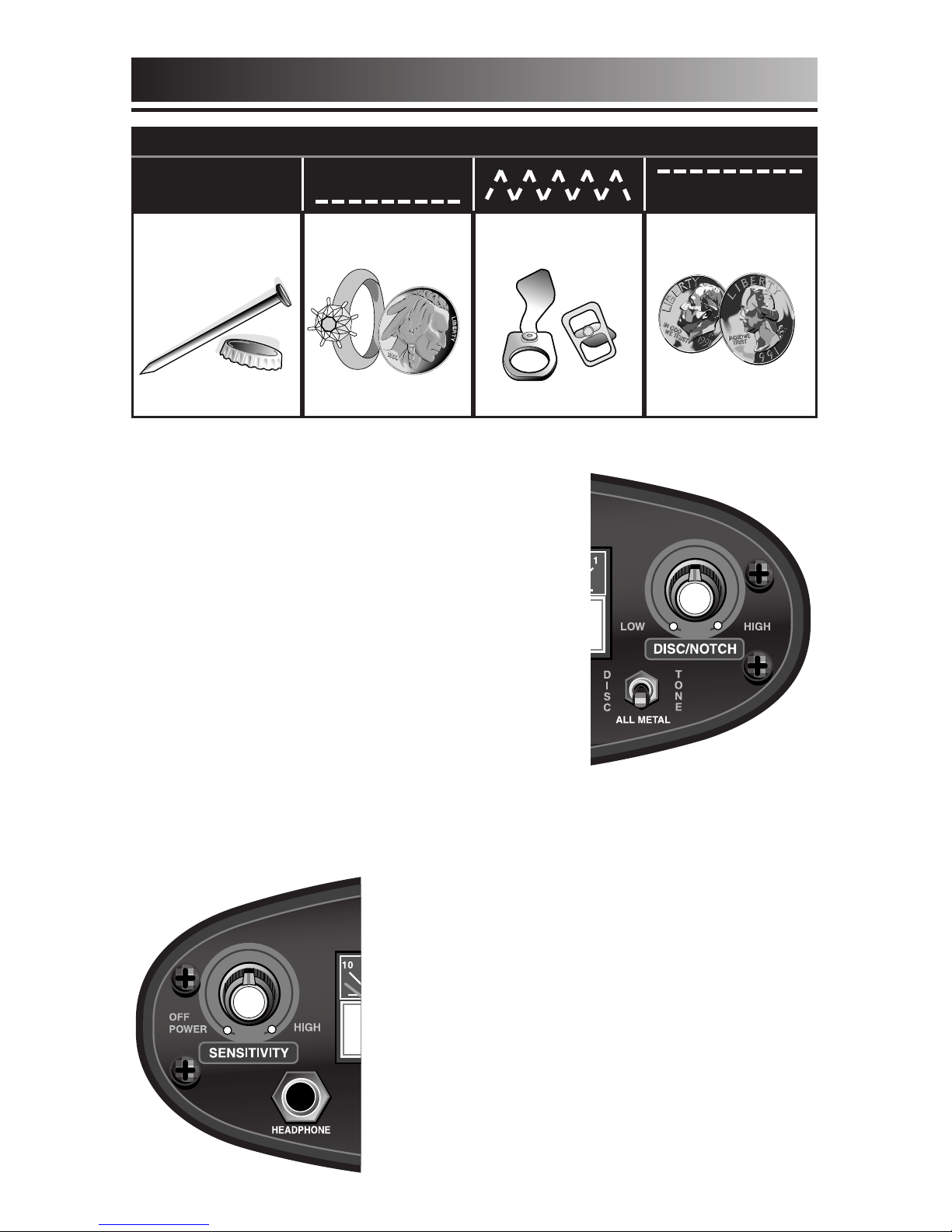

TONE MODE AUDIO RESPONSES
NO
RESPONSE
Iron & Steel
LOW
TONE
Gold & Nickel
BROKEN
TONE
Old & New Pull Tabs
HIGH
TONE
Copper, Silver & Brass
TONE DISCRIMINATION
(continued)
(Toggle switch to the Right)
Classifies
detected metal objects by emitting a low
or high tone.
Adjust the DISCRIMINATE control higher to
increase the range of the low tone. It is
possible to set the DISCRIMINATE level so
that nickels have a low tone, larger coins
have a high tone, and pull-tabs have a low
tone or in-between “broken” tone. The
"broken" tone makes pull-tabs and trash easily recognizable.
Sensitivity will be reduced slightly when
using the
Prospector
in the Tone
Discrimination mode. If you want optimal
depth capability, operate in the All Metal
mode by turning the Discriminate control
completely counterclockwise; then turn the
Sensitivity control clockwise to its highest
clockwise position without chatter. If your
Prospector
chatters or beeps erratically,
reduce the Sensitivity by turning the left
knob counterclockwise.
8
OPERATION
AUTO GROUND CONTROL:
The
Prospector
automatic Ground Track feature allows operation in
virtually all soil conditions, regardless of mineral content.
Use it effectively on the beach or for gold prospecting. In the ALL
METAL Mode (Toggle switch in the middle), the
Prospector
will detect
gold nuggets through black sand and will find deeply buried relics in
all types of soil.
OPERATING TIPS:
Turn the detector on using the left knob. NOTE: The detector will remain
silent when turned on. It will emit sound when metal passes beneath
the search coil.
As the left knob is clicked on, it will be at the lowest sensitivity
setting. Turning the control knob toward "HIGH" increases
sensitivity to small or deeply buried objects. If the unit “chatters”,
reduce the sensitivity slightly, until the chatter stops.
For maximum performance, operate with the sensitivity as high as
possible. The sensitivity can generally be set higher when operating
in Full Discriminate (DISC) or Tone Discriminate (TONE) modes.

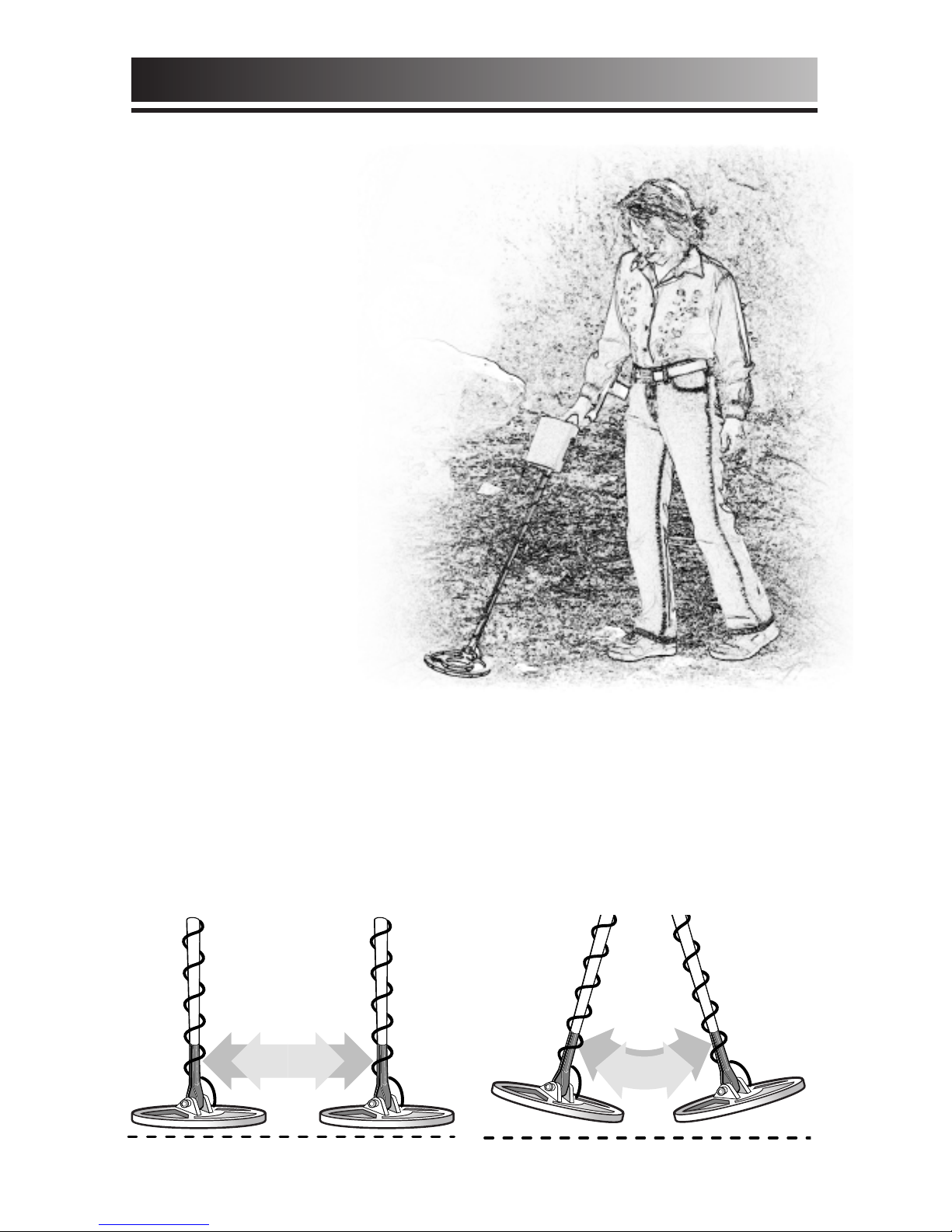

STANCE
Stand with your arm extended in front of
your body. Don’t bend or stoop; stand in a
comfortable position. Hold the unit so that
the search coil is about 1/2-inch above the
ground. Adjust the search coil so that it is
parallel to the ground.
SWEEP
Standing in the search position,
swing the search coil gently from
side to side, slightly overlapping
each sweep as you move
forward. Keep your search coil
approximately 1/2-inch above
the ground as you search.
Raising it during the sweep ,
or at the ends of your
sweep, can cause false
readings. Move slowly;
hurrying will cause you
to miss targets.
Most desireable objects will respond with a repeatable tone. When
discriminating, iron and foil objects generally do not respond. False
signals can be caused by trashy ground, electrical interference, or by large
irregular trash objects. These signals are easily recognized by their often
broken or non-repeatable nature.
9
IN THE FIELD
CORRECT WRONG
10
IN THE FIELD (cont.)
PINPOINTING
Accurate pinpointing takes practice and is best accomplished by
“X-ing” the suspected target area.
●
1Once a buried target is identified by a good tone response,
continue sweeping the coil over the target in a narrowing
side to side pattern.
●
2Take visual note of the place on the ground where the
“beep” occurs as you move the coil slowly from side to
side.
●
3Stop the coil directly over this spot on the ground.
●
4Now move the coil straight forward and straight back
towards you a couple of times.
●
5Again make visual note of the spot on the ground at which
the “beep” occurs.
●
6If needed, “X” the target at different angles to “zero in” on
the exact spot on the ground at which the “beep” occurs.
REMEMBER: The detector will beep just as the center of the
search coil passes directly over the buried object.
If you have difficulty pinpointing very strong signals, try lifting
the coil higher off the ground until a weaker, but more concise,
signal is heard. For very weak signals, try moving the coil in
short quick sweeps, closer to the ground.
WHAT
READS
LIKE THIS
…MAY
ACTUALLY
BE THIS
Other manuals for Prospector
2
Table of contents
Other Bounty Hunter Metal Detector manuals
Bounty Hunter
Bounty Hunter Snooper 2 User manual
Bounty Hunter
Bounty Hunter VLF User manual
Bounty Hunter
Bounty Hunter Legacy 3500 User manual
Bounty Hunter
Bounty Hunter Challenger User manual
Bounty Hunter
Bounty Hunter Lone Star User manual
Bounty Hunter
Bounty Hunter Quick Draw Pro User manual
Bounty Hunter
Bounty Hunter Gold User manual
Bounty Hunter
Bounty Hunter Outback User manual
Bounty Hunter
Bounty Hunter Sharp Shooter II User manual
Bounty Hunter
Bounty Hunter Snooper 2 User manual
Bounty Hunter
Bounty Hunter Challenger User manual
Bounty Hunter
Bounty Hunter Land Ranger User manual
Bounty Hunter
Bounty Hunter Tracker II User manual
Bounty Hunter
Bounty Hunter Platinum User manual
Bounty Hunter
Bounty Hunter DISCOVERY 3300 User manual
Bounty Hunter
Bounty Hunter Junior Target I.D. User manual
Bounty Hunter
Bounty Hunter Lone star Pro User manual
Bounty Hunter
Bounty Hunter Ultra Mag Sharp Shooter User manual
Bounty Hunter
Bounty Hunter Guardian S3019 User manual
Bounty Hunter
Bounty Hunter Legacy 1500 User manual
Popular Metal Detector manuals by other brands
Steinberg Systems
Steinberg Systems SBS-MD-12 user manual
GOLDEN MASK
GOLDEN MASK 5 user guide
Grizzly
Grizzly YM 203 manual
Fisher Research Labs
Fisher Research Labs 1280-X Aquanaut operating manual
Treasure Cove
Treasure Cove Vibra-Probe 560 quick guide
Accurate Locators
Accurate Locators XL16 IMAGER user guide
