Bounty Hunter Junior User manual

User’s Manual

To get the most enjoyment from your Metal Detector, we suggest you do the

following:

1. Use 9-volt ALKALINE batteries only.

• Do not use Heavy Duty batteries.

• Do not use ordinary Zinc-Carbon Batteries.

2. Make sure the right knob is clicked on (i.e. not in battery-test

position).

3. Use your detector OUTDOORS only

• Large metal objects inside the home may interfere with the

detector’s operation. Floors and walls of most homes contain

metal.

• Electrical appliances inside the home, like microwave ovens,

televisions, and some light fixtures, emit electromagnetic energy

which can interfere with the detector’s operation.

• Do not place coins on the floor of your home and try to detect.

Try this test outside only.

• If conducting an indoor demonstration, hold search coil off

ground and wave coins over search coil.

Installing Batteries

Use 9-volt ALKALINE batteries only!

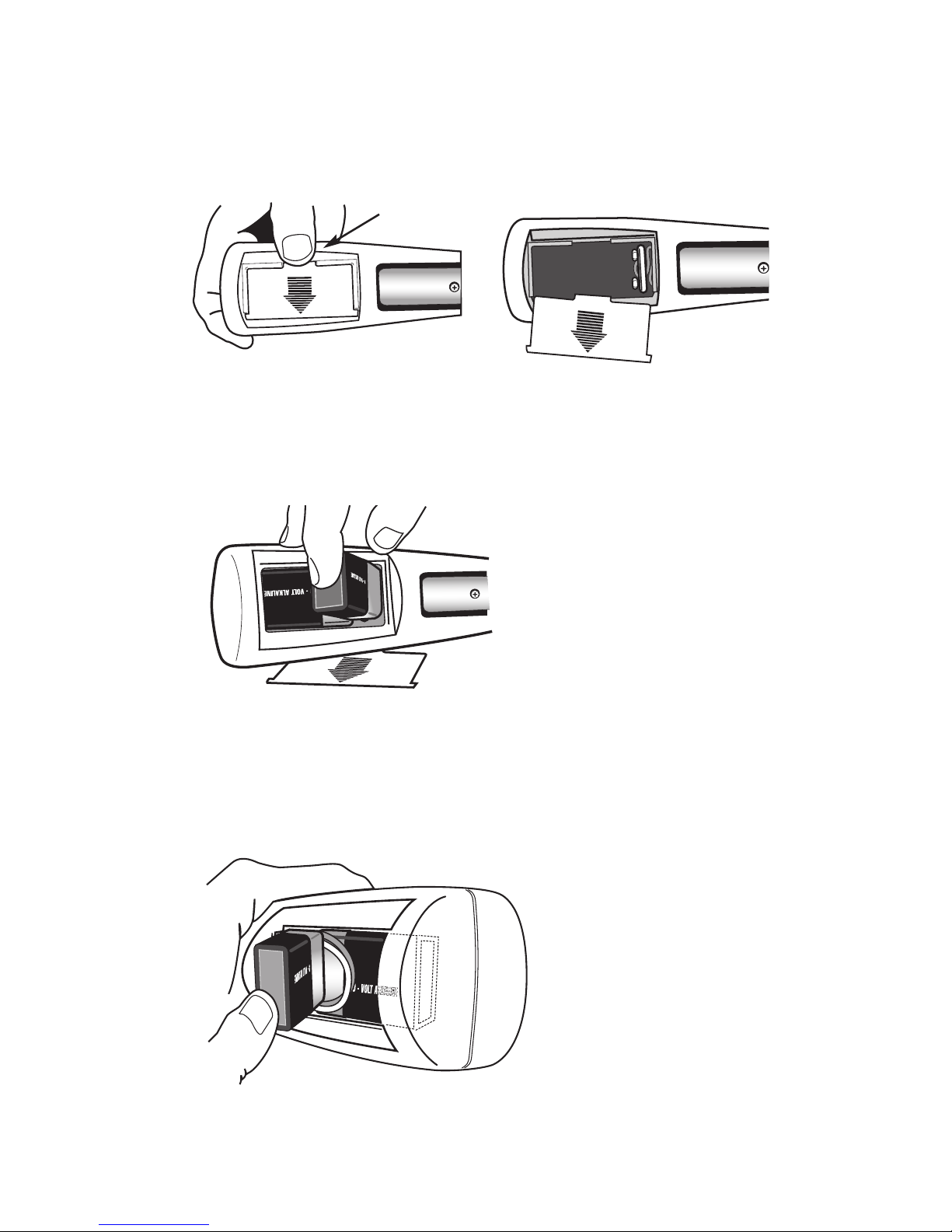

1. Remove the battery door from the underside of the detector.

2. Pull out the two battery connectors.

3. Snap on two 9-volt ALKALINE batteries.

Do not use Heavy Duty or ordinary Zinc Carbon batteries.

4. Place batteries into compartment one on top of the other.

5. Replace the battery door.

Slide over until it shuts securely in place.

All battery brands differ slightly in size.

If you want to secure the batteries more tightly in the

compartment, feed the battery wires underneath and between the

batteries.

If batteries fit too tightly, causing battery door to bulge, move

battery wires toward front of compartment, not between the

batteries.

push door

from side

Quick-Start Demo

Try this quick way to demonstrate the basic features of your metal detector:

I. Supplies Needed

a. A nail

b. A zinc penny (pennies dated after 1982 are made of zinc)

c. A quarter

II. Position Your Detector

Keep the detector away from floors, walls, and metal objects.

One person holds the detector still, so that another can sweep

coins under the coil.

Sweep coins under the bottom of the search coil.

III.

Beginning Settings

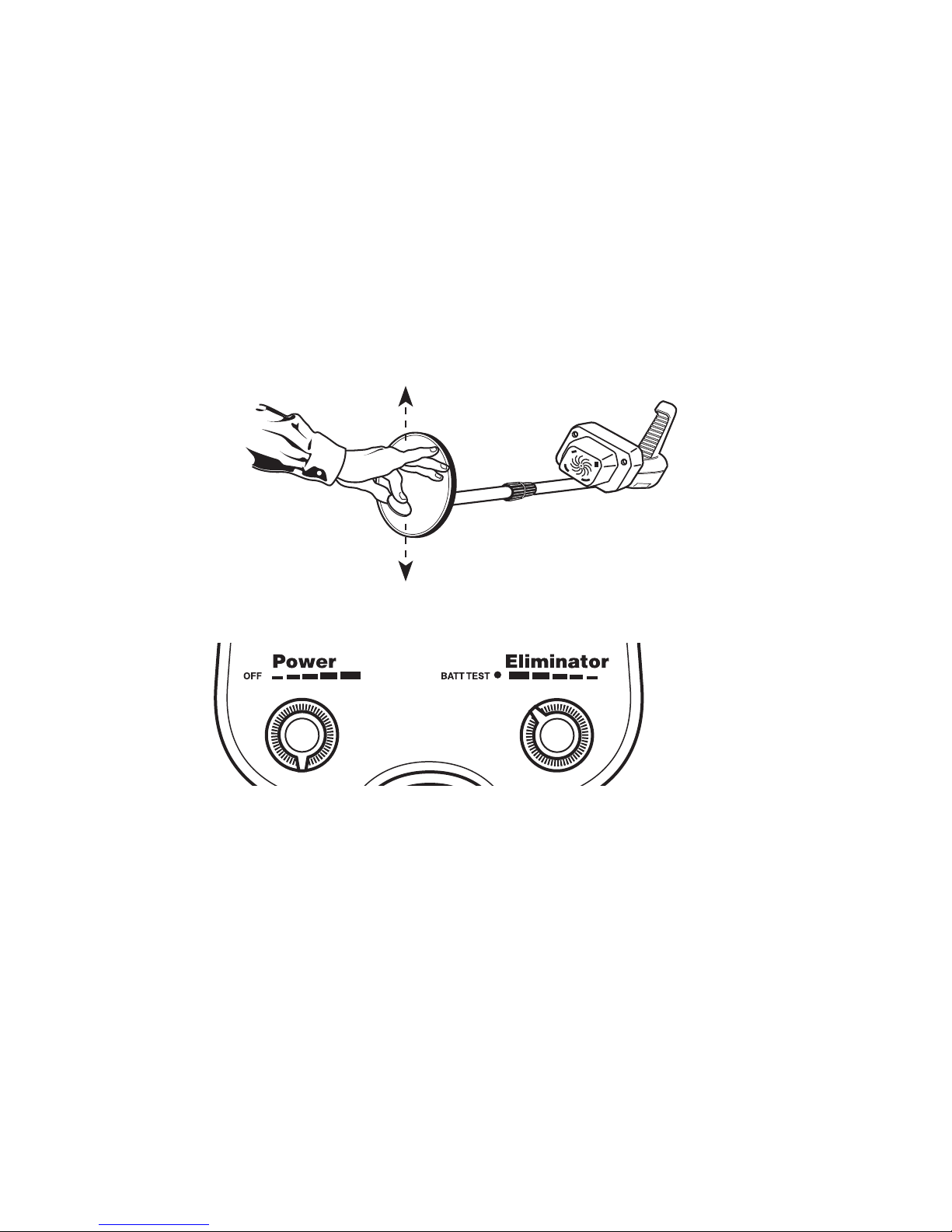

a. Left Knob: At 6:00 position

b. Right Knob: Click on, but keep counterclockwise

IV. Detecting All Types of Metals

a. Wave each object over the search coil. Notice the tone is

loudest as the object passes over the center.

b. Pass each object at varying distances from the search coil.

Notice that the sound gets louder as the object moves closer to

the search coil. Also notice that beyond a certain distance, the

object is no longer detected.

V. Eliminating Some Metals

a. Wave the nail and slowly turn the right knob to the right.

• Notice where the nail is eliminated from detection

b. Wave the penny and keep turning the right knob until the

penny is eliminated from detection

c. Wave the quarter

• Notice that the quarter is never eliminated from detection.

Adjusting Length

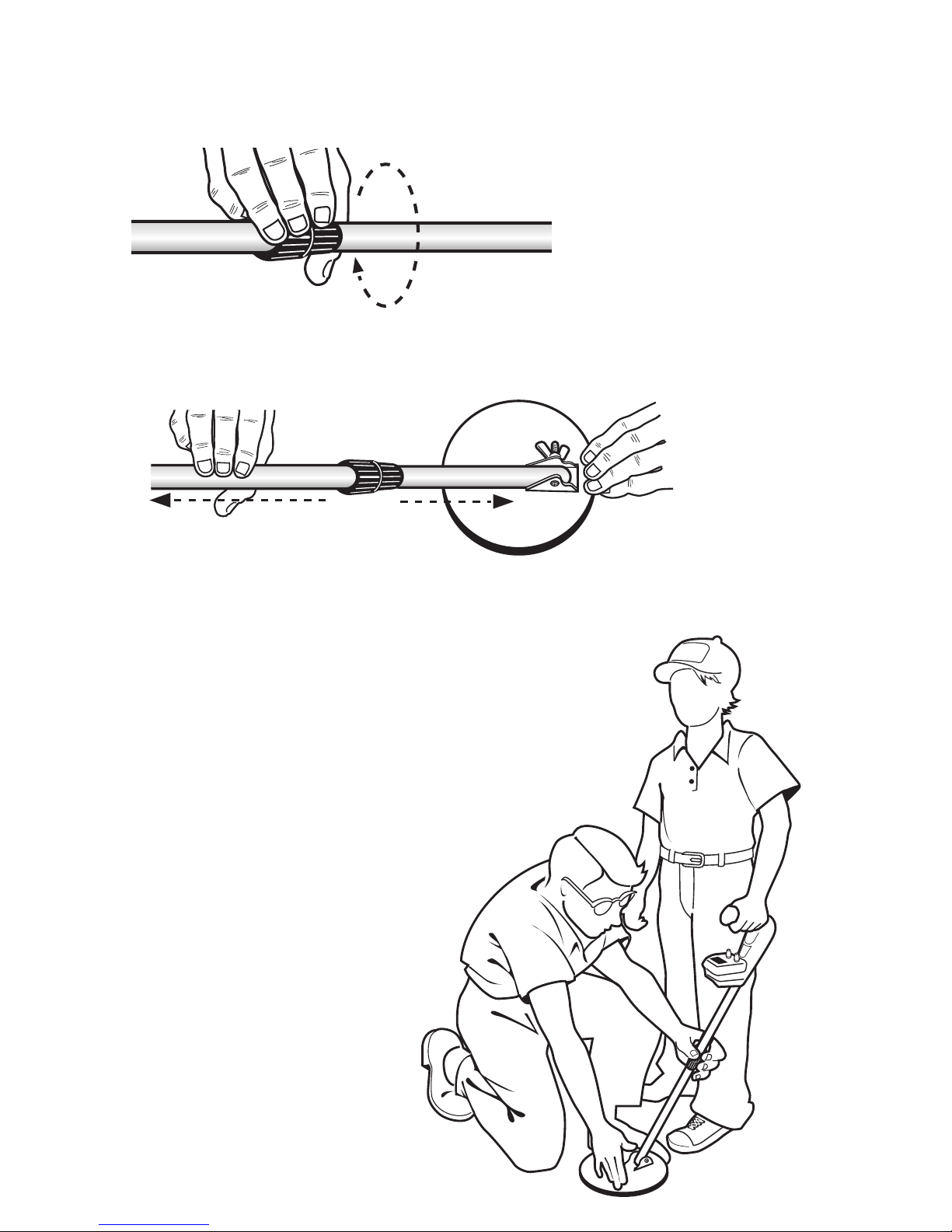

Loosen the tube clamping nut 1/4 turn

Extend tube assembly

1. Grasp the top tube with one hand.

2. Grasp the search coil with the other hand.

3. Pull two sections apart to slide the bottom tube out of the top

tube.

Establish Tube Length

1. Pivot the search coil perpendicular to the tube.

2. Place detector in user’s hand, with arm extended.

3. Adjust tube length so that search coil rests on the ground, close

to the user’s feet.

4. Align the coil to the detector body.

5. Tighten the tube clamping nut, while

holding the search coil in place on

the ground to prevent twisting of

the tube assembly while tightening.

Battery Test

Click the right knob fully counterclockwise (all the way to the left), in order to test

the batteries.

If the batteries are good, the needle will move to the right and enter the green

zone on the indicator label.

If the needle does not enter the green zone, replace the batteries.

Practicing Outside

1. Turn the detector on

a. Rotate left knob clockwise to a high sensitivity setting.

b. Click right knob on to exit the “battery test” mode.

c. Maintain right knob in counterclockwise position, but do

not click into the “battery test” mode.

2. Find a clear area in the grass

Sweep the search coil around the grass to find an area where

the detector does not beep. In order to test your detector, you

must first find an area free of metal objects.

3. Toss these metal objects on the ground

a. A nail or other iron object like a small screwdriver

b. A zinc penny (dated after 1982)

c. A quarter

4. Keep the objects spaced apart on the ground

5. Sweep the search coil over each of the objects

a. You must keep the search coil moving.

b. Notice that the sound is loudest when the metal object is

under the center of the search coil.

c. While sweeping back and forth, slowly raise the search coil

several inches off the ground.

Notice that the sound is louder when the search coil is closer

to the objects.

6. Turn the right knob progressively to the right while passing the

search coil over each of the objects

The nail (or small iron object) is eliminated from detection

with the right knob in approximately the 3:00 position.

The zinc penny (pre-1982) is eliminated from detection with

the right knob in approximately the 6:00 position.

Sensitivity and Target Elimination

Adjusting Sensitivity

The left knob clicks on to power the detector on.

After turning on, the left knob is used to control the detector’s sensitivity level. In

the 100% clockwise position, the detector is at maximum sensitivity. At this

level, the detector will detect a coin-sized object, like a quarter, up to 5” away

from the coil. Very large metal objects will be detected up to one and one-half

feet from the search coil at maximum sensitivity.

Reduce the sensitivity if the detector chatters or emits false signals; your detector

is probably reacting to electromagnetic interference.

Target Elimination

The right knob is used to eliminate unwanted metals from detection.

For instance, you may be searching for coins, and want to eliminate objects like

nails, bolts, or pull-tabs from detection.

As you turn the right knob clockwise, you progressively eliminate different types

of metals from detection. As you rotate the right knob, you first eliminate iron

objects from detection. Iron objects include nails, bolts, old cans, and tools.

Next, you eliminate nickels, pull-tabs, and finally zinc pennies.

Gold is also eliminated from detection with the right knob. First smaller gold

objects are eliminated; as you rotate the knob further, larger gold objects are

eliminated. Silver objects, like high-value coins, are not eliminated from

detection.

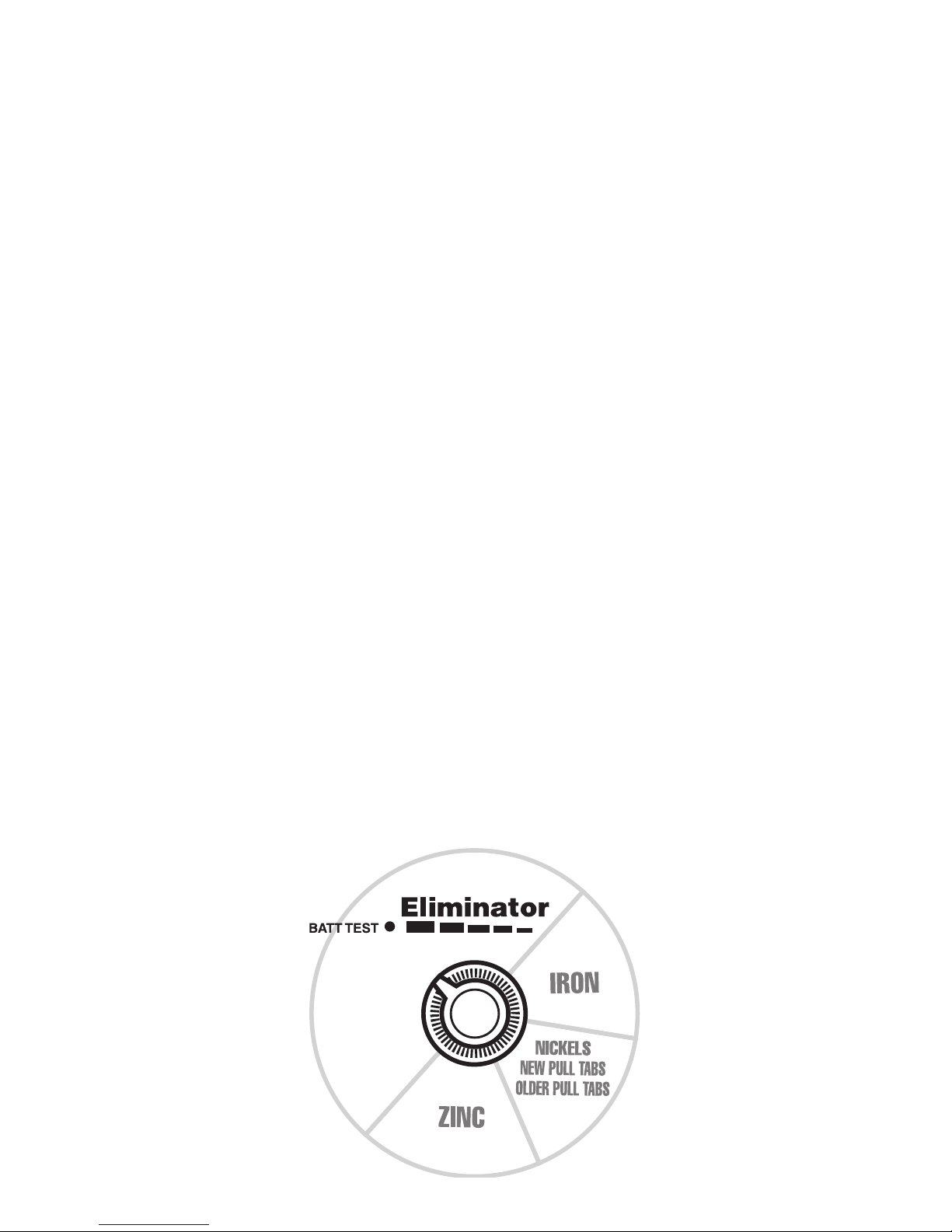

Refer to this scale for the relative positions at which different types of metals are

eliminated from detection:

Operation in the Field

Sweep the search coil from side to side, in slow, overlapping motions.

Keep the search coil parallel to the ground.

Keep search coil 1/2” off the ground and try not to make contact with the ground.

Try not to lift the search coil at the end of your sweeps. This may be difficult for

younger children, but the closer the search coil is to the ground throughout the

sweep, the more likely you are to find buried metal objects.

Keep the left knob in the maximum sensitivity setting possible.

Click the right knob on and start searching with it in the fully counterclockwise

position.

You may want to move the right knob during your search, depending on what

you find. For instance, if you start searching with the right knob to the left(but

not in battery test mode), you will detect all types of metal objects. If you find

that you are in a trashy area, and wish to eliminate unwanted objects from

detection, sweep the search coil over an undesirable object while turning the

knob. Find the knob setting at which certain types of metals are eliminated, and

adjust your settings accordingly.

CAUTION: Gold rings can be eliminated from detection along with pull-tabs.

Be aware that some desirable objects, like nickels and gold, are

eliminated from detection in the middle of the range. Gold rings have a

metallic signature similar to pull-tabs; nickels have a metallic signature

similar to some newer pull tabs. It requires practice and patience to

understand what types of objects are eliminated at each setting.

Pinpointing

Accurate pinpointing takes practice and is best accomplished by “X-ing” the sus-

pected target area.

1. Once a buried target is identified by a good tone response, continue

sweeping the coil over the target in a narrowing side to side pattern.

2. Take visual note of the place on the ground where the “beep” occurs

as you move the coil slowly from side to side.

3. Stop the coil directly over this spot on the ground.

4. Now move the coil straight forward and straight back towards you a

couple of times.

5. Again make visual note of the spot on the ground at which the “beep”

occurs.

6. If needed, “X” the target at different angles to “zero in” on the exact

spot on the ground at which the “beep” occurs.

REMEMBER: The detector will beep just as the search coil passes over the

buried object.

If you have difficulty pinpointing very strong signals, try lifting the coil higher

off the ground until a weaker, but more concise, signal is heard. For very

weak signals, try moving the coil in short quick sweeps, closer to the ground.

TREASURE HUNTER’S CODE OF ETHICS:

1. Respect the rights and property of others.

2. Observe all laws, whether national, state or local.

3. Never destroy historical or archaeological treasures.

4. Leave the land and vegetation as it was. Fill in the holes.

5. All treasure hunters may be judged by the example you set.

Always obtain permission before searching any site. Be

extremely careful while probing, picking up, or discarding trash

items. And ALWAYS COVER YOUR HOLES!

First Texas Products, LP

1100 Pendale

El Paso, TX 79907

(915) 633-8354

MBHJS 11/2004

Bounty Hunter Metal Detectors are warranted against

defects in workmanship or materials under normal

use for five years from date of purchase to the

original user. Liability in all events is limited to the

purchase price paid. Liability under this Warranty is

limited to replacing or repairing, at our option, any

Bounty Hunter Detector returned, shipping cost

prepaid, to First Texas Products, LP. Damage due to

neglect, accidental damage or misuse of this product

is not covered by this warranty.

FIRST TEXAS PRODUCTS, LP

1-YEAR LIMITED WARRANTY

Published by First Texas Products, L.P.

Bounty Hunter®and Bounty Hunter Junior are registered trademarks of First Texas Products, L.P.

www.detecting.com

Other manuals for Junior

Table of contents

Other Bounty Hunter Metal Detector manuals

Bounty Hunter

Bounty Hunter THE COMMANDO User manual

Bounty Hunter

Bounty Hunter Tracker IV User manual

Bounty Hunter

Bounty Hunter Fast Tracker User manual

Bounty Hunter

Bounty Hunter Fortune Hunter User manual

Bounty Hunter

Bounty Hunter PIONEER 505 User manual

Bounty Hunter

Bounty Hunter HandyMan User manual

Bounty Hunter

Bounty Hunter Land Star User manual

Bounty Hunter

Bounty Hunter Treasure detector User manual

Bounty Hunter

Bounty Hunter Ultra Mag Sharp Shooter User manual

Bounty Hunter

Bounty Hunter DISCOVERY 2200 User manual

Bounty Hunter

Bounty Hunter Quick Silver User manual

Bounty Hunter

Bounty Hunter DISCOVERY 1100 User manual

Bounty Hunter

Bounty Hunter Gold User manual

Bounty Hunter

Bounty Hunter Land Ranger PRO User manual

Bounty Hunter

Bounty Hunter Lone Star User manual

Bounty Hunter

Bounty Hunter Tracker II User manual

Bounty Hunter

Bounty Hunter TimeRanger User manual

Bounty Hunter

Bounty Hunter Prospector User manual

Bounty Hunter

Bounty Hunter THE COMMANDO User manual

Bounty Hunter

Bounty Hunter PIONEER 202 User manual

Bounty Hunter

Bounty Hunter Snooper 2 User manual

Bounty Hunter

Bounty Hunter Legacy 2500 User manual

Bounty Hunter

Bounty Hunter Junior User manual

Bounty Hunter

Bounty Hunter Prospector User manual

Popular Metal Detector manuals by other brands

Garrett

Garrett MAGNASCANNER CS 5000 owner's manual

Valex

Valex 1800200 Use and maintenance manual

Gauss

Gauss MIL MD operating manual

Velleman

Velleman CS130 user manual

Sears

Sears 321.596370 owner's manual

Eriez

Eriez X8 reference guide

Steinberg Systems

Steinberg Systems SBS-MD-22 user manual

Zircon

Zircon MetalliScanner m60c instructions

nalanda

nalanda MD027 owner's manual

REV Ritter

REV Ritter CB-7005 instruction manual

Minelab

Minelab F1A4 Service manual

Fisher Research Labs

Fisher Research Labs F70 user manual

Steinberg Systems

Steinberg Systems SBS-MD-12 user manual

GOLDEN MASK

GOLDEN MASK 5 user guide

Grizzly

Grizzly YM 203 manual

Fisher Research Labs

Fisher Research Labs 1280-X Aquanaut operating manual

Treasure Cove

Treasure Cove Vibra-Probe 560 quick guide

Accurate Locators

Accurate Locators XL16 IMAGER user guide
