BOSSCO 2C User manual
OPERATION AND MAINTENANCE MANUAL FOR
BOSS™ FIG. 20 TYPE 2C FIRE HYDRANT
CONTENTS
Purpose, Features & Scope of Application
Standards Met
Performance
Specifications
Dimensions
Materials of Construction
Transportation and Storage
Handling
Maintenance
Installation and Use
Warranty
PURPOSE, FEATURES AND
SCOPE OF APPLICATION
The Fig. 20 fire hydrant is suitable for use with clean water and
neutral liquids, to a maximum temperature of 80 °C. Minimum liquid
temperature must be above freezing. Insulation is essential for
external temperatures below 0 °C. It is rated for a maximum
working pressure of 16 bar unless otherwise agreed and deliver a
maximum of 2094 litres per minute at 2.0 bar.
They are supplied clockwise to close as denoted by a direction
arrow on the stem cap. The number of turns from fully closed to
fully open is 6.5.
Opening and closing is normally done by a standard tee key or ring
key and bar located on the stem cap.
STANDARDS MET
BS750
EN1074-6
BS EN14339
WRAS
PERFORMANCE
Flange Type
Actual Flow Rate
Kv
Operating
Temperature
Range
80mm Multi
Flanged PN16
2094 l/min @ 2 bar
116
0 to +80°c
SPECIFICATION

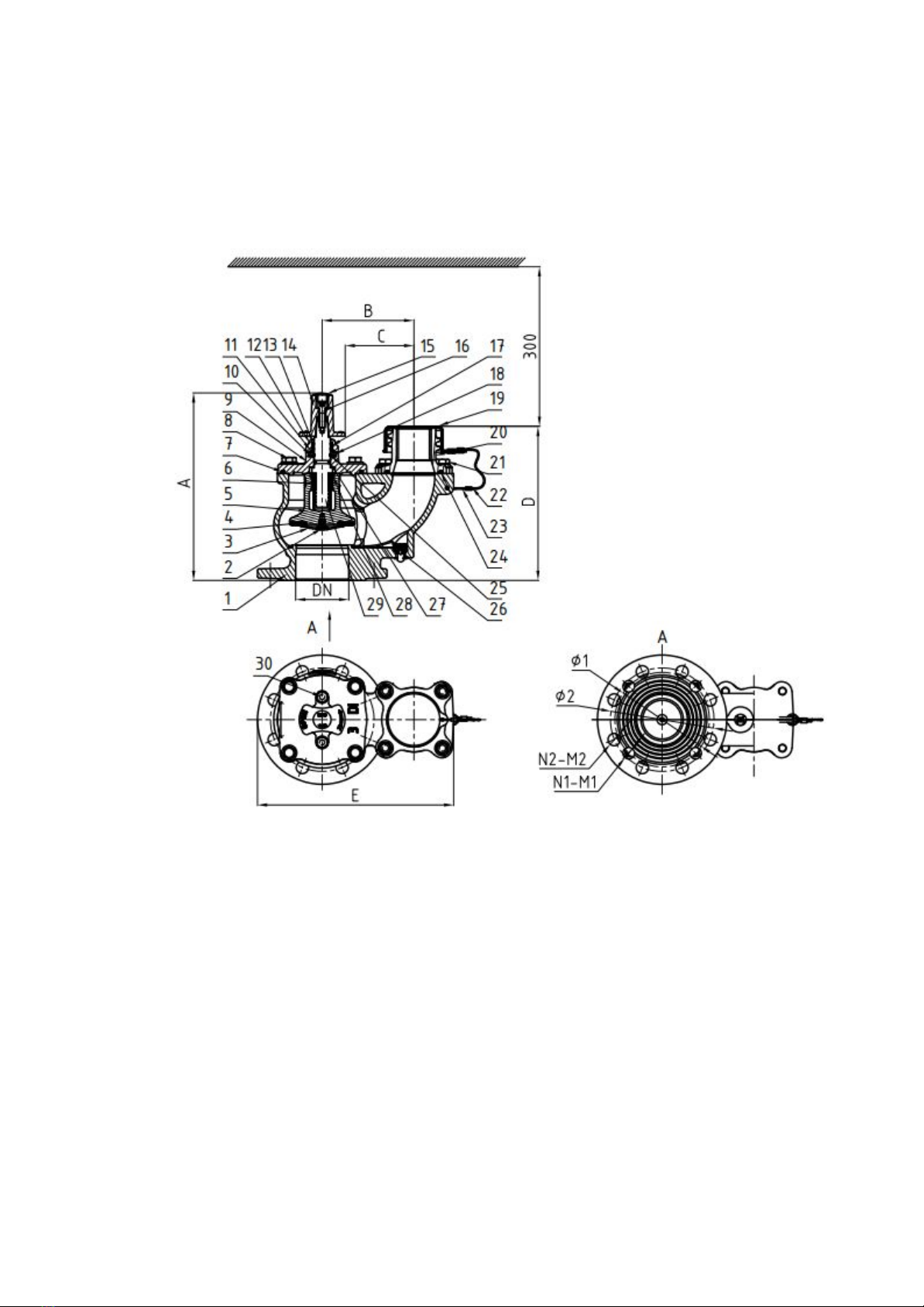

DIMENSIONS
DN
Dimensions (mm)
Weight
Inch
mm
PN
A
B
C
D
E
ø1
ø2
N1-M1
N2-M2
kg
3
80
10/16
289.5
141.5
106
235
303
146
160
4 @ 18
8 @ 19
16.5
MATERIALS OF CONSTRUCTION
No.
Part
Material
BSEN
No.
Part
Material
1
Body
Cast Iron
EN-JS 1040
16
M8 x 30mm Bolt
Stainless Steel
2
M8 x 16mm
Screw
Stainless
Steel
17
Axle Sleeve
Nylon
3
Plate
Stainless
Steel
18
Positioning Ring
Stainless Steel
4
Sealing
Pad
EPDM
19
Outlet Cap
Stainless Steel
5
Clapper
Cast Iron
EN-JS1040
20
Round Thread Outlet
Stainless Steel
6
Stem Nut
Brass
CW602N-H070
21
M12 x 30mm Bolt
Stainless Steel
7
O Ring
NBR
22
Wire Rope
Stainless Steel
8
M12 x
35mm Bolt
Stainless
Steel
23
Aluminium Sleeve
Aluminum
Alloy
9
Bonnet
Cast Iron
EN-JS1040
24
O Ring
NBR
10
35 x1mm
Flat
Washer
Stainless
Steel
25
Retainer
Stainless Steel
11
O Ring
NBR
26
Auto Frost Valve
Nylon
12
Gland
Cast Iron
EN-JS1040
27
O Ring
NBR
13
O Ring
NBR
28
M4 x 6mm Bolt
Stainless Steel
14
Stem Cap
Cast Iron
EN-JS1040
29
Stem
Stainless Steel
15
Indicator
Cap
ABS
30
M10 x 25mm Bolt
Stainless Steel
TRANSPORTATION AND STORAGE
All valves should be inspected at the time of delivery for shipping
damage, missing parts, and conformance with the specifications
The valves should be stored in a sheltered area, or covered to
prevent contamination by the weather or dirt. The valves should be
stored evenly supported on a flat surface. End cap protectors
should be in place when the valves are in storage.
HANDLING
If handled incorrectly the autofrost plug can be dislodged.
Therefore they should be lifted and handled by placing a hand
under the outlet flange rather than the bend/boss.
Hydrants are heavy so always use appropriate lifting devices to
avoid injuries. It is essential that staff undertaking these operations
are adequately trained to avoid accidents.
MAINTENANCE
To prevent injury to the operator or damage to the hydrant
and/or property the hydrant must be isolated and line pressure
removed.
Frequency of maintenance inspections should be based
upon the operational characteristics of the system. As a minimum
an annual inspection is recommended.
During the inspection the following should be checked.
1. All end joints, cover joints and packing for leaks.
2. Tightness of the bolts.
INSTALLATION AND USE
Before use, the hydrant needs to be cleaned so as to remove dirt.
The closing mechanism should be checked to ensure freedom of
movement and proper operation. Prepare the pipe ends as per the
manufacturer's instructions and install the hydrant as per
appropriate instructions for the specified joint.
All pipework should be properly supported to the hydrant. Do not
use the hydrant to force the pipework into position. Standard
wrenches and/or sockets are to be used to tighten all nuts and
bolts. All bolts are to be tightened in a star pattern.
WARRANTY
12 months
