Boss Audio Systems P120F User manual

Technical Support

If you need technical support with your Boss Audio product or have

questions about its use, please contact us:

805.751.4853

www.BossAudio.com

5

Due to ongoing product development, specifications are subject to change without notice.

1

Congratulations on your purchase of the Phantom Flat Subwoofer.

Boss Audio takes great pride in producing products that look great,

sound great, and stand up to the daily rigors applied by audio

enthusiasts around the world.

P120F 12” (30cm) Flat Subwoofer

 Single 4 Ω Voice Coil

 1400 W Peak Power Handling

 2”(50.8 mm) High Temperature Voice Coil

 Butyl Rubber Surround

2

4

Enclosures

The P120F is designed to work in a compact sealed enclosure of only

0.75ft³. Since the woofer has pole-vent, it needs a minimum

clearance from the rear wall of the enclosure of 0.75” (19 mm).

Below you will find the dimensions to make the enclosure to suit the

subwoofers needs, it has been designed for maximum output while

retaining great sound quality.

The dimensions have already accounted for the volume displacement

of the subwoofer, and using 3/4” (19mm) MDF. All dimensions are

external.

Sealed Dimensions:

Length (L) : 17” (431.8 mm)

Width (W) : 10” (254mm)

Height (H) : 14” (355.6 mm)

Cutout Diameter: 11” (279 mm)

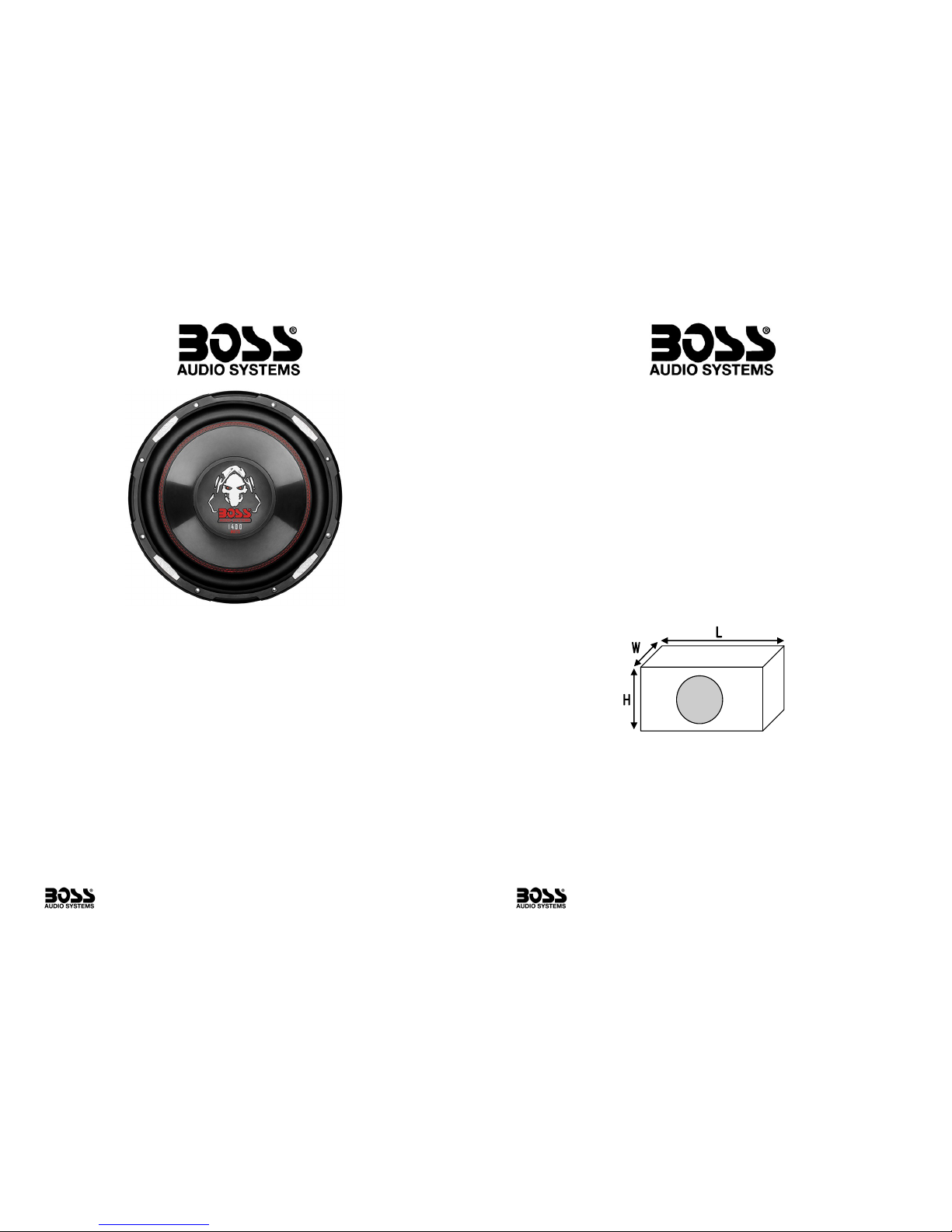

Enclosure Dimensions

4

4 Ω

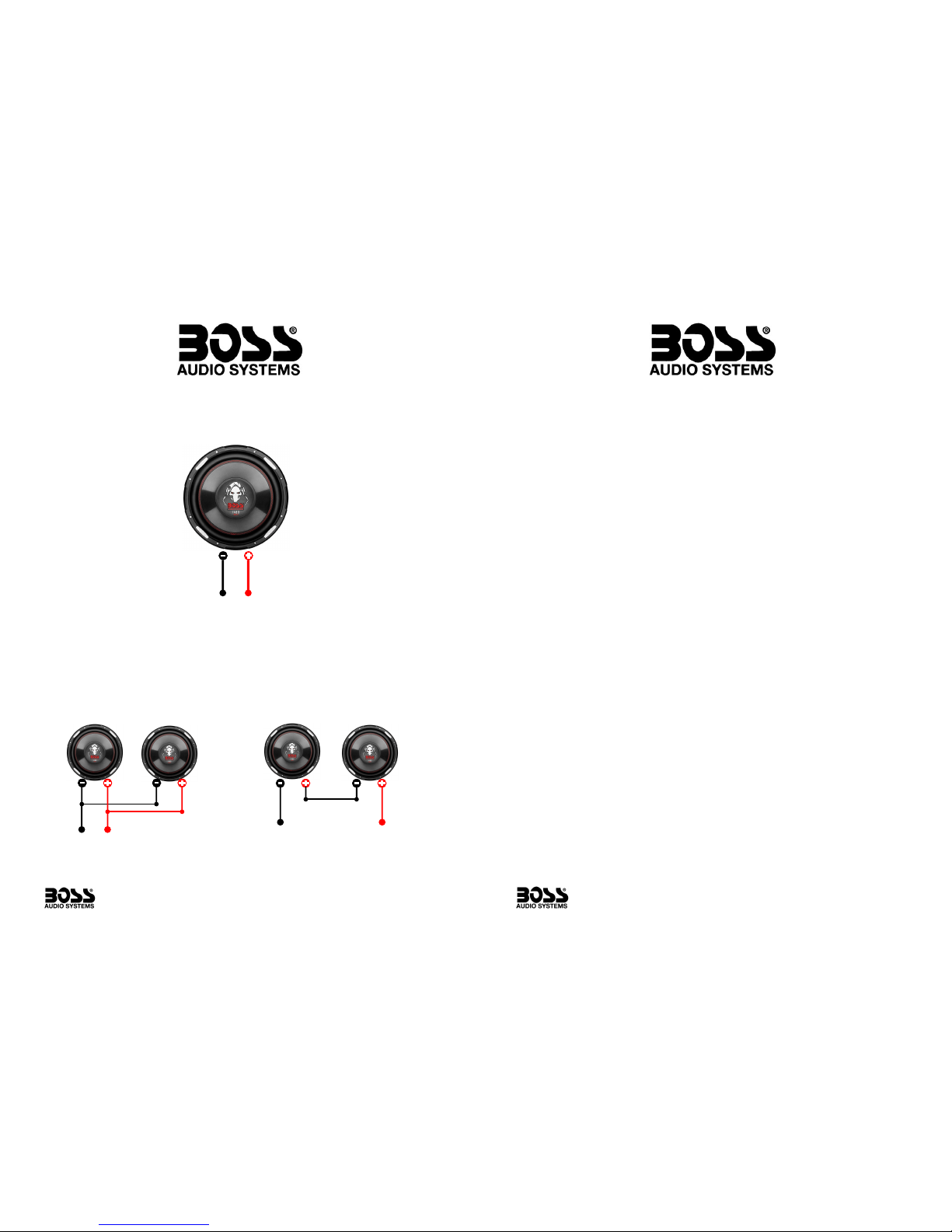

Wiring your Subwoofer

Multiple Subwoofers

Series

8 Ω

Parallel

2 Ω

3

Product Specifications

Impedance 4 Ω

Resonant Frequency 44 Hz

Qts 1.088

Qms 5.143

Qes 1.379

Vas 1.562 cu ft. (44.2 liters)

Xmax 7 mm

Sensitivity (1 W/ 1 m) 86 dB

Peak Power Handling 1400 W

Mounting Depth 3-7/8” (98mm)

Cutout Diameter 11” (279 mm)
