Bosch 10P Manual

BISN0029 Page 1

Installation / Operating Instructions

GOOD.BEETER>BOSCH

Continuous Flow Gas Water Heater

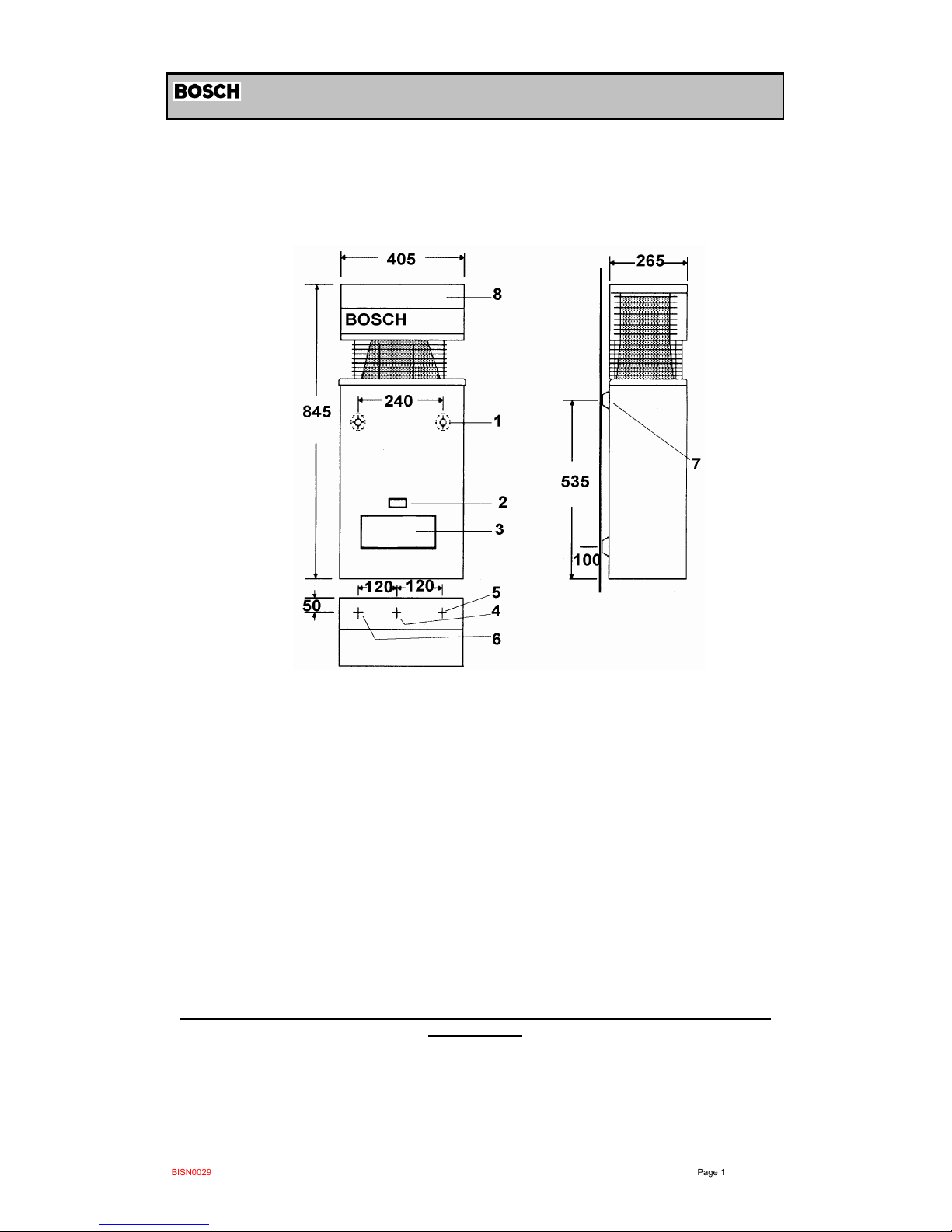

1 Main Cover 5 Cold Water Inlet

2 Inspection Window 6 Hot Water Supply

3 Access Panel 7 Mounting Point

4 Gas Inlet 8 Horizontal Flue

Fig. 1

This appliance must be installed in accordance with the manufacturer’s installation instructions

AG 601, NZ 5261, AS3500.4.2

and all Local Water,Building and Gas fitting regulations

To be installed and serviced only by an authorised person

This appliance is not suitable for use as a pool heater

The “authorised installing person” is responsible for :

1. Correct commissioning of this appliance.

2. Ensure unit performs to the specifications stated on the rating label.

3.. Demonstrate operation of unit to customer before leaving.

4. Hand these instructions to customer.

Failure to install this appliance in accordance with these installation instructions may

void warranty

In the interest of continued product improvement, Bosch reserves the right to alter

these specifications without notice

25/10/2011

10P

BISN0029 Page 2

Installation

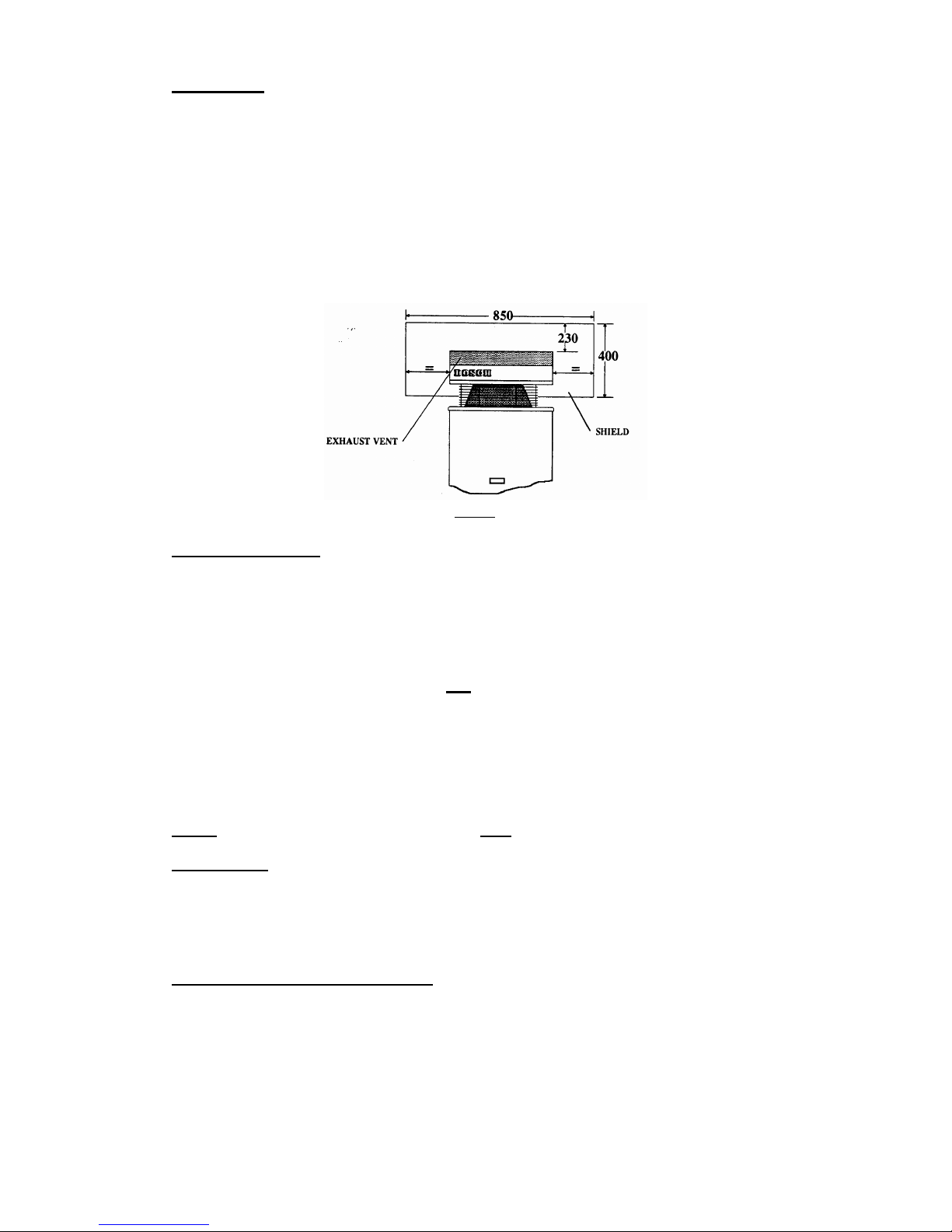

Install only on an external wall, as close as possible to the most frequently used hot

tap. Use a heat shield (accessory item part number 9 708 061 400) if the unit is to be installed

on a combustible surface. Allow minimum air gap of 10 mm between the flue and the heat

shield, (refer figure 2).

Ensure that the flue terminal is clear of any combustible material, and avoid

installation in a marine environment.

Install the appliance such that the base of the appliance is not more than 1.3 metres

and not less than 0.5 meters from the ground, and allow for easy access to service heater.

Secure heater to wall using two 10g X 5/16 hex head wood screws

(Ramset 610041 or similar)

Locate head of screw in the key hole of the top mounting bracket.

Fig. 2

Pipe Connections

Refer to Fig. 1 for locations

Hot and Cold water ½" male

Natural gas ¾" female

L.P. gas ½" male

A gas cock must be installed in the gas supply line with provision to disconnect the

appliance. Install gate valve or full flow ball valve (fixed mechanism type) in cold water supply.

A non return valve must not be fitted. Example duo valve

We recommend that all hot water pipes be lagged if the runs are long or exposed, and

water-proof lagging should be used on all external hot water pipes. If the water supply

pressure exceeds 80% of the specified maximum, install a pressure limiting valve.

If installing a pressure limiting valve fit a cold expansion valve between the limiting valve and

the appliance. PLV = 500kPa Cold expansion = 700kPa

Refer to AG 601 and AS3500.1 for the relevant pipe size.

NOTE:Service calls for incorrect pipe sizing will NOT be covered under warranty.

Water Filter

If sludge or foreign matter is or may be present in the water supply, it is recommended

that a suitable filter be incorporated in the water supply line to the heater. All pipes should be

well flushed before connection is made.

A water filter/strainer is installed in the inlet of the brass water valve inside the appliance.

Water Temperature Adjustment

Located inside the water heater, immediately below the gas controls, is a water

temperature selector knob.

To increase the water temperature ( decrease water flow ) turn the knob clockwise. To reduce

water temperature ( increase water flow ) turn the knob anti clockwise.

25/10/2011

BISN0029 Page 3

Characteristic Data

Pilot orifice diameter (mm) NG 0.30

LPG 0.19

TG 0.56

TLP 0.56

Burner injector diameter (mm) NG 1.20

LPG 0.75

TG 2.15

TLP 2.15

Burner pressure ( kPa ) NG 0.87

LPG 2. 0

TG 0.40

TLP 0.40

Water flow selector at left hand stop.

Maximum water flow 10 litres / minute

Temperature rise 25°C

Minimum inlet pressure NG 90 kPa

( 9.0 metres W.G.)

LP 55 kPa

( 5.5 metres W.G.)

Water flow selector at right hand stop

Minimum water flow 4.5 litres / minute

Temperature rise 55°C

Minimum inlet pressure NG 30 kPa

( 3 metres W.G. )

LP 10 kPa

( 1 metre W.G. )

Refer to rating label located on the bottom right hand corner of the back panel for additional

data.

Freezing

Weather

In areas where the atmospheric temperature may drop below 0°C,

the heater must be drained to prevent damage by expansion of freezing

water. For appliances installed in locations where the temperature falls

below 0° C for brief periods , the installation of an EXOGEL expansion

valve, (part number H 707 060 151), will minimise the possibility of damage

to the appliance.

This water heater MUST NOT be installed in areas where the

temperature remains below 0°C for extended periods.

Conversion and Spare Parts

For spare parts or conversion of the heater to operate on a different gas that for which it was

originally manufactured, please contact your local gas authority, authorised service agent or

the manufacturer

Exogel

Hot Water

1 Metre

minimum

25/10/2011

BISN0029 Page 4

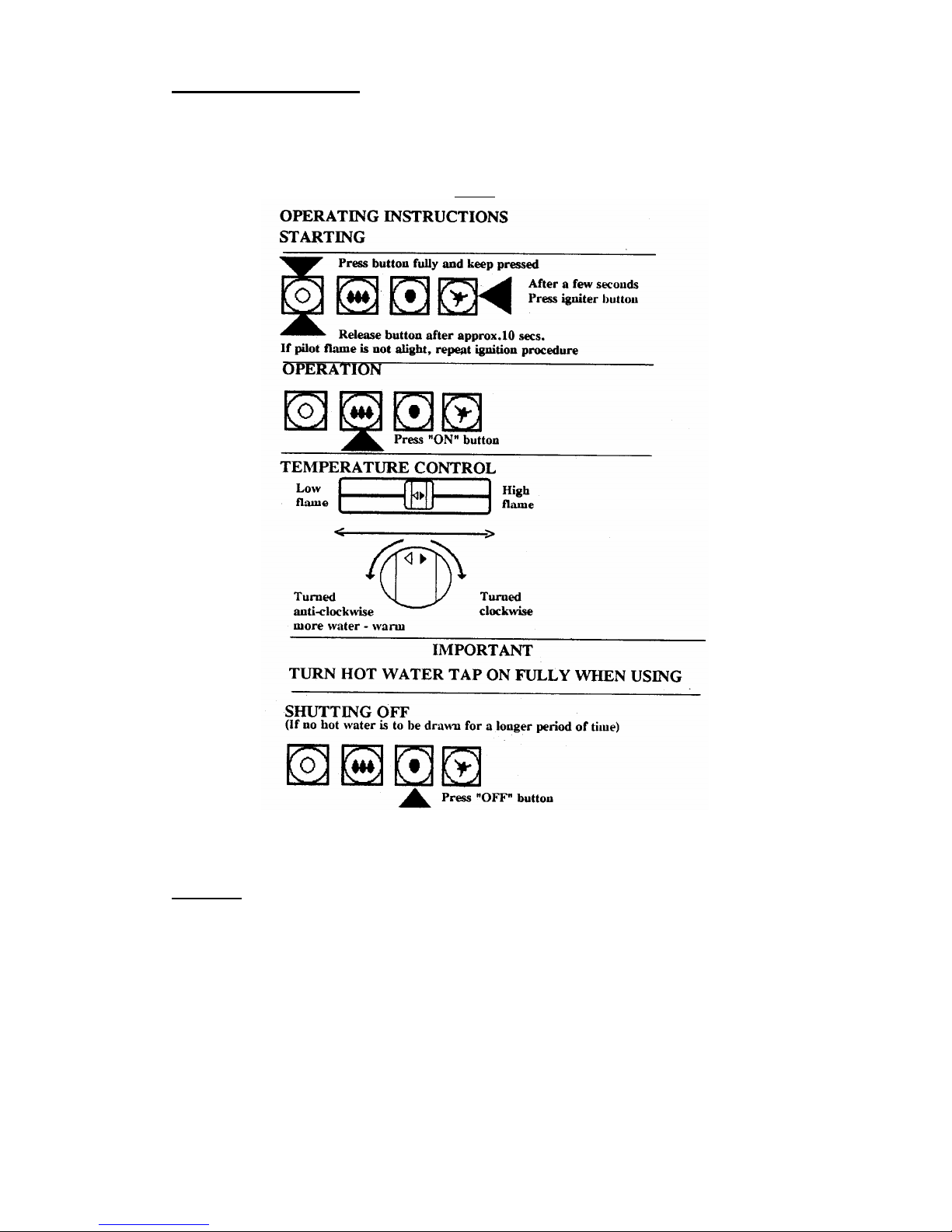

Operating instructions

Open all hot water taps to expel any air prior to lighting

Remove front cover by loosening the two screws at the lower rear corners of the cabinet.

Check that gas and water valves are open, operate as indicated in Fig. 3

Refit front cover and tighten screws

Fig. 3

Warning - If the pilot light is extinguished, wait 5 minutes before attempting to

relight the appliance. If the appliance does not operate, burns with yellow

flame, leaks water or a gas smell is evident, turn off and contact the local gas

authority, the manufacturer or an authorised service person.

When attempting to light the appliance ensure that all hot water taps are

turned off

25/10/2011

BISN0029 Page 5

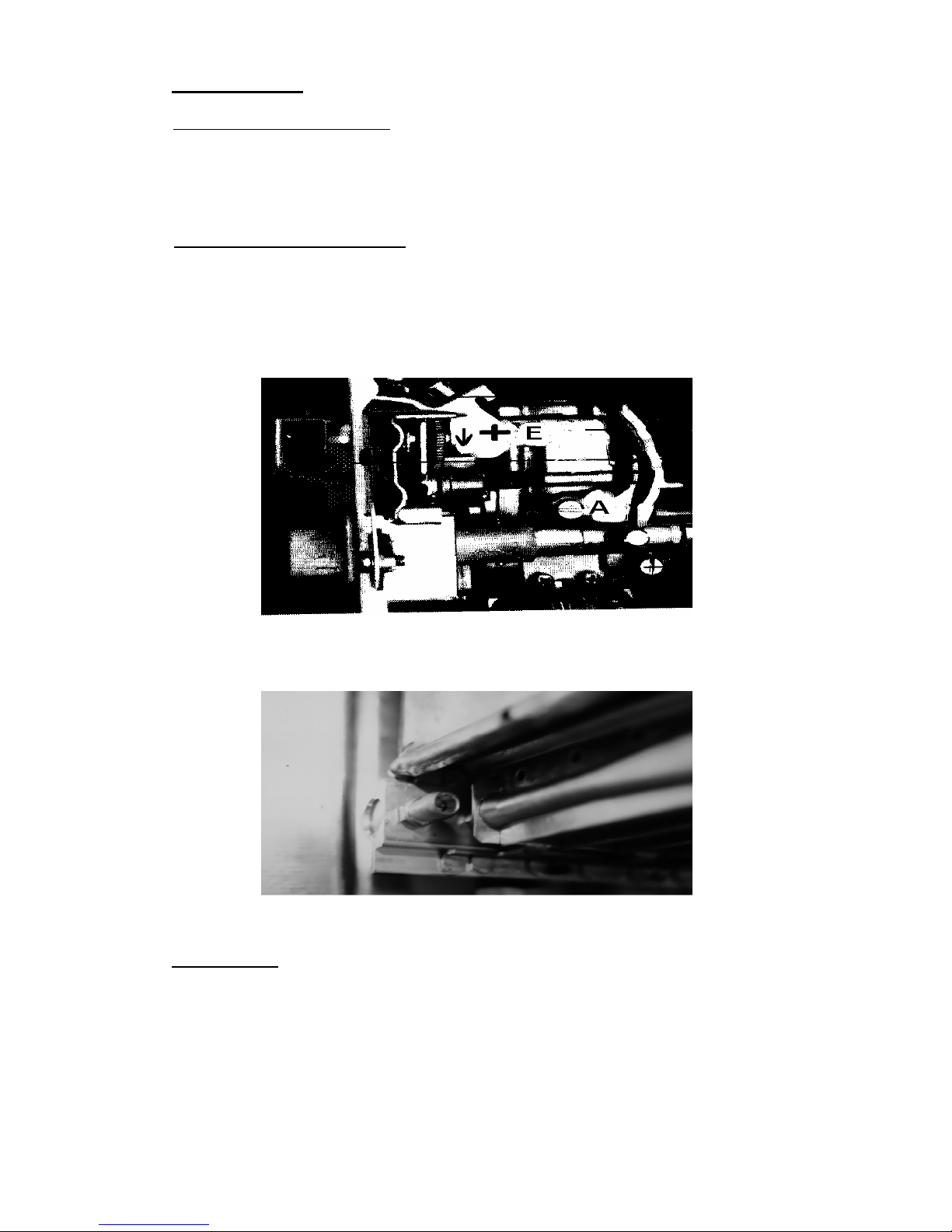

Commissioning

Gas Inlet Pressure Adjustment

With the gas supply turned off, remove sealing screw from inlet pressure test point located on

the right hand side of the gas section refer Fig. 4 pos.A, attach manometer. Turn on gas and

light heater. Open hot water tap fully and adjust gas pressure regulator to 1.13kPa for NG

or 2.60kPa for LPG. Turn off gas and water, remove manometer, replace sealing screw

and

test

for

escape.

Gas

Burner

Pressure

Adjustment

Turn

off

gas

supply,

loosen

captive

screw

burner

pressure

test

point,

left

hand

side

burner

manifold

refer

Fig.5

Pos

attach

manometer

turn

hot

water

tap

fully

and

check

pressure.

Adjust

pressure

turning

the

knurled

wheel

clockwise

increase

gas

pressure,

anti

clockwise

decrease.

refer

Fig

Pos.E

Fig.

Fig 5

Maintenance

We recommend that the appliance be inspected and cleaned by an authorised person

periodically, depending upon the frequency and duration of its operation, but never less than

once a year.

25/10/2011

BISN0029 Page 6

Fault Finding.

Problem Possible Cause Solution

Appliance does not light No gas supply

Blocked pilot

Connect to supply

Replace pilot injector

Pilot lights but no main burner Split/Distorted diaphragm Replace

Smell of gas Luminous flame

Loose gas connection

Clean burner

Locate leak with soap solution

Yellow flame Burner venturi blocked Clean with venturi brush

Water leak on top of water valve lid Damaged O ring

Excessive pressure

Frost damage

Replace O ring, grease with

Unisilkon L641

8709918413

Check water isolating valve

(Must be gate valve or similar)

Drain appliance or fit Exogel

expansion valve

H707060151

Low burner flame, water does not

heat up.

Low inlet gas pressure

Low burner pressure

Check supply regulator and pipe

size

Check appliance regulator

Check thermostat bellows

Check thermostat insert

Low water temperature Water flow rate set too high

Low gas pressure

Thermostat faulty/out of

adjustment

Set flow rate

Check pressure

Replace/Adjust thermostat

Low water flow Low water pressure

Blocked water valve

Blocked heat exchanger

Blocked shower rose or tap

aerator

Check and adjust

Clean filter

Descale

Clean

Shower goes hot & cold Low flow water saver shower rose Replace with less restrictive rose.

Check operation at other tap

Operates only at high water flow Relief valve spring corroded

Installed incorrectly, cold supply to

hot outlet

Replace valve

Correct installation

Cuts off when operating Thermostat faulty/out of

adjustment

Wrong thermostat insert

Replace/Adjust thermostat

Fit correct part

Operates only with slow light valve

loose

Faulty diaphragm

Blocked passage between slow

light & venturi

Faulty slow light valve

Replace

Clean

Clean/Replace

25/10/2011

Water quality

All Bosch water heating appliances are constructed from high quality materials and

components and all are certified for compliance with relevant parts of Australian and New

Zealand gas, electrical and water standards.

Whilst Bosch water heaters are warranted against defects, the warranty is conditional upon

correct installation and use, in accordance with detailed instructions provided with the heater,

in the case of the water supplied to the heater, it is important that the water quality b e of

acceptable standard.

The water quality limits/parameters listed in water quality table are considered acceptable

and generally, Australian and New Zealand suburban water supplies fall within these

limits/parameters.

In areas of Australia and New Zealand where water may be supplied, either fully or partly,

from bores, artesian wells or similar, one or more of the important limits may well be

exceeded and the heater could, therefore, be at risk of failure.

Where uncertainty exists concerning water quality, intending appliance users should seek a

water analysis from the water supplying authority and in cases where it is established that the

water supply does not meet the quality requirements of the water quality table, the Bosch

warranty would not apply.

Wat er qualit y t able

Maximum levels

Sat ur at ion

Index(LSI)

(langelier )

Tot al

Hardness

Chlorides

Sodium

Ir on

6.5-9.0 +0.4 to -1.0

at 65 °C

200

mg/ l

250

mg/ l

180

mg/ l

Table 8

BISN0029

Page 7

25/10/2011

6 720 608 992 ( 2011/ 12)

BISN0029 Page 8

25/10/2011

Warranty details

Robert Bosch (Australia) Pty Ltd

(Bosch) Manufacturer's Warranty

(Applicable for purchases from 1 January 2012)

All Bosch hot water units are carefully checked, tested and subject to stringent quality controls.

1. Warranty

Bosch offers, at its option, to repair or exchange this Bosch hot water unit or the relevant part listed in

clause 2 below at no charge, if it becomes faulty or defective in manufacture or materials during the

warranty period also stated in clause 2. This warranty is offered in addition to any other rights or remedies

held by a consumer at law.

2. Warranty periods & coverage

(a) Domestic applications: 2 years (parts and labour)

(b) Heat exchangers used in domestic applications: 10 years (parts only)

(d) Heat exchangers used in Commercial applications 12 months (parts only)

All warranty periods commence on the date of purchase of the hot water unit by the end-user. However,

where the date of purchase by the end-user is more than 24 months after the date of manufacture, all

warranty periods will automatically commence 24 months after the date of manufacture.

3. Warranty exclusions

This warranty is VOID if any damage to or failure of the hot water unit is caused wholly or partly by:

(a) Faulty installation

(b) Neglect, misuse, accidental or non-accidental damage, failure to follow instructions

(d) Unauthorised repairs or alterations to the unit without Bosch's consent

(e) Use of unauthorised parts and accessories without Bosch's consent

(f) Use of non-potable water or bore water in the hot water unit (see product instructions for further details)

(g) Continued use after a fault becomes known or apparent.

This warranty DOES NOT include:

(a) Costs of consumables or accessories

(b) Wear and tear, normal or scheduled maintenance

consequential losses or other expenses

(d) Changes in the condition or operational qualities of the hot water unit due to incorrect storage or

mounting or due to climatic, environmental or other influences.

NOTE: Any service call costs incurred by the owner or user of the hot water unit for any matter not covered

by the terms of this warranty will not be reimbursed by Bosch, even if those costs are incurred during the

warranty period. If the hot water unit is located outside the usual operating area of a Bosch service agent,

the agent's travel, freight or similar costs are not covered by this warranty and must be paid by the owner or

user of the hot water unit.

4. Warranty conditions

(a) Proof of purchase may be required.

(b) The hot water unit must be installed by an authorised and licensed installer.

6 720 608 992 (2011/ 12)

BISN0029

25/10/2011 Page 9

been carried out to Bosch's satisfaction (such as a certificate of compliance).

(d) Repair or replacement of the hot water unit or any parts under this warranty does not lengthen or

renew the warranty period.

(e) This warranty is not transferable and is only offered to the original purchaser of the hot water unit.

(f) No employee or agent of Bosch is authorised to amend the terms of this warranty.

(g) This warranty only applies to Bosch hot water units purchased from an authorised reseller and

installed in Australia or New Zealand.

(h) To the extent that any condition or warranty implied by law is excludable, such condition or warranty

is excluded.

5. How to lodge a warranty claim and warranty procedure

(a) Warranty claims must be made with the Bosch Customer Contact Centre

(Australia: ph 1300 307 037; New Zealand: ph 0800 543 352). Please be ready to provide the model and

serial numbers, date of installation, purchase details and a full description of the problem. Warranty claims

must be made before the end of the warranty period.

(b) All warranty service calls must conducted by an authorised Bosch service agent.

be accepted for payment by Bosch.

6. Privacy Act 1988 (Cth)

A customer's personal information collected during warranty claims may be used for the provision of

customer support, for t he provision of information about products and services and for other marketing

activities undertaken by Bosch and its Bosch Service Agents who are authorised to carry out warranty

repairs on behalf of Bosch (Purpose). Bosch is committed to protecting the privacy of its customers'

personal information. It will act in compliance with the National Privacy Principles and Privacy Act 1988

(Cth). Bosch will not forward customers' personal information to third parties other than for the Purpose. A

customer can object at any time to the use of their personal information for the purpose. Bosch will cease to

use a customer's personal information accordingly if an objection is made.

7. Bosch contact details

If you have any questions about this warranty or to lodge a warranty claim, please contact:

Robert Bosch (Australia) Pty Ltd

1555 Centre Road, Clayton, Victoria 3168

Tel: Australia: 1300 307 037

Tel: New Zealand: 0800 543 352

IMPORTANT NOTE FOR AUSTRALIAN CONSUMERS

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are

entitled to a replacement or refund for a major failure and for compensation for any other reasonably

foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to

be of acceptable quality and the failure does not amount to a major failure.

Table of contents

Other Bosch Water Heater manuals

Bosch

Bosch TR5000 24EB User manual

Bosch

Bosch GWH 2700 ES LP User manual

Bosch

Bosch Stora SWDP 200-2 Quick guide

Bosch

Bosch AquaStar 125FX LP User manual

Bosch

Bosch GWH 260 PN Reference manual

Bosch

Bosch WR11B series User manual

Bosch

Bosch Therm 4000 S User manual

Bosch

Bosch GWH 2400 ES NG User manual

Bosch

Bosch Optiflow GWH16 3 CT E23 F6 L S2405 User manual

Bosch

Bosch W 125 T1 Installation and operation manual

Bosch

Bosch TR1000 4 T User manual

Bosch

Bosch JUNKERS UNIDOMO ELAFLUX ED 18-2 E User manual

Bosch

Bosch C 1210 ESC Reference manual

Bosch

Bosch AquaStar 38B LP User manual

Bosch

Bosch TR1000 12 B User manual

Bosch

Bosch YS2180RA User manual

Bosch

Bosch TR6000R 18/21 ESOB User manual

Bosch

Bosch Therm 6000 S User manual

Bosch

Bosch C 1210 ESC Reference manual

Bosch

Bosch C 1210 ESC Reference manual

Bosch

Bosch AQ 125BO NG User manual

Bosch

Bosch Highflow 17e User manual

Bosch

Bosch WR 11 G Series Technical Document

Bosch

Bosch GWH 635 ES User manual

Popular Water Heater manuals by other brands

Kenmore

Kenmore 153.582400 Use & care guide

Applimo

Applimo Edel AIR Installation and operating instructions

STIEBEL ELTRON

STIEBEL ELTRON Eltronom SHU 5 S Operating and installation instructions

clage

clage E-Mini Series Operating and installation instructions

Toyotomi

Toyotomi Oil Miser OM-180 installation manual

Bradford White

Bradford White EF Series Service manual

Eccotemp

Eccotemp 40-H Use & care manual

Dimplex

Dimplex ECSd125-580 Installation and user instructions

Dux

Dux 32FCR6N installation manual

Toyotomi

Toyotomi Oil Miser OM-148 (Type D) Operation and maintenance instructions

Noritz

Noritz N-132M Owner's guide and installation manual

TESY

TESY GCV7/4S 10047 Instructions for use and maintenance

A.O. Smith

A.O. Smith Gphe 50 instruction manual

Koryo

Koryo KWHZF15Y user manual

Pentair

Pentair PSC-14-4-02 Installation and operation manual

GE 40M06AAG Energy guide

Thermor

Thermor AEROMAX SPLIT 2 Instructions for use

American Hometec

American Hometec AHQ-B03X Installation and operation manual
