Bosch B450-M User manual

Conettix Plug‑in Communicator

B450/B450‑M

en Installation Manual

Conettix Plug-in Communicator Table of contents | en 3

Bosch Security Systems, Inc. Installation Manual 2018.10 | 10 | F.01U.300.740

Table of contents

1Safety 4

2Introduction 5

2.1 About documentation 5

2.2 Bosch Security Systems, Inc. product manufacturing dates 5

2.3 Installation workflow 6

3System overview 7

3.1 Module overview 7

3.2 Cellular interface compatibility 8

3.3 Bus address settings 9

4Installation 12

4.1 Inserting a plug-in cellular module (required) 12

4.2 Mounting the module 13

4.3 Installing the tamper switch (optional) 14

4.4 Installing the cellular antenna 14

4.5 Connecting the module to the control panel 15

4.5.1 Connecting to SDI2 and SDI control panels 15

4.5.2 Connecting to option bus control panels 16

5Configuration 17

5.1 Configuration parameters 17

5.2 Plug and Play (PnP) configuration 21

5.2.1 RPS configuration 21

5.3 USB configuration 22

5.3.1 Get started 22

5.3.2 Module home page 26

5.3.3 Main Menu 28

5.3.4 Status menu 29

5.3.5 Basic and Advanced Configuration menus 34

5.4 SMS configuration 34

5.4.1 Creating the SMS 34

5.4.2 Sending the inbound SMS 36

5.4.3 Exiting from CONFIG mode 37

6Maintenance and troubleshooting 38

6.1 Firmware updates 38

6.2 USB menu access disabled 40

6.3 LED status indicators 41

6.4 Firmware version LEDs 44

6.5 SIM card 44

6.6 Diagnostic log 44

6.7 Network polling 45

6.8 Control panel programming using cellular 45

6.9 RPS Diagnostics 45

7Technical specification 46

4en | Safety Conettix Plug-in Communicator

2018.10 | 10 | F.01U.300.740 Installation Manual Bosch Security Systems, Inc.

1 Safety

ESD Precaution

Please note that while the module comes in a plastic case, and is protected from ESD, the

plug-in cellular communicator (B44x) does not. All plug-in cellular communicator components

may potentially be exposed to finger touches - therefore extra attention must be paid to ESD

(electrostatic discharge) precaution.

Make sure there is no static interference when using the board. Appropriate ESD protections

must be taken and wearing electrostatic equipment is recommended, such as anti-static wrist

strap.

ESD damage ranges from subtle performance degradation to complete device failure.

Precision integrated circuits may be more susceptible to damage because very small

parametric changes could cause the device not to meet its published specifications.

Warning!

Failure to follow these instructions can result in a failure to initiate alarm conditions. Bosch

Security Systems, Inc. is not responsible for improperly installed, tested, or maintained

devices. Follow these instructions to avoid personal injury and damage to the equipment.

Notice!

Inform the operator and the local authority having jurisdiction (AHJ) before installing the

module in an existing system.

Disconnect all power to the control panel before installing the module.

Before you install the module, refer to the technical specifications.

Conettix Plug-in Communicator Introduction | en 5

Bosch Security Systems, Inc. Installation Manual 2018.10 | 10 | F.01U.300.740

2 Introduction

This document contains instructions for a trained installer to install, configure, and operate

this module.

2.1 About documentation

This document is the intellectual property of Bosch Security Systems, Inc. and is protected by

Trademarks

All hardware and software product names used in this document are likely to be registered

trademarks and must be treated accordingly.

2.2 Bosch Security Systems, Inc. product manufacturing dates

Use the serial number located on the product label and refer to the Bosch Security Systems,

Inc. website at http://www.boschsecurity.com/datecodes/.

6en | Introduction Conettix Plug-in Communicator

2018.10 | 10 | F.01U.300.740 Installation Manual Bosch Security Systems, Inc.

2.3 Installation workflow

To install and configure the module, use the workflow below.

Caution!

Remove all power (AC and battery) before making any connections. Failure to do so might

result in personal injury and/or equipment damage.

Plan the installation of the module.

Unpack the device contents.

Power down the system.

Set the bus address value to automatically configure the module to work with a

compatible control panel. Refer to Bus address settings, page 9.

Insert a plug-in communicator into the module. Refer to Inserting a plug-in cellular module

(required), page 12.

Mount the module into the enclosure. Refer to Mounting the module, page 13.

Wire the module to a compatible control panel. Refer to Connecting the module to the

control panel, page 15.

Power up the system.

Install a communication program (if required). Refer to Get started, page 22.

Configure the communication module (SDI and option bus control panels).

Verify LED activity. Refer to LED status indicators, page 41.

Review the signal strength of the cellular communicator. Refer to the installation

instructions for cellular communicator.

Conettix Plug-in Communicator System overview | en 7

Bosch Security Systems, Inc. Installation Manual 2018.10 | 10 | F.01U.300.740

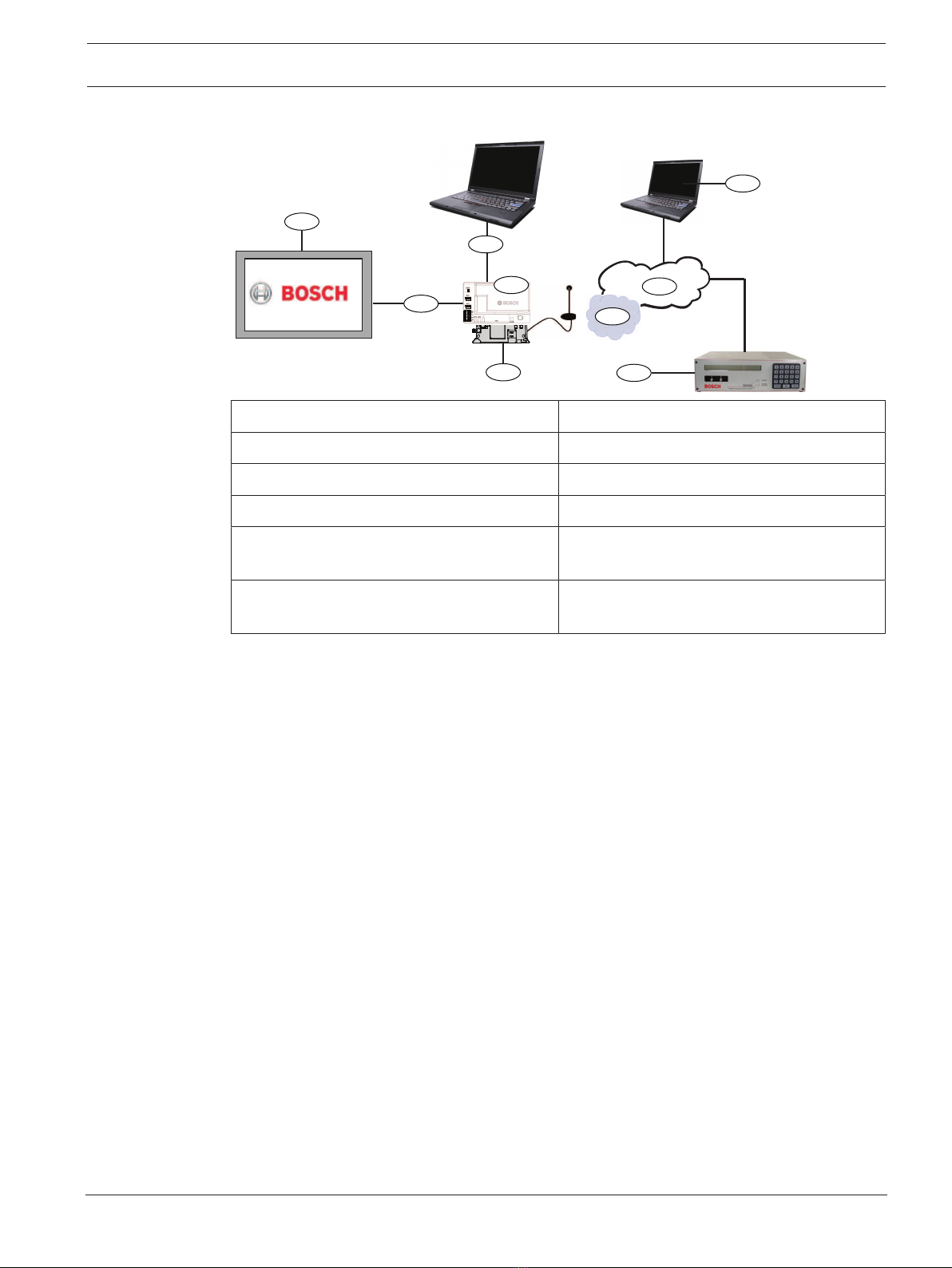

3 System overview

Callout ￚ Description Callout ￚ Description

1 ￚ Compatible control panel 6 ￚ Cellular carrier network

2 ￚ Panel data bus (SDI2, SDI, or option) 7 ￚ Internet/LAN/WAN

3 ￚ Module 8 ￚ Remote Programming workstation

4 ￚ USB connection for module configuration 9 ￚ Compatible IP receiver (Bosch D6100IPv6

shown)

5 ￚ B44x plug-in communicator (available

separately)

3.1 Module overview

The module is a four-wire powered SDI, SDI2, or option bus device that provides two-way

communication over commercial cellular networks using a plug-in communicator.

To configure the module, use one of the following tools:

–Plug and Play (PnP) configuration, page 21 (SDI2 and some option bus control panels)

–USB configuration, page 22 (all control panels)

–SMS configuration, page 34 (all control panels)

8en | System overview Conettix Plug-in Communicator

2018.10 | 10 | F.01U.300.740 Installation Manual Bosch Security Systems, Inc.

862

754

TX RX

Callout ￚ Description

1 ￚ Tamper switch connector

2 ￚ Bus address switch

3 ￚ MODE 2-pin jumper connector (for future use)

4 ￚ Bus address label

5 ￚ USB connector (Type A)

6 ￚ Heartbeat LED

7 ￚ RX LED (indicates packets received from the wireless network)

8 ￚ TX LED (indicates packets transmitted over the wireless network)

9 ￚ Terminal strip (to control panel)

10 ￚ Interconnect wiring connectors (to control panel or other compatible modules)

3.2 Cellular interface compatibility

The module supports multiple bus types. Refer to the table to determine the supported

applications and features by bus type.

Installed Bus

Function Option/SDI SDI2 Details

IP event reporting Y Y TCP communication

is supported on SDI2

only

Remote programming

software (RPS or A-

link)

Y Y Requires Bosch

Cellular service or

other cellular network

access

Conettix Plug-in Communicator System overview | en 9

Bosch Security Systems, Inc. Installation Manual 2018.10 | 10 | F.01U.300.740

Installed Bus

*Configure module

from control panel

N Y GV4/B Series require

v2.03+, AMAX

2100/3000/4000

Personal notification

via SMS or e-mail

N Y Requires compatible

control panel and

cellular plan

Remote Security

Control App

N Y Requires Bosch

Cellular service or

other cellular network

access

*AMAX 2100/3000/4000 option bus control panels must have firmware version 1.5 or higher

to configure the module using A-Link Plus.

The module also supports multiple cellular networks through the use of Bosch cellular

communication modules. Refer to the following table to determine the supported Bosch

cellular module and corresponding cellular network technology.

Cellular technology compatibility

Device Cellular networks

2G (CDMA) 3G (CDMA) GPRS (GSM) HSPA+ (GSM) 4G (LTE)

B440/B440-C* X X

B441/B441-C* X

B442* X

B443* X X

B444* X

*Check for availability in your region.

3.3 Bus address settings

The control panel uses the address for communications. Use the address switch to set the bus

type and the module address on the bus. Use a slotted screwdriver. Refer to the address label

on the module and the following table to choose the address switch for the control panel

type.

10 en | System overview Conettix Plug-in Communicator

2018.10 | 10 | F.01U.300.740 Installation Manual Bosch Security Systems, Inc.

PANEL ADDRESSES

TX RX

0 1 2 4 5 6 7 8 9

Bus cfg 1 2 88 92 250

Addr SDI2 SDI Option

134 13 14

Control panels Switch

position

Control

panel bus

address

Bus type Function

USB or SMS configuration

setting

0 N/A Any Change configuration

B9512G/B8512G/B6512/

B6512/B5512/B4512/

B3512, D9412GV4/

D7412GV4/D7212GV4

Solution 2000/3000

1 1 SDI2 Automation, Remote

Programming,

Reporting

B9512G/B8512G/

D9412GV4/D7412GV4/

D7212GV4

Solution 2000/3000

2 2 Automation, Remote

Programming,

Reporting

D9412GV4/D7412GV4/

D7212GV4, D9412GV3/

D7412GV3/D7212GV3,

D9412GV2/D7412GV2/

D7212GV2 (v7.06+)

4 88 SDI1Remote Programming,

Reporting

D9412GV4/D7412GV4/

D7212GV4, D9412GV3/

D7412GV3/D7212GV3

5 92 Remote Programming,

Reporting
