Bosch PBC-60 Installation guide
Systems | PBC-60 - power supply and battery charger

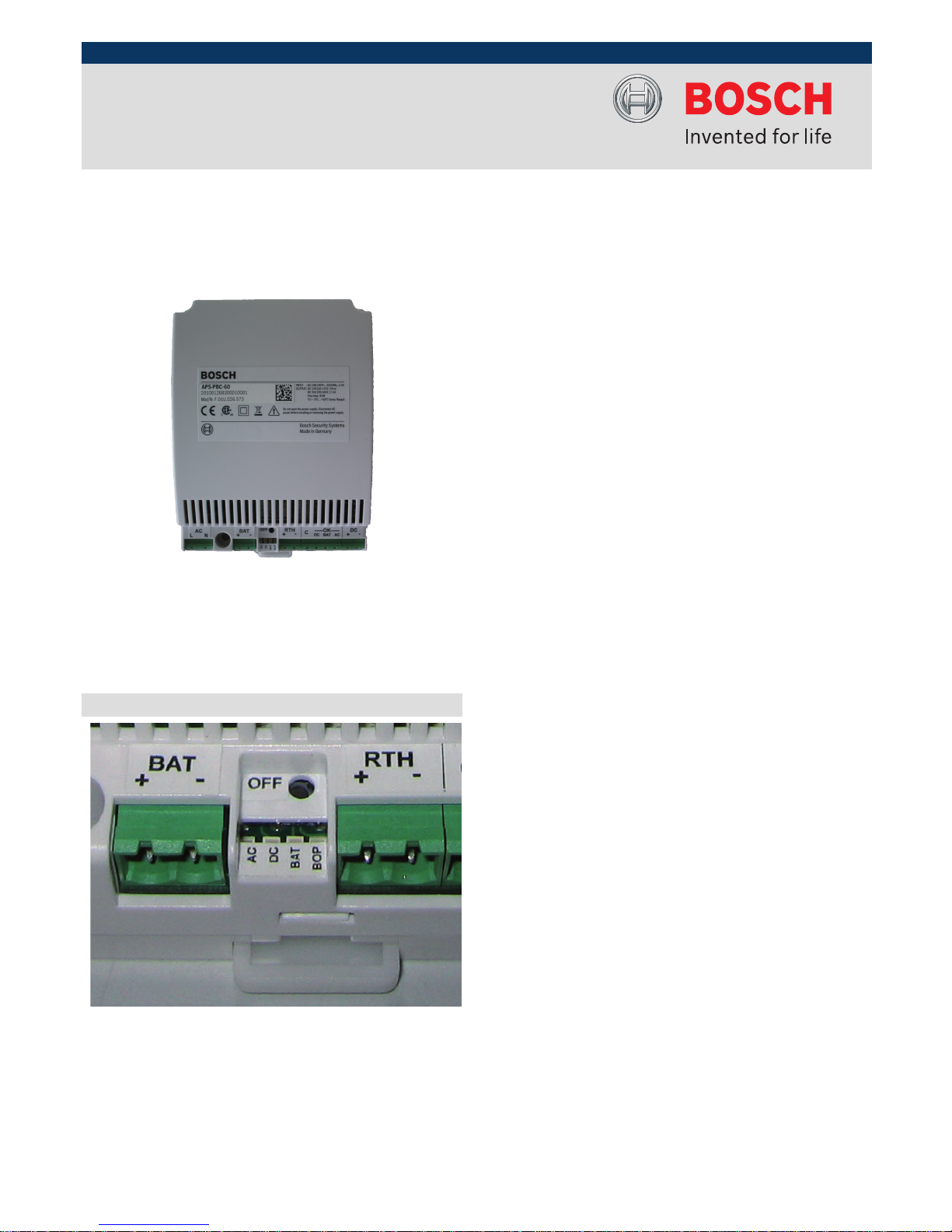

The PBC-60 is a power supply unit with an integrated
battery charging device. Includes pre-configured cable
connectors for AMC controllers, I/O boards and batteries.
Functions
The PBC-60 includes the following LED voltage status
indicators:
•If the input voltage (AC) is greater than 85 V~, the green
LED lights up next to AC and the AC relay is closed.
•If the output voltage (DC) is greater than 12 V or 24 V
(depending on the mode), the green LED lights up next
to DC and the DC relay is closed.
•If the battery voltage is greater than 11 V or 22 V
(depending on the mode), the green LED lights up next
to BAT and the BAT relay is closed.
The following applies to the battery mode:
If the input voltage is less than 85 V~, the power supply
switches to "Battery operation" mode and the yellow LED
lights up next to BOP.
The OFF button is only activated in Battery operation mode.
This button is pressed to switch the output voltage off.
Restart is only possible when the alternating current supply
is restored.
This power supply unit can be switched to 12 V or 24 V
mode. To do this, the switch must be configured as shown
below, when there is no voltage input on the power supply.
PBC-60 - power supply and battery charger
▶Supports 12 V/7 Ah, 12 V/14 Ah and 24 V/7 Ah batteries
▶Selectable 12 VDC or 24 VDC voltage output
▶Selectable 5 amp @12 VDC or 2.5 amp @24 VDC current
output
▶Overvoltage protection
▶Regulation of battery charging voltage
▶On-board LED Voltage Status indicators
▶Protection class II
www.boschsecurity.com
2 | PBC-60 - power supply and battery charger
Note:
The power supply must only be installed by qualified
personnel.
Certifications and Approvals
The product is classified in accordance with the following
standards:
•EN 55022 Class B
•EN 55024
•EN 50130-4
•CSA/UL/IEC 60950
Installation/Configuration Notes
The PBC-60 can be mounted on rails and installed in the
AMC housing.
The PBC-60 dimensions are shown in the diagrams below:
1
2
3
1 = Length 140 mm (5.51 in.)
2 = Width 105 mm (4.13 in.)
3 = Height 60 mm (2.36 in.)
Alternatively, it can be screw-mounted directly to the wall.
There are pre-drilled holes for this purpose on the base of
the housing. These holes have the following dimensions:
0
0
Ø 1
Ø 2
A B C
D
E
Ø 1 = 8.7 mm (0.34 in.); Ø 2 = 4.7 mm (0.19 in.)
A = 5.5 mm (0.22 in.); B = 24 mm (0.94 in.); C = 99.5 mm
(3.92 in.);
D = 8.1 mm (0.32 in.); E = 134.5 mm (5.30 in.)
The following diagram shows the connections to the AMC.
1 2 3
4
1 = AC power
2 = Battery connection
3 = Temperature sensor
4 = Power supply to AMC wiring connection
PBC-60 - power supply and battery charger | 3
Parts Included
The components supplied are as follows:
•Power supply
•Temperature sensor
•Plug
-1 x 2-pin for mains (primary AC) connection
-3 x 2-pin
-1 x 4-pin
•Accompanying documentation
Technical Specifications
Output values:
Output voltage: 12 V mode 10-15 V
24 V mode 20-30 V
Output current: 12 V mode Max. 5 A
24 V mode Max. 2.5 A
Output power: 60 W (constant)
Input values:
Input voltage: 100-240 VAC, 50-60Hz
Input current (AC): Max. 2 A, to the specified max. load at
85 V~
Output values for the battery:
Output voltage: 12 V mode 10-15 V
24 V mode 20-30 V
Output current for charging the battery:
12 V mode 700 mA
24 V mode 350 mA
Periodic battery checks - approx. every 6 minutes.
Protection from total battery discharge:
12 V mode 9.5 V
24 V mode 19 V
The power supply switches to normal operation as soon as the AC incoming
voltage has normalized.
Temperature equalization is performed by an external NTC resistor.
Reverse battery protection
Environment variables:
Working temperature -5°C (23°F) to +50°C (122°F)
Storage temperature -20°C (-4°F) to +60°C (140°F)
Relative humidity 5% to 95%
Ordering Information
PBC-60 - power supply and battery charger
A power supply unit with an integrated battery
charging device.
APS-PBC-60
www.boschsecurity.com
4 | PBC-60 - power supply and battery charger
Americas:
Bosch Security Systems, Inc.
130 Perinton Parkway
Fairport, New York, 14450, USA
Phone: +1 800 289 0096
Fax: +1 585 223 9180
www.boschsecurity.us
Europe, Middle East, Africa:
Bosch Security Systems B.V.
P.O. Box 80002
5600 JB Eindhoven, The Netherlands
Phone: + 31 40 2577 284
Fax: +31 40 2577 330
www.boschsecurity.com
Asia-Pacific:
Robert Bosch (SEA) Pte Ltd, Security Systems
11 Bishan Street 21
Singapore 573943
Phone: +65 6258 5511
Fax: +65 6571 2698
www.boschsecurity.com
Represented by
© Bosch Security Systems Inc. 2010 | Data subject to change without notice
T3295414027 | Cur: en-US, V14, 4 Jul 2010 | Src: en-US, V3, 16 Aug 2006
