Bosch HBL33 User manual

Built=in Ovens

Models: HBL33, HBN33, HBL34, HBN34, HBL35, HBN35, HBL54, HBN54,

HBL58, HBN56, HBL57, HBL8550, HBL8850, HBL8750

Table of Contents

Safety ...................................... 1

ImportantSafety Instructions ....................................... 1

Preparation .................................. 3

Before you Begin ................................................. 3

Tools and Parts Needed ...................................................... 3

Parts Included .............................................................. 3

27" Appliances .................................................. 3

General Information .......................................................... 3

30" Appliances .................................................. 6

Removing Packaging ............................................. 9

For Convection Microwave Combination Units ..................................... 9

Preparing Oven ............................................................. 9

Installation ................................. 10

ElectricalInstallation ............................................. 10

Oven Installation ................................................ 12

Testing Operation ............................................... 13

Service .................................... 14

Before Calling Service ....................................................... 14

This Bosch Appliance is made by

BSH Home Appliances Corporation

5551 McFadden Ave.

Huntington Beach, CA 92649

Questions?

1-800-944-2904

www.boschappliances.com

We look forward to hearing from you!

Safety

Important Safety Instructions

READ AND SAVE THESE INSTRUCTIONS

Appliance Handling Safety

Safety Codes and Standards

Electric Safety

WARNING:

If the information in this manual is not followed exactly, fire or shock may result

causing property damage or personal injury.

WARNING:

Do not repair or replace any part of the appliance unless specifically recommended

in the manuals. Improper installation, service or maintenance can cause injury or

property damage. Refer to this manual for guidance. All other servicing should be

done by a qualified technician.

Do not lift appliance by door handle. Remove the door for easier handling and

installation. See instructions in Use and Care Manual.

Unit is heavy and requires at least two people or proper equipment to move.

Hidden surfaces may have sharp edges. Use caution when reaching behind or

under appliance.

This appliance complies with one or more of the following Standards:

• UL 858, The Standard for the Safety of Household Electric Ranges

• UL 923, The Standard for the Safety of Microwave Cooking Appliances

• UL 507, The Standard for the Safety of Electric Fans

• ANSI Z21.1, The American National Standard for Household Cooking Gas

Appliances

• CAN/CSA-C22.2 No. 113-M1984 Fans and Ventilators

• CAN/CSA-C22.2 No. 61-M89 Household Cooking Ranges

It is the responsibility of the owner and the installer to determine if additional

requirements and/or standards apply to specific installations.

Before you plug in an electrical cord, be sure all controls are in the OFF position.

If required by the National Electrical Code (or Canadian Electrical Code), this

appliance must be installed on a separate branch circuit.

Installer - show the owner the location of the circuit breaker or fuse. Mark it for easy

reference.

Important - Save these instructions for the local electrical inspector's use.

Before installing, turn power OFF at the service panel. Lock service panel to prevent

power from being turned ON accidentally.

Refer to data plate for more information. See "Data Plate" under "Service" for data

plate location.

English 1

Important Safety Instructions

READ AND SAVE THESE INSTRUCTIONS

Related Equipment Safety

Transport

Be sure your appliance is properly installed and grounded by a qualified technician.

Installation, electrical connections and grounding must comply with all applicable

codes.

Remove all tape and packaging before using the appliance. Destroy the packaging

after unpacking the appliance. Never allow children to play with packaging material.

Never modify or alter the construction of the appliance. For example, do not remove

leveling legs, panels, wire covers or anti-tip brackets/screws.

To avoid damage to the oven vent, use the transport method shown in the picture

below.

English 2

Preparation

Before you Begin

Tools and Parts Needed

Parts Included

• Phillips head screwdriver

• Measuring tape

• Drill with bit (1/8")

Phillips head screws (6)

27" Appliances

General Information

Power Requirements The outlet must be properly grounded in accordance with all applicable codes.

Dimensions for 27" Wall-Mounted Units

24"

(610ram)

2413/16" (718mm)

(630rnm) .-_

27"

(686rnrn)

237/8" (606ram)

22" (559mm)

251/2"

rain. 43/4"(121 ram)

rnaxi31L__3/8"(797mm)

Single Oven 27"

It is good practice, when oven is

installed at the end of a cabinet run,

adjacent to a perpendicular wall or

cabinet door, to allow at least 1/4"

space between the side of the oven and

the wall/door.

For oven support, install 2x4's

extending front to back flush with the

bottom and the side of the opening. The

supporting base must be well secured

to the floor/cabinet and level.

Note: The conduit box must be installed

either above or below the unit. If the

conduit box is installed below the unit, a

2" diameter hole or space is required

between the back wall and the right rear

of the 2x4 supports.

The cabinet base must be flat and

capable of supporting a weight of at

least 210 Ibs (95 kg).

English 3

263/4"

(680turn)

49314"

(1264mm)

237/8"(606turn)

22" (559rnrn)

93/4"

(248turn)

Double Oven 27"

It is good practice, when oven is

installed at the end of a cabinet run,

adjacent to a perpendicular wall or

cabinet door, to allow at least 114"

space between the side of the oven

and the wall/door.

For oven support, install 2x4's

extending front to back flush with the

bottom and the side of the opening.

The supporting base must be well

secured to the floor/cabinet and level.

Note: The conduit box must be located

above the unit to facilitate connecting

and servicing.

The cabinet base must be flat and

capable of supporting a weight of at

least 355 Ibs (161 kg).

263/4"

(680turn) 2413/16"

(630ram)

22" (559mm)

483/8"

(1229rnrn)

(606turn)

491/2"

(1257mm)

Combo Oven with Microwave 27"

It is good practice, when oven is

installed at the end of a cabinet run,

adjacent to a perpendicular wall or

cabinet door, to allow at least 114"

space between the side of the oven

and the wall/door.

For oven support, install 2x4's

extending front to back flush with the

bottom and the side of the opening.

The supporting base must be well

secured to the floor/cabinet and level.

Note: The conduit box must be

located above the unit to facilitate

connecting and servicing.

The cabinet base must be flat and

capable of supporting a weight of at

least 330 Ibs (150 kg).

English 4

263/4"

(680ram)

60314"

(1543turn)

iiiiiiiiiiiiiiiiiiiiiiiiiiiiii

Combo Oven with Microwave and

Warming Drawer 27"

It is good practice, when oven is

installed at the end of a cabinet run,

adjacent to a perpendicular wall or

cabinet door, to allow at least 114"

space between the side of the oven

and the wall/door.

For oven support, install 2x4's

extending front to back flush with the

bottom and the side of the opening.

The supporting base must be well

secured to the floor/cabinet and level.

Note: The conduit box must be located

above the unit to facilitate connecting

and servicing.

The cabinet base must be flat and

capable of supporting a weight of at

least 370 Ibs (168 kg).

.._ 237/8" (606rnm)

(559rnrn)

27" Under-the-counter units

24"

(610ram)

281/4"

(718mm)

36"

(915mm)

263/4"

2413/16"

(630ram) 43/4"

(121mm)

English 5

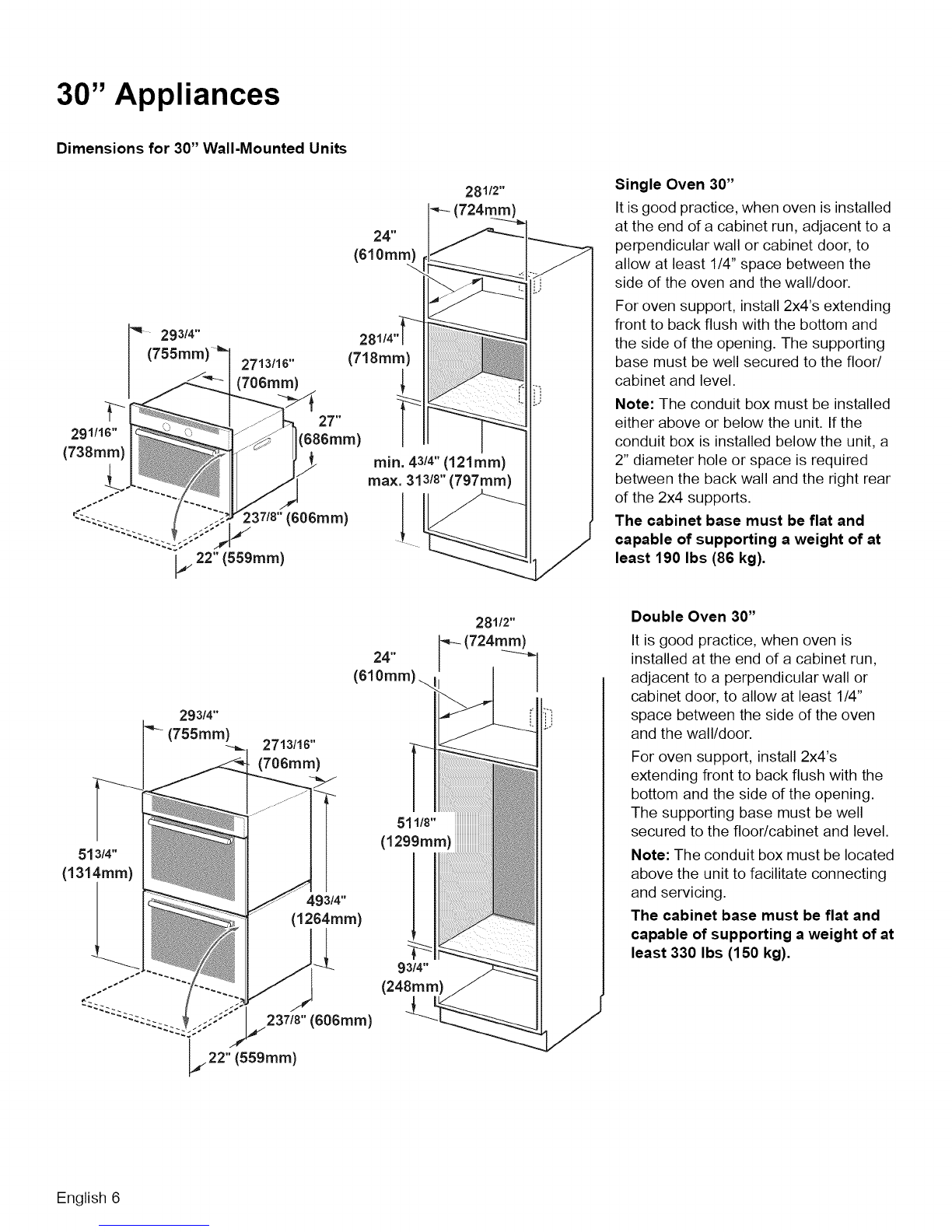

30" Appliances

Dimensions for 30" Wall-Mounted Units

2713/16"

(706ram)

24"

(610ram)

(718mm)

27"

(686ram)

237/8" (606rara)

22" (559mm)

rain. 43/4" (121ram)

max. 313/8"(7971

Single Oven 30"

It is good practice, when oven is installed

at the end of a cabinet run, adjacent to a

perpendicular wall or cabinet door, to

allow at least 1/4" space between the

side of the oven and the wall/door.

For oven support, install 2x4's extending

front to back flush with the bottom and

the side of the opening. The supporting

base must be well secured to the floor/

cabinet and level.

Note: The conduit box must be installed

either above or below the unit. If the

conduit box is installed below the unit, a

2" diameter hole or space is required

between the back wall and the right rear

of the 2x4 supports.

The cabinet base must be flat and

capable of supporting a weight of at

least 190 Ibs (86 kg).

293/4"

(755rara) 2713/16"

(706ram)

513/4"

(1314tara)

493/4"

(1264rara)

237/8" (606rara)

L¢ 22" (559rara)

511/8"

(1299ram)

93/4"

(248rara)

Double Oven 30"

It is good practice, when oven is

installed at the end of a cabinet run,

adjacent to a perpendicular wall or

cabinet door, to allow at least 1/4"

space between the side of the oven

and the wall/door.

For oven support, install 2x4's

extending front to back flush with the

bottom and the side of the opening.

The supporting base must be well

secured to the floor/cabinet and level.

Note: The conduit box must be located

above the unit to facilitate connecting

and servicing.

The cabinet base must be flat and

capable of supporting a weight of at

least 330 Ibs (150 kg).

English 6

2713/16"

(706ram)

50"

(1270mm) 483/8"

(1229mm)

22" (559mm)

(606ram)

491/2"

(1257mm)

191/2"

(500ram)

24"

(610ram) _ql

293/4"

(755mm)

2713/16"

(706ram)

613/8"

(1559rnm 595/8"

(1514mm)

93/4"

(248mm)

._ 237/8" (606rnm)

(559rnm)

Combo Oven with Microwave 30"

It is good practice, when oven is

installed at the end of a cabinet run,

adjacent to a perpendicular wall or

cabinet door, to allow at least 114"

space between the side of the oven

and the wall/door.

For oven support, install 2x4's

extending front to back flush with the

bottom and the side of the opening.

The supporting base must be well

secured to the floor/cabinet and level.

Note: The conduit box must be located

above the unit to facilitate connecting

and servicing.

The cabinet base must be flat and

capable of supporting a weight of at

least 290 Ibs (132 kg).

Combo Oven with Microwave and

Warming Drawer 30"

It is good practice, when oven is

installed at the end of a cabinet run,

adjacent to a perpendicular wall or

cabinet door, to allow at least 114"

space between the side of the oven

and the wall/door.

For oven support, install 2x4's

extending front to back flush with the

bottom and the side of the opening.

The supporting base must be well

secured to the floor/cabinet and level.

Note: The conduit box must be located

above the unit to facilitate connecting

and servicing.

The cabinet base must be flat and

capable of supporting a weight of at

least 310 Ibs (141 kg).

English 7

293/4"

(755mm)

281/2"

(610mm) _

2713/16"

Rm) 40" iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

(1016mm)

381/8"

(968mm)

93/4"

(248mm)

Combo Oven with Warming

Drawer 30"

It is good practice, when oven is

installed at the end of a cabinet run,

adjacent to a perpendicular wall or

cabinet door, to allow at least 114"

space between the side of the oven

and the wall/door.

For oven support, install 2x4's

extending front to back flush with the

bottom and the side of the opening.

The supporting base must be well

secured to the floor/cabinet and level.

Note: The conduit box must be located

above the unit to facilitate connecting

and servicing.

The cabinet base must be flat and

capable of supporting a weight of at

least 290 Ibs (132 kg).

_ 237/8" (606rnrn)

22" (559rnrn)

30" Under-the-counter-Units

24"

(610ram)

161/2"

293/4"

281/4"

(718mm)

2713/16"

281/2"

43/4"

(121mm)

English 8

Other manuals for HBL33

This manual suits for next models

Table of contents

Languages:

Other Bosch Oven manuals

Bosch

Bosch HBA73R1 0B Series User manual

Bosch

Bosch CMG7241B1M User manual

Bosch

Bosch HBN53B550B User manual

Bosch

Bosch MBA5785 6B Series User manual

Bosch

Bosch HBA334B 0 Series User manual

Bosch

Bosch HBN311 1J Series User manual

Bosch

Bosch HBA 78B7.0 User manual

Bosch

Bosch HBG634B Series User manual

Bosch

Bosch HBG78B9.0 User manual

Bosch

Bosch MHS113B 0B Series User manual

Bosch

Bosch HRG7784 1 Series User manual

Bosch

Bosch HBN331 9B Series User manual

Bosch

Bosch HBT578FS1A User manual

Bosch

Bosch HBA573B 1 Series User manual

Bosch

Bosch HRA 34 Series User manual

Bosch

Bosch HBF011BR0 User manual

Bosch

Bosch VBD578FS0 User manual

Bosch

Bosch HBJ534ES0 Series User manual

Bosch

Bosch HBA63B258F User manual

Bosch

Bosch HBL5720UC - 30 Inch Microwave Combination Wall... User manual

Bosch

Bosch HBN 97 Series Wiring diagram

Bosch

Bosch HBN301 2S Series User manual

Bosch

Bosch CMG676B 1 Series User manual

Bosch

Bosch HIJN17EW0R User manual

Popular Oven manuals by other brands

Electrolux

Electrolux EOF6P46X user manual

NEFF

NEFF B44S32 5GB Series instruction manual

Combi

Combi BLODGETT BC142GDS Specifications

AEG

AEG COMPETENCE 311704300 Installation and operating instructions

Falcon

Falcon DOMINATOR PLUS G3106 Series Servicing instructions

Rational

Rational SCC WE 61G installation manual

Smeg

Smeg DOSPA38X User manuals

Electrolux

Electrolux air-o-convect 20 GN 2/1 user manual

Miele

Miele HR 1954-2 operating instructions

KHIND

KHIND OT50 instruction manual

Henny Penny

Henny Penny Smoker Box installation manual

Lang

Lang ECOD-AP Installation and operation instructions

AEG

AEG BEK455310M user manual

Frigidaire

Frigidaire FNGE90JGR user manual

Hotpoint

Hotpoint FE9 S831 JSH IX user manual

GE Advantium SCB2000 owner's manual

AEG

AEG DE401301DM user manual

DeLonghi

DeLonghi XA660 Directions for use
