Safety
Danger!
Electricity
Injuries due to electricity are possible if the system is not operated correctly or if the system
is opened or modified.
– Never open or modify the system.
– Please contact your installer if you want to get your system modified.
!
Caution!
Sensitive components
Damage of sensitive components is possible if the system is not handled carefully or if the
system is opened or modified.
– Always handle the system carefully.
– Never open or modify the system.
–Please contact your installer if you want to get your system modified.
1
AMAX Safety | en 5
Bosch Sicherheitsysteme GmbH User Guide 2014.09 | 03 | F.01U.295.569
Short information
Introduction
This User Guide contains information on how to operate the system easily and quickly. The
guide describes the main steps required for operation of the AMAX panel 2100/3000/4000
together with a text and/or a LED/LCD keypad described in Keypads, page 7. It is possible
to add an optional text keypad as a master keypad.
Detailed information about the installation of this and other modules and devices, advanced
settings and programming can be found in the Installation Guide. Information on the main
steps required for basic system installation and setup can be found in the Quick Start Guide.
2
2.1
6en | Short information AMAX
2014.09 | 03 | F.01U.295.569 User Guide Bosch Sicherheitsysteme GmbH
Keypads

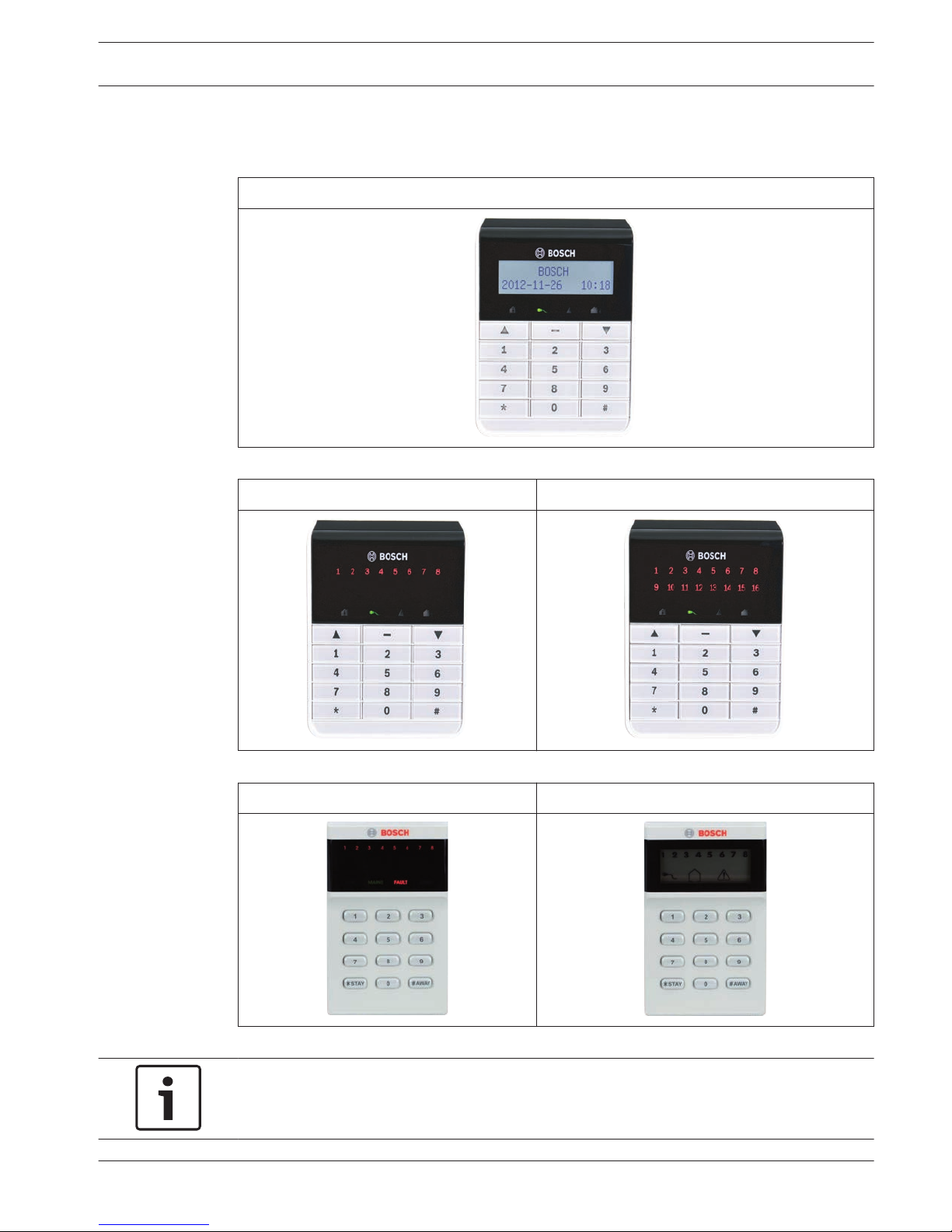

The following text keypad can be used for operating AMAX panel 2100/3000/4000.
IUI-AMAX4-TEXT
The following LED/LCD keypads can be used for operating AMAX panel 2100/3000/4000.
IUI-AMAX3-LED8 IUI-AMAX3-LED16
IUI-AMAX-LED8 IUI-AMAX-LCD8
Notice!
Only a text keypad can be used as a master keypad.
2.2
AMAX Short information | en 7
Bosch Sicherheitsysteme GmbH User Guide 2014.09 | 03 | F.01U.295.569
Keypad Indicators

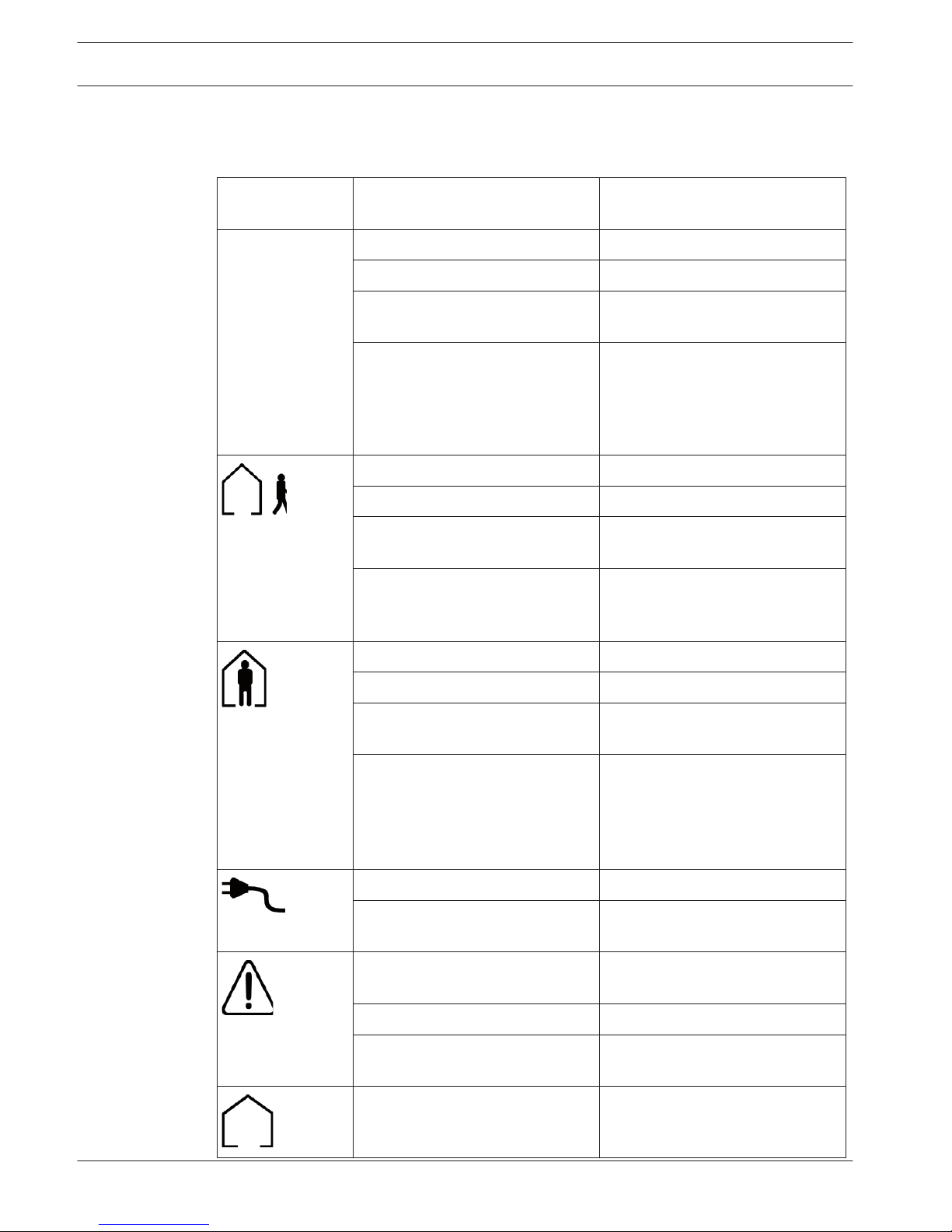

The following table shows an overview and a description of the keypad indicator icons.
Keypad Indicator
Icons
Status Definition
1 2 3 ….
ZONE (1-8)
on Zone is triggered.
off Zone is normal.
Fast flash (0.25 seconds lights on/
0.25 seconds lights off)
Zone was alarmed or is in alarm
status.
Slow flash (1 second lights on/1
second lights off)
Zone is manually bypassed or
interior Zone is in STAY arm mode.
AWAY
on System is armed in AWAY mode.
off System not armed in AWAY mode.
Slow flash (1 second lights on/1
second lights off)
Exit time.
Fast flash (0.25 seconds lights on/
0.25 seconds lights off)
Programming mode or code
function mode. STAY indicator
flashes simultaneously.
STAY
on System is armed in STAY mode.
off System not armed in STAY mode.
Slow flash (1 second lights on/1
second lights off)
Exit time.
Fast flash (0.25 seconds lights on/
0.25 seconds lights off)
Programming mode or code
function mode. AWAY indicator
flashes simultaneously. When
bypass function is performed, only
the STAY indicator flashes.
MAINS
on AC main power is normal.
Slow flash (1 second lights on/1
second lights off)
AC main power supply failed.
FAULTS
on System fault or Tamper condition
is present.
off System is in normal status.
Flashes System fault or tamper condition
must be acknowledged.
on System is disarmed.
2.3
8en | Short information AMAX
2014.09 | 03 | F.01U.295.569 User Guide Bosch Sicherheitsysteme GmbH
The following table shows an overview and a description of the keypad sound icons.
Sound Indicator Definition
Short beep A keypad button has been pressed.
Short beep, followed by a one-second
beep
The requested operation is refused. Incorrect
operation signal.
Two short beeps The system accepted the code. The system executed
the requested function.
One short beep every minute Fault tone, unacknowledged system failure.
One short beep every two seconds Exit time started.
Continued sound – Last 10 seconds on exit time
–Keypad fault or tamper sound (fault or tamper
to be acknowledged)
–Keypad alarm sound
Continuous 0.5 second beep, stops
for 0.5 seconds
– Entry delay time (until alarm ends or system is
disarmed)
– Exit delay time (stops 10 seconds before exit
delay stops)
AMAX Short information | en 9
Bosch Sicherheitsysteme GmbH User Guide 2014.09 | 03 | F.01U.295.569
Quick Keypad Operations Instructions
The following table shows an overview of the quick keypad operations and the corresponding
user permissions. For information on changing codes and defining user permission levels,
please refer to Codes, page 24.
Function Command
Default User Code = 2580
D A B S M
1
M
2
I
N
Arm/Disarm
AWAY Arm [code] + [#] / [#] for 3 sec. (quick arm) √ √ √ √ √ √ √
AWAY Arm All Areas (only
on master keypad)
[code] + [0] [0] + [#] √ √ √ √ √ √ √
Direct AWAY Arm (only on
master keypad
[code] + [2-digit area no.] + [#] √ √ √
STAY Arm [code] + [*] / [*] for 3 sec. (quick arm) √ √ √ √ √ √ √
STAY Arm All Areas (only
on master keypad)
[code] + [0] [0] + [*] √ √ √ √ √ √ √
Direct STAY Arm (only on
master keypad
[code] + [2-digit area no.] + [*] √ √ √
Disarm [code] + [#] √ √ √ √ √ √
Disarm All Areas (only on
master keypad)
[code] + [#] √ √ √ √ √ √
Display
Display Info (Fault/Tamper
Analysis)
[code] + [2] [1] + [#] √ √ √
Bypass
Bypass/Unbypass Zone [code] + [3] [1] + [#] + [2-digit zone no.]
+ [#]
√√√√√
Bypass Fault/Tamper [code] + [3] [4] + [#] √ √ √
Reset
Reset Fault/Tamper (In
some country versions only
the installer can reset a
tamper alarm)
[code] + [6] + [#] √ √ √
Macros
Record Macro 1 [code] + [8] [1] + [#] + operation + [#]
for 3 sec.
√ √ √ √
2.4
10 en | Short information AMAX
2014.09 | 03 | F.01U.295.569 User Guide Bosch Sicherheitsysteme GmbH
Other manuals for AMAX 2100
