Bosch DCN multimedia User manual
DCN multimedia
Conference System
en User manual
Table of contents
1Safety 4
2About this manual 5
2.1 Intended audience 5
2.2 Copyright and disclaimer 5
2.3 Document history 5
3System introduction 6
4DCNM-MMD Multimedia Device 7
4.1 Microphone operation 8
4.2 Touch-screen operation 10
4.2.1 Home screen 10
4.2.2 Meeting overview screen 11
4.2.3 Meeting screen 11
4.2.4 Discussion screen 12
4.2.5 Discussion settings screen 13
5Troubleshooting 14
DCN multimedia Table of Contents | en 3
Bosch Security Systems B.V. User manual 2013-08 | V1.0 |
Safety
You should regularly check the equipment for wear and damage. Pay particular attention to
the following:
–LCD screen: Check for cracks.
–Cables: If the outer insulation is damaged, the cable must be replaced.
–Connectors: Check for signs of stretching and damage.
If you think the equipment is damaged or presents a potential hazard, you should label the
equipment and put it to one side, so that no‑one else can use it. Then contact your local
technician for further advice.
1
4en | Safety DCN multimedia
2013-08 | V1.0 | User manual Bosch Security Systems B.V.
About this manual
The purpose of this manual is to provide information required for operating the DCN
multimedia Multimedia Device.
This manual is available as a digital document in the Adobe Portable Document Format (PDF).
Refer to the product related information at: www.boschsecurity.com.
Intended audience
This manual is intended for users of a DCN multimedia Multimedia Device.
Copyright and disclaimer
All rights reserved. No part of this document may be reproduced or transmitted in any form by
any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior
written permission of the publisher. For information on getting permission for reprints and
excerpts, contact Bosch Security Systems B.V..
The content and illustrations are subject to change without prior notice.
Document history
Release date Documentation version Reason
2013.08 V1.0 1st edition.
2
2.1
2.2
2.3
DCN multimedia About this manual | en 5
Bosch Security Systems B.V. User manual 2013-08 | V1.0 |
System introduction
The DCN multimedia system is an IP based conference system which runs on an OMNEO
compatible Ethernet network. It is used for distributing and processing audio, video and data
signals.
3
6en | System introduction DCN multimedia
2013-08 | V1.0 | User manual Bosch Security Systems B.V.
DCNM-MMD Multimedia Device
The Multimedia Device has a high‑resolution capacitive touch‑screen, which provides the user
interface for the meeting. You can browse through information about the topic being
discussed, consult meeting subject lists, agendas, and look up details about the speaker. In
addition, if cameras are integrated into the system, you can also see who is speaking.
3287
1 5 69 4
Listening
12‑way loudspeakers.
2Headphone volume.
3Headphone connection.
Speaking
Microphone operation, page 8
4Microphone on air led strip.
5Microphone LED (bi‑color).
6Microphones.
7Priority / Microphone mute / Power on button (3 functions in one button).
8Microphone button.
Touch‑screen
Touch-screen operation, page 10
9Touch‑screen.
4
DCN multimedia DCNM-MMD Multimedia Device | en 7
Bosch Security Systems B.V. User manual 2013-08 | V1.0 |
Microphone operation
Button options:
–Off: Microphone mute button for participant.
–White: Priority button for chairperson.
–Red: Power on button.
Posible‑to‑speak mode:
Pressing the microphone button will enable the microphone without being queued in the
waiting list:
– When the white light in the microphone button is on:
– You can always enable the microphone.
– You will not be queued in the waiting list.
To enable the microphone:
Push the microphone button to enable the microphone of your Multimedia Device:
– If the red light above the microphone button comes on, the microphone is activated and
you can speak.
– If the green light above the microphone button comes on, your request‑to‑speak is
accepted and you are placed in the waiting list:
–Green on: In the waiting list.
–Green flashing: First in the waiting list.
– You cannot speak until the red light above the microphone button comes on.
To cancel a request‑to‑speak:
When the green light above the microphone button is on, push the microphone button to
cancel the request‑to‑speak:
– The system operator has the possibility to cancel the request‑to‑speak.
4.1
8en | DCNM-MMD Multimedia Device DCN multimedia
2013-08 | V1.0 | User manual Bosch Security Systems B.V.

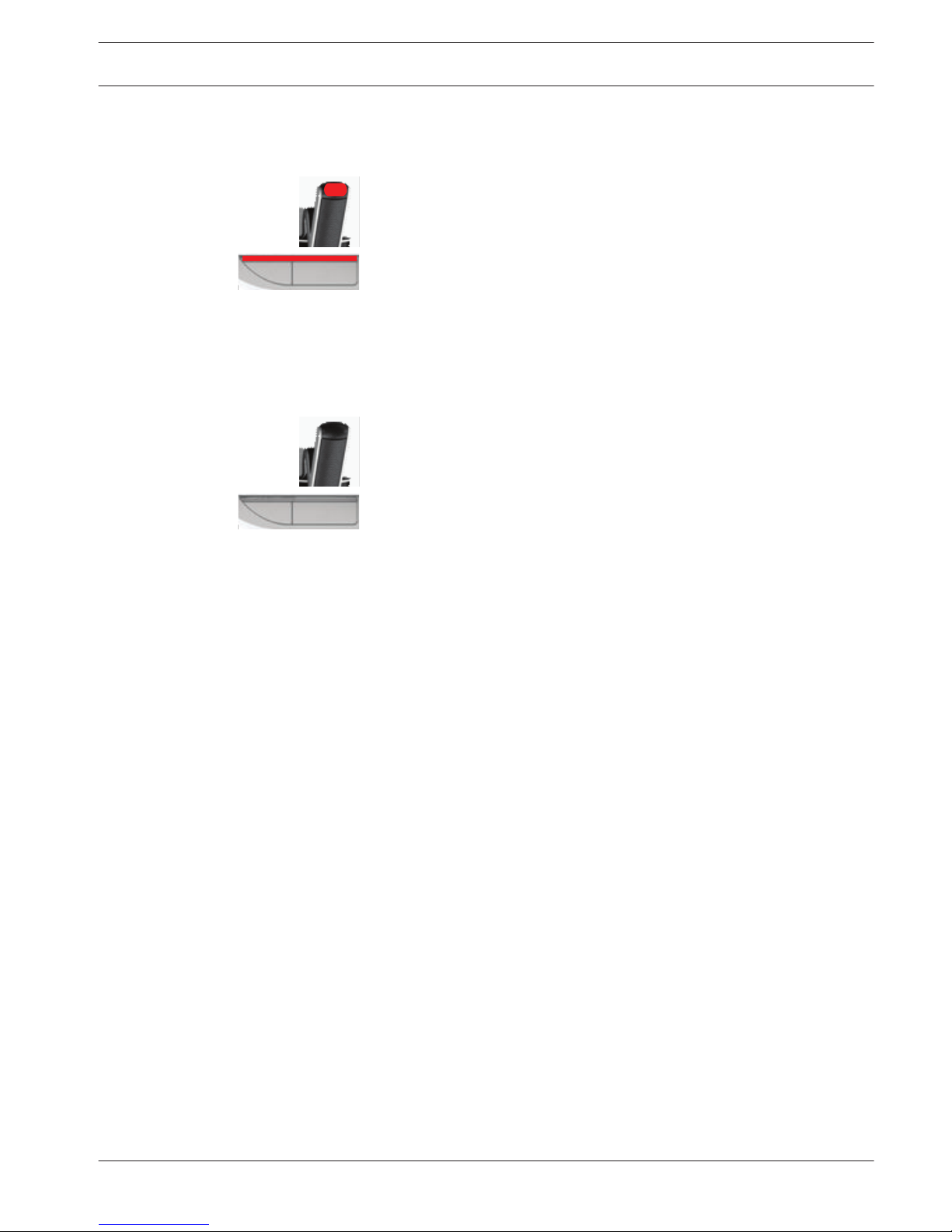

To disable the microphone:
When the red light above the microphone button is on, push the microphone button to disable
the microphone. The red light above the microphone button goes off:
– The system operator has the possibility to disable the microphone.
Push-To-Talk (PTT) mode:
When your Multimedia Device is in the Push-To-Talk mode, the microphone is enabled as long
as you push your microphone button:
DCN multimedia DCNM-MMD Multimedia Device | en 9
Bosch Security Systems B.V. User manual 2013-08 | V1.0 |
Touch-screen operation
The touch‑screen of the DCNM‑MMD Multimedia Device is used to participate in a meeting,
and/or manage meetings within the DCN multimedia system.
Home screen
Depending on the authorizations, some items might not be present.
1 2 4 53 6
7 8 9 10 11 12
12.3
12.2
12.1
1 Name of the active meeting or agenda topic.
2 Meetings overview button: See Meeting overview screen, page 11.
3Seat name or participant name is shown here.
4 Web browser button: Opens a web browser.
5 Power off button: Switches off the system.
6 Time & Date.
7 Home button: Returns you to the home screen.
8 Back button: Navigates one step back in the navigation history.
9 Back to active button: Brings you to the active part of the meeting.
10 Headphone button: Opens the headphone volume control. The control disappears
automatically after 3 seconds when not used.
11 Master volume control button: Opens the volume control. The control disappears
automatically after 3 seconds when not used.
12 Menu button: Opens a menu for additional functionality:
12.1 Summon button: Activates a chime to summon the participants.
12.2 Configure button: Opens the discussion settings screen. See Discussion settings
screen, page 13.
12.3 Presentation button: Activates the presentation mode.
4.2
4.2.1
10 en | DCNM-MMD Multimedia Device DCN multimedia
2013-08 | V1.0 | User manual Bosch Security Systems B.V.
