Bonnet EQUATOR User manual

EQUATOR

COMBINATION OVENS

GAS

MECHANICAL&ELECTRONIC

MANUFACTURER’S INSTRUCTIONS

Part A: Technical data

Part B: Installation manual

WARNING -

•

Installation and repairs must be carried out by personnel approved by the manufacturer and in

accordance with current regulations and standards.

•

If any modifications are made the manufacturer can accept no responsibility whatsoever.

•

These appliances must be used in a well-ventilated area.

•

Read the notice carefully before installation.

•

The unit must be kept on its base for handling until it is in it’s final location.

N° 390 247c

Page 1

BONNET CIDELCEM GRANDE CUISINE

Siége social:

Rue des Frères Lumière - Z.I Mitry Compans

77292 MITRY MORY Cedex

CONTENTS

GAS COMBINATION OVENS

MECHANICAL & ELECTRONIC

A) TECHNICAL DATA .....…..………………….......................................….. 2

B) INSTALLATION MANUAL

1. Location of the identification plate .………........................................... 11

2. Installation: General features …………….……………..………………... 12

2.1 General requirements …….……….……...….……...…...………..... 12

2.2 Handling ……….....…………………………………..….……………. 12

2.3 Unpacking ………...……..…………………………….………….…... 12

3. Installation: Connections ……………………………..………………...…. 13

3.1 Electric connection ……………..…...……...………..…………........ 13

3.2 Gas connection ………...……..………….…………………..………. 13

3.3 Water connection ………...……...…………………………..……..... 14

3.4 Drain connection ……….……………………………...……………... 15

4. Changing the appliance from one gas to another ………………..…..… 17

Page 2

BONNET CIDELCEM GRANDE CUISINE

Siége social:

Rue des Frères Lumière - Z.I Mitry Compans

77292 MITRY MORY Cedex

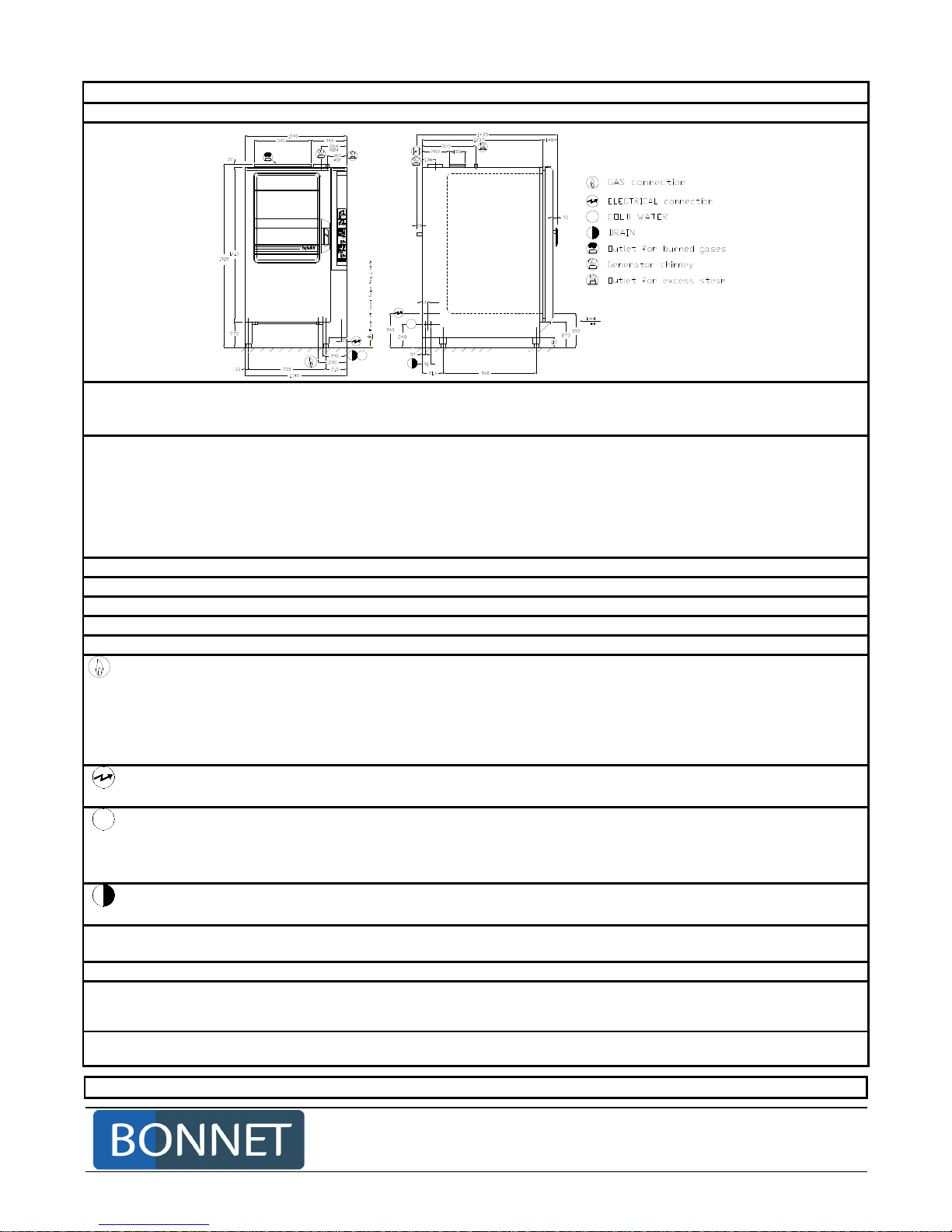

A: TECHNICAL DATA

P120E21:

Equator, Mechanical direct injection MIDG 6 1/1 Gas

DIMENSIONS (mm) Outside Height 995; Width 985, Depth 890

Cavity Height 860; Width 630; Depth 555

Vision panel

Height 455; Width 555

CAPACITIES

Effective cavity volume (dm3) 193

GN 1/1 trays (325 x 530) 6

Shelf spacing (mm) 80

Maximum capacity (kg) 24

PACKAGING (mm) Height 1300; Width 1150; Depth 1050

WEIGHT (kg) 130

CLEARANCES Left: 4 cm; Right: 4 cm; Rear: 5 cm

TEMPERATURE RANGE 50 - 250°C

TIMER 0 to 120 minutes

GAS 16.5 kW 15.5 kW

Type Pressure Flow Flow

G 31 Propane 50/37 mb 1.28 kg/h -

G 30 Butane 50/28 mb 1.3 kg/h -

G 20 Natural gas 20 mb 1.73 m3/h -

G 25 Natural gas 20 mb 2.03 m3/h -

G 25 Natural gas 25 mb - 1.73 m3/h

ELECTRICITY

I. Max (A)

Power (kW)

230 V a.c. Single phase 230V+E 1.5 0.3

COLD WATER Max. 7°TH (70 ppm)

Pressure (Min / Max) 250/600 kPa (2.5 bar / 6 bar)

Maximum temperature 20°C

Connection 20/27mm pipe

DRAIN Copper bend 32 mn diameter

Condensate temperature Approx. 98°C

CONSTRUCTION

Casing and Cavity 18-10 Stainless steel

MATERIAL TYPE

Free standing not stackable

GAS CONNECTION

815 mm from floor (20/27 mm Pipe)

Equipment is supplied as standard for G 20/20 mbar (and G 25/25 mbar) or other gas if required.

ELECTRICAL CONNECTION

850 mm from floor Non-contractual document Edition 07/1999 - EN117

Page 3

BONNET CIDELCEM GRANDE CUISINE

Siége social:

Rue des Frères Lumière - Z.I Mitry Compans

77292 MITRY MORY Cedex

Equator, Mechanical direct injection MIDG 10 1/1 Gas

P120E22

DIMENSIONS (mm) Outside Height 1275; Width 985, Depth 940

Cavity Height 897; Width 630; Depth 555

Vision panel

Height 790; Width 555

CAPACITIES

Effective cavity volume (dm3) 313

GN 1/1 trays (325 x 530) 10

Shelf spacing (mm) 80

Maximum capacity (kg) 40 kg

PACKAGING (mm) Height 1800; Width 1150; Depth 1100

WEIGHT (kg) 178

CLEARANCES Left: 4 cm; Right: 4 cm; Rear: 5 cm

TEMPERATURE RANGE 50 - 250°C

TIMER 0 to 120 minutes

GAS 25 kW 23 kW

Type Pressure Flow Flow

G 31 Propane 50/37 mb 1.97 kg/h -

G 30 Butane 50/28 mb 1.95 kg/h -

G 20 Natural gas 20 mb 2.65 m3/h -

G 25 Natural gas 25 mb 3.1 m3/h -

G 25 Natural gas 20 mb - 2.65 m3/h

ELECTRICITY

I. Max (A)

Power (kw)

230 V a.c. Single phase 230V+E 1.5 0.3

COLD WATER Max. 7°TH (70 ppm)

Pressure (Min / Max) 250/600 kPa (2.5 bar / 6 bar)

Maximum temperature 20°C

Connection 20/27mm pipe

DRAIN Copper bend 32 mm diameter

Condensate temperature Approx. 98°C

CONSTRUCTION

Casing and Cavity 18-10 Stainless steel

MATERIAL TYPE

Free standing not stackable

GAS CONNECTION

815 mm from floor (20/27 mm Pipe)

Equipment is supplied as standard for G 20/20 mbar (and G 25/25 mbar) or other gas if required.

ELECTRICAL CONNECTION

850 mm from floor Non-contractual document Edition 07/1999 - EN118

Page 4

BONNET CIDELCEM GRANDE CUISINE

Siége social:

Rue des Frères Lumière - Z.I Mitry Compans

77292 MITRY MORY Cedex

Equator, Mechanical direct injection, MIDG 20 1/1 Gas

P120E23

DIMENSIONS (mm) Outside Height 1925; Width 1040, Depth 1110

Cavity Height 1465; Width 630; Depth 565

Vision panel

Height 800; Width 555

CAPACITIES

Effective cavity volume (dm3) 521

GN 1/1 trays (325 x 530) 20

Maximum depth of trays (mm) 55

Shelf spacing (mm) 64

Maximum capacity (kg) 80

PACKAGING (mm) Height 2100; Width 1150; Depth 1250

WEIGHT (kg) 360

CLEARANCES Left: 4 cm; Right: 50 cm; Rear: 50 cm

TEMPERATURE RANGE 50 - 250°C

TIMER 0 to 120 minutes

GAS 34 kw

Type Pressure Flow

G 31 Propane 50/37 mb 2.6 kg/h

G 30 Butane 50/28 mb 2.7 kg/h

G 20 Natural gas 20 mb 3.6 m3/h

G 25 Natural gas 20 / 25mb 4.2 m3/h

ELECTRICITY I. Max (A) Power (kw)

230 V a.c. Single phase 230V+E 3.8 0.7

COLD WATER Max. 7°TH (70 ppm)

Pressure (Min / Max) 250/600 kPa (2.5 bar / 6 bar)

Maximum temperature 20°C

Connection 15/21 pipe

DRAIN Copper bend 32 mm diameter

Condensate temperature Approx. 98°C

CONSTRUCTION

Casing and Cavity 18-10 Stainless steel

MATERIAL TYPE

Free standing not stackable

GAS CONNECTION

275 mm from floor (20/27 mm Pipe)

Equipment is supplied as standard for G 20/20 mbar or other gas if required.

ELECTRICAL CONNECTION

275 mm from floor Non-contractual document Edition 07/1999 - EN121

Page 5

BONNET CIDELCEM GRANDE CUISINE

Siége social:

Rue des Frères Lumière - Z.I Mitry Compans

77292 MITRY MORY Cedex

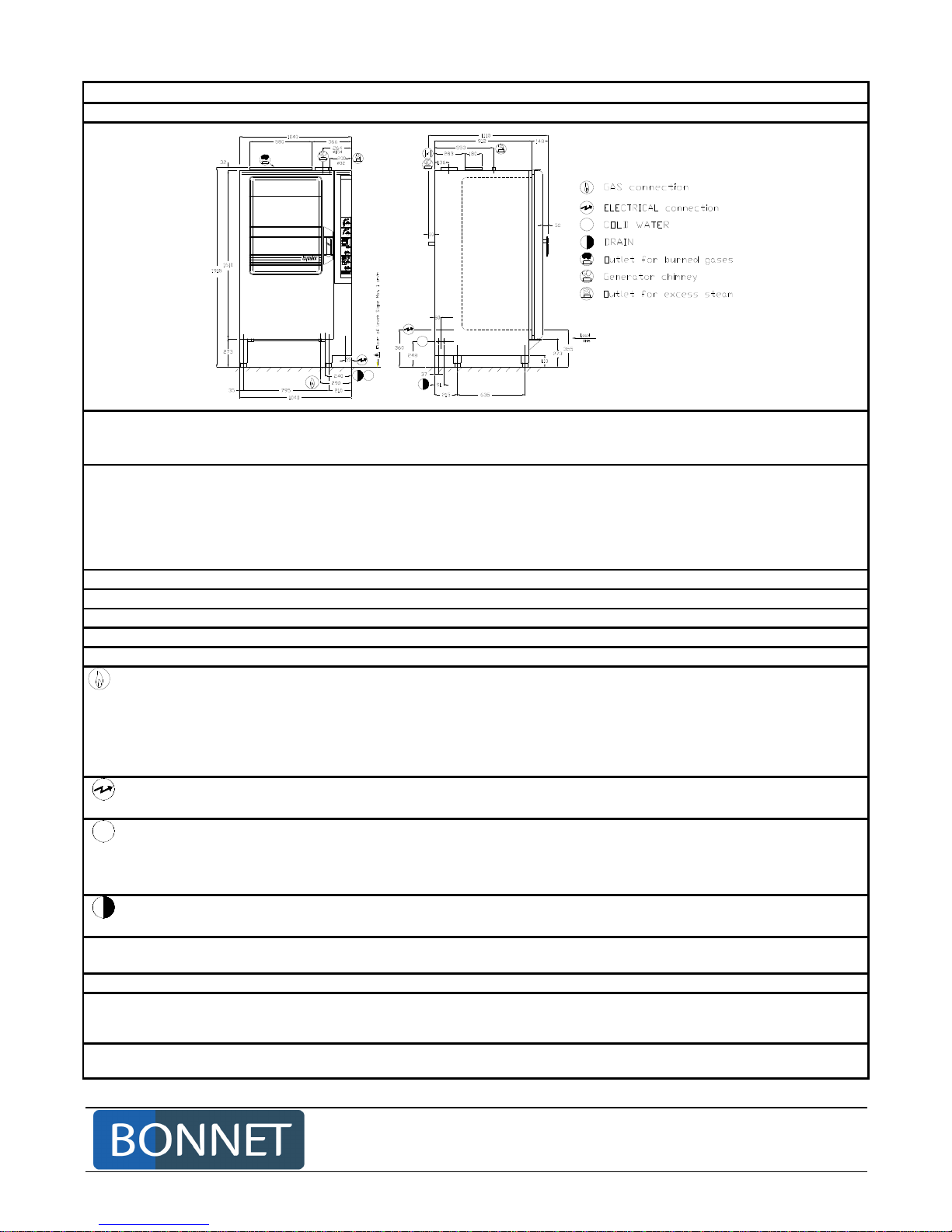

Equator, Electronic with boiler, ECG 20 1/1 Gas

P130E23

DIMENSIONS (mm) Outside Height 1915; Width 1040, Depth 1110

Cavity Height 1465; Width 630; Depth 565

Vision panel

Height 800; Width 555

CAPACITIES

Effective cavity volume (dm3) 581

GN 1/1 trays (325 x 530) 20

Maximum depth of trays (mm) 55

Shelf spacing (mm) 64

Maximum capacity (kg) 80

PACKAGING (mm) Height 2100; Width 1150; Depth 1250

WEIGHT (kg) 395

CLEARANCES Left: 4 cm; Right: 50 cm; Rear: 50 cm

TEMPERATURE RANGE 0 - 250°C in dry cooking position

TIMER 99 hours

GAS 64 kw

Type Pressure Flow

G 31 Propane 50/37 mb 5 kg/h

G 30 Butane 50/28 mb 5 kg/h

G 20 Natural gas 20 mb 6.8 m3/h

G 25 Natural gas 20 / 25mb 7.9 m3/h

ELECTRICITY I. Max (A) Power (kw)

230 V a.c. Single phase 230V+E 3.8 0.7

COLD WATER Max. 7°TH (70 ppm)

Pressure (Min / Max) 250/600 kPa (2.5 bar / 6 bar)

Maximum temperature 20°C

Connection 15/21 pipe

DRAIN Copper bend 32 mm diameter

Condensate temperature Approx. 98°C

CONSTRUCTION

Casing and Cavity 18-10 Stainless steel

MATERIAL TYPE

Free standing not stackable

GAS CONNECTION

275 mm from floor (20/27 mm Pipe)

Equipment is supplied as standard for G 20/20 mbar or other gas if required.

ELECTRICAL CONNECTION

275 mm from floor Non-contractual document Edition 07/1999 - EN124

Page 6

BONNET CIDELCEM GRANDE CUISINE

Siége social:

Rue des Frères Lumière - Z.I Mitry Compans

77292 MITRY MORY Cedex

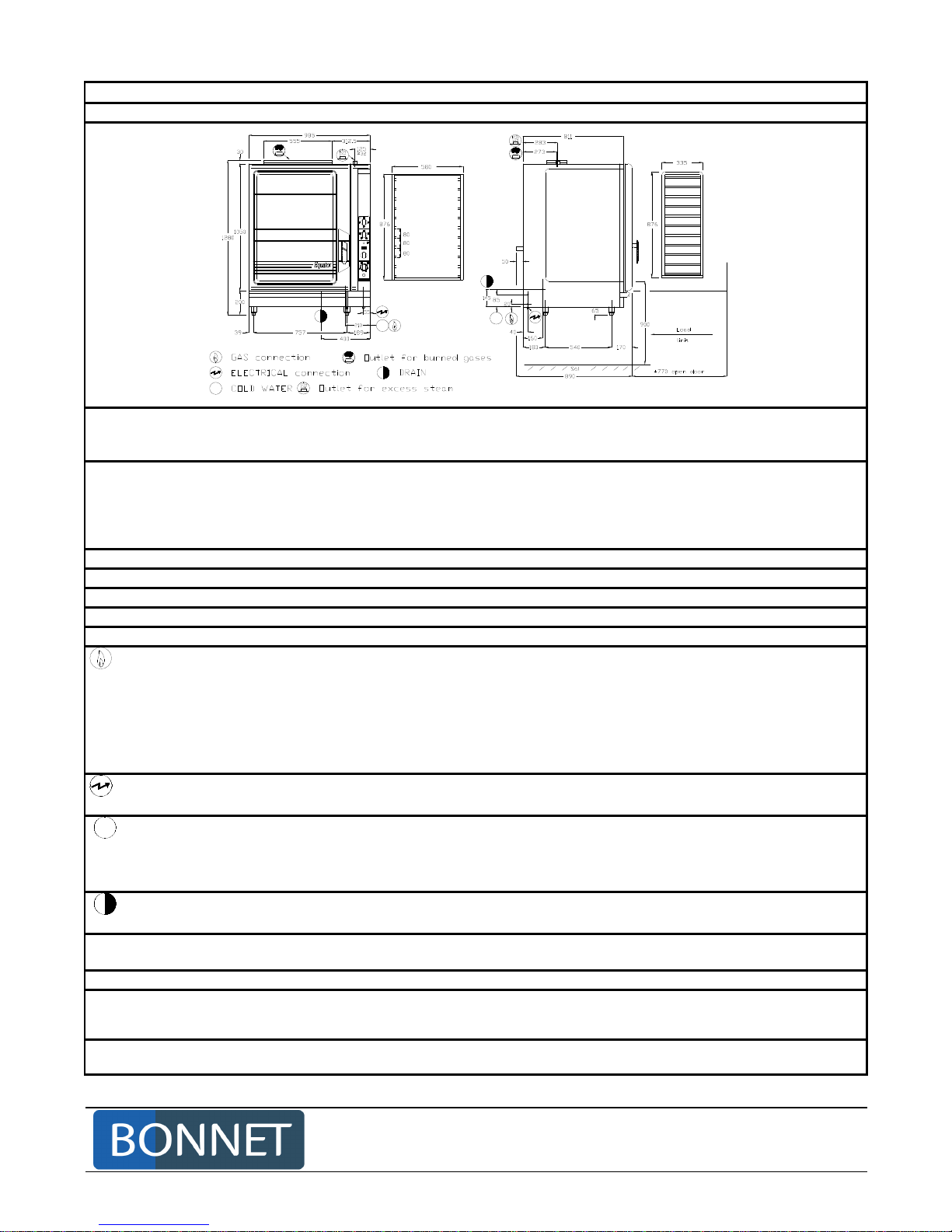

Equator, Electronic with boiler, ECG 20 2/1 Gas

P130E33

DIMENSIONS (mm) Outside Height 1915; Width 1040, Depth 1435

Cavity Height 1465; Width 630; Depth 955

Vision panel

Height 800; Width 555

CAPACITIES

Effective cavity volume (dm3) 881

GN 1/1 trays (325 x 530) 40

GN 2/1 trays (650 x 530) 20

Maximum depth of trays (mm) 55

Shelf spacing (mm) 64

Maximum capacity (kg) 160

PACKAGING (mm) Height 2100; Width 1150; Depth 1550

WEIGHT (kg) 435

CLEARANCES Left: 4 cm; Right: 50 cm; Rear: 50 cm

TEMPERATURE RANGE 0 - 250°C in dry cooking position

TIMER 99 hours

GAS 64 kw

Type Pressure Flow

G 31 Propane 50/37 mb 5 kg/h

G 30 Butane 50/28 mb 5 kg/h

G 20 Natural gas 20 mb 6.8 m3/h

G 25 Natural gas 20 / 25mb 7.9 m3/h

ELECTRICITY I. Max (A) Power (kw)

230 V a.c. Single phase 230V+E 3.8 0.7

COLD WATER Max. 7°TH (70 ppm)

Pressure (Min / Max) 250/600 kPa (2.5 bar / 6 bar)

Maximum temperature 20°C

Connection 15/21 pipe

DRAIN Copper bend 32 mm diameter

Condensate temperature Approx. 98°C

CONSTRUCTION

Casing and Cavity 18-10 Stainless steel

MATERIAL TYPE

Free standing not stackable

GAS CONNECTION

275 mm from floor (20/27 mm Pipe)

Equipment is supplied as standard for G 20/20 mbar or other gas if required.

ELECTRICAL CONNECTION

275 mm from floor Non-contractual document Edition 07/1999 - EN125

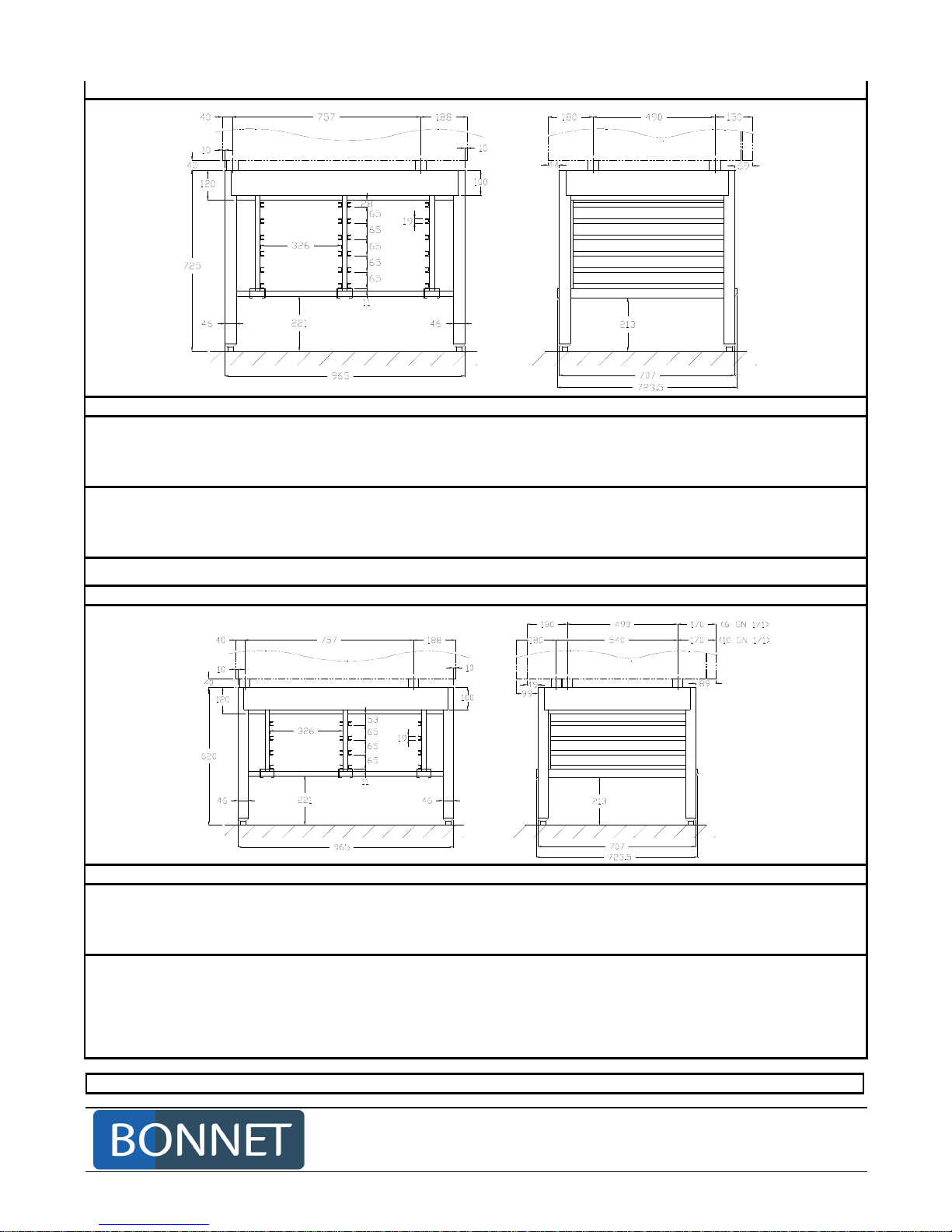

Equator, Stands for ovens 6 and 10 levels

Page 7

BONNET CIDELCEM GRANDE CUISINE

Siége social:

Rue des Frères Lumière - Z.I Mitry Compans

77292 MITRY MORY Cedex

P101E41

MODEL Stand for electric oven

DIMENSIONS (mm)

Height 725

Width 965

Depth 723.5

PACKAGING (mm)

Height 850

Width 1000

Depth 900

WEIGHT (kg) 45

P101E42

MODEL Stand for gas ovens

DIMENSIONS (mm)

Height 620

Width 965

Depth 723.5

PACKAGING (mm)

Height 750

Width 1000

Depth 900

WEIGHT (kg) 40

Non-contractual document Edition 07/1999 - EN126

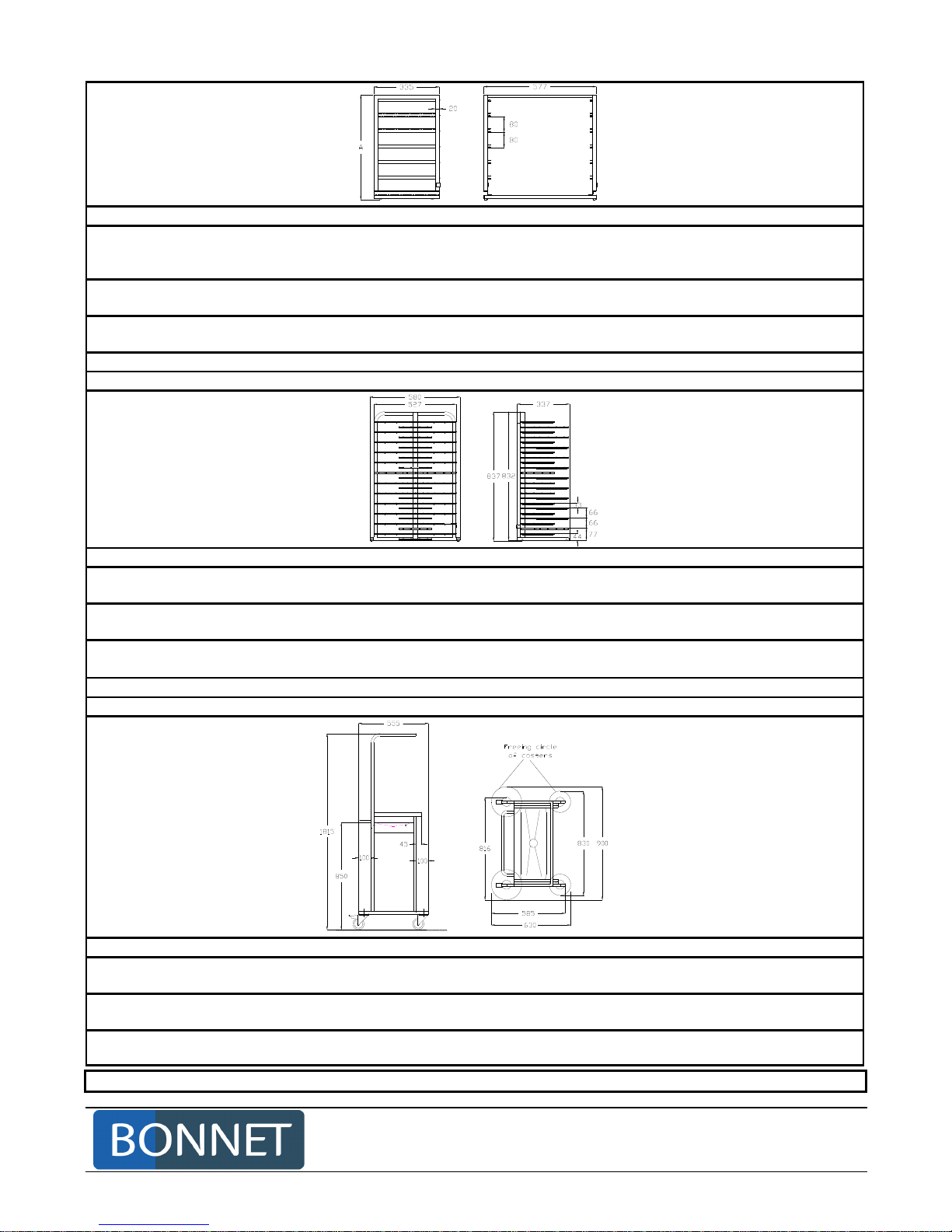

Module with runners

Page 8

BONNET CIDELCEM GRANDE CUISINE

Siége social:

Rue des Frères Lumière - Z.I Mitry Compans

77292 MITRY MORY Cedex

MODEL P077074: 6 levels P077075: 10 levels

DIMENSION (mm)

Height A 708 858

Width x Depth 577 x 335

WEIGHT (kg)

Emply / Max. load 6 / 30 11 / 51

CAPACITY

GN 1/1 trays 6 10

PACKAGING (mm) Height 800; Width 600; Depth 400 Height 900; Width 600; Depth 400

P077073: Plates module

MODEL 12 levels

DIMENSION (mm)

Height x Width x Depth 837 x 580 x 337

WEIGHT (kg)

Emply / Max. load 17 / 57

CAPACITY

Plates ∅285 36

PACKAGING (mm) Height 900; Width 600; Depth 350

Set down table with cover support

MODEL P077077: For module 6 levels P0770787: For module 10 levels

DIMENSION (mm)

Height x Width x Depth 1815 x 630 x 555

WEIGHT (kg)

Emply / Max. load 13 / 43 13 / 64

PACKAGING (mm) Height 2000; Width 700; Depth 600

Non-contractual document Edition 10/2000 – EN127

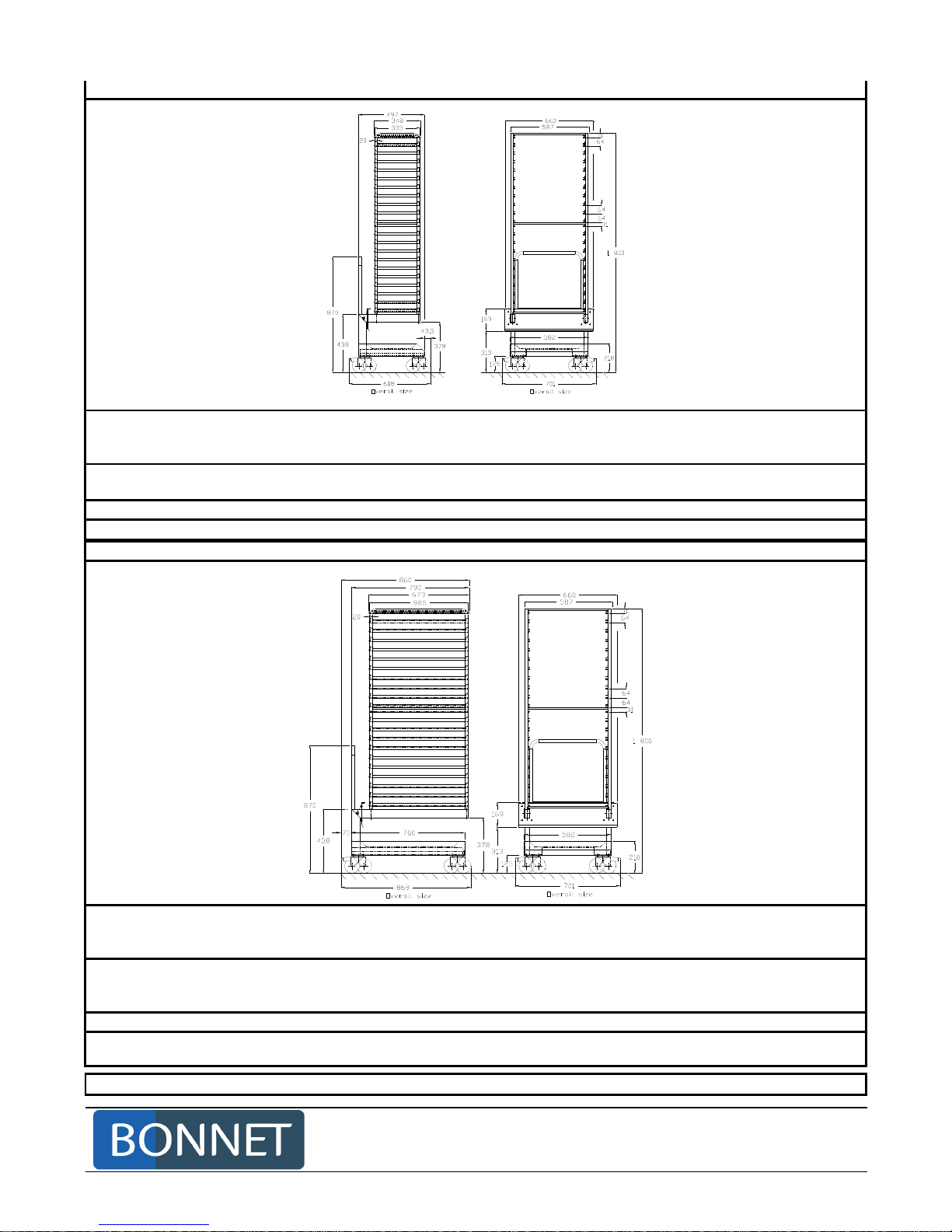

Equator, 20 level manual handling trolleys

Page 9

BONNET CIDELCEM GRANDE CUISINE

Siége social:

Rue des Frères Lumière - Z.I Mitry Compans

77292 MITRY MORY Cedex

P101E51

DIMENSIONS (Outside (mm)) Height 1800; Width 660, Depth 565

Well Height 35; Width 444; Depth 305

Shelf-spacing

CAPACITIES 80 kg of products

GN 1/1 trays 20

PACKAGING (mm) Height 2000; Width 700; Depth 600

WEIGHT (kg) (Empty) 38

P101E52

DIMENSIONS (Outside (mm)) Height 1800; Width 660, Depth 860

Well Height 35; Width 444; Depth 592

Shelf-spacing

CAPACITIES 160 kg of products

GN 1/1 trays 40

GN 2/1 trays 20

PACKAGING (mm) Height 2000; Width 700; Depth 900

WEIGHT (kg) (Empty) 51

Non-contractual document Edition 07/1999 - EN128

Equator, Banqueting trolley plate holder and trolley covers for 20 level ovens

Other manuals for EQUATOR

Table of contents

Other Bonnet Oven manuals

Bonnet

Bonnet PRECIJET+ 6 GN1/1 User manual

Bonnet

Bonnet Maestro C412A14 User manual

Bonnet

Bonnet EQUAJET User manual

Bonnet

Bonnet PRECISIO User manual

Bonnet

Bonnet MINIJET ELECTRIC User manual

Bonnet

Bonnet MINIJET ELECTRIC User manual

Bonnet

Bonnet MINIJET B1MJ061E User manual

Bonnet

Bonnet EQUATOR User manual

Bonnet

Bonnet EQUAJET 6 GN1/1 User manual

Bonnet

Bonnet MINIJET ELECTRIC User manual

Bonnet

Bonnet Equator 6 Series User manual

Bonnet

Bonnet EQUAJET User manual

Popular Oven manuals by other brands

Bosch

Bosch HVA531NS0 instruction manual

Electrolux

Electrolux EOF6P46X user manual

NEFF

NEFF B44S32 5GB Series instruction manual

Combi

Combi BLODGETT BC142GDS Specifications

AEG

AEG COMPETENCE 311704300 Installation and operating instructions

Falcon

Falcon DOMINATOR PLUS G3106 Series Servicing instructions

Rational

Rational SCC WE 61G installation manual

Smeg

Smeg DOSPA38X User manuals

Electrolux

Electrolux air-o-convect 20 GN 2/1 user manual

Miele

Miele HR 1954-2 operating instructions

KHIND

KHIND OT50 instruction manual

Henny Penny

Henny Penny Smoker Box installation manual

Lang

Lang ECOD-AP Installation and operation instructions

AEG

AEG BEK455310M user manual

Frigidaire

Frigidaire FNGE90JGR user manual

Hotpoint

Hotpoint FE9 S831 JSH IX user manual

GE Advantium SCB2000 owner's manual

AEG

AEG DE401301DM user manual
