Bonnet PREMIUM P075208 User manual
PREMIUM
COOKINGTOPS&UNITS
GAS
MANUFACTURER'S INSTRUCTIONS
Part A: Technical data
Part B: Installation manual
- WARNING -
•
Installation and repairs must be carried out by personnel approved by the manufacturer and in
accordance with current regulations and standards.
•
If any modifications are made the manufacturer can accept no responsibility whatsoever.
•
These appliances must be used in a well-ventilated area.
•
Read the notice carefully before installation.
•
The unit must be kept on its base for handling until it is in it’s final location.
N° 390 332b
N
O
B
N
E
T
9
Page 1
N
O
B
N
E
T
BONNET CIDELCEM GRANDE CUISINE
Siége social:
Rue des Frères Lumière - Z.I Mitry Compans
77292 MITRY MORY Cedex
CONTENT
GAS COOKING TOPS & UNITS
A) TECHNICAL DATA.......................................………………………........... 2
B) INSTALLATEUR MANUAL
1. Location of the identification plate ..............………........................….… 22
2. Installation: General features ………….…….…………………….…..….. 24
2.1 General requirements …………..……….……...…...…...…...……... 24
2.2 Handling ……….....…………………………..…………………….….. 24
2.3 Unpacking ……….….………..………………………..……………..... 24
2.4 Access to components behind the front facia ….…………..…….... 25
3. Installation: Positioning ……………………………………….….…..……. 26
3.1 Cooking tops ……………..…...……...………………..………..…..... 26
3.2 Cooking units ……………..…...……...…………..……..…..……...... 32
4. Installation: Connection ……………………………………………...….…. 38
4.1 Electrical connection ……………..…...……...……………..……...... 38
4.2 Gas connection ……………..…...……...………...……..……….…... 39
4.3 Water connection ……………..…...……...………...……..…..….….. 40
4.4 Drain connection ……………..…...……...………….……………….. 40
Page 2
N
O
B
N
E
T
BONNET CIDELCEM GRANDE CUISINE
Siége social:
Rue des Frères Lumière - Z.I Mitry Compans
77292 MITRY MORY Cedex
A: TECHNICAL DATA
PREMIUM, Gas cooking top, 2 or 4 open burners
P075208: Width 500 P075209: Width 1000
Drain connection
ELECTRICAL connection
(Leave 1.5 m cable tails)
MODEL B-D9P.FV500 B-D9P.FV1000
DIMENSIONS (mm)
Height x Depth x Width 393 x 950 x 500 393 x 950 x 1000
Open burner Grill 400 x 614 400 x 614
PACKAGING (mm)
Height x Depth x Width 500 x 1050 x 600 500 x 1050 x 1100
WEIGHT (KG) 50 100
TOP COMPRISES
Front open burner 8.8 or 6 kW 1 2
Rear open burner 6 kW 1 2
GAS
Power (kW) 14.8 29.6
G31 Propane 37/50 mbar (kg/h) 1.15 2.30
G30 Butane 50 mbar (kg/h) 1.16 2.33
G20 Natural Gas 20 mbar (m3/h) 1.56 3.12
G25 Natural Gas 20 mbar (m3/h) 1.82 3.64
G25 Natural Gas 25 mbar (m3/h) 1.69 3.26
Power (kW) 12 24
G30 Butane 29 mbar (kg/h) 0.94 1.89
ELECTRICITY (For optional electric ignition)
Voltage Single phase 230Va.c.
Power (kW) 0.1
DRAIN Smooth stainless 18mm Ø tube + 20cm silicone pipe
Connection Provide a 50mm ∅drain outlet
GAZ CONNECTION
672 mm from floor (15/21 mm pipe)
Equipment is supplied as standard for G 20/20 mbar (and G 25/25 mbar) or other gas upon request
ELECTRICAL CONNECTION
630 mm from floor Non contractual document Edition 04/2002 – EN194
Page 3
N
O
B
N
E
T
BONNET CIDELCEM GRANDE CUISINE
Siége social:
Rue des Frères Lumière - Z.I Mitry Compans
77292 MITRY MORY Cedex
PREMIUM, Gas cooking top, solid top
P075212
GAS connection
ELECTRICAL connection
(Leave 1.5 m cable tails)
MODEL B-D9P.CF1000
DIMENSIONS (mm)
Height 393
Width 1000
Depth 950
Solid top 800 x 614
PACKAGING (mm)
Height 500
Width 1000
Depth 1050
WEIGHT (KG) 126
TOP COMPRISES
Solid top 11.1 kW 1
GAS
Power (kW) 11.1
G31 Propane 37/50 mbar (kg/h) 0.86
G30 Butane 29/50 mbar (kg/h) 0.87
G20 Natural Gas 20 mbar (m3/h) 1.17
G25 Natural Gas 20 mbar (m3/h) 1.36
G25 Natural Gas 25 mbar (m3/h) 1.23
ELECTRICITY (For optional electric ignition)
Voltage Single phase 230Va.c.
Power (kW) 0.1
GAS CONNECTION
672 mm from floor (15/21 mm pipe)
Equipment is supplied as standard for G 20/20 mbar (and G 25/25 mbar) or other gas upon request.
ELECTRICAL CONNECTION
630 mm from floor
Non contractual document Edition 11/2002 – EN195b
Page 4
N
O
B
N
E
T
BONNET CIDELCEM GRANDE CUISINE
Siége social:
Rue des Frères Lumière - Z.I Mitry Compans
77292 MITRY MORY Cedex
PREMIUM, Gas cooking top, open burner + solid top 1000 wide
P075213: 2 FV + 1 CF P075214: 1 CF + 2FV
Drain connection
DRAIN
GAS connection
ELECTRICAL connection
(Leave 1.5 m cable tails)
MODEL B-D9P.FV.CF1000 B-D9P.CF.FV1000
DIMENSIONS (mm)
Height x Depth x Width 393 x 950 x 1000
Open burner Grill 400 x 614
Solid top 400 x 740
PACKAGING (mm)
Height x Depth x Width 500 x 1050 x 1100
WEIGHT (KG) 120
TOP COMPRISES
Front open burner 8.8 or 6 kW 1 1
Rear open burner 6 kW 1 1
Solid top 6.8 kW 1 1
GAS
Power (kW) 21.6
G31 Propane 37/50 mbar (kg/h) 1.68
G30 Butane 50 mbar (kg/h) 1.70
G20 Natural Gas 20 mbar (m3/h) 2.28
G25 Natural Gas 20 mbar (m3/h) 2.66
G25 Natural Gas 25 mbar (m3/h) 2.39
Power (kW) 18.8
G30 Butane 29 mbar (kg/h) 1.48
ELECTRICITY (For optional electric ignition)
Voltage Single Phase 230Va.c.
Power (kW) 0.1
DRAIN Smooth stainless 18mm Ø tube + 20cm silicone pipe
Connection Provide a 50mm ∅drain outlet
GAS CONNECTION
672 mm from floor (15/21 mm pipe)
Equipment is supplied as standard for G 20/20 mbar (and G 25/25 mbar) or other gas upon request.
ELECTRICAL CONNECTION
630 mm from floor
Non contractual document Edition 11/2002 – EN196b
Page 5
N
O
B
N
E
T
BONNET CIDELCEM GRANDE CUISINE
Siége social:
Rue des Frères Lumière - Z.I Mitry Compans
77292 MITRY MORY Cedex
PREMIUM, Gas cooking top, open burner + solid top 1500 wide
P075215: 2 FV + 1 CF P075216: 1 CF + 2FV
Drain connection
DRAIN
GAS connection
ELECTRICAL connection
(Leave 1.5 m cable tails)
MODEL B-D9P.FV.CF1500 B-D9P.CF.FV1500
DIMENSIONS (mm)
Height x Width x Depth 393 x 1500 x 950
Open burner Grill 400 x 614
Solid top 800 x 614
PACKAGING (mm)
Height x Width x Depth 500 x 1600 x 1050
WEIGHT (KG) 180
TOP COMPRISES
Front open burner 8.8 or 6 kW 1 1
Rear open burner 6 kW 1 1
Solid top 11.1 kW 1 1
GAS
Power (kW) 25.9
G31 Propane 37/50 mbar (kg/h) 2.01
G30 Butane 50 mbar (kg/h) 2.04
G20 Natural Gas 20 mbar (m
3
/h) 2.74
G25 Natural Gas 20 mbar (m
3
/h) 3.18
G25 Natural Gas 25 mbar (m
3
/h) 2.87
Power (kW) 23.1
G30 Butane 29 mbar (kg/h) 1.82
ELECTRICITY (For optional electric ignition)
Voltage Single phase 230Va.c.
Power (kW) 0.1
DRAIN Smooth stainless 18mm Ø tube + 20cm silicone pipe
Connection Provide a 50mm ∅drain outlet
GAS CONNECTION
672 mm from floor (15/21 mm pipe)
Equipment is supplied as standard for G 20/20 mbar (and G 25/25 mbar) or other gas upon request.
ELECTRICAL CONNECTION
630 mm from floor Non contractual document Edition 11/2002 – EN197b
Page 6
N
O
B
N
E
T
BONNET CIDELCEM GRANDE CUISINE
Siége social:
Rue des Frères Lumière - Z.I Mitry Compans
77292 MITRY MORY Cedex
PREMIUM, gas cooking top, plancha
P075219: 500 wide P075220: 1000 wide
GAS connection
ELECTRICAL connection
(Leave 1.5 m cable tails)
MODEL B-D9P.SN500.G B-D9P.SN1000.G
DIMENSIONS (mm)
Height x Depth 393 x 950 393 x 950
Width 500 1000
Heated surface 616 x 364 616 x 764
Usable area (dm2) 22 47
PACKAGING (mm)
Height x Depth 500 x 1050 500 x 1050
Width 600 1100
WEIGHT (KG) 65 117
TOP COMPRISES
365mm wide plate 1 -
765mm wide plate - 1
GAS
Power (kW) 8.3 17
G31 Propane 37/50 mbar (kg/h) 0.65 1.32
G30 Butane 29/50 mbar (kg/h) 0.65 1.34
G20 Natural Gas 20 mbar (m3/h) 0.88 1.8
G25 Natural Gas 20 mbar (m3/h) 1.02 2.09
G25 Natural Gas 25 mbar (m3/h) 0.96 1.91
ELECTRICITY (For optional electric ignition)
Voltage Single phase 230Va.c.
Power (kW) 0.1
GAS CONNECTION
672 mm from floor (15/21 mm pipe)
Equipment is supplied as standard for G 20/20 mbar (and G 25/25 mbar) or other gas upon request.
ELECTRICAL CONNECTION
630 mm from floor
Non contratuacl document Edition 04/2002 – EN198
Page 7
N
O
B
N
E
T
BONNET CIDELCEM GRANDE CUISINE
Siége social:
Rue des Frères Lumière - Z.I Mitry Compans
77292 MITRY MORY Cedex
PREMIUM, Gas cooking top, charcoal
P075223: 500 wide P075224: 1000 wide
GAS connection
ELECTRICAL connection
(Leave 1.5 m cable tails)
COLD WATER
DRAIN
Drain connection Bars
MODEL B-D9P.BBC500.G B-D9P.BBC1000.G
DIMENSIONS (mm)
Height x Width x Depth 393 x 500 x 950 393 x 1000 x 950
Grill dimensions 320 x 509 800 x 509
Usable area (dm2) 16.2 40.5
PACKAGING (mm)
Height x width x Depth 500 x 600 x 1050 500 x 1100 x 1050
WEIGHT (KG) 80 145
GAS
Power (kW) 11 27.5
G31 Propane 37/50 mb (kg/h) 0.85 2.14
G30 Butane 29/50 mb (kg/h) 0.87 2.17
G20 Natural Gas 20 mb (m3/h) 1.16 2.91
G25 Natural Gas 20 mb (m3/h) 1.35 3.38
G25 Natural Gas 25 mb (m3/h) 1.22 3.04
ELECTRICITY
Voltage Single phase 230Va.c.
Power (kW) 0.1
COLD WATER
Pressure 2.5/6 bars
Connection Flexible 21 (1/2") ∅
DRAIN Smooth stainless 18mm Ø tube + 20cm silicone pipe
Connection Provide a 50mm ∅drain outlet
GAS CONNECTION
672 mm from floor (15/21 mm pipe)
Equipment is supplied as standard for G 20/20 mbar (and G 25/25 mbar) or other gas upon request.
ELECTRICAL CONNECTION
630 mm from floor Non contractual document Edition 04/2002 – EN200
Page 8
N
O
B
N
E
T
BONNET CIDELCEM GRANDE CUISINE
Siége social:
Rue des Frères Lumière - Z.I Mitry Compans
77292 MITRY MORY Cedex
PREMIUM, Stands 630mm high fixed or mobile
Fixed stand height 630
5
4
3
2
1 5
3
1
4 2 4
5
24
3
1
2
3
51 1 5
3
2
1
3
4 2
5
4
CODES
P075236 P075291 P075237 P075238 P075239
DIMENSIONS (mm)
Appliance width: A500 750 1000 1500 2000
Leg centres: B380 630 880 1380 1880
Shelf width: C277 647 777 1397 1777
PACKAGING (mm)
Height 750 750 750 750 750
Width 600 850 1100 1600 2100
Depth 750 750 750 750 750
WEIGHT (KG) 28 31 34 42 50
Mobile stand height 630
5
4
3
2
1 5
3
1
4 2 4
5
24
3
1
2
3
51 1 5
3
2
1
3
4 2
5
4
CODES
P075240 P075231 P075241 P075242 P075243
DIMENSIONS (mm)
Appliance width: A500 750 1000 1500 2000
Leg centres: B380 630 880 1380 1880
Shelf width: C277 647 777 1397 1777
PACKAGING (mm)
Height 750 750 750 750 750
Width 600 850 1100 1600 2100
Depth 750 750 750 750 750
WEIGHT (KG) 30 33 36 44 54
Non contractual document Edition 04/2002 – EN209
Page 9
N
O
B
N
E
T
BONNET CIDELCEM GRANDE CUISINE
Siége social:
Rue des Frères Lumière - Z.I Mitry Compans
77292 MITRY MORY Cedex

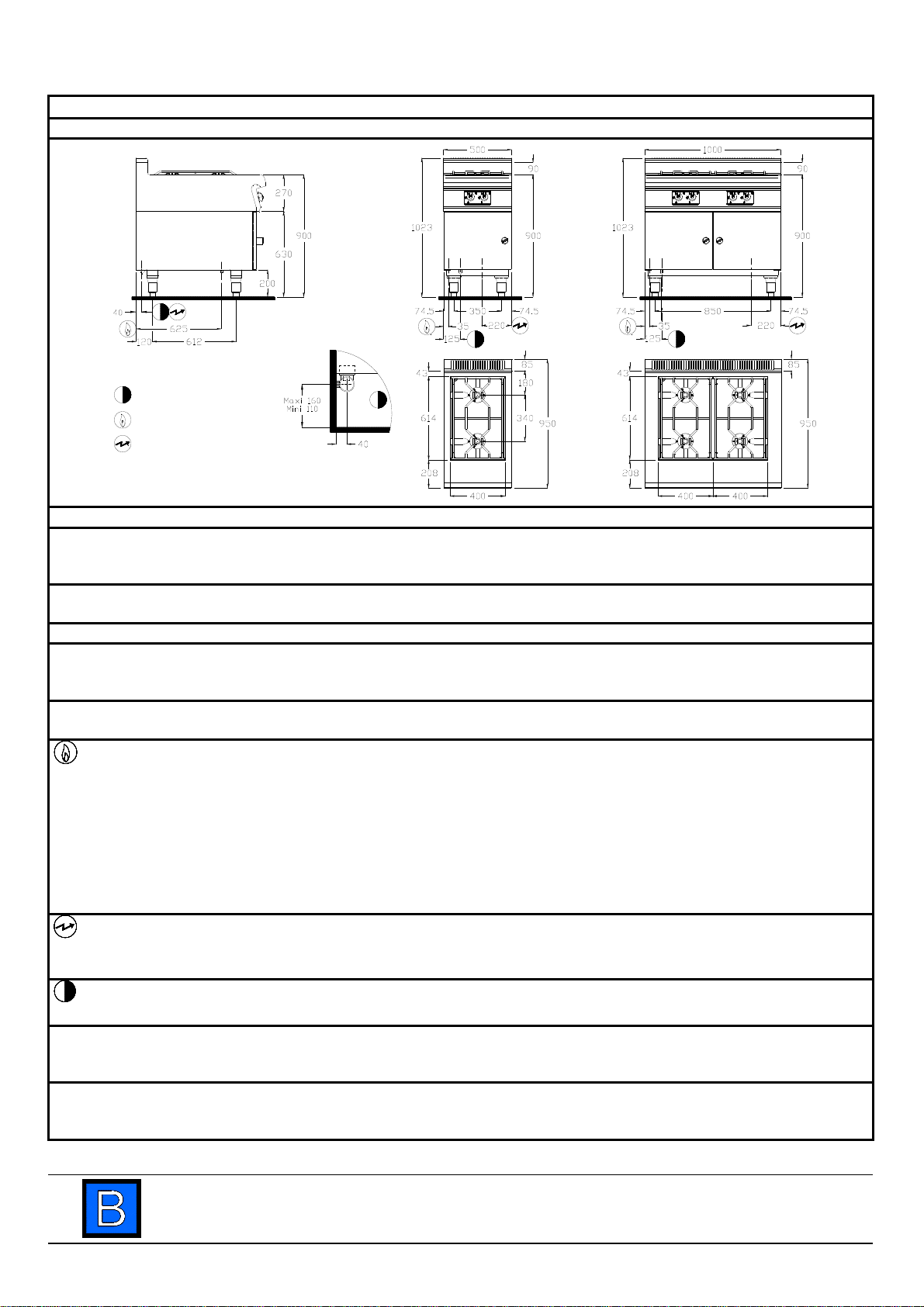

PREMIUM, Gas cooking unit, 2 or 4 open burners on cupboard
P075286: 500 wide P075287: 1000 wide
Drain
connection
DRAIN
GAS connection
ELECTRICAL connection
(Leave 1.5 m cable tails)
MODEL B-B9P.FV500 B-B9P.FV1000
DIMENSIONS (mm)
Width x Depth x Height 500 x 950 x 1023 1000 x 950 x 1023
Open burner Grill 400 x 614 400 x 614
PACKAGING (mm)
Width x Depth x Height 600 x 1050 x 1150 1100 x 1050 x 1150
WEIGHT (KG) 50 100
TOP COMPRISES
Front open burner 8.8 or 6 kW 1 2
Rear open burner 6 kW 1 2
BASE COMPRISES
Cupboard width 500 1000
GAS
Power (kW) 14.8 29.6
G31 Propane 37/50 mbar (kg/h) 1.15 2.30
G30 Butane 50 mbar (kg/h) 1.16 2.33
G20 Natural Gas 20 mbar (m3/h) 1.56 3.12
G25 Natural Gas 20 mbar (m3/h) 1.82 3.64
G25 Natural Gas 25 mbar (m3/h) 1.69 3.26
Power (kW) 12 24
G30 Butane 29 mbar (kg/h) 0.94 1.89
ELECTRICITY (Single phase 230Va.c.)
Option electric ignition (kW) 0.1
Option heated cupboard (kW) 1 (I max 4.5 A) 2 (I max 9 A)
DRAIN 22mm ∅pipe
Connection Provide a 50mm ∅drain outlet
GAS CONNECTION
200 mm from floor (15/21 mm pipe)
Equipment is supplied as standard for G 20/20 mbar (and G 25/25 mbar) or other gas upon request
ELECTRICAL CONNECTION
200 mm fromm floor Non contractual document Edition 04/2002 – EN212
This manual suits for next models
91
Table of contents
Other Bonnet Cooktop manuals
