SG550M-8mHD 1 Instruction
Page 1
1Instruction
1.1 General Description
This camera, a digital scouting camera with
MMS function, is a digital infrared surveillance
camera, triggered by any movement of humans or
animals monitored by a high sensitive Passive
Infrared (PIR) motion sensor, and then
automatically captures high quality pictures (up to
8M pixels) or records video clips (720P HD)
according to default settings or preset customer
settings. It will then send the pictures instantly to
your mobile device or email via GSM/GPRS/MMS
network. You’ll be alerted just when the camera is
triggered or per custom settings.
It takes color pictures or videos under
sufficient daylight. While at night, the built-in
940nm LEDs take clear pictures or videos
(monochrome).
There is a 1.5” color LCD display screen on the
camera and a sound recorder embedded in the
camera. A laser pointer is used to help target the
photo area of the camera. It supports
MMS/SMS/E-mail via GSM/GPRS Network.
It is resistant against water and snow. The
camera can also be used as a portable digital
camera.
SG550M-8mHD 1 Instruction
Page 2
1.2 Camera Body Interfaces
The camera has the following I/O interfaces:
USB connector, SD card slot and external DC power
connector.
Take a few moments to familiarize yourself
with the camera controls and displays. It is helpful
to bookmark this section and refer to it when
reading through the rest of the manual.

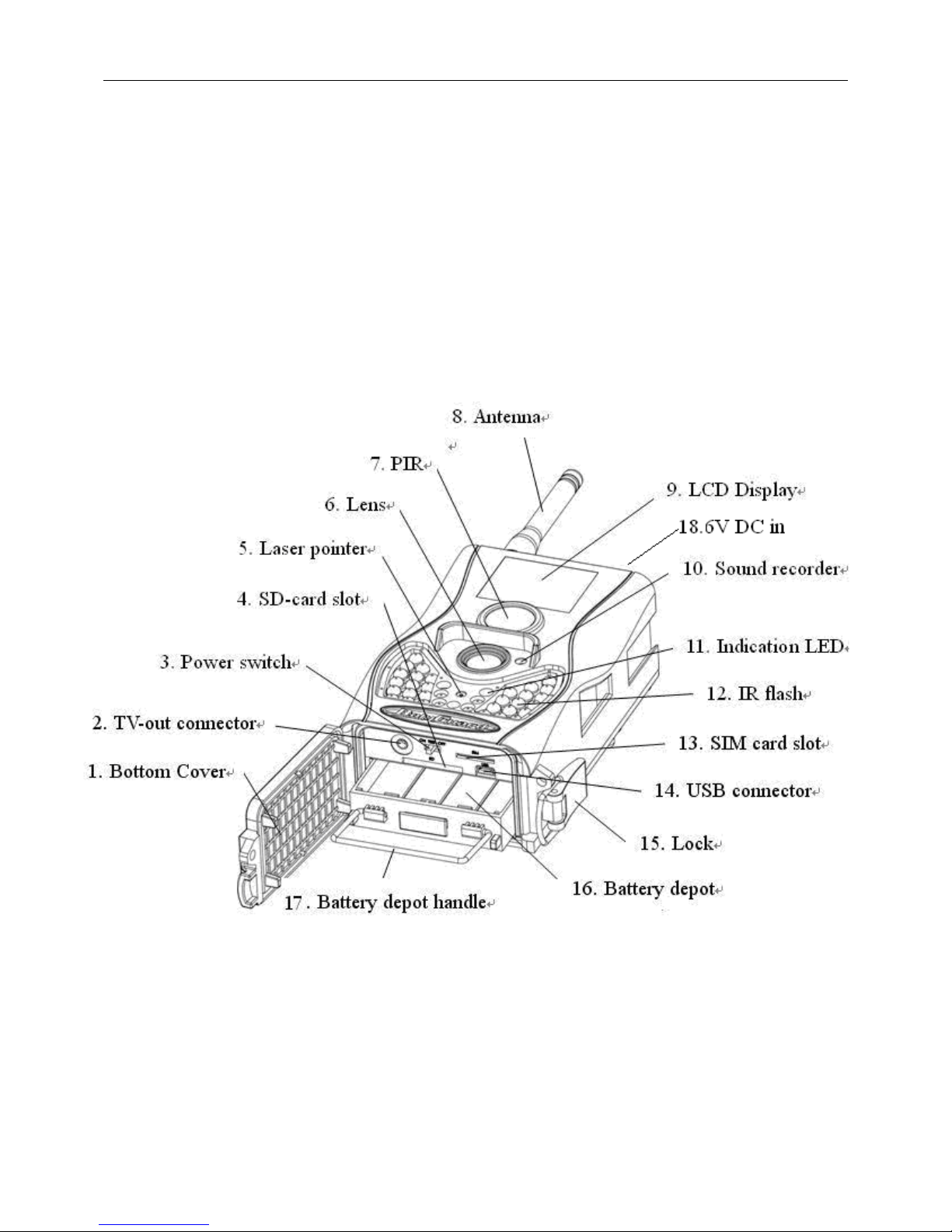

Figure1 Diagram of camera functional indicators
1.3 Remote Control
The remote control is the input device for the
SG550M-8mHD 1 Instruction
Page 3
camera and is primarily used for customer settings
and password input. This is an infrared type
wireless remote control. The maximum remote
distance is 30 feet.
There are fifteen buttons on the remote
control.
Figure2 Remotecontrol
1.3.1 Navigating
Press UP or DOWN to select or highlight the
menu item. Press LEFT or RIGHT to select the
option of each item and press OK to make a
selection.
Menu Cancel
OK
1
2
abc
3
def
4
ghi
5
jkl
6
mno
7
pqrs
8
tuv
9
wxyz
*
0
#
Menu Cancel
OK
1
2
abc
3
def
4
ghi
5
jkl
6
mno
7
pqrs
8
tuv
9
wxyz
*
0
#
SG550M-8mHD 1 Instruction
Page 4
1.3.2 Characters
When entering digits, letters or punctuations
into an input column, there are some useful
characters that can be used by pressing the button
continuously:
1: 1 . / : @ _
: 0 + -
Press the punctuation “*” for laser pointer.
1.4 Shooting Information Display
When the camera is turned on (the power
switch is slid to TEST position), the current settings
will be displayed on screen.
SG550M-8mHD 1 Instruction
Page 5
Figure 3 Shooting information display
1.5 MMS/GPRS function
This camera can send pictures instantly to your
mobile device via GSM/GPRS network. You’ll be
alerted just when a picture or video has been taken.
The camera sends MMS message through GPRS
network, so before using this function, you need to
open GPRS service from your service provider. It
supports four band ：850MHz, 900MHz, 1800MHz
and 1900MHz.
SIM card Icon：There are two SIM card icons
which stand for different installation situations.
means the SIM card is inserted and it works well.
means the MMS function can’t work correctly
because of loss of signal or other communication
issues. If the SIM card is not inserted, no SIM
card icon will be displayed.
SG550M-8mHD 1 Instruction
Page 6
1.6 Supported Format
Item Format
Photo JPG
Video AVI
File format FAT32
Here are some important notices. The file
system format is not a concern of the camera unless
you have problems with reading the SD card with
other devices. If this happens, please format the SD
card in the camera or in a computer and then
reinsert the card into your camera.
SG550M-8mHD 2 Cautions
Page 7
2Cautions
★ The working voltage of the camera is 6V. The
camera is supplied by 8 AA batteries. Please
install batteries according to shown polarity.
★ Must insert the SD card before power on
camera. If no SD card is inserted, the camera
will shut down automatically after a continuous
indication sound.
★ Please unlock the write-protect before
inserting the SD card and insert the SD card
when the power switch is at OFF position.
Please do not insert or take out the SD card
when the power switch is at ON position.
★ It is recommended to format the SD card by
the camera when used for the first time. Many
other SD cards formatted by other cameras
have poor compatibility with different brands of
cameras.
★ Must make sure that your SIM card has
opened the GPRS data business. When going
into the setup mode, allow approximately 10-20
seconds for the camera to acquire a signal.
★ In TEST mode, the camera will shut down
automatically after 3 minutes if no operation is
done. Please turn on the power again if you
want to continue to work with the control.
SG550M-8mHD 3 Quick Start Guide
Page 8
3Quick Start Guide
3.1 Power Supply
To supply power for the camera, four or eight
AA batteries are needed.
Open the bottom cover. Confirm that the power
switch is in the OFF position and pull out the
battery pack by pulling the silver handle. Load the
fully charged batteries into the pack according to
the polarities signs shown below. Push the battery
pack back into the battery chamber. The following
batteries with 1.5V output can be used:
1. High-density and high-performance alkaline
batteries (recommended)
2. Rechargeable alkaline batteries
3. Rechargeable NiMH batteries
There are four battery slots. Slot 1 and 2 form
one group and is marked “1”while slot 3 and 4 form
the other group and is marked “2”. One “group” of
batteries is needed to supply power for the camera,
but both can be used and is recommended.
When in a low-battery state, the camera will be
automatically shut down after two indication
sounds. Before that it will send a SMS to indicate
the low battery situation. Please change the
batteries at this time.
