Bodyworx AC270M User manual

BODYWORX

BODY WORX

Version A

Retain this owner’s manual for future reference

Read and follow all instructions in this owner’s manual

MANUAL

MAG BIKE

Model No:

AC270M

Step 1

Visit our Website

Go to the GPI Sports website: www.gpisports.com.au/warranty

Warranty Registration Form

Step 2

Enter Purchase Information

Enter all purchase information including the serial number and proof

of purchase which can be uploaded from this page

Step 3

Call Our Toll Free Number

If a warranty service request is required on your product

please call the toll free number - 1800 005 770

Congratulations on purchasing your product, we at GPI believe that our product range is of the

highest quality and represents great value for money.

We back our product range up with our industry leading warranty.

Please see below for the step by step instructions on how to register your product warranty

online.

GPI Sport & Fitness

TABLE OF CONTENTS

SAFETY PRECAUTIONS 2 PRE-ASSEMBLY CHECK LIST 7

11-8NOITCURTSNIYLBMESSA3TSILSTRAP

EXPLODED DIAGRAM 4-5 COMPUTER INSTRUCTIONS 12-13

HARDWARE PARTS LIST 6 EXERCISE INSTRUCTIONS 14-15

IMPORTANT SAFETY PRECAUTIONS

This exercise machine is built for optimum safety. However, certain precautions apply

whenever you operate a piece of exercise equipment. Be sure to read the entire manual

before you assemble or operate your machine. In particular, note the following safety

precautions:

1. Keep children and pets away from the machine at all times. DO NOT leave children

unattended in the same room with the machine.

2. Only one person at a time should use the machine.

3. If the user experiences dizziness, nausea, chest pain, or any other abnormal

symptoms, STOP the workout at once. CONSULT A PHYSICIAN IMMEDIATELY.

4. Position the machine on a clear, leveled surface. DO NOT use the machine near water

or outdoors.

5. Keep hands away from all moving parts.

6. Always wear appropriate workout clothing when exercising. DO NOT wear robes or

other clothing that could become caught in the machine. Running or aerobic shoes are

also required when using the machine.

7. Use the machine only for its intended use as described in this manual. DO NOT use

attachments not recommended by the manufacturer.

8. Do not place any sharp object around the machine.

9. Disabled person should not use the machine without a qualified person or physician in

attendance.

10. Before using the machine to exercise, always do stretching exercises to properly warm

up.

11. Never operate the machine if the machine is not functioning properly.

12. The max. user capacity is 115 KGS.

WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR

PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE

OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL

INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT.

SAVE THESE INSTRUCTIONS.

PARTS LIST

Part No. Description Qty Part No. Description Qty

1 Main frame 1 37 Cover for clamp 1

2 Front stabilizer 1 38 L/R Crank L/R 1/1

3 Rear stabilizer 1 39 Sliding tube 1

4 Front post 1 40 Tension knob w/ upper tension cable 1

5 Handlebar 1 41 Lower tension cable 1

6 Computer 1 42 Club knob 1

7 Seat post 1 43 Crank cover 2

8 Seat 1 44 Spacer for magnet assembly 2

9 Left pedal 1 45 Self tapping screw 6

10 Right pedal 1 46 Hex head bolt M8*105 1

11 Quick release knob 1 47 Eye bolt 1

12 Washer Φ8*Φ17 5 48 Spring for Idler wheel 1

13 Spring washer Φ8 3 49 Idler assembly 1

14 Nylon nut M8 5 50 Powder spacer 1

15 Carriage bolt M10*75 4 51 Sensor bracket 1

16 Curved washer Φ10*Φ22 4 52 Hex head bolt M6*25 1

17 Domed nut M10 4 53 Hex head nut M6 2

18 Allen screw M8*16 4 54 Flange nut 4

19 Curved washer Φ8*Φ20 4 55 Belt 1

20 Hand pulse wire 2 56 C-clip 2

21 T-type knob 1 57 Hex head nut M8 1

22 Allen screw M8*20 2 58 Flywheel assembly 1

23 End cap for front stabilizer 2 59 Spring for magnet assembly 1

24 End cap for rear stabilizer 2 60 Self tapping screw ST5*15 9

25 Clamp 1 61 Magnet assembly 1

26 Hand pulse sensor 2 62 Belt driver 1

27 Screw for computer M5*10 2 63 Bushing 1

28 Foam grip 2 64 Bolt M6*15 4

29 End cap for handlebar 2 65 Axle for crank 1

30 Self tapping screw ST4*20 2 66 Nylon nut M6 4

31 Washer Φ4.2*Φ12 2 67 Magnet 1

32 Grommet 1 68 End cap for crank 2

33 Extension sensor wire 1 69 L/R Chain cover L/R 1/1

34 Sensor wire 1 70 Bearing 6203 2

35 Cover for front post 1 71 Bottle holder 1

36 Cover for seat post 1

EXPLODED DIAGRAM

15 16

19 18

29 29

35 36

38L

69L

69R

4545

545454

38L

38R

6060

6566

HARDWARE PARTS LIST

No. Description Drawing Q’ty

11 Quick release knob 1

12 Washer Φ8*Φ17

15 Carriage bolt M10*75

16 Curved washer Φ10*Φ22 4

17 Domed nut M10

18 Allen screw M8*16

19 Curved washer Φ8*Φ20

21 T-type knob

37 Cover for clamp

42 Club knob

Allen key 6mm 1

Box wrench

The above described parts are all the parts you need to assemble this machine.

Before you start assembly, please check the hardware packing to make sure they are

included.

PRE-ASSEMBLY CHECK LIST

1 4 7

2 3 5 6

8 9 10 35 36 71

PART NO. DESCRIPTION Q’TY

1Main frame 1

2 Front stabilizer 1

3 Rear stabilizer 1

4 Front post 1

5 Handlebar 1

6 Computer 1

7 Seat post 1

8 Seat 1

9 Left pedal 1

10 Right pedal 1

35 Cover for front post 1

36 Cover for seat post 1

71 Bottle holder 1

User manual 1

Hardware pack 1

ASSEMBLY INSTRUCTION

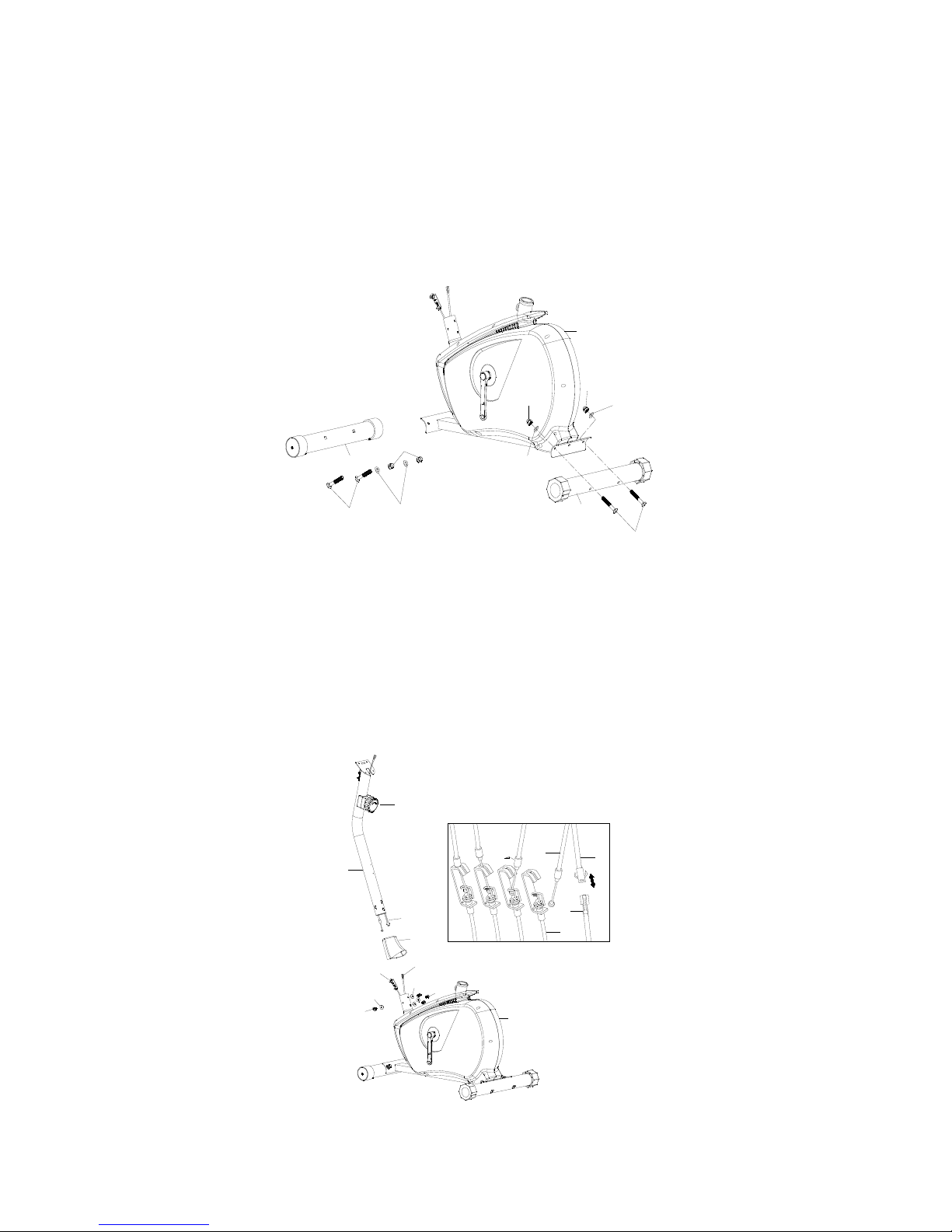

STEP 1

Attach front stabilizer (2) to main frame (1), tighten with 2 sets of carriage bolt (15),

curved washer (16) and domed nut (17).

Attach rear stabilizer (3) to main frame (1), tighten with 2 sets of carriage bolt (15),

curved washer (16) and domed nut (17).

15 16

STEP 2

Insert front post (4) through cover for front post (35). Connect extension sensor wire (33)

with sensor wire (34). Adjust the tension knob (40) to level 8 and connect upper tension

cable with lower tension cable (41). Please see page 9 for a detailed description of the

assembly. Insert front post (4) into main frame (1), tighten with 4 sets of allen bolt (18) and

curved washer (19), then put down the cover for front post (35).

19 18

HOW TO CONNECT TENSION CONNECTOR

Slide the Cable wire from the

Upper Tension Connector in

between the opening on the

wire holder on the Lower

Tension Connector.

Pull the Upper Tension

Connector backward and slide

the wire through the slot on the

bracket.

Drop down the Connector so

the fitting sits firmly on top of

the bracket.

NOTE: In able to hold the Front Post while connecting the cables and wires，

extra help may be needed.
