Body Solid DPLS User manual
BODY-SOLID,Inc.
1900 S. Des Plaines Ave.
Forest Park, IL 60130 USA
Phone:(708)427-3555
Fax:(708)427-3556
www.bodysolid.com

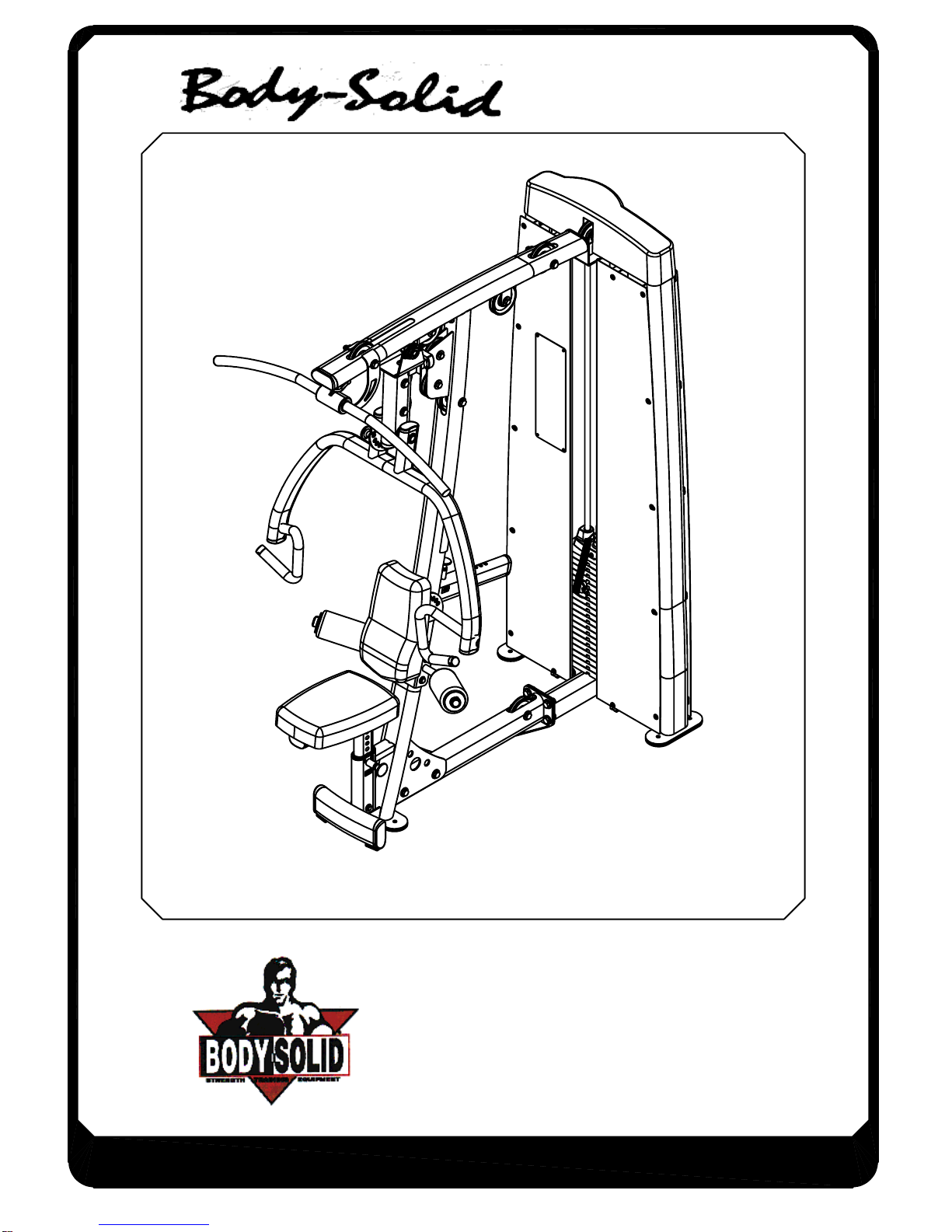

OWNER'S MANUAL
DPLS
ASSEMBLY INSTRUCTIONS
Page
HARDWARE ILLUSTRATION
2
13456
DPLS
DPLS-102006 1.1
(A1)HEX BOLT 1/2"x1 1/4"L PARTIAL THREAD QTY.2
(A2)HEX BOLT 1/2"x2 1/4"L PARTIAL THREAD QTY.4
(A3)HEX BOLT 1/2"x3"L PARTIAL THREAD QTY.1
(A4)HEX BOLT 1/2"x3 1/2"L PARTIAL THREAD QTY.2
(A5)HEX BOLT 1/2"x3 1/4"L PARTIAL THREAD QTY.3
ASSEMBLY INSTRUCTIONS
Page
DPLS
DPLS-102006 1.2
(A6)HEX BOLT 1/2"x5 1/2"L PARTIAL THREAD QTY.2
(A7)HEX BOLT 1/2"x6"L PARTIAL THREAD QTY.1
(A8)HEX BOLT 5/16"x1"L PARTIAL THREAD QTY.4
(A9)HEX BOLT 5/16"x2 1/4"L PARTIAL THREAD QTY.2
(A10)ROUND ALLEN HEAD M10X75L PARTIAL THREAD QTY.2
HARDWARE ILLUSTRATION
CONNECT DGYM
HARDWARE ILLUSTRATION
2
13456
ASSEMBLY INSTRUCTIONS
Page
DPLS
DPLS-102006 1.3
(A11)ALLEN SCREW 5/16"X3/8"L FULL THREAD QTY.3
(A12)HEX BOLT 1/2"x2 1/4"L PARTIAL THREAD QTY.1
(A13)HEX BOLT M4X65L"L PARTIAL THREAD QTY.2
(A14)ROUND ALLEN HEAD 3/8"X2"L PARTIAL THREAD QTY.1
(A15)HEX BOLT 1/2"x4 1/4"L PARTIAL THREAD QTY.1
2
13456
FRAME HARDWARE ILLUSTRATION
ASSEMBLY INSTRUCTIONS
Page
DPLS
DPLS-102006 1.4

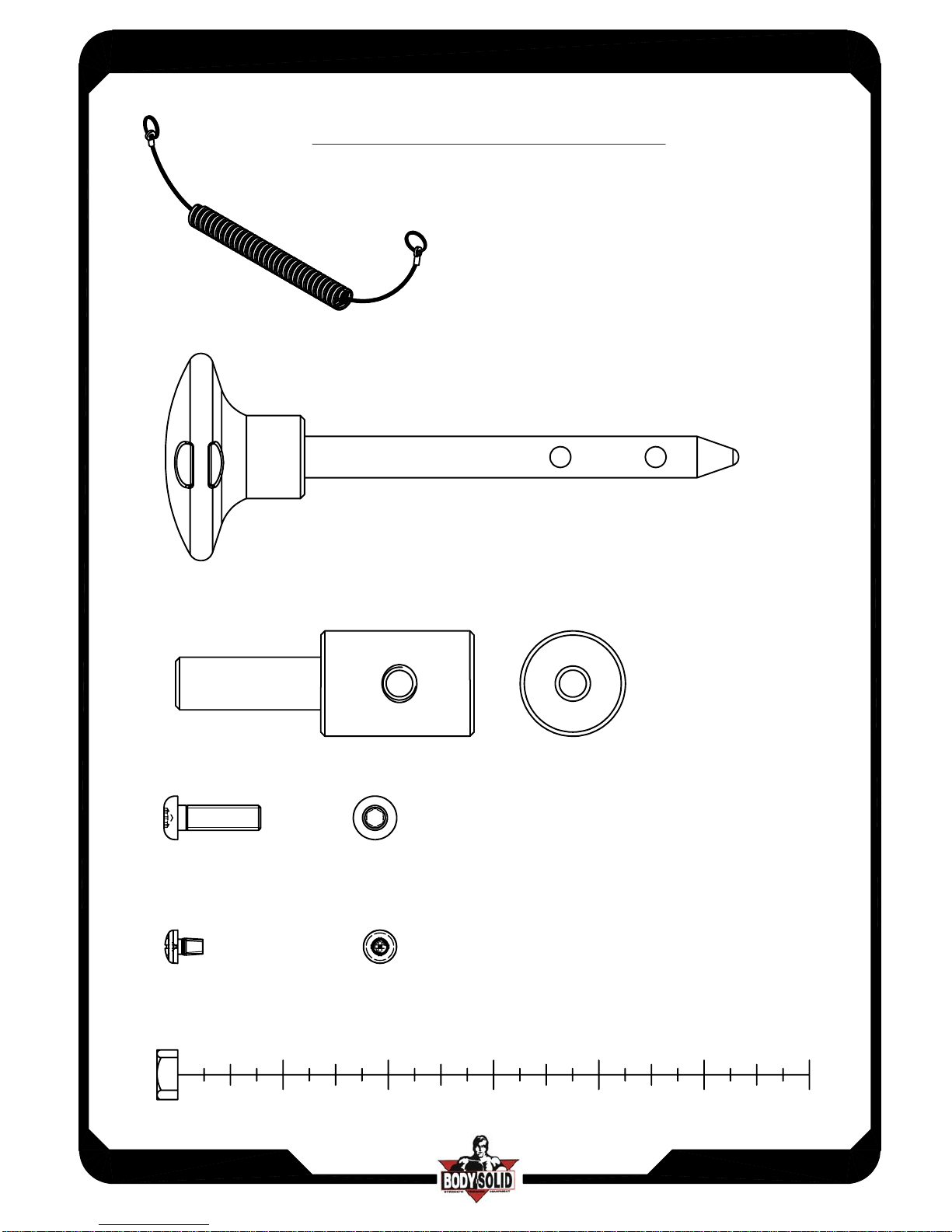

(A16)ELASTIC BOLT QTY.1
(A17)10LB PIN (8250-071) QTY.1
(A18)WEIGHT STACK CABLE (8260-009) QTY.1
(A19)ROUND ALLEN HEAD M6X20L PARTIAL THREAD QTY.24
(A20)ROUND ALLEN HEAD 5/32"X1/4"L PARTIAL THREAD QTY.4
2
13456
FRAME HARDWARE ILLUSTRATION
ASSEMBLY INSTRUCTIONS
Page
HARDWARE ILLUSTRATION
2
13456
HARDWARE ILLUSTRATION
DPLS
DPLS-102006 1.5

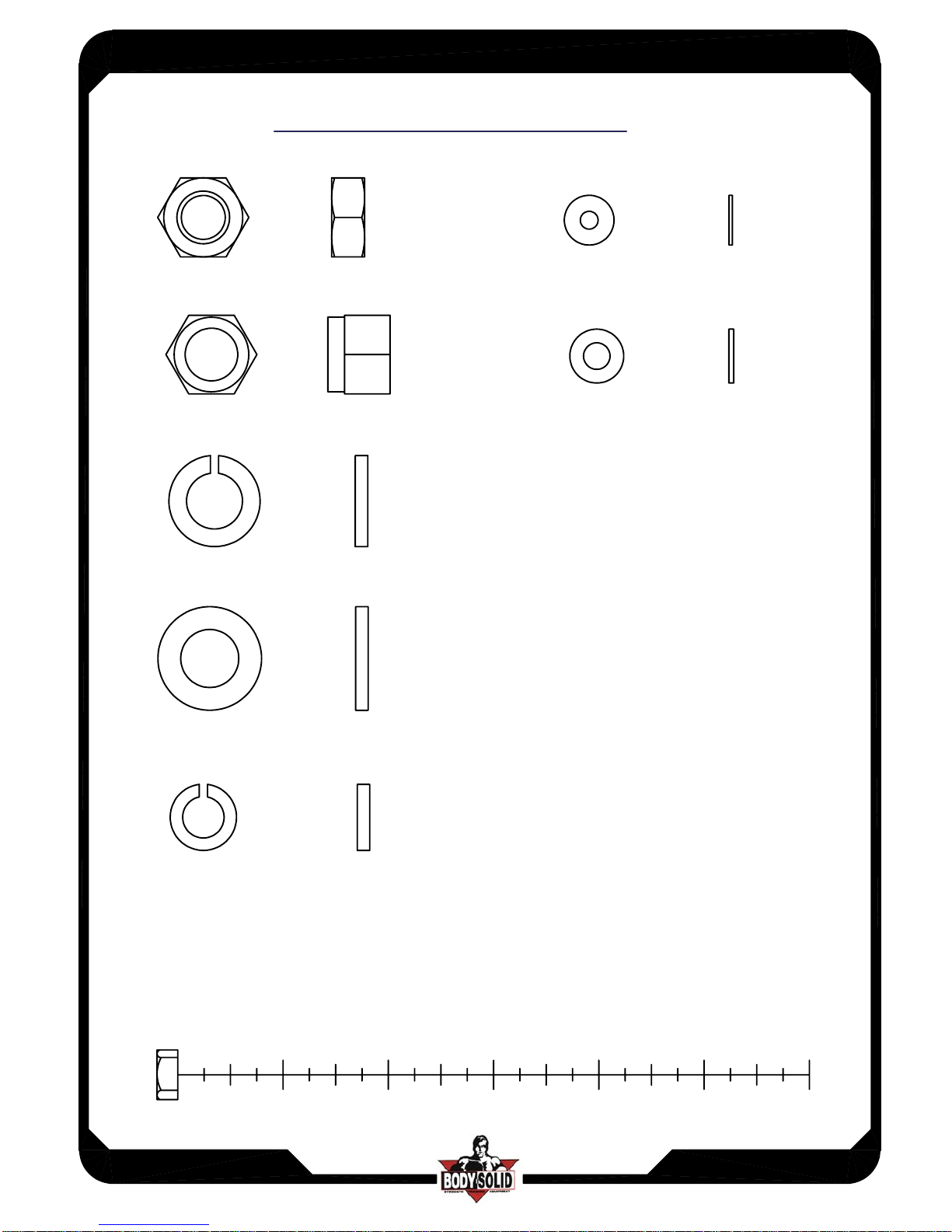

(B1)NYLON LOCK NUT 1/2" QTY.17
(C1)1/2"(I.D.)FLAT WASHER n25 QTY.2
(C2)1/2"(I.D.)FLAT WASHER n34 QTY.32
(C3)5/16"(I.D.)FLAT WASHER n24 QTY.6
(C4)5/16" SPRING WASHER QTY.6
(C5)M10(I.D.)FLAT WASHER n27 QTY.2
CONNECT DGYM
ASSEMBLY INSTRUCTIONS
Page
2
13456
FRAME HARDWARE ILLUSTRATION
DPLS
DPLS-102006 1.6
(B2)NYLON LOCK NUT 1/2"X13UNCX8T QTY.1
(C6)1/2" SPRING WASHER QTY.1
(B3)NYLON LOCK NUT 1/2" QTY.1
(C7)1/2"(I.D.)FLAT WASHER n25 QTY.2
(C8)3/8" SPRING WASHER QTY.1
(C10)M6(I.D.)FLAT WASHER n13 QTY.24
(C9)M4(I.D.)FLAT WASHER n12 QTY.2
ASSEMBLY INSTRUCTIONS
Page
DPLS
DPLS-102006 2
D1.n3/4"X16L STEEL BUSHING (8110-066)---------------------[6PCS]
D7.58X116X2.5T FOOT CAP(9211-108)----------------------------[2PCS]
D8.58X116 END CAP(9211-112)--------------------------------------[2PCS]
D11.n3/4" SHAFT COLLAR(9211-046)------------------------------[2PCS]
D12.n65Xn20X70L RUBBER DOUNT(9310-049)----------------[2PCS]
D16.WEIGHT SELECTOR BAR(8210-042)-------------------------[1PCS]
D1 D2 D3
D6 D7 D8 D9
D11 D12 D13 D14
D5
D10
D6.50X100(40X80)NYLON BUSHING(9211-107)-----------------[2PCS]
D9.40X80 END CAP(9211-113)----------------------------------------[5PCS]
D14.n117 PULLEY(9213-010B)---------------------------------------[11PCS]
D3.n8 SPRING SNAP LINK(8810-001)-----------------------------[1PCS]
D13.95X250 RUBBER PAD(9310-060)------------------------------[3PCS]
D15.TOP PLATE(8400-006)--------------------------------------------[1PCS]
D2.n3/4"X45L STEEL BUSHING (8110-067)---------------------[6PCS]
D10. n1"x2.5t Round End Cap(9260-021)--------------------------[2PCS]
D5. 25x50 End Cap (9211-086)----------------------------------------[2PCS]
D15 D16
HARDWARE ILLUSTRATION
ASSEMBLY INSTRUCTIONS
Page
DPLS
DPLS-102006 3
D17

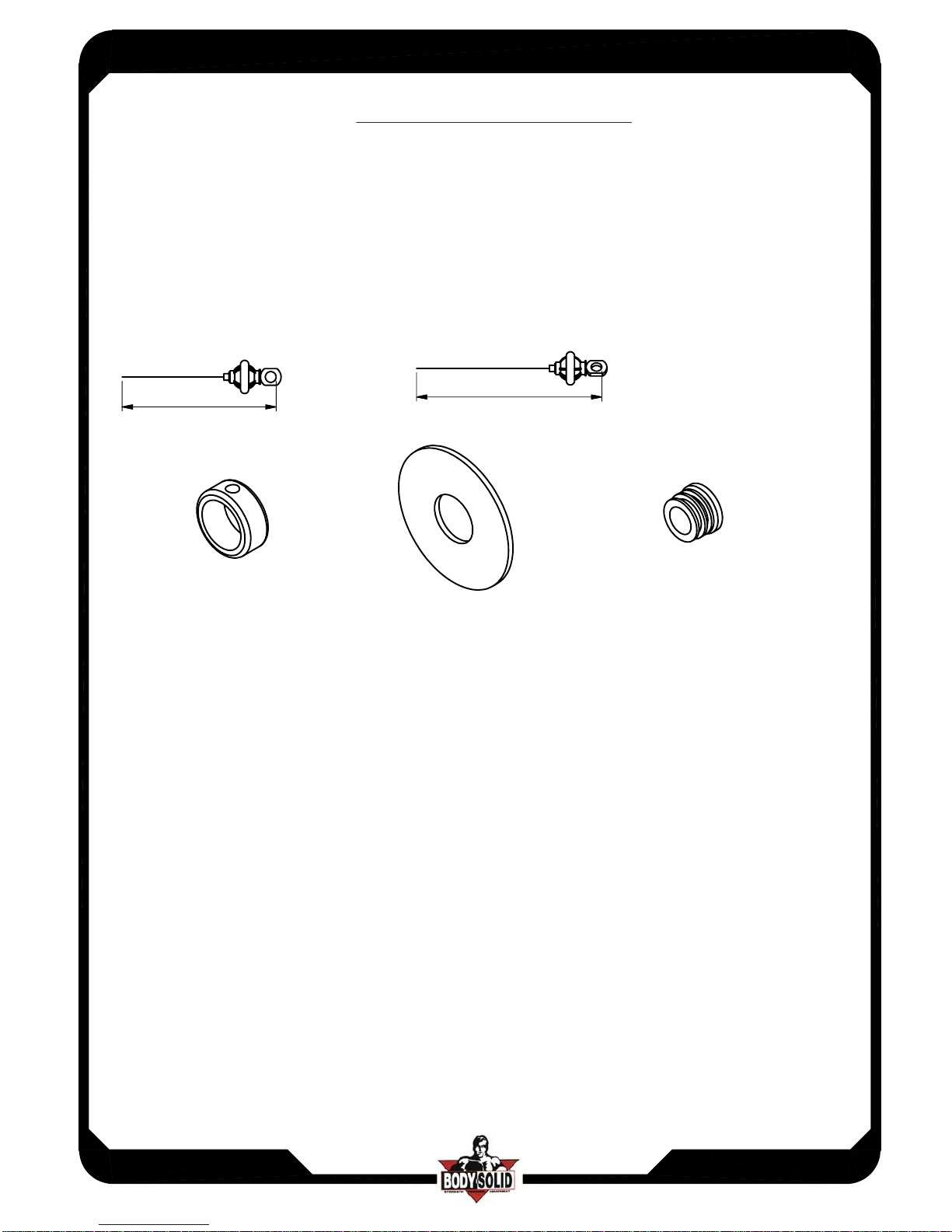

D17.8365mm STEEL CABLE(FDPLSA)--------------------------------[1PCS]
D18.DPLS For DGYM Steel Cable 8645mm(FDPLSB)-------------[1PCS]
D19.n1" SHAFT COLLAT(8130-024)-----------------------------------[2PCS]
D21.n1" END CAP(9211-016)--------------------------------------------[2PCS]
D20. 3" Nylon Washer (9214-008)---------------------------------------[2PCS]
8365
D19 D20 D21
HARDWARE ILLUSTRATION
D18
8645
ASSEMBLY INSTRUCTIONS
Page
DPLS
DPLS-102006 4
A[1PCS]
PARTS ILLUSTRATION SHEET
B[1PCS] C[1PCS]
D[1PCS] E[1PCS] F[1PCS]
G[1PCS] I[1PCS]
J[1PCS] K[1PCS] L[1PCS] M[1PCS]
9111-058 N[1PCS]
9121-057
O[2PCS]
9161-032 P[1PCS]
8220-137
n20X160L
62
238
197
Q[1PCS]
8313-130 R[1PCS]
8343-146 S[1PCS]
8343-147
