Bodet Profil TGV 950 User manual
1
Clock
Prol TGV 950
Prol TGV 970
Receiver minute, ½
minute impulses
IRIG B/AFNOR time
signal reception
France-Inter radio
synchronisation
INSTALLATION AND OPERATING INSTRUCTIONS
B.P. 1
49340 TRÉMENTINES
FRANCE
Tél. : 02 41 71 72 00
Fax : 02 41 71 72 02
www.bodet.com
Upon receipt, always check the product for damage during shipment. If any is found, you may le a damage
claim with the carrier
Réf.: 605732 E
2
Table of contents
I - INITIAL VERIFICATION 3
1.1 Unpacking the clock 3
1.2 Cleaning 4
II - INSTALLATION 5
2.1 Clock setting up 6
2.2 Setting the antenna 7
III - SETTING IN OPERATION 8
3.1 External supply connection 8
3.2 Clock connections and time setting 9
3.2.1. Impulses slave clock 9
3.2.2. AFNOR/IRIG-B time signal reception 11
3.2.3. France Inter radio receiver clock 12
IV - TECHNICAL FEATURES 13
TGV 950 13
TGV 970 14
V - WHAT TO DO IF...? ...CHECK. 16
3
I - INITIAL VERIFICATION
Thank you for choosing a BODET clock. This product has been carefully
designed for your satisfaction based on ISO9001 quality requirements. We
advise you to read this manual thoroughly before attempting to manipulate
the clock.
Keep this booklet during all the life of your clock, so that you can refer to it
each time it is necessary
Bodet accepts no responsibility for accidents resulting from any use
not conforming with the above provisions.
Any modication to the product will invalidate the warantee.
1.1 Unpacking the clock
Unpack with caution and check the contents of the packaging. It must contain :
- the TGV clock,
- for radio synchronised models : the antenna,
- a key to open the casing,
- a cleaning kit,
- this booklet.
4
Versions : a label inside the clock species what model the clock is :
AFNOR/FI HMS or AF/FI HMS = the clock is a receiver driven by : a
master clock that sends AFNOR NFS-87500A coded time messages or
a radio France Inter receiver antenna, and supplied in 240 VAC, with a
servo second hand.
AFNOR HM = the clock is a receiver driven by a master clock that
sends AFNOR NFS-87500A time coded messages ; it is supplied in 240
VAC.
AF/FI HM = the clock is a receiver driven by : a master clock that sends
AFNOR NFS-87500A coded time messages or a radio France Inter
receiver antenna, and supplied in 240 VAC.
MN 24V // HM = the clock is a receiver driven by a master clock that
sends minute impulses on a parallel line.
MN 24V // HMS = the clock is a receiver driven by a master clock that
sends minute impulses on a parallel ligne ; it is supplied in 240 VAC,
with a servo second hand.
1/2MN SER HM = the clock is a receiver driven by a master clock that
sends ½ minute impulses on a serial line.
1/2MN SER HMS = the clock is a receiver driven by a master clock that
sends ½ minute impulses on a serial ligne ; it is supplied in 240 VAC,
with a servo second hand.
1.2 Cleaning
Use an antistatic product of similar type to the one shipped in the original
packaging. Never use alcohol, acetone or any other solvent liable to damage
the casing and lter on your clock.
5
II - INSTALLATION
Select the place where the clock will be installed while making sure that radio
reception is correct for radio synchronisation models.
TGV 950 clock
TGV 970 clock
230
322
162
162
Ø 500
Ø 500
Ø 140
Ø 230
Ø 270
24 trous Ø 8,20
24 holes Ø8,20
322
163
360
180
163
Ø 700
Ø 700
360
180
360
Ø 470
24 trous Ø 11
sur un Ø430
24 holes Ø11
on Ø 430
6
2.1 Clock setting up
- Open the clock by giving the lock a
quarter turn with the key (5).
- On the TGV950 clock, remove the 2
locking srews (3) (provided for the transit).
- Pull the whole dial (1) towards you.
The hinge arm opening system ensures a
fast and secure maintenance of the lighting
without having to put the front part of the
clock on the ground.
- Hang the clock and x it, without locking
it, after you have put the wires (between Ø7 and Ø10) through the waterproof
pressure joints (4).
- Carry out the various connections (external supply : see page 8 and
connection to time distribution network : see page 9).
- Lock the clock.
- Power it.
- Reset the time if necessary.
- Close the clock.
5
4
3
3
1
7
2.2 Setting the antenna
For radio synchronised clocks :
The best reception conditions are
outside buildings or near windows.
Positioning the antenna (perpendicular
to the direction of the transmitter)
improves reception.
The antenna must not be placed on a
metal support.
As for any radio system, a building with
metal structures can cause
interference in the reception of the signal.
Computers, television sets and electrical appliances can
also cause interference that disrupt the reception of the
radio message.
- Unlock the antenna from its support.
- Fix the support with the screw supplied and lock the
antenna again.
Beware : in a double face system. So as not to cause
interference between the 2 antennas, the latter must be xed at least one
metre away from each other.
DCF
F-I
8
III - SETTING IN OPERATION

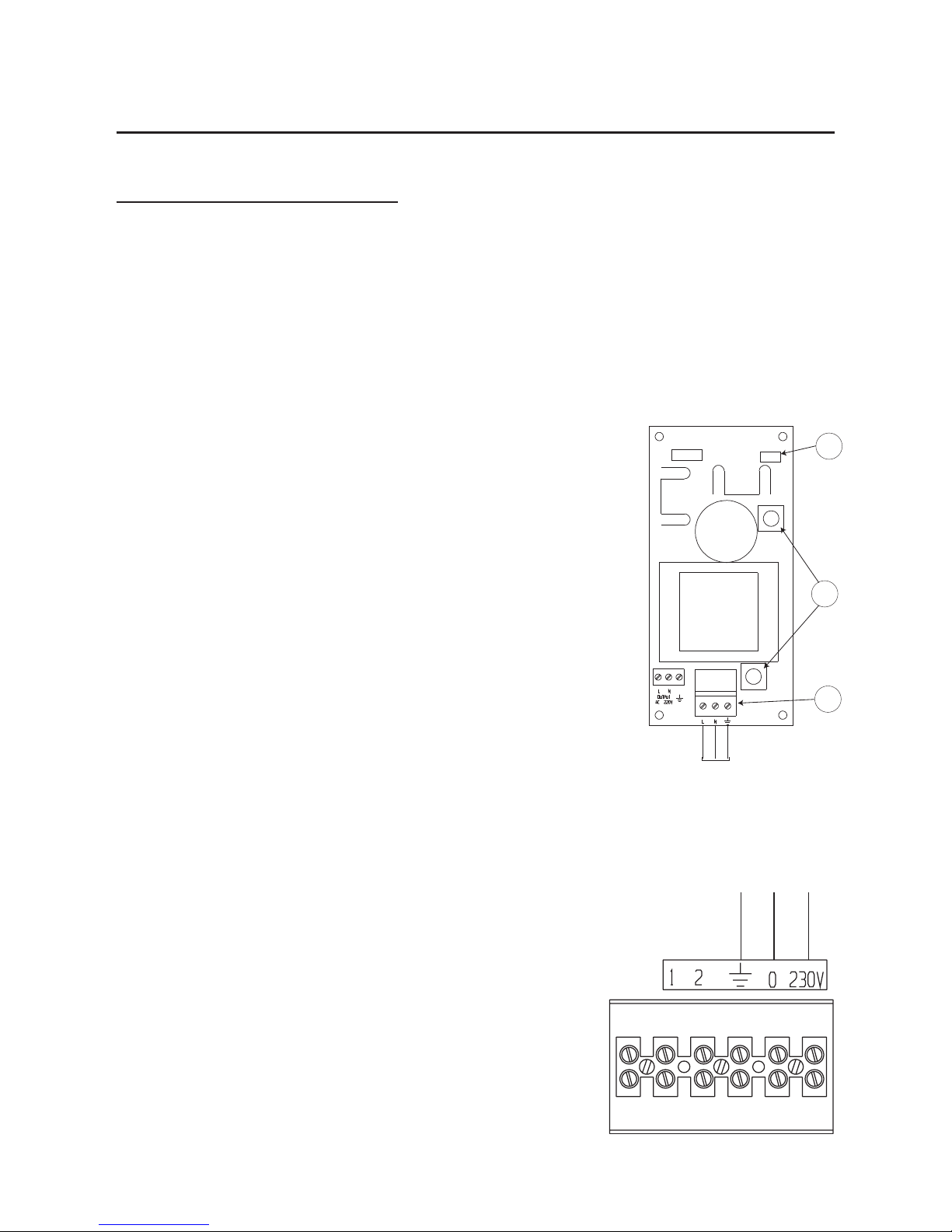

3.1 External supply connection
Installation and maintenance of this equipment must be carried out by
qualied personnel only.
Electrical installation must comply with current standard CEI 364. (NF C15-
100 in France for example).
The mains supply for the clocks must include a neutral phase circuit breaker
10A C curb, rapidly accessible. This circuit breaker must be switched off
during maintenance operations..
Note : the power supply wires must be linked near their xing point.
AFNOR/France Inter clock :
- Connect mains supply 230 Volt 50 Hz (lighting + time
base supply) to the supply card terminal : max.1,5 mm2
wire and bare on 5 mm.
The earth wire must be longer than the other ones.
- Lock the wires with collars.
This card is protected by 2 fuses (F) 2A 250V.
- Connect the terminal (2) of the battery, on this main
card.
Minute, ½ minute, with synchronous second hand
clock receiver
■The second hand is driven by an independent motor.
This motor must be permanently supply.
■Connect permanent power supply 230V +earth
(lighting + time base supply) on the terminal (4).
The earth wire must be longer than the other ones.
Nota : the power supply wires should be
assembled together near their connecting terminal.
2
15
F
Permanent
power supply
230V
Permanent power
supply 230V +earth
9
3.2 Clock connections and time setting
NOTA : to respect the security rules, the time distribution network must be be
SELV-type.
- The impulses wires should be assembled together near their connecting
terminal.
3.2.1. Impulses slave clock
A time distribution network emits only impulses, so that it is necessary to set
the clock at the time of this network.
To add a clock on a network, it is necessary to stop this network and to set on
time the clock.
To set on time the clock, turn the control knob (7 or 8).
Minute 24V // receiver,
- Connect the time distribution network to terminals 1
and 2 on the terminal strip.
Leave works 2 minutes.
- If the clock, or one of the clocks in case of a double
side mounting, is one minute late : stop the emitter,
reverse the connection on terminal (3) and put the
clock forward 2 minutes, then restart the emitter.
In fact, the same impulse is either positive or negative
according to the way to connect and the initial position
of the movement, it will take or not the rst impulse.
78
Synchronous
second hand
movement
Impulses
10
½ minute serial receiver,
- Connect the time distribution network to terminals 1
and 2 on the terminal strip.
- The terminal 3 of the terminal strip is available. You
can use it to connect a double side clock.
To insure the continuation of the serial distribution
network, (to avoid to cut the serial line when a slave
clock is disconnect) connect a resistor according to
the intensity of the network.
Network intensity ½ Minute movement shunt Second movement shunt
65 mA 100 Ohms 150 Ohms
80 mA 47 Ohms 56 Ohms
Leave works 2 minutes.
- If the clock, or one of the clocks in case of a double side mounting, is ½
minute late : stop the emitter, reverse the connection on terminal and put the
clock forward 1 minute, then restart the emitter.
In fact, the same impulse is either positive or negative according to the way
to connect and the initial position of the movement, it will take or not the rst
impulse.
Impulses
