Please read this manual before using the product!

Dear Customer,

We'd like you to make the best use of our product, which has been manufactured in modern facilities

with care and meticulous quality controls.

Thus, we advice you to read the entire user manual before you use the product. In case the product

changes hands, do not forget to hand the guide to its new owner along with the product.

This guide will help you use the product quickly and safely.

• Please read the user guide carefully before installing and operating the product.

• Always observe the applicable safety instructions.

• Keep the user guide within easy reach for future use.

• Please read any other documents provided with the product.

Keep in mind that this user guide may apply to several product models. The guide clearly indicates any

variations of different models.

CImportant information and useful

tips.

ARisk of life and property.

BRisk of electric shock.

The product’s packaging is made of

recyclable materials, in accordance

with the National Environment

Legislation.

2 / 30 EN Refrigerator / User Manual

1. Safety and environment instructions3

2 Your Refrigerator 7

2 Your Refrigerator 8

3 Installation 9

3.1 Appropriate location for installation . . . . . . . .9

3.2 Installing the plastic wedges . . . . . . . . . . . . .9

3.3 Adjusting the feet . . . . . . . . . . . . . . . . . . . . .9

3.4 Electric connection . . . . . . . . . . . . . . . . . . .11

4 Preparation 12

4.1 Things to be done for saving energy . . . . .12

4.2 Recommendations about the fresh food

compartment. . . . . . . . . . . . . . . . . . . . . .12

4.3 Initial use. . . . . . . . . . . . . . . . . . . . . . . . .13

5 Operating the product 14

5.1 Indicator panel . . . . . . . . . . . . . . . . . . . . . .14

5.2 Indicator panel. . . . . . . . . . . . . . . . . . . . .19

5.3 Freezing fresh food. . . . . . . . . . . . . . . . . . .21

5.4 Recommendations for preserving the frozen

food . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

5.5 Deep-freeze information . . . . . . . . . . . . . . .21

5.6 Placing the food . . . . . . . . . . . . . . . . . . . . .22

5.7 Door open warning. . . . . . . . . . . . . . . . . . .22

5.8 Chiller compartment. . . . . . . . . . . . . . . . . .22

5.9 Crisper. . . . . . . . . . . . . . . . . . . . . . . . . . . .22

5.10 Humidity-controlled crisper . . . . . . . . . . . .22

(FreSHelf). . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

5.11 Egg tray. . . . . . . . . . . . . . . . . . . . . . . . . .23

5.12 Movable Middle Section . . . . . . . . . . . . . .23

5.13 Cool Control Storage Compartment . . . . .23

5.14 Blue light . . . . . . . . . . . . . . . . . . . . . . . . .23

5.15 Odour filter. . . . . . . . . . . . . . . . . . . . . . . .23

5.16 Wine cellar compartment . . . . . . . . . . . . .24

5.17 Using internal water dispenser . . . . . . . . .25

5.18 Dispensing Water . . . . . . . . . . . . . . . . . . .25

5.19 For using water dispenser. . . . . . . . . . . . .26

5.20 Icematic . . . . . . . . . . . . . . . . . . . . . . . . .26

6 Maintenance and Cleaning 27

7Troubleshooting 28

3 / 30 EN Refrigerator / User Manual

1. Safety and environment instructions

This section provides the safety

instructions necessary to prevent

the risk of injury and material

damage. Failure to observe these

instructions will invalidate all

types of product warranty.

Intended use

WARNING:

Keep ventilation openings,

in the appliance enclosure

or in the built-instructure,

clear of obstruction.

WARNING:

Do not use mechanical

devices or other means

to accelerate the

defrosting process, other

than those recommended

by the manufacturer.

AWARNING:

Do not damage the

refrigerant circuit.

WARNING:

Do not use electrical

appliances inside

the food storage

compartments of the

appliance, unless

they are of the type

recommended by the

manufacturer.

This appliance is intended to be

used in household and similar

applications such as

– staff kitchen areas in shops,

offices and other working

environments;

– farm houses and by clients in

hotels, motels and other residential

type environments;

– bed and breakfast type

environments;

– catering and similar non-retail

applications.

1.1.General safety

• This product should not be

used by persons with physical,

sensory and mental disabilities,

without sufficient knowledge

and experience or by children.

The device can only be used by

such persons under supervision

and instruction of a person

responsible for their safety.

Children should not be allowed to

play with this device.

• In case of malfunction, unplug

the device.

• After unplugging, wait at least 5

minutes before plugging in again.

• Unplug the product when not in

use.

• Do not touch the plug with wet

hands! Do not pull the cable to

plug off, always hold the plug.

4 / 30 EN Refrigerator / User Manual

Important instructions regarding safety and environment

• Do not plug in the refrigerator if

the socket is loose.

• Unplug the product during

installation, maintenance,

cleaning and repair.

• If the product will not be used

for a while, unplug the product

and remove any food inside.

• Do not use the product when

the compartment with circuit

cards located on the upper back

part of the product (electrical

card box cover) (1) is open.

• Do not use steam or steamed

cleaning materials for cleaning

the refrigerator and melting the

ice inside. Steam may contact

the electrified areas and cause

short circuit or electric shock!

• Do not wash the product by

spraying or pouring water on it!

Danger of electric shock!

• In case of malfunction, do not

use the product, as it may

cause electric shock. Contact

the authorised service before

doing anything.

• Plug the product into an

earthed socket. Earthing

must be done by a qualified

electrician.

• If the product has LED type

lighting, contact the authorised

service for replacing or in case

of any problem.

• Do not touch frozen food with

wet hands! It may adhere to

your hands!

• Do not place liquids in bottles

and cans into the freezer

compartment. They may

explode.

• Place liquids in upright position

after tightly closing the lid.

• Do not spray flammable

substances near the product,

as it may burn or explode.

• Do not keep flammable

materials and products with

flammable gas (sprays, etc.) in

the refrigerator.

• Do not place containers

holding liquids on top of the

product. Splashing water on

an electrified part may cause

electric shock and risk of fire.

• Exposing the product to rain,

snow, sunlight and wind will

cause electrical danger. When

relocating the product, do not

5 / 30 EN Refrigerator / User Manual

Important instructions regarding safety and environment

pull by holding the door handle.

The handle may come off.

• Take care to avoid trapping any

part of your hands or body in

any of the moving parts inside

the product.

• Do not step or lean on the door,

drawers and similar parts of

the refrigerator. This will cause

the product to fall down and

cause damage to the parts.

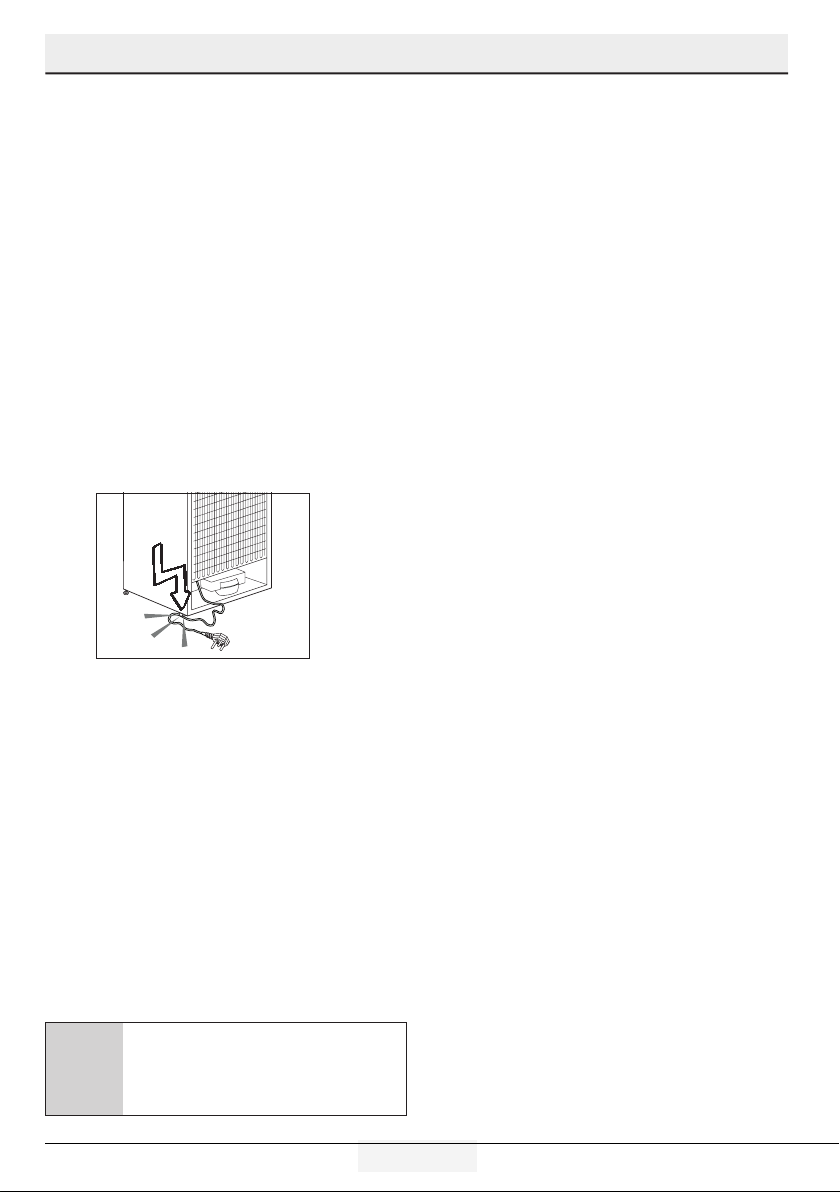

• Take care not to trap the power

cable.

1.1.1 HC warning

If the product comprises a cooling

system using R600a gas, take

care to avoid damaging the

cooling system and its pipe while

using and moving the product.

This gas is flammable. If the

cooling system is damaged, keep

the product away from sources

of fire and ventilate the room

immediately.

CThe label on the inner left

side indicates the type of

gas used in the product.

1.1.2 For models with

water dispenser

• Pressure for cold water inlet

shall be maximum 90 psi (6.2

bar). If your water pressure

exceeds 80 psi (5.5 bar), use a

pressure limiting valve in your

mains system. If you do not

know how to check your water

pressure, ask for the help of a

professional plumber.

• If there is risk of water hammer

effect in your installation,

always use a water hammer

prevention equipment in

your installation. Consult

Professional plumbers if you

are not sure that there is no

water hammer effect in your

installation.

• Do not install on the hot water

inlet. Take precautions against

of the risk of freezing of the

hoses. Water temperature

operating interval shall be 33°F

(0.6°C) minimum and 100°F

(38°C) maximum.

• Use drinking water only.

1.2.Intended use

• This product is designed for

home use. It is not intended for

commercial use.

6 / 30 EN Refrigerator / User Manual

Important instructions regarding safety and environment

• The product should be used to

store food and beverages only.

• Do not keep sensitive

products requiring controlled

temperatures (vaccines,

heat sensitive medication,

medical supplies, etc.) in the

refrigerator.

• The manufacturer assumes no

responsibility for any damage

due to misuse or mishandling.

• Original spare parts will be

provided for 10 years, following

the product purchasing date.

1.3.Child safety

• Keep packaging materials out

of children’s reach.

• Do not allow the children to

play with the product.

• If the product’s door comprises

a lock, keep the key out of

children’s reach.

1.4. Compliance with WEEE Directive

and Disposing of the Waste Product

This product complies with EU WEEE

Directive (2012/19/EU). This product bears a

classification symbol for waste electrical and

electronic equipment (WEEE).

This product has been manufactured

with high quality parts and materials

which can be reused and are suitable

for recycling. Do not dispose of the

waste product with normal domestic

and other wastes at the end of its

service life. Take it to the collection

center for the recycling of electrical and electronic

equipment. Please consult your local authorities to

learn about these collection centers.

1.5. Compliance with RoHS Directive

• This product complies with EU WEEE Directive

(2011/65/EU). It does not contain harmful and

prohibited materials specified in the Directive.

1.6. Package information

• Packaging materials of the product are

manufactured from recyclable materials in

accordance with our National Environment

Regulations. Do not dispose of the packaging

materials together with the domestic or other

wastes. Take them to the packaging material

collection points designated by the local

authorities.

7 / 30 EN Refrigerator / User Manual

CFigures in this user manual are schematic and may not match the product exactly. If the subject parts

are not included in the product you have purchased, then those parts are valid for other models.

2 Your Refrigerator

1- Control and indicator panel

2- Butter & Cheese section

3- 70 mm moving door shelf

4- Fridge compartment glass shelf

5- Fridge compartment crisper

6- Gallon door shelf

7- Chiller compartment

8- Icebox drawer

9- Multizone compartment glass shelf/cooler

10- Freezer compartment drawers

11- Multizone Compartment's drawer

8 / 30 EN Refrigerator / User Manual

CFigures in this user manual are schematic and may not match the product exactly. If the subject parts

are not included in the product you have purchased, then those parts are valid for other models.

2 Your Refrigerator

1- Control and indicator panel

2- Butter & Cheese section

3- 70 mm moving door shelf

4- Fridge compartment glass shelf

5- Fridge compartment crisper

6- Gallon door shelf

7- Chiller compartment

8- Icebox drawer

9- Multizone compartment glass shelf/cooler

10- Freezer compartment drawers

11- Multizone Compartment's drawer

9 / 30 EN Refrigerator / User Manual

3.1 Appropriate location

for installation

Contact an Authorized Service for the installation

of the product. In order to prepare the product

for use, refer the information in the user manual

and ensure that electrical installation and water

installation are appropriate. If not, call a qualified

electrician and technician to have any necessary

arrangements carried out.

BWARNING: Manufacturer shall not

be held liable for damages that may

arise from procedures carried out by

unauthorized persons.

BWARNING: Product must not be plugged

in during installation. Otherwise, there is

the risk of death or serious injury!

WARNING: : If the door clearance of the

room where the product shall be placed is

so tight to prevent passing of the product,

remove the door of the room and pass the

product through the door by turning it to

its side; if this does not work, contact the

authorized service.

•Placetheproductonalevelfloorsurfaceto

prevent jolts.

•Installtheproductatleast30cmawayfrom

heat sources such as hobs, heater cores and

stoves and at least 5 cm away from electrical

ovens.

•Productmustnotbesubjectedtodirectsunlight

and kept in humid places.

•Appropriateairventilationmustbeprovided

around your product in order to achieve an

efficient operation. If the product is to be placed

in a recess in the wall, pay attention to leave at

least 5 cm distance with the ceiling and side

walls.

•Donotinstalltheproductinplaceswherethe

temperature falls below -5°C.

3.2 Installing the plastic wedges

Plastic wedges supplied with the product are

used to create the distance for the air circulation

between the product and the rear wall.

3 Installation

To install the wedges, remove the screws on the

product and use the screws supplied together with the

wedges.

Insert the 2 plastic wedges onto the rear ventilation

cover as illustrated in the figure.

3.3 Adjusting the feet

If the product stands unbalanced after installation,

adjust the feet on the front by rotating them to the

right or left.

This manual suits for next models

Table of contents

Languages:

Other Blomberg Refrigerator manuals

Blomberg

Blomberg KWD 1330 X User manual

Blomberg

Blomberg KE 4541IN Instruction Manual

Blomberg

Blomberg KSM 1650 User manual

Blomberg

Blomberg KNM4760N Instruction Manual

Blomberg

Blomberg DNM 1860 User manual

Blomberg

Blomberg BRFB 1450 SS User manual

Blomberg

Blomberg KND 9950 XDA+ User manual

Blomberg

Blomberg SND 9680 XA+ User manual

Blomberg

Blomberg KFD4952XD User manual

Blomberg

Blomberg MDND 1880 User manual

Blomberg

Blomberg FNT 9550 User manual

Blomberg

Blomberg MKND 9860 A+ User manual

Blomberg

Blomberg SOE 96733 User manual

Blomberg

Blomberg KNM4563EI User manual

Blomberg

Blomberg KND 9950 XA+ User manual

Blomberg

Blomberg KQD 1250 User manual

Blomberg

Blomberg BRFB1812SSL User manual

Blomberg

Blomberg KOD 1650 User manual

Blomberg

Blomberg KQD 1250 X User manual

Blomberg

Blomberg BRFB1920FBI User manual

Blomberg

Blomberg DSM 1510 i User manual

Blomberg

Blomberg DSM 9511 A+ User manual

Blomberg

Blomberg BFBF2413SS User manual

Blomberg

Blomberg BRFB 1042SSN User manual

Popular Refrigerator manuals by other brands

Bonnet Neve

Bonnet Neve SKYVIEW PLUS User instructions

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Instruction book

Sharp

Sharp SJ-BA31IEXW2-EU user manual

CORBERO

CORBERO CC2300MCW Instruction booklet

KitchenAid

KitchenAid 2205264 Use and care guide

Stengel

Stengel KU 1101 A++ user manual

NEFF

NEFF KI181 Series user manual

Hoshizaki

Hoshizaki Reach-In instruction manual

Amana

Amana ASD2524VES00 User instructions

BOMANN

BOMANN KGC 213 instruction manual

Danby

Danby DAR044A1SLDD Owner's use and care guide

Samsung

Samsung RF323TE user manual

Beko

Beko CSA31022 Instructions for use

IKEA

IKEA FROSTIG C 185 E manual

Electrolux

Electrolux ER 6821 D Instruction book

True

True TS-28 Specifications

Frigidaire

Frigidaire FSC23R5DW9 installation guide

Beko

Beko LSP4579W Instructions for use
