Blizzard Lighting SNAKE EYES User manual

Blizzard Lighting, LLC

www.blizzardlighting.com

Waukesha, WI USA

SNAKE EYES™

Page 2

TABLE OF CONTENTS

Snake Eyes™ Moving Head 1

1. Getting Started 3

What’s In The Box? 3

Getting It Out Of The Box 3

Powering Up! 3

Getting A Hold Of Us 3

Safety Instructions (Don’t Stick Your Hand In The Toaster!) 4

2. Meet The Snake Eyes™ 5

Main Features 5

Additional Features 5

DMX Quick Reference 5

The Snake Eyes™ Pin-up Picture 6

3. Setup 7

Fuse Replacement 7

Connecting A Bunch Of Snake Eyes™ Fixtures 7

Data/DMX Cables 7

Cable Connectors 8

3-Pin??? 5-Pin??? Huh? 8

Take It To The Next Level: Setting up DMX Control 8

Fixture Linking (Master/Slave Mode) 9

Mounting/Rigging 10

Mounting Points 11

Clamp Mounting 11

4. Operating Adjustments 12

The Control Panel 12

Control Panel Menu Structure 13

DMX Mode 14

Select The Channel Mode 14

Select The DMX Starting Address 14

Master/Slave Mode Settings 14

Auto, Stand-Alone, Sound Active Modes 14

Auto Mode 14

Sound Active Mode 14

Manual Test Mode 15

Pan Inverse 15

Fine Pan/Tilt Adjustment 15

Pan Angle Setting 15

No DMX / Lost Signal Setting 15

DMX Channel Values In-Depth 16

Troubleshooting 19

5. Appendix 20

A Quick DMX Lesson 20

Keeping Your Snake Eyes™ As Good As New 21

Returns (Gasp!) 21

Shipping Issues 21

Tech Specs 22

Dimensional Drawings 23

Page 3

1. GETTING STARTED

What’s In The Box?

• 1 x Snake Eyes™ Moving Head Fixture

• An Ever-So-Handy Power Cord

• A Sweet Set of Mounting Brackets

• 1 x Saftety Cable

• 1 x DMX Cable

• This Lovely User Manual

Getting It Out Of The Box

Congratulations on purchasing the incredible Snake Eyes™ LED moving head. Your light

show is about to get a “wow factor” that can’t lose! Now that you’ve got your Snake

Eyes™, you should carefully unpack the box and check the contents to ensure that all parts

are present and in good condition. If anything looks as if it has been damaged in transit,

notify the shipper immediately and keep the packing material for inspection. Again, please

save the carton and all packing materials. If a xture must be returned to the factory, it is

important that the xture be returned in the original factory box and packing.

Powering Up!

All xtures must be powered directly off a switched circuit and cannot be run off a

rheostat (variable resistor) or dimmer circuit, even if the rheostat or dimmer

channel is used solely for a 0% to 100% switch.

AC Voltage Switch - Not all xtures have a voltage select switch, so please verify that the

xture you receive is suitable for your local power supply. See the label on the xture or

refer to the xture’s specications chart for more information. A xture’s listed current

rating is its average current draw under normal conditions. Check the xture or device

carefully to make sure that if a voltage selection switch exists that it is set to the correct

line voltage you will use.

Warning! Verify that the voltage select switch on your unit matches the line

voltage applied. Damage to your xture may result if the line voltage applied does

not match the voltage indicated on the voltage selector switch. All xtures must

be connected to circuits with a suitable Ground (Earthing).

Getting A Hold Of Us

If something happens goes wrong, please visit www.blizzardlighting.com/support and

open a support ticket. We’ll be happy to help, honest.

Blizzard Lighting

N24 W23750 Watertown Rd. Suite B

Waukesha, WI 53188 USA

www.blizzardlighting.com

Disclaimer: The information and specications contained in this document are subject

to change without notice. Blizzard Lighting™ assumes no responsibility or liability for any

errors or omissions that may appear in this user manual. Blizzard Lighting™ reserves the

right to update the existing document or to create a new document to correct any errors

or omissions at any time. You can download the latest version of this document from www.

blizzardlighting.com.

Author: Date: Last Edited: Date:

J. Thomas 1/1/2016 J. Thomas 1/5/2016

Page 4

SAFETY INSTRUCTIONS

• Please keep this User Guide for future use. If you sell the unit to someone

else, be sure that they also receive this User Guide.

• ALWAYS make sure that you are connecting to the proper voltage, and that

the line voltage you are connecting to is not higher than that stated on the de-

cal or rear panel of the xture.

• This product is intended for indoor use only.

• To prevent risk of re or shock, do not expose xture to rain or moisture.

• Make sure there are no ammable materials close to the unit while operating.

• The unit must be installed in a location with adequate ventilation, at least

20in (50cm) from adjacent surfaces. Be sure that no ventilation slots are

blocked.

• ALWAYS disconnect from the power source before servicing or replacing fuse

and be sure to replace with same fuse size and type.

• ALWAYS secure xture using a safety chain. NEVER carry the xture by its

cord. Use its carrying handles.

• DO NOT operate at ambient temperatures higher than 104°F (40°C).

• In the event of a serious operating problem, stop using the unit immediately.

NEVER try to repair the unit by yourself. Repairs carried out by unskilled people

can lead to damage or malfunction. Please contact the nearest authorized tech-

nical assistance center. Always use the same type spare parts.

• NEVER connect the device to a dimmer pack.

• Make sure the power cord is never crimped or damaged.

• Never disconnect the power cord by pulling or tugging on the cord.

• Avoid direct eye exposure to the light source while it is on.

Caution! There are no user serviceable parts inside the unit. Do not

open the housing or attempt any repairs yourself. In the unlikely event

your unit may require service, please contact Blizzard Lighting at www.

blizzardlighting.com/support.

Page 5

2. MEET THE SNAKE EYES™ MOVING HEAD

MAIN FEATURES

• 6* 60W OSRAM® RGBW 4-in-1 LEDs, 50,000 hours

• 12* DMX controllable RGB strips

• 630º/540° pan, 360° innite tilt

• Smooth 3-phase motors

• Automatic pan/tilt position correction

• User selectable 15/37-channel DMX modes

• 1-25Hz strobe

• Built-in auto and sound active programs

• 0-100% linear LED dimmer

ADDITIONAL FEATURES

• Easy-to-use 4-button LCD control panel menu display

• Dual mounting brackets for positioning exibility

• 3/5-pin male and female DMX In/Out

• PowerCon™ compatible AC power input connector

DMX Quick Reference: 37/15-Channel Mode

Ch. 37-Channel Ch. 15-Channel

1Pan 1Pan

2 Fine Pan 2 Tilt

3 Tilt 3 Innite tilt

4 Fine Tilt 4 Speed

5Innite tilt 5 Red Intensity

6 Speed 6 Green Intensity

7 Red 1 Intensity 7 Blue Intensity

8 Green 1 Intensity 8 White Intensity

9 Blue 1 Intensity 9 Strobe

10 White 1 Intensity 10 Dimmer

11-30 Red/Green/Blue/White, LEDs 2-6 11 LED Strip Auto Program

31 Strobe 12 Auto Modes

32 Dimmer 13 Color Macros

33 LED Strip Auto Program 14 LED Strip Speed

34 Auto Modes 15 Reset

35 Color Macros --

36 LED Strip Speed --

37 Reset --

Page 6

Figure 1: The Snake Eyes™ Pin-Up Picture

4-Button LCD

Control Panel

Figure 2: The Rear Connections

Fuse Holder

Head/Arms

Carry Handle

3-Pin DMX In

6* 60W OSRAM®

RGBW 4-in-1 LEDs

12* DMX Controllable

RGB Strips

Power Input

5-Pin DMX Out 5-Pin DMX In 3-Pin DMX Out

Page 7

3. SETUP

Fuse Replacement

With a phillips head screwdriver, remove the fuse holder from its hous-

ing. Remove the damaged fuse from its holder and replace with exact

same type fuse. Insert the fuse holder back in its place and reconnect

power.

Connecting A Bunch of Snake Eyes™ Fixtures

You will need a serial data link to run light shows using a DMX-512

controller or to run shows on two or more xtures set to sync in mas-

ter/slave operating mode. The combined number of channels required

by all the xtures on a serial data link determines the number of x-

tures the data link can support.

Fixtures on a serial data link must be daisy chained in one single line.

Also, connecting more than 32 xtures on one serial data link without

the use of a DMX optically-isolated splitter may result in deterioration

of the digital DMX signal. The maximum recommended cable-run dis-

tance is 500 meters (1640 ft). The maximum recommended number of

xtures on a serial data link is 32 xtures.

Data/DMX Cabling

To link xtures together you’ll need data cables. You should use data-

grade cables that can carry a high quality signal and are less prone to

electromagnetic interference.

For instance, Belden© 9841 meets the specications for EIA RS-485

applications. Standard microphone cables will “probably” be OK, but

note that they cannot transmit DMX data as reliably over long distanc-

es. In any event, the cable should have the following characteristics:

2-conductor twisted pair plus a shield

Maximum capacitance between conductors – 30 pF/ft.

Maximum capacitance between conductor & shield – 55 pF/ft.

Maximum resistance of 20 ohms / 1000 ft.

Nominal impedance 100 – 140 ohms

Page 8

Cable Connectors

Cables must have a male XLR connector on one end and a female XLR

connector on the other end. (Duh!)

CAUTION: Do not allow contact between the common and the x-

ture’s chassis ground. Grounding the common can cause a ground

loop, and your xture may perform erratically. Test cables with an

ohm meter to verify correct polarity and to make sure the pins are not

grounded or shorted to the shield or each other.

3-Pin??? 5-Pin??? Huh?!?

If you use a controller with a 5 pin DMX output connector, you will need to use a 5 pin to 3-pin adapter.

They are widely available over the internet and from specialty retailers If you’d like to build your own, the

chart below details a proper cable conversion:

Conductor 3-Pin Female

(Output)

5-Pin Male

(Input)

Ground/Shield Pin 1 Pin 1

DMX Data (-) Pin 2 Pin 2

DMX Data (+) Pin 3 Pin 3

Not Used. No Connection. No Connection.

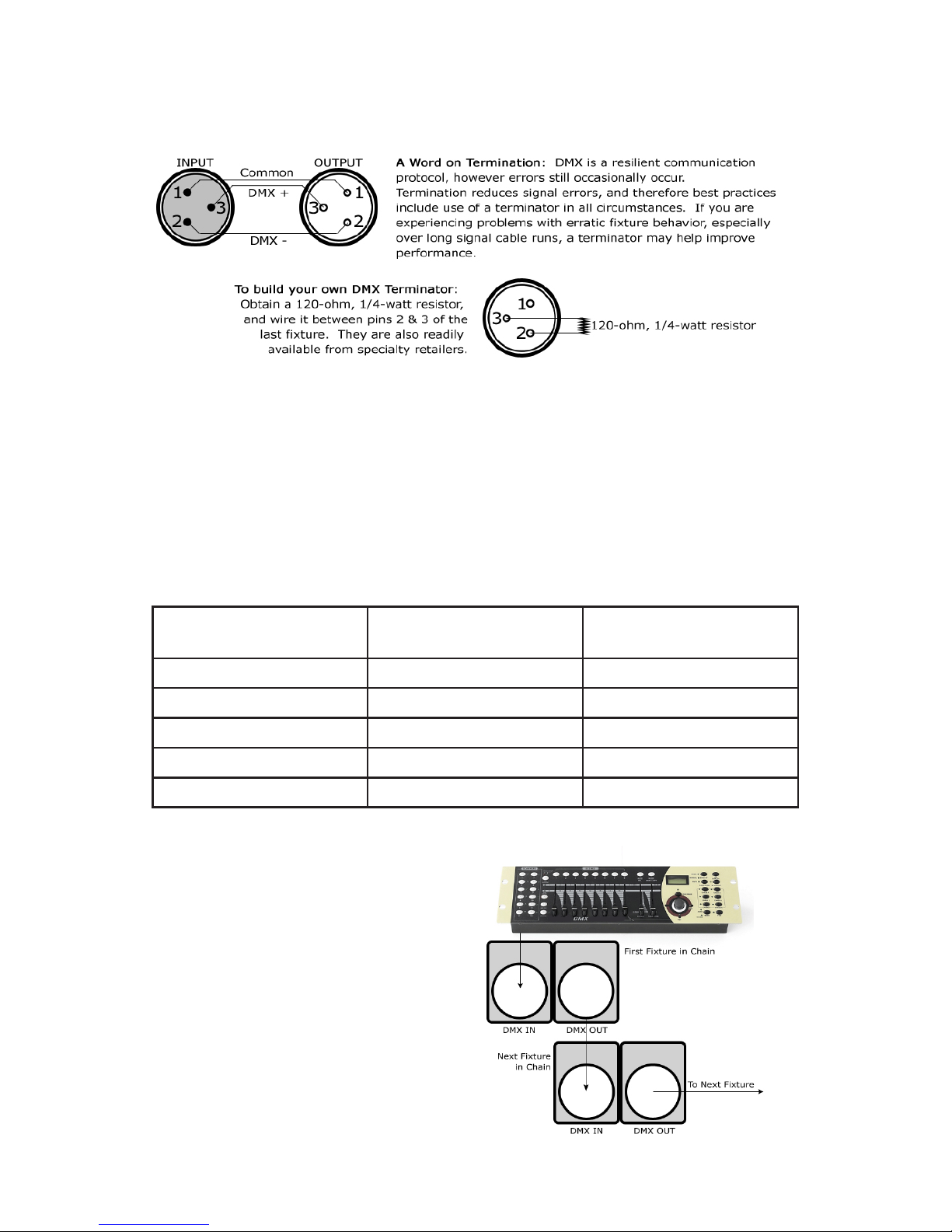

Take It To The Next Level: Setting Up DMX Control

Step 1: Connect the male connector of the

DMX cable to the female connector (output)

on the controller.

Step 2: Connect the female connector of the

DMX cable to the rst xture’s male connec-

tor (input). Note: It doesn’t matter which

xture address is the rst one connected.

We recommend connecting the xtures in

terms of their proximity to the controller,

rather than connecting the lowest xture

number rst, and so on.

Step 3: Connect other xtures in the chain

from output to input as above. Place a DMX

terminator on the output of the nal xture

to ensure best communication.

Page 9

Fixture Linking (Master/Slave Mode)

1. Connect the (male) 3-pin connector side of the

DMX cable to the output (female) 3-pin connector of

the rst xture.

2. Connect the end of the cable coming from the

rst xture which will have a (female) 3-pin connec-

tor to the input connector of the next xture con-

sisting of a (male) 3-pin connector. Then, proceed

to connect from the output as stated above to the

input of the following xture and so on.

A quick note: Often,

the setup for Master-

Slave and Standalone

operation requires that

the rst xture in the

chain be initialized for

this purpose via either

settings in the control

panel or DIP-switches.

Secondarily, the xtures

that follow may also re-

quire a slave setting.

Check the “Operating Adjustments” section in this manual for com-

plete instructions for this type of setup and conguration.

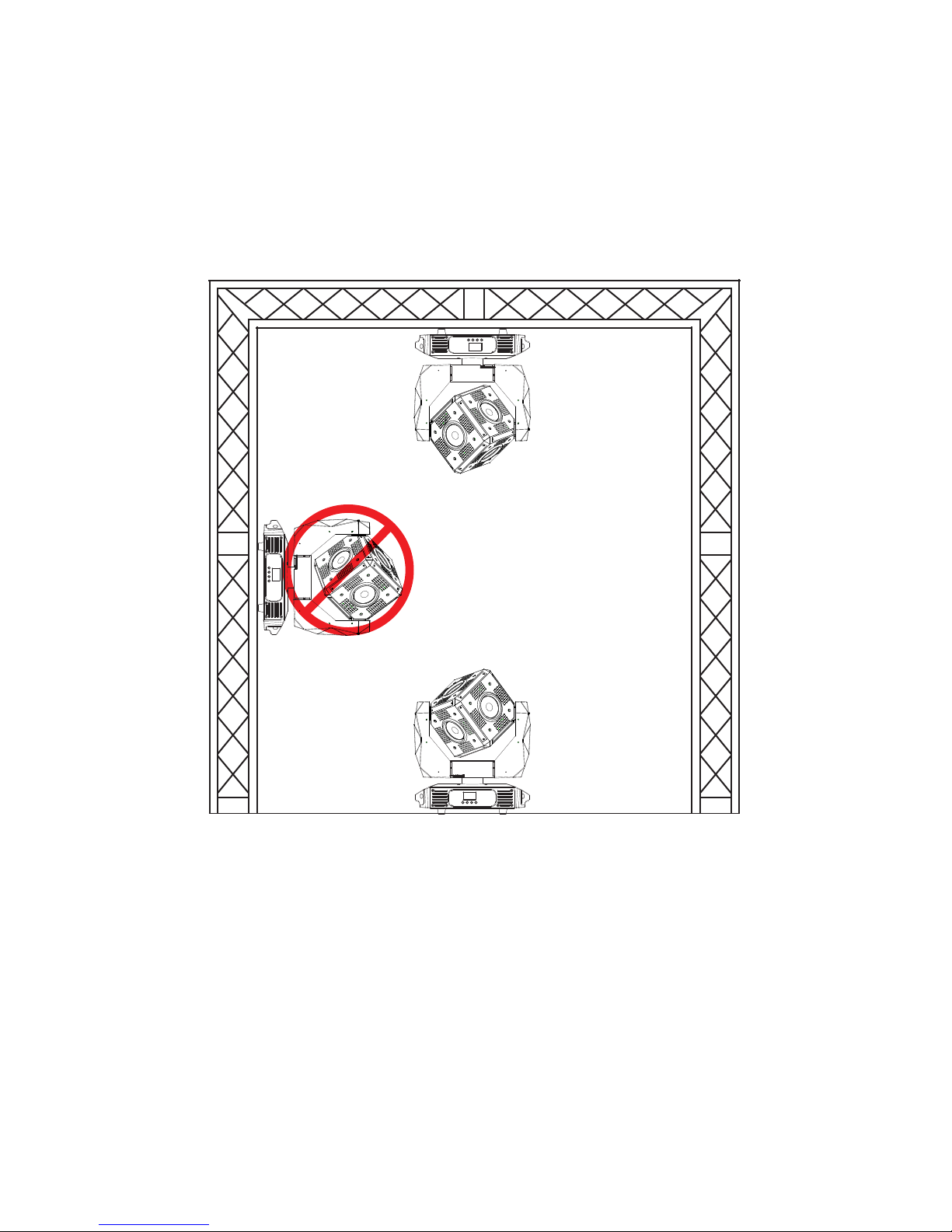

Mounting & Rigging

This xture may be mounted in any SAFE position provided there is

enough room for ventilation.

It is important never to obstruct the fan or vents pathway. Mount the

xture using a suitable “C” or “O” type clamp. The clamp should be

rated to hold at least 10x the xture’s weight to ensure structural sta-

bility. Do not mount to surfaces with unknown strength, and ensure

properly “rated” rigging is used when mounting xutres overhead.

Adjust the angle of the xture by loosening both knobs and tilting the

xture. After nding the desired position, retighten both knobs.

• When selecting installation location, take into consideration lamp

replacement access (if applicable) and routine maintenance.

• Safety cables MUST ALWAYS be used.

• Never mount in places where the xture will be exposed to rain,

high humidity, extreme temperature changes or restricted ventilation.

Page 10

Mounting Points

Overhead mounting requires extensive experience, which includes

calculating working load limits, knowledge of the installation material

being used, and periodic safety inspection of all installation material

and the xture. If you lack these qualications, do not attempt the

installation yourself. Improper installation can result in bodily injury.

Caution!

Please be aware, you should have a qualied electrician performing all

of your electrical connection needs. Better safe than sorry!

Be sure to complete all rigging and installation procedures before

connecting the main power cord to the appropriate wall outlet.

Table of contents

Other Blizzard Lighting Lighting Equipment manuals

Blizzard Lighting

Blizzard Lighting SnowBlind User manual

Blizzard Lighting

Blizzard Lighting snokontrol User manual

Blizzard Lighting

Blizzard Lighting Pocket Rocket User manual

Blizzard Lighting

Blizzard Lighting Mezmerizor 4FX User manual

Blizzard Lighting

Blizzard Lighting SkyBox EXA User manual

Blizzard Lighting

Blizzard Lighting Flurry EXA User manual

Blizzard Lighting

Blizzard Lighting HotBox RGBW/RGBA User manual

Blizzard Lighting

Blizzard Lighting Torrent F3 User manual

Blizzard Lighting

Blizzard Lighting Switch Blade X3 User manual

Blizzard Lighting

Blizzard Lighting Puck Pro Zoom EXA User manual

Blizzard Lighting

Blizzard Lighting G-Mix 200 User manual

Blizzard Lighting

Blizzard Lighting the puck pro zoom User manual

Blizzard Lighting

Blizzard Lighting RokBox User manual

Blizzard Lighting

Blizzard Lighting Northstar Spec-Z User manual

Blizzard Lighting

Blizzard Lighting G-Max 150 User manual

Blizzard Lighting

Blizzard Lighting the puck User manual

Blizzard Lighting

Blizzard Lighting The Puck RGB Unplugged User manual

Blizzard Lighting

Blizzard Lighting ProPar V12 User manual

Blizzard Lighting

Blizzard Lighting Flurry Spot User manual

Blizzard Lighting

Blizzard Lighting Motif Sketch User manual

Blizzard Lighting

Blizzard Lighting ToughPar V12 User manual

Blizzard Lighting

Blizzard Lighting ToughPAR Satellight User manual

Blizzard Lighting

Blizzard Lighting SPOTMAN User manual

Blizzard Lighting

Blizzard Lighting the puck User manual

Popular Lighting Equipment manuals by other brands

Brizo

Brizo 8SP-MU-4 manual

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 installation instructions

IKEA

IKEA BJÖRKSPIREA manual

Laserworld

Laserworld Evolution Series ES-400RGB manual

Alien

Alien RG STAR user manual

EuroLite

EuroLite LED B-40 user manual

Qazqa

Qazqa Suplux SL 3 Black 103062 instruction manual

Commercial Electric

Commercial Electric 54568141 Use and care guide

CREE LIGHTING

CREE LIGHTING 304 Series installation instructions

Goobay

Goobay 49867 user manual

ECOMAN ITALIA

ECOMAN ITALIA LED T8 instruction manual

Alkalite

Alkalite Krypton KT-81 user manual

Clas Ohlson

Clas Ohlson GU10 manual

DTS

DTS DELTA 10 F user manual

ring

ring Solar Steplight manual

One Stop Gardens

One Stop Gardens 57696 Owner's manual & safety instructions

Chauvet DJ

Chauvet DJ COREpar UV120 ILS user manual

SIREM

SIREM Swimeo A2 instructions
