Blaupunkt BP 5.0 User manual
LS 162e
WiFi Car DVR
Instruction Manual
| 1
English

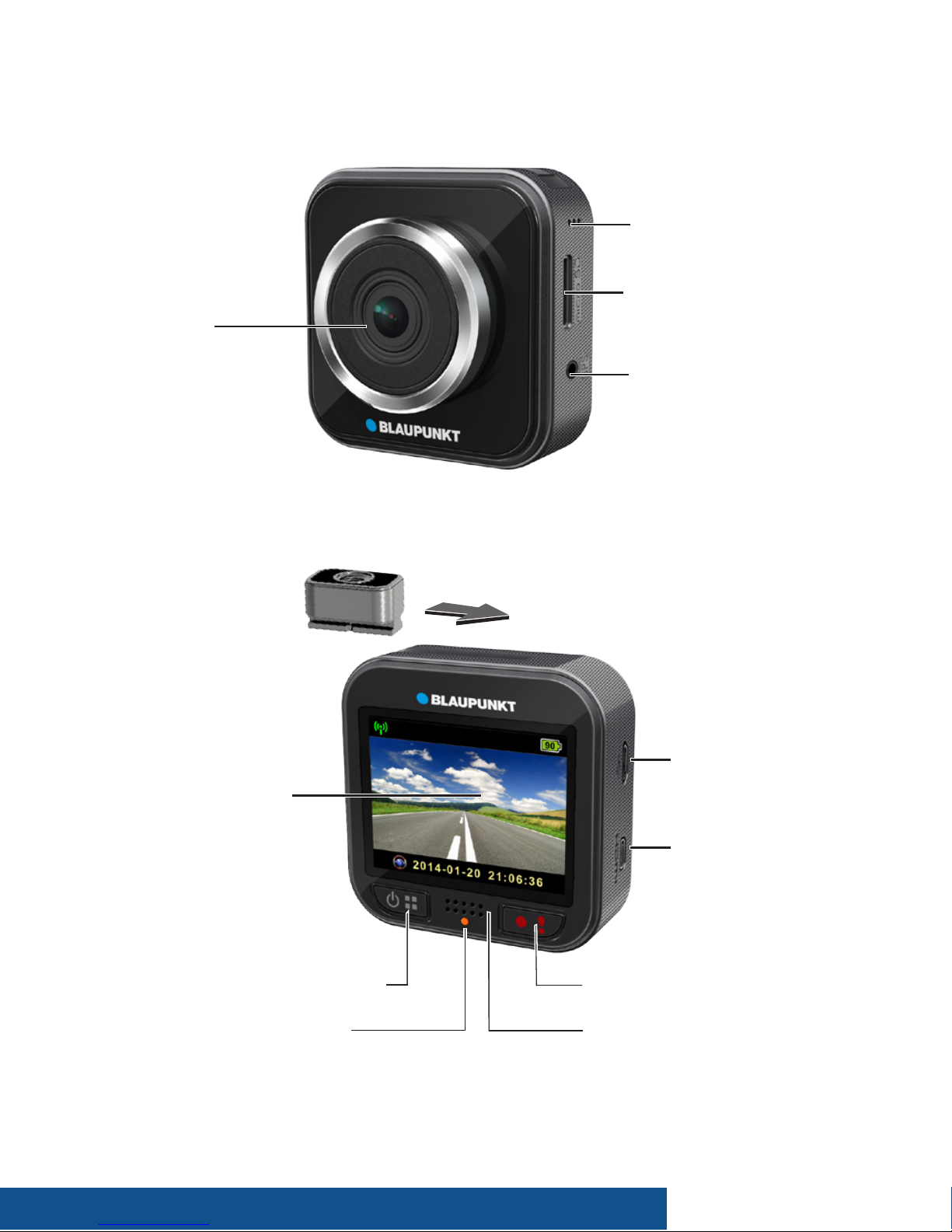

Names of Parts
Speaker
LCD Panel
Status Indicator
Tripod
Mount
Mic
microSD
Card Slot
Lens
GPS Receiver Slot
Power/Menu Button Record / Emergency Button
Micro USB Port
Micro HDMI Port
2 |
English
Tripod Mount Strap Mount Strap

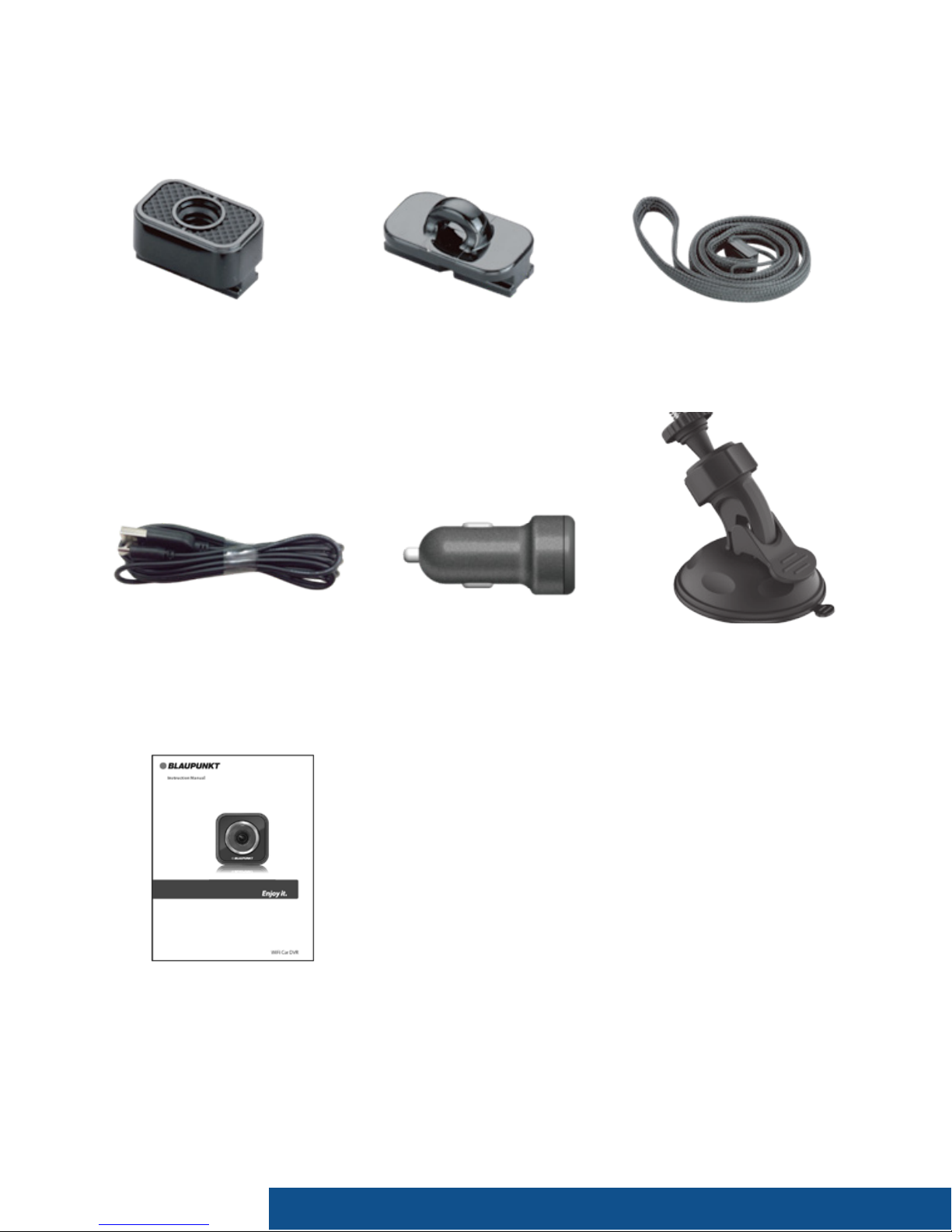

USB Cable Car Charger Car Mount
User Manual
Accessories
| 3
English
Shooting a Video
1. Power on:
Press to turn on camcorder.
2. Record:
Press to start recording.
Press and then to stop.

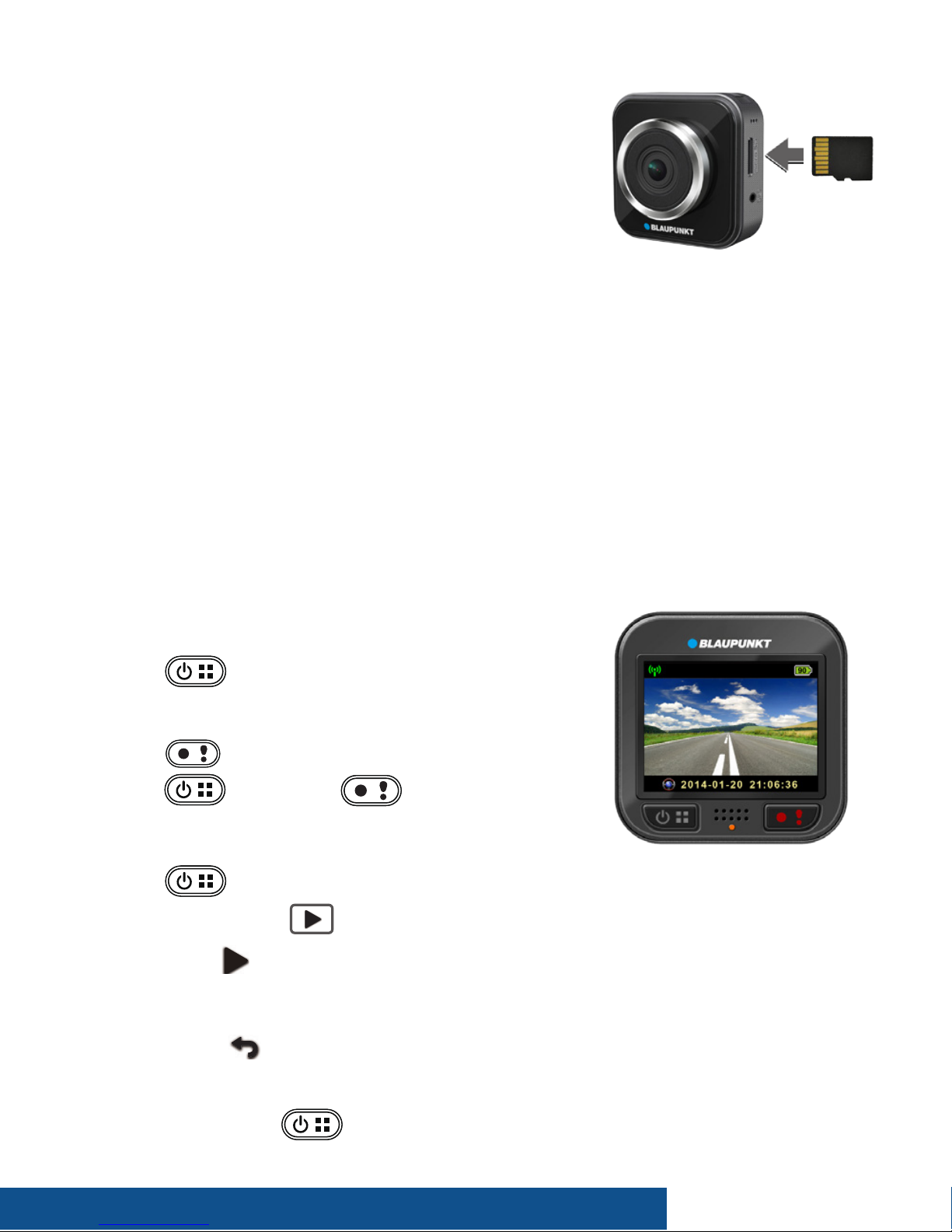

Inserting a microSD Card
Before initial use, insert a microSD card.
(suggested at least 4GB, up to 64GB)
Getting Started
microSD
card
Charging the Unit
Fully charge camcorder for initial use by:
• Car charger
• PC USB port
• USB adapter
(not included)
During charging, screen shows battery icon or status indicator ashes in
orange
. When camcorder is fully charged, the indicator turns o.
4. Return to preview:
Switch to [ ] to return.
5. Power o:
Press and hold for 2 seconds.
3. Playback:
Press to enter menu settings.
Select [Playback ].
Press [Play ] to play the video and press [Stop] to stop.
Note: When using a new microSD card,
foramt the card by your camcorder.
4 |
English
Camcorder Operation
In preview, press to enter menu settings
.

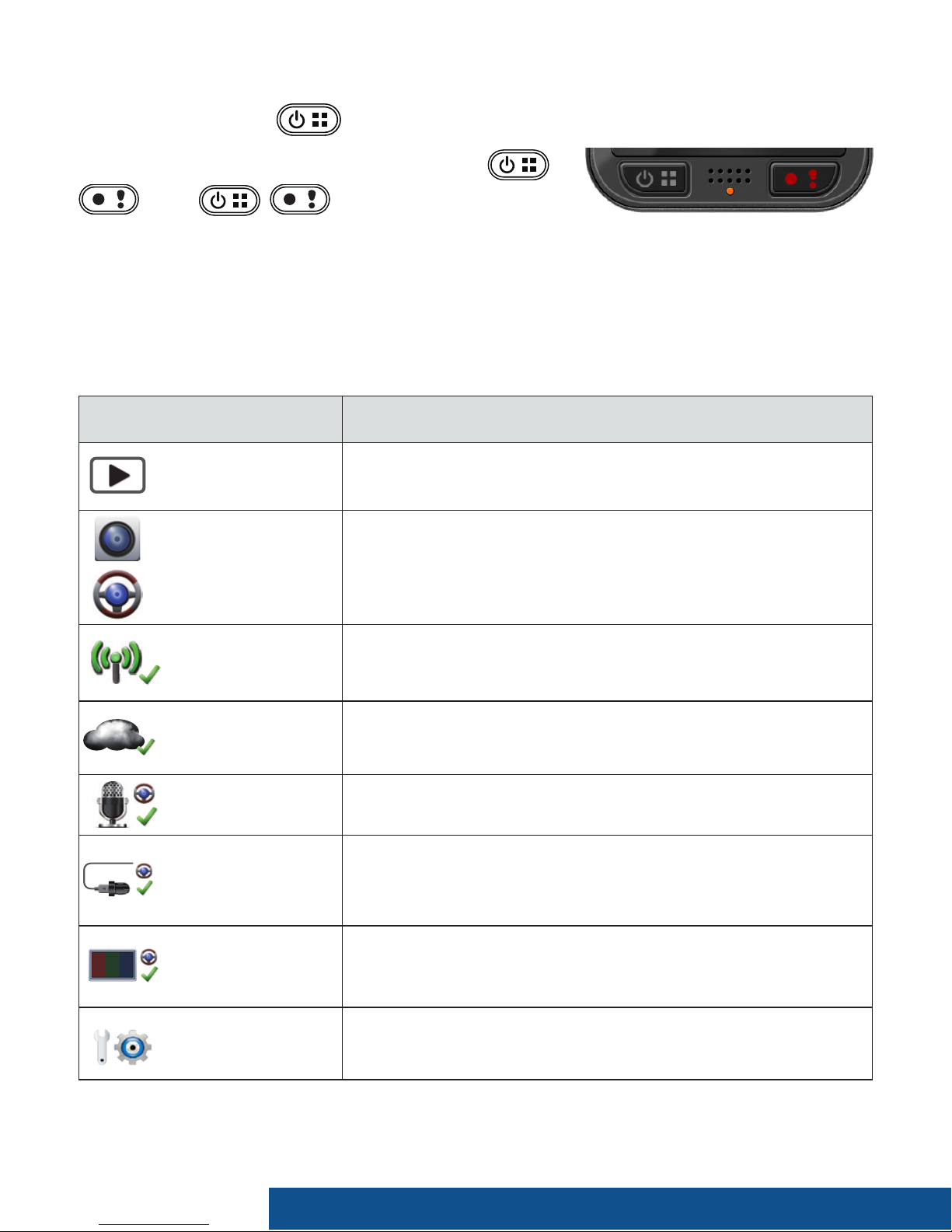

Menu Settings Descriptions
Play recorded videos
Switch between Action Cam and Dash Cam.
Enable/Disable WiFi for wireless connection
Enable/Disable internet cloud connection
Enable/Disable voice recording (Dash Cam only)
Auto REC
Enable/Disable
auto recording when car
engine starts (Dash Cam only)
60 SEC
OFF
Screen turns o after 60 seconds of non-
operation
(Dash Cam only)
Reset to factory default settings or format SD
card.
Screen Auto O
Settings
Voice Record
WiFi - Local
Auto Record
Dash Cam
Playback
Action Cam
WiFi - Cloud
Menu Settings
Camcorder has eight menu settings. Advanced settings can be set up
via mobile APP.
Button functions indicated above
.
Use
to navigate menu
settings.
Note: After 10 seconds of non-operation in menu settings, screen
returns to preview.
| 5
English
Mode Action Cam Dash Cam
Record type Normal Loop Emergency
Record trigger
Record
duration
Display info.
Transfer Files to PC:
1. Connect camcorder to PC via Micro USB cable.
2. Find video at "My computer\Removable Disk\".
3. Copy, move, delete, and playback videos on PC.
View Camcorder Screen on TV:
1. Connect camcorder to TV
via
Micro HDMI cable (not included).
2. Turn on camcorder.
3. Camcorder screen displays on TV simultaneously.
Camcorder has two recording modes for dierent applications:
Action Cam: Shoot normal videos.
Dash Cam: Shoot loop and emergency videos.
Record Modes
• Car impact
• Press
during
loop recording
P
ress in preview
Three min. sections
Unlimited
One min. section
(30 seconds before
and after the event)
Note:
1. During loop recording, oldest les are overwritten if microSD card is full.
2. During loop recording, press to enable/disable mute fuction.
SD card remaining time Current date & time
2014/01/01 21:06:36
Comparison between modes:
00:06:36
Mobile Camcorder
Local
Mobile connects to camcorder directly via WiFi for remote control,
live view, album management and camcorder setup.
Mobile connects to cloud server to view live videos uploaded
from internet remote camcorder.
Wireless & APP Operation
Before inital using wirless connections, download and install APP
【Blaupunkt Mobile DVR Control】from Google Play Store and Apple Store.

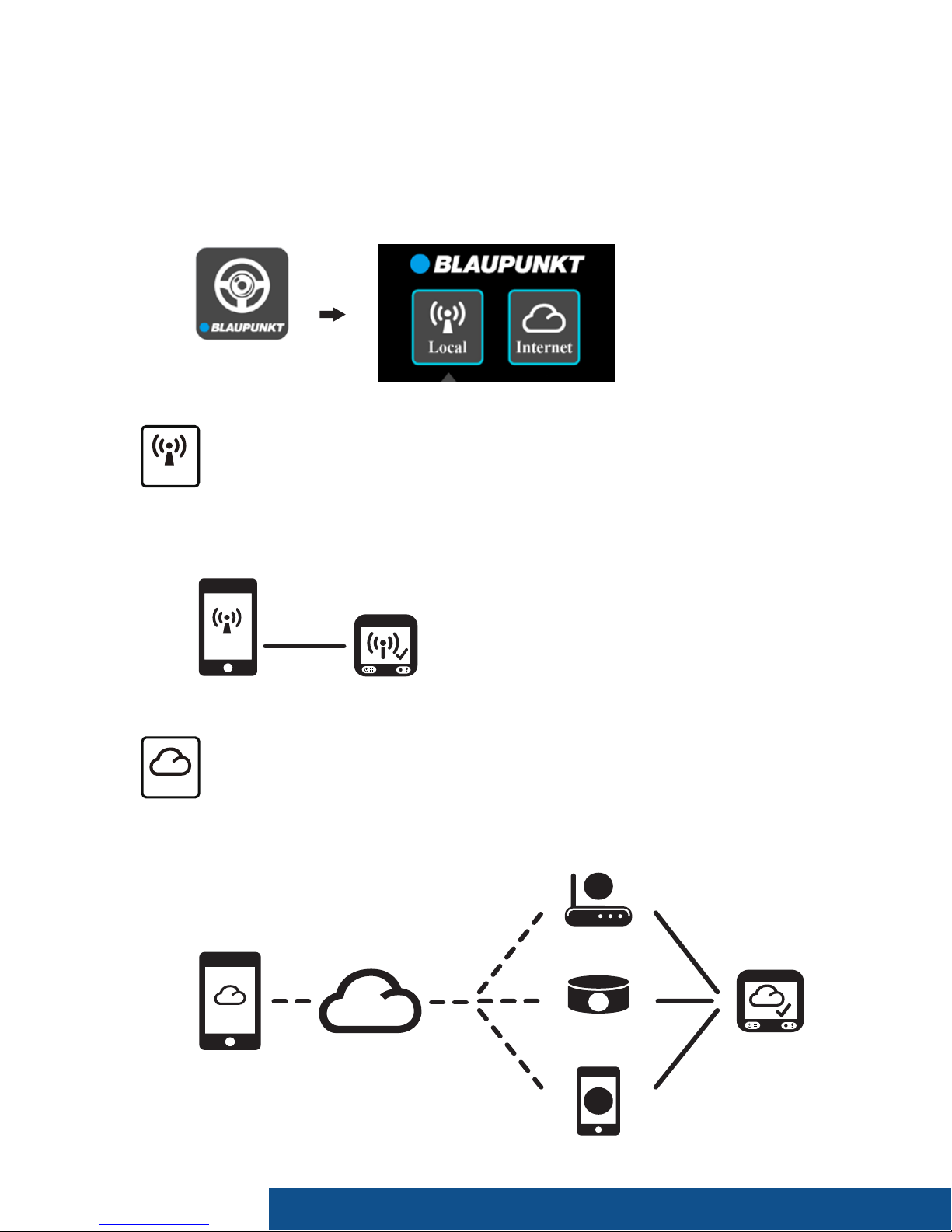

【Blaupunkt Mobile DVR Control】has two functions:
(1) Local - Direct control (2) Internet - Internet live view
Blaupunkt Mobile
DVR Control
【Local】
(1)
Local
Internet
【Internet】
(2)
Local
Internet
AP
Unieye
Server
AP
3G/4G Mobile Hotspot
3G/4G Mobile
Wireless Router
Wireless Router
Camcorder
AP
Mobile
Internet
6| English

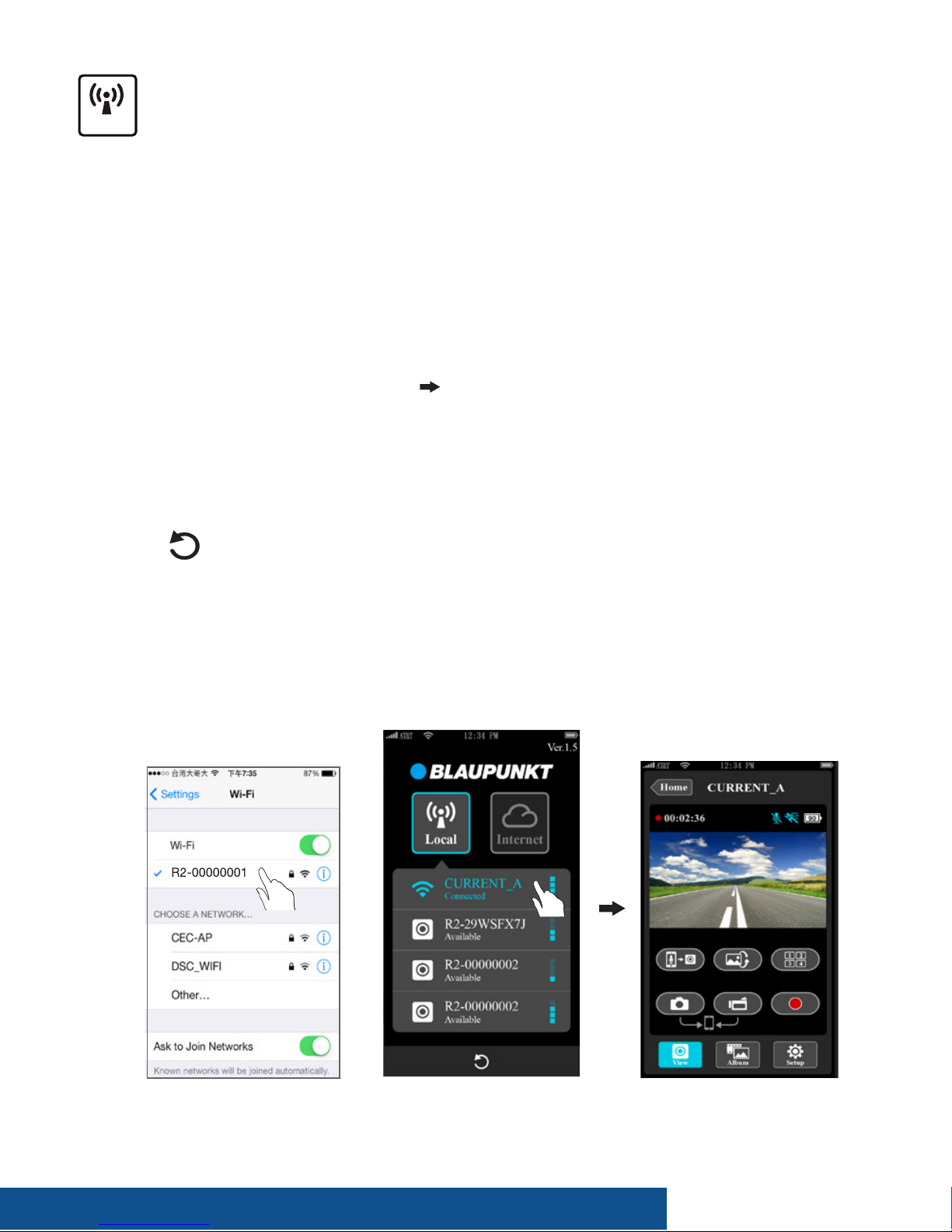

Mobile Connects to Camcorder
1. F
or Android: Turn on [Wi-Fi].
For iOS: Go to [Settings] [Wi-Fi].
Turn on [Wi-Fi] and select the camcorder name.
2. Run 【Blaupunkt Mobile DVR Control】.
3.
Tap【Local】and select the camcorder to enter【Local】View Page.
Tap [ ] to scan again if camcorder is not found.
Note:
• Mobile cannot connect to camcorder while camcorder is recording.
• For rst use, password is not required. User can set camcorder
password in Setup Page.
【Local】Function
iOS Settings
Local
Internet
Before using mobile APP's【Local】function, ensure camcorder WiFi
is on and camcorder Cloud setting is o. Once WiFi is ready, preview
shows camcorder name (R2-xxxxxxxx) for few seconds.
Local View PageLocal Main Page
| 7
English
8 |
English

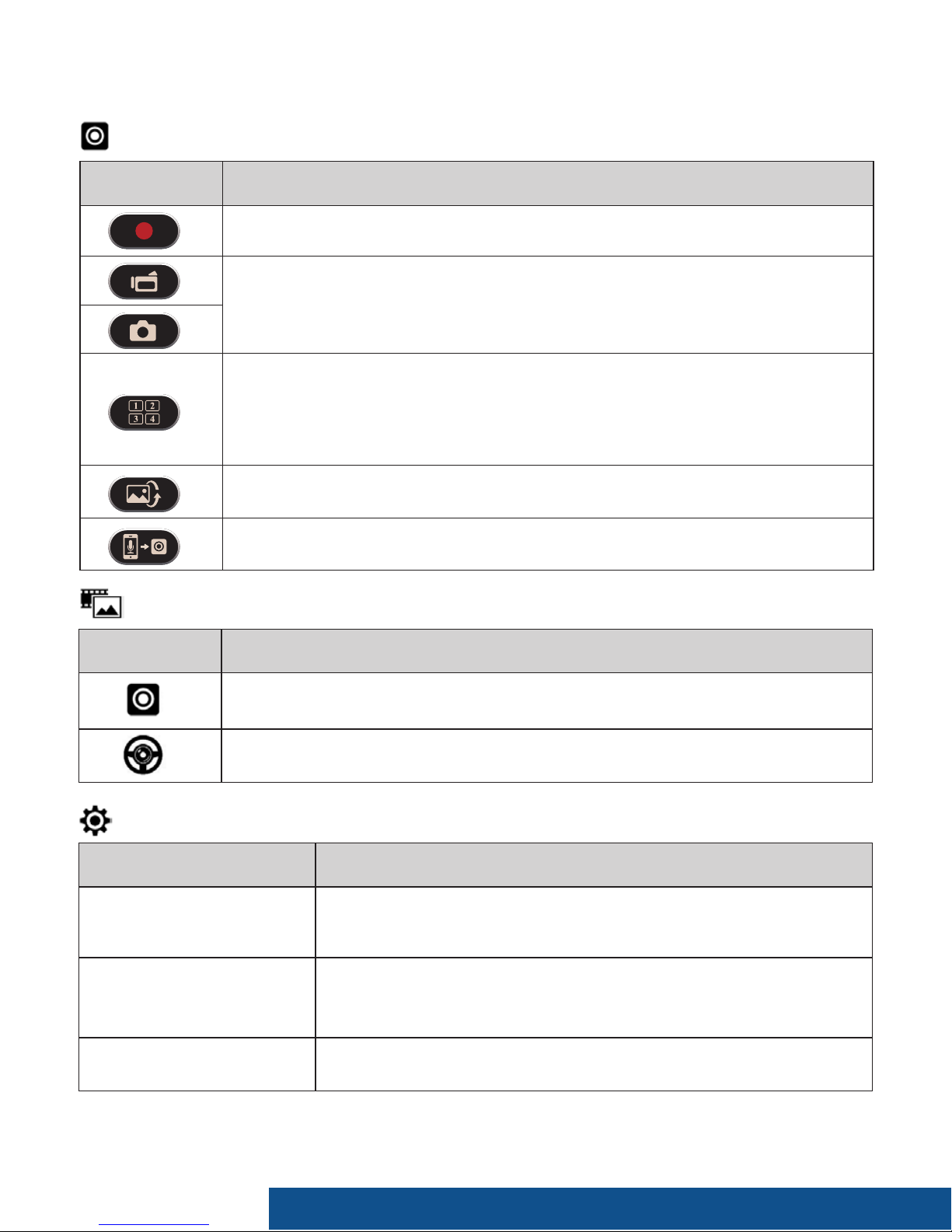

Items Descriptions
Shoot videos and les are saved into camcorder microSD card
Shoot videos or Take photos and les are saved into
mobile "Album\Blaupunkt Mobile DVR Control
\"
For multiple camcorders user :
• Enable Quad-View for multiple live view on mobile
• In Quad-View, select
a window for single view.
Upside down image
Talk to camcorder from mobile
Groups Descriptions
Camcorder Settings
Edit name, password. Format SD card. Adjust
recording resolution, etc.
Internet Settings Edit Email and AP and save in camcorder.
(For internet cloud server connection)
Car DVR Settings Set motion detector, impact sensor, etc.
View Page
Album Page
(for camcorder)
Setup Page (for camcorder)
4.【Local】function has three function pages: View, Album and Setup.
Folders Descriptions
View or delete video les recorded in action cam
View or delete video les recorded in dash cam
Note: 1. In Setup Page, tap [Save] to complete settings to camcorder.
2. Mobile media player may not support SuperHD video.
| 9
English

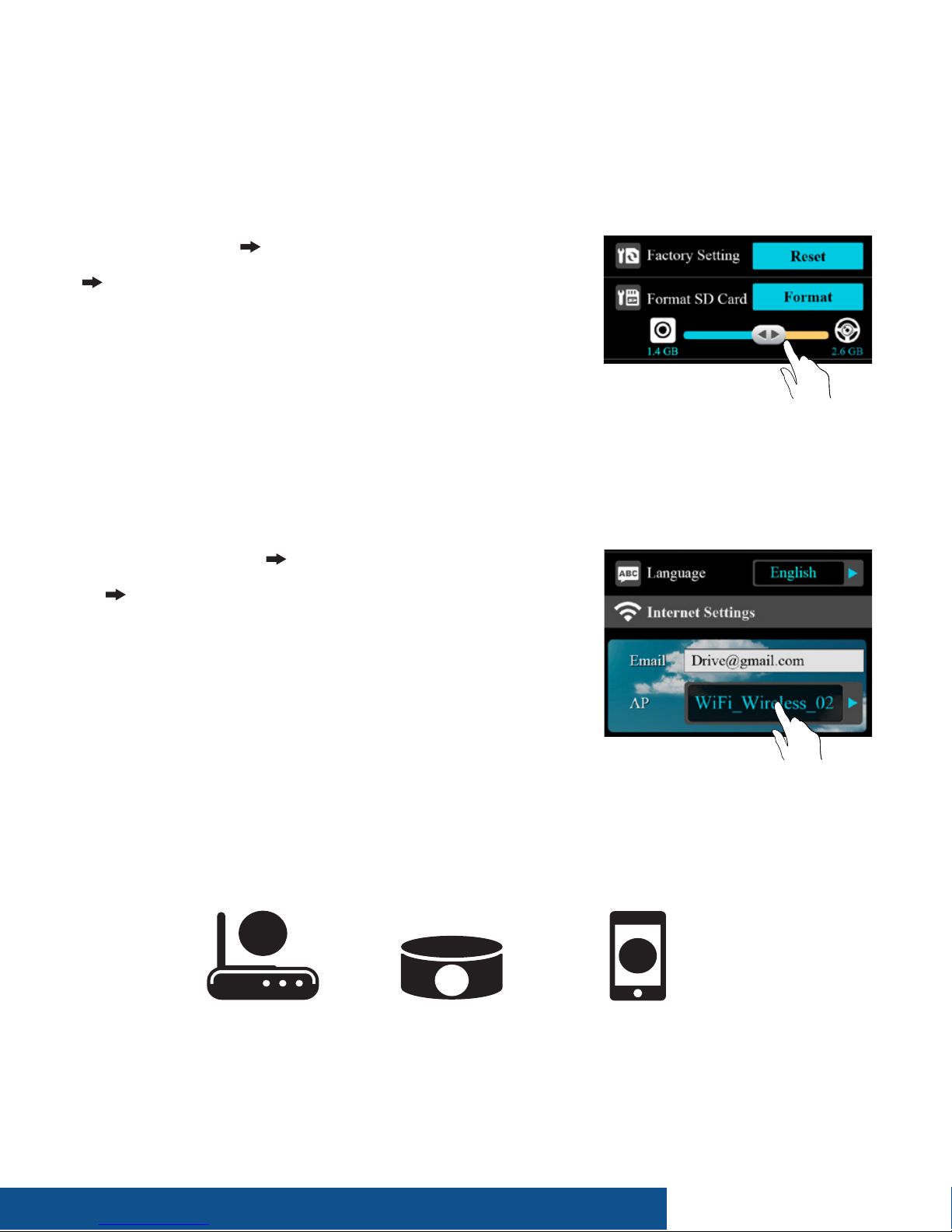

1. Go to [Setup] [Internet Settings]
Edit Email and AP
2. Tap [Save] to complete Email & AP
settings.
Camcorder Internet Setup
Before using internet cloud service, Email and AP must be properly
set up.
Camcorder SD Card Setup
Go to [Setup] [Camcorder Settings]
Adjust slide bar and press [Format]
button to complete SD card setup.
When SD card is rst-time use or reformatted in camcorder, user
should allocate memory for Action Cam and Dash Cam.
Note: AP(Access Point) can be
• Wireless Router or
• 3G/4G Mobile Wireless Router or
• 3G/4G Mobile Hotspot
AP
AP
AP
Wireless Router
AP
AP
AP
3G/4G Mobile
Wireless Router
AP
AP
AP
3G/4G
Mobile Hotspot
