Blaupunkt IVDP-01 User manual

In Car Video

IVDP-01

Operating and installation instructions

http://www.blaupunkt.com

ENGLISH DEUTSCH

FRANÇAIS

ITALIANO

NEDERLANDS

SVENSKA

ESPAÑOL

PORTUGUÊS

DANSK

TABLE OF CONTENTS

Safety instructions ................. 36

Functions ............................... 38

About discs ............................ 38

Fitting ..................................... 40

DIN front fitting

(Method A) .................................... 41

DIN rear fitting

(Method B) .................................... 42

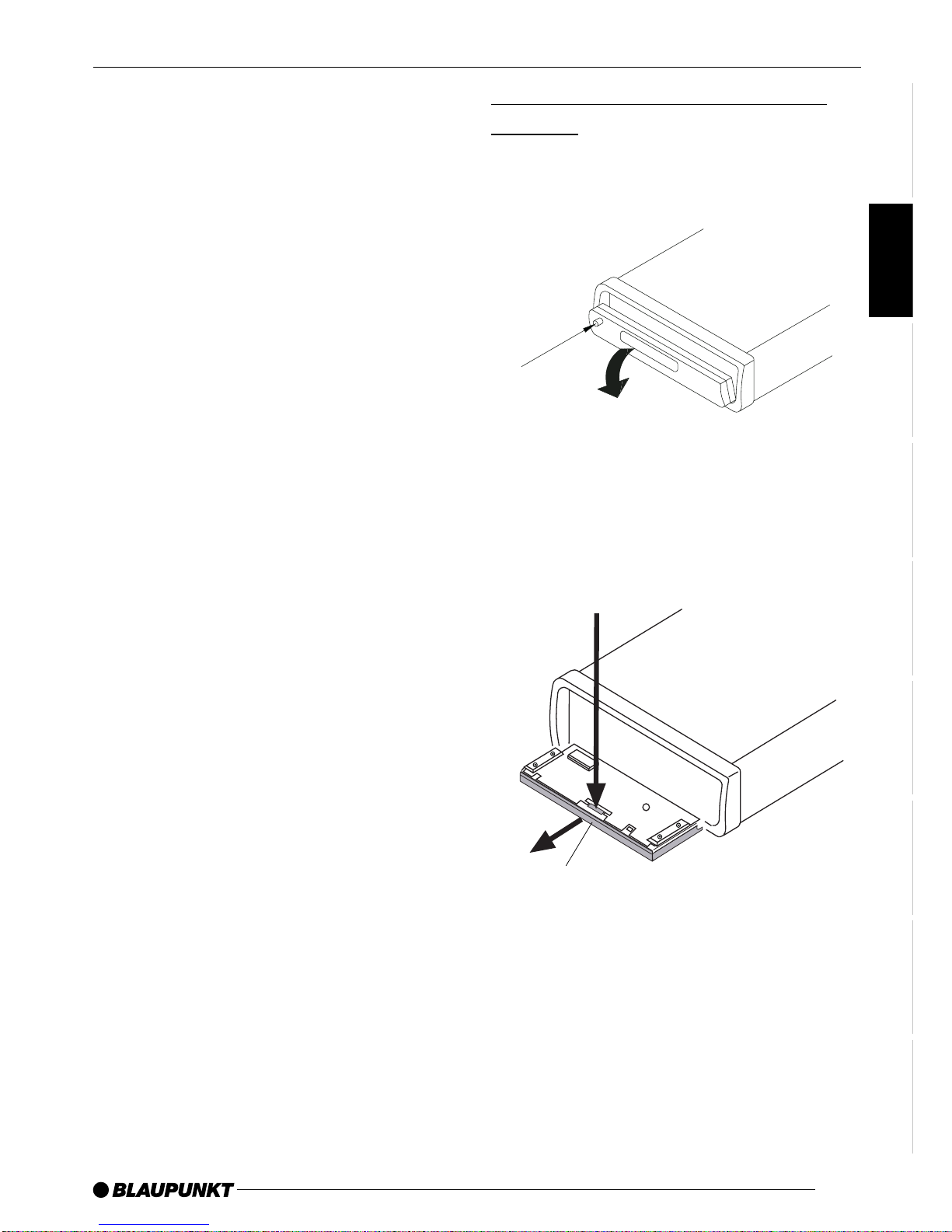

Removable front cover ........... 43

Electrical connections ............ 45

Remote control ...................... 46

Main functions........................ 48

Inserting a DVD/VCD/CD .............. 48

Removing a disc ............................ 48

The RESET button......................... 50

Flashing LED ................................. 50

On-screen display function ............ 51

Multiple language audio function .... 52

MENU function .............................. 52

Multilingual subtitles (DVD only) ..... 52

Multi-angle function (DVD only) ...... 53

MP3 disc replay ............................ 53

Special functions ........................... 53

Initial setup ............................ 55

Setup - main screen ...................... 55

General setup ........................ 56

Loudspeaker setup ........................ 60

Dolby setup ................................... 60

Recommended settings ................. 62

Technical Data ....................... 67

Thank you for deciding to use a Blau-

punktproduct.Wehopeyouenjoyusing

this new piece of equipment.

Please read these operating

instructions before using the

equipment for the first time.

The Blaupunkt editors are constantly

working on making the operating

instructions clearer and easier to und-

erstand. However, if you still have any

questions on how to operate the

equipment, please contact your dealer

orthetelephonehotlineforyourcountry.

You will find the hotline telephone

numbers printed at the back of this

booklet.

We provide a manufacturer guarantee

for our products bought within the

European Union. You can view the

guarantee conditions at

www.blaupunkt.de or ask for them

directly at:

Blaupunkt GmbH

Hotline CM/PSS 6

Robert Bosch Str. 200

D-31139 Hildesheim

Germany

In traffic

Adjust the volume to a level that does

notdistractyourattentionfromtheroad.

Car washing

Never expose the product to water or

very damp conditions, as this can re-

sult in short circuits, fire or other dam-

age.

Parking

Avoid leaving your car exposed to

strongsunshine,asthiscancausevery

high temperatures to develop inside.

Allowtheinsideofyourcartocooldown

before switching the equipment on.

Correct power supply

This equipment is designed for opera-

tion from a 12 Volt DC battery system

with a negative ground connection (the

usual system in US vehicles).

Protecting the disc mechanism

Neverinsertanyforeignobjectsintothe

player’sopening,asthiscaneasilydam-

agethedelicatemechanicalpartsinside

the equipment.

SAFETY INSTRUCTIONS

ENGLISH DEUTSCH

FRANÇAIS

ITALIANO

NEDERLANDS

SVENSKA

ESPAÑOL

PORTUGUÊS

DANSK

SAFETY INSTRUCTIONS

Warning:

•Minimise the risk of fire or the dan-

ger of electrical shock by never ex-

posing this equipment to water or

moisture.

•Only use recommended accesso-

ries. This will again reduce the risk

of fire or the danger of electrical

shock, and will avoid interference.

•The equipment is designed for con-

tinuous operation. The product con-

tains components and uses tech-

niquesprotected by specific US pat-

ents. The intellectual property is

owned by the Macrovision Corpora-

tion and other patent holders. The

useofthisprotectedtechnologymust

be approved by the Macrovision

Corporation. It is licensed only for

private use, or for showing under

other limited circumstances, unless

approvalforotheruseshasfirstbeen

granted by the Macrovision Corpo-

ration. Reverse engineering or dis-

mantling the equipment are not per-

mitted.

Servicing by an authorised

Service Centre

Do not attempt to dismantle this preci-

sion equipment or to repair it yourself.

Please have the equipment serviced at

one of the Service Centres on the list

included with this product.

Fitting

Mount the equipment so that it has a

horizontalorientation.Forconvenience,

the front may be tilted upwards at an

angle of at most 30°.

WARNING:

The mobile DVD player is a Class I

laser product generating a visible or

invisible laser beam of a potentially

hazardous type. The mobile DVD

player must only be operated in ac-

cordance with the specified instruc-

tions.Theuseofoperatingelements,

adjustment options or functions that

are not described in this handbook

can result in exposure to hazardous

radiation.

Never open the housing, and do not

attempt to perform repairs yourself.

Any servicing should be carried out

by trained personnel.

ABOUT DISCS

Compatible with PAL DVD

(Video CD) and NTSC DVD

(Video CD)

You can use this equipment to replay

discs that were recorded in either PAL

or NTSC-TV format.

All the functions that are important for

DVD replay, including an MPEG2 de-

coder, video D/A converter and audio

decoderhavebeenintegratedintoasin-

gle LSI chip designed for this equip-

ment.

There is an analog L/R (RCA) stereo

output for connecting existing

headphone amplifier inputs. The video

output is a mixed video signal (RCA).

Software is included for the multi-func-

tion remote control (multilingual audio

function/subtitles,multi-anglefunction),

as well as for all the basic functions.

Note:

Horizontal picture interference may

occur in connection with 16:9 monitors

with NTSC timing.

Region Management

Information

Region Management Information: This

mobile DVD player has been designed

insuchawaythatRegionManagement

Information stored on a DVD can be

used. If the region number assigned to

a DVD does not match the region

number of the mobile DVD player, the

disc cannot be played on this equip-

ment.

The regional code for this product is

printedonthelabelattachedtotheunit.

Disc formats supported by this

player:

DVD

12 cm disc / 8 cm disc

(only discs written on

one side)

Video CD

12 cm disc / 8 cm disc

The following discs are not

supported by this player:

•DVD-ROM

•DVD-R / DVD-RAM

•CD-RAM

•CDV

•CD-G

•Photo CD

•DVDs with a different regional

code.

Handling and cleaning

•Dirt, dust, scratches or warped

discs can cause incorrect func-

tion.

•Donotputanyadhesivelabelson

discs,andavoidscratchingthem.

•Discs must not be bent.

•Minimise damage by always

keepingyourdiscsintheirprotec-

tive envelopes.

DIGITAL VIDEO

FUNCTIONS

ENGLISH DEUTSCH

FRANÇAIS

ITALIANO

NEDERLANDS

SVENSKA

ESPAÑOL

PORTUGUÊS

DANSK

•Do not keep discs in any of the

following places:

1. Wherethereexposedtodirect

sunshine.

2. Dirty,dustyor damp locations.

3. Close to the vehicle’s heating

system.

4. Onthe seats ortheinstrument

panel.

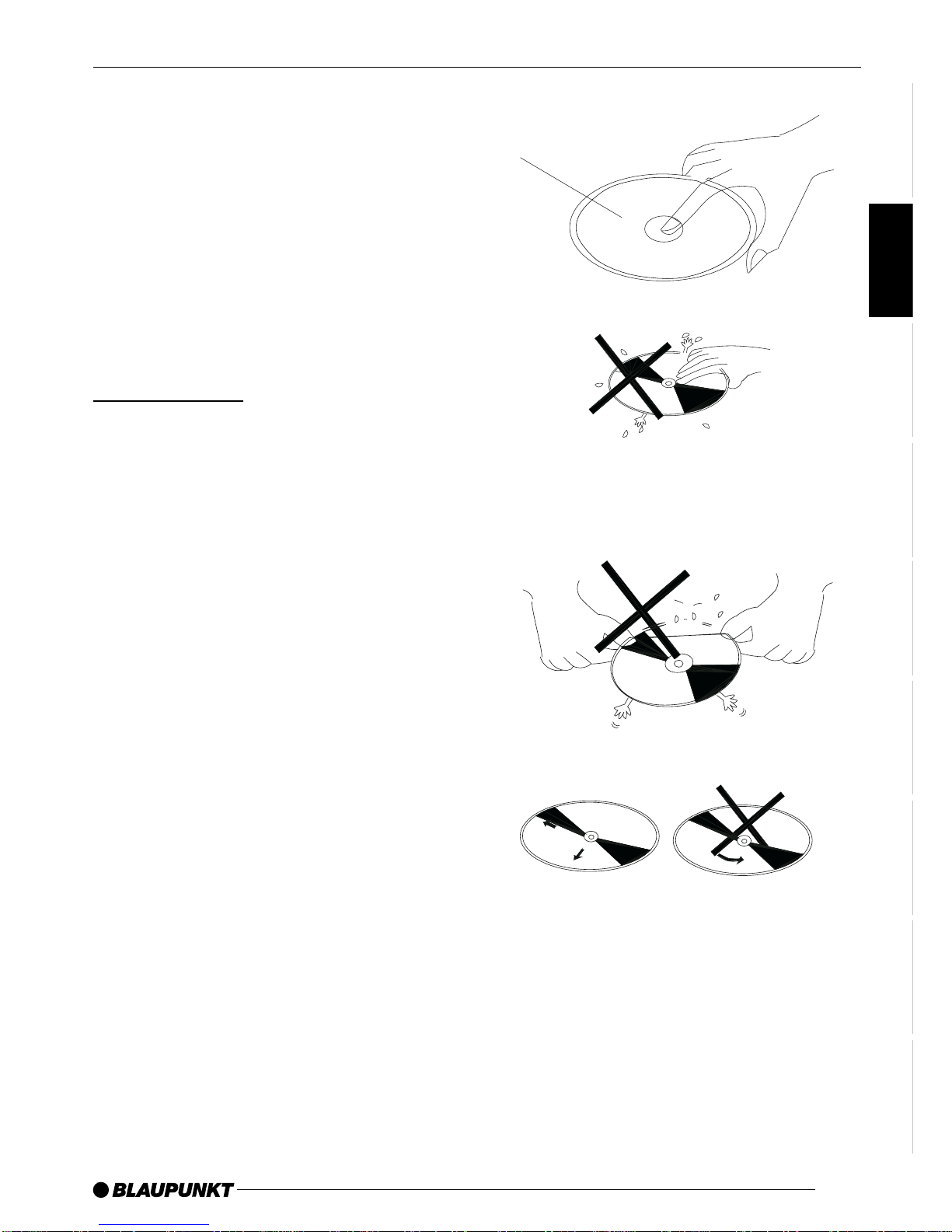

Disc cleaning

Wipe the surface with a soft cloth. If the

discisverydirty, useasoftclothslightly

dampenedwithisopropylalcohol.Never

usecleaningagentssuchaspetrol,thin-

ner or conventional record cleaner, as

thesematerialscandamagethesurface

of the disc.

Note:

Dependingonhowandunderwhatcon-

ditionsitishandled,thesurfaceofadisc

can easily be scratched, although this

does not make the disc unusable.

Please note that such scratches do not

indicate a problem with the player.

ABOUT DISCS

Label on the

top

Do not bend.

Do not touch the

bottom of the disc.

Always clean the disc from

the inside to the outside.

FITTING

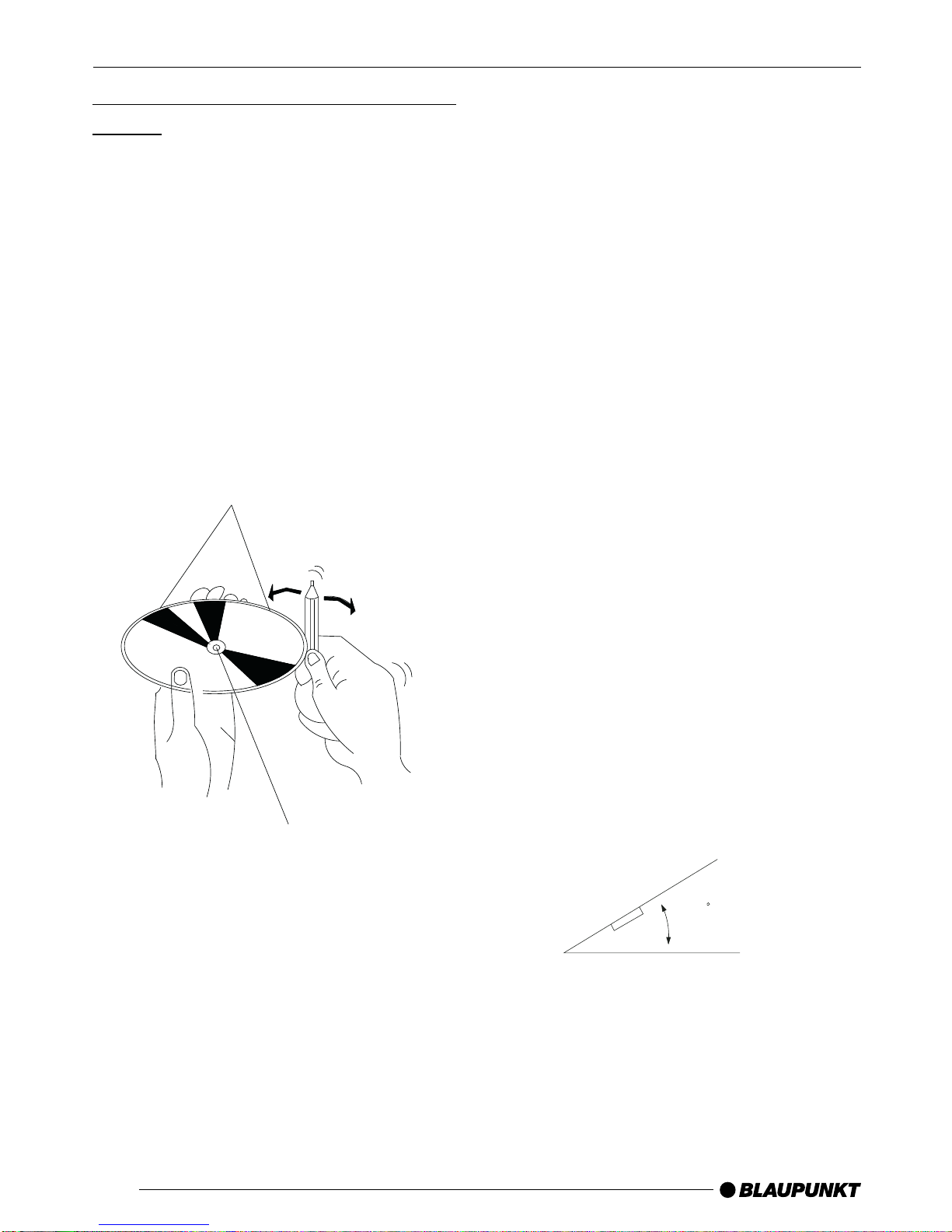

Handling new discs with uneven

edges

•The inner and outer edges of a new

disc may not be perfectly smooth.

•When a disc with uneven edges is

inserted, it may not locate correctly,

making it impossible to play.

•Correct these uneven locations be-

fore inserting the disc using a pencil

or ballpoint pen, as shown here, by

running the implement over the in-

ner and outer edges of the disc.

Note:

•

Choosealocationtofittheequipment

where it will not interfere with the

driver’s

ability to control the vehicle.

•Before fitting the equipment into the

vehicle, temporarily connect the ca-

bles and check that all the connec-

torsmateproperlyandthattheequip-

ment and the system operate cor-

rectly.

•Toensurecorrectfitting,onlyusethe

parts supplied with the equipment.

The use of non-approved parts can

cause incorrect function.

•If fitting requires holes to be drilled

or other modifications to be made to

thevehicle,takeittoaqualifiedwork-

shop near you.

•Fit the equipment in a location that

will not interfere with the driver, and

where the occupants of the vehicle

will not be put at risk by an abrupt

stop, such as hard emergency brak-

ing.

•If the equipment is fitted as an angle

more than 30°to the horizontal per-

formance may deteriorate.

•Avoid fitting the equipment at loca-

tionswheretheambienttemperature

is raised by, for instance, direct sun-

shine or the car’s heating system.

Avoidlocationswheretheequipment

would be exposed to dust, dirt or

heavy vibration.

Rough points on

the outer edge

Ballpoint pen

or pencil

Rough points on

the inner edge

ABOUT DISCS

ENGLISH DEUTSCH

FRANÇAIS

ITALIANO

NEDERLANDS

SVENSKA

ESPAÑOL

PORTUGUÊS

DANSK

FITTING

DIN front/rear fitting

DIN front/rear fitting of this equipment

can either be carried out from the front

(normalDINfrontmounting)orfromthe

rear (DIN rear mounting, using the

threaded screw holes in the side of the

housing). The exact procedure can be

understood from the following assem-

bly diagrams.

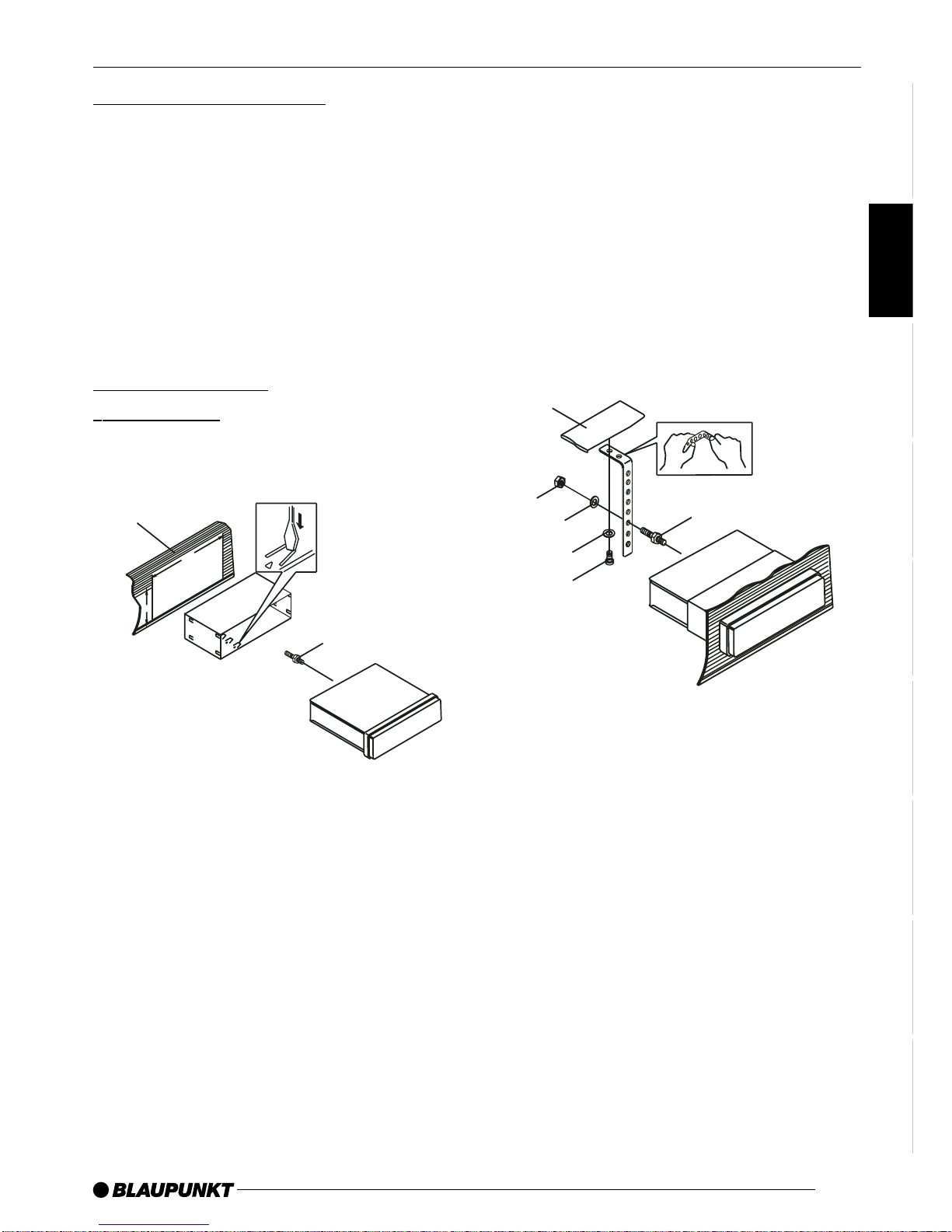

DIN front fitting

(Method A)

Fitting the equipment

182

1. Instrument panel

2. Bracket

Whenyouhave inserted the bracket

intotheinstrumentpanel,choosethe

appropriate metal jointing bar, ac-

cordingtothethicknessoftheinstru-

ment panel material, and bend it in-

wards so that it can be fixed to the

bracket.

3. Bolt

1. Instrument panel

2. Nut (5 mm)

3. Lock washer

4. Bolt (5 x 25 mm)

5. Bolt

6. Fixing angle

Use the fixing angle piece to fix the

rear of the equipment at the correct

location.Theanglepiececanbebent

to the desired form by hand.

7. Washer

Fig. 2

Fig. 1

FITTING

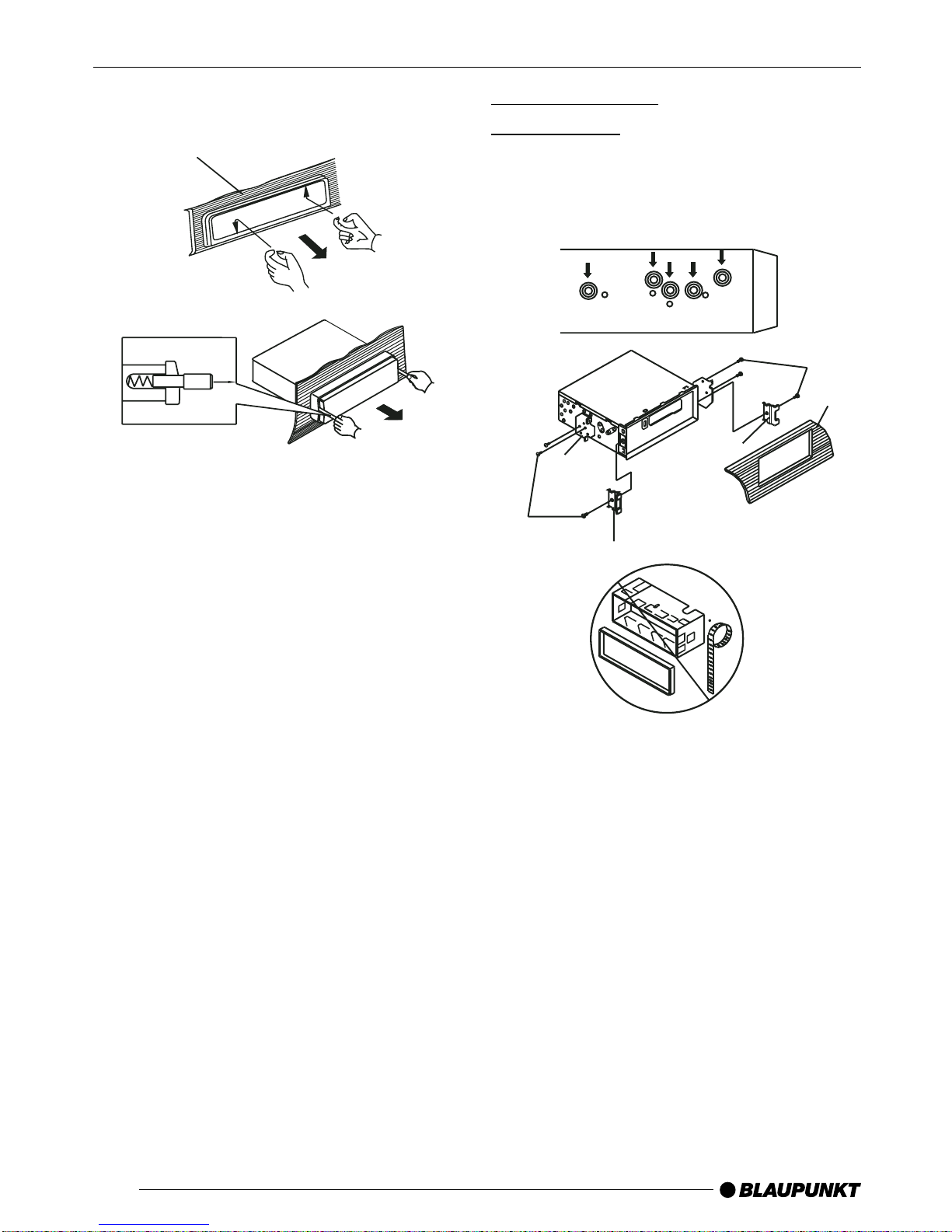

Removing the equipment

1. Frame

2. Reach with your fingers into the slot

at the front of the frame, and pull the

frame off. (To replace the frame, put

thesidethathastheslotdownwards,

and insert it.)

3. Lever

Push the levers supplied with the

equipment as shown in the diagram

into the slots at both sides of the

equipment until they latch. The

equipmentcanbe removedfromthe

instrument panel by pulling the le-

vers.

DIN rear fitting

(Method B)

Assembly using the threaded holes in

the side of the equipment.

Fixing the equipment to the standard

radio mounting clip.

1. Locate the main unit in such a way

that the screw holes in the clip and

threaded holes in the main unit are

aligned with one another, and fix the

screws at two places on each side.

Use either mushroom-headed

screws (5 x 6 mm) or countersunk

screws (4 x 6 mm), according to the

shape of the screw holes in the clip.

ENGLISH DEUTSCH

FRANÇAIS

ITALIANO

NEDERLANDS

SVENSKA

ESPAÑOL

PORTUGUÊS

DANSK

REMOVABLE FRONT COVER

2. Bolt

3. Standard radio mounting clip

4. Instrument panel or fascia

5. Hook (remove this part)

Note:

The fitting housing, the outer cladding

and the collar are not used for fitting by

method B.

The front cover is removed as

follows:

1. Press the OPEN button, so that the

front cover opens.

2. Pull off the front cover towards the

frontof the unit bypressing down on

the release zone.

3. Put the front cover in the supplied

caseforsafekeepingassoonasyou

have removed it.

Open

FITTING

Front cover

Table of contents

Other Blaupunkt Car Receiver manuals

Blaupunkt

Blaupunkt OSAKA 300 User manual

Blaupunkt

Blaupunkt BARCELONA MP35 User manual

Blaupunkt

Blaupunkt BOLOGNA Bologna C51 User manual

Blaupunkt

Blaupunkt NASSAU CR127 User manual

Blaupunkt

Blaupunkt NEW JERSEY 220 BT User manual

Blaupunkt

Blaupunkt Munchen RD 104 User manual

Blaupunkt

Blaupunkt Lexington C32 User manual

Blaupunkt

Blaupunkt STOCKHOLM 230 DAB User manual

Blaupunkt

Blaupunkt Stuttgart User manual

Blaupunkt

Blaupunkt Essen CD33 User manual

Blaupunkt

Blaupunkt RPC 4000 User manual

Blaupunkt

Blaupunkt RCM 127 User manual

Blaupunkt

Blaupunkt ACR4230 User manual

Blaupunkt

Blaupunkt Munchen CD51 User manual

Blaupunkt

Blaupunkt RCM 127 User manual

Blaupunkt

Blaupunkt Montevideo RCR 87 User manual

Blaupunkt

Blaupunkt Laguna CD43 User manual

Blaupunkt

Blaupunkt Montevideo 4010 DVD User manual

Blaupunkt

Blaupunkt Austin CR45 User manual

Blaupunkt

Blaupunkt SAN MARINO 500 User manual

Blaupunkt

Blaupunkt Seattle MP57 User manual

Blaupunkt

Blaupunkt Vancouver CD126 User manual

Blaupunkt

Blaupunkt 400 Series User manual

Blaupunkt

Blaupunkt Toronto RDM 126 US User manual

Popular Car Receiver manuals by other brands

Motorola

Motorola VWA63 Service manual

Nextar

Nextar D3201 instruction manual

Alpine

Alpine CDE-163BT owner's manual

Pioneer

Pioneer DEH-P645R installation manual

Axxera

Axxera XDMA7600 Installation & owner's manual

XM OnyX quick start guide

Sound Storm

Sound Storm STM93R user manual

Soundstream

Soundstream VIR-5000 owner's manual

Avson

Avson MKT Platform user manual

Sony

Sony MEX-1HD - Audio Library System operating instructions

Pioneer

Pioneer DVH-P500UB Operation manual

JVC

JVC KD-AHD69 Specifications

Sony

Sony CDX-4160 - Cd Receiver operating instructions

XFIRE AUDIO

XFIRE AUDIO BMW42S owner's manual

VDO

VDO CD 2253 datasheet

Volvo

Volvo 13 84 580 installation instructions

ZENEC

ZENEC ZE-160DVD instruction manual

Medion

Medion Car Audio manual
