Blackbird Raven User manual
Blackbird Raven
Assembly Instructions
Call or text me if you need help:
Matthew Freed
214-918-5132
contact@blackbirdcarts.com

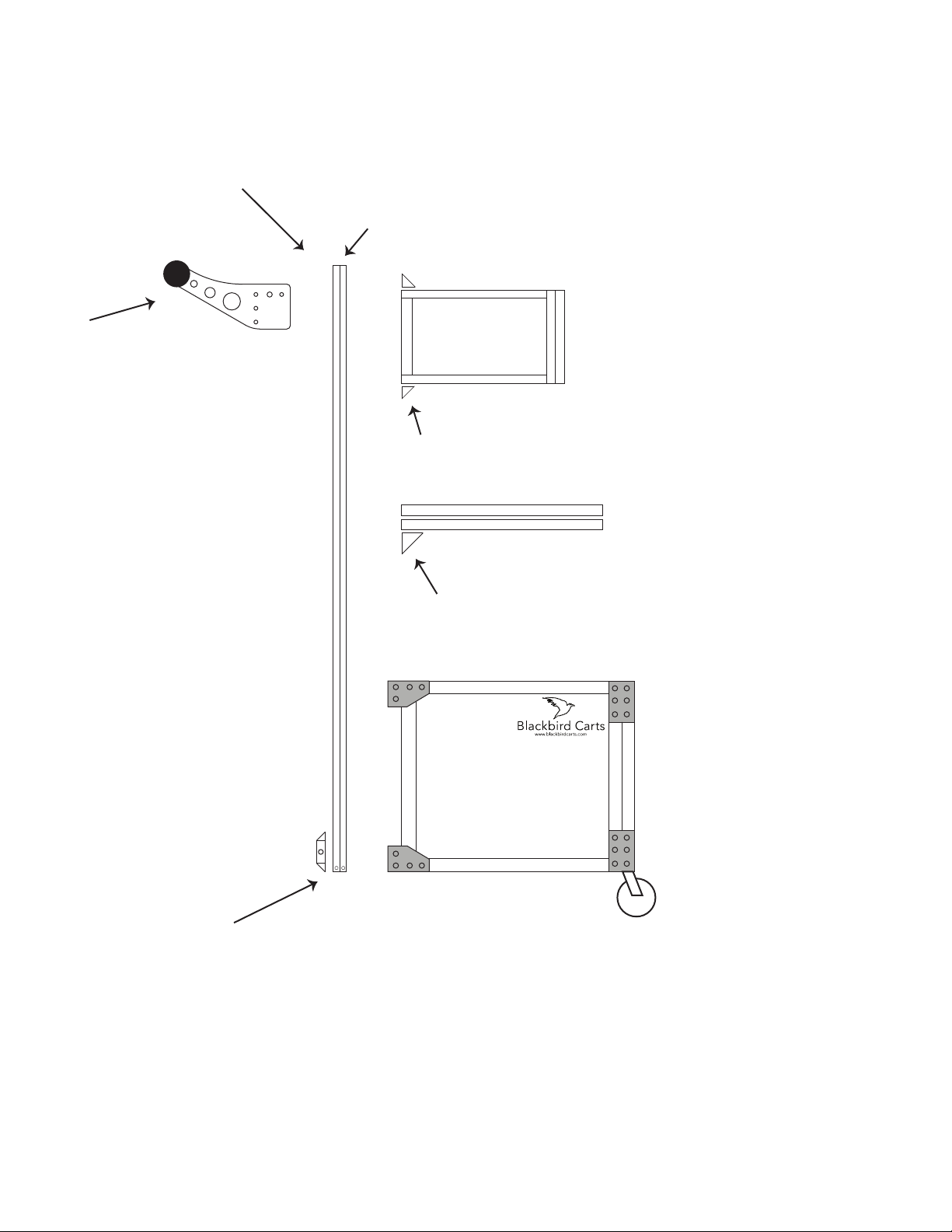

Lower Equipment Box
Sliding Shelf
Top Equipment Box
Axle Housing
Assembly. Bottom
gusset should be ush
with bottom of 40”
vertical rails.
40”Vertical Rails
Upper Wheel
and handle
Assembly
Pg. 1
Slide down from top
Unbolt 1x2 black end caps and replace when nished
Slide down from top
4-hole Support Gussets
2-hole Support Gussets
Blackbird Raven
Assembly Instructions
Call or text me if you need help:
Matthew Freed
214-918-5132
contact@blackbirdcarts.com
Pg. 2

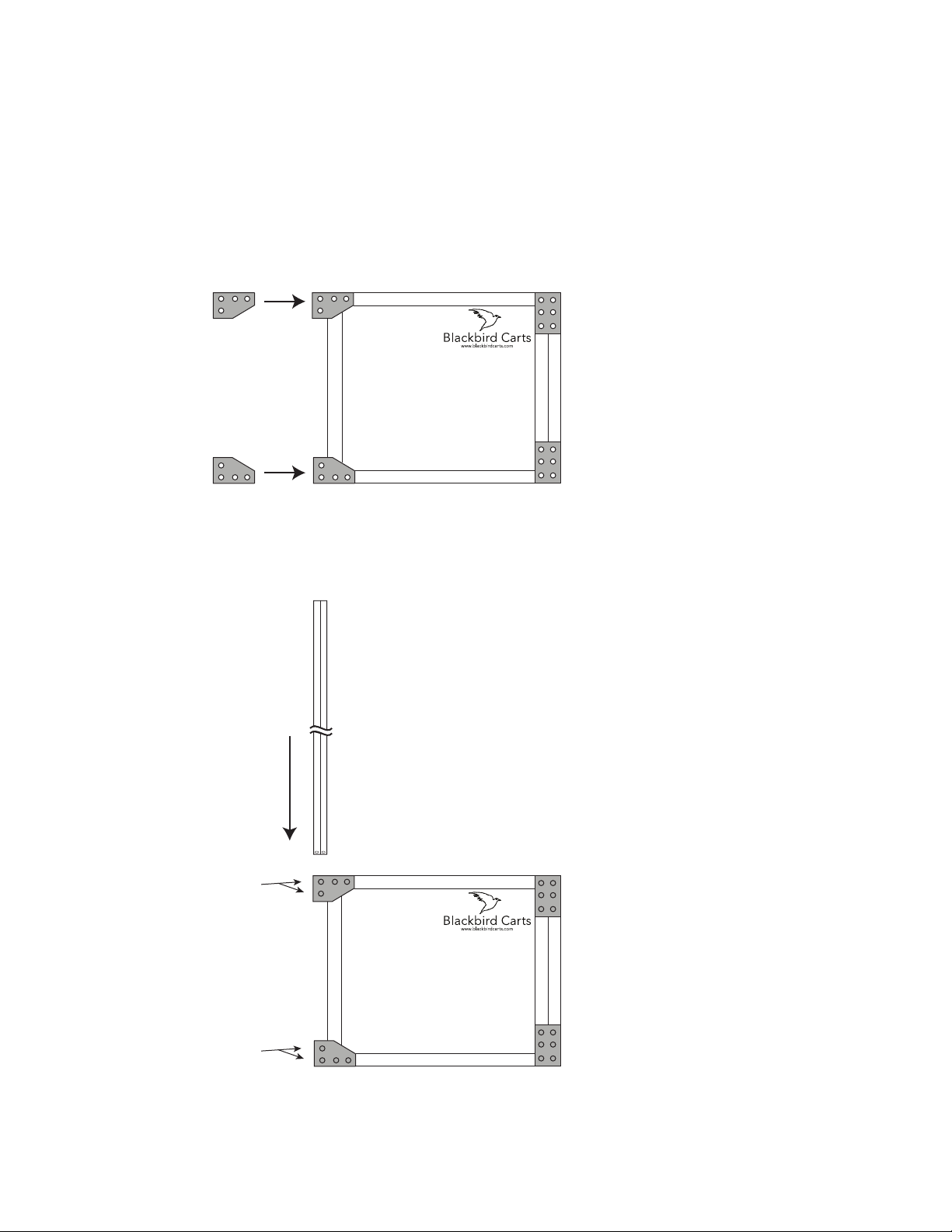

1. Slide 90 degree brackets on to top, back side of Lower Equipment Box. Make ush with back of top rail.
2. Lower 40-inch verticals on to back side of Equipment Box. Make bottom of Vertical Rail ush with
bottom of box. Tighten Bolts A through D
Bolts A,B
Bolts C,D
Blackbird Raven
Assembly Instructions
Call or text me if you need help:
Matthew Freed
214-918-5132
contact@blackbirdcarts.com
Pg. 3

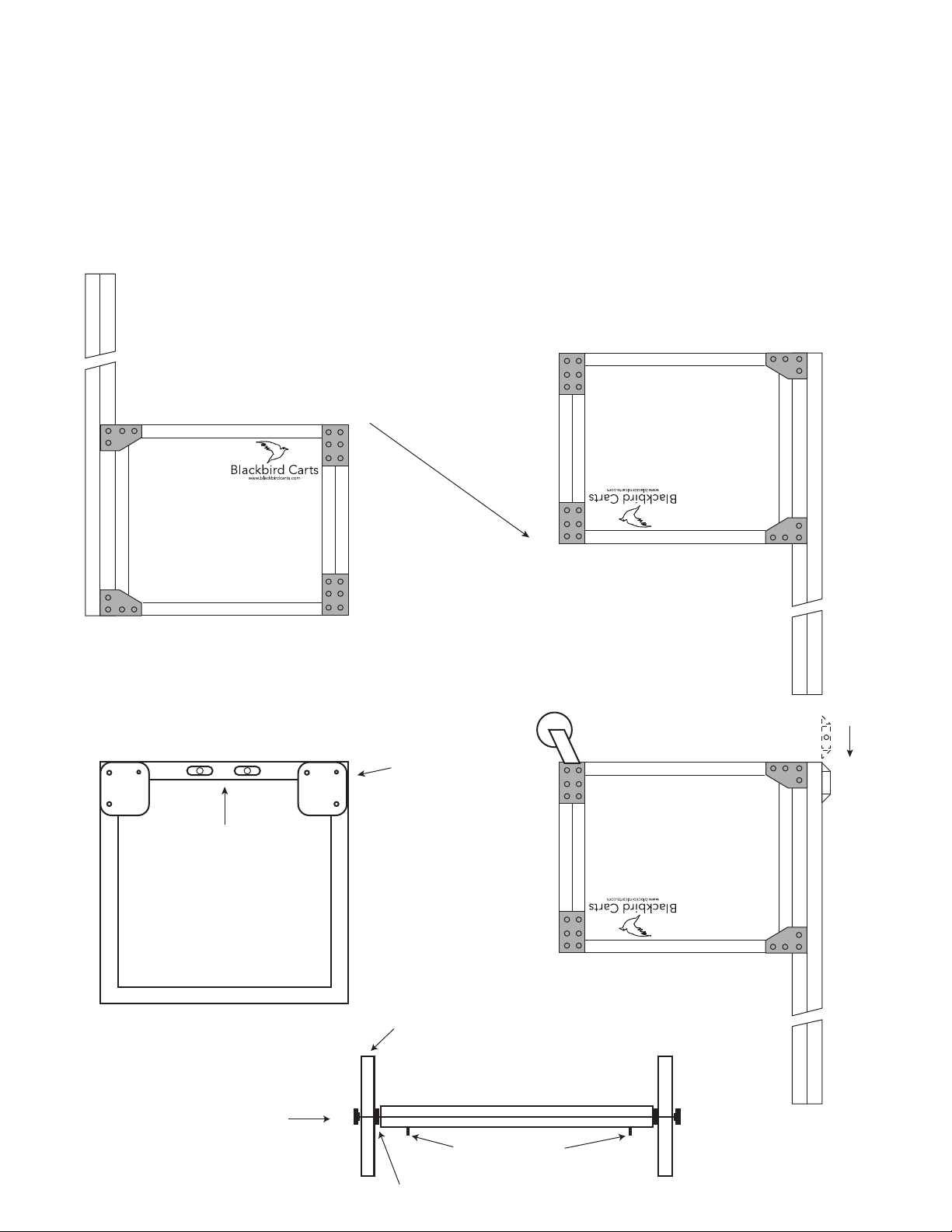

3. Turn assembly upside down and place on a tabletop to install caster wheels and rear axle assembly.
Install 3 washers and bolts into T-Nuts that
have been pre-installed in rails.
Caster Wheel Plates
4 nuts are pre-installed. The
middle two are used for the
lifting handle, the outer two
are for the caster wheels (one
on each side)
Bottom of Equipment Box
Rear Axle
Assembly
Axle housing
( Top )
Lock Collar
Wheel
White Bushing
Axle Set Screws
Blackbird Raven
Assembly Instructions
Call or text me if you need help:
Matthew Freed
214-918-5132
contact@blackbirdcarts.com
Pg. 4
4. Place assembly on all 4 wheels on the oor. Then, slide mixer shelf down from
top and follow with Upper Monitor Box. Tighten bolts to secure in place.

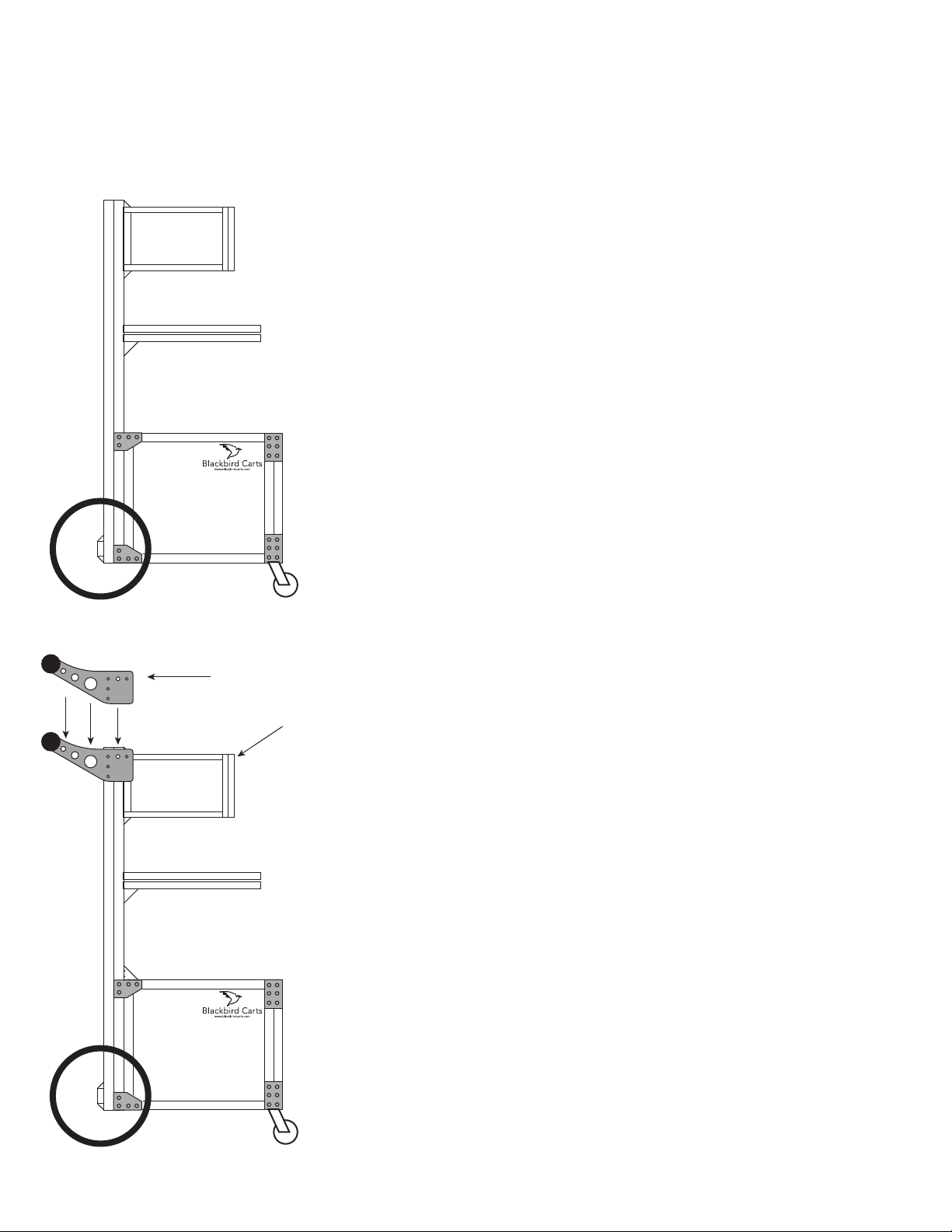

5. Slide Top Handle Assembly down onto outside of vertical
rails and align top holes with top rails of the Monitor Box. A
T-Nut has been pre-installed in top rail of Monitor Box for
forward most bolt.
6. Replace any remaining end caps and bolts into extrusion
ends. Check all bolts for tightness.
Remove nut from front
bolt and slide in along
top rail from the front.
