Intended use

Your Black & Decker multi-purpose tool has been

designed for a wide range of DIY applications.

Using the shear head (MTS12), this tool is

intended for cutting thin, exible materials, such as

carpet (up to 6.5mm), vinyl, metal (up to 0.5 mm)

and wire mesh (up to 0.5 mm).

This tool is intended for consumer use only.

Safety instructions

General power tool safety warnings

@Warning! Read all safety warnings

and all instructions. Failure to follow

the warnings and instructions listed

below may result in electric shock, re

and/or serious injury.

@Warning! Read all safety warnings

and all instructions provided with your

power tool (MT143, MT350, MT108

or MT18) before using this accessory.

Failure to follow the warnings and in-

structions may result in electric shock,

re and/or serious injury.

Save all warnings and instructions for future

reference. The term “power tool” in the warnings

refers to your mains operated (corded) power tool

or battery operated (cordless) power tool.

@Warning! Additional safety warnings

for shears and nibblers

uHold power tool by insulated gripping sur-

faces when performing an operation where

the cutting accessory may contact hidden

wiring. Cutting accessory contacting a “live”

wire may make exposed metal parts of the

power tool “live” and could give the operator an

electric shock

uUse clamps or another practical way to se-

cure and support the workpiece to a stable

platform. Holding the work by hand or against

your body leaves it unstable and may lead to

loss of control.

uKeep hands away from cutting area. Never

reach underneath the work piece for any

reason. Do not insert ngers or thumb into the

vicinity of the blade. Do not stabilize the shear

by gripping underneath.

uKeep blades sharp. Dull or damaged blades

may cause the saw to swerve or stall under

pressure. Always use the appropriate type of

saw blade for the workpiece material and type

of cut.

ENGLISH

(Original instructions)

uDo not touch the workpiece or the blade

immediately after operating the tool. They can

become very hot.

uThe blade will continue to move after releasing

the switch. Always switch the tool off and

wait for the saw blade to come to a complete

standstill before putting the tool down.

@Warning! Contact with, or inhalation

of dusts arising from cutting applica-

tions may endanger the health of the

operator and possible bystanders.

Wear a dust mask specically

designed for protection against dust

and fumes and ensure that persons

within or entering the work area are

also protected.

uThe intended use is described in this instruc-

tion manual. The use of any accessory or

attachment or performance of any operation

with this tool other than those recommended

in this instruction manual may present a risk of

personal injury and/or damage to property.

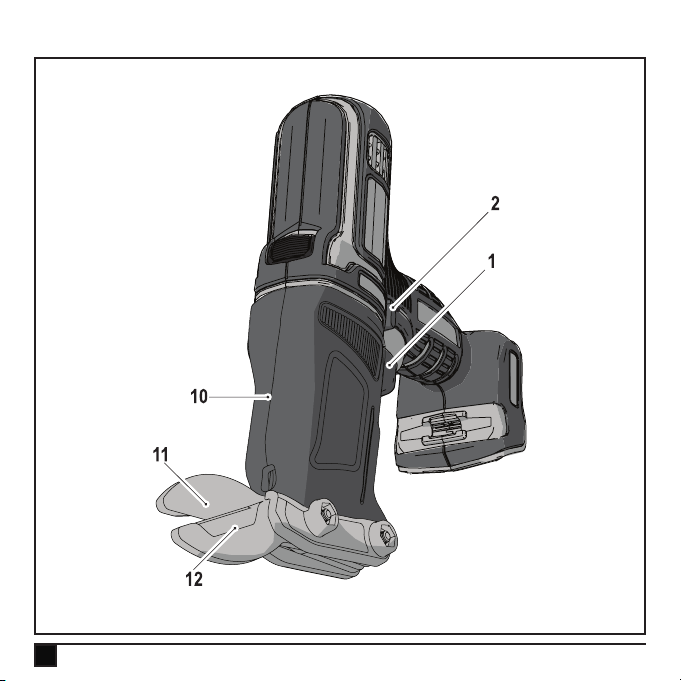

Features (g. A)

Tool shown is MT218. Other tools are available for

use with this tool head.

This tool includes some or all of the following

features.

10. Shear head

11. Upper blade

12. Lower blade

Use

Warning! Let the tool work at its own pace. Do not

overload.

Switching on and off

Note: Ensure the forward reverse slider (2) is not

in the locked position.

uTo switch the tool on, press the variable speed

switch (1). The tool speed depends on how far

you press the switch.

uTo switch the tool off, release the variable

speed switch.

Materials that can be cut

uCarpet up to 6.35mm thick.

uFabric.

uVinyl (exible plastic) up to 3.175mm thick.

uMetal 26 GA (0.5mm) or thinner.

uWire mesh 0.5mm or thinner.

Note: Do not use this tool for pocket cutting.

Cutting metal (g. B)

uOnly thin guage metals (26 GA or thinner) are

to be cut.

ENGLISH

(Original instructions)

uAvoid forcing cutting blade as this reduces

blade life and causes costly blade damage.

uUse your free hand to roll material to be

dicarded out of the way as cutting progresses

(g. B)

Warning! Sheet metal edges can be razor sharp

and extreme caution must be used when working

with this material. Always wear gloves while work-

ing with sheet metal.

Hints for optimum use

uLightly place blade against work to be cut.

uAlways hold cutter rmly while cutting.

uBefore cutting any type of material, be sure it is

rmly anchored or clamped to prevent slipping.

uCut only with sharp blades; they cut cleaner,

faster and put less strain on the motor while

cutting

uWhen cutting materials with adhesive backing

(vinyl oor tile, etc.) periodically clean blades;

adhesive residue will build up on blades reduc-

ing the quality of cut and strain the motor.

uWhen cutting carpet or other brous materials

periodically clean bers out from in between

the blades; built up bers will reduce the shear-

ing action thereby reducing the quality of cut

and strain the motor.

uWhen cutting stiffer materials such as sheet

metal, vinyl, etc, use free hand to either work

material up over the unit or roll material to be

discarded out of the way as cutting progresses.

uWhen cutting curves, do not tilt the tool; keep

the blades perpendicular to the work piece.

uAdvance blades into the material without

forced effort or unnecessary pressure. A little

practice will enable you to determine what for-

ward pressure gives you the smoothest cutting.

Accessories

The performance of your tool depends on the

accessory used. Black & Decker and Piranha ac-

cessories are engineered to high quality standards

and designed to enhance the performance of your

tool. By using these accessories you will get the

very best from your tool.

ENGLISH

(Original instructions)

Technical data

MTS12 (MAX) (H1)

No-load speed min-1

1500

Blade displacement

mm 6.75

Weight

kg 0.64

Max. material

thickness

Carpet mm

6.35mm

Vinyl mm

3.175

Metal mm

0.5

Wire mesh mm

0.5

Level of sound pressure according to EN 60745:

Sound pressure (LpA) 72.5 dB(A), uncertainty (K) 3 dB(A)

Sound power (LWA) 83.5 dB(A), uncertainty (K) 3 dB(A)

Vibration total values (triax vector sum) according to EN 60745:

Cutting (ah) 2.5 m/s2, uncertainty (K) 1.5 m/s2

Guarantee

Black & Decker is condent of the quality of its

products and offers an outstanding guarantee. This

guarantee statement is in addition to and in no way

prejudices your statutory rights. The guarantee is

valid within the territories of the Member States of

the European Union and the European Free Trade

Area.

If a Black & Decker product becomes defective

due to faulty materials, workmanship or lack of

conformity, within 24 months from the date of

purchase, Black & Decker guarantees to replace

defective parts, repair products subjected to fair

wear and tear or replace such products to ensure

minimum inconvenience to the customer unless:

uThe product has been used for trade, profes-

sional or hire purposes;

uThe product has been subjected to misuse or

neglect;

uThe product has sustained damage through

foreign objects, substances or accidents;

uRepairs have been attempted by persons

other than authorised repair agents or Black &

Decker service staff.

ENGLISH

(Original instructions)

To claim on the guarantee, you will need to submit

proof of purchase to the seller or an authorised

repair agent. You can check the location of your

nearest authorised repair agent by contacting

your local Black & Decker ofce at the address

indicated in this manual. Alternatively, a list of

authorised Black & Decker repair agents and full

details of our after-sales service and contacts are

available on the Internet at: www.2helpU.com

Please visit our website www.blackanddecker.

co.uk to register your new Black & Decker product

and to be kept up to date on new products and

special offers. Further information on the Black &

Decker brand and our range of products is avail-

able at www.blackanddecker.co.uk

EC declaration of conformity

MACHINERY DIRECTIVE

MTS12

Black & Decker declares that these products

described under “technical data” are in compliance

with:

2006/42/EC, EN60745-1, EN60745-2-1,

EN60745-2-8

These products also comply with Directive

2014/30/EU and 2011/65/EU. For more informa-

tion, please contact Stanley Europe at the following

address or refer to the back of the manual.

The undersigned is responsible for compilation of

the technical le and makes this declaration on

behalf of Black & Decker.

R. Laverick

Engineering Manager

Black & Decker Europe, 210 Bath Road, Slough,

Berkshire, SL1 3YD

United Kingdom

14/11/2014

Bestimmungsgemäße Verwendung

Das Black & Decker Multifunktionswerkzeug wurde

für zahlreiche Heimwerkerarbeiten entwickelt.

Der Schneidkopf (MTS12) dieses Geräts schneidet

dünne, exible Materialien wie Teppich (bis

6.5 mm), PVC, Metall (bis 0.5 mm) und Drahtge-

echt (bis 0.5 mm).

Dieses Gerät ist nicht für den gewerblichen Einsatz

vorgesehen.

Sicherheitshinweise

Allgemeine Sicherheitswarnungen für das

Gerät

@Achtung! Lesen Sie sämtliche Sicher-

heitswarnungen und Anweisungen.

Die Nichteinhaltung der folgenden

Warnungen und Anweisungen kann

einen elektrischen Schlag, Brand

und/oder schwere Verletzungen

verursachen.

@Achtung! Lesen Sie vor Inbetrieb-

nahme sämtliche Sicherheitshinweise

und Anweisungen, die im Lieferum-

fang des Geräts (MT143, MT350,

MT108 oder MT18) enthalten sind.

Die Nichteinhaltung der nachstehend

aufgeführten Warnhinweise und

Anweisungen kann einen elektrischen

Schlag, Brand und/oder schwere

Verletzungen verursachen.

Bewahren Sie alle Sicherheitswarnungen und

Anweisungen gut auf. Der Begriff “Gerät” bezieht

sich auf netzbetriebene Geräte (mit Netzkabel) und

auf akkubetriebene Geräte (ohne Netzkabel).

@Achtung! Zusätzliche Sicherheit-

swarnungen für Scheren und Nibbler

u Halten Sie das Gerät an den isolierten

Griffächen fest, wenn Sie Arbeiten aus-

führen, bei denen verdeckte Kabel durch

Werkzeuge beschädigt werden könnten.

Der Kontakt mit stromführenden Leitungen

kann auch offenliegende Metallteile am Gerät

unter Strom setzen und zu einem Stromschlag

führen.

uFixieren Sie das Werkstück mit Zwingen

oder ähnlichen Hilfsmitteln auf einer stabi-

len Oberäche. Ein Werkstück, das mit der

Hand oder gegen den Körper gehalten wird, ist

unzureichend befestigt und kann leicht außer

Kontrolle geraten.

u Halten Sie Ihre Hände von der Schneidzone

fern. Greifen Sie niemals unter das Werkstück.

Halten Sie Ihre Finger von der Klinge fern. Ver-

suchen Sie nicht, die Schere zu stabilisieren,

indem Sie unter diese greifen.

uHalten Sie die Klingen scharf. Stumpfe oder

beschädigte Klingen können dazu führen, dass

das Gerät unter Druck blockiert oder ausbricht.

Verwenden Sie immer ein für das jeweilige

Werkstück und die Art des Schnitts geeignete

Klinge.

uBerühren Sie das Werkstück oder die Klinge

nicht direkt nach dem Gebrauch. Beides kann

sehr heiß werden.

uDie Klinge bewegt sich auch dann noch, wenn

Sie den Schalter losgelassen haben. Schalten

Sie das Gerät vor dem Ablegen stets aus, und

warten Sie, bis das Sägeblatt zum Stillstand

gekommen ist.

@Achtung! Die Berührung und das

Einatmen von Stäuben, die beim

Sägen von Materialien entstehen,

können beim Bediener und bei Um-

stehenden gesundheitliche Schäden

verursachen. Tragen Sie eine

speziell für den Schutz vor Staub und

Dämpfen vorgesehene Staubmaske,

und stellen Sie sicher, dass auch

andere Personen entsprechend

geschützt sind, die den Arbeitsplatz

betreten oder sich dort aufhalten.

uIn dieser Anleitung ist die bestimmungsgemäße

Verwendung beschrieben. Die Verwendung

von Zubehör oder Anbauteilen, die nicht in

dieser Anleitung empfohlen sind, sowie die

Bedienung des Geräts in Abweichung von den

in dieser Anleitung beschriebenen Verfahren

kann zu Verletzungen und/oder Sachschäden

führen.

Merkmale (Abb. A)

Abgebildet ist das Gerät MT218. Es stehen weitere

Geräte zur Verwendung mit diesem Werkzeugkopf

zur Verfügung.

Dieses Gerät verfügt über einige oder alle der

folgenden Merkmale:
