Black Box LB8405A-R2 User manual

Installation

InstallationInstallation

Installation

This installation guide gives step-by-step instructions about how to install the Express Ethernet Switches:

LB8405A-R2

Selecting a Site for the Express Ethernet Switch: LB8405A-R2

As with any electric device, you should place the switch where it will not be subjected to extreme temperatures, humidity,

or electromagnetic interference. Specifically, the site you select should meet the following requirements:

- The ambient temperature should be between 32 and 104 degrees Fahrenheit (0 to 40 degrees Celsius).

- The relative humidity should be less than 90 percent, non-condensing.

- Surrounding electrical devices should not exceed the electromagnetic field (RFC) standards for IEC

801-3, Level 2 (3V/M) field strength.

- Make sure that the switch receives adequate ventilation. Do not block the ventilation holes on each side of

the switch or the fan exhaust port on the rear of the switch.

- The power outlet should be within 1.8 meters of the switch.

Connecting to Power

External power:

Connect the supplied AC power adaptor to the receptacle on the back of the switch, and then plug it into

a standard AC outlet with a voltage range from 100 to 260 VAC.

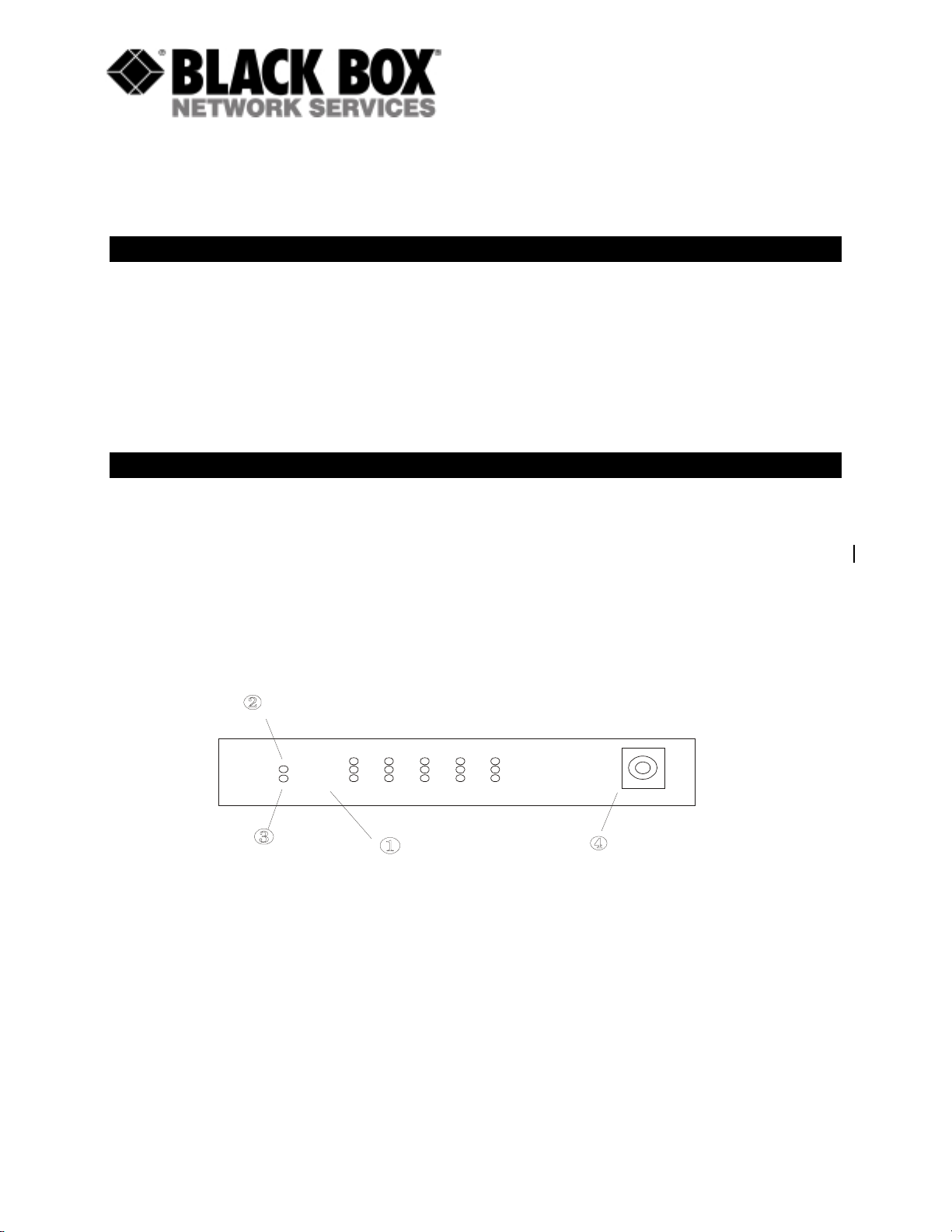

1. 5-port LED panel

2. Power LED

3. Uplink LED

4. 5V, DC power plug

Figure 1: Rear view

CUSTOMER Order toll-free in the U.S. 24 hours, 7 A.M. Monday to midnight Friday: 877-877-BBOX

SUPPORT FREE technical support, 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746

INFORMATION Mail order: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018

Web Site: www.blackbox.com E-mail: info@blackbox.com

POWER LNK/ACT

FDX/COL 2X 4X 5X DC 5V

100

UPLINK

Connecting to Your Network

Cable Type & Length

It is necessary to follow the cable specifications below when connecting the switch to your network. Use

appropriate cables that meet your speed and cabling requirements.

Table 3: Cable Specifications

Speed Connector

Port

Speed

Half/Full

Duplex

Cable Max.

Distance

10BASE-T RJ-45 10/20

Mbps 2-pair UTP/STP

Cat. 3, 4, 5 100 m

100BASE-TX RJ-45 100/200

Mbps 2-pair UTP/STP

Cat. 5 100 m

100BASE-FX ST, SC, MT-RJ,

VF-45 100/200

Mbps MMF (50 or

62.5µm) 2 km

100BASE-FX SC 100/200

Mbps SMF (9 or

10µm) 15, 40, or

75 km

Cabling

Step 1: First, ensure the power of the switch and end devices is turned off.

<Note> Always ensure that the power is off before any installation.

Step 2: Prepare cable with corresponding connectors for each type of port in use.

<Note> To connect two regular RJ-45 ports between switches or hubs, you need a cross-over cable.

Step 3: Consult Cable Specifications Table on previous page for cabling requirements based on connectors and speed.

Step 4: Connect one end of the cable to the switch and the other end to a desired device.

Step 5: Once the connections between two end devices are made successfully, turn on the power and the switch is operational.

CUSTOMER Order toll-free in the U.S. 24 hours, 7 A.M. Monday to midnight Friday: 877-877-BBOX

SUPPORT FREE technical support, 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746

INFORMATION Mail order: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018

Web Site: www.blackbox.com E-mail: info@blackbox.com
