Black Box IC159A User manual

Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500)

FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746

Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018

Web site: www.blackbox.com • E-mail: info@blackbox.com

Customer

Support

Information

February 2010

MT1000A-85-R4

BL A C K B OX®

Connect up to four USB 3.0 devices,

such as MP3 players, digital cameras,

or printers, to your computer.

USB 3.0 4-Port Hub

IC159A

1. Specifications

Compliance — FCC Class A, Part 15, Subpart B, CE, RoHS

Connectors — (1) USB Type B upstream port,

(4) USB Type A downstream ports

Power — Self-powered: 5-V, 4-A;

With power adapter: Input: 100–240 V. 50-60 Hz;

Output: 5-V, 4-A

Temperature Tolerance — Operating: +32 to +104° F

(0 to +40° C);

Storage: +14 to +185° F (-10 to +85° C)

Humidity — Up to 95%, noncondensing

Size — 0.9"H x 3.75"W x 2.36"D (2.28 x 9.5 x 5.9 cm)

Weight — Hub only: 2.5 oz. (70.9 g)

2. Overview

Use the USB 3.0 4-Port Hub to connect up to four USB 3.0

devices to your computer at speeds up to 4.8 Gbps.

2.1 Features

• Compatible with the USB 3.0 specification.

• Maintains optimal speeds when using multiple USB devices.

• Automatic self-powered status monitoring

• Plug-and-play

• Has (1) upstream and (4) downstream ports

2.2 What’s Included

Your package should contain the following items. If anything is

missing or damaged, contact Black Box Technical Support at

724-746-5500 or info@blackbox.com.

• (1) USB 3.0 4-Port Hub

• (1) power adapter

• (1) USB 3.0 cable

• This user’s manual

For a typical application diagram and

for verify the installation instructions, turn this page over…

FREE, live, 24/7 Tech Support is just 30 seconds away.

724-746-5500 | blackbox.com

Windows Vista are registered trademarks of Microsoft Corporation. Any other third-party trademarks appearing in this publication are acknowledged to be the property of their respective

owners.

IC159A, version 1

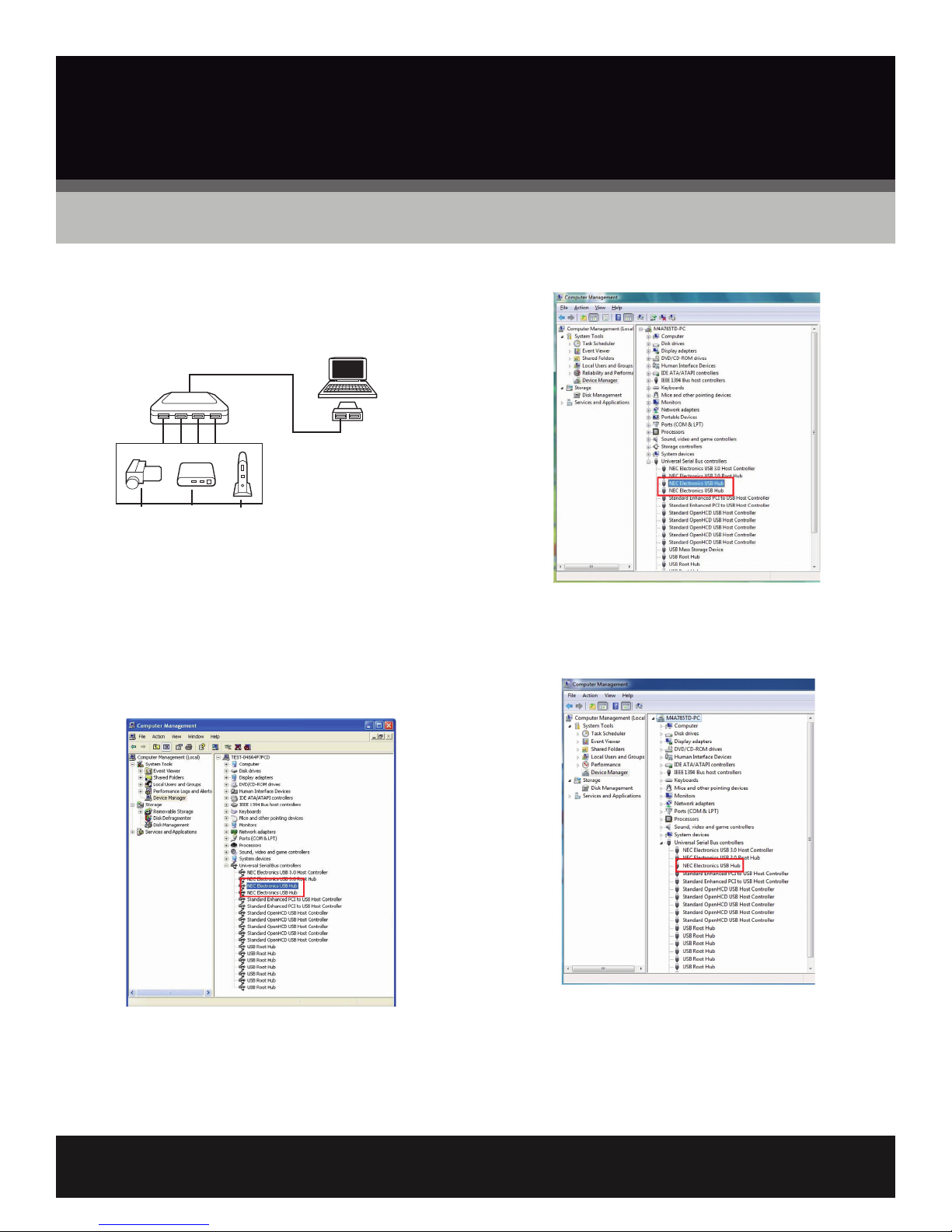

2.3 Typical Application

Figure 1 shows a typical application.

DV USB USB

hub enclosure

SuperSpeed (4.8 Gbps)

to transfer files

USB 3.0

adapter

Notebook

computer

Figure 1. Sample application.

3. Verify the Installation

After you connect this hub to a PC via a USB 3.0 cable, the

system will detect the device and install the required drivers

automatically. After the installation is finished, go to Device

Manager to verify the entire installlation. See Figures 2–4.

For Windows®XP:

Figure 2. Verify Windows XP installation.

For Windows Vista®:

Figure 3. Verify Windows Vista installation.

For Windows 7:

Figure 4. Verify Windows 7 installation.

IC159A
