1000 Park Drive • Lawrence, PA 15055-1018 • 724-746-5500 • Fax 724-746-0746

© Copyright 2000. Black Box Corporation. All rights reserved.

CUSTOMER

SUPPORT

INFORMATION

Order toll-free in the U.S. 24 hours, 7 A.M. Monday to midnight Friday: 877-877-BBOX

FREE technical support, 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746

Mail order: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018

Web site: www.blackbox.com • E-mail: [email protected]

FEBRUARY 2000

SW045A-FFF SW045B-FFF SW045D-FFF

SW045A-FFM SW045B-FFM SW046A-FFFFF

SW045A-MMF SW045B-MMF SW046A-FFMFF

SW045A-MMM SW045B-MMM SW046A-MMFMM

SW045AX SW045BX SW046A-MMMMM

Ethernet Transceiver Switches

ABC (2 to 1)

ABCDE (4 to 1)

B

A

DE

ABCDE Switch

AB

ABC Switch

1

ETHERNET TRANSCEIVER SWITCHES

1. Specifications

Switch—(1) Rotary, 2-position, break-before-make

Connectors—SW045: (3) DB15 female; SW046: (5) DB15 female

Enclosure—High-impact plastic

Power—None required

Size—3.5"H x 6"W x 6.3"D (8.9 x 15.2 x 16 cm)

Weight—1.5 lb. (0.7 kg)

2

ETHERNET TRANSCEIVER SWITCHES

2. Introduction

2.1 Typical Application

With an Ethernet Transceiver Switch, you can switch one Ethernet device or

segment between two Ethernet networks (see Figure 1). A rotary switch on the

front panel controls this operation.

Figure 1. A Typical Application.

2.2 Connectors

Three female DB15 connectors, labeled A, B, and C, are mounted on the rear

panel of the SW045 (see Figure 2). All 15 of the leads are switched. Five female

DB15 connectors, labeled A, B, C, D, and E, are mounted on the rear panel of the

SW046A (see Figure 3).

Device

C

Device

E

Device

A

Device

B

Device

D

Switch

3

ETHERNET TRANSCEIVER SWITCHES

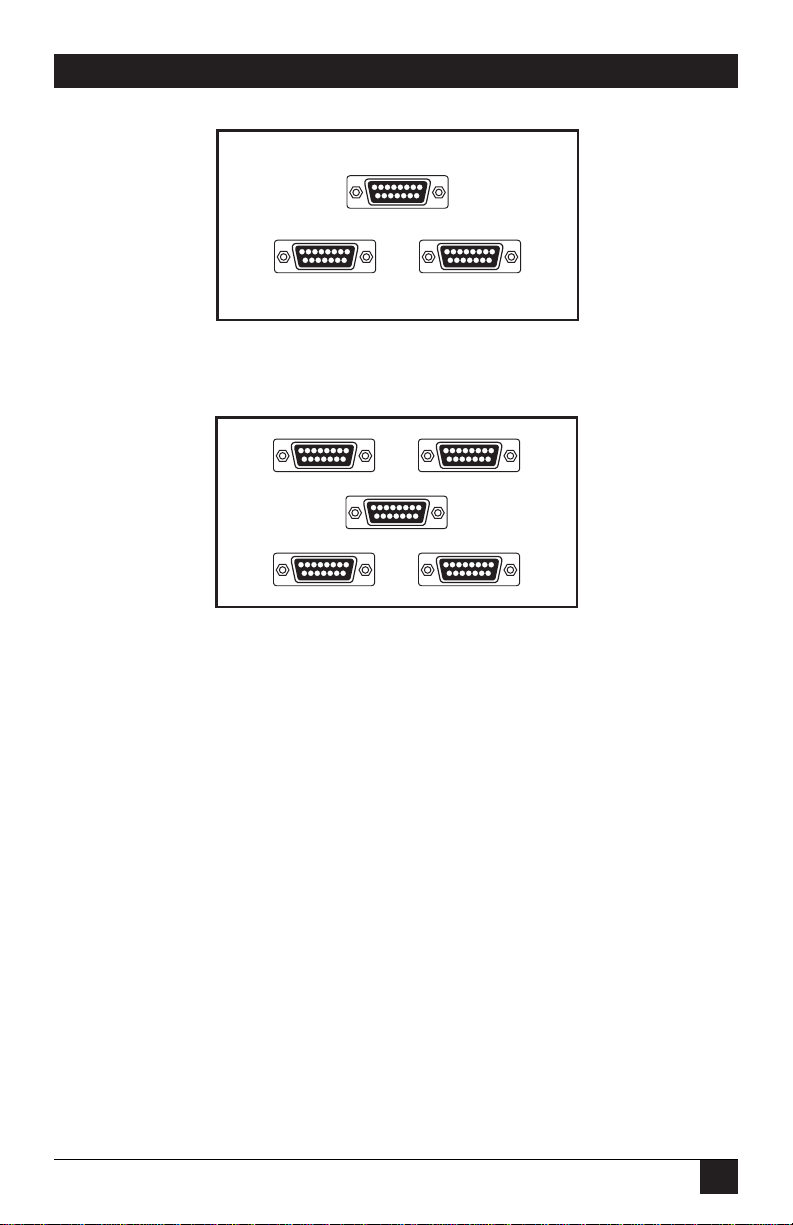

Figure 2. SW045 Rear Panel.

Figure 3. SW046 Rear Panel.

J3

C

J1

A

J2

B

DE

C

AB

4

ETHERNET TRANSCEIVER SWITCHES

3. Installation

1. Connect the cable from the device you want to share to the “C” connector on

the rear panel of the switch.

2. Connect the cables from the devices that are to be switched to connectors “A”

and “B” on the rear panel of the SW045 or connectors “A,” “B,” “D,” or “E” of

the SW046A.

3. Set the rotary switch on the front panel as required (see Chapter 4).

4. The ABC or ABCDE switch is now ready for operation.

5

ETHERNET TRANSCEIVER SWITCHES

4. Operation

The rotary switch on the front panel controls the switching of the common

connector “C” to connector “A” or “B” of the SW045 (see Figure 4 and Table 1) or

connector “A,” “B,” “D,” or “E” of the SW046 (see Figure 5 and Table 2).

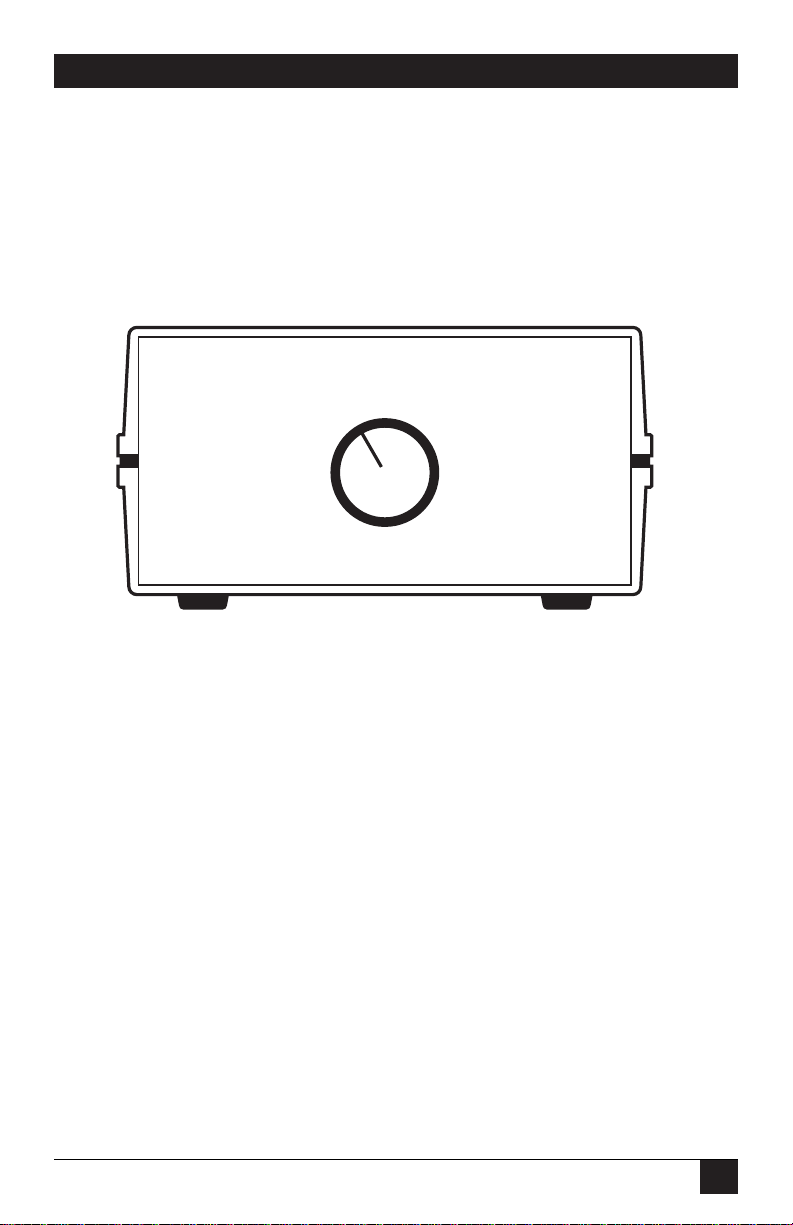

Figure 4. Front Panel of the SW045.

Table 1. Switch Positions of the SW045

Switch Position Connection

A Device “C” is connected to device “A”

B Device “C” is connected to device “B”

AB

ABC Switch

6

ETHERNET TRANSCEIVER SWITCHES

Figure 5. Front Panel of the SW046.

Table 2. Switch Positions of the SW046

Switch Position Connection

A Device “C” is connected to device “A”

B Device “C” is connected to device “B”

D Device “C” is connected to device “D”

E Device “C” is connected to device “E”

B

AE

D

ABCDE Switch
