Black & Decker BDCS36G User manual

BDCS36G

www.blackanddecker.com

English

INDONESIA

ภาษาไทย

TIẾNG VIỆT

C D

E F

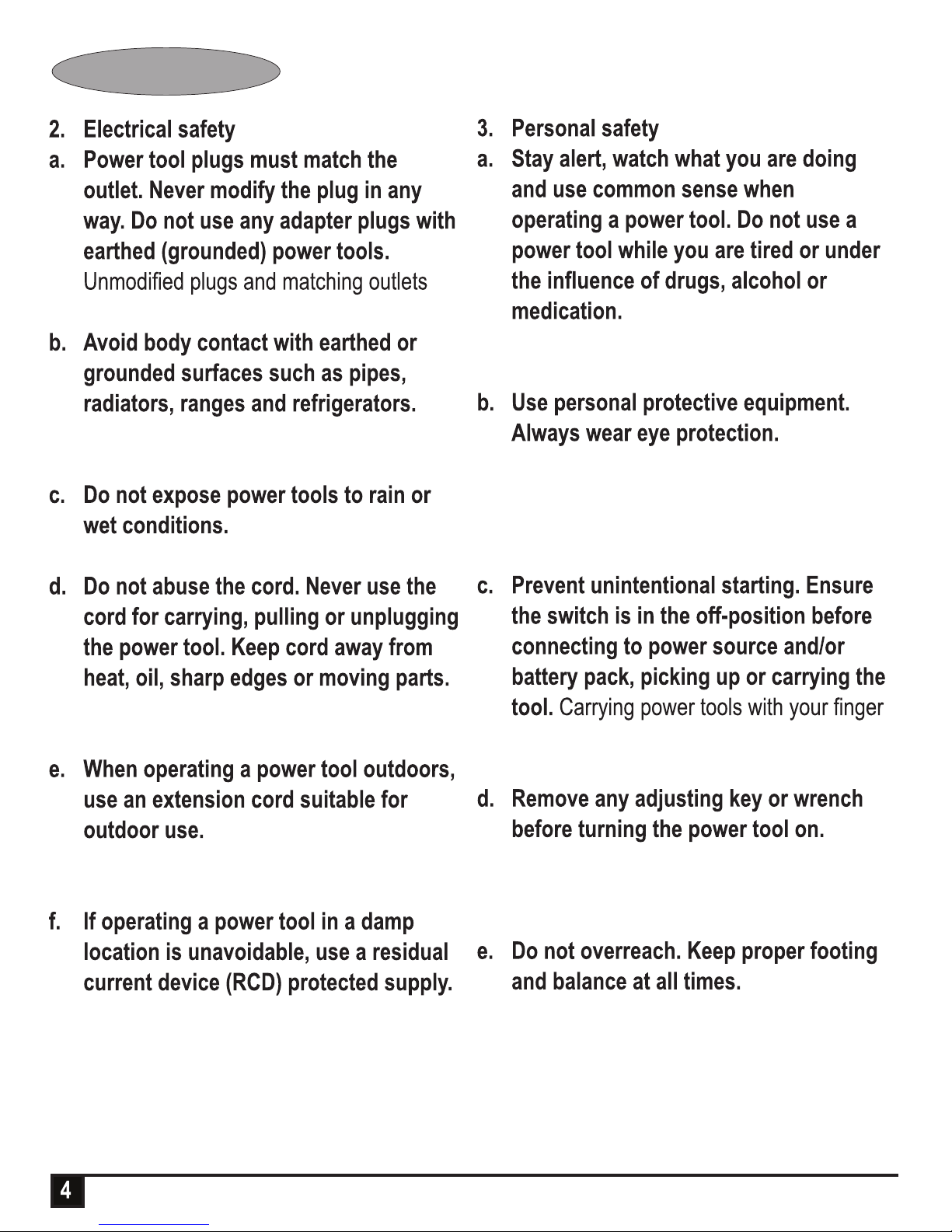

will reduce risk of electric shock.

There is an increased risk of electric

shock if your body is earthed or grounded.

Water entering a power

tool will increase the risk of electric shock.

Damaged or entangled cords increase the

risk of electric shock.

Use of a cord suitable for

outdoor use reduces the risk of electric

shock.

Use of an RCD reduces the risk of electric

shock.

ENGLISH (Original instructions)

A moment of inattention

while operating power tools may result in

serious personal injury.

Protective

equipment such as dust mask, non-skid

safety shoes, hard hat, or hearing

protection used for appropriate conditions

will reduce personal injuries.

on the switch or energising power tools

that have the switch on invites accidents.

wrench or a key left attached to a rotating

part of the power tool may result in

personal injury.

This enables

better control of the power tool in

unexpected situations.

ENGLISH

(Original instructions)

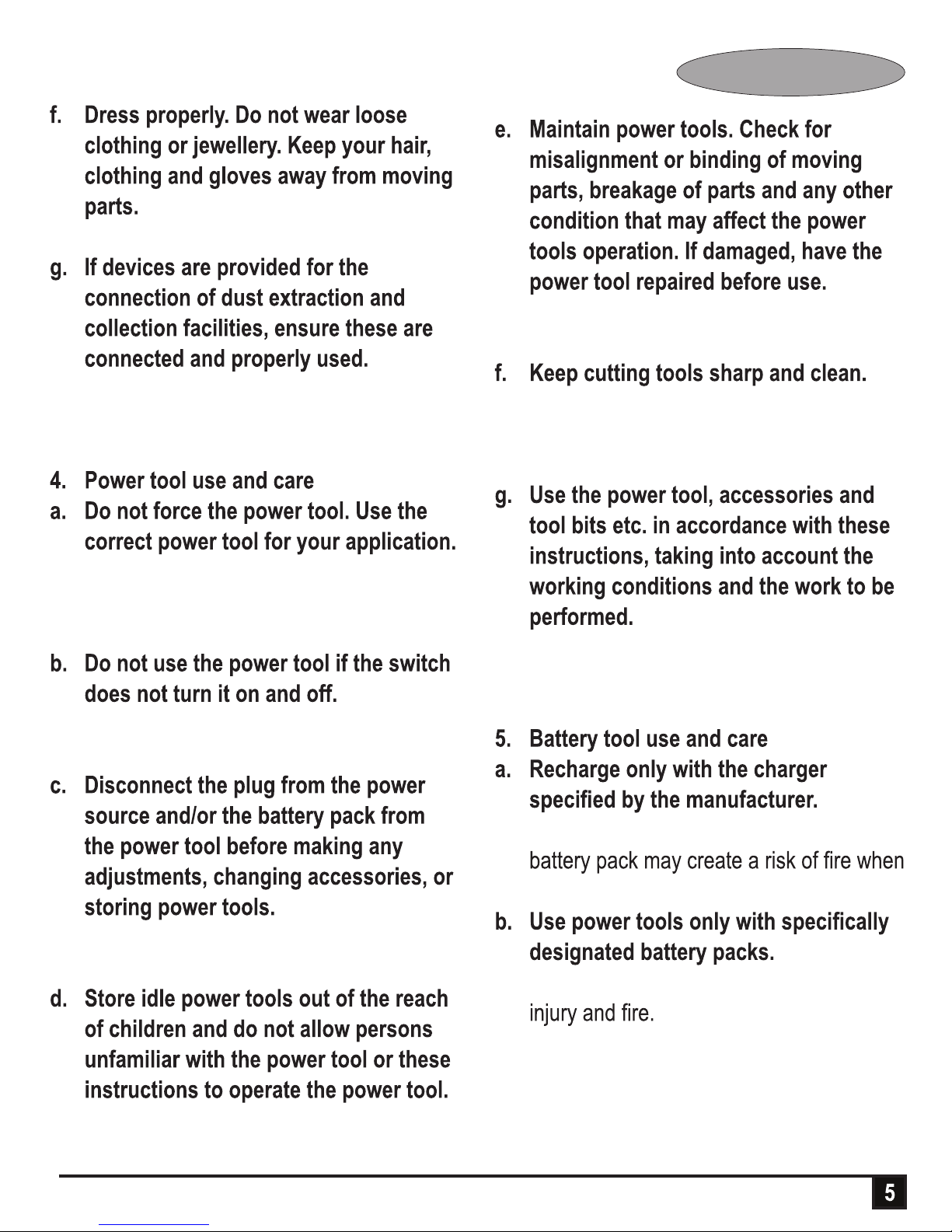

Many

accidents are caused by poorly

maintained power tools.

Properly maintained cutting tools with

sharp cutting edges are less likely to bind

and are easier to control.

Use of the power tool for

operations different from those intended

could result in a hazardous situation.

charger that is suitable for one type of

used with another battery pack.

Use of any

other battery packs may create a risk of

Loose clothes, jewellery or long

hair can be caught in moving parts.

Use of

dust collection can reduce dust-related

hazards.

The correct power tool will do the job

better and safer at the rate for which it

was designed.

Any power

tool that cannot be controlled with the

switch is dangerous and must be repaired.

Such preventive

safety measures reduce the risk of

starting the power tool accidentally.

Power tools are dangerous in the hands of

untrained users.

Shorting the battery terminals

Liquid

ejected from the battery may cause

irritation or burns.

This will

ensure that the safety of the power tool is

maintained.

@Additional safety

warnings for screwdrivers and

impact wrenches



Loss of control can cause

personal injury.

ENGLISH (Original instructions)



Fasteners contacting a "live" wire

may make exposed metal parts of the

power tool "live" and could give the opera-

tor an electric shock.



Holding the work

by hand or against your body leaves it

unstable and may lead to loss of control.

This tool is not intended for use by

persons (including children) with reduced

physical, sensory or mental capabilities, or

lack of experience and knowledge, unless

they have been given supervision or in-

struction concerning use of the appliance

by a person responsible for their safety.

Children should be supervised to ensure

that they do not play with the appliance.

This appliance is not intended for use by

persons (including children) with reduced

physical, sensory or mental capabilities, or

lack of experience and knowledge, unless

they have been given supervision or in-

struction concerning use of the appliance

by a person responsible for their safety.

Children should be supervised to ensure

that they do not play with the appliance.

Additional residual risks may arise when using

the tool which may not be included in the

enclosed safety warnings. These risks can

arise from misuse, prolonged use etc.

Even with the application of the relevant

safety regulations and the implementation of

safety devices, certain residual risks can not

be avoided. These include:

Injuries caused by touching any rotating/

moving parts.

Injuries caused when changing any parts,

blades or accessories.

Injuries caused by prolonged use of a tool.

When using any tool for prolonged periods

ensure you take regular breaks.

Impairment of hearing.

Health hazards caused by breathing dust

developed when using your tool (exam-

ple:- working with wood, especially oak,

beech and MDF.)

ENGLISH

(Original instructions)

The following symbols are shown on the tool:

To reduce the risk of

injury, the user must read the

instruction manual.

Never attempt to open for any reason.

Do not expose the battery to water.

Do not store in locations where the

temperature may exceed 40 °C.

Charge only at ambient temperatures

between 10 °C and 40 °C.

Charge only using the charger provided

with the tool.

When disposing of batteries, follow the

instructions given in the section "Protect-

ing the environment".

Do not attempt to charge dam-

aged batteries.

Use your Black & Decker charger only to

charge the battery in the tool with which it

was supplied. Other batteries could burst,

causing personal injury and damage.

Never attempt to charge non-rechargea-

ble batteries.

Have defective cords replaced immedi-

ately.

Do not expose the charger to water.

Do not open the charger.

Do not probe the charger.

$The charger is intended for

indoor use only.

Read the instruction manual

before use.

ENGLISH (Original instructions)

#Your charger is double insu-

lated; therefore no earth wire

is required. Always check that

the mains voltage corresponds

to the voltage on the rating

plate. Never attempt to replace

the charger unit with a regular

mains plug.

If the supply cord is damaged, it must

be replaced by the manufacturer or an

authorised Black & Decker Service Centre

in order to avoid a hazard.

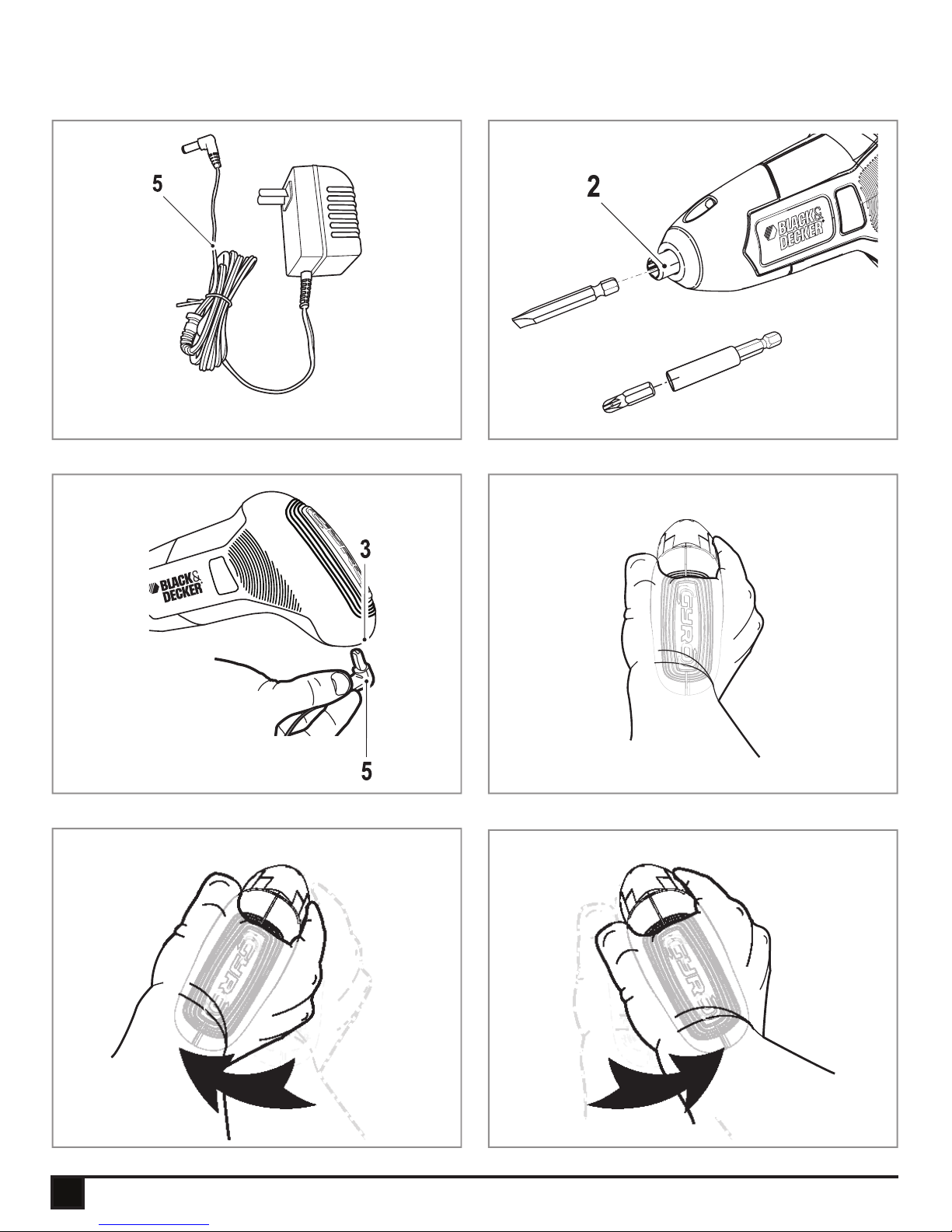

This tool includes some or all of the following

features.

1. Motion control activator

2. Bit holder

3. Charger connector

4. LED work light

5. Charger

Before assembly, remove the bat-

tery from the tool.

Make certain the tool is locked to

prevent switch actuation before installing or

removing accessories.



holder (2) until it locates.

To remove a screwdriver bit, pull it straight

from the bit holder.

To remove the bit/socket repeat the

above steps.

Let the tool work at its own pace.

Do not overload.

power on jobs that were easily done before.

The battery may become warm while charg-

ing; this is normal and does not indicate a

problem.

To charge the battery, insert the charger

plug (5) into the charger connector (3).

Plug in the charger.

Leave the tool connected to the charger

for 16 hours.

ENGLISH

(Original instructions)

The charger may hum and become warm

while charging; this is normal and does not

indicate a problem.

Do not charge the battery at ambi-

ent temperatures below 10 °C or above 40

°C. Recommended charging temperature:

approx. 24 °C.

When the battery charge becomes low the

The LED Flash will last 5 seconds during

Low voltage - - - - - at this pattern..

Do not continue using the product

with its batteries in a depleted condition.

Recharge discharged batteries promptly..

When the circuit operating temperature be-

comes too high the LED work light will begin

The LED Flash will last 5 seconds during

circuit high temperature - . - . - . - . at this

pattern. Allow the unit to cool down to an

optimal operating temperature of approxi-

mately 24°C.



Press and hold in the motion control

activator (1) on the back of the tool with

the palm of your hand.

When the LED work light (4) illuminates

the tool is ready for use.



the motion control activator (1). Move tool

to new position, then press and hold in the

motion control activator (1) on the back of

the tool with the palm of your hand..

This tool automatically re-calibrates itself

periodically to ensure correct operation of the

motion-based gyro controls. If the contorls do

not appear to be working corectly the tool can

be manually callibrated.

Press the motion control activator (1).

Release the motion control activator (1).

Place the tool on a level surface.

5 seconds to indicate that the tool has been

re-calibrated.

Set the initial starting point.

Rotate the tool clockwise and the screw-

driver will activate in the forward direction.

The speed of the tool is determined by

the amount of rotation. .

Small rotation = slower speed.

Large rotation = Higher speed.

Set the initial starting point.

ENGLISH (Original instructions)

Rotate the tool anti-clockwise and the

screwdriver will activate in the reverse

direction.

The speed of the tool is determined by

the amount of rotation. .

Small rotation = slower speed.

Large rotation = Higher speed.

The LED work light (4) is activated automati-

cally when the motion control activator (1) is

depressed.

To maintain battery life in case off accidental

activation, the tool will automatically turn off

after 45 seconds of continuous opperation.

The LED work light (4) will blink rapidly for 5

seconds before the tool shuts down.

Always use the correct type and size of

screwdriver bit.

-

ing a small amount of washing liquid or

soap as a lubricant.

Always hold the tool and screwdriver bit in

a straight line with the screw.

Your Black & Decker tool has been designed

to operate over a long period of time with

a minimum of maintenance. Continuous

satisfactory operation depends upon proper

tool care and regular cleaning.

Your charger does not require any mainte-

nance apart from regular cleaning.

Before performing any maintenance

on the tool, remove the battery from the tool.

Unplug the charger before cleaning it.

Regularly clean the ventilation slots in

your tool and charger using a soft brush or

dry cloth.

Regularly clean the motor housing using

a damp cloth. Do not use any abrasive or

solvent-based cleaner.

Regularly open the chuck and tap it to

remove any dust from the interior.

ZSeparate collection. This product

must not be disposed of with

normal household waste.

Decker product needs replacement, or if it

is of no further use to you, do not dispose of

it with household waste. Make this product

available for separate collection.

Other manuals for BDCS36G

Table of contents

Languages:

Other Black & Decker Power Screwdriver manuals

Black & Decker

Black & Decker BDCHD18BS32-QW User manual

Black & Decker

Black & Decker BDH18 User manual

Black & Decker

Black & Decker 90530144 User manual

Black & Decker

Black & Decker Pivot Driver PP360 User manual

Black & Decker

Black & Decker kc360bl User manual

Black & Decker

Black & Decker ASL146 User manual

Black & Decker

Black & Decker KC600H User manual

Black & Decker

Black & Decker Platinum LDX120P User manual

Black & Decker

Black & Decker KC4815 User manual

Black & Decker

Black & Decker BDCDD12 User manual

Black & Decker

Black & Decker Cyclone 2802 User manual

Black & Decker

Black & Decker BDCS80I User manual

Black & Decker

Black & Decker AS600 User manual

Black & Decker

Black & Decker EGBL108-XE User manual

Black & Decker

Black & Decker LI2000 User manual

Black & Decker

Black & Decker F20 User manual

Black & Decker

Black & Decker KC360LN User manual

Black & Decker

Black & Decker KC36LN User manual

Black & Decker

Black & Decker Scrugun 2020-10 User manual

Black & Decker

Black & Decker 9019-04 User manual

Black & Decker

Black & Decker BDSG500 Linea PRO User manual

Black & Decker

Black & Decker PLR36NC-XE User manual

Black & Decker

Black & Decker KC460LN User manual

Black & Decker

Black & Decker KC4815 User manual

Popular Power Screwdriver manuals by other brands

Makita

Makita DFT085F instruction manual

Parkside

Parkside 345138 2004 instructions

Makita

Makita DFL650F instruction manual

AEG

AEG BST 18BLX2-0 Original instructions

Ingersoll-Rand

Ingersoll-Rand D5000 Series Product information

BGS technic

BGS technic 956 manual

Hilti

Hilti SD 6000 operating instructions

Parkside

Parkside PEPS 3 A1 Translation of the original instructions

Festool

Festool TI 15 operating manual

Makita

Makita DWT190 instruction manual

Matatakitoyo Torque Tools

Matatakitoyo Torque Tools MTD Operation manual

Skil

Skil 2346 Operating/safety instructions

DeWalt

DeWalt XR LI-ION DCD931 user manual

Festool

Festool DWC 18-2500 operating manual

EINHELL

EINHELL TE-CD 12/1 Li Series Original operating instructions

Makita

Makita BFT043F instruction manual

Stanley

Stanley SCD2 manual

Atlas Copco

Atlas Copco LUM12 SR Product instructions
