Black & Decker TROSOS1500 Installation instructions

USA/Canada 1-800-231-9786

www.prodprotect.com/applica

Accessories/Parts (USA/Canada)

Accesorios/Partes (EE.UU/Canadá)

1-800-738-0245

Please Read and Save this Use and Care Book

Por favor lea este instructivo antes de usar el producto

™

†

UNDER-THE-CABINET

TOASTER OVEN

HORNO TOSTADOR

PARA INSTALAR DEBAJO DEL GABINETE

www.prodprotect.com/applica, for

a chance to WIN $100,000!

For US residents only

Registre su producto por Internet en

www.prodprotect.com/applica y tendrá la oportunidad

de GANAR $100,000!

Solamente para residentes de EE.UU

Models

Modelos

❑

TROS1500

❑

TROS1500B

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always

be followed, including the following:

❑

Read all instructions.

❑

Do not touch hot surfaces. Use handles or knobs.

❑

To protect against electrical shock do not immerse cord, plugs or

appliance in water or other liquid.

❑

Close supervision is necessary when any appliance is used by or near

children.

❑

Unplug from outlet when not in use and before cleaning. Allow to cool

before putting on or taking off parts.

❑

Do not operate any appliance with a damaged cord or plug, or after the

appliance malfunctions or has been damaged in any manner. Return

appliance to the nearest authorized service facility or for examination,

repair or adjustment. Or, call the appropriate toll-free number on the

cover of this manual.

❑

The use of accessory attachments not recommended by the appliance

manufacturer may cause injuries.

❑

Do not use outdoors.

❑

Do not let cord hang over edge of table or counter, or touch hot

surfaces.

❑

Do not place on or near a hot gas or electric burner, or in a heated

oven.

❑

Extreme caution must be used when moving an appliance containing

hot oil or other hot liquids.

❑

To disconnect, turn any control to OFF (0), then remove plug from wall

outlet.

❑

Do not use appliance for other than intended use.

❑

Oversized foods or metal utensils must not be inserted in a toaster-oven

as they may create a fire or risk of electric shock.

❑

A fire may occur if toaster-oven is covered or touching flammable

material, including curtains, draperies, walls and the like, when in

operation. Do not store any item on top of the appliance when in

operation.

❑

Do not clean with metal scouring pads. Pieces can break off the pad and

touch electrical parts involving a risk of electric shock.

❑

Extreme caution must be exercised when using containers constructed of

other than metal or glass.

❑

Do not store any materials, other than the manufacturer’s recommended

accessories, in this oven when not in use.

❑

Do not place any of the following materials in the oven: paper,

cardboard, plastic and the like.

❑

Do not cover crumb tray or any part of the oven with metal foil. This

will cause overheating of the oven.

❑

To reduce the risk of fire, do not place any heating or cooking appliance

beneath the appliance.

❑

To reduce the risk of fire, do not mount unit over or near any portion of

a heating or cooking appliance.

❑

To reduce the risk of electric shock, do not mount over a sink.

❑

To reduce the risk of fire, do not store anything directly on top of the

appliance surface when the appliance is in operation.

❑

Do not allow cord(s) to contact rear surface of toaster oven.

SAVE THESE INSTRUCTIONS.

This product is for household use only.

Product may vary slightly from what is illustrated.

GROUNDED PLUG

As a safety feature, this product is equipped with a grounded plug, which will only

fit into a three-prong outlet. Do not attempt to defeat this safety feature. Improper

connection of the grounding conductor may result in the risk of electric shock. Consult a

qualified electrician if you are in doubt as to whether the outlet is properly grounded.

TAMPER-RESISTANT SCREW

Warning: This appliance is equipped with a tamper-resistant screw to prevent

removal of the outer cover. To reduce the risk of fire or electric shock, do not

attempt to remove the outer cover. There are no user-serviceable parts inside.

Repair should be done only by authorized service personnel.

ELECTRICAL CORD

a) A short power-supply cord (or detachable power-supply cord) is to be provided

to reduce the risk resulting from becoming entangled in or tripping over a

longer cord.

b) Longer detachable power-supply cords or extension cords are available and

may be used if care is exercised in their use.

c) If a long detachable power-supply cord or extension cord is used,

1) The marked electrical rating of the detachable power-supply cord

or extension cord should be at least as great as the electrical rating of the

appliance,

2) If the appliance is of the grounded type, the extension cord should be

a grounding-type 3-wire cord, and

3) The longer cord should be arranged so that it will not drape over the

countertop or tabletop where it can be pulled on by children or

tripped over.

Note: If the power supply cord is damaged, it should be replaced by qualified

personnel. In Latin America, by an authorized service center.

† 1. Mounting hood / deflector (Part # TROS1500-01 (silver))

2. Mounted unit

† 3. Temperature selector (Part # TROS1500B-02 (black), TROS1500-02 (gray))

† 4. Cooking function selector (Part # TROS1500B-03 (black), TROS1500-03 (gray))

5. Power ON indicator light

† 6. TOAST / TIMER selector (Part # TROS1500B-04 (black), TROS1500-04 (gray))

7. Dropdown crumb tray

8. Rack slots (both sides)

† 9. Slide rack (Part # TROS1500-05)

Note: † indicates consumer replaceable/removable parts



















CONTROL PANEL









CONTROL PANEL

1. Temperature selector

2. Cooking function selector

3. Power ON indicator light

4. TOAST / TIMER selector

Important: When making toast or using the TIMER function, always turn the dial past

10 and then immediately turn back or forward to desired setting.

† 1. Mounting Parts

(Part # SDC-MOUNTING KIT)

A. 16 Spacers

4 ½"

4 ¼"

4 3/16"

4 1/16"

B. 12 Screws

4 1"

4 1½"

4 2¼"

C. 4 Washers

2. Mounting Template (in box)

You will also need:

• Tape

• Ruler (or you may cut out the ruler provided on the template)

• Electric drill with a ¼” drill bit

STANDARD INSTALLATION (FLAT CABINET)

Important: Always wear protective glasses or goggles to prevent injury when

drilling.

1. Clear countertop under installation area to avoid getting dust or debris on other

appliances or items. Open cabinets and remove contents to make mounting

easier.

2. Clean both the underside and topside of the bottom panel of the cabinet.

3. With cabinet doors open, place mounting template flush against the surface of

the underside of your cabinet, making sure to align thick line on template with

bottom front edge of your cabinet (D).

Important: Do not align screw holes on template directly under the partition

between cabinets, as this will prevent you from installing the appliance properly.

Pay close attention to where the drill holes will be set so as not to damage your

cabinets during mounting. Drilling through your cabinet’s partition may cause

damage to cabinets and prevent proper installation.

4. Fold the template along the edge of your cabinet so the thick line is straight

with bottom front edge; pull template tight and tape down to hold in place.

5. Drilling from under the cabinet up, drill holes through the 4 places marked on

the template, using a ¼-inch drill bit (E).

Important: Always ensure you are drilling straight up through the marked

mounting hole on the template. Drilling at an angle may prevent proper

installation and may damage cabinets if the drill bit pierces the partition.

6. Once holes are drilled, remove tape and mounting template.

7. Wipe dust and debris off the topside and underside of the cabinet surface.

8. Place a washer inside the cabinet over each of the 4 holes you drilled.

GETTING STARTED

• Remove all packing material, labels and any stickers.

• Remove and save literature.

• Unpack mounting parts and set them aside in a safe place where they will not

roll away or get lost.

Important: Do not attempt to operate appliance until it is properly installed.

CHOOSE A LOCATION

When choosing your location, consider the following:

• DO make sure to mount within reach of an electrical outlet.

• DO consider your normal work patterns in the kitchen when choosing

location.

• DO NOT mount over any heating or cooking appliance such as your range or

oven.

• DO NOT mount over or near a sink.

• DO NOT mount under, in front of or behind any under-cabinet light fixtures.

Note: If you are mounting multiple †SpaceMaker™ appliances, they should not

be mounted flush to one another. Allow at least 4” of space between appliances

for adequate cooling.

Caution: This appliance features a Save-A-Plug™ outlet receptacle to connect

smaller †SpaceMaker™ appliances such as the mini food processor / grinder or

can opener. Do not use this outlet for any other appliance!

Caution: When selecting a location for your toaster oven, make sure you have

adequate room to reach the Rear Receptacle.

Note: If you are connecting another †SpaceMaker™ appliance into the Save-A-

Plug™ outlet, make sure you can easily unplug the appliance after each use.

DETERMINE CABINET TYPE

Prior to taping the mounting template and beginning to drill your holes, determine

if your cabinet has a flat bottom (B) or an overhang molding (C). If your cabinet is

flat, follow STANDARD INSTALLATION; if the cabinet has an overhang molding,

refer to OVERHANG MOLDING INSTALLATION.

14. Plug into standard electrical outlet. Extra cord can be hung over cord

management hook behind unit (H).

Warning: Risk of electrical shock and fire. Do not allow cord to touch rear

surface of oven.

Caution: This appliance features a Save-A-Plug™ outlet receptacle to connect

smaller †SpaceMaker™ appliances such as the mini food processor / grinder or

can opener. Do not use this outlet for any other appliance!

Note: If you are connecting another †SpaceMaker™ appliance into the Save-A-

Plug™ outlet, make sure you can easily unplug the appliance after each use.

12. Your †SpaceMaker™ appliance is now ready for use!

OVERHANG MOLDING INSTALLATION

For cabinets with an overhang molding (see Illustration C)

Important: Always wear protective glasses or goggles to prevent injury when

drilling.

Note: Spacers are provided in case your cabinet has an overhang molding at the

front edge. Only use spacers on the rear screws of the appliance to ensure it is

level with the front.

1. Clear countertop under installation area to avoid getting on other appliances

or items. Open cabinets and remove contents to make mounting easier.

2. Clean both the underside and topside of the bottom panel of the cabinet.

3. Using a ruler, measure the thickness of the overhang molding (J), accurately

noting the number for use in the following step.

Note: If you do not have a ruler, you may cut out the paper ruler provided on the

edge of your mounting template.

9. Hold hood in place, aligning front of hood with front edge of cabinet; drilled

holes on cabinet should be aligned with mounting holes on the hood.

10. Drop one of your screws through each of the washers covering the holes in the

cabinet, from inside the cabinet down.

Note: To determine which screws to use, you must have enough of the screw

exposed underneath the cabinet to properly thread the screw into the nut.

11. Screwing from inside the cabinet down into holes, tighten 4 screws in place to

secure hood to cabinet.

Note: Always tighten screws to ensure the appliance does not move or shake

during operation.

12. After the hood is secured, lift the toaster oven up to mount. Hook the mounting

tabs on the back of the oven over the mounting hooks at the back of the hood

(F).

Important: Do not put mounting hooks on hood through the mounting tabs on

the oven. You must hook the tabs up and over the hooks to properly hold.

13. Once the back hooks are secure, hook your fingers around the feet on the front

of the toaster oven (G). Pull forward and push up on the feet at the same time

to engage the front hooks.

12. Now, use your ruler or the paper ruler provided to measure the overhang

molding height, placing your ruler vertically against the underside of the

cabinet behind the overhang molding. This number determines the number of

spacers you need, using a number of spacers equal to the overhang molding

height. For example, a 1” overhang molding would use 2, ½” spacers on each

of the rear holes (M).

13. Drop one of your screws through each of the washers covering the holes in the

cabinet, from inside the cabinet down.

Note: To determine which screws to use, you must have enough of the screw

exposed underneath the cabinet to properly thread the screw into the nut.

14. Place the appropriate number of spacers determined in step 12 on both of the

rear screws so the appliance will be even (N).

Note: If the height of your overhang molding is too tall to be accommodated by

the number of spacers provided, you may call, toll-free, at 1-800-231-9786 to

order additional spacers at no charge.

Note: For spacer installation, you may require assistance in order to hold spacers

in place while securing the appliance at the same time. If assistance is not

available, use a small clamp to hold the spacers in place while you position the

appliance.

15. Once spacers are set, hold hood up and tighten screws to secure. Screw from

inside the cabinet down.

Note: Always tighten screws to ensure the appliance does not move or shake

during operation.

4. After measuring the overhang molding thickness as shown in Illustration J, look

at the dashed lines on the mounting template; each line has a measurement

next to it that indicates the thickness of the overhang molding used with that

line. For example, if your cabinet has an overhang molding thickness of ½”,

you will use the ½” dashed line on the template.

5. Fold the template along the dashed line that matches the thickness of your

overhang molding.

6. Place the folded template against the back edge of the overhang molding,

making sure the side with the drill hole marks is facing down (K).

Important: Do not align screw holes on template directly under the partition

between cabinets, as this will prevent you from installing the appliance properly.

Pay close attention to where the drill holes will be set so as not to damage your

cabinets during mounting. Drilling through your cabinet’s partition may cause

damage to cabinets and prevent proper installation.

7. Making sure to keep the fold line straight against the back edge of the

overhang molding, tape the template securely in place.

8. Drilling from underside of the cabinet up, drill holes through the 4 places

marked on the template using a ¼-inch drill bit (L).

Important: Always ensure you are drilling straight up through the marked

mounting hole on the template. Drilling at an angle may prevent proper

installation and may damage cabinets if the drill bit pierces the partition.

9. Once holes are drilled, remove tape and mounting template.

10. Wipe dust and debris off the topside and underside of the cabinet surface.

11. Place a washer inside the cabinet over each of the 4 holes you drilled.

13 14

How to Use

This appliance is for household use only.

GETTING STARTED

• Please go to www.prodprotect.com/applica to register your warranty.

• Wash all removable parts as instructed in CARE AND CLEANING section of this

manual.

• Wipe outside of appliance with a damp cloth; dry thoroughly.

• Insert slide rack.

• Remove tie from cord and unwind.

• Remove tag from plug.

• Plug unit into electrical outlet.

Caution: This oven gets hot. When in use, always use oven mitts or potholders when

touching any outer or inner surface of the oven (P).

Note: During first few minutes of use you may notice smoke and a slight odor. This is

normal and should cause no concern.

HELPFUL HINTS ABOUT YOUR OVEN

• When oven is in operation, green light will come on and remain illuminated until

oven is turned off manually or automatically when timer has been used.

• When selecting baking time for a particular product or recipe, include preheat

time – normally 8 to 10 minutes.

• This oven has a 30-minute timer.

• Metal, ovenproof glass and ceramic bakeware without lids can be used in the oven.

• If foods require covering, use aluminum foil.

16. After the hood is secured, lift the toaster oven up to mount. Hook the mounting

tabs on the back of the oven over the mounting hooks at the back of the hood

(see Illustration F).

17. Once the back hooks are secure, hook your fingers around the feet on the front

of the toaster oven (see Illustration G). Pull forward and push up on the feet at

the same time to engage the front hooks.

18. Plug into standard electrical outlet. Extra cord can be hung over cord

management hook behind unit (see Illustration H).

Warning: Risk of electrical shock and fire. Do not allow cord to touch rear

surface of oven.

Caution: This appliance features a Save-A-Plug™ outlet receptacle to connect

smaller †SpaceMaker™ appliances such as the mini food processor / grinder or

can opener. Do not use this outlet for any other appliance!

Note: If you are connecting another †SpaceMaker™ appliance into the Save-A-

Plug™ outlet, make sure you can easily unplug the appliance after each use.

19. Your †SpaceMaker™ appliance is now ready for use!

15 16

• Be sure the top of the container or food being baked is at least 1 inch away from the

upper heating elements (Q).

• Turn timer to zero (0) before inserting or removing plug from electrical outlet.

• Do not put any container directly on the lower heating element.

• To obtain the best performance from this toaster oven:

• Do not overfill the oven.

• Do not open the door too frequently during cooking to avoid heat loss.

• When using foil to cover a food tuck the edges of the foil against the sides of the

baking dish or pan.

• Use the KEEP WARM setting to keep foods warm; remember to cover them with foil

to keep foods moist.

BAKING

Important: For best results, preheat oven for at least 8 to 10 minutes at desired

baking temperature before baking food.

Caution: This oven gets hot. When in use, always use oven mitts or potholders when

touching any outer or inner surface of the oven.

1. Insert the slide rack into oven.

2. Turn temperature selector to desired temperature from 150˚ F to 450˚ F.

3. Turn cooking function selector to BAKE.

4. Turn time selector past 10 then immediately adjust to desired baking time,

including preheat time.

Important: You must set the timer for the oven to function.

5. The green ON indicator light comes on and will remain lit during the entire

baking time.

6. The heating elements will cycle on and off to maintain even heat distribution.

7. Once oven has preheated, open oven door and insert food. Close oven door.

8. The first time you use the oven, bake following the manufacturers’ or recipe

directions and check for doneness at minimum suggested cooking time.

9. There will be an audible signal once the baking cycle is complete. The oven turns

off and the light goes out.

10. Open the oven door. Using oven mitts or pot holders, slide the rack out to

remove the cooked food.

Caution: This oven gets hot. When in use, always use oven mitts or potholders when

touching any outer or inner surface of the oven.

11. Unplug appliance when not in use.

Important: Make sure toaster oven is off and has cooled completely before

connecting or disconnecting †SpaceMaker™ mini food processor / grinder or can

opener from the Save-A-Plug™ outlet.

17 18

Note: You must set the toast shade selector as desired for the oven to begin toasting

(R).

5. For best results on first toasting cycle set the toast selector dial to medium, then re-

adjust for next cycle to lighter or darker to suit your preference.

6. The ON indicator light comes on and remains on until toasting cycle is complete.

7. When toast cycle is complete, there will be an audible signal. The oven and the on

indicator light will go off.

8. Open the oven door. Using oven mitts or pot holders, slide the rack out to remove

the toast.

Caution: This oven gets hot. When in use, always use oven mitts or potholders when

touching any outer or inner surface of the oven.

9. Unplug appliance when not in use.

Important: Make sure toaster oven is off and has cooled completely before

connecting or disconnecting †SpaceMaker™ mini food processor / grinder or can

opener from the Save-A-Plug™ outlet.

TOAST TIPS

• You must turn the timer dial to zero (0) to discontinue toasting.

• When repeating the toast cycle immediately, it is suggested that the timer dial be set

to a slightly lighter toasting setting.

KEEP WARM

1. Turn temperature selector to 150° F to 200° F.

2. Turn cooking function selector to KEEP WARM.

3. Turn time selector past 10 and then immediately turn to desired warming time,

including preheat time.

Note: This feature is designed to keep already cooked foods warm after they have been

cooked. This function should be used for short periods of time; to prevent food from

drying out, cover with foil.

4. When cycle is complete, there will be an audible signal. The oven and the on

indicator light will go off.

5. Unplug appliance when not in use.

Important: Make sure toaster oven is off and has cooled completely before

connecting or disconnecting †SpaceMaker™ mini food processor / grinder or can

opener from the Save-A-Plug™ outlet.

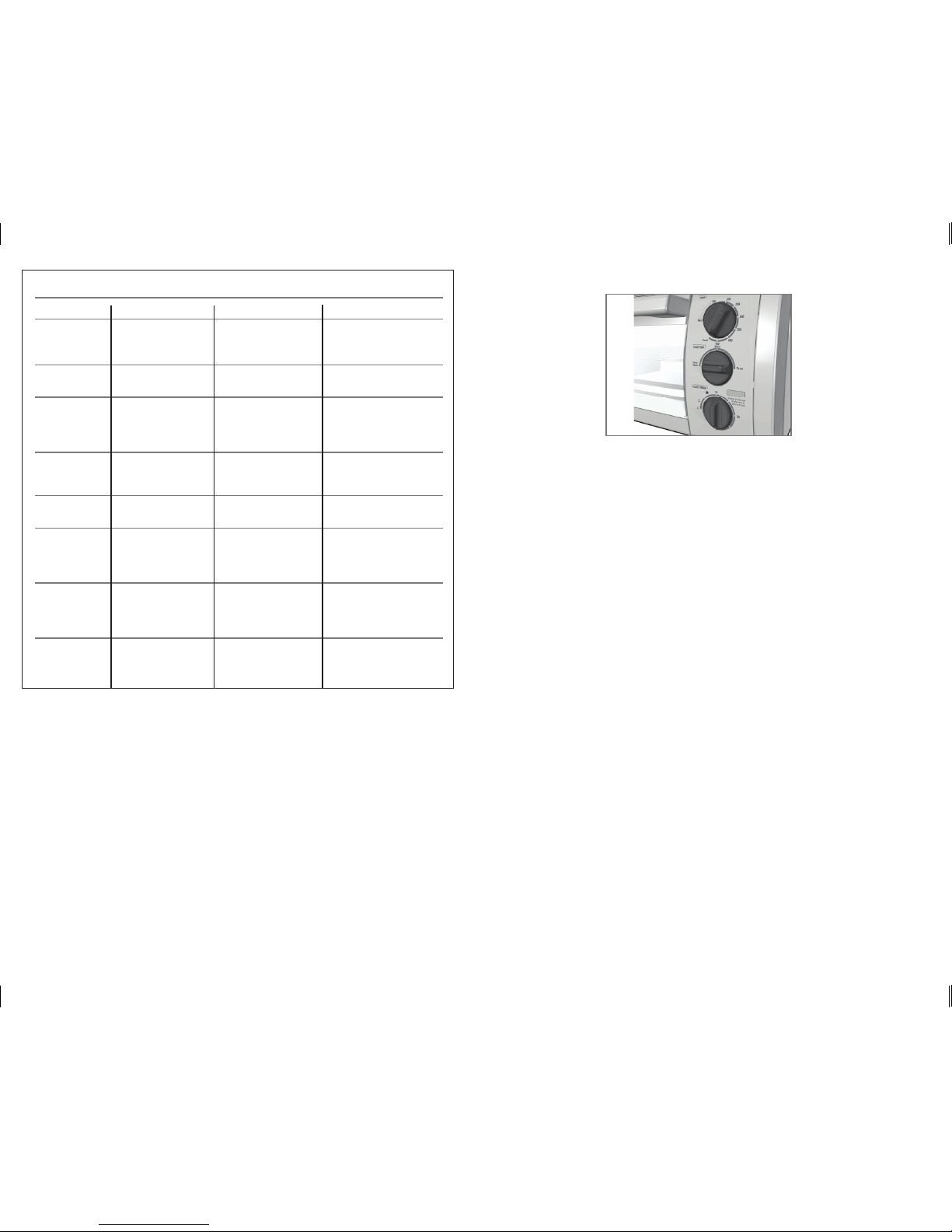

BAKING GUIDE

FOOD AMOUNT TEMP./TIME PROCEDURE

Chicken 1 to 2 pieces 375

F / 30 minutes Chicken should

breast (about 4 oz., ea.) register 170

on meat thermometer.

Fish lets 1 to 2 400

F for about Test for doneness;

or steaks (about 4 oz. ea.) 12 minutes sh will ake easily.

Cookies about 6 Follow recipe or Bake on cookie sheet

package directions in single layer until

fully baked and lightly

browned.

Crescent rolls 1 pkg. (4 oz.) Follow recipe or Bake in single layer

4 biscuits package directions until fully baked and

lightly browned.

White or Small potatoes 400

F for about Pierce with fork

sweet potatoes 1 to 4 30 minutes and bake until tender.

Frozen snack Single layer on Follow package Rotate halfway

foods baking pan directions through baking period,

check at minimum

baking time.

Frozen pizza Up to 12 oz. pizza Follow package Rotate halfway

directions through baking period,

check at minimum

baking time.

Frozen breaded 2 to 3 pieces Follow package Test for doneness;

sh llets directions sh will ake easily.

TOASTING

Important: It is not necessary to preheat the oven for toasting.

1. Turn temperature selector dial to TOAST.

2. Turn cooking function selector to TOAST.

3. Open oven door and place desired pieces of bread or bagel to be toasted directly

on slide rack and close the door.

4. Turn timer dial past 10 and then immediately turn back to desired toast shade.

This manual suits for next models

Table of contents

Languages:

Other Black & Decker Oven manuals

Black & Decker

Black & Decker TOD5035SS User manual

Black & Decker

Black & Decker Perfect Broil CTO4300B Installation instructions

Black & Decker

Black & Decker INFRAWAVE FC100 Series User manual

Black & Decker

Black & Decker Toast-R-Oven TRO490BC Installation instructions

Black & Decker

Black & Decker TRO480SS Installation instructions

Black & Decker

Black & Decker TO1420BC User manual

Black & Decker

Black & Decker INFRAWAVE FC100 Series Owner's manual

Black & Decker

Black & Decker TRO1000 User manual

Black & Decker

Black & Decker INFRAWAVE FC300 Installation instructions

Black & Decker

Black & Decker spacemaker tros1000d User manual

Black & Decker

Black & Decker INFRAWAVE FC100 Series Installation instructions

Black & Decker

Black & Decker TRO490W Installation instructions

Black & Decker

Black & Decker INFRAWAVE FC351B Installation instructions

Black & Decker

Black & Decker TO1313B User manual

Black & Decker

Black & Decker TO1021BC User manual

Black & Decker

Black & Decker TOAST-R-OVEN TR0200 Series Installation instructions

Black & Decker

Black & Decker Toast-R-Oven CTO500 Owner's manual

Black & Decker

Black & Decker TRO5900CT Installation instructions

Black & Decker

Black & Decker SpaceMaker TROS1000 Installation instructions

Black & Decker

Black & Decker Toast-R-Oven TR0800 series Installation instructions

Black & Decker

Black & Decker Toaster-R-Oven CTO649C Installation instructions

Black & Decker

Black & Decker Toast-R-Oven TRO651 Installation instructions

Black & Decker

Black & Decker Toast-R-Oven TRO620 Installation instructions

Black & Decker

Black & Decker Infrawave Infrawave Speed Cooking Installation instructions

Popular Oven manuals by other brands

Bosch

Bosch HVA531NS0 instruction manual

Electrolux

Electrolux EOF6P46X user manual

NEFF

NEFF B44S32 5GB Series instruction manual

Combi

Combi BLODGETT BC142GDS Specifications

AEG

AEG COMPETENCE 311704300 Installation and operating instructions

Falcon

Falcon DOMINATOR PLUS G3106 Series Servicing instructions

Rational

Rational SCC WE 61G installation manual

Smeg

Smeg DOSPA38X User manuals

Electrolux

Electrolux air-o-convect 20 GN 2/1 user manual

Miele

Miele HR 1954-2 operating instructions

KHIND

KHIND OT50 instruction manual

Henny Penny

Henny Penny Smoker Box installation manual

Lang

Lang ECOD-AP Installation and operation instructions

AEG

AEG BEK455310M user manual

Frigidaire

Frigidaire FNGE90JGR user manual

Hotpoint

Hotpoint FE9 S831 JSH IX user manual

GE Advantium SCB2000 owner's manual

AEG

AEG DE401301DM user manual
