ENGLISH

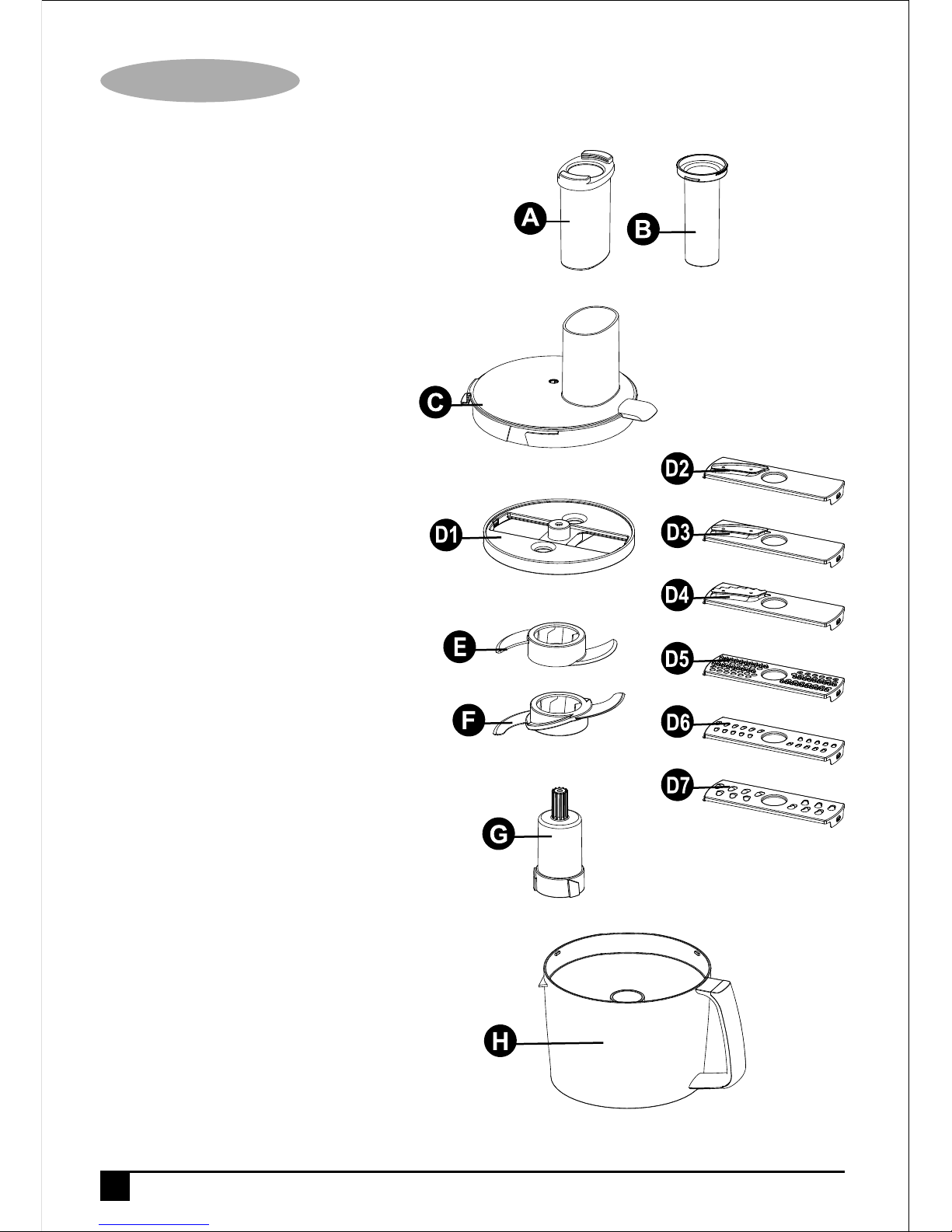

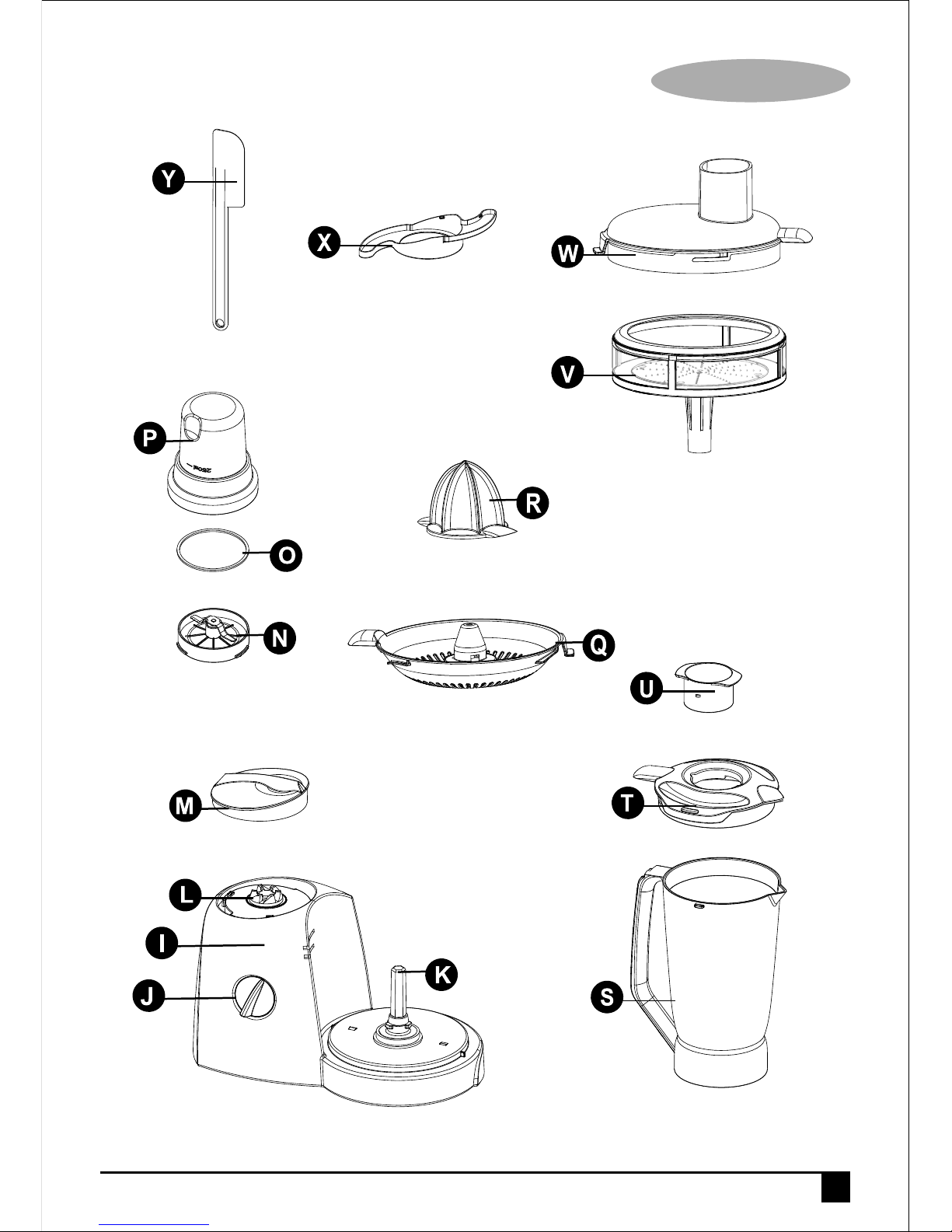

Parts Identiﬁcation

A Pusher

B Measuring jug

C Food processor lid

D1 Secondary blade holder

D2 Fine slicing blade

D3 Coarse slicing blade

D4 French fry blade

D5 Slurry cutting blade

D6 Fine grating blade

D7 Coarse grating blade

E Kneading blade

F Chopping blade

G Primary blade holder

H Food processor jug

I food processor base

J Control knob

K Food processor drive

L Blender Drive

M Blender cover

N Grinder blade

O Grinder jug seal

P Grinder jug

Q Citrus juicer

R Reamer

S Blender jug

T Blender lid

U Filler cap

V Centrifugal juicer

W Centrifugal juicer lid

X Chopper blade case

Y Spatula

ENGLISH

Intended use

Your Black & Decker appliance comes with 10

accessories to perform below functions:

Stainless Steel blade for chopping, beating,

creaming, crumbling, cutting, folding in,

mashing, mincing and mixing.

Shredding blade for coarse and ﬁne grating and

shredding vegetables, fruits and cheese.

Slicing blades for coarse and ﬁne slicing of

vegetables and fruits.

French fries blade for potatoes and other hard

vegetables

Slurry cutter blade for slow mashing raw

vegetables/fruits for baby food and for light

peeling or rasping of vegetable pieces with hard

skin.

Separate blade with spatula for kneading dough.

Blender for blending, crushing, foaming,

grinding, pureeing, homogenizing, liquidizing,

milling, shaking and stirring.

Grinder mill for grinding coffee, herbs and

spices.

Juice Extractor attachment for juicing and

pulping non-citrus fruits.

Citrus Juice Extractor for juicing and pulping of

citrus fruits.

Do not use the centrifugal juicer if the rotating

sieve is damaged

Do not use this appliance for any other purpose.

This product is intended for indoor household

use only.

Read this entire manual carefully

before using the appliance.

Safety instructions

• Warning! When using mains-powered

appliances, basic safety precautions,

including the following, should always be

followed to reduce the risk of ﬁre, electric

shock and personal injury.

• The intended use is described in this manual.

The use of any accessory or attachment or

the performance of any operation with this

appliance other than those recommended in

this instruction manual may present a risk of

personal injury.

• Retain this manual for future reference.

Using your appliance

• Always take care when using the appliance.

• Never pull the power supply cord to

disconnect the plug from the socket. Keep the

power supply cord away from heat, oil and

sharp edges.

• Do not place the appliance on or near heat

sources or in a heated oven.

• Do not use the appliance outdoors.

• Always protect the motor unit from water or

excessive humidity.

• If the power supply cord is damaged during

use, disconnect the appliance from the power

supply immediately. Do not touch the power

supply cord before disconnecting from the

power supply.

• Disconnect the appliance from the power

supply when not in use, before ﬁtting or

removing parts and before cleaning.

ENGLISH

• Never let the appliance operate unattended.

• Never reach into the jar with your ﬁngers or

an object while the appliance is running.

• Only remove the jar after you have switched

the appliance off and any moving parts have

stopped.

• Do not touch the cutting blades.

• Keep any loose clothing or long hair away

from the feeding tube and any moving parts.

• Care shall be taken when handling the sharp

cutting blades, emptying the bowl and during

cleaning.

• Do not immerse the appliance, cord set or

plug in liquids.

• Position cord so it does not hang over the

edge of worktops & cannot be caught

accidentally or tripped over.

• Caution: Ensure the Blender is turned off

before removing from the stand.

Safety of others

• This appliance is not intended for use by

persons (including children) with reduced

physical sensory or mental capabilities, or

lack of experience and knowledge, unless

they have been given supervision or

instruction concerning use of the appliance

by a person responsible for their safety.

• Children should be supervised to ensure that

they do not play with the appliance.

After use

• Remove the plug from the socket before

leaving the appliance unattended and before

changing, cleaning or inspecting any parts of

the appliance.

• When not in use, the appliance should be

stored in a dry place. Children should not

have access to stored appliances.

Inspection and repairs

• Switch off the appliance before cleaning,

changing accessories or approaching parts

which move in use

• Before use, check the appliance for

damaged or defective parts. Check for

breakage of parts, damage to switches and

any other conditions that may affect its

operation.

• Do not use the appliance if any part is

damaged or defective.

• Do not use the appliance if the blade is

damaged.

• Have any damaged or defective parts

repaired or replaced by an authorised repair

agent.

• Before use, check the power supply cord for

signs of damage, ageing and wear.

• Do not use the appliance if the power supply

cord or mains plug is damaged or defective.

• If the power supply cord or mains plug is

damaged or defective it must be repaired by

an authorised repair agent in order to avoid a

hazard. Do not cut the power supply cord

and do not attempt to repair it yourself.

• Never attempt to remove or replace any

parts other than those speciﬁed in this

manual.

Electrical safety

Before use, check that the mains voltage

corresponds to the voltage on the rating plate.

ENGLISH

This appliance is double insulated in

accordance with EN 60335-2-14;

therefore no earth wire is required.

• To avoid the risk of electric shock, do not

immerse the cord, plug or motor unit in water

or other liquid.

• Check that the supply voltage shown on the

rating plate of the appliance matches that of

your electrical system. Any connection error

will invalidate the guarantee.

Mains plug replacement

If a new mains plug needs to be ﬁtted:

• Safely dispose of the old plug

• Connect the brown lead to the live terminal

of the new plug

• Connect the blue lead to the neutral terminal

• If the product is class I (earthed), connect

the

green/yellow lead to the earth terminal

Warning! If your product is class II double

insulated (only 2 wires in the cord set), no

connection is to be made to the earth terminal

• Follow the ﬁtting instructions supplied with

good quality plugs

• Any replacement fuse must be of the same

rating as the original fuse supplied with the

product.

Warning! The above section on mains plug

replacement is for authorized service centre

personals.

Assembly

Wash all detachable parts (see chapter

‘Maintenance and cleaning’).

Assembling the food processor

1. Fit the food processor jug (H) onto the food

processor base (I), secure it by turning it

clockwise.

2. For chopping or kneading ﬁt the required

blade (F or E) onto the primary blade holder

(G).

3. For shredding or slicing, ﬁt the required blade

(D2, D3, D4, D5, D6 or D7) into the

secondary blade holder (D1).

4. Place the assembled blade and holder into

the food processor jug (H).

5. Fit the food processor lid (C) and secure it by

turning it clockwise.

6. Fit the measuring jug (B) into the pusher (A)

and then place the pusher into the food

processor lid.

Note: The blender cover (M) must be in place

for the food processor to work.

Assembling the blender

1. Remove the blender cover (M) from the food

processor base by turning it clockwise and

lifting it off.

2. Place the blender jug (S) onto the blender

drive (L) and secure it by turning

anti-clockwise.

3. Fit the blender lid (T) to the blender jug (S)

and secure it by turning it anti-clockwise.

4. Fit the ﬁller cap (U) to the blender lid (T) and

secure it by turning it anti-clockwise.

Assembling the grinder

1. Fit the grinder jug seal (O) into the grinder

jug (P).

2. Fit the grinder blade (N) into the grinder jug

and secure by turning it clockwise.

3. Place the grinder jug (P) onto the blender

drive (L) and secure it by turning

anti-clockwise.

Assembling the citrus Juicer

1. Fit the food processor jug (H) onto the food

processor base (I), secure it by turning it

clockwise.

ENGLISH

2. Fit the citrus juicer (Q) onto the food

processor jug (H), secure it by turning it

clockwise.

3. Place the reamer (R) onto the citrus juicer

(Q).

Note: The blender cover (M) must be in place

for the citrus juicer to work.

Assembling the centrifugal

juicer

1. Fit the food processor jug (H) onto the food

processor base (I), secure it by turning it

clockwise.

2. Fit the centrifugal juicer (V) into the food

processor jug.

3. Fit the Centrifugal juicer lid (W) and secure it

by turning it clockwise.

4. Fit the measuring jug into the pusher and

then place the pusher into the food processor

lid.

Note: The blender cover (M) must be in place

for the centrifugal juicer to work.

Note: The blender cover (M) must be in place

for the centrifugal juicer to work.

Note: Do not use the centrifugal juicer if the

rotating sieve is damaged

Use

1. Place the appliance on a ﬂat, stable surface.

2. Assemble the required accessory as advised

above.

3. Put the ingredients into the required jug.

4. Connect to the mains supply.

5. Turn the control knob to the required setting.

Note: Additional items can be added during use

by using the chutes in the lids and the pusher.

The following settings are available:-

P = Pulse Operation

O = Power Off

1 = Low Speed

2 = Medium Speed

3 = High Speed

The appliance should be disconnected

from the mains supply before

removing the jug.

Recommendations when food

processing

*1 Use the chopping blade (F)

*2 Use the kneading blade (E)

Chopping *1 Vegetables Pulse or 2 15 sec

and fruits

Chopping *1 Meat, cheese 1 20 sec

and chocolate

Blending *1 Soups and 1 20 sec

thick drinks

Pureeing *1 Cooked vegetables 1 or 2 10-15 sec

and soft fruits

Mixing *1 Pastry and scones 2 or 3 40 sec

Mashing *1 Cooked potatoes 3 60 sec

and baby food

Kneading *2 Bread dough 1 20 sec

Folding in *2 Mousse batter 1 15 sec

Creaming *2 Cake batter 1 30 sec

Slicing *3 Vegetables and fruits 2 or 3 5 sec

Slicing *3 Potatoes and cheese 1 5 sec

Shredding *3g Vegetables and fruits 2 or 3 5 sec

Grating *4 Cheese and 1 5 sec

chocolate

Cutting *5

Potatoes for french fries

1 5 sec

Cutting *5 Vegeatables and fruits 1 5 sec

Slow Mashing *6

Raw fruits and 2 or 3 5 sec

vegetables for babyfood

Peeling/Rasping *6

Hard fruit or vegetable

1 5 sec

pieces (3x2cm) with skin

Function Types of food Speed Time

ENGLISH

*3 Use the slicing blades (D2 or D3)

*4 Use the grating blades (D6 or D7)

*5 Use the french fry blade (D4)

*6 Use the slurry cutting blade (D5)

Note: The blender should not be run for longer

than 1 minute. After a continuous run of 1

minute, the blender should be allowed to cool

down for at least 2 minutes before further use.

Warning: Pulse mode should not be operated

more than 10 sec at a time.

Warning: While using the slurry cutter blade for

peeling or rasping skin of vegetables, do not use

pusher tightly. This action will slow mash the

vegetable along with skin.

Recommendations when

blending

Note: The blender should not be run for longer

than 1 minute. After a continuous run of 1

minute, the blender should be allowed to cool

down for at least 2 minutes before further use.

Warning: Pulse mode should not be operated

more than 10 sec at a time.

Recommendations when

grinding

Note: The dry grinder should not be

continuously run for longer than 40 seconds.

Warning: Pulse mode should not be operated

more than 10 sec at a time.

Warning: Max capacity of Grinder mill is 50g

and mincer mill is 150g

Warning! The grinder should NOT be used for

wet grinding of hard food materials like pulses,

beans, grains etc. This will lead to damage of

blades and reduction of motor life span.

Recommendations when

Juicing

*1 Use the centrifugal juicer (V)

*2 Use the citrus juicer (Q)

Note: Fruits that contain starch, such as

bananas, papayas, avocados, ﬁgs, strawberries

and mangoes are not suitable for processing in

this juice extractor attachment. Use the stainless

steel blade attachment of food processor,

blender or a stick blender to process these

fruits.

Blending Liquids 3 15 sec

Liquidizing Fruits or vegetables 2 30 sec

cut in cubes with equal

amount of water

Crushing Ice cubes of 1 or 2 15 sec

dimension 3x2cm

Foaming milk shakes, juices etc 2 or 3 20 sec

Pureeing Vegetables and 2 30 sec

soft fruits

Stirring Batter or soups 1 1 min

Function Types of food Speed Time

Juicing *1 Non-citrus fruits 2 or 3 1 min

Collecting pulp *1 Draining and collecting 2 or 3 1 min

the pulp of non-citrus fruits

Juicing *2 Citrus fruits 1 1 min

and ground spices

with water

Collecting pulp *2 Draining and collecting 1 1 min

the pulp of citrus fruits

Function Types of food Speed Time

Dry grinding Coffee beans Pulse 10-20 sec

Dry grinding Dry herbs 1 20 sec

Dry grinding Spices Pulse 10-20 sec

Function Types of food Speed Time

ENGLISH

Note: The juicer is not suitable for processing

very hard and/or ﬁbrous/starchy fruits,

vegetables or plants such as sugar cane.

Note: The Juicer should not be run for longer

than 1 Minute. After each 1 Minute use, the

Juicer should be allowed to cool for at least 1

minute. After 3 consecutive cycles the juicer

must be allowed to cool for 15 minutes before

further use.

Useful advice

• Place the appliance on a clean, ﬂat work

surface.

• Connect the appliance to a suitable electrical

supply. Rotate the control knob (J) to the

required speed.

• When blending is complete return the control

knob to the off (0) position.

• Once the blade has come to a complete

stop, lift the jug from the blender body (I).

• Remove the lid and pour the ingredients into

a suitable container.

Note: Ingredients can be added by inserting

them through the hole left when the ﬁller cap (A)

is removed.

Warning! Never operate the Blender without the

lid ﬁtted.

Warning! Never operate the Food processor

without the lid ﬁtted.

Maintenance & cleaning

• Switch the appliance off, remove the plug

from the wall socket and wait until the blade

has stopped rotating.

• The appliance is easier to clean if you do so

immediately after use.

• Do not use abrasive cleaning agents,

scourers, acetone, alcohol etc. to clean the

appliance.

• All removable parts can be cleaned with a

cleaning brush in warm water with some

washing-up liquid and rinse them under the

tap.

• Remove the dirty parts from the motor unit.

Clean the motor unit with a damp cloth.

• Never immerse the motor unit in water nor

rinse it under the tap.

Technical data

Voltage 220 – 240 Volts

Supply 50/60 Hz

Weight 5.24 Kg.

ENGLISH

Protecting the environment

Separate collection. This product must not

be disposed of with normal household

waste.

Should you ﬁnd one day that your Black &

Decker product needs replacement, or if it is of

no further use to you, do not dispose of it with

other household waste. Make this product

available for separate collection.

• Black & Decker provides a facility for

recycling Black & Decker products once they

have reached the end of their working life.

This service is provided free of charge. To

take advantage of this service please return

your product to any authorised repair agent

who will collect them on our behalf.

• You can check the location of your nearest

authorised repair agent by contacting your

local Black & Decker ofﬁce at the address

indicated in this manual. Alternatively, a list of

authorized Black & Decker repair agents and

full details of our after-sales service and

contact are available on the Internet at:

www.2helpU.com.

Warranty

Black & Decker is conﬁdent of the quality of its

products and offers an outstanding warranty.

This warranty statement is in addition to and in

no way prejudices your statutory rights.

The warranty is valid within the territories of the

Member States of the European Union and the

European Free Trade Area.

If a Black & Decker product becomes defective

due to faulty materials, workmanship or lack of

conformity, within 24 months from the date of

purchase, Black & Decker warranty to replace

defective parts, repair products subjected to fair

wear and tear or replace such products to ensure

minimum inconvenience to the customer unless:

The product has been used for trade,

professional or hire purposes;

The product has been subjected to misuse

or neglect;

The product has sustained damage

through foreign objects, substances or

accidents;

Repairs have been attempted by persons

other than authorised repair agents or

Black & Decker service staff.

To claim on the warranty, you will need to submit

proof of purchase to the seller or an authorised

repair agent. You can check the location of your

nearest authorised repair agent by contacting

your local Black & Decker ofﬁce at the address

indicated in this manual.

Alternatively, a list of authorised Black & Decker

repair agents and full details of our after-sales

service and contacts are available on the Internet

at: www.2helpU.com.

Table of contents

Languages:

Other Black & Decker Food Processor manuals

Black & Decker

Black & Decker MultiPREP Slice 'N Dice SL3000 User manual

Black & Decker

Black & Decker HandyChopper HC2000 Installation instructions

Black & Decker

Black & Decker INFRAWAVE FC300 User manual

Black & Decker

Black & Decker FX400 User manual

Black & Decker

Black & Decker FP1600B Installation instructions

Black & Decker

Black & Decker Spacemaker CG800C Installation instructions

Black & Decker

Black & Decker EHC500 Series Installation instructions

Black & Decker

Black & Decker FX250 User manual

Black & Decker

Black & Decker FP4150 User manual

Black & Decker

Black & Decker FP1500 Installation instructions

Black & Decker

Black & Decker SC310-B5 User manual

Black & Decker

Black & Decker SC300 User manual

Black & Decker

Black & Decker FP2500ikt Installation instructions

Black & Decker

Black & Decker HANDY SHORTCUT II HMP60 Series Installation instructions

Black & Decker

Black & Decker Power Pro FP2650S Installation instructions

Black & Decker

Black & Decker PowerPro II FP1611SCKT Installation instructions

Black & Decker

Black & Decker FP1600 User manual

Black & Decker

Black & Decker HandyChopper HC20 Installation instructions

Black & Decker

Black & Decker Power Pro FP2620S Installation instructions

Black & Decker

Black & Decker FP700 User manual

Black & Decker

Black & Decker FP1300 Installation instructions

Black & Decker

Black & Decker QuickN'Easy FP1200 Series Installation instructions

Black & Decker

Black & Decker FP1550SDC Installation instructions

Black & Decker

Black & Decker FP5050SC Installation instructions

Popular Food Processor manuals by other brands

INNOLIVING

INNOLIVING INN-727 user manual

Berkel

Berkel C32 Specifications

Beko

Beko CHP5554W user manual

KitchenAid

KitchenAid 5KFP0719 use and care manual

QUIGG

QUIGG KM 2017Wi.20 Instructions for use

Lakeland

Lakeland PRESS AND CHOP 31557 Instruction booklet

Bosch

Bosch MMR08 GB Series instruction manual

HOFFEN

HOFFEN Chef Express T9532 instruction manual

Garland

Garland 852 ZG instruction manual

Robot Coupe

Robot Coupe CL50 Gourmet manual

SAPIRHOME

SAPIRHOME SP-1111-K instruction manual

Moulinex

Moulinex DJ3051 manual

Bosch

Bosch MUM5 instruction manual

cecotec

cecotec Mambo Touch instruction manual

KitchenAid

KitchenAid 9KFC0516 manual

Gorenje

Gorenje SBR 1000 DV instruction manual

Arzum

Arzum AR 1128 manual

KitchenAid

KitchenAid 5KFP0719A manual
