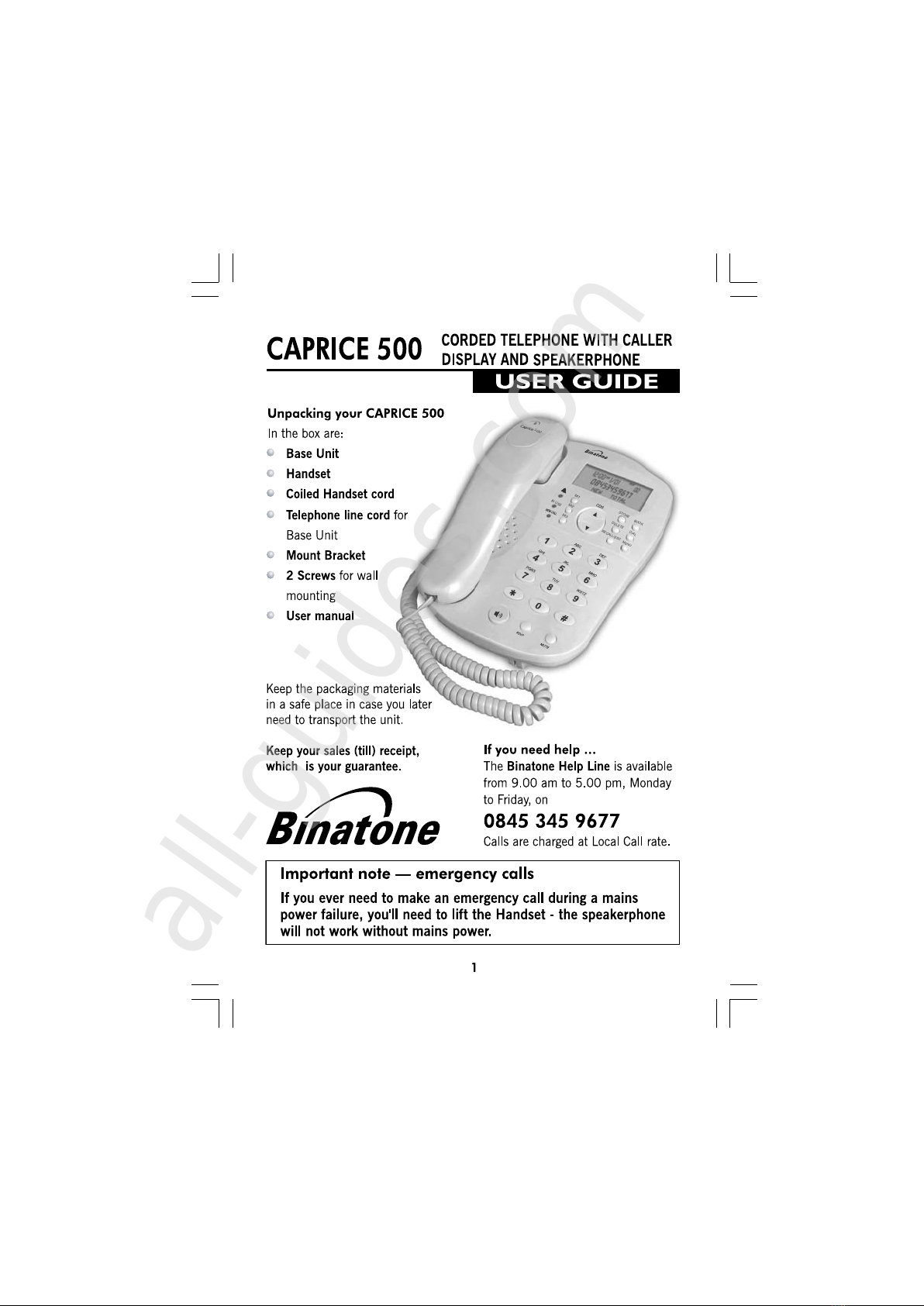

Binatone CAPRICE 500 User manual

IN USE

STORE

DELETE

BOOK

DIAL

RECALL/ESC MENU

All manuals and user guides at all-guides.com

all-guides.com

INUSE

STORE

DELETE

BOOK

DIAL

RECALL/ESCMENU

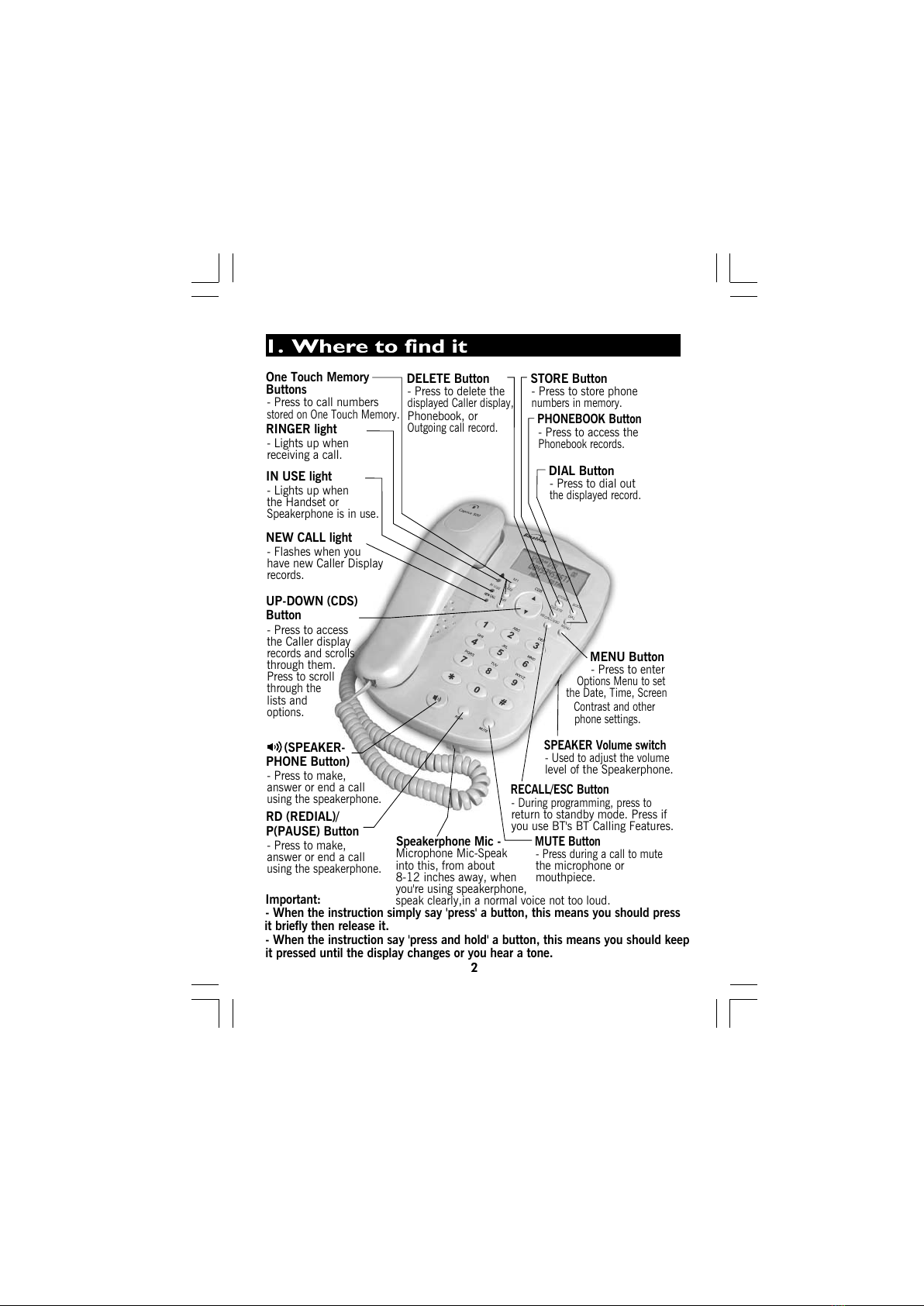

- When the instruction simply say 'press' a button, this means you should press

- When the instruction say 'press and hold' a button, this means you should keep

it pressed until the display changes or you hear a tone.

Important:

Speakerphone Mic -

Microphone Mic-Speak

into this, from about

8-12 inches away, when

One Touch Memory

Buttons

- Press to call numbers

stored on One Touch Memory.

RINGER light

- Lights up when

receiving a call

IN USE light

- Lights up when

the Handset or

Speakerphone is in use.

NEW CALL light

- Flashes when you

have new Caller Display

records.

Button

UP-DOWN (CDS)

- Press to access

the Caller display

records and scrolls

through them.

PHONE Button)

(SPEAKER-

- Press to make,

answer or end a call

using the speakerphone.

P(PAUSE) Button

RD (REDIAL)/

- Press to make,

answer or end a call

using the speakerphone.

Press to scroll

through the

lists and

options.

DELETE Button

- Press to delete the

displayed Caller display,

Phonebook, or

Outgoing call record.

STORE Button

DIAL Button

- Press to store phone

numbers in memory.

MENU Button

- Press to enter

SPEAKER Volume switch

- Used to adjust the volume

level of the Speakerphone.

RECALL/ESC Button

- During programming, press to

return to standby mode. Press if

you use BT's BT Calling Features.

MUTE Button

- Press during a call to mute

the microphone or

mouthpiece.

Options Menu to set

the Date, Time, Screen

Contrast and other

phone settings.

PHONEBOOK Button

- Press to access the

Phonebook records.

- Press to dial out

the displayed record.

it briefly then release it.

you're using speakerphone,

speak clearly,in a normal voice not too loud.

All manuals and user guides at all-guides.com

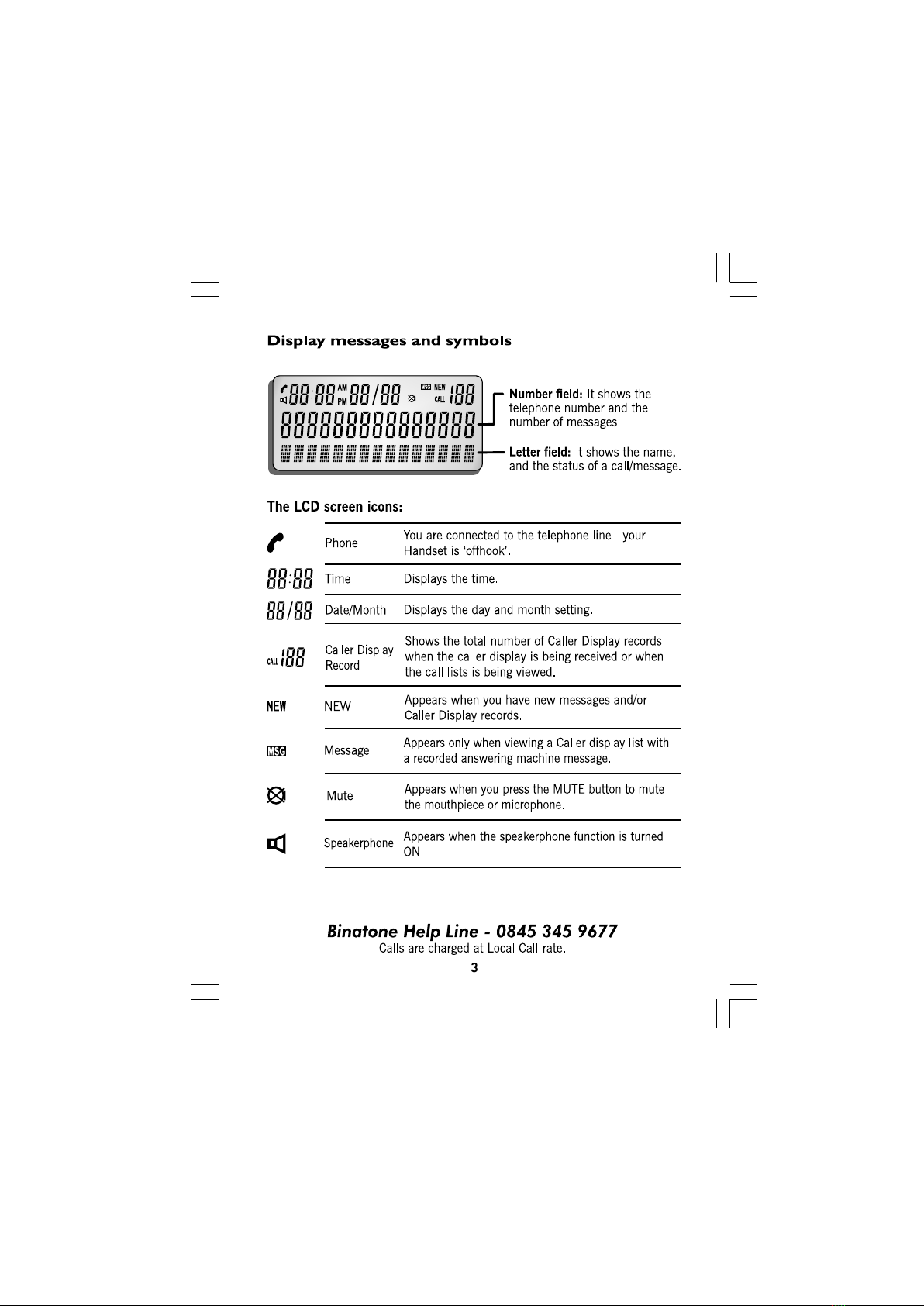

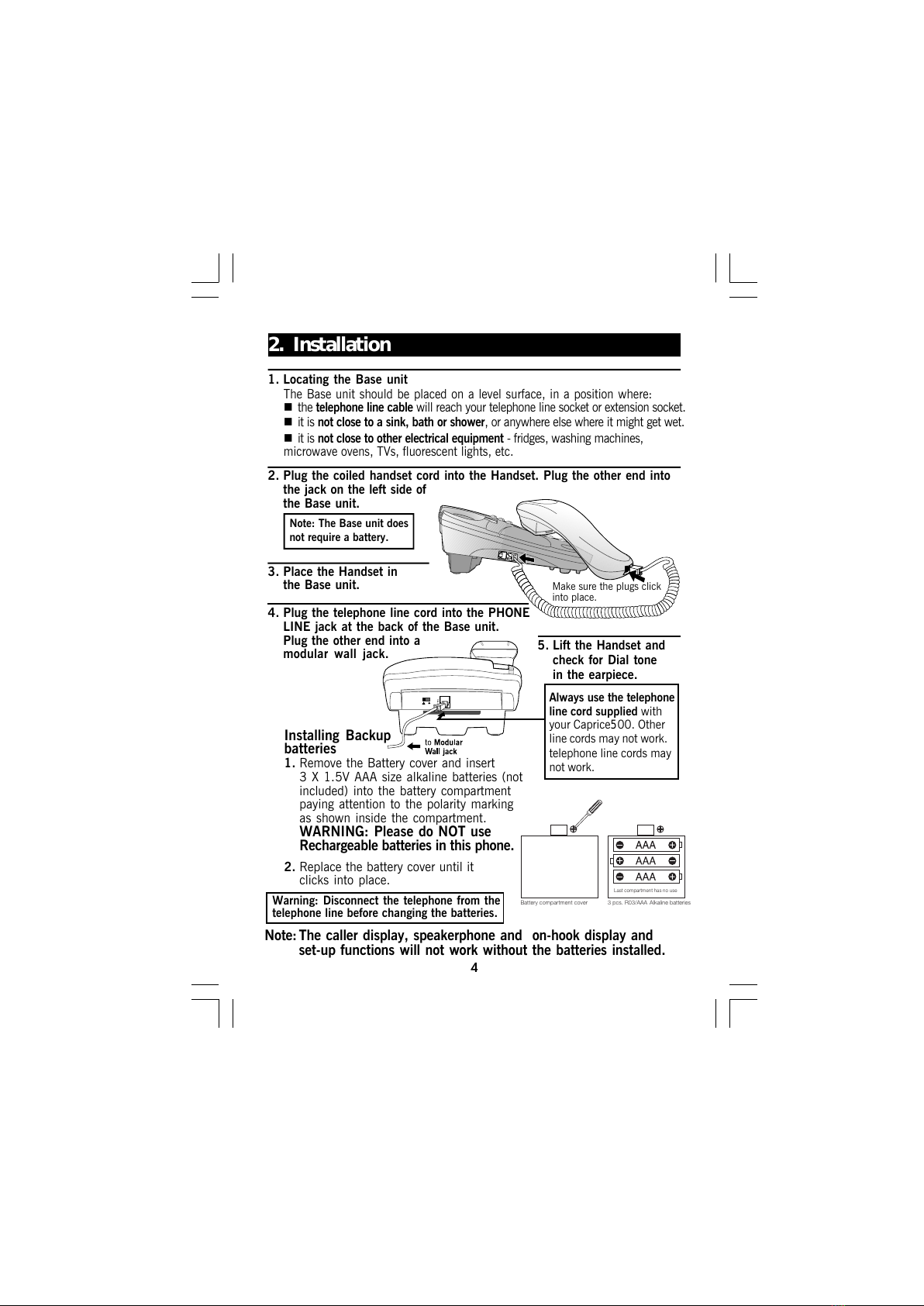

2. Installation

1. Locating the Base unit

The Base unit should be placed on a level surface, in a position where:



the telephone line cable will reach your telephone line socket or extension socket.



it is not close to a sink, bath or shower, or anywhere else where it might get wet.



it is not close to other electrical equipment - fridges, washing machines,

microwave ovens, TVs, fluorescent lights, etc.

2. Plug the coiled handset cord into the Handset. Plug the other end into

the jack on the left side of

the Base unit.

Place the Handset in

4.Plug the telephone line cord into the PHONE

LINE jack at the back of the Base unit.

Plug the other end into a

modular wall jack. 5. Lift the Handset and

check for Dial tone

in the earpiece.

Note: The Base unit does

not require a battery.

Make sure the plugs click

into place.

the Base unit.

Always use the telephone

line cord supplied with

your Caprice500. Other

line cords may not work.

Installing Backup

batteries

1. Remove the Battery cover and insert

3 X 1.5V AAA size alkaline batteries (not

included) into the battery compartment

paying attention to the polarity marking

as shown inside the compartment.

WARNING: Please do NOT use

Rechargeable batteries in this phone.

2. Replace the battery cover until it

clicks into place.

Note: The caller display, speakerphone and on-hook display and

Warning: Disconnect the telephone from the

telephone line before changing the batteries.

set-up functions will not work without the batteries installed.

telephone line cords may

not work.

q2EE6CJ 4@>A2CE>6?E 4@G6C gA4Db*dgcppp p=<2=:?6 32EE6C:6D

z2DE 4@>A2CE>6?E 92D ?@ FD6

All manuals and user guides at all-guides.com

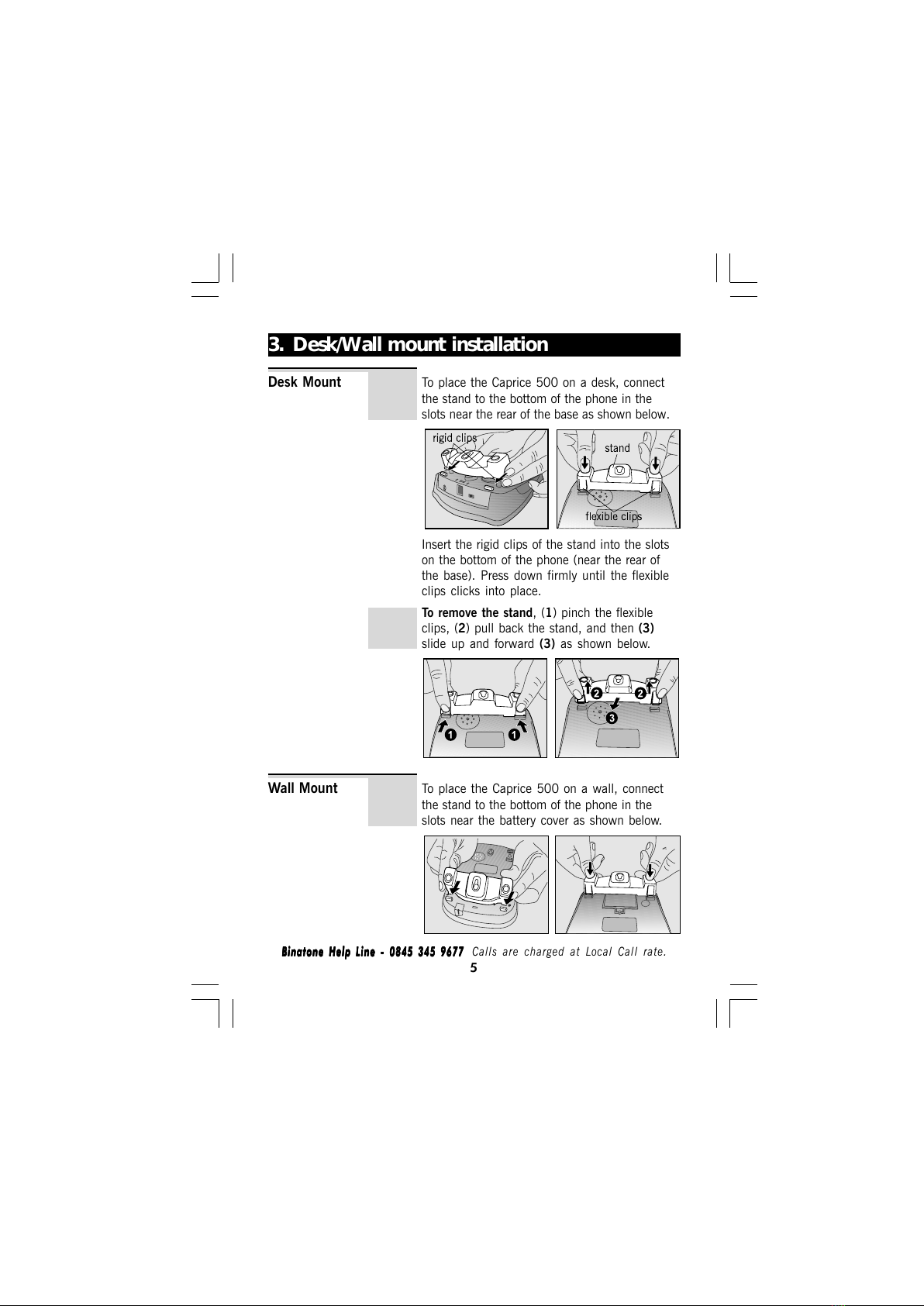

3. Desk/Wall mount installation

To place the Caprice 500 on a desk, connect

the stand to the bottom of the phone in the

slots near the rear of the base as shown below.

Desk Mount

Insert the rigid clips of the stand into the slots

on the bottom of the phone (near the rear of

the base). Press down firmly until the flexible

clips clicks into place.

To remove the stand, (1) pinch the flexible

clips, (2) pull back the stand, and then (3)

slide up and forward (3) as shown below.

To place the Caprice 500 on a wall, connect

the stand to the bottom of the phone in the

slots near the battery cover as shown below.

Wall Mount

Binatone Help Line - 0845 345 9677Binatone Help Line - 0845 345 9677

Binatone Help Line - 0845 345 9677

Calls are charged at Local Call rate.

All manuals and user guides at all-guides.com

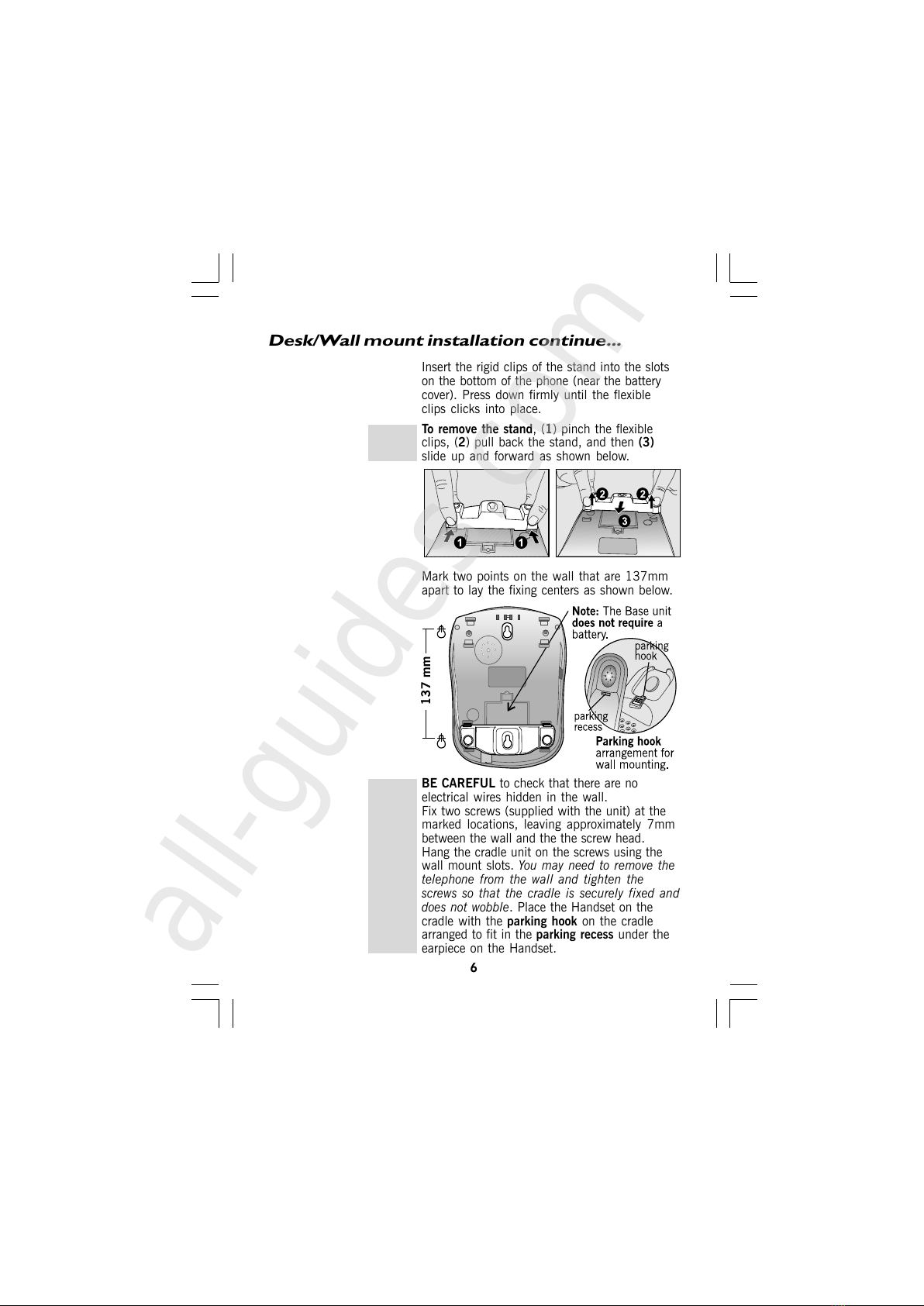

Desk/Wall mount installation continue...

Insert the rigid clips of the stand into the slots

on the bottom of the phone (near the battery

cover). Press down firmly until the flexible

clips clicks into place.

To remove the stand, (1) pinch the flexible

clips, (2) pull back the stand, and then (3)

slide up and forward as shown below.

Mark two points on the wall that are 137mm

apart to lay the fixing centers as shown below.

BE CAREFUL to check that there are no

electrical wires hidden in the wall.

Fix two screws (supplied with the unit) at the

marked locations, leaving approximately 7mm

between the wall and the the screw head.

Hang the cradle unit on the screws using the

wall mount slots. You may need to remove the

telephone from the wall and tighten the

screws so that the cradle is securely fixed and

does not wobble. Place the Handset on the

cradle with the parking hook on the cradle

arranged to fit in the parking recess under the

earpiece on the Handset.

All manuals and user guides at all-guides.com

all-guides.com

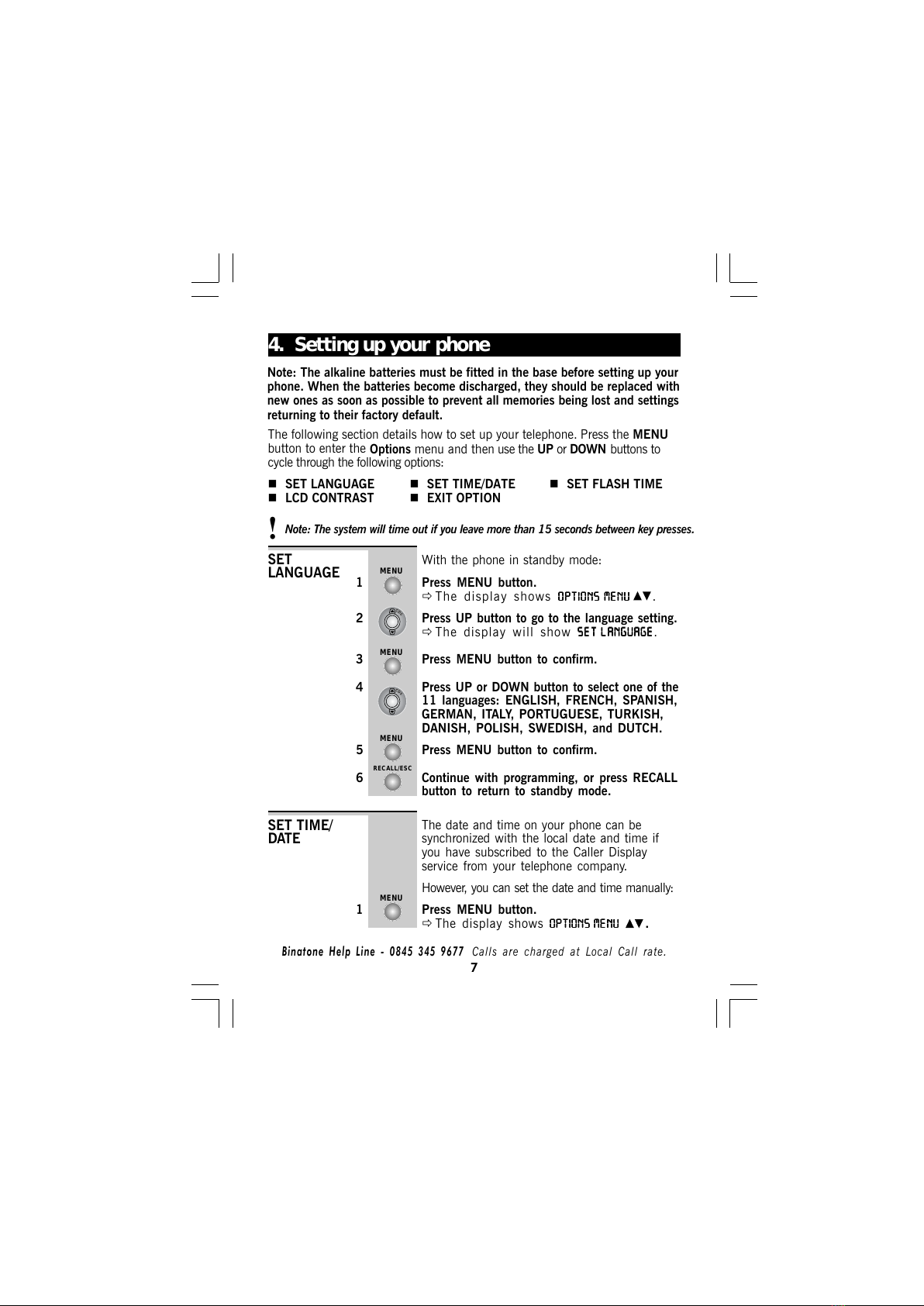

4. Setting up your phone

The following section details how to set up your telephone. Press the MENU

button to enter the

SET LANGUAGE

LCD CONTRAST

Note: The system will time out if you leave more than 15 seconds between key presses.

With the phone in standby mode:

1 Press MENU button.

ÖThe display shows

OPTIONS MENUOPTIONS MENU

OPTIONS MENU

2 Press UP button to go to the language setting.

ÖThe display will show

SET LANGUAGESET LANGUAGE

SET LANGUAGE

3 Press MENU button to confirm.

4 Press UP or DOWN button to select one of the

11 languages: ENGLISH, FRENCH, SPANISH,

GERMAN, ITALY, PORTUGUESE, TURKISH,

DANISH, POLISH, SWEDISH, and DUTCH.

5 Press MENU button to confirm.

6 Continue with programming, or press RECALL

button to return to standby mode.

SET

LANGUAGE

The date and time on your phone can be

synchronized with the local date and time if

you have subscribed to the Caller Display

service from your telephone company.

However, you can set the date and time manually:

1 Press MENU button.

ÖThe display shows

OPTIONS MENUOPTIONS MENU

OPTIONS MENU .

SET TIME/

DATE

Binatone Help Line - 0845 345 9677

Calls are charged at Local Call rate.

Options menu and then

cycle through the following options:

use the UP or DOWN buttons to

Note: The alkaline batteries must be fitted in the base before setting up your

phone. When the batteries become discharged, they should be replaced with

SET TIME/DATE SET FLASH TIME

EXIT OPTION

new ones as soon as possible to prevent all memories being lost and settings

returning to their factory default.

RECALL/ESC

All manuals and user guides at all-guides.com

Setting up continue...

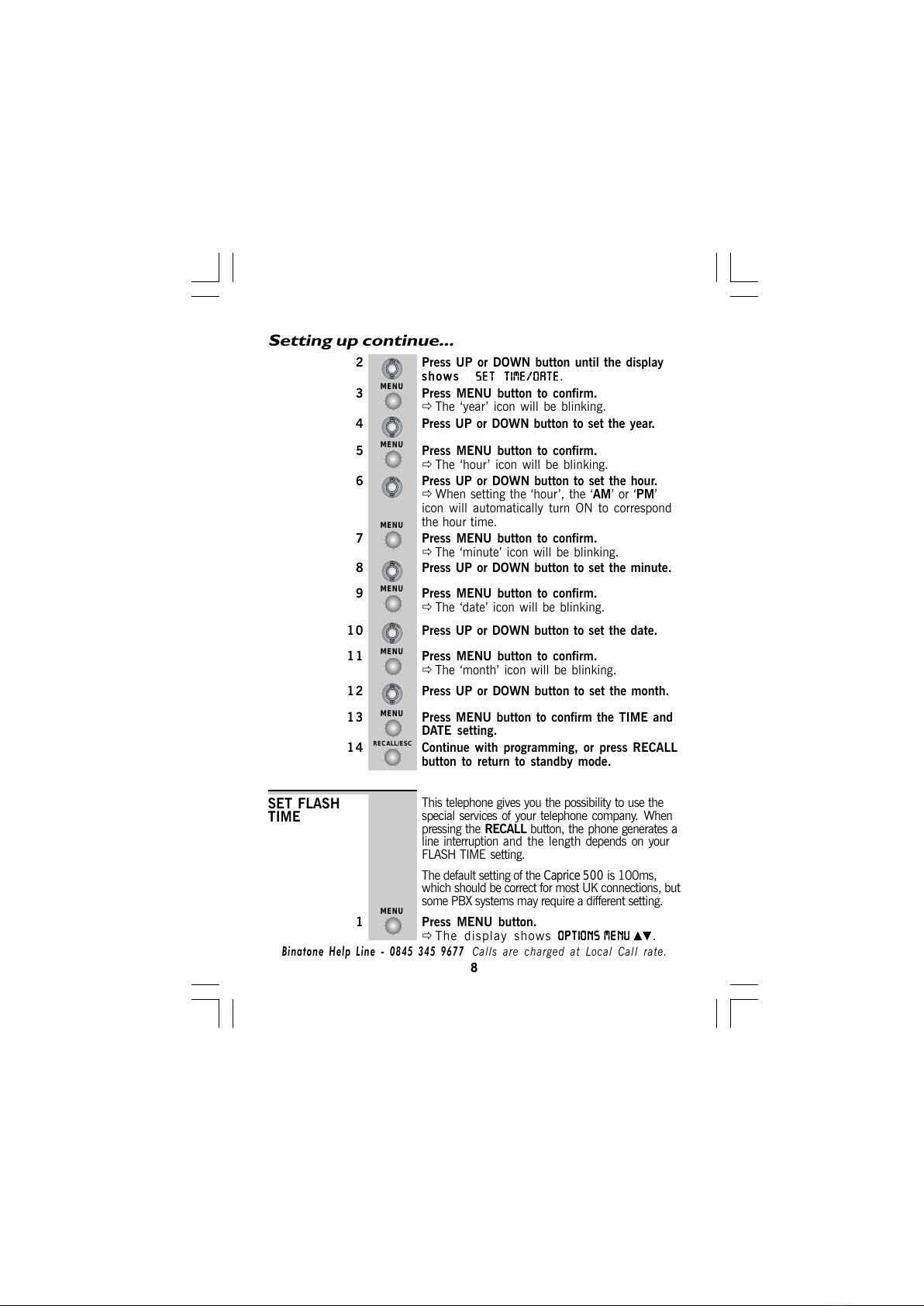

2 Press UP or DOWN button until the display

shows

SET TIME/DATESET TIME/DATE

SET TIME/DATE

3 Press MENU button to confirm.

ÖThe ‘year’ icon will be blinking.

4 Press UP or DOWN button to set the year.

5 Press MENU button to confirm.

ÖThe ‘hour’ icon will be blinking.

6 Press UP or DOWN button to set the hour.

ÖWhen setting the ‘hour’, the ‘AM’ or ‘PM’

icon will automatically turn ON to correspond

the hour time.

7 Press MENU button to confirm.

ÖThe ‘minute’ icon will be blinking.

8 Press UP or DOWN button to set the minute.

9 Press MENU button to confirm.

ÖThe ‘date’ icon will be blinking.

10 Press UP or DOWN button to set the date.

11 Press MENU button to confirm.

ÖThe ‘month’ icon will be blinking.

12 Press UP or DOWN button to set the month.

13 Press MENU button to confirm the TIME and

DATE setting.

14 Continue with programming, or press RECALL

button to return to standby mode.

Binatone Help Line - 0845 345 9677

Calls are charged at Local Call rate.

This telephone gives you the possibility to use the

special services of your telephone company. When

pressing the RECALL button, the phone generates a

line interruption and the length depends on your

FLASH TIME setting.

1 Press MENU button.

ÖThe display shows

OPTIONS MENUOPTIONS MENU

OPTIONS MENU

SET FLASH

TIME

The default setting of the Caprice 500 is 100ms,

which should be correct for most UK connections, but

some PBX systems may require a different setting.

RECALL/ESC

All manuals and user guides at all-guides.com

Setting up continue...

2 Press UP or DOWN button until the display

shows

SET FLASH TIMESET FLASH TIME

SET FLASH TIME

3 Press MENU button to confirm.

4 Press UP or DOWN button to select 100MS

(default), 300MS, or 600MS.

5 Press MENU button to confirm.

6 Continue with programming, or press RECALL

button to return to standby mode.

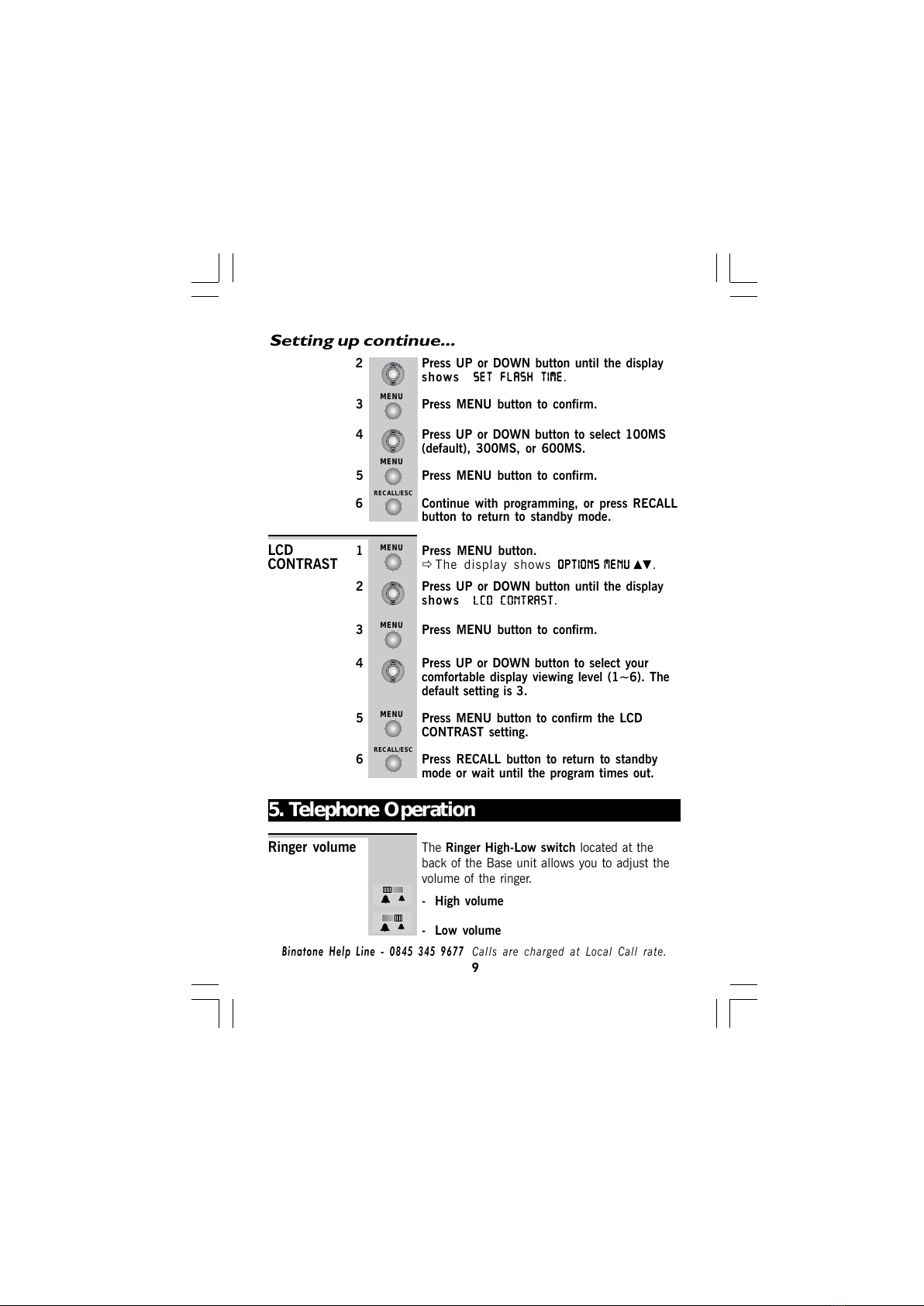

1 Press MENU button.

ÖThe display shows

OPTIONS MENUOPTIONS MENU

OPTIONS MENU

2 Press UP or DOWN button until the display

shows

LCD CONTRASTLCD CONTRAST

LCD CONTRAST

3Press MENU button to confirm.

4 Press UP or DOWN button to select your

comfortable display viewing level (1~6). The

default setting is 3.

5 Press MENU button to confirm the LCD

CONTRAST setting.

6 Press RECALL button to return to standby

mode or wait until the program times out.

LCD

CONTRAST

Binatone Help Line - 0845 345 9677

Calls are charged at Local Call rate.

5. Telephone Operation

Ringer volume The Ringer High-Low switch located at the

back of the Base unit allows you to adjust the

volume of the ringer.

- High volume

- Low volume

RECALL/ESC

All manuals and user guides at all-guides.com

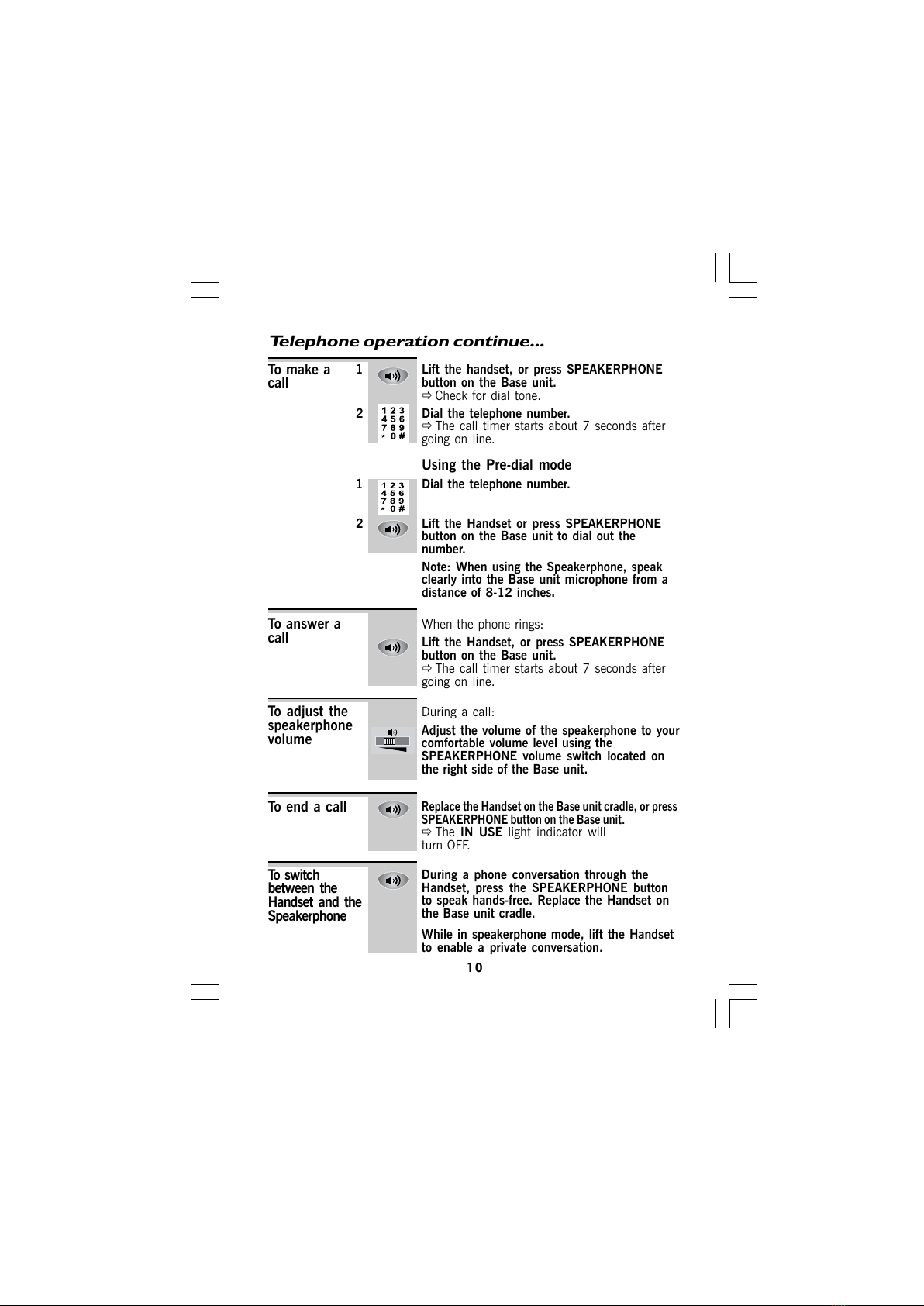

1 Lift the handset, or press SPEAKERPHONE

button on the Base unit.

ÖCheck for dial tone.

2 Dial the telephone number.

ÖThe call timer starts about 7 seconds after

going on line.

Using the Pre-dial mode

1 Dial the telephone number.

2 Lift the Handset or press SPEAKERPHONE

button on the Base unit to dial out the

number.

Note: When using the Speakerphone, speak

clearly into the Base unit microphone from a

distance of 8-12 inches.

To make a

call

When the phone rings:

Lift the Handset, or press SPEAKERPHONE

button on the Base unit.

ÖThe call timer starts about 7 seconds after

going on line.

To answer a

call

Telephone operation continue...

During a phone conversation through the

Handset, press the SPEAKERPHONE button

to speak hands-free. Replace the Handset on

the Base unit cradle.

While in speakerphone mode, lift the Handset

to enable a private conversation.

To switch

between the

Handset and the

Speakerphone

Replace the Handset on the Base unit cradle, or press

SPEAKERPHONE button on the Base unit.

ÖThe IN USE light indicator will

turn OFF.

To end a call

During a call:

Adjust the volume of the speakerphone to your

comfortable volume level using the

SPEAKERPHONE volume switch located on

the right side of the Base unit.

To adjust the

speakerphone

volume

All manuals and user guides at all-guides.com

Other manuals for CAPRICE 500

Table of contents

Other Binatone Telephone manuals

Binatone

Binatone Pegasys 8 Triple User manual

Binatone

Binatone SPIRIT 221 User manual

Binatone

Binatone 5502 User manual

Binatone

Binatone Spirit 110 User manual

Binatone

Binatone PB10 User manual

Binatone

Binatone iDECT Freedom Twin User manual

Binatone

Binatone LYRIS 410 User manual

Binatone

Binatone Acura 3000 User manual

Binatone

Binatone DSR-3716PA User manual

Binatone

Binatone ACTIVE XA2020 User manual

Binatone

Binatone Cliptel 50 User manual

Binatone

Binatone Trend 0119 User manual

Binatone

Binatone Speakeasy 17 User manual

Binatone

Binatone 2102 User manual

Binatone

Binatone iDECT L1i System User manual

Binatone

Binatone Smart 66 User manual

Binatone

Binatone IDECT X3I SYSTEM User manual

Binatone

Binatone SPIRIT 710 User manual

Binatone

Binatone AQUAREL XDC1520 User manual

Binatone

Binatone Trend LCD User manual

Binatone

Binatone DECT Combo Plus Single User manual

Binatone

Binatone IDECT X3 User manual

Binatone

Binatone LYRIS 110 User manual

Binatone

Binatone LYRIS 310 User manual

Popular Telephone manuals by other brands

GE 2-9480 user guide

Geemarc

Geemarc PHOTOPHONE 155 user guide

D-Link

D-Link DWR-720/PW user manual

Interquartz

Interquartz Gemini IQ333 operating instructions

SSS Siedle

SSS Siedle HT 840-0 operating instructions

Motorola

Motorola TITANIUM manual

Panasonic

Panasonic ICX Quick reference guide

LG H870DS user guide

Samsung

Samsung GT-I9500 Service manual

AT&T

AT&T Trimline 205 user manual

Selta

Selta zenyth 600 user guide

Doro

Doro AFTI 20 user guide

UNIQCELL

UNIQCELL A1 user guide

Panasonic

Panasonic KX Series User Sheet

Jabra

Jabra SP5050 - Bluetooth hands-free Speakerphone manual

BT Decor 425 user guide

NEC

NEC SV8500 Reference sheet

Teledex

Teledex PEARL user guide
